0-28 — VENTILATION SYSTEM (#113779) — 123 parça

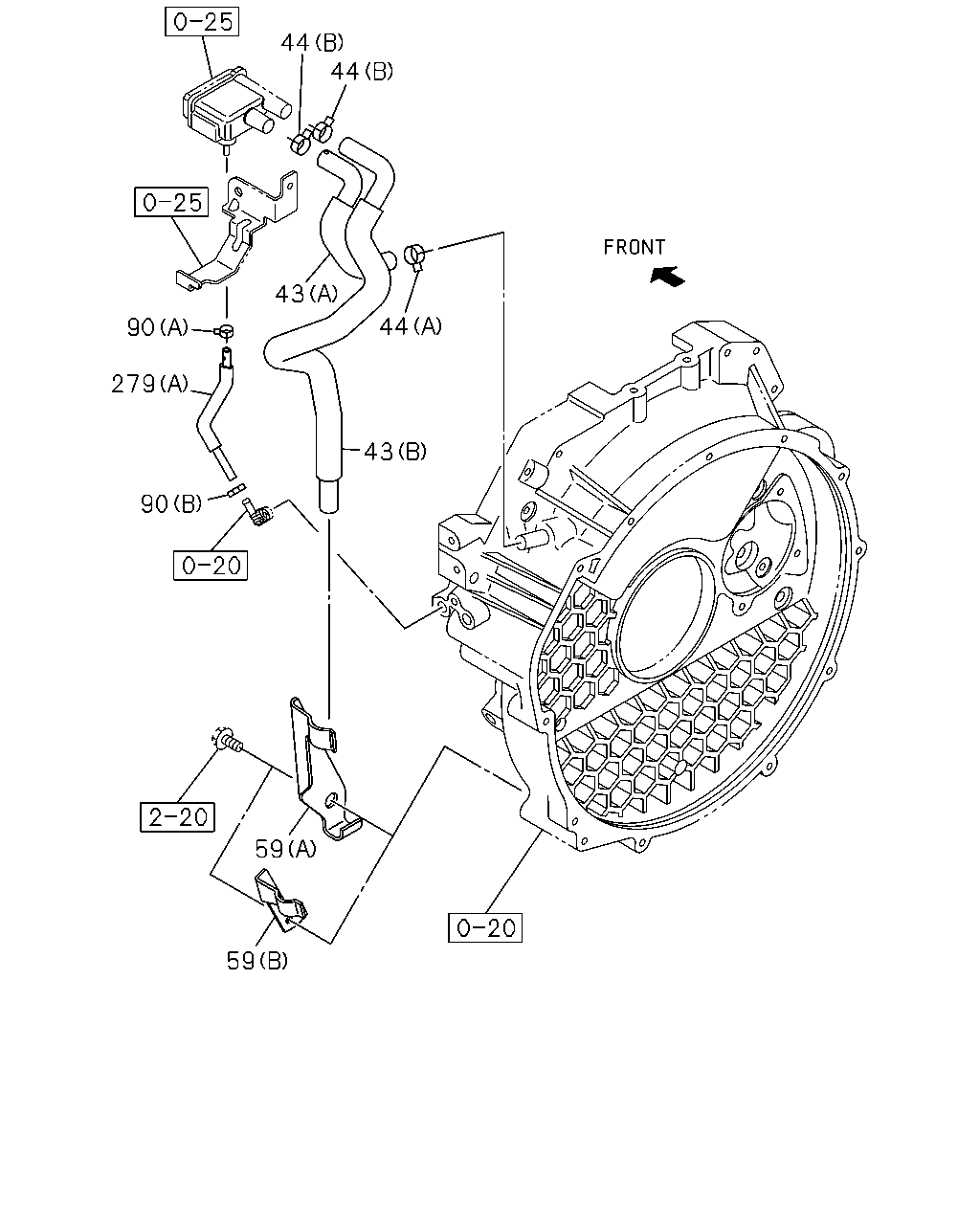

59 59 90 279 90 43 43 44 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; PCV EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E)	8-98057-033-0	01	1	1406-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98195-078-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO4 SPECIFICATION<NT4> (C) L=700	1-09707-190-0	01	1	1309-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1309-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1309-	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B)	8-98249-517-0	01	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (D) L=212	8-94107-652-0	01	1	1406-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	02	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE (C) ID=33.6	8-94362-518-0	01	1	1302-		●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1309-	●

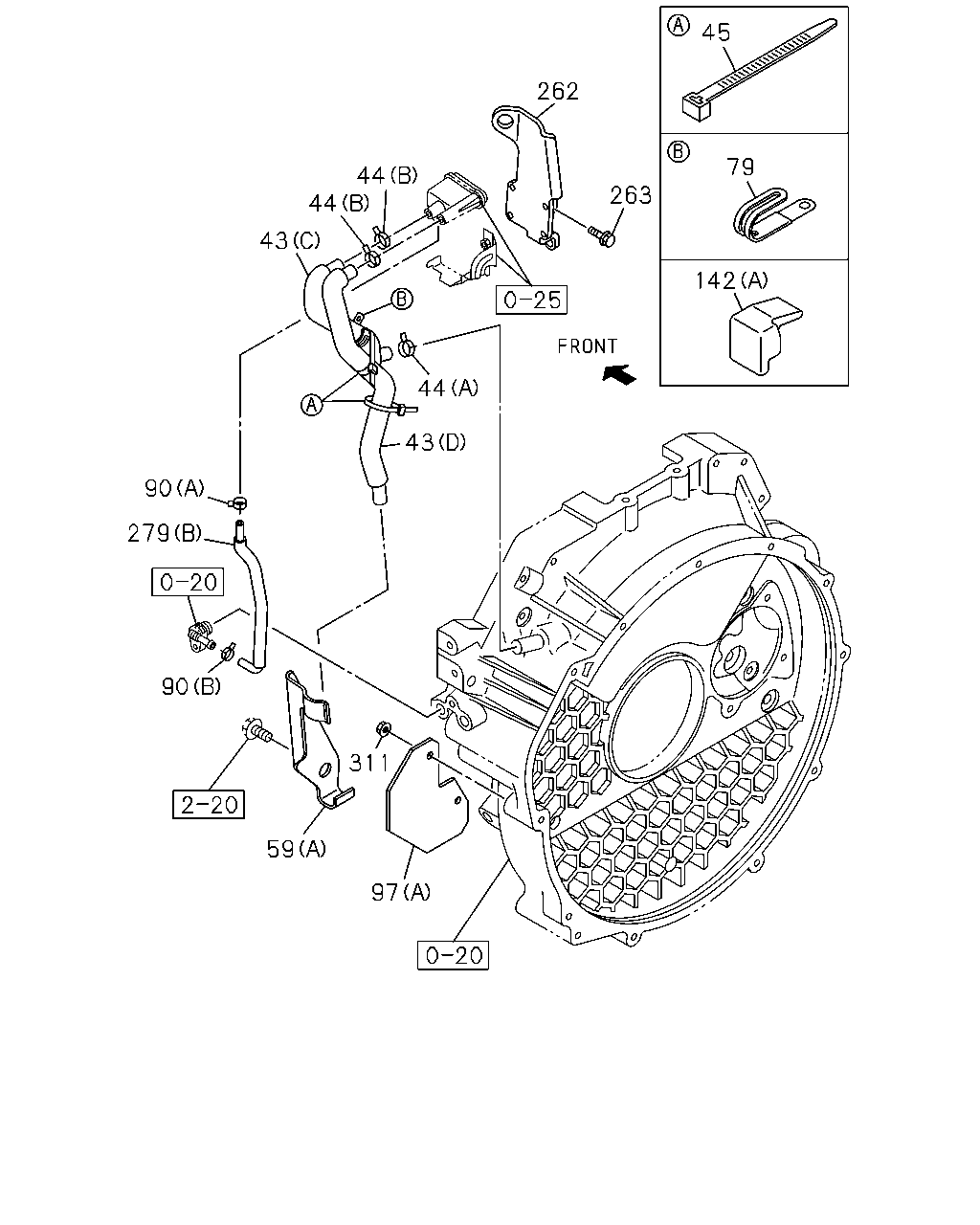

45 79 142 263 262 44 44 43 44 43 90 279 90 59 311 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; PCV EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E)	8-98057-033-0	01	1	1406-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98195-078-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO4 SPECIFICATION<NT4> (C) L=700	1-09707-190-0	01	1	1309-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1309-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1309-	●
45	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> L=202	8-98143-872-0	02	1	1302-1308	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B)	8-98249-517-0	01	1	1309-	●
79	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> L=36	8-94224-891-1	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (D) L=212	8-94107-652-0	01	1	1406-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	02	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE (C) ID=33.6	8-94362-518-0	01	1	1302-		●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B)	8-98093-946-3	01	1	1406-	●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> ENGINE HIGH TORQUE<Q5W> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98249-125-0	01	1	1307-1308	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (D)	8-98153-109-0	01	1	1309-	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (C)	8-98172-779-0	01	1	1309-	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (A)	8-98024-528-0	01	1	1302-1308	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (B)	8-98139-613-0	01	1	1309-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-98296-130-0	01	1	1502-	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1309-	●
311	NUT; BRKT EURO4 SPECIFICATION<NT4> ENGINE HIGH TORQUE<Q5W> TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-110-0	02	1	1307-1308	●

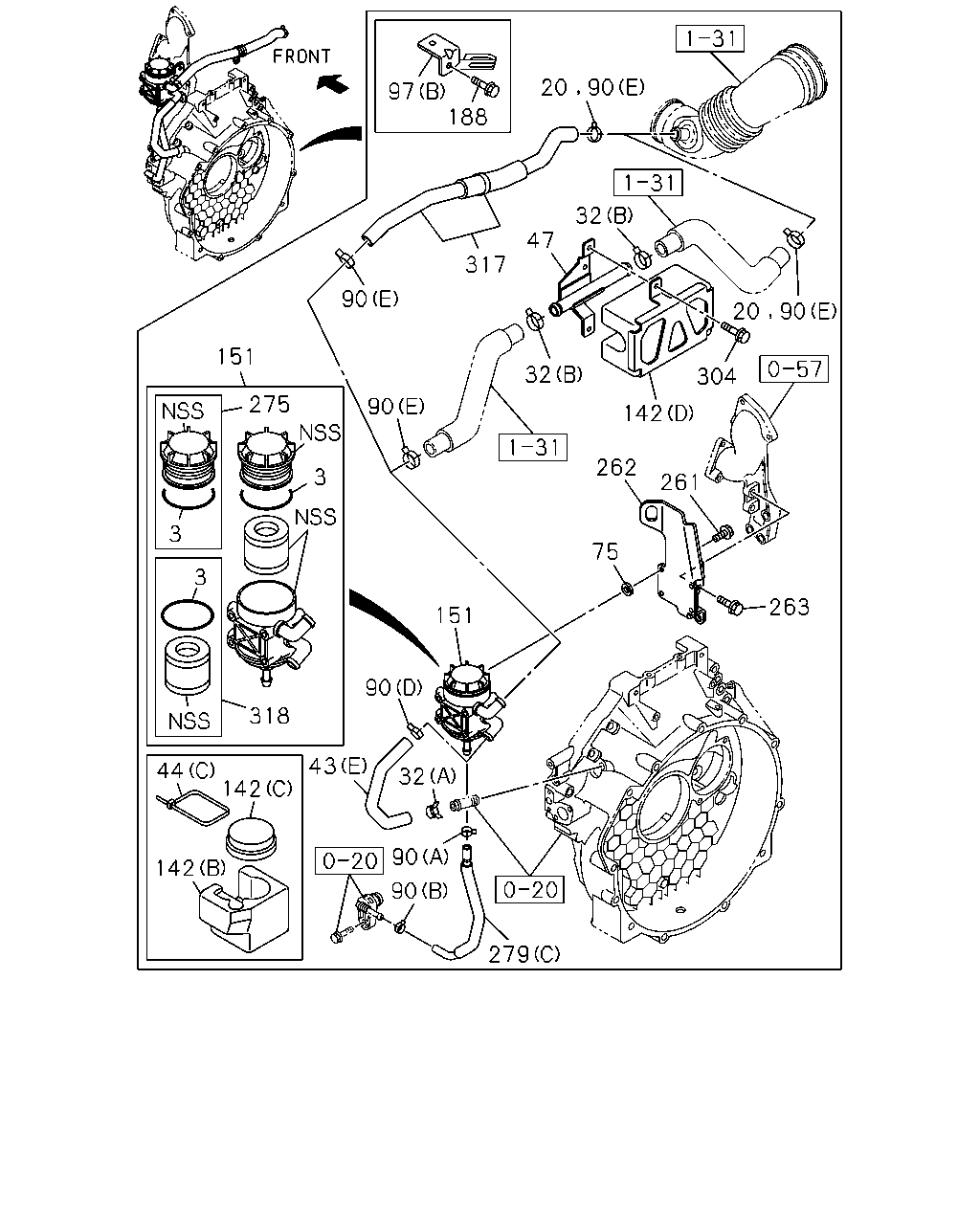

151 275 3 3 3 318 142 44 142 43 32 90 151 90 90 317 47 32 20 188 97 32 142 304 20 90 263 90 90 279 75 262 261 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1309-	●
20	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) ID=28	1-09707-124-0	01	1	1406-	●
20	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> ID=31.2	8-97237-146-0	01	1	1309-1405	●
20	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) ID=31.2	8-97237-146-0	01	1	1406-	●
32	CLIP; VENT HOSE EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	01	1	1309-	●
32	CLIP; VENT HOSE EURO4 SPECIFICATION<NT4> (B) ID=24	8-98025-921-0	02	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (E)	8-98057-033-0	01	1	1406-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98195-078-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO4 SPECIFICATION<NT4> (C) L=700	1-09707-190-0	01	1	1309-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1309-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1309-	●
47	PIPE ASM; PCV EURO4 SPECIFICATION<NT4>	8-98195-048-1	01	1	1309-	●
75	WASHER EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	04	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (D) L=212	8-94107-652-0	01	1	1406-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	02	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE (C) ID=33.6	8-94362-518-0	01	1	1302-		●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B)	8-98093-946-3	01	1	1406-	●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> ENGINE HIGH TORQUE<Q5W> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98249-125-0	01	1	1307-1308	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (D)	8-98153-109-0	01	1	1309-	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (C)	8-98172-779-0	01	1	1309-	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (A)	8-98024-528-0	01	1	1302-1308	●
142	COVER; PCV EURO4 SPECIFICATION<NT4> (B)	8-98139-613-0	01	1	1309-	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97324-682-1	01	1	1309-	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) M8X12 FLANGE	0-28050-812-0	01	1	1406-	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	04	1	1309-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-98296-130-0	01	1	1502-	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97389-360-0	01	1	1309-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1309-	●
304	BOLT; COVER EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	03	1	1309-	●
317	HOSE; RUBBER,OIL SEPARATOR EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3)	8-98095-931-1	01	1	1406-	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-98002-346-0	01	1	1309-	●

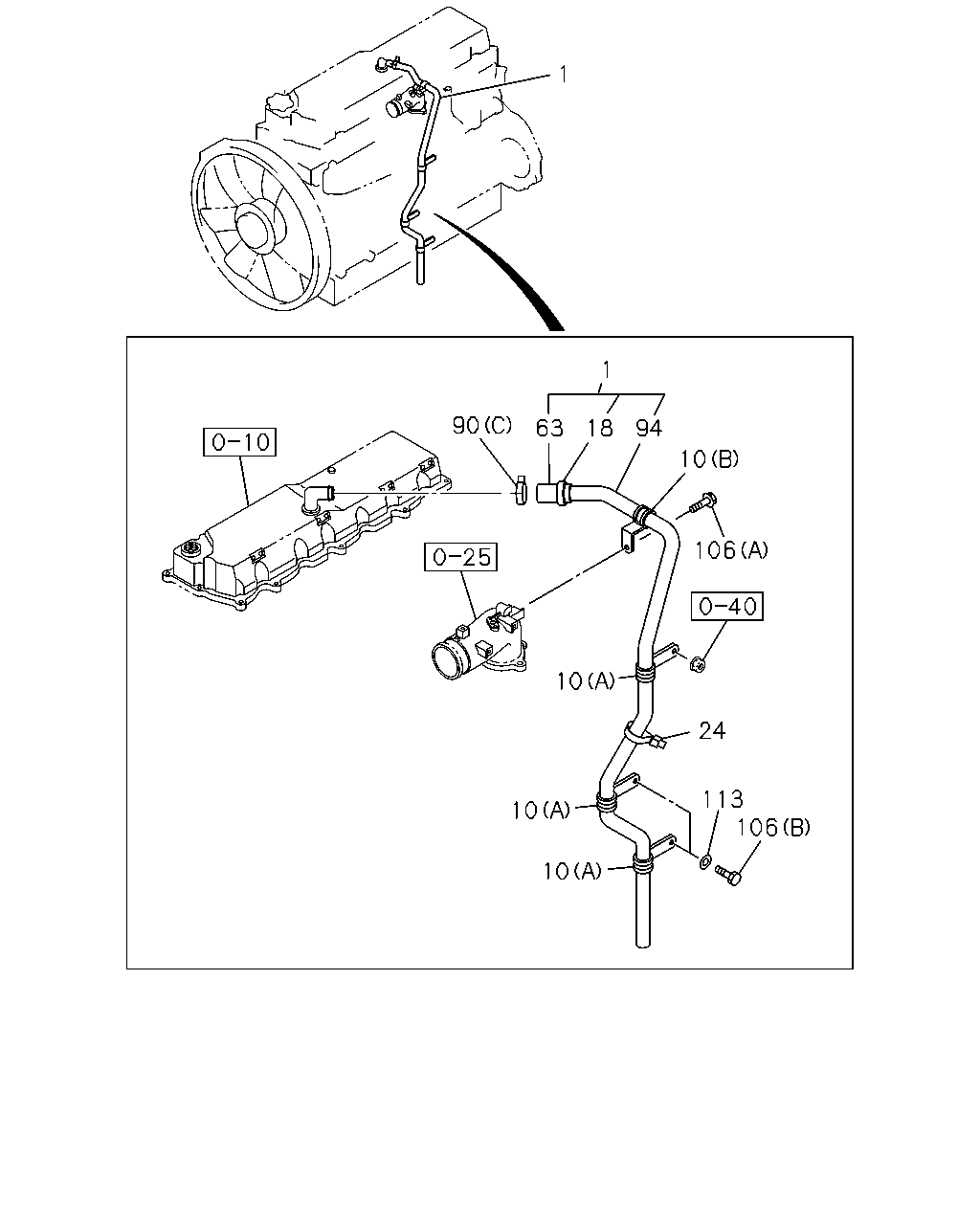

90 63 18 94 106 10 10 10 106 113 24 10 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	8-94392-083-3	01	1	1302-		●
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	1302-		●
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-		●
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6	8-94362-518-0	01	1	1302-		●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	01	1	1302-		●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	1302-		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (D) L=212	8-94107-652-0	01	1	1406-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	02	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE (C) ID=33.6	8-94362-518-0	01	1	1302-		●
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	1302-		●
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1302-		●
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	1302-		●
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	1302-		●
