Sayfa 0-28 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶

0-28 — VENTILATION SYSTEM (#113774) — 150 parça

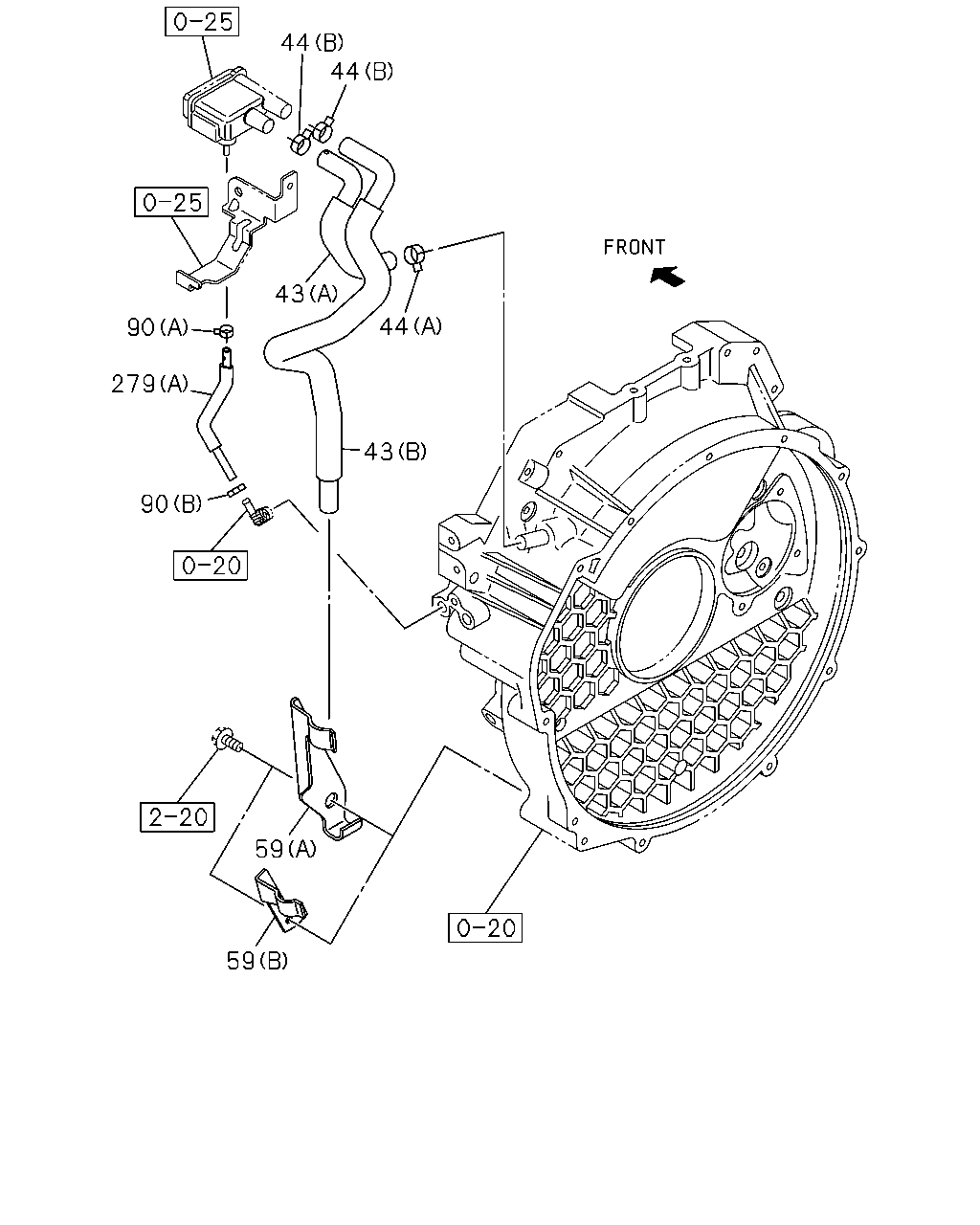

44 44 44 43 90 279 43 90 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1302-1505	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98057-033-0	01	1	1506-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98215-654-1	01	1	1302-1308	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98249-510-0	01	1	1309-1511	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (C)	8-98215-656-1	01	1	1302-1511	●	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=21	8-94242-034-0	01	1	1302-1511	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1511		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1512-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1512-		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=22.7	8-94466-382-0	02	1	1302-1511	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1511		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1512-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1512-		●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308		●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98249-517-0	01	1	1309-1511	●
59	CLIP; HOSE (B)	8-98249-517-0	01	1	1309-1511		●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B)	8-98249-517-0	01	1	1512-	●
59	CLIP; HOSE (B)	8-98249-517-0	01	1	1512-		●
90	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> (D) ID=28	1-09707-124-0	03	1	1506-	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11	8-94238-570-0	01	1	1302-1511	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1511		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1512-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1512-		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=28	1-09707-124-0	03	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) L=212	8-94107-652-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=212	8-94107-652-0	01	1	1506-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (C) ID=13	8-94238-571-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=13	8-94238-571-0	01	1	1506-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1302-1505	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-97386-653-1	01	1	1506-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> (B)	8-98215-655-0	01	1	1302-1511	●	●

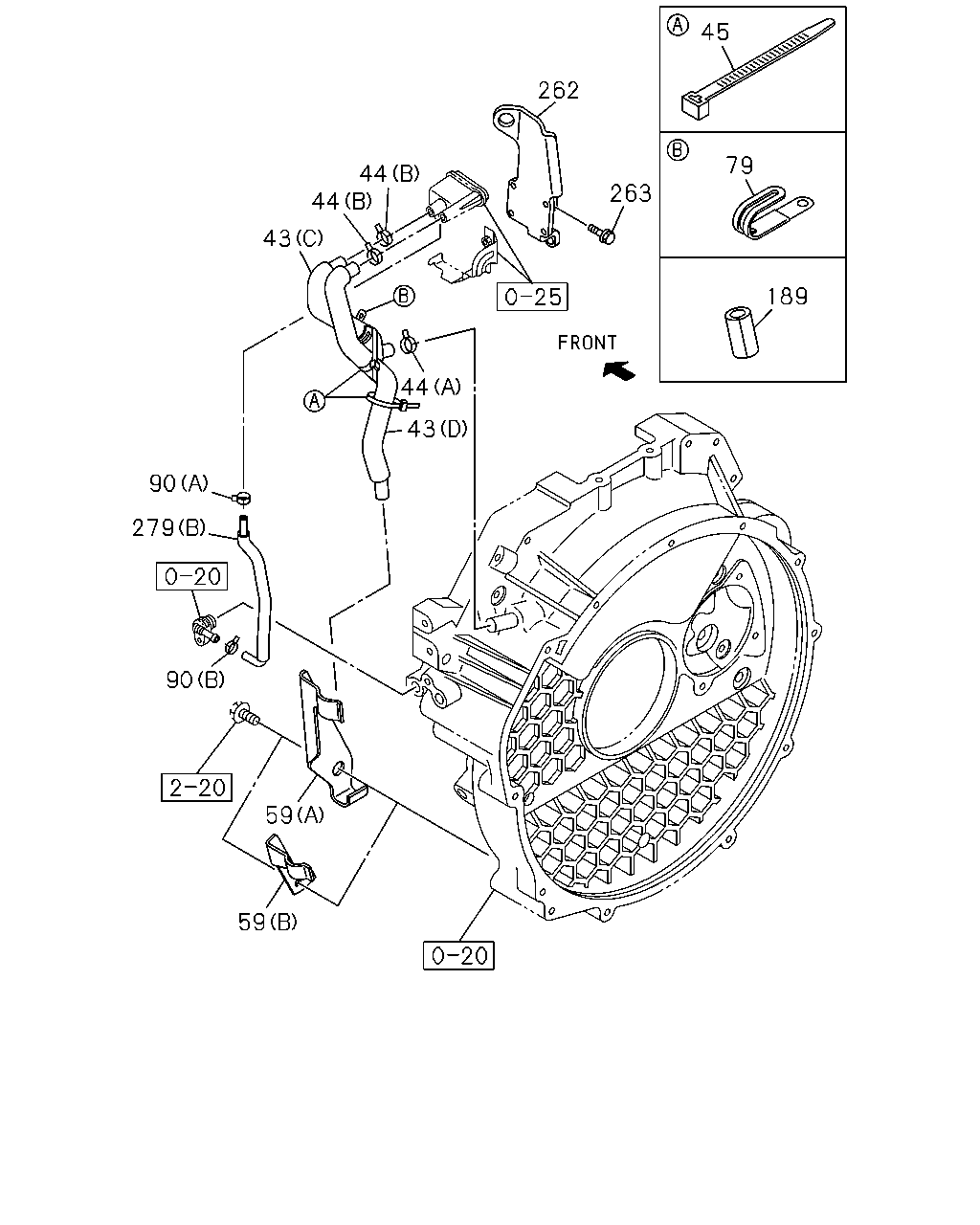

59 59 90 279 90 43 44 43 44 44 262 263 189 79 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1302-1505	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98057-033-0	01	1	1506-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98215-654-1	01	1	1302-1308	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98249-510-0	01	1	1309-1511	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (C)	8-98215-656-1	01	1	1302-1511	●	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=21	8-94242-034-0	01	1	1302-1511	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1511		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1512-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1512-		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=22.7	8-94466-382-0	02	1	1302-1511	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1511		●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1512-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1512-		●
45	CLIP; PCV HOSE EURO3 SPECIFICATION<NT3> L=202	8-98143-872-0	02	1	1302-1511	●	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308		●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98249-517-0	01	1	1309-1511	●
59	CLIP; HOSE (B)	8-98249-517-0	01	1	1309-1511		●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (B)	8-98249-517-0	01	1	1512-	●
59	CLIP; HOSE (B)	8-98249-517-0	01	1	1512-		●
79	CLIP; PCV HOSE EURO3 SPECIFICATION<NT3> L=36	8-94224-891-1	01	1	1302-1511	●	●
90	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> (D) ID=28	1-09707-124-0	03	1	1506-	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11	8-94238-570-0	01	1	1302-1511	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1511		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1512-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1512-		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=28	1-09707-124-0	03	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) L=212	8-94107-652-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=212	8-94107-652-0	01	1	1506-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (C) ID=13	8-94238-571-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=13	8-94238-571-0	01	1	1506-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●	●
189	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> ID=10 OD=14 L=30	9-09956-682-0	01	1	1302-1511	●	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98036-498-0	01	1	1302-1501		●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98296-130-0	01	1	1502-1505	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98296-130-0	01	1	1502-1505		●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5>	8-98296-130-0	01	1	1506-1511	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98296-130-0	01	1	1506-1511		●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98296-130-0	01	1	1512-	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-1505	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M12X30 FLANGE	0-28151-230-0	03	1	1302-1505		●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M12X30 FLANGE	0-28151-230-0	03	1	1506-1511	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M12X30 FLANGE	0-28151-230-0	03	1	1506-1511		●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M12X30 FLANGE	0-28151-230-0	03	1	1512-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1302-1505	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-97386-653-1	01	1	1506-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> (B)	8-98215-655-0	01	1	1302-1511	●	●

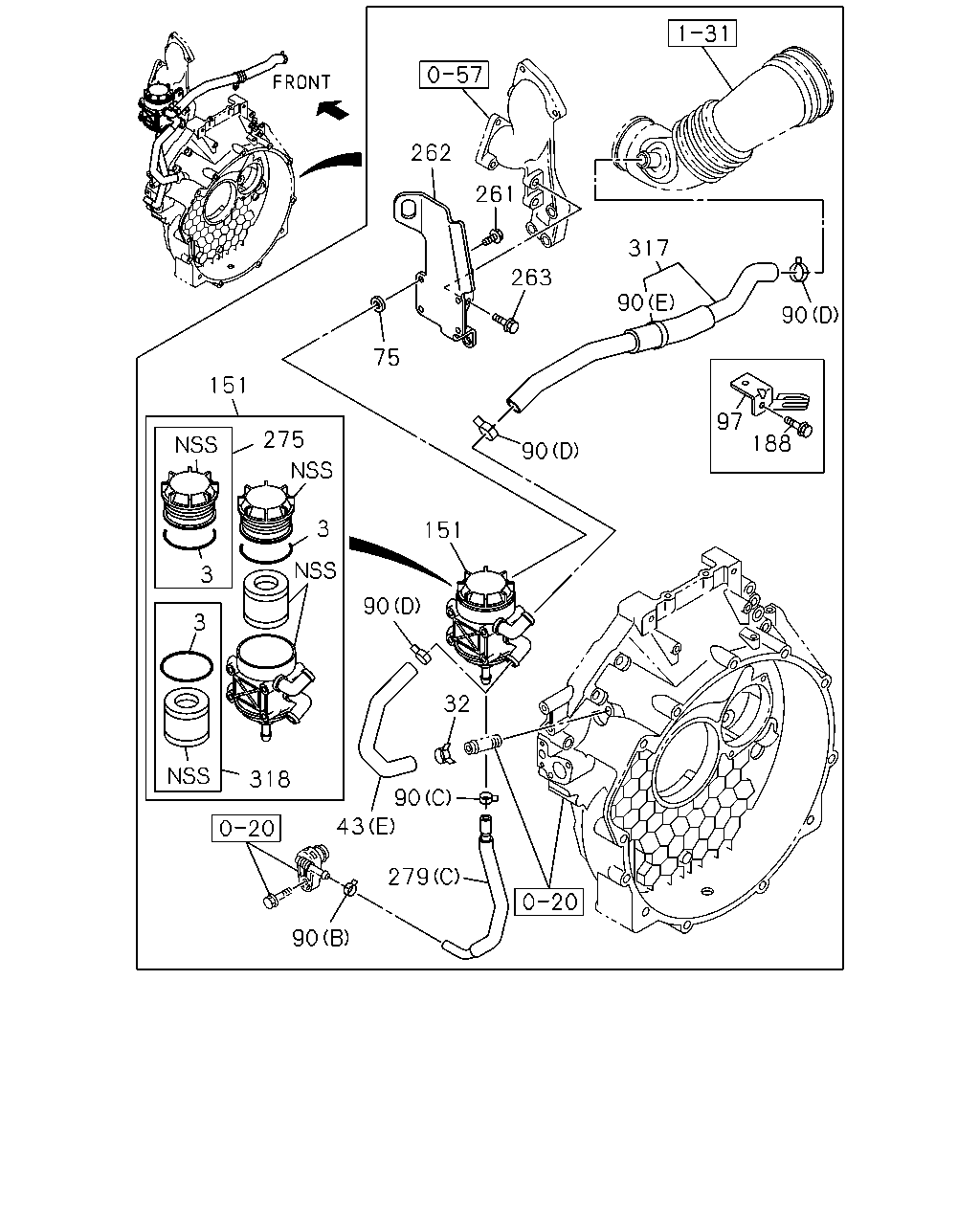

151 275 262 261 263 317 90 90 97 188 90 151 90 3 3 3 318 43 279 90 75 90 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1302-1505	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97385-921-0	01	1	1506-	●
32	CLIP; VENT HOSE EURO4 SPECIFICATION<NT4> ID=21	8-94242-034-0	01	1	1302-1505	●
32	CLIP; VENT HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=21	8-94242-034-0	01	1	1506-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1302-1505	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98057-033-0	01	1	1506-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98215-654-1	01	1	1302-1308	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (D)	8-98249-510-0	01	1	1309-1511	●	●
43	HOSE; PCV EURO3 SPECIFICATION<NT3> (C)	8-98215-656-1	01	1	1302-1511	●	●
75	WASHER EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	04	1	1302-1505	●
75	WASHER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=9 OD=18 T=5	9-14149-173-0	04	1	1506-	●
90	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> (D) ID=28	1-09707-124-0	03	1	1506-	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=11	8-94238-570-0	01	1	1302-1511	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1511		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1512-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1512-		●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=28	1-09707-124-0	03	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) L=212	8-94107-652-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=212	8-94107-652-0	01	1	1506-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (C) ID=13	8-94238-571-0	01	1	1302-1505	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=13	8-94238-571-0	01	1	1506-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●	●
97	BRACKET; HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98093-946-3	01	1	1302-1505	●
97	BRACKET; HOSE EURO3 SPECIFICATION<NT3>	8-98093-946-3	01	1	1302-1505		●
97	BRACKET; HOSE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5>	8-98093-946-3	01	1	1506-1511	●
97	BRACKET; HOSE EURO3 SPECIFICATION<NT3>	8-98093-946-3	01	1	1506-1511		●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98093-946-3	01	1	1512-	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97324-682-1	01	1	1302-1505	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97324-682-1	01	1	1506-	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	01	1	1302-1505		●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M8X12 FLANGE	0-28050-812-0	01	1	1506-1511	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	01	1	1506-1511		●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	04	1	1302-1505	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98036-498-0	01	1	1302-1501		●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98296-130-0	01	1	1502-1505	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98296-130-0	01	1	1502-1505		●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5>	8-98296-130-0	01	1	1506-1511	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-98296-130-0	01	1	1506-1511		●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98296-130-0	01	1	1512-	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-1505	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M12X30 FLANGE	0-28151-230-0	03	1	1302-1505		●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M12X30 FLANGE	0-28151-230-0	03	1	1506-1511	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M12X30 FLANGE	0-28151-230-0	03	1	1506-1511		●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M12X30 FLANGE	0-28151-230-0	03	1	1512-	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97389-360-0	01	1	1302-1505	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97389-360-0	01	1	1506-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C)	8-97386-653-1	01	1	1302-1505	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-97386-653-1	01	1	1506-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> (B)	8-98215-655-0	01	1	1302-1511	●	●
317	HOSE; RUBBER,OIL SEPARATOR EURO4 SPECIFICATION<NT4>	8-98095-931-1	01	1	1302-1505	●
317	HOSE; RUBBER,OIL SEPARATOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98095-931-1	01	1	1506-	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-98002-346-0	01	1	1302-1505	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98002-346-0	01	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
