◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#113770) — 76 parça

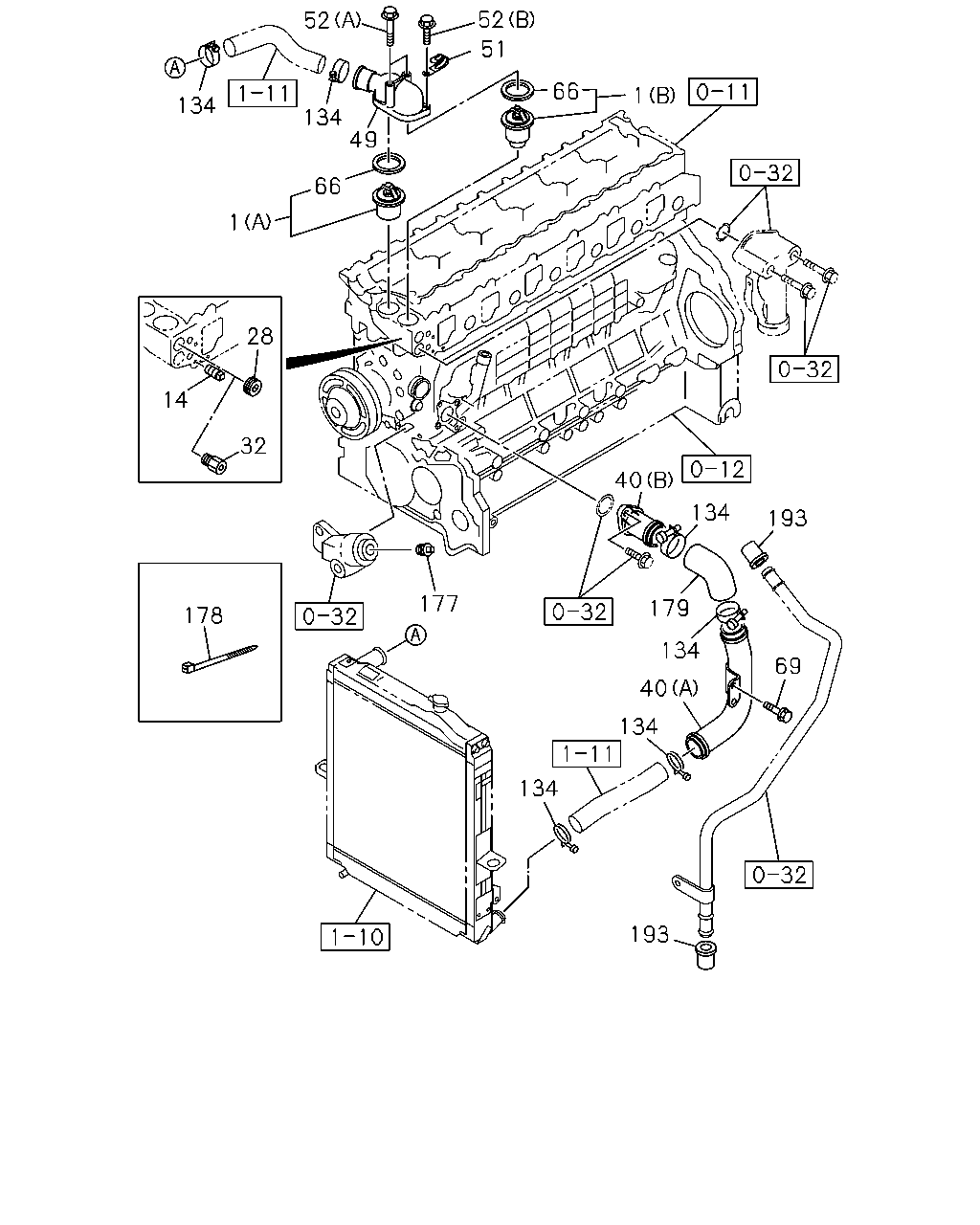

çizim 326368
52 52 134 134 66 51 49 66 1 1 40 134 193 179 134 40 69 134 134 193 177 178 32 14 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1302-1505 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1506- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 1302-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502-1505 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1506- ● ● ●
1 THERMOSTAT
(D) 85 CELSIUS 		8-97300-787-3 01 1 1305- ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97300-790-3 01 1 1305- ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1302-1505 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1506- ● ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 1305- ●
28 PLUG; HTR
EURO4 SPECIFICATION<NT4> PT3/4 		1-09605-020-0 01 1 1302-1505 ● ●
28 PLUG; HTR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> PT3/4 		1-09605-020-0 01 1 1506- ●
28 PLUG; HTR
EURO4 SPECIFICATION<NT4> PT3/4 		1-09605-020-0 01 1 1506- ●
28 PLUG; HTR
EURO5 SPECIFICATION<NT5> PT3/4 		1-09605-020-0 01 1 1506- ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98177-501-0 01 1 1302-1511 ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-98177-501-0 01 1 1512- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1302-1505 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1506- ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1302-1505 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1506- ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1302-1505 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1506- ● ● ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1305- ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1506- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-1505 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X80 FLANGE 		0-28050-880-0 02 1 1302-1511 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE 		0-28050-880-0 02 1 1512- ● ●
52 BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1302-1505 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1506- ●
52 BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1506- ●
52 BOLT; JOINT,THERMOSTAT
EURO5 SPECIFICATION<NT5> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1506- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1302-1304 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1305-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502-1505 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1506- ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1302-1505 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1302-1505 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1506- ● ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1302-1511 ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1512- ● ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1302-1505 ● ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1506- ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1506- ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1506- ●
178 CLIP; BAND,HARNESS
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=250 		8-98216-430-0 02 1 1302-1404 ●
178 CLIP; BAND,HARNESS
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=250 		8-98216-430-0 02 1 1405-1505 ● ●
178 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) L=250 		8-98216-430-0 02 1 1506- ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1302-1505 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1506- ● ● ●
193 CAP; RUBBER
EURO3 SPECIFICATION<NT3> 		8-94107-678-0 02 1 1302-1511 ● ●

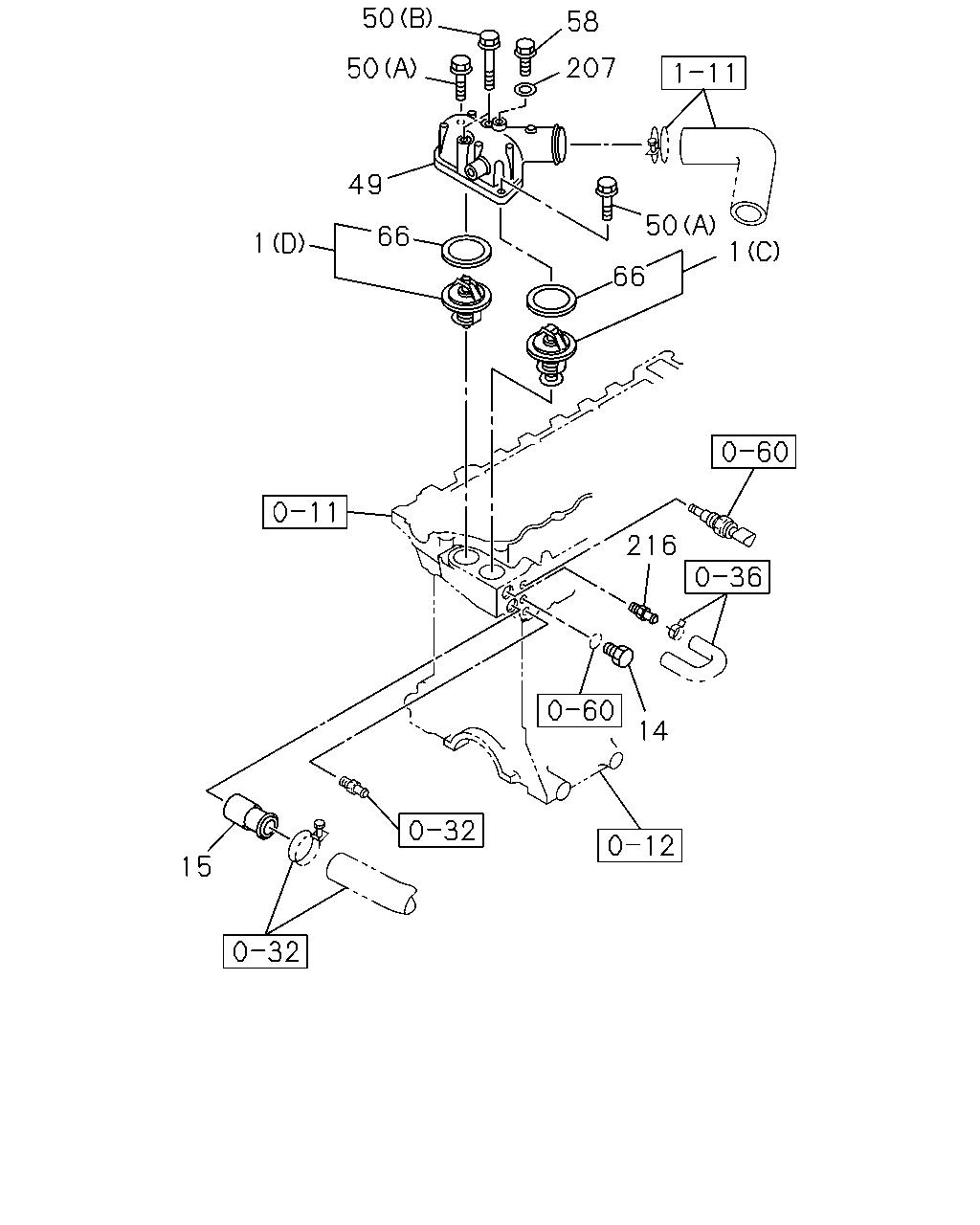

çizim 351969
50 58 50 207 49 1 50 66 66 1 216 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1302-1505 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1506- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 1302-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502-1505 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1506- ● ● ●
1 THERMOSTAT
(D) 85 CELSIUS 		8-97300-787-3 01 1 1305- ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97300-790-3 01 1 1305- ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1302-1505 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1506- ● ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 1305- ●
15 PIPE; BYPASS 8-94342-574-0 01 1 1305- ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1302-1505 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1506- ● ● ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1305- ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1305- ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1305- ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1305- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1302-1304 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1305-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502-1505 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1506- ● ● ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1305- ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1305- ●
