Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#113763) — 434 parça

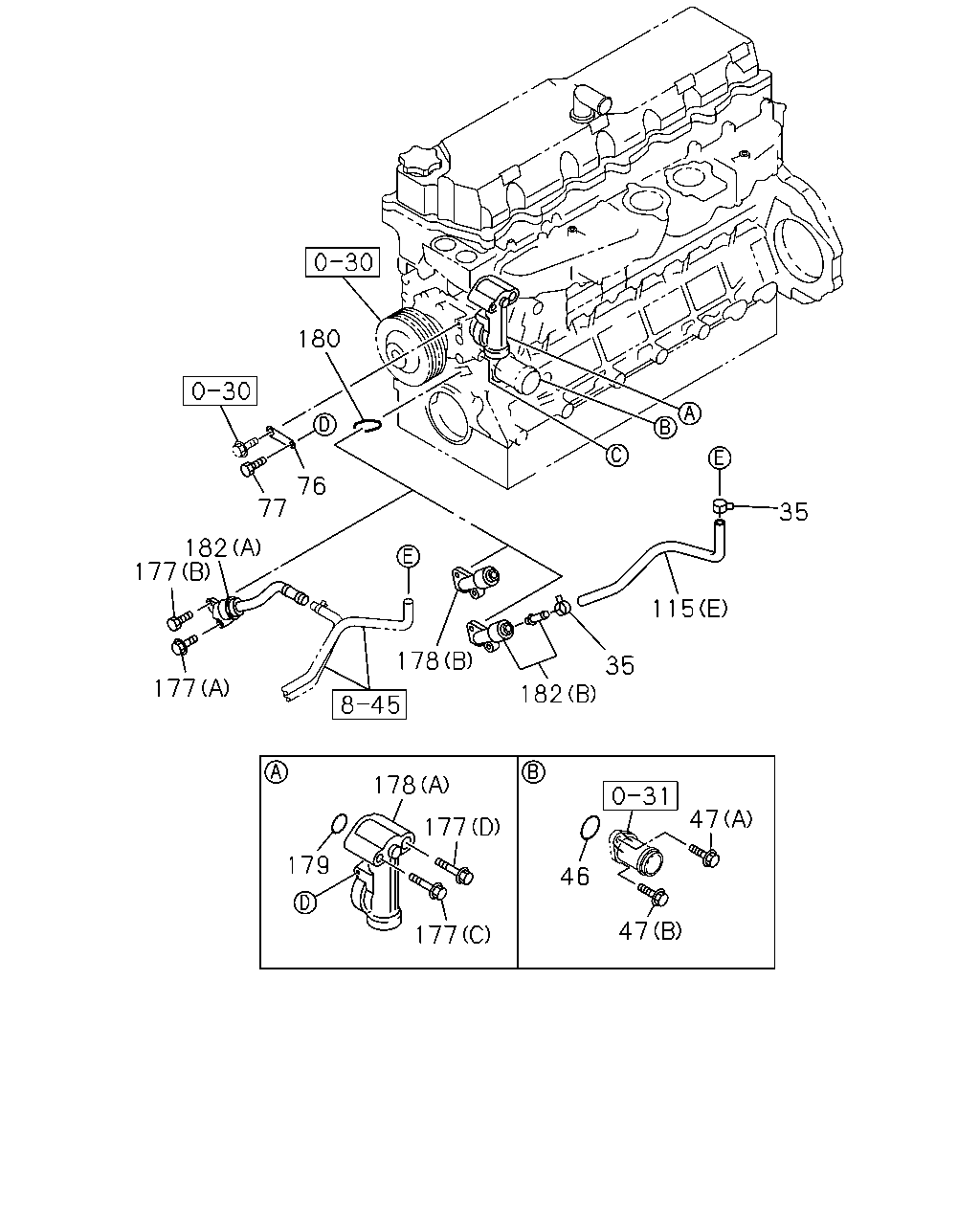

47 47 46 177 177 178 179 182 178 115 35 35 76 77 182 177 177 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-1505	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1506-1511	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=20	8-98127-648-0	08	1	1512-	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-1505	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=20	8-98127-648-0	08	1	1506-1511	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1512-	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1511	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1512-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-735-1	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-749-0	02	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98043-192-0	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1506-	●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98009-361-0	01	1	1305-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98095-678-3	01	1	1305-		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1302-1511	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1512-	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-	●
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1302-1505	●
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1506-	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1302-	●

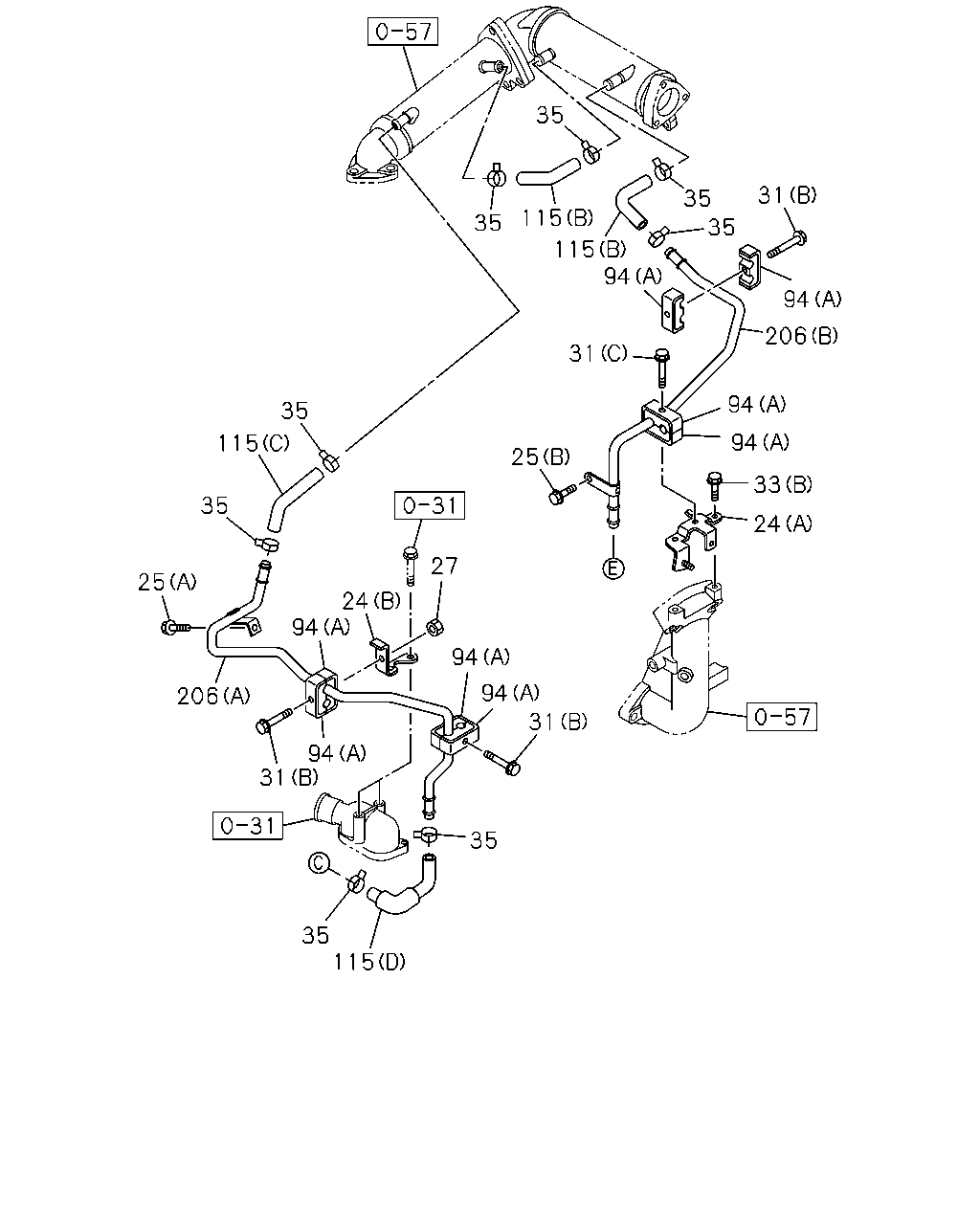

31 94 206 94 94 33 24 25 31 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98051-626-1	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1506-1511	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1512-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98000-557-2	01	1	1506-	●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97379-140-0	01	1	1305-		●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
33	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X10 FLANGE	0-28050-610-0	02	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-1511	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1512-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-1511	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-1505	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97605-129-1	08	1	1506-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1305-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-1505	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B)	8-98000-480-1	01	1	1506-1511	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98000-480-1	01	1	1512-	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-1505	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97604-928-2	01	1	1506-	●

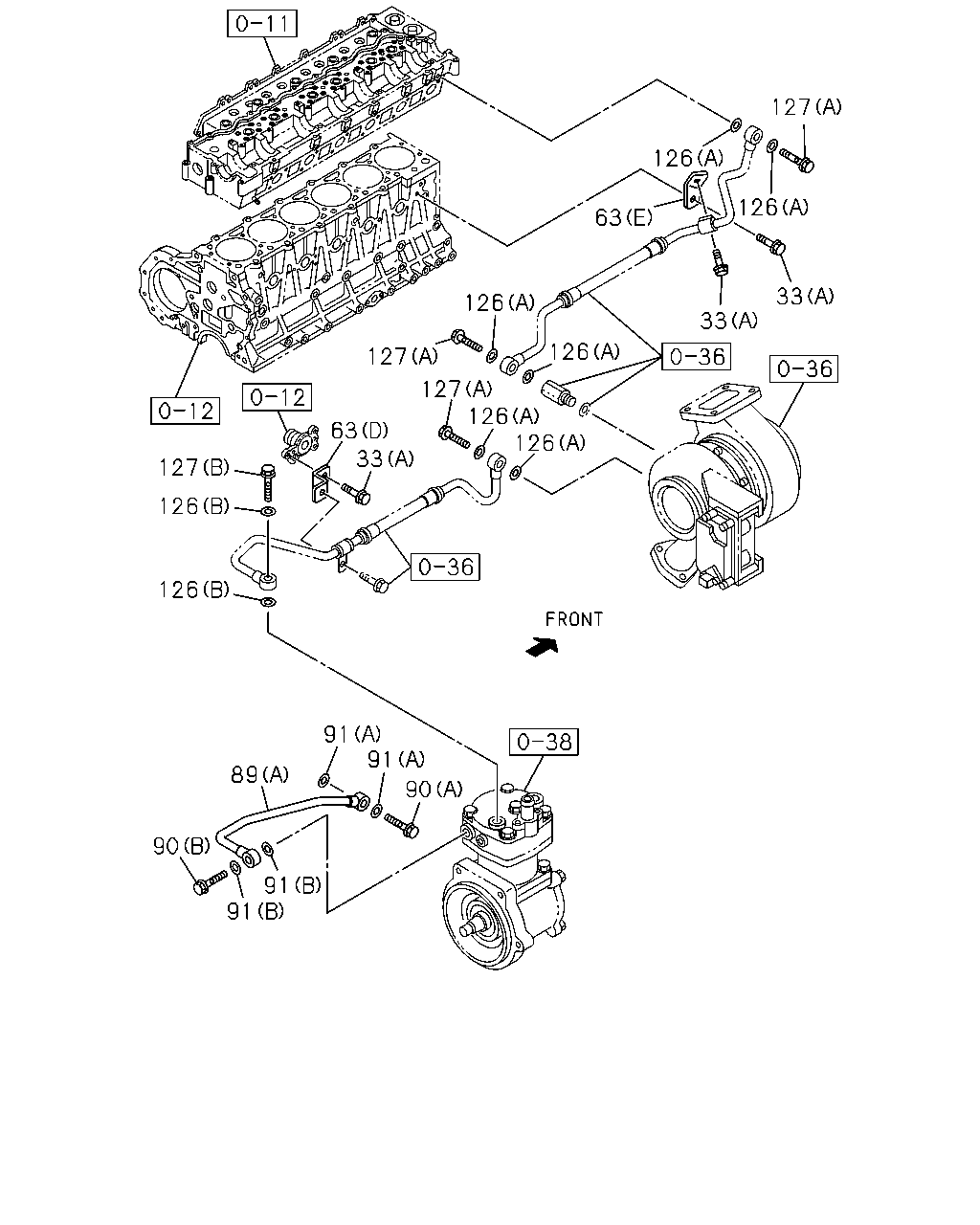

127 126 126 90 89 91 91 90 91 91 33 63 127 126 126 127 126 126 63 126 33 33 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
33	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X10 FLANGE	0-28050-610-0	02	1	1305-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94392-951-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98074-252-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-253-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-1505	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98046-784-0	01	1	1506-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98153-457-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97611-095-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97610-086-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97358-699-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97376-783-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (D)	8-98095-668-0	01	1	1305-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1305-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1305-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1302-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-1505	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1506-	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-1511	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1512-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M16X25	5-09675-028-2	01	1	1302-1511	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1512-	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-1505	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1506-	●

35 35 115 115 94 35 35 31 94 206 94 94 33 24 31 25 35 115 35 25 94 24 27 94 94 31 94 206 31 35 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98051-626-1	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1506-1511	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1512-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98000-557-2	01	1	1506-	●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97379-140-0	01	1	1305-		●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1511	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-1505	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1302-1505	●
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M6 FLANGE	0-91180-106-0	01	1	1506-1511	●
27	NUT; PIPE FIX EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6 FLANGE	0-91180-106-0	01	1	1512-	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
33	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X10 FLANGE	0-28050-610-0	02	1	1305-		●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-1505	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1506-1511	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=20	8-98127-648-0	08	1	1512-	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-1505	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=20	8-98127-648-0	08	1	1506-1511	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1512-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-1511	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1512-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-1511	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-1505	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97605-129-1	08	1	1506-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1511	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1512-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-735-1	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-749-0	02	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98043-192-0	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1506-	●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98009-361-0	01	1	1305-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98095-678-3	01	1	1305-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-1505	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B)	8-98000-480-1	01	1	1506-1511	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98000-480-1	01	1	1512-	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-1505	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97604-928-2	01	1	1506-	●

33 129 63 127 126 94 126 31 126 126 127 129 63 33 63 129 127 129 126 126 91 91 90 89 91 91 90 129 127 126 126 58 115 58

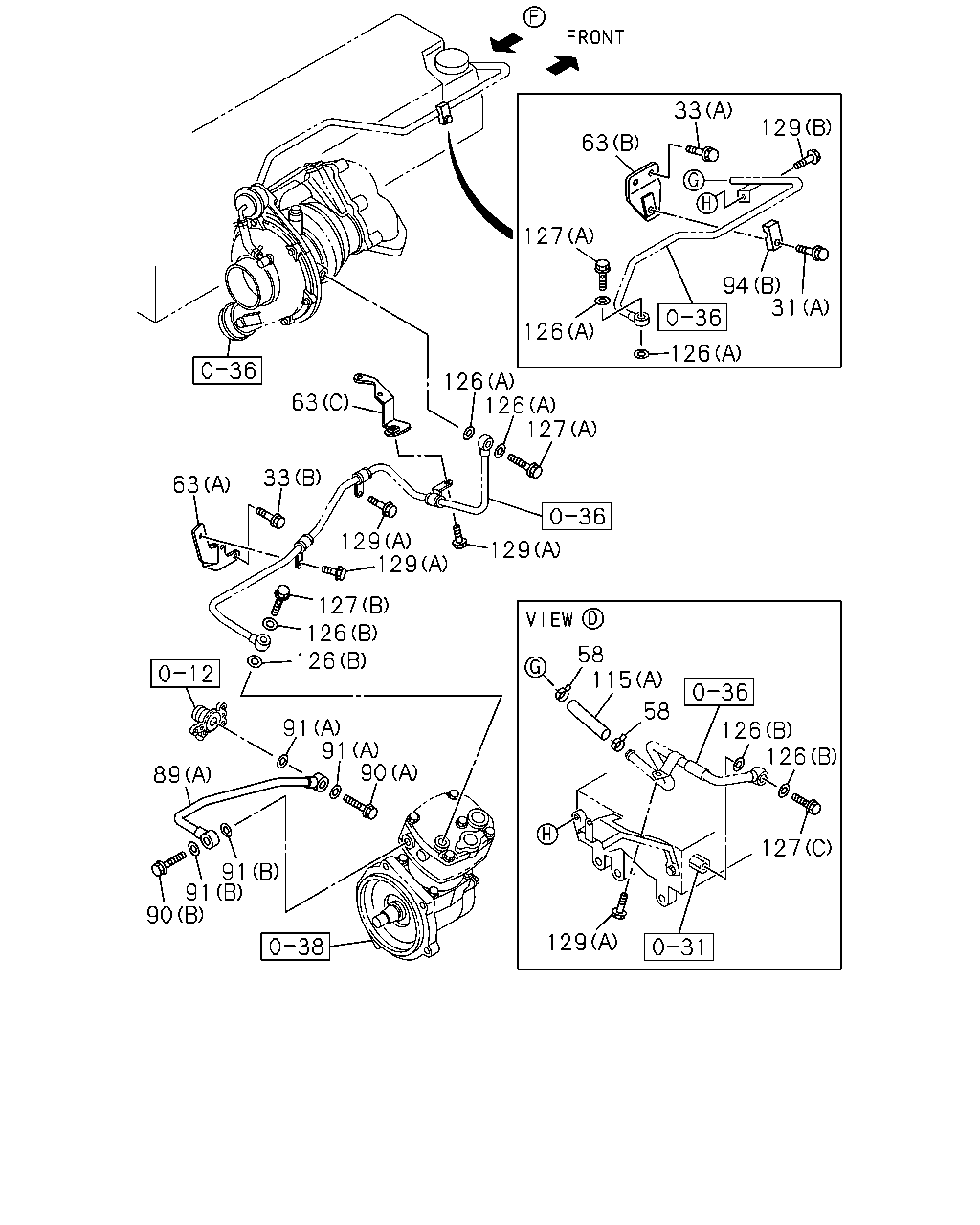

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
33	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X10 FLANGE	0-28050-610-0	02	1	1305-		●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=16	8-94392-924-0	02	1	1302-1511	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1512-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94392-951-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98074-252-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-253-0	01	1	1302-1511	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1512-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-1505	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-98046-784-0	01	1	1506-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98153-457-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97611-095-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97610-086-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97358-699-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97376-783-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (D)	8-98095-668-0	01	1	1305-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1305-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1305-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-1511	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1512-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-1511	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-1505	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97605-129-1	08	1	1506-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1511	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1512-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-735-1	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-749-0	02	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98043-192-0	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1506-	●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98009-361-0	01	1	1305-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98095-678-3	01	1	1305-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1302-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1512-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-1505	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1506-	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-1511	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1512-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M16X25	5-09675-028-2	01	1	1302-1511	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1512-	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-1505	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1506-	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-1511	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1512-	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-1511	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1512-	●

49 29 29 212 31 29 29 154 202 202 202

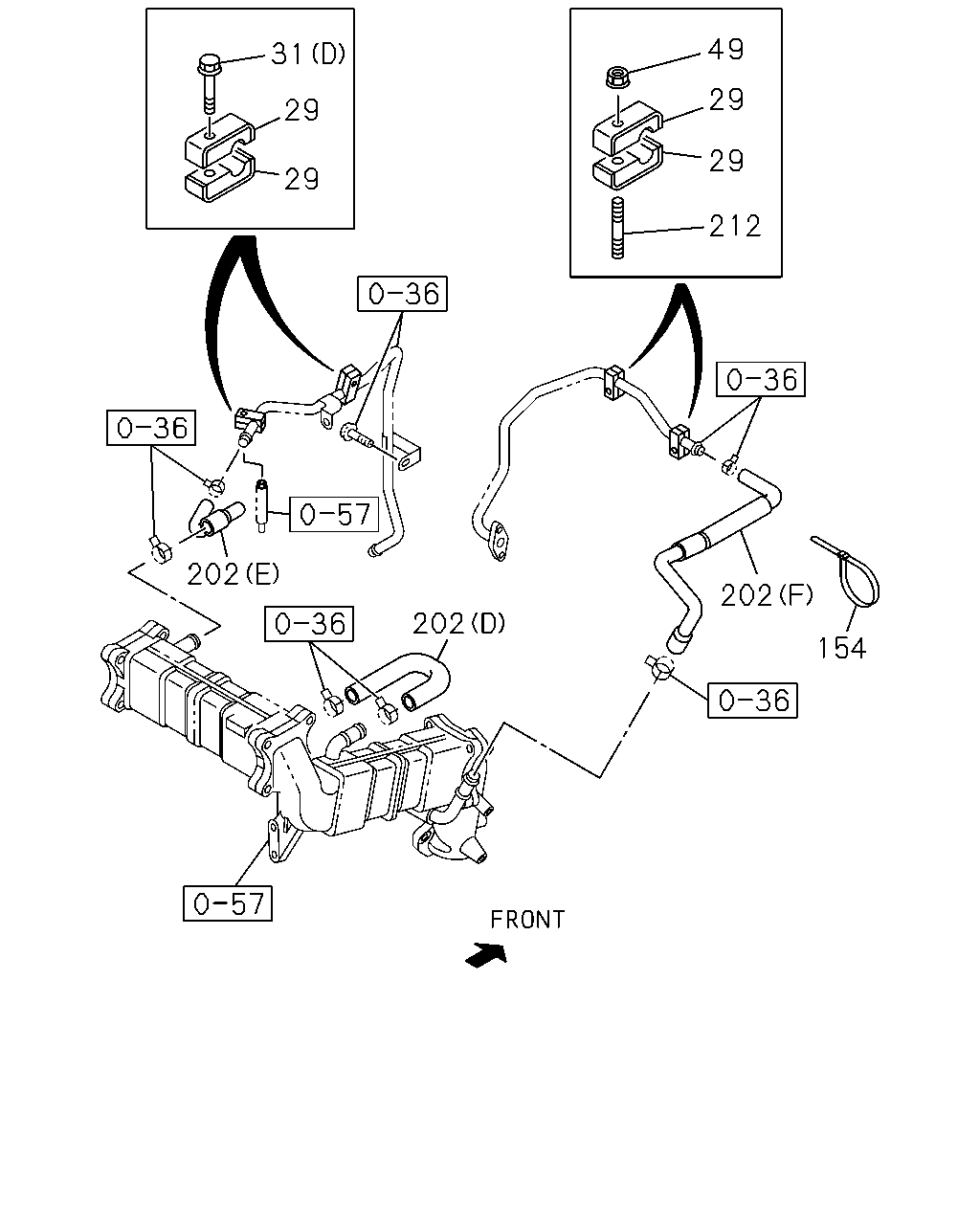

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1305-1511		●
29	CLIP; PIPE EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1512-		●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1305-		●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=140	8-98216-431-0	01	1	1305-1511		●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-97386-586-1	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-98092-382-0	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98097-605-1	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98028-170-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98028-171-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98097-717-0	01	1	1305-		●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1305-		●

31 29 29 49 29 29 212 202 202 202 154

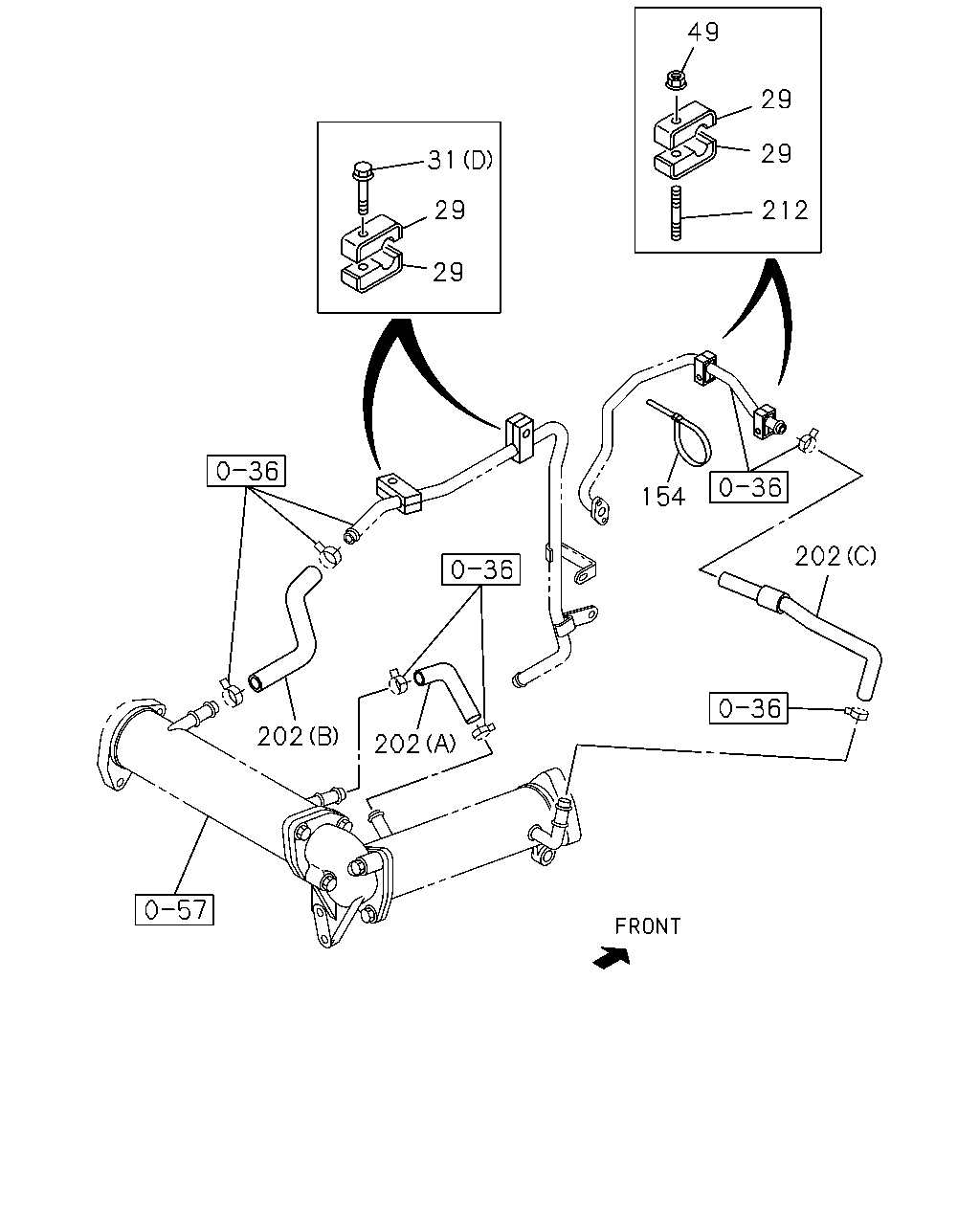

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1305-1511		●
29	CLIP; PIPE EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1512-		●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1305-		●
154	CLIP; WATER HOSE EURO3 SPECIFICATION<NT3> L=140	8-98216-431-0	01	1	1305-1511		●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-97386-586-1	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-98092-382-0	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98097-605-1	01	1	1305-1511		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (E)	8-98028-170-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (D)	8-98028-171-0	01	1	1305-		●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (F)	8-98097-717-0	01	1	1305-		●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1305-		●

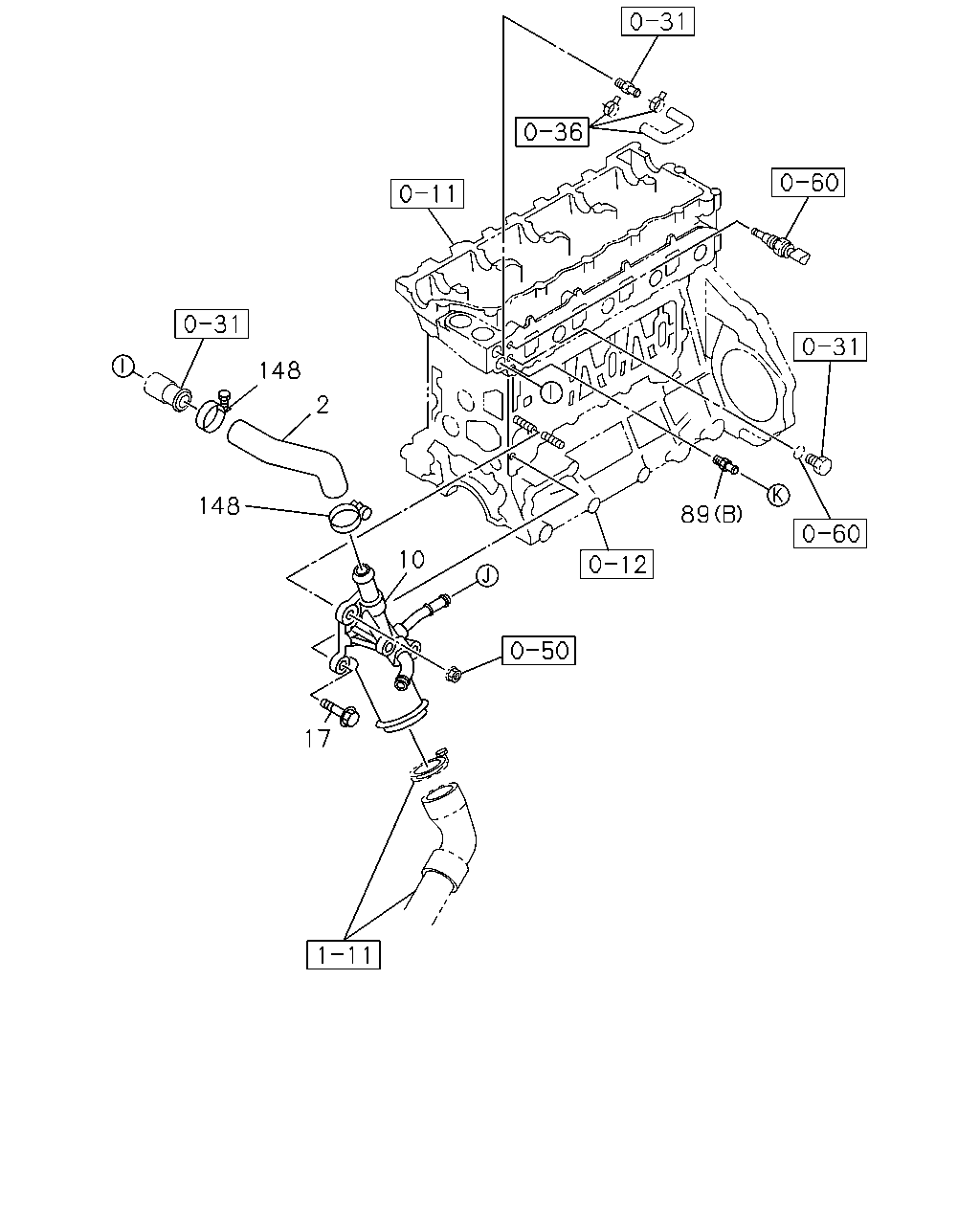

148 148 2 17 10 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1305-		●
10	PIPE; SUCTION	8-98166-995-0	01	1	1305-		●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97611-095-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97610-086-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97358-699-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97376-783-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (D)	8-98095-668-0	01	1	1305-		●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1305-		●

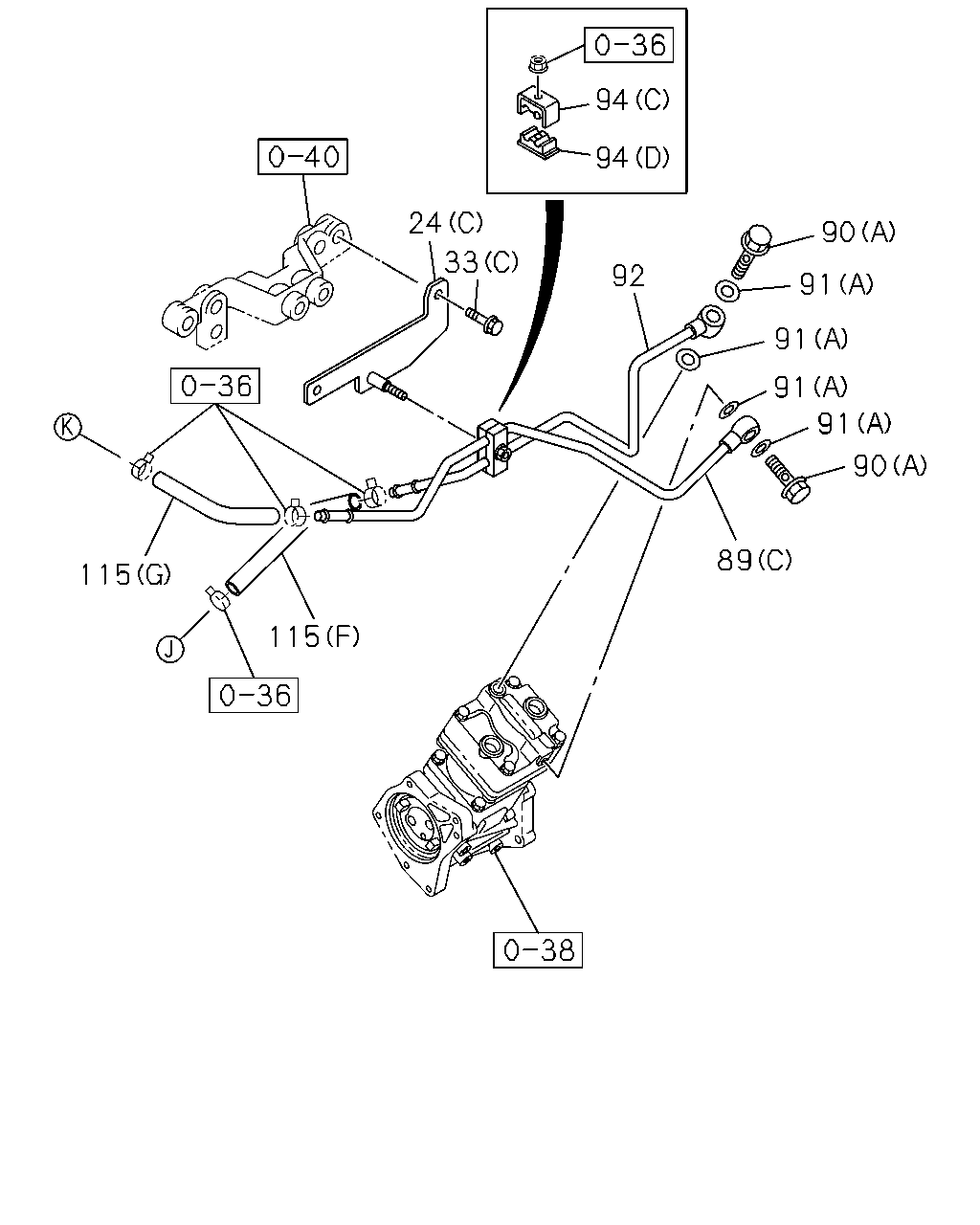

89 90 91 91 91 91 90 92 24 33 94 94 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98051-626-1	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1506-1511	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98051-626-1	01	1	1512-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-1505	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98000-557-2	01	1	1506-	●
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97379-140-0	01	1	1305-		●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-1505	●
33	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-1511	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-1511	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X10 FLANGE	0-28050-610-0	02	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97611-095-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97610-086-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97358-699-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97376-783-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (D)	8-98095-668-0	01	1	1305-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1305-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1305-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97376-784-0	01	1	1305-		●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>	8-98132-662-0	01	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-1511	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1512-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-1511	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-1505	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97605-129-1	08	1	1506-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	1305-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) ID=9 & 9 L=25	8-94393-280-3	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1511	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1512-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-735-1	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-749-0	02	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98043-192-0	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1506-	●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98009-361-0	01	1	1305-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98095-678-3	01	1	1305-		●

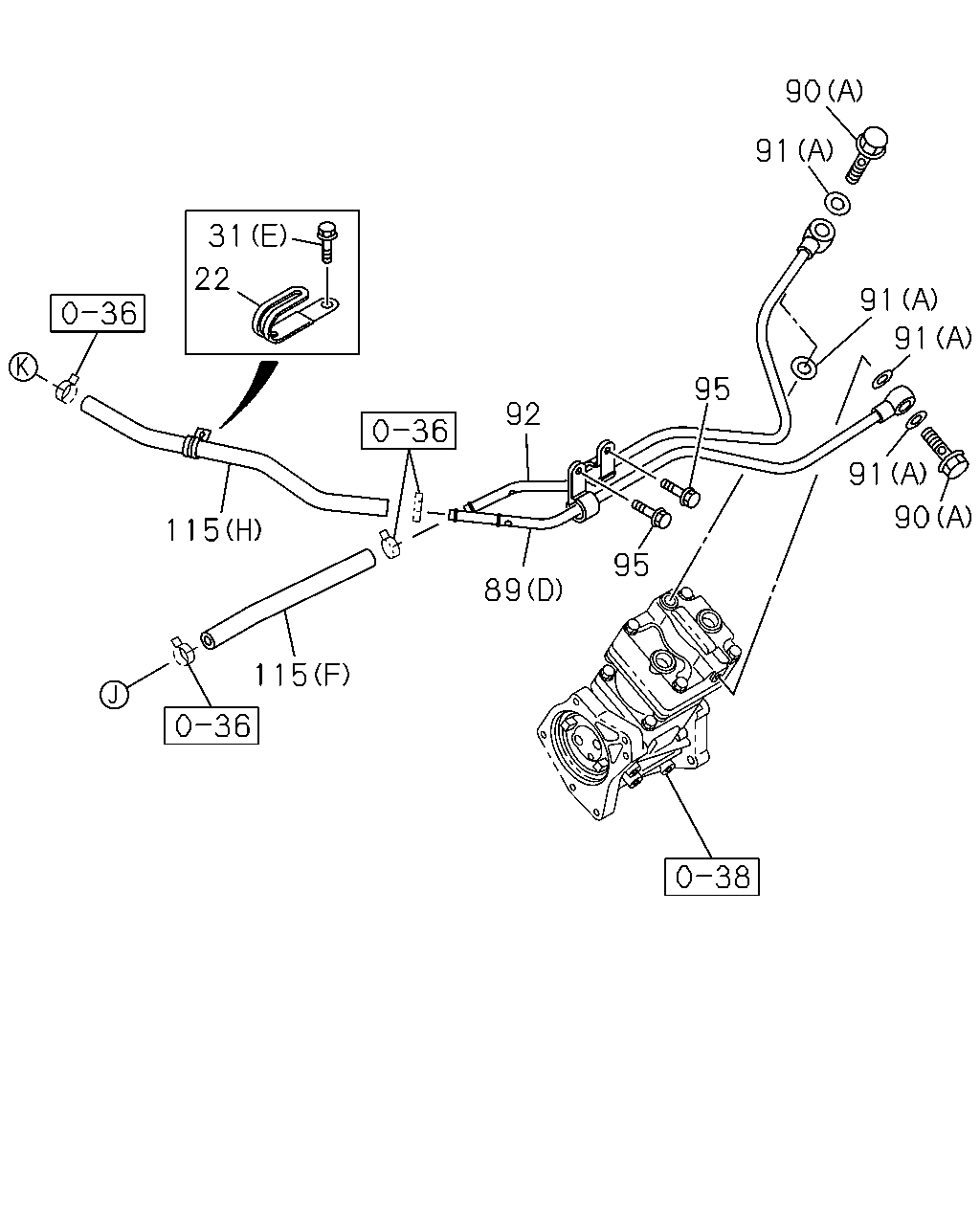

90 91 91 91 91 90 95 92 95 89 115 115 31 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=36	8-94224-891-1	01	1	1305-		●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1511	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1512-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X40 FLANGE	0-28650-640-0	01	1	1302-1511	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-1505	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1506-1511	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M6X45 FLANGE	0-28050-645-0	01	1	1512-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-1505	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X40 FLANGE	0-28650-640-0	03	1	1506-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1305-1511		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M8X40 FLANGE	0-28050-840-0	02	1	1512-		●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (E) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97611-095-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97610-086-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97358-699-0	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-97376-783-1	01	1	1305-		●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (D)	8-98095-668-0	01	1	1305-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1305-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1305-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97376-784-0	01	1	1305-		●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4>	8-98132-662-0	01	1	1305-		●
95	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1511	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1512-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-735-1	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-749-0	02	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98043-192-0	01	1	1506-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-1505	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1506-	●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1305-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G)	8-98009-361-0	01	1	1305-		●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (H)	8-98095-678-3	01	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
