0-32 — WATER PIPING; ENGINE (#113762) — 132 parça

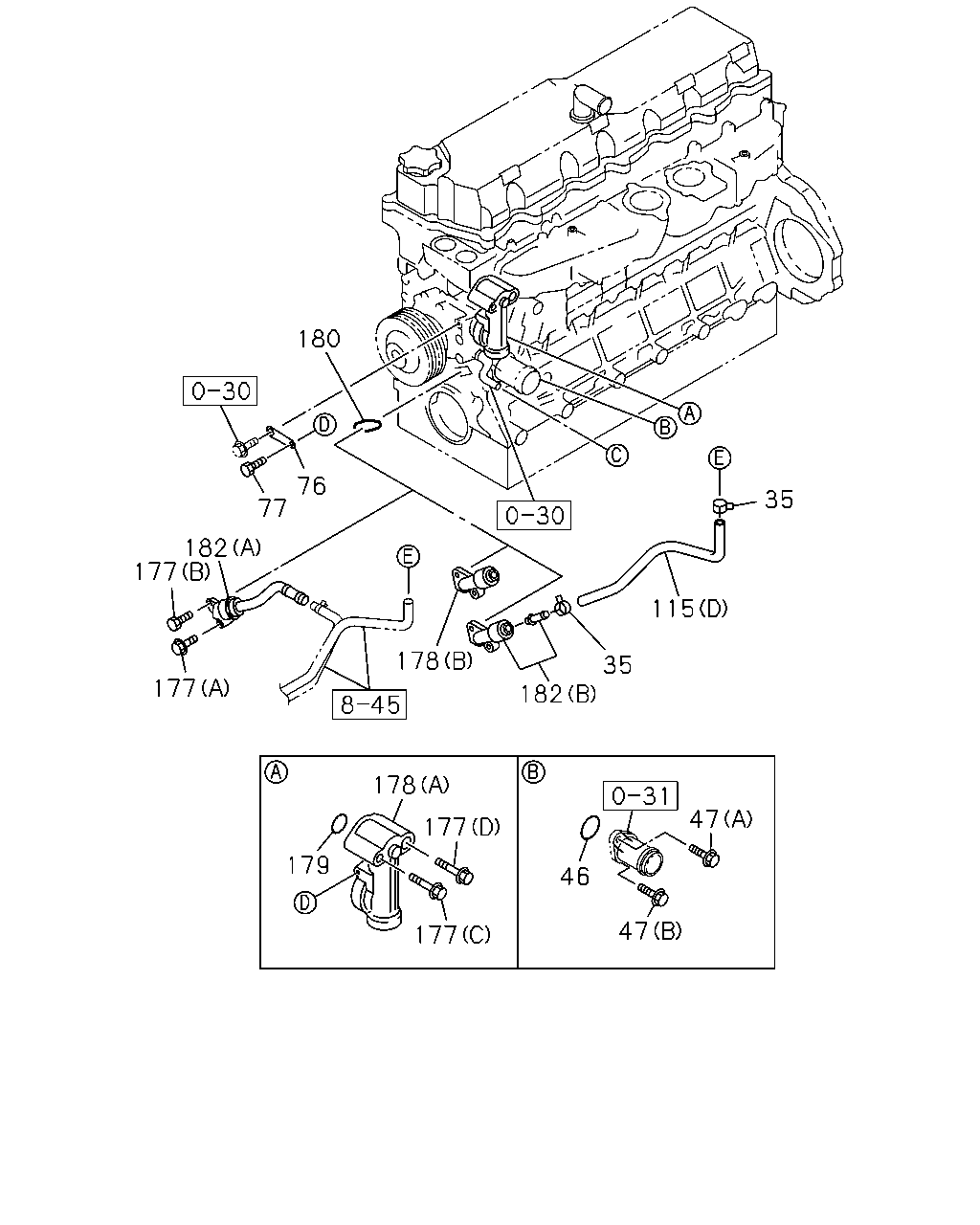

180 76 77 182 177 177 178 182 115 35 35 178 179 177 177 47 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1302-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-97606-749-0	02	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1302-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	1302-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94396-727-3	01	1	1302-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1302-

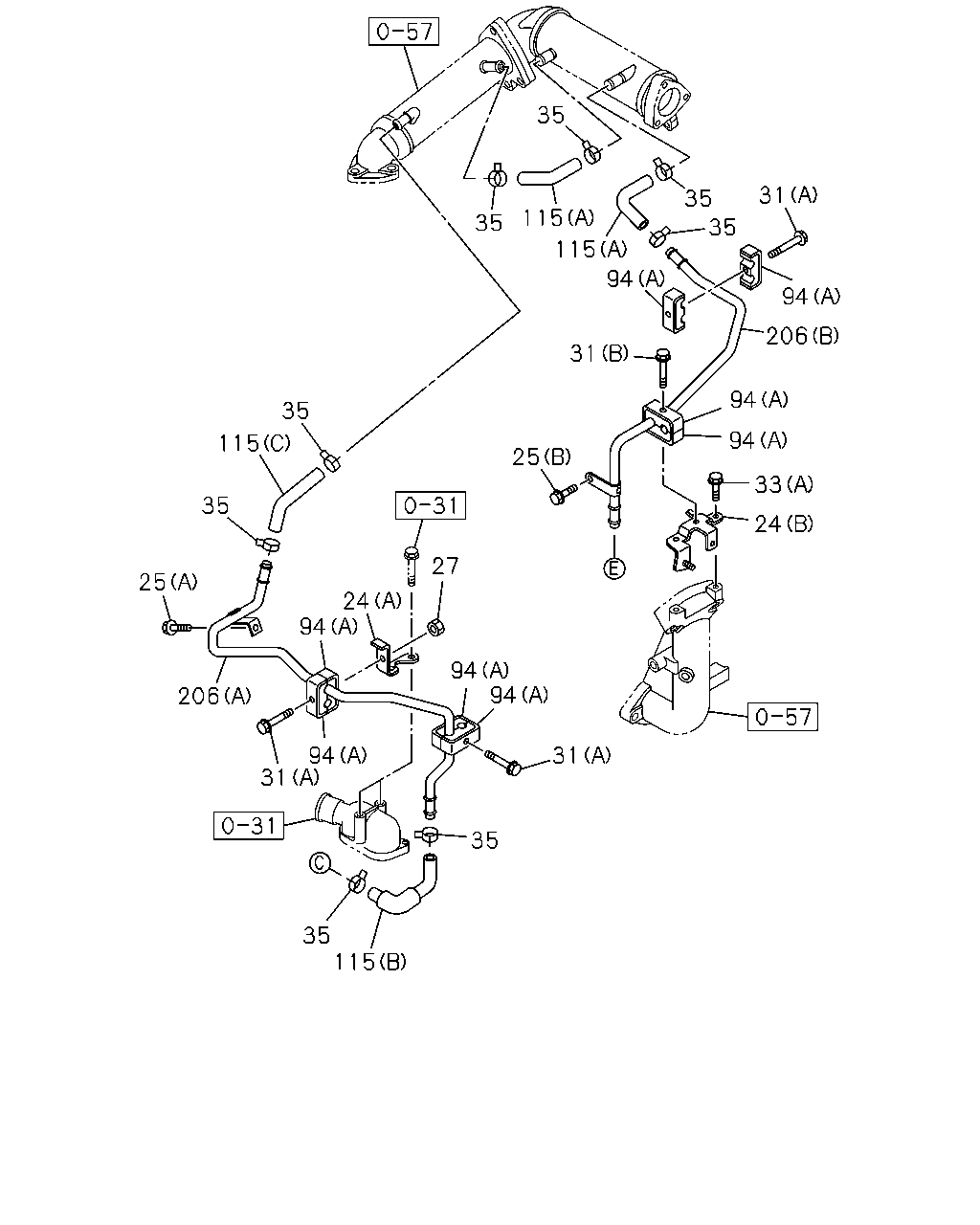

35 115 35 25 24 94 206 94 94 27 94 31 35 115 35 31 24 33 94 94 206 94 31 35 94 115 115 35 35 31 35 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98051-626-1	01	1	1302-
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98000-557-2	01	1	1302-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1302-
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	1302-
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	03	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1302-
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-97606-749-0	02	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1302-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-

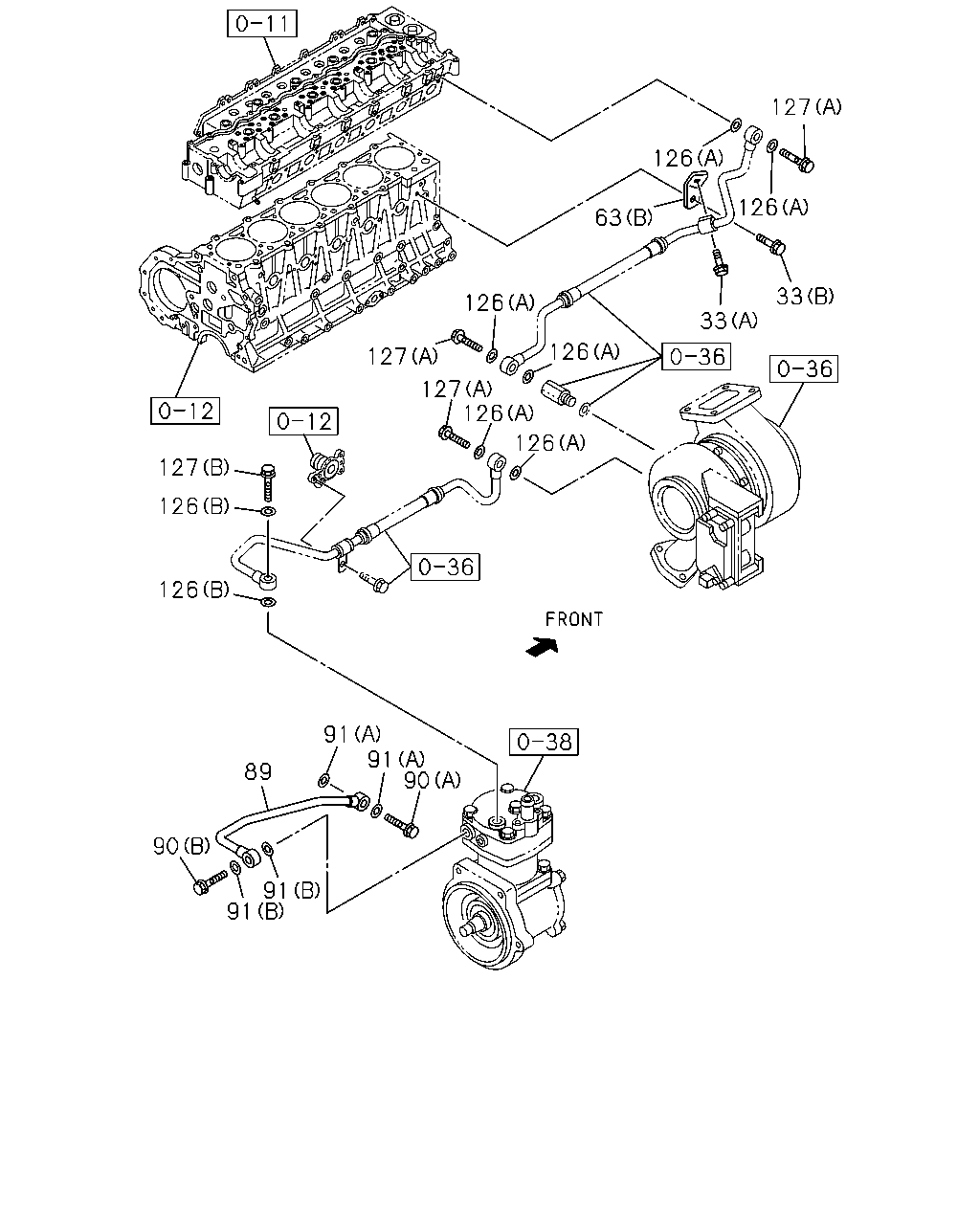

127 126 126 33 33 63 126 126 127 126 127 126 126 127 126 90 91 91 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94392-951-0	01	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98074-252-0	01	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98074-253-0	01	1	1302-
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98046-784-0	01	1	1302-
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1302-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M16X25	5-09675-028-2	01	1	1302-
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-

94 31 25 24 33 94 94 206 94 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98051-626-1	01	1	1302-
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98000-557-2	01	1	1302-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	1302-
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	03	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-

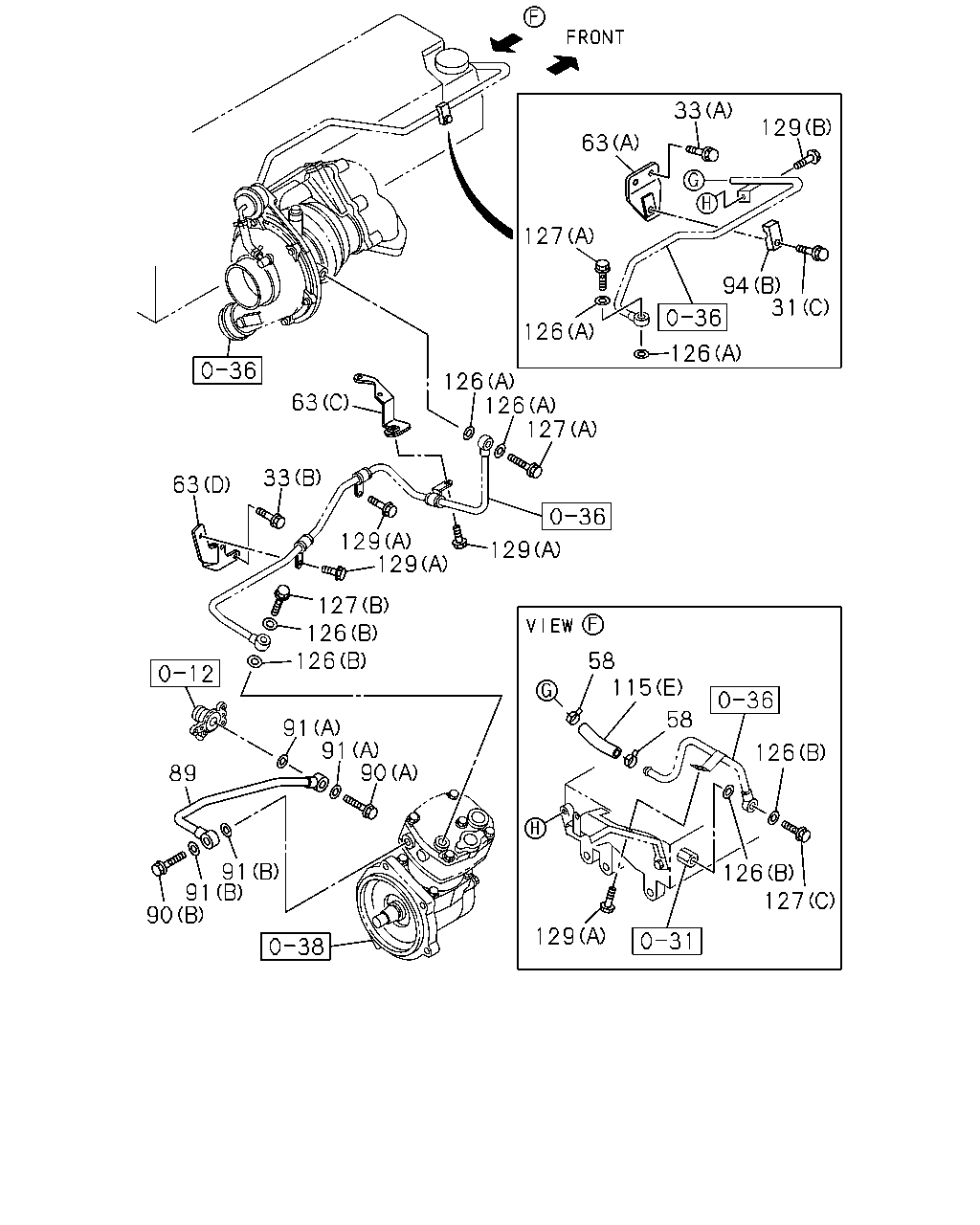

33 63 127 126 126 31 94 129 126 126 127 129 58 115 58 90 91 91 89 91 91 90 126 126 127 129 129 129 127 126 126 63 33 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X35 FLANGE	0-28650-635-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	01	1	1302-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	1302-
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	03	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=16	8-94392-924-0	02	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94392-951-0	01	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98074-252-0	01	1	1302-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98074-253-0	01	1	1302-
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98046-784-0	01	1	1302-
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1302-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94396-860-0	01	1	1302-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	04	1	1302-
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A)	8-97606-749-0	02	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-
127	BOLT; EYE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M16X25	5-09675-028-2	01	1	1302-
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-
