0-32 — WATER PIPING; ENGINE (#113759) — 82 parça

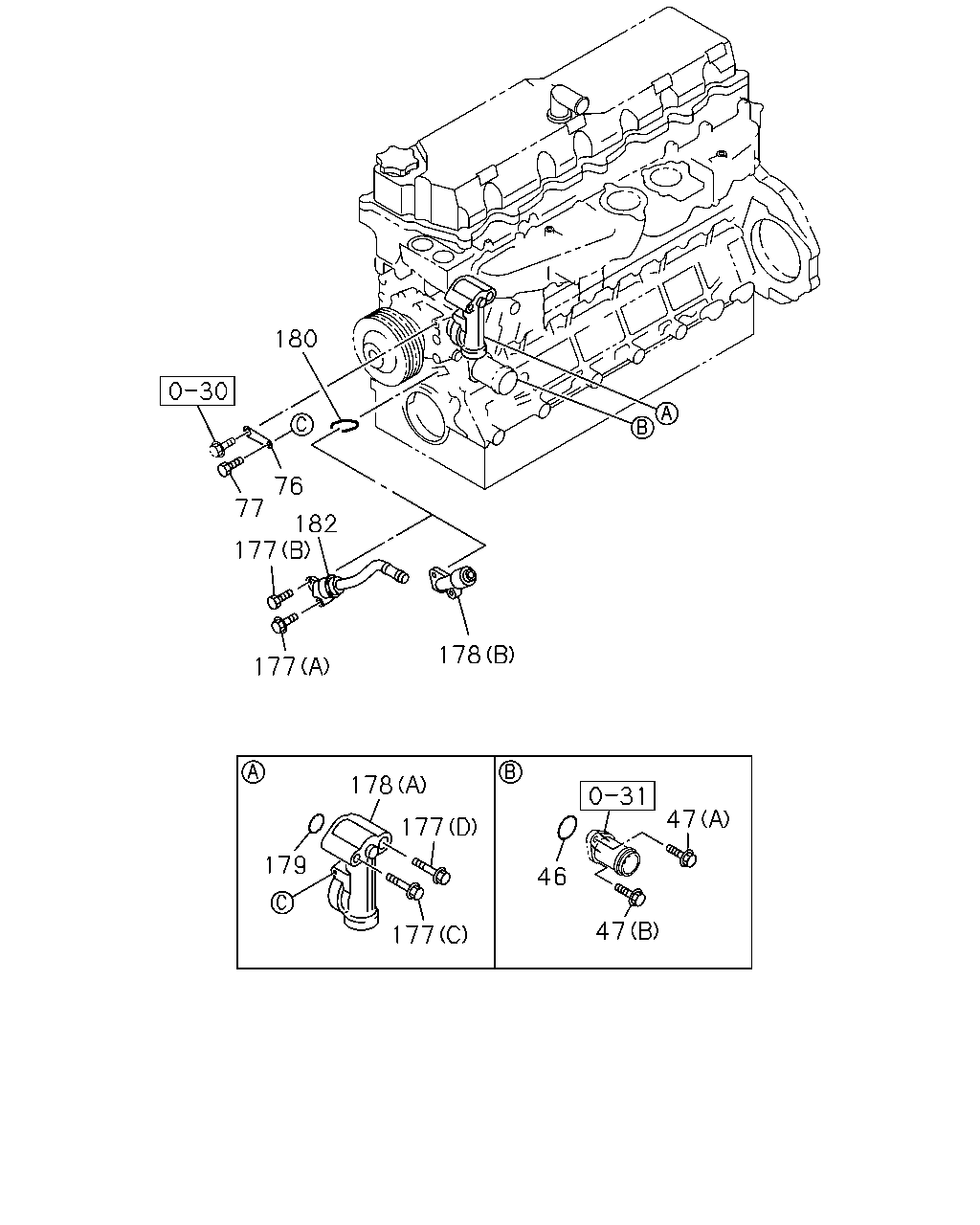

çizim 326369
180 76 77 178 182 177 177 178 177 179 177 47 47 46
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1302- ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1302- ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1302- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1302- ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1302- ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1302- ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1302- ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1302- ●
178 DUCT; WATER,BYPASS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94390-644-0 01 1 1302- ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1302-1408 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1302- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94394-348-5 01 1 1302- ●

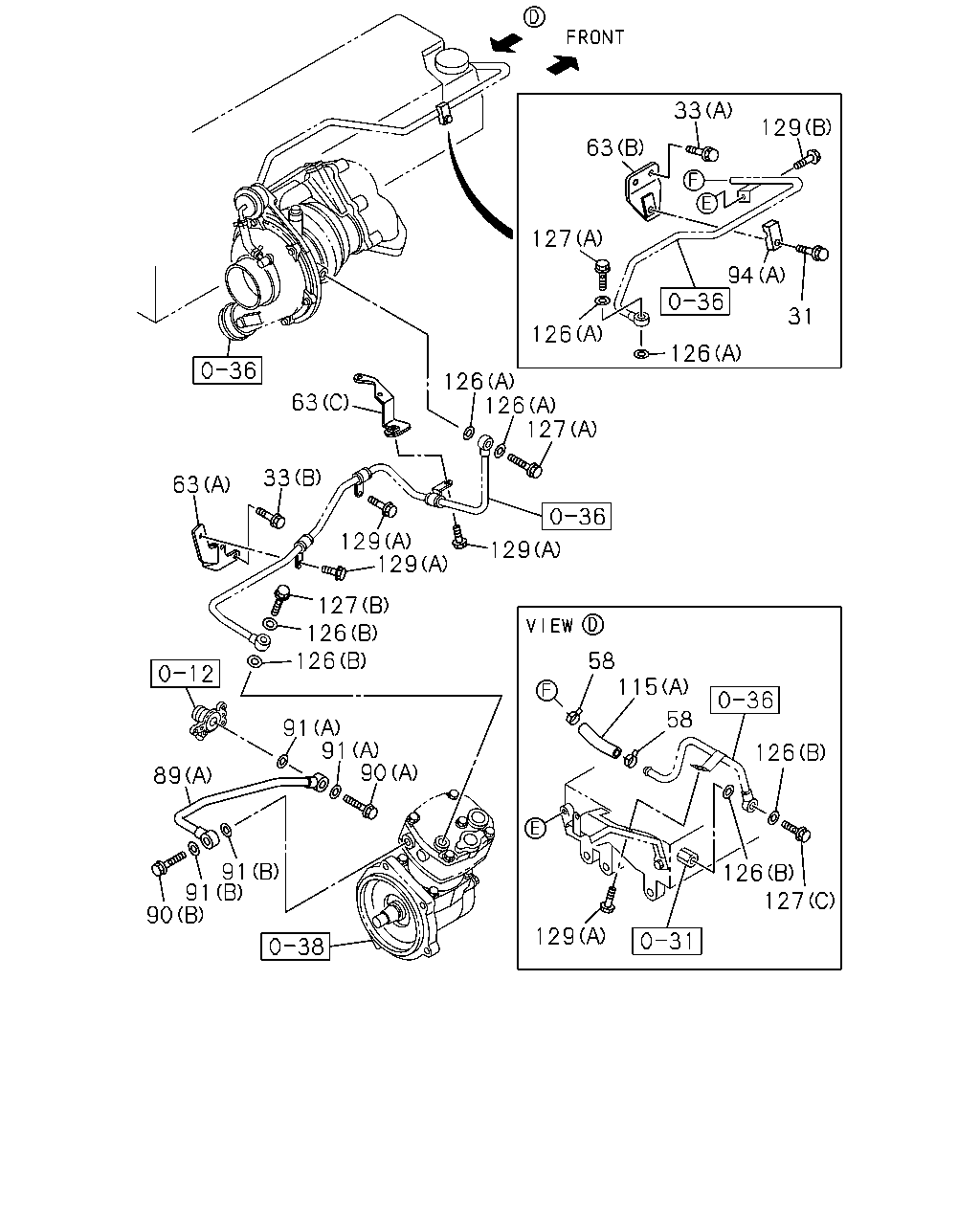

çizim 331125
33 129 63 127 94 31 126 126 126 126 127 129 129 129 127 126 126 63 33 63 58 115 58 126 126 127 129 90 91 91 89 90 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
31 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 1302- ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
33 BOLT; BRKT
(C) M6X10 FLANGE 		0-28050-610-0 02 1 1305- ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1302- ●
63 BRACKET; WATER PIPE
(B) 		8-94392-951-0 01 1 1302- ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1302- ●
63 BRACKET; WATER PIPE
(A) 		8-98074-253-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97611-095-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97610-086-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1305- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1305- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1302- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1302- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1305- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1302- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1305-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ●
94 CLIP; WATER PIPE
(A) 		8-94396-860-0 01 1 1302- ●
94 CLIP; WATER PIPE
(C) ID=9 & 9 L=25 		1-09701-180-0 01 1 1305- ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1305- ●
115 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1302- ●
115 HOSE; RUBBER
(B) 		8-98009-361-0 01 1 1305- ●
115 HOSE; RUBBER
(C) L=130 		8-98136-884-0 01 1 1305- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1302-1312 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1302- ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1302- ●
127 BOLT; EYE
(C) M16X25 		5-09675-028-2 01 1 1302- ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1302- ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1302- ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1302- ●

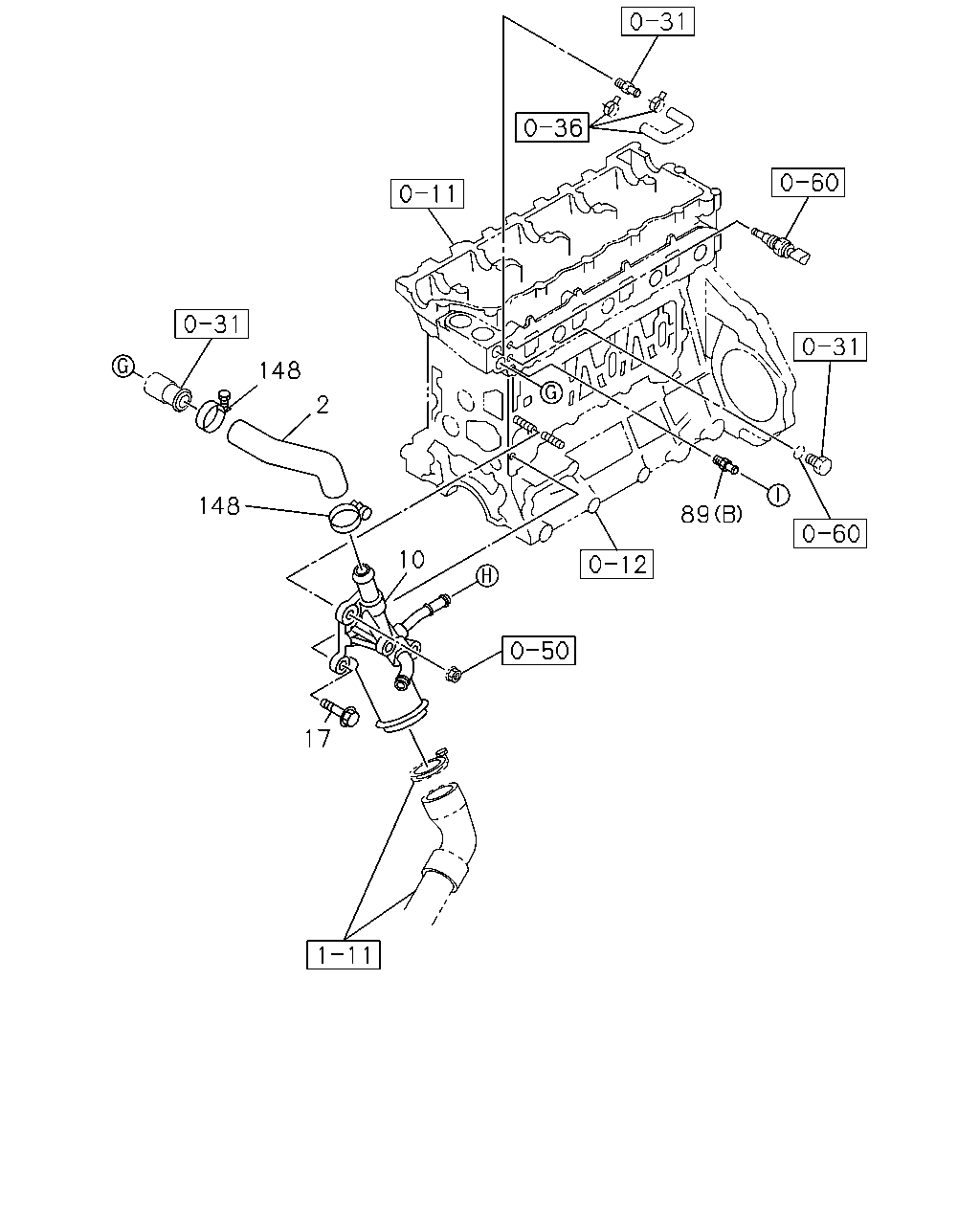

çizim 350222
148 2 148 10 17 89
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1305- ●
10 PIPE; SUCTION 8-98166-995-0 01 1 1305- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1305- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97611-095-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97610-086-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1305- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1305- ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1305- ●

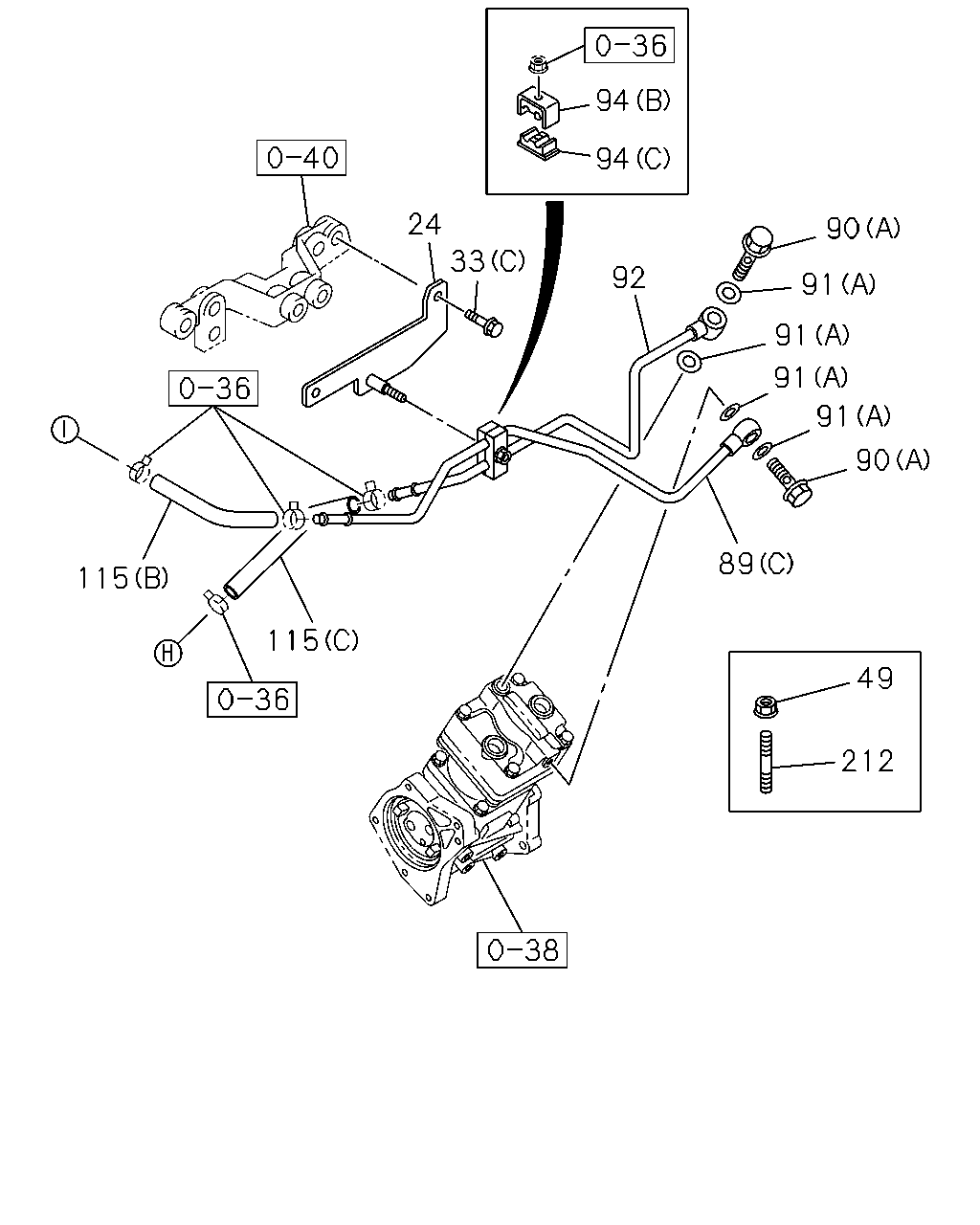

çizim 351878
94 94 24 33 92 90 91 91 91 91 90 89 49 212 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 1305- ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1302- ●
33 BOLT; BRKT
(C) M6X10 FLANGE 		0-28050-610-0 02 1 1305- ●
49 NUT; WATER PIPE
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97611-095-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97610-086-0 01 1 1302- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1305- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1305- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1302- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1302- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1305- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1302- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1305-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ●
92 PIPE; WATER,AIR CMPR,OUT 8-97376-784-0 01 1 1305- ●
94 CLIP; WATER PIPE
(A) 		8-94396-860-0 01 1 1302- ●
94 CLIP; WATER PIPE
(C) ID=9 & 9 L=25 		1-09701-180-0 01 1 1305- ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1305- ●
115 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1302- ●
115 HOSE; RUBBER
(B) 		8-98009-361-0 01 1 1305- ●
115 HOSE; RUBBER
(C) L=130 		8-98136-884-0 01 1 1305- ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1305- ●
