Isuzu WW
▶
TRUCKS
▶
FSR
▶
11508 - FSR(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#113752) — 64 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

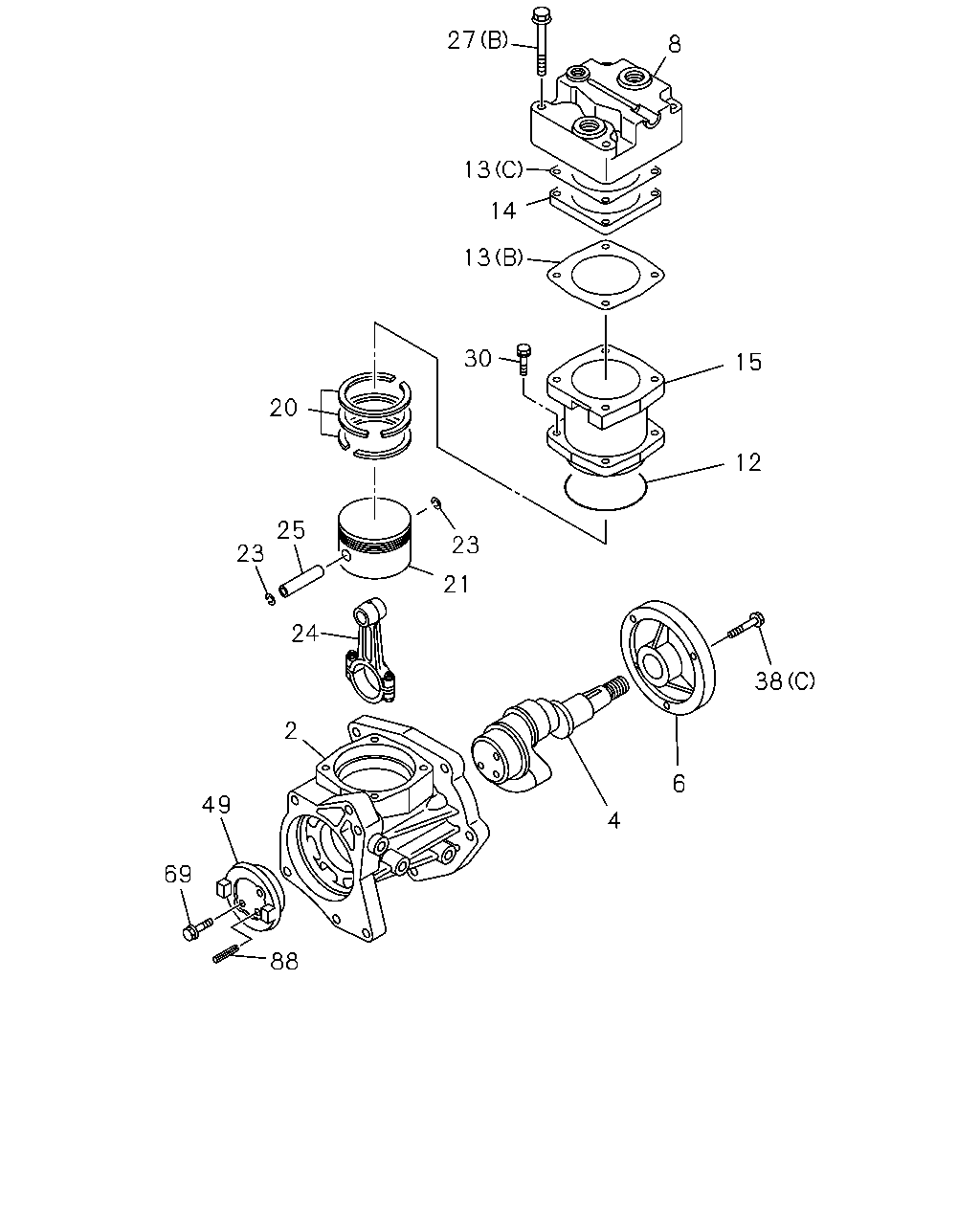

[039A] 4HK1 (32 parça)

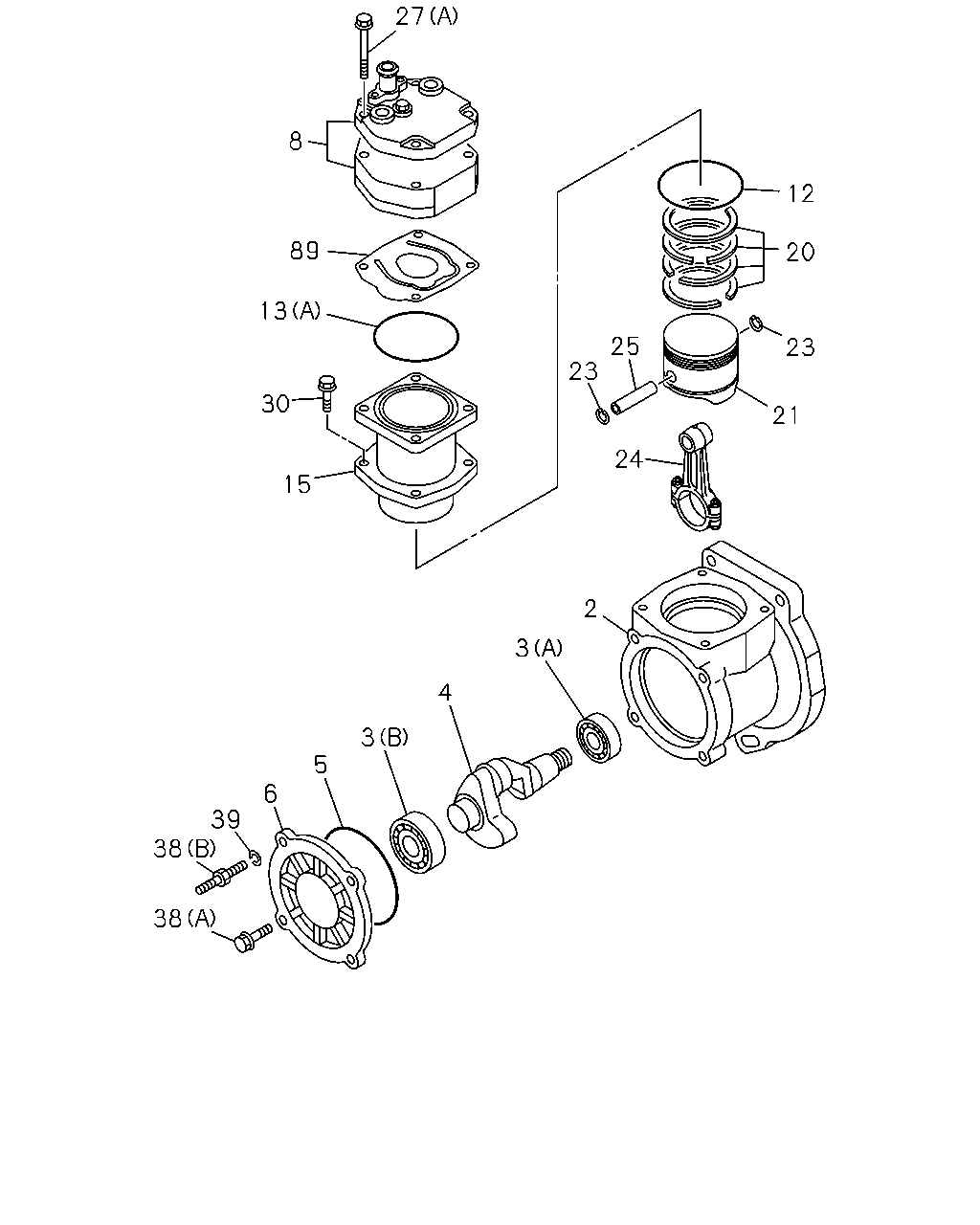

[039A] 6HK1 (32 parça)
▶
88
69
49
2
24
23
25
20
23
21
4
6
38
12
15
30
13
14
13
27
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
1-19151-303-0
01
1
1302-
●
2
CRANKCASE; AIR CMPR
1-19151-274-0
01
1
1302-
●
4
CRANKSHAFT; AIR CMPR
1-19171-090-1
01
1
1302-
●
4
CRANKSHAFT; AIR CMPR
1-19171-096-0
01
1
1302-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-086-1
01
1
1302-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-039-0
01
1
1302-
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-075-0
01
1
1302-
●
8
HEAD ASM; CYL,AIR CMPR
8-98167-014-0
01
1
1302-
●
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1302-
●
●
13
GASKET; AIR CMPR
(C)
1-19115-015-0
01
1
1302-
●
13
GASKET; AIR CMPR
(B)
1-19115-016-0
01
1
1302-
●
13
GASKET; AIR CMPR
(A)
8-98048-640-0
01
1
1302-
●
14
PLATE; AIR CMPR
1-19130-010-1
01
1
1302-1405
●
14
PLATE; AIR CMPR
8-98271-713-0
01
1
1406-
●
15
CYLINDER; AIR CMPR
1-19163-068-1
01
1
1302-
●
15
CYLINDER; AIR CMPR
8-98038-668-0
01
1
1302-
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1302-
●
●
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1302-
●
●
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1302-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-023-0
01
1
1302-
●
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
1302-
●
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1302-
●
●
27
BOLT; HD
(B)
8-98188-172-0
04
1
1302-
●
27
BOLT; HD
(A) M10X75
8-98167-018-0
04
1
1302-
●
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
1302-
●
30
BOLT; CYL TO CRANKCASE
M10X25
8-98038-763-0
04
1
1302-
●
38
BOLT; COVER FIX
(C)
1-19159-023-0
03
1
1302-
●
38
BOLT; COVER FIX
(B)
8-97617-894-0
02
1
1302-
●
38
BOLT; COVER FIX
(A) M8X20
8-97617-895-0
02
1
1302-
●
49
COUPLING ASM
1-19179-032-0
01
1
1302-
●
69
BOLT ASM; AIR COMP
1-19179-033-0
02
1
1302-
●
88
PIN; SPRING
1-19179-034-0
01
1
1302-
●
27
8
89
13
30
15
12
20
23
25
23
21
24
2
3
4
3
5
6
39
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
1-19151-303-0
01
1
1302-
●
2
CRANKCASE; AIR CMPR
1-19151-274-0
01
1
1302-
●
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
1302-
●
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
1302-
●
4
CRANKSHAFT; AIR CMPR
1-19171-090-1
01
1
1302-
●
4
CRANKSHAFT; AIR CMPR
1-19171-096-0
01
1
1302-
●
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1302-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-086-1
01
1
1302-
●
6
COVER ASM; BRG,AIR CMPR
1-19156-039-0
01
1
1302-
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-075-0
01
1
1302-
●
8
HEAD ASM; CYL,AIR CMPR
8-98167-014-0
01
1
1302-
●
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1302-
●
●
13
GASKET; AIR CMPR
(C)
1-19115-015-0
01
1
1302-
●
13
GASKET; AIR CMPR
(B)
1-19115-016-0
01
1
1302-
●
13
GASKET; AIR CMPR
(A)
8-98048-640-0
01
1
1302-
●
15
CYLINDER; AIR CMPR
1-19163-068-1
01
1
1302-
●
15
CYLINDER; AIR CMPR
8-98038-668-0
01
1
1302-
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1302-
●
●
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1302-
●
●
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1302-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-023-0
01
1
1302-
●
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
1302-
●
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1302-
●
●
27
BOLT; HD
(B)
8-98188-172-0
04
1
1302-
●
27
BOLT; HD
(A) M10X75
8-98167-018-0
04
1
1302-
●
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
1302-
●
30
BOLT; CYL TO CRANKCASE
M10X25
8-98038-763-0
04
1
1302-
●
38
BOLT; COVER FIX
(C)
1-19159-023-0
03
1
1302-
●
38
BOLT; COVER FIX
(B)
8-97617-894-0
02
1
1302-
●
38
BOLT; COVER FIX
(A) M8X20
8-97617-895-0
02
1
1302-
●
39
WASHER; LK,COVER FIX
8-97617-893-0
02
1
1302-
●
89
VALVE; SUCTION
1-19119-045-0
01
1
1302-
●
