Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#113751) — 18 parça
◀

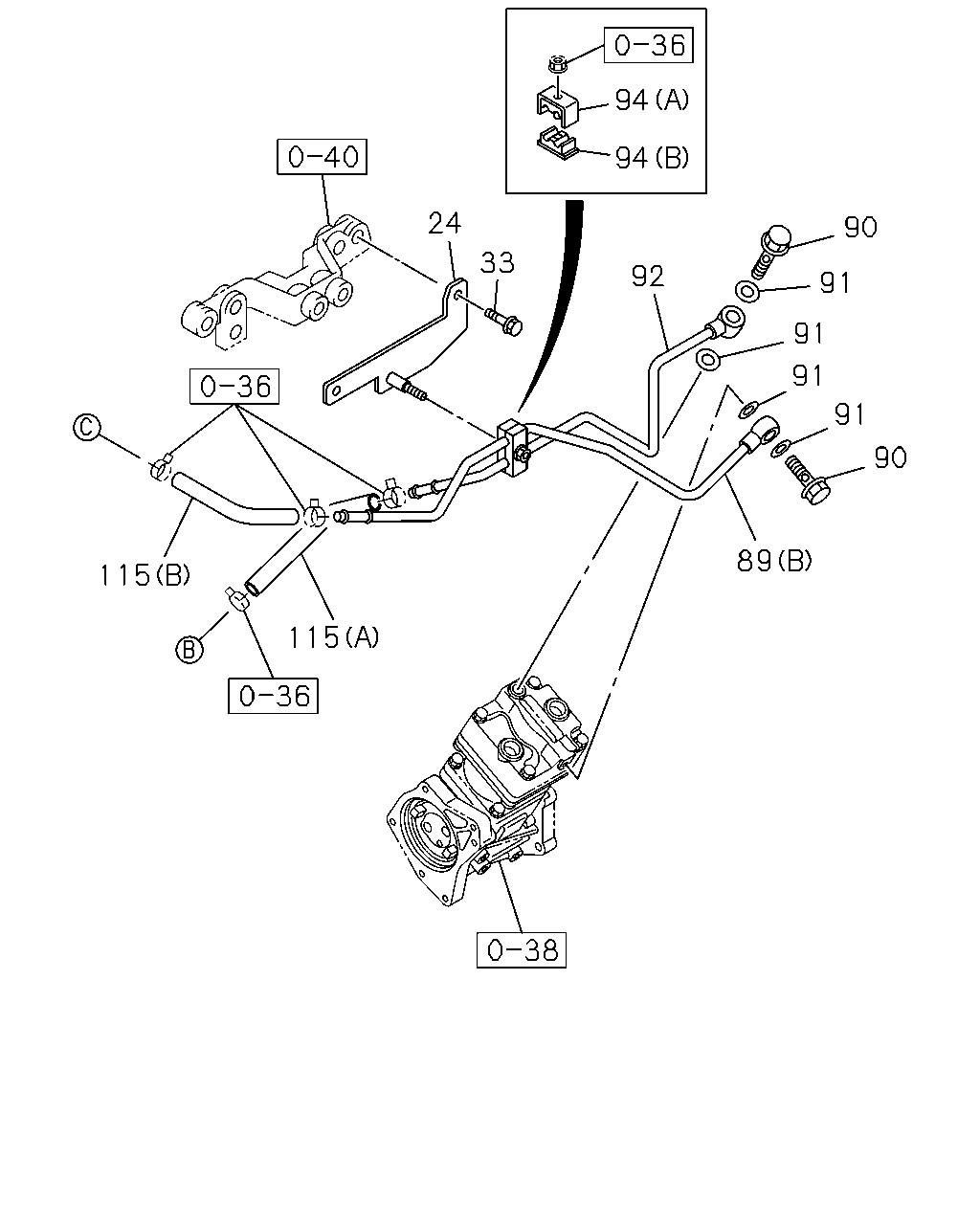

[032A] PIPING (12 parça)
[032A] SUCTION PIPE (6 parça)
▶
94
94
92
24
33
90
91
91
91
91
90
89
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
8-97379-140-0
01
1
1302-
33
BOLT; BRKT
M6X10 FLANGE
0-28050-610-0
02
1
1302-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1302-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-97376-783-1
01
1
1302-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
1302-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
1302-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
92
PIPE; WATER,AIR CMPR,OUT
8-97376-784-0
01
1
1302-
94
CLIP; WATER PIPE
(B) ID=9 & 9 L=25
1-09701-180-0
01
1
1302-
94
CLIP; WATER PIPE
(A) ID=9 & 9 L=25
8-94393-280-3
01
1
1302-
115
HOSE; RUBBER
(B)
8-98009-361-0
01
1
1302-
115
HOSE; RUBBER
(A) L=130
8-98136-884-0
01
1
1302-
148
148
2
10
17
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97379-228-1
01
1
1302-
10
PIPE; SUCTION
8-98166-995-0
01
1
1302-
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
1302-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1302-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-97376-783-1
01
1
1302-
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
1302-
