2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#113743) — 49 parça

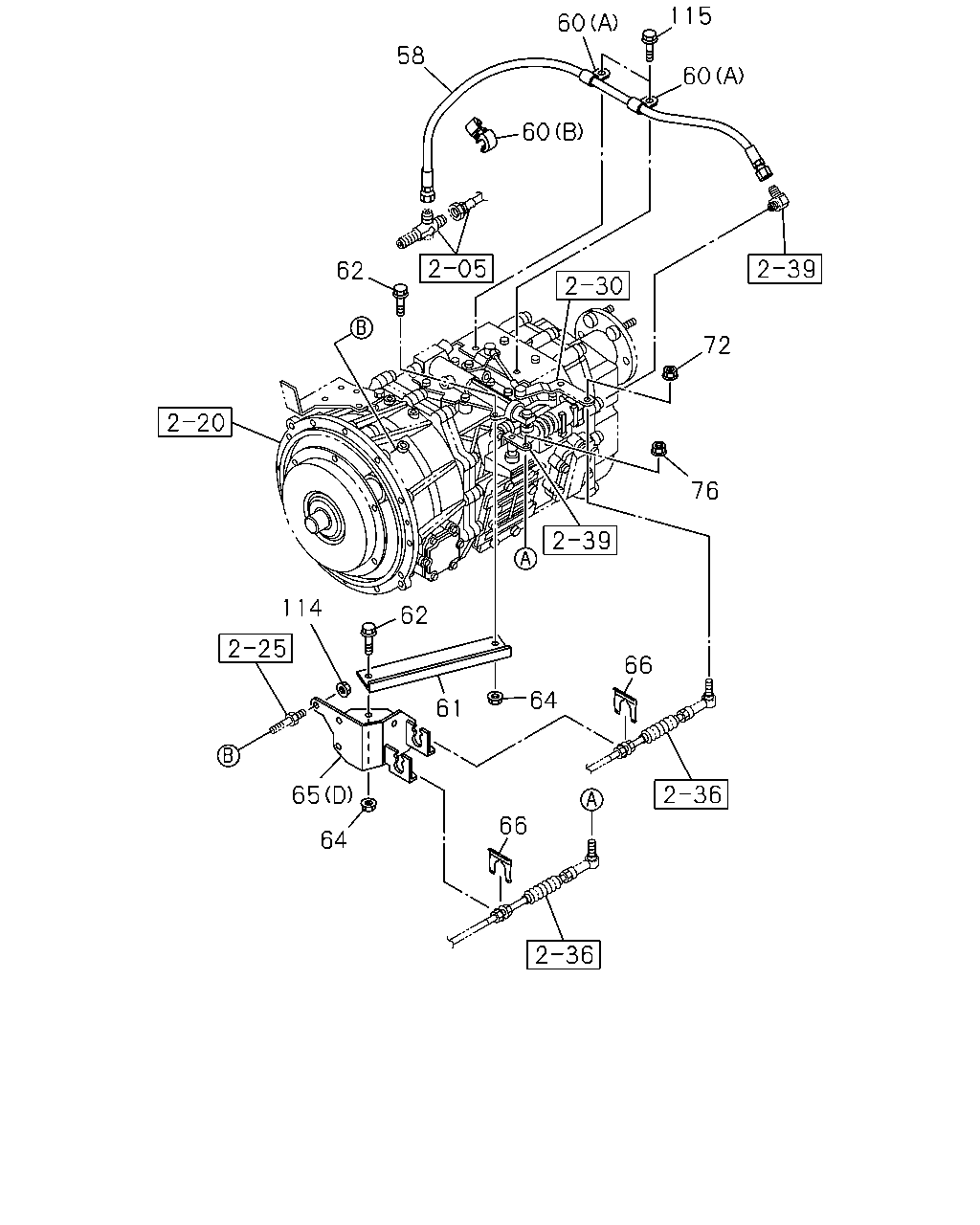

66 64 61 66 62 114 65 64 62 58 60 60 115 60 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1302-
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1302-
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1302-1510
60	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1511-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1302-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS)	8-98165-370-0	01	1	1302-1309
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS)	8-98251-404-0	01	1	1310-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33657-267-0	01	1	1302-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1302-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-158-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98050-563-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C)	8-98131-609-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-160-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98017-428-0	01	1	1302-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1302-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1302-
114	NUT; BRKT MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1302-
115	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1302-

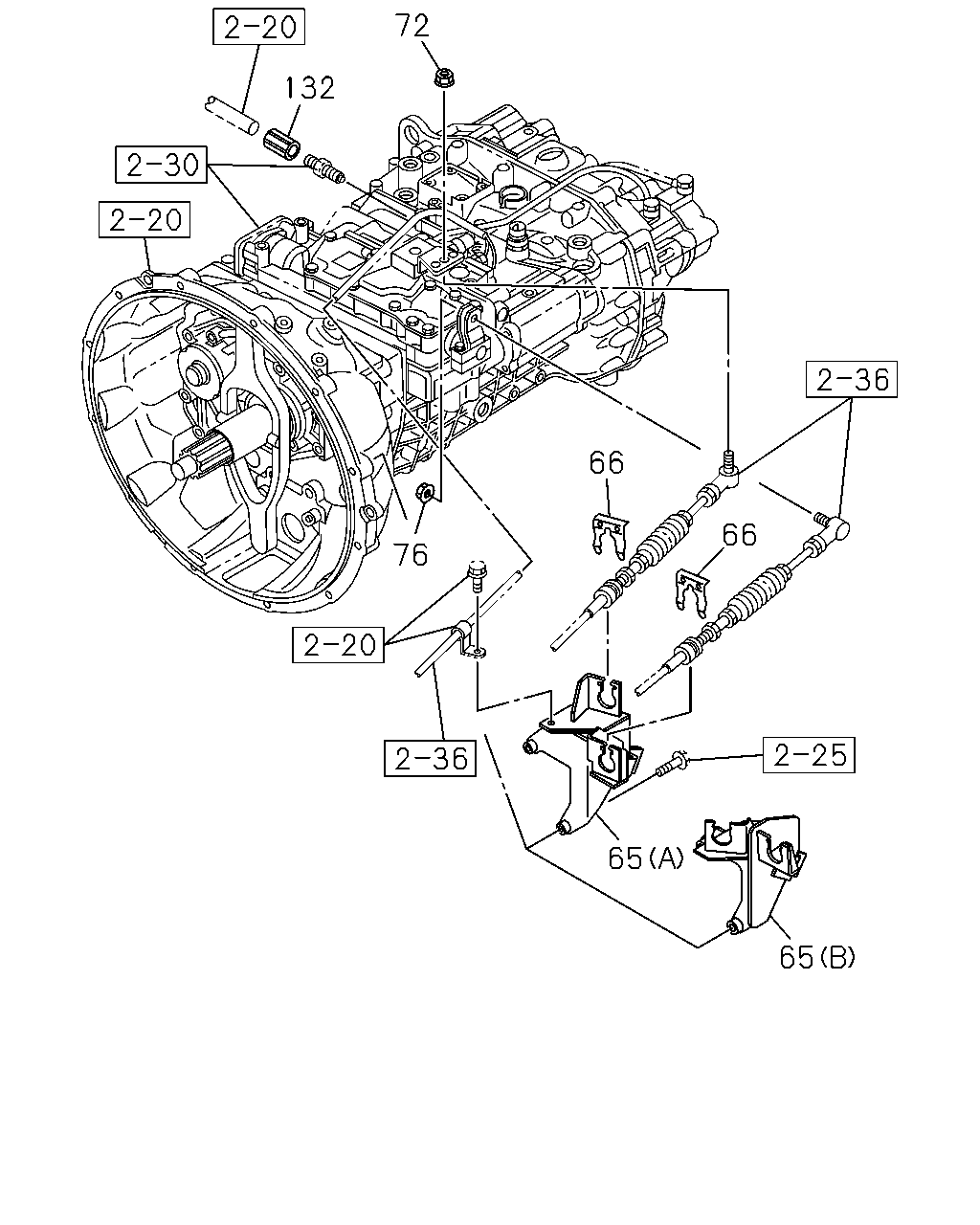

132 72 66 66 65 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-158-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98050-563-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C)	8-98131-609-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-160-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98017-428-0	01	1	1302-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1302-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1302-
132	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-

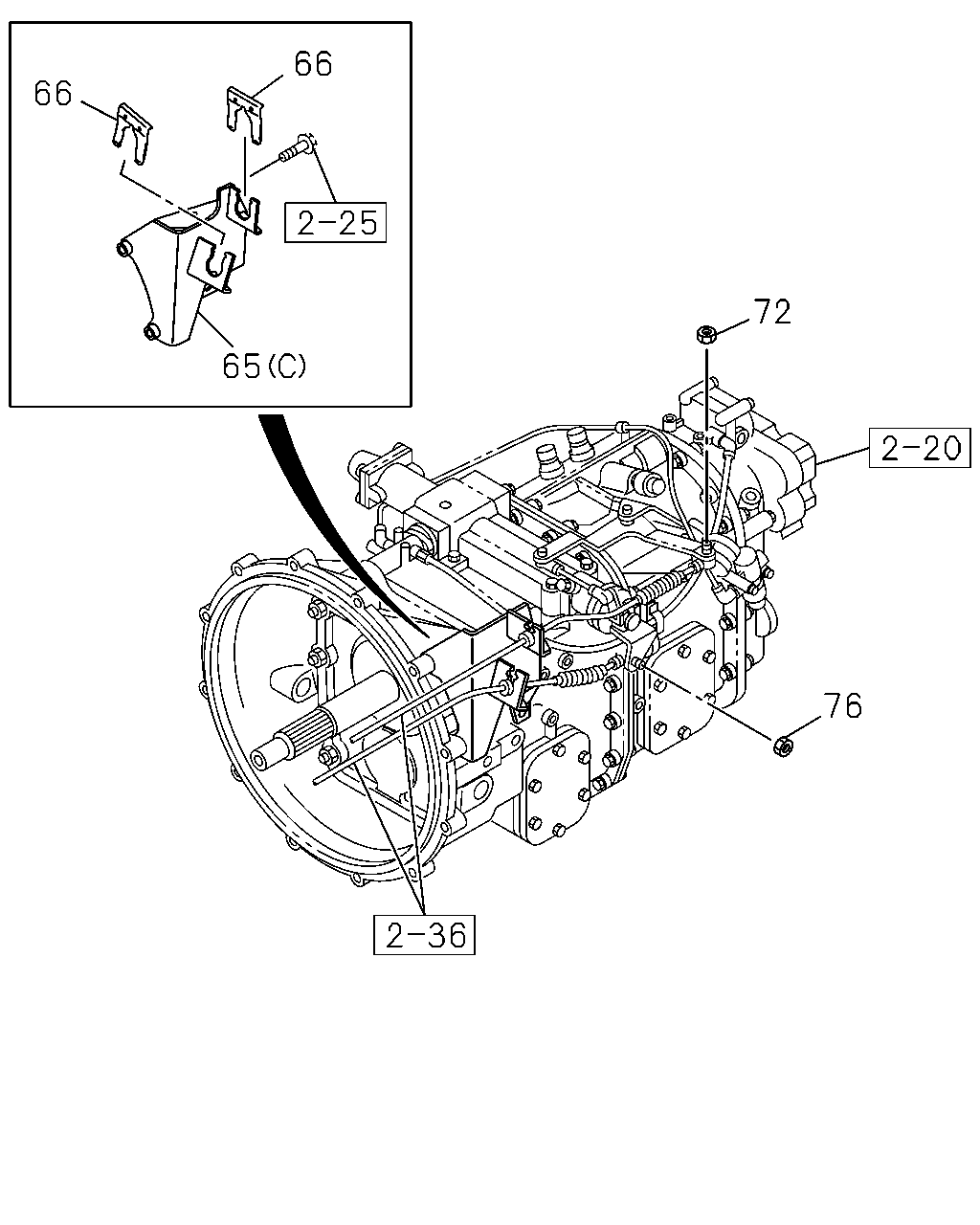

76 72 65 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-158-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98050-563-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C)	8-98131-609-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98010-160-0	01	1	1302-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98017-428-0	01	1	1302-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1302-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1302-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1302-
