11507 - FRR RHD EURO2/4 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

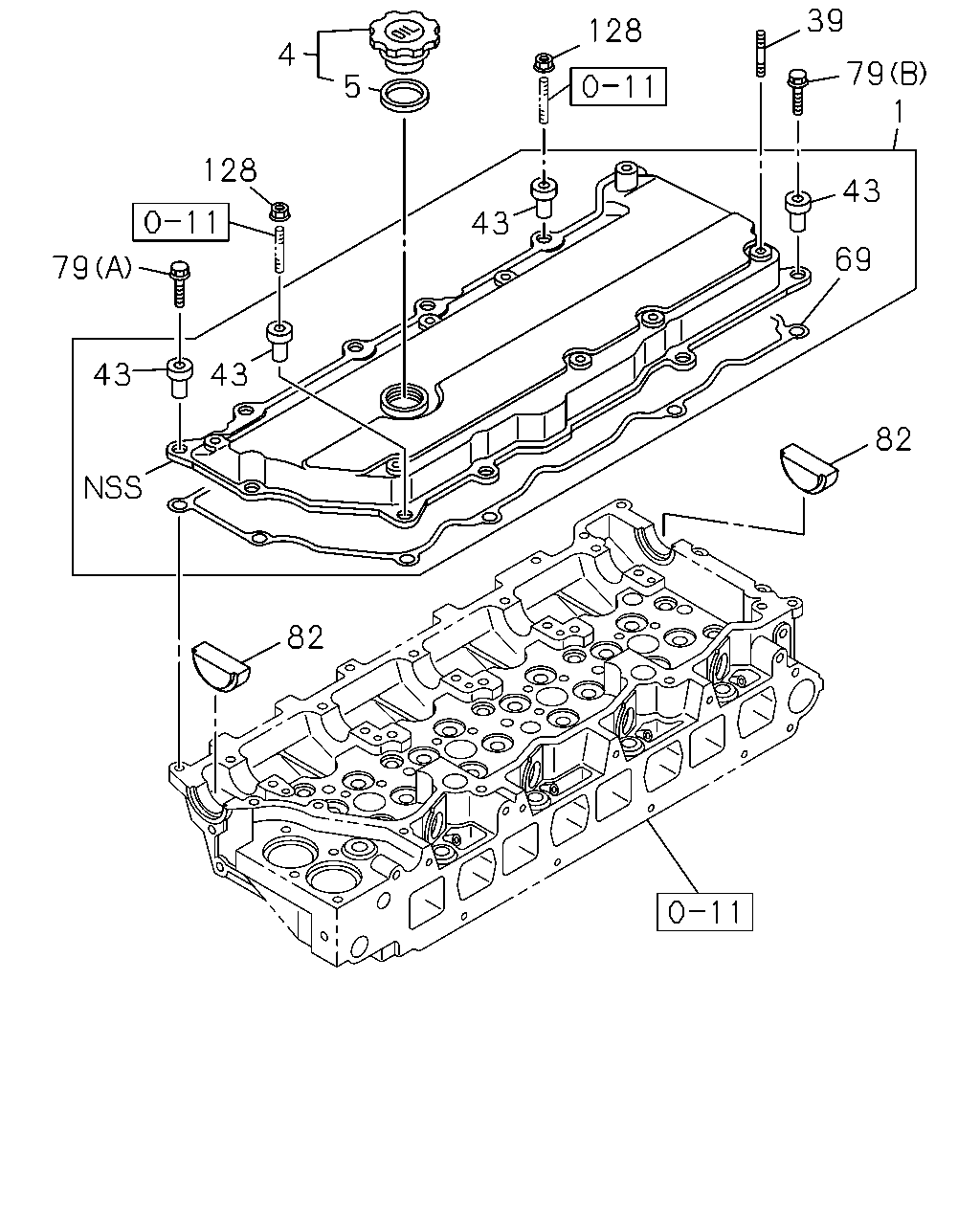

0-10 — CYLINDER HEAD COVER
(#113733) — 11 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
4
128
39
128
43
43
43
43
69
82
82
5
1
79
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-97331-361-2
01
1
1302-
●
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1302-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
1302-
●
●
39
STUD; COVER,HD
EURO2 SPECIFICATION<NT2> M6X20 L=28
0-41010-620-0
02
1
1302-1312
●
39
STUD; COVER,HD
M6X20 L=28
0-41010-620-0
02
1
1302-1312
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1302-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1302-
●
●
79
BOLT; COVER
(A) M8X35 FLANGE
0-28650-835-0
02
1
1302-
●
●
79
BOLT; COVER
(B) M8X65 FLANGE
1-09044-072-1
07
1
1302-
●
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1302-
●
●
128
NUT; COVER,CYL HEAD COVER
M8 FLANGE
0-91180-108-0
02
1
1302-
●
●
