◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#11373) — 61 parça
çizim 73579
76 21 18 21 21 9 18 9 18 73 21 100 99 28 18 99 23 101 12 24 13 81 22
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 0110-
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0110-0606
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0106-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0106-
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 01 1 0106-0108
18 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 01 1 0109-0109
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (D) ID=19 L=60 		9-09525-896-0 01 1 0106-0108
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 0106-0109
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 02 1 0106-0606
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 02 1 0607-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 0106-0512
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 0106-
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 0106-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 0106-0512
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0603-
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> 		1-82699-493-0 01 1 0106-0108
73 BRACKET; BATTERY CABLE 1-82699-493-0 01 1 0109-
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 0106-0108
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 02 1 0603-
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 0106-
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 0106-
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-

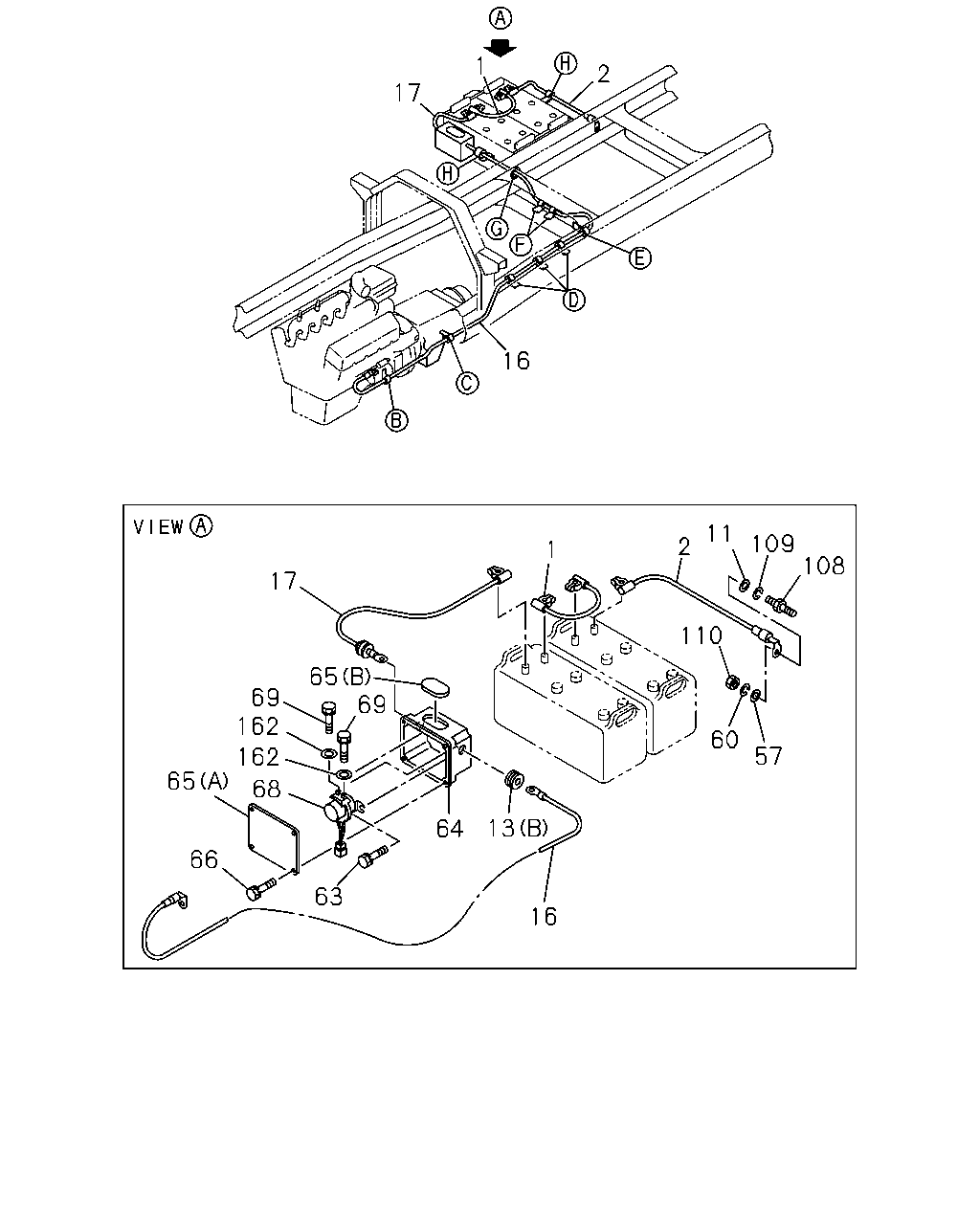

çizim 77165
1 2 17 16 11 109 2 1 108 17 110 65 69 69 162 60 57 162 65 68 13 64 66 63 16
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 0106-
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 0106-
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 0106-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0106-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0106-
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0106-
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-757-0 01 1 0106-
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 0106-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0106-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0106-0603
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0106-
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 0106-
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 0106-
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 0106-
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0106-0512
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 0601-
68 RELAY; BATTERY 1-82550-282-0 01 1 0106-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0106-0512
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0106-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0106-0603
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0106-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0106-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
