Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#113727) — 173 parça

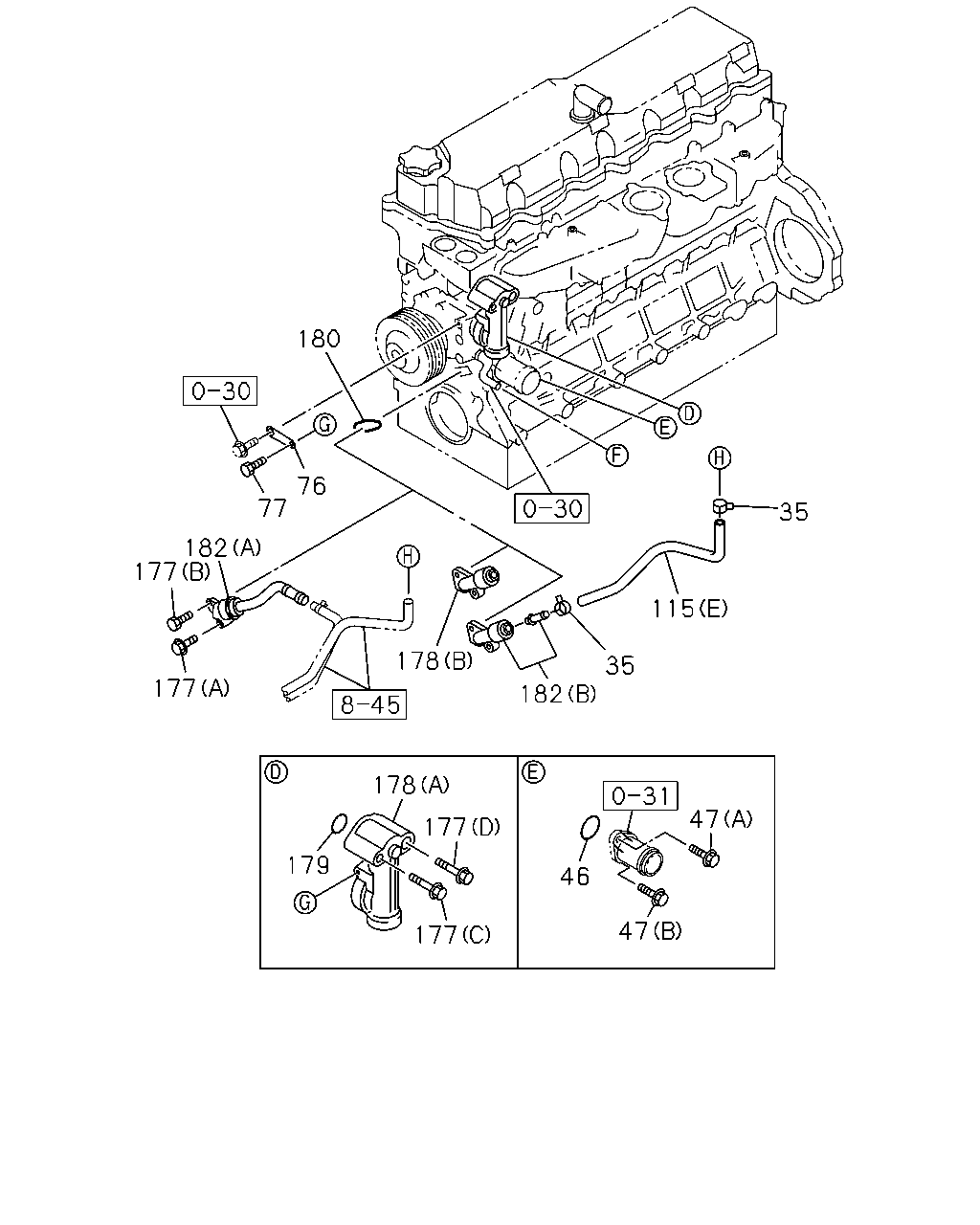

35 115 35 47 47 46 177 179 178 177 182 178 177 177 182 77 76 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
115	HOSE; RUBBER (G)	8-98009-361-0	01	1	1302-		●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1302-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1302-	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-	●
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1302-	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1302-	●

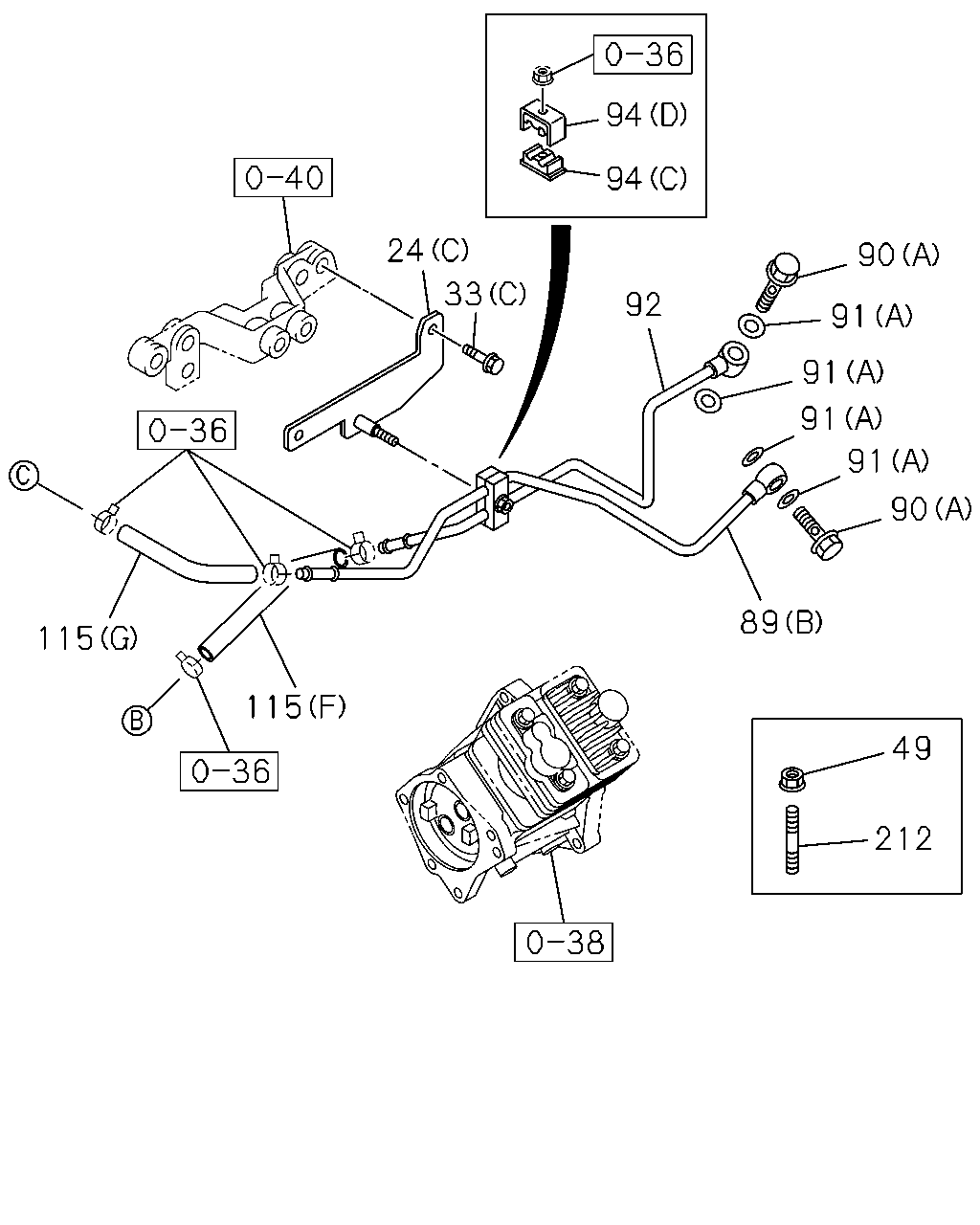

24 33 92 94 94 90 91 91 91 91 90 89 49 212 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (C)	8-97379-140-0	01	1	1302-		●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98051-626-1	01	1	1302-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
33	BOLT; BRKT (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-	●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1302-		●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-		●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-	●
115	HOSE; RUBBER (G)	8-98009-361-0	01	1	1302-		●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1302-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1302-		●

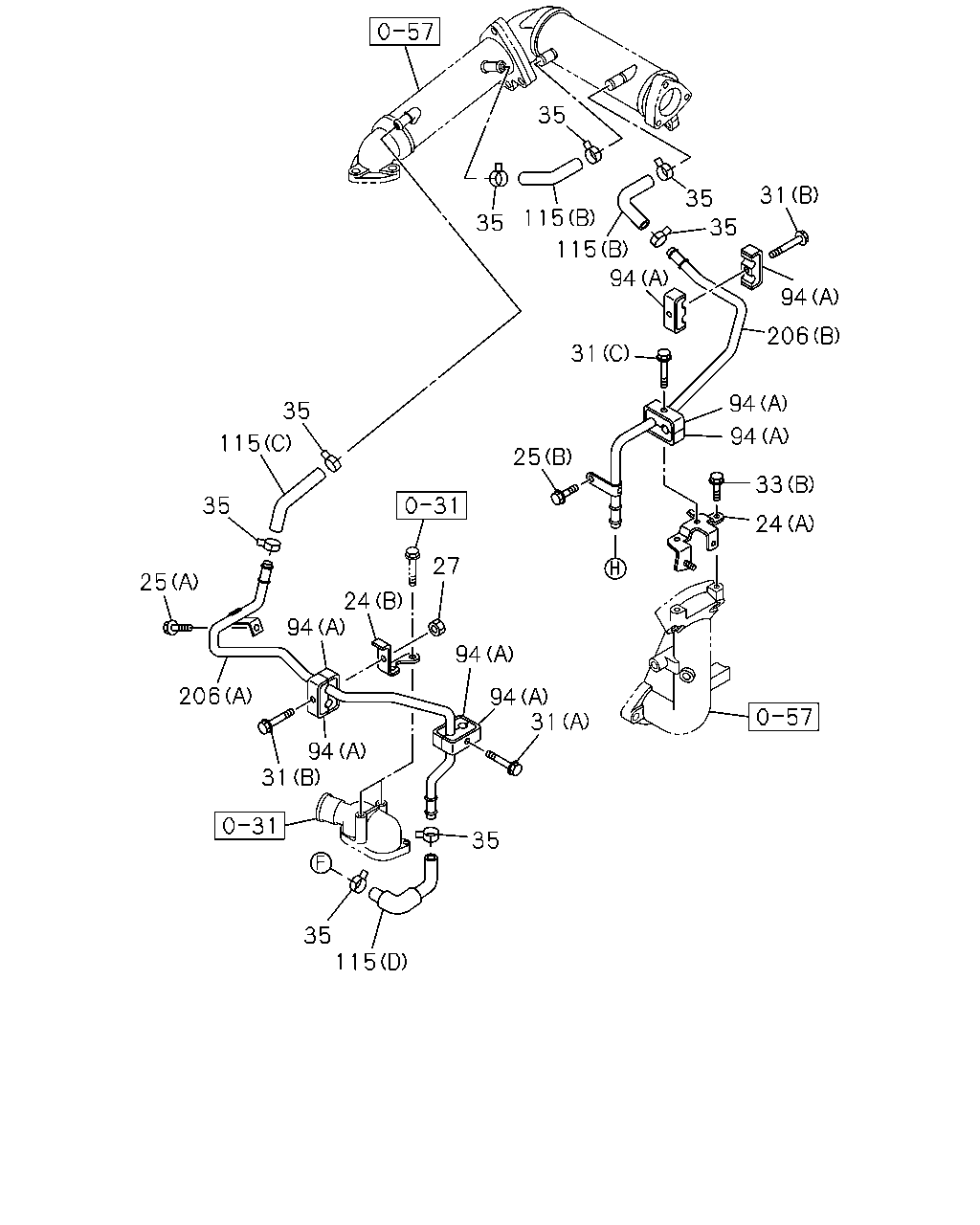

35 35 115 35 31 115 31 94 35 206 94 94 33 94 25 115 35 25 206 94 27 94 24 31 94 31 35 94 35 115 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (C)	8-97379-140-0	01	1	1302-		●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98000-557-2	01	1	1302-	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98051-626-1	01	1	1302-	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
27	NUT; PIPE FIX EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1302-	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
33	BOLT; BRKT (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1302-	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1302-	●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-		●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-	●
115	HOSE; RUBBER (G)	8-98009-361-0	01	1	1302-		●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1302-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1302-	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1302-	●

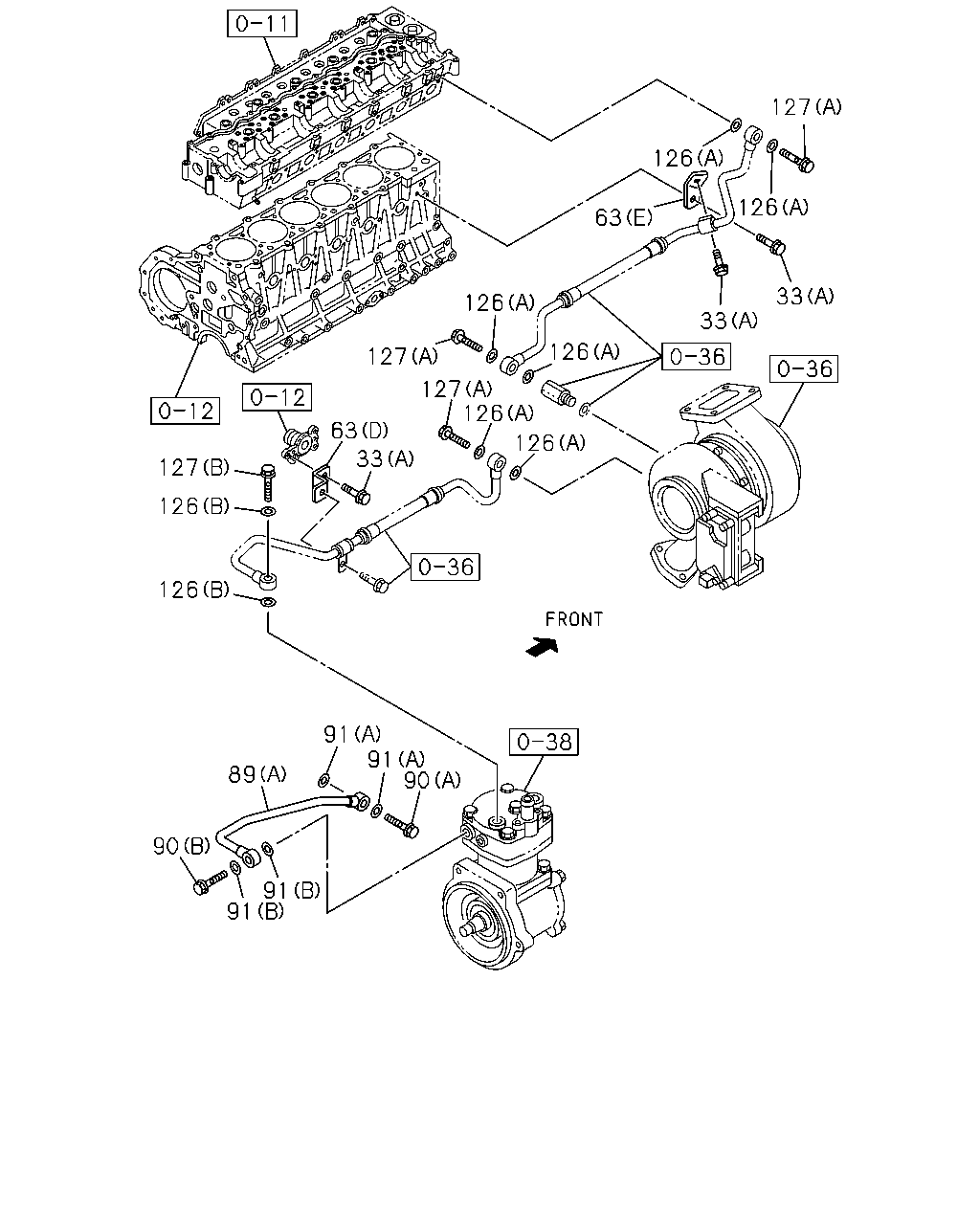

127 126 63 126 33 33 126 126 127 126 127 126 63 127 126 33 126 90 91 91 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
33	BOLT; BRKT (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (D)	8-98153-457-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1302-	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-	●

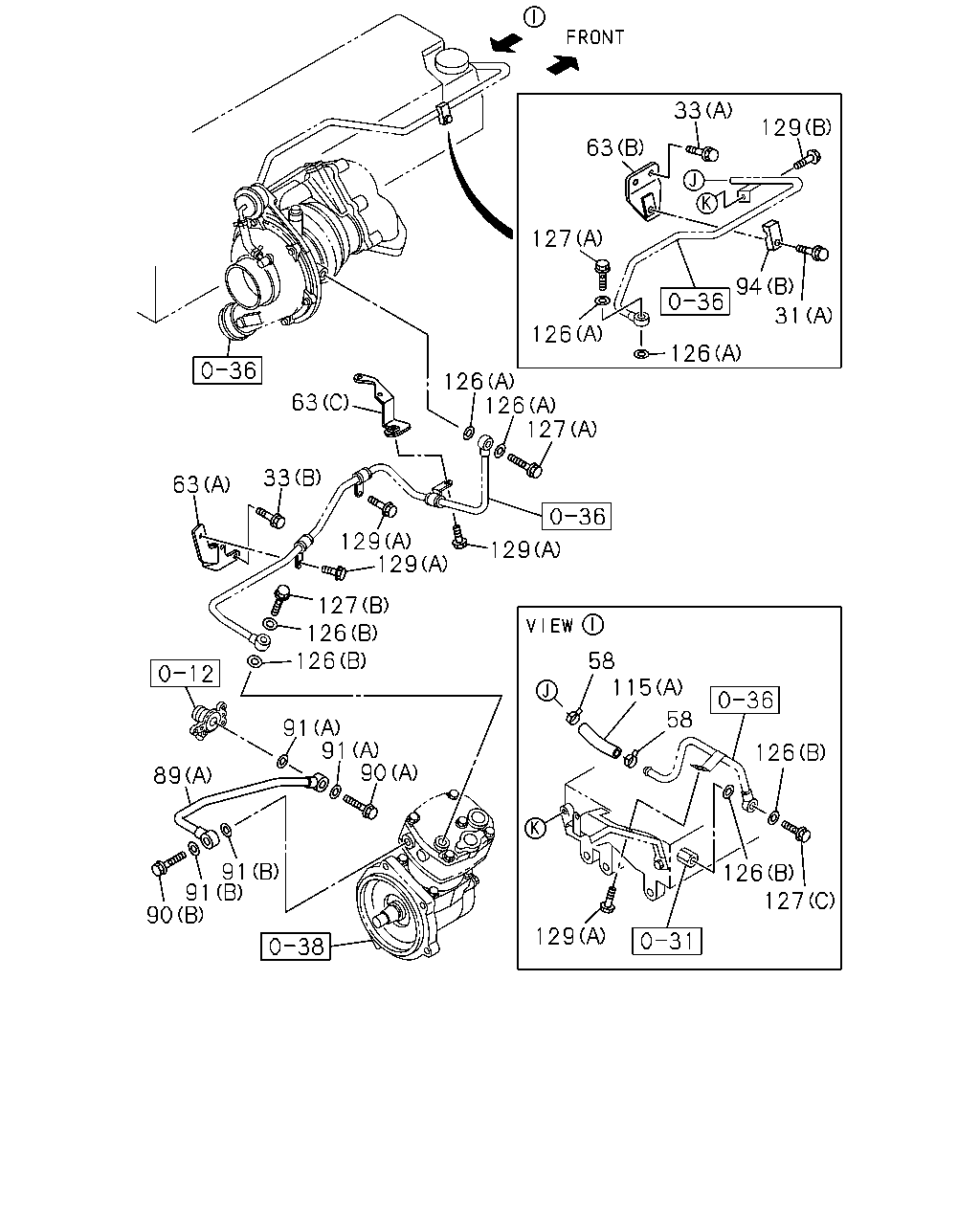

33 63 127 126 126 31 94 129 63 33 63 89 90 91 91 91 91 90 126 126 127 129 129 129 127 126 126 58 115 58 126 127 126 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M6X45 FLANGE	0-28050-645-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X40 FLANGE	0-28650-640-0	03	1	1302-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
33	BOLT; BRKT (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-98074-253-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (E)	8-98046-784-0	01	1	1302-	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (D)	8-98153-457-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-		●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	1302-	●
115	HOSE; RUBBER (G)	8-98009-361-0	01	1	1302-		●
115	HOSE; RUBBER (F) L=130	8-98136-884-0	01	1	1302-		●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-97606-735-1	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-749-0	02	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97618-843-0	01	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	02	1	1302-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1302-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1302-	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1302-	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-	●

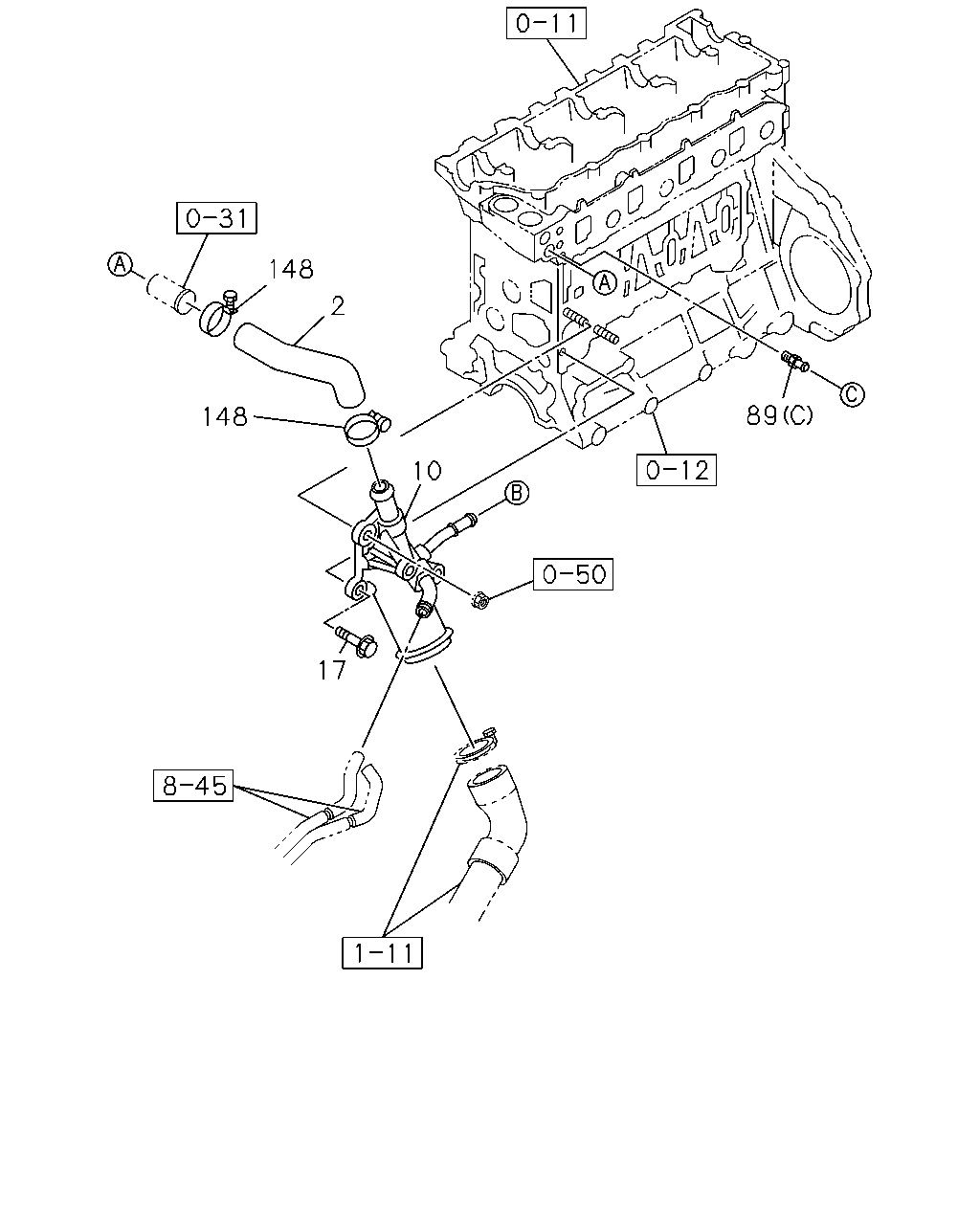

148 148 2 10 17 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1302-		●
10	PIPE; SUCTION	8-98166-995-0	01	1	1302-		●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
