Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#113705) — 190 parça

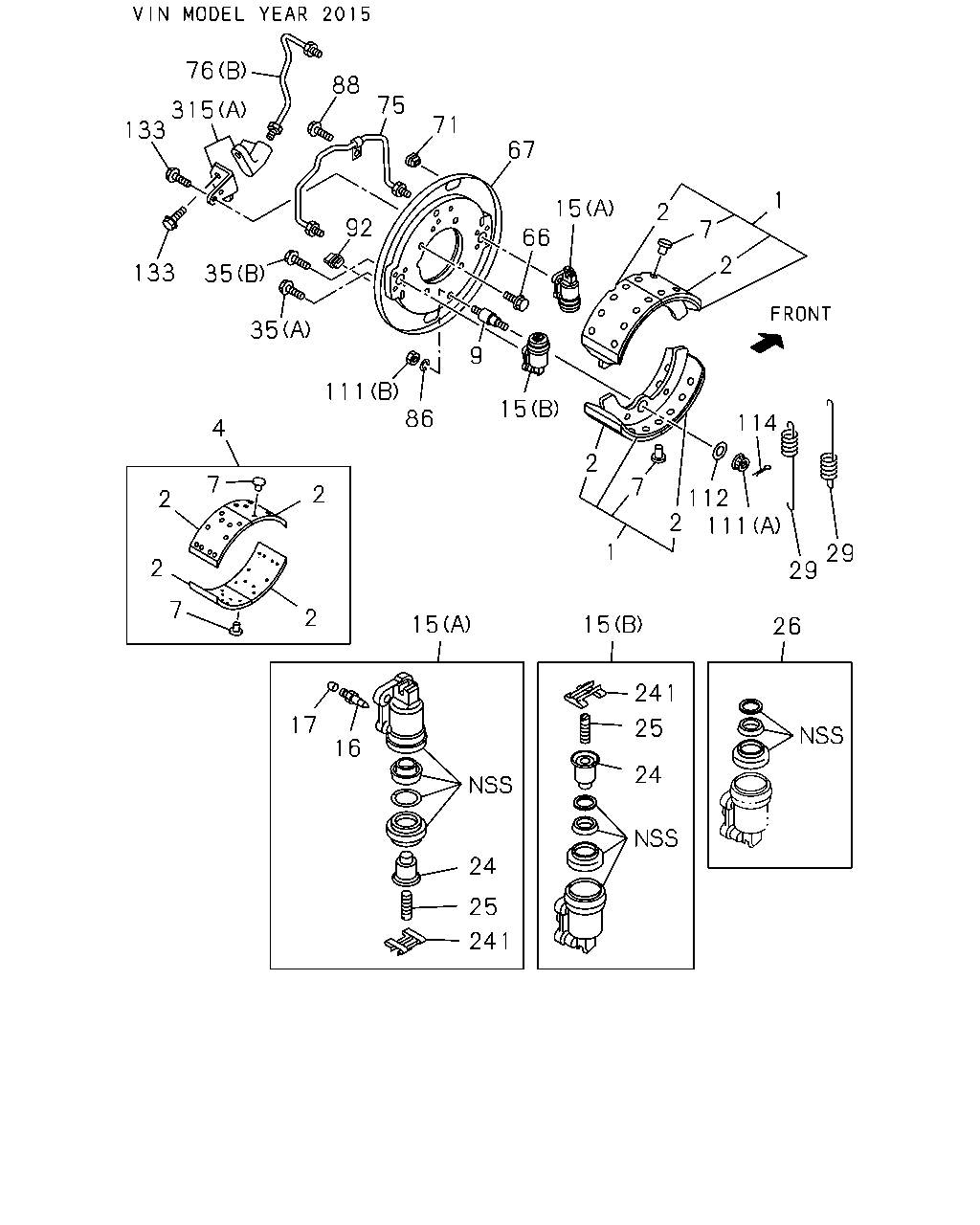

1 2 7 2 114 112 29 111 29 26 15 1 7 2 2 15 9 66 67 71 75 88 92 35 35 133 133 315 76 111 86 15 2 4 7 2 2 7 2 16 17 24 25 241 241 25 24 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-624-0	04	1	1302-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-483-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-801-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-800-0	08	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-501-1	01	1	1302-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-385-0	02	1	1302-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	56	1	1302-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1302-
9	PIN; SHOE HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-046-0	04	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-939-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-938-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-174-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-175-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-172-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-173-0	01	1	1302-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	8-98050-476-0	04	1	1302-
16	SCREW; BLEEDER,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98050-479-0	04	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-319-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-318-0	02	1	1302-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-237-0	04	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> RH THREAD	1-47622-021-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> LH THREAD	1-47622-020-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-679-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87831-309-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-288-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-385-2	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C) M14X30	1-09000-365-0	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D) M8X22	9-09802-475-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-227-0	08	1	1302-
66	BOLT; OIL SHIELD COVER EXC. BRAKE ADJUSTER MANUAL<BJR> M14X60	0-20951-460-0	04	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-376-0	01	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-375-0	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-717-1	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-716-1	01	1	1302-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-238-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-237-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-49167-859-0	02	1	1302-
76	PIPE; OIL,BACKWARD,FRT BRK VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98242-030-0	01	1	1511-
76	PIPE; OIL,BACKWARD,FRT BRK VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98242-031-0	01	1	1511-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47414-242-0	01	1	1302-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47414-241-0	01	1	1302-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-614-0	04	1	1302-
86	WASHER; LK,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
88	BOLT; BRK PIPE CLAMP EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
92	GROMMET; ADJ HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> (C)	1-09440-002-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09440-101-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-111-0	04	1	1302-
112	WASHER; PL,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-048-0	04	1	1302-
133	BOLT; BRKT EXC. BRAKE ADJUSTER MANUAL<BJR> M8X20 W/LK WASHER	0-50540-820-0	04	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-
315	BRACKET; BRAKE FLEX HOSE VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98256-819-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98256-820-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-243-0	01	1	1302-1510
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF> (B)	1-47159-243-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-242-0	01	1	1302-1510
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF> (B)	1-47159-242-0	01	1	1511-

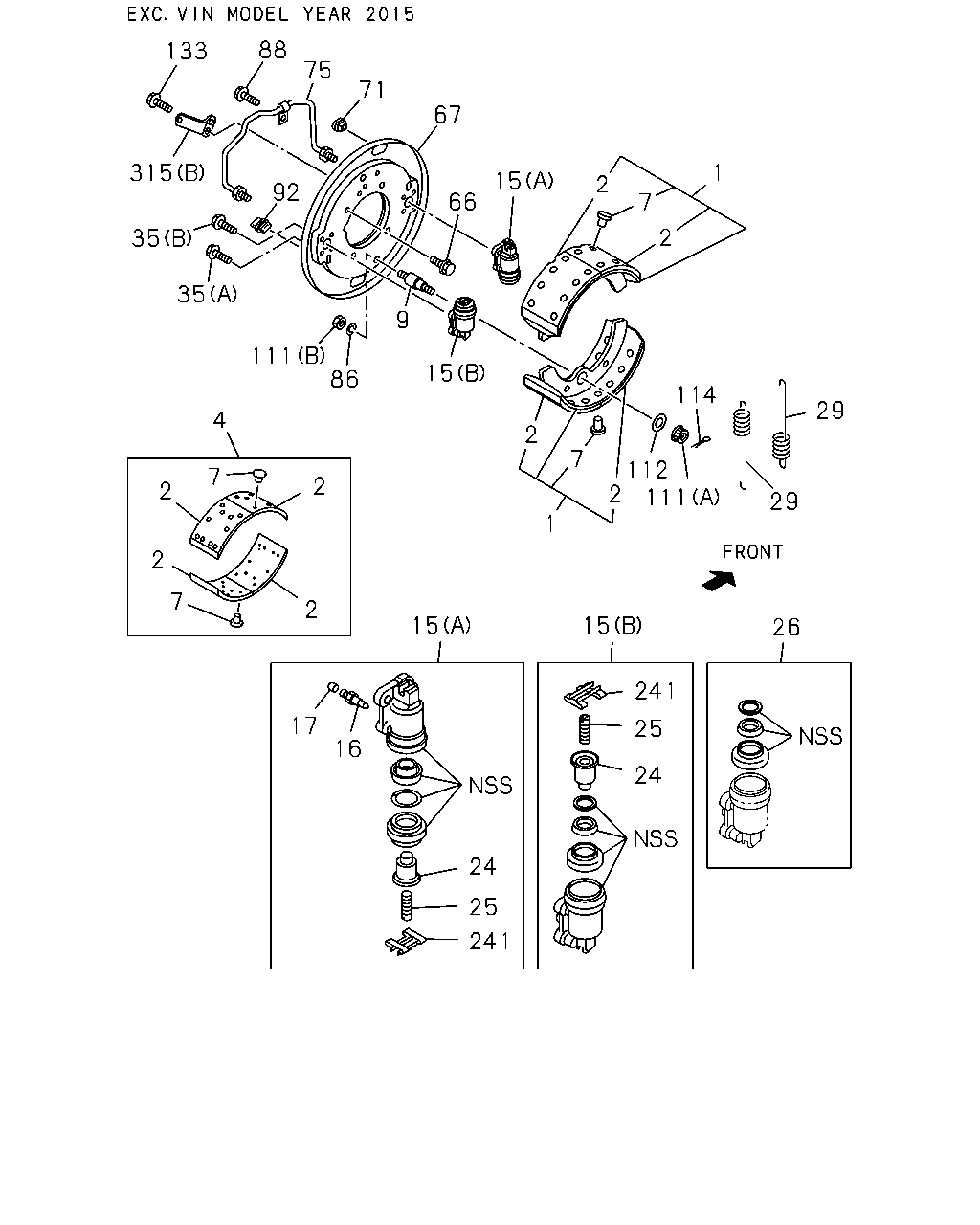

133 88 29 29 111 114 112 2 1 7 2 2 7 1 2 15 15 9 66 67 86 111 92 71 75 35 35 315 2 2 4 7 2 2 7 17 16 15 24 25 241 241 15 25 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-624-0	04	1	1302-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-483-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-801-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-800-0	08	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-501-1	01	1	1302-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-385-0	02	1	1302-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	56	1	1302-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1302-
9	PIN; SHOE HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-046-0	04	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-939-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-938-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-174-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-175-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-172-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-173-0	01	1	1302-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	8-98050-476-0	04	1	1302-
16	SCREW; BLEEDER,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98050-479-0	04	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-319-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-318-0	02	1	1302-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-237-0	04	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> RH THREAD	1-47622-021-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> LH THREAD	1-47622-020-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-679-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87831-309-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-288-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-385-2	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C) M14X30	1-09000-365-0	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D) M8X22	9-09802-475-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-227-0	08	1	1302-
66	BOLT; OIL SHIELD COVER EXC. BRAKE ADJUSTER MANUAL<BJR> M14X60	0-20951-460-0	04	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-376-0	01	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-375-0	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-717-1	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-716-1	01	1	1302-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-238-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-237-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-49167-859-0	02	1	1302-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-614-0	04	1	1302-
86	WASHER; LK,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
88	BOLT; BRK PIPE CLAMP EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
92	GROMMET; ADJ HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> (C)	1-09440-002-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09440-101-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-111-0	04	1	1302-
112	WASHER; PL,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-048-0	04	1	1302-
133	BOLT; BRKT EXC. BRAKE ADJUSTER MANUAL<BJR> M8X20 W/LK WASHER	0-50540-820-0	04	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-
315	BRACKET; BRAKE FLEX HOSE VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98256-819-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98256-820-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-243-0	01	1	1302-1510
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF> (B)	1-47159-243-0	01	1	1511-
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-242-0	01	1	1302-1510
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF> (B)	1-47159-242-0	01	1	1511-

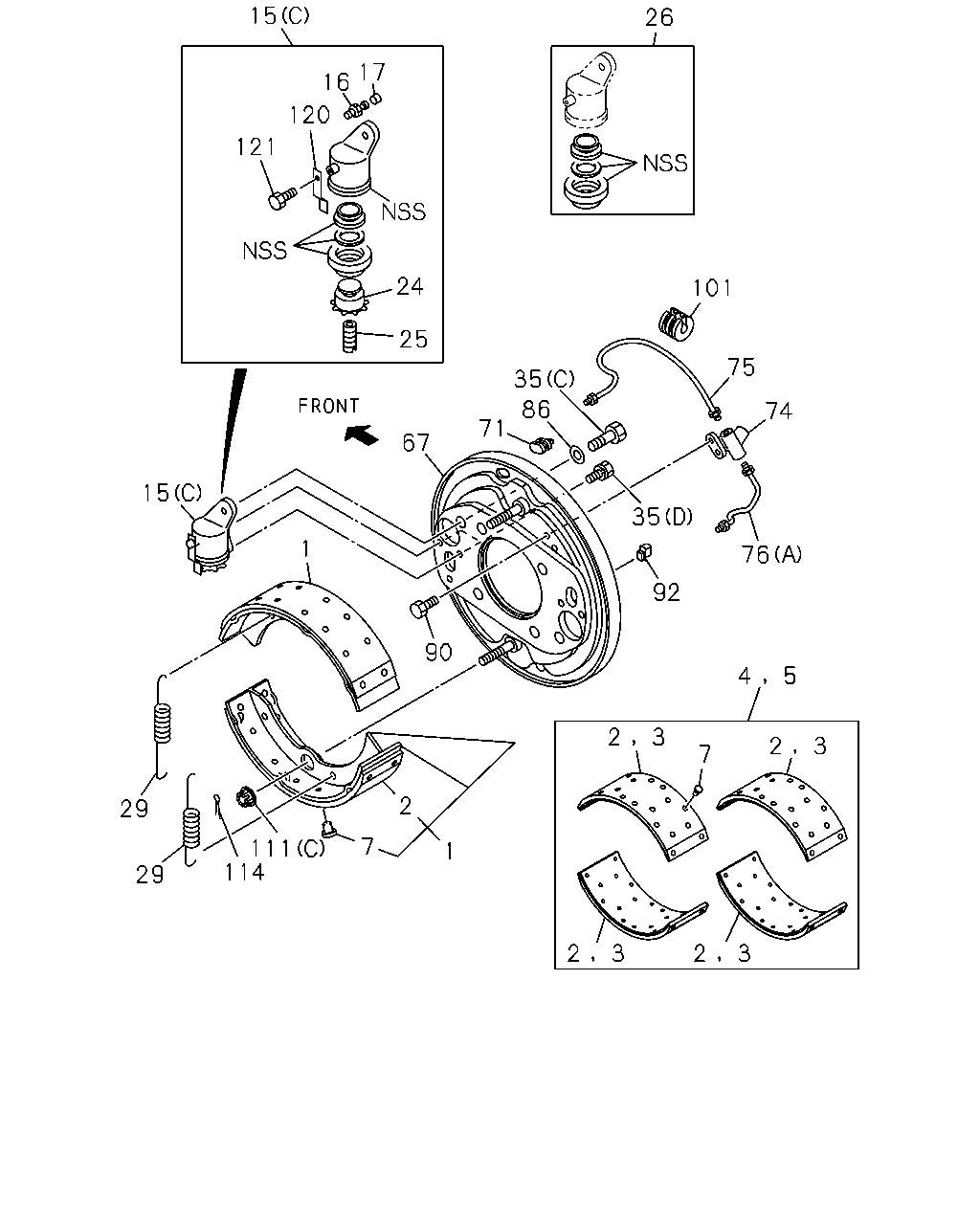

76 4 5 3 2 7 3 2 2 3 2 3 1 2 7 111 114 29 29 15 121 120 17 16 15 24 25 26 101 75 74 35 92 67 71 35 86 90 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-624-0	04	1	1302-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-483-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-801-0	04	1	1302-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-800-0	08	1	1302-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-802-0	04	1	1302-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-501-1	01	1	1302-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-385-0	02	1	1302-
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-502-1	01	1	1302-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	56	1	1302-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-939-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-938-0	02	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-174-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-175-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-172-0	01	1	1302-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-173-0	01	1	1302-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	8-98050-476-0	04	1	1302-
16	SCREW; BLEEDER,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98050-479-0	04	1	1302-
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-319-0	02	1	1302-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-318-0	02	1	1302-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-237-0	04	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> RH THREAD	1-47622-021-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> LH THREAD	1-47622-020-0	02	1	1302-
25	SCREW; ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-679-0	04	1	1302-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87831-309-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-288-0	04	1	1302-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-385-2	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C) M14X30	1-09000-365-0	04	1	1302-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D) M8X22	9-09802-475-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	1302-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-227-0	08	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-376-0	01	1	1302-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-375-0	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-717-1	01	1	1302-
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-716-1	01	1	1302-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-014-1	01	1	1302-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-013-1	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-238-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-237-0	01	1	1302-
75	PIPE; OIL,FWD,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-49167-859-0	02	1	1302-
76	PIPE; OIL,BACKWARD,FRT BRK VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98242-030-0	01	1	1511-
76	PIPE; OIL,BACKWARD,FRT BRK VIN MODEL YEAR 2015<VZF> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98242-031-0	01	1	1511-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47414-242-0	01	1	1302-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47414-241-0	01	1	1302-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-614-0	04	1	1302-
86	WASHER; LK,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
90	BOLT; CONNECTOR BRAKE ADJUSTER MANUAL<BJR>	5-09030-036-1	02	1	1302-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
92	GROMMET; ADJ HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
101	PROTECTOR; OIL PIPE,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1302-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> (C)	1-09440-002-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09440-101-0	04	1	1302-
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-111-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
114	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-048-0	04	1	1302-
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47629-072-0	04	1	1302-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-94128-727-0	04	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
