Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#113696) — 430 parça

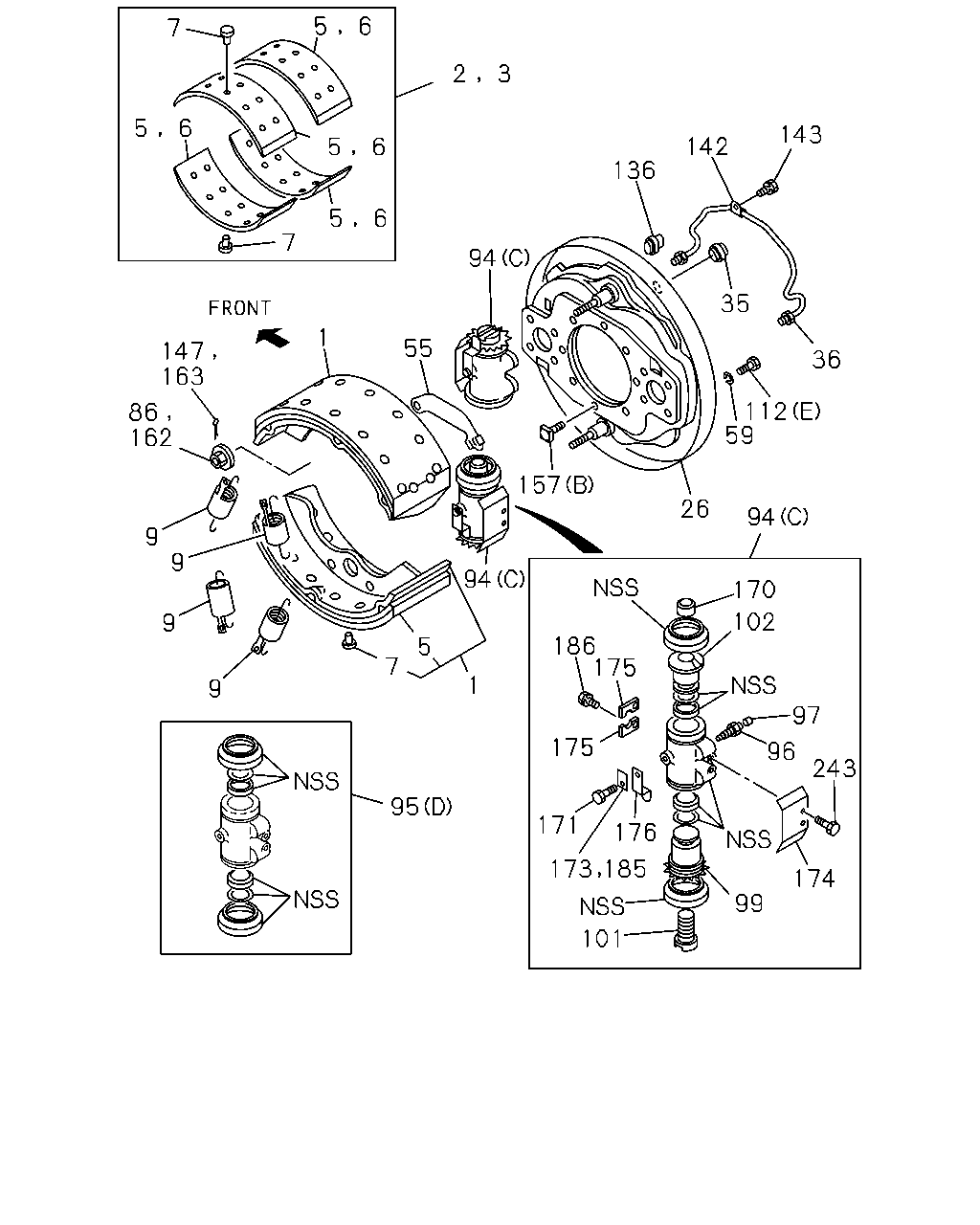

7 5 6 2 3 7 5 6 6 5 94 136 142 143 36 35 112 59 94 26 157 55 94 1 5 7 9 9 9 9 86 162 163 147 95 186 175 175 171 176 173 185 101 99 174 243 96 5 6 170 102 97 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-629-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47170-003-0	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-525-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-390-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-394-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-839-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS	1-87610-130-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-526-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-391-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-395-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-840-1	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-807-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-812-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-161-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-808-0	04	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-813-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-162-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	80	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09732-029-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-167-0	08	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-359-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-346-0	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-443-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-442-0	01	1	1302-
26	PLATE; BACK,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-677-0	01	1	1302-
26	PLATE; BACK,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-676-0	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47150-645-0	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47150-644-0	01	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-066-1	04	1	1302-
35	GROMMET; CHECK HOLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-033-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47416-356-0	02	1	1302-
36	PIPE; OIL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-727-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49162-057-0	01	1	1302-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49167-875-0	01	1	1411-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49162-056-0	01	1	1302-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49167-876-0	01	1	1411-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47139-169-0	04	1	1411-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-068-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47139-064-0	04	1	1302-1410
55	PLATE; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1411-
59	WASHER; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-786-0	16	1	1302-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09440-102-0	04	1	1411-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-009-0	02	1	1302-
86	NUT; FLANGE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09440-003-0	04	1	1302-1410
86	NUT; FLANGE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1411-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-487-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-489-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-486-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-488-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98166-405-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-011-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-010-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-199-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-198-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-187-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-186-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-367-0	01	1	1411-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87831-414-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-87830-922-0	02	1	1302-
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-87830-933-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-87831-246-1	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=44	1-47615-007-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-477-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> OD=9.5	9-47619-005-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12	1-47619-011-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-479-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-748-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-747-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47624-357-0	04	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-350-0	02	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-349-0	02	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-349-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-351-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-350-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-352-0	01	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-029-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-028-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47622-053-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47622-054-0	02	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-760-0	04	1	1302-
102	PISTON; REAR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47624-333-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> (E)	0-23951-435-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X32 W/LK WASHER	0-50551-232-0	04	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14	1-47159-183-0	08	1	1302-1410
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-47159-231-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE	8-94134-103-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	1-47159-184-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	1-47159-184-0	06	1	1302-1410
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47159-232-0	06	1	1411-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	1-09333-065-2	04	1	1302-
136	GROMMET HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-09956-640-0	04	1	1302-
142	CLAMP; OIL PIPE BRAKE ADJUSTER MANUAL<BJR>	1-09700-454-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE BRAKE ADJUSTER MANUAL<BJR>	8-98188-788-0	02	1	1302-
147	PIN; HOLDER BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> (B) M14X56	1-09060-004-0	12	1	1302-
157	BOLT; RR BRK SET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1302-1410
157	BOLT; RR BRK SET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1411-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09060-021-0	16	1	1411-
162	NUT; SHOE HOLD DOWN BRAKE ADJUSTER MANUAL<BJR>	1-09440-009-0	02	1	1302-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09740-098-0	04	1	1411-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	02	1	1302-
163	PIN; SPLIT,SHOE HOLD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-09874-040-0	04	1	1302-1410
163	PIN; SPLIT,SHOE HOLD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1411-
170	PIECE; ANCHOR,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-019-0	04	1	1302-
171	BOLT; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M6X10	8-98030-649-0	04	1	1302-
173	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47169-009-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-016-0	04	1	1302-
174	COVER; CYL,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47159-197-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47154-008-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47154-008-0	04	1	1302-
175	HANGER; RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47118-084-0	08	1	1302-
175	HANGER; RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-145-0	02	1	1302-
176	STOPPER; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47169-008-0	04	1	1302-
185	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47169-009-0	02	1	1302-
186	BOLT; HANGER BRAKE ADJUSTER MANUAL<BJR>	8-98188-787-0	08	1	1302-
186	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 W/LK WASHER	0-50540-816-0	02	1	1302-
243	BOLT; WHEEL CYL COVER SETTING BRAKE ADJUSTER MANUAL<BJR>	8-98188-788-0	08	1	1302-

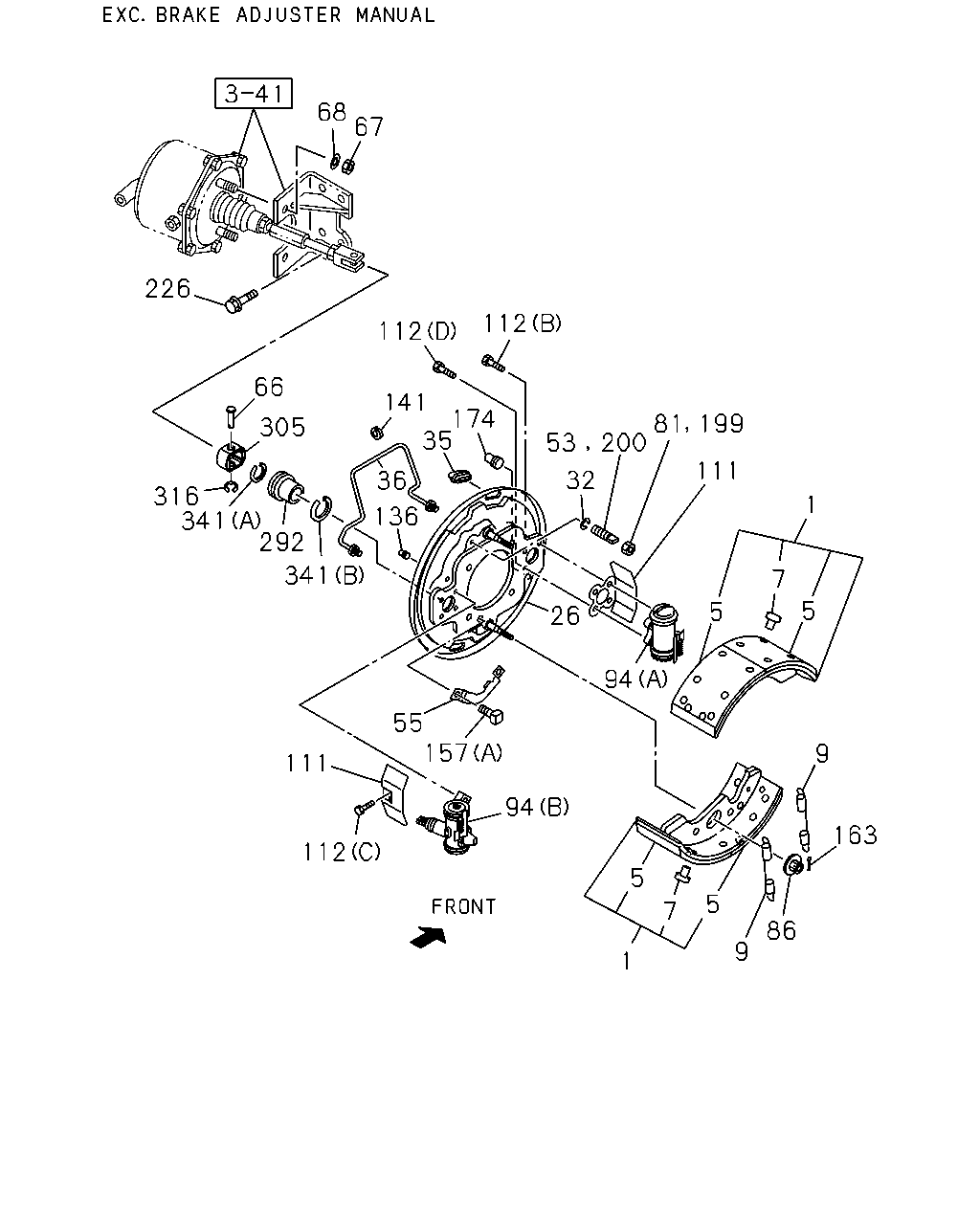

68 67 226 112 112 53 200 81 199 1 111 32 35 174 141 66 305 316 292 341 341 55 157 111 112 94 5 7 5 9 9 163 86 7 5 5 94 26 36 136 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-629-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47170-003-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-807-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-812-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-161-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	80	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09732-029-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-167-0	08	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-359-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-346-0	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-443-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-442-0	01	1	1302-
26	PLATE; BACK,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-677-0	01	1	1302-
26	PLATE; BACK,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-676-0	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47150-645-0	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47150-644-0	01	1	1302-
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09985-346-0	04	1	1411-
32	WASHER; LK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.2	0-91510-512-0	04	1	1302-1410
32	WASHER; LK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1411-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-066-1	04	1	1302-
35	GROMMET; CHECK HOLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-033-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47416-356-0	02	1	1302-
36	PIPE; OIL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-727-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49162-057-0	01	1	1302-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49167-875-0	01	1	1411-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49162-056-0	01	1	1302-1410
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-49167-876-0	01	1	1411-
53	BOLT; LOCK PLATE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16	0-20851-016-0	02	1	1302-
53	BOLT; LOCK PLATE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47162-050-0	02	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47139-169-0	04	1	1411-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-068-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47139-064-0	04	1	1302-1410
55	PLATE; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1411-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09744-128-0	02	1	1302-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16	0-91110-516-0	04	1	1302-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16.2	0-91510-816-0	04	1	1302-
81	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09400-167-0	02	1	1411-
81	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09400-100-0	02	1	1302-1410
81	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1411-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09440-102-0	04	1	1411-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-009-0	02	1	1302-
86	NUT; FLANGE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09440-003-0	04	1	1302-1410
86	NUT; FLANGE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1411-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-487-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-489-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-486-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-488-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98166-405-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-011-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-010-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-199-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-198-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-187-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-186-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-367-0	01	1	1411-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47159-233-0	04	1	1411-
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47159-164-0	04	1	1302-1410
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-164-0	04	1	1411-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> (E)	0-23951-435-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X32 W/LK WASHER	0-50551-232-0	04	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14	1-47159-183-0	08	1	1302-1410
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-47159-231-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE	8-94134-103-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	1-47159-184-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	1-47159-184-0	06	1	1302-1410
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47159-232-0	06	1	1411-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	1-09333-065-2	04	1	1302-
136	GROMMET HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-09956-640-0	04	1	1302-
141	PROTECTOR; RR BRK PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47143-008-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> (B) M14X56	1-09060-004-0	12	1	1302-
157	BOLT; RR BRK SET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1302-1410
157	BOLT; RR BRK SET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X50 SQUARE HEAD	1-09060-013-0	16	1	1411-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09060-021-0	16	1	1411-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09740-098-0	04	1	1411-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	02	1	1302-
163	PIN; SPLIT,SHOE HOLD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-09874-040-0	04	1	1302-1410
163	PIN; SPLIT,SHOE HOLD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1411-
174	COVER; CYL,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-016-0	04	1	1302-
174	COVER; CYL,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47159-197-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47154-008-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47154-008-0	04	1	1302-
199	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09400-167-0	02	1	1411-
199	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09400-100-0	02	1	1302-1410
199	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1411-
200	BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47162-050-0	02	1	1302-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X35 FLANGE	0-28651-435-0	08	1	1302-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47616-107-0	02	1	1302-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46346-023-0	02	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47619-175-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47619-176-0	02	1	1302-

5 6 2 3 5 6 297 345 344 83 94 343 97 20 18 250 250 102 96 99 155 342 155 101 94 101 250 342 155 155 99 282 100 283 284 224 266 286 179 13 266 178 250 297 18 345 83 344 343 250 20 341 316 305 341 292 95 95 66 7 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-525-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-390-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-394-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-839-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS	1-87610-130-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-526-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-391-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-395-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-840-1	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-807-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-812-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-161-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-808-0	04	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-813-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-162-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	80	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09732-029-0	96	1	1302-
13	CLIP; ROLLER PIN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-139-0	02	1	1302-
18	LEVER; AUTO ADJ HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-164-0	02	1	1302-
18	LEVER; AUTO ADJ HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-165-0	02	1	1302-
20	SPRING; ADJ LEVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-345-0	04	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09744-128-0	02	1	1302-
83	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-108-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-487-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-489-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-486-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-488-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98166-405-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-011-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-010-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-199-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-198-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-187-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-186-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-367-0	01	1	1411-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87831-414-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-87830-922-0	02	1	1302-
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-87830-933-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-87831-246-1	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=44	1-47615-007-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-477-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> OD=9.5	9-47619-005-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12	1-47619-011-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-479-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-748-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-747-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47624-357-0	04	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-350-0	02	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-349-0	02	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-349-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-351-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-350-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-352-0	01	1	1302-
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-169-0	02	1	1302-1410
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98290-467-0	02	1	1411-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-029-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-028-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47622-053-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47622-054-0	02	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-760-0	04	1	1302-
102	PISTON; REAR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47624-333-0	02	1	1302-
155	WASHER; PL,WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47629-150-0	04	1	1302-
155	WASHER; PL,WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47629-151-0	04	1	1302-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-168-0	02	1	1302-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-141-0	02	1	1302-
224	PIN; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-130-0	02	1	1302-
250	PIN; RETAINING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47619-106-0	04	1	1302-
250	PIN; RETAINING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47629-112-0	04	1	1302-
250	PIN; RETAINING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-47629-262-0	04	1	1302-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-138-0	04	1	1302-
282	PLUNGER; INNER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-255-0	02	1	1302-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-256-0	01	1	1302-1410
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-257-0	01	1	1302-1410
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-257-0	02	1	1411-
284	BOOT; PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47616-093-0	02	1	1302-
286	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-132-0	06	1	1302-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47616-107-0	02	1	1302-
297	RING; SNAP HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-263-0	04	1	1302-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46346-023-0	02	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47619-175-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47619-176-0	02	1	1302-
342	GEAR; WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-159-0	02	1	1302-
342	GEAR; WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-158-0	02	1	1302-
343	SPRING; WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-141-0	04	1	1302-
344	WASHER; WAVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-107-0	04	1	1302-
345	RETAINER; LEVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-109-0	04	1	1302-

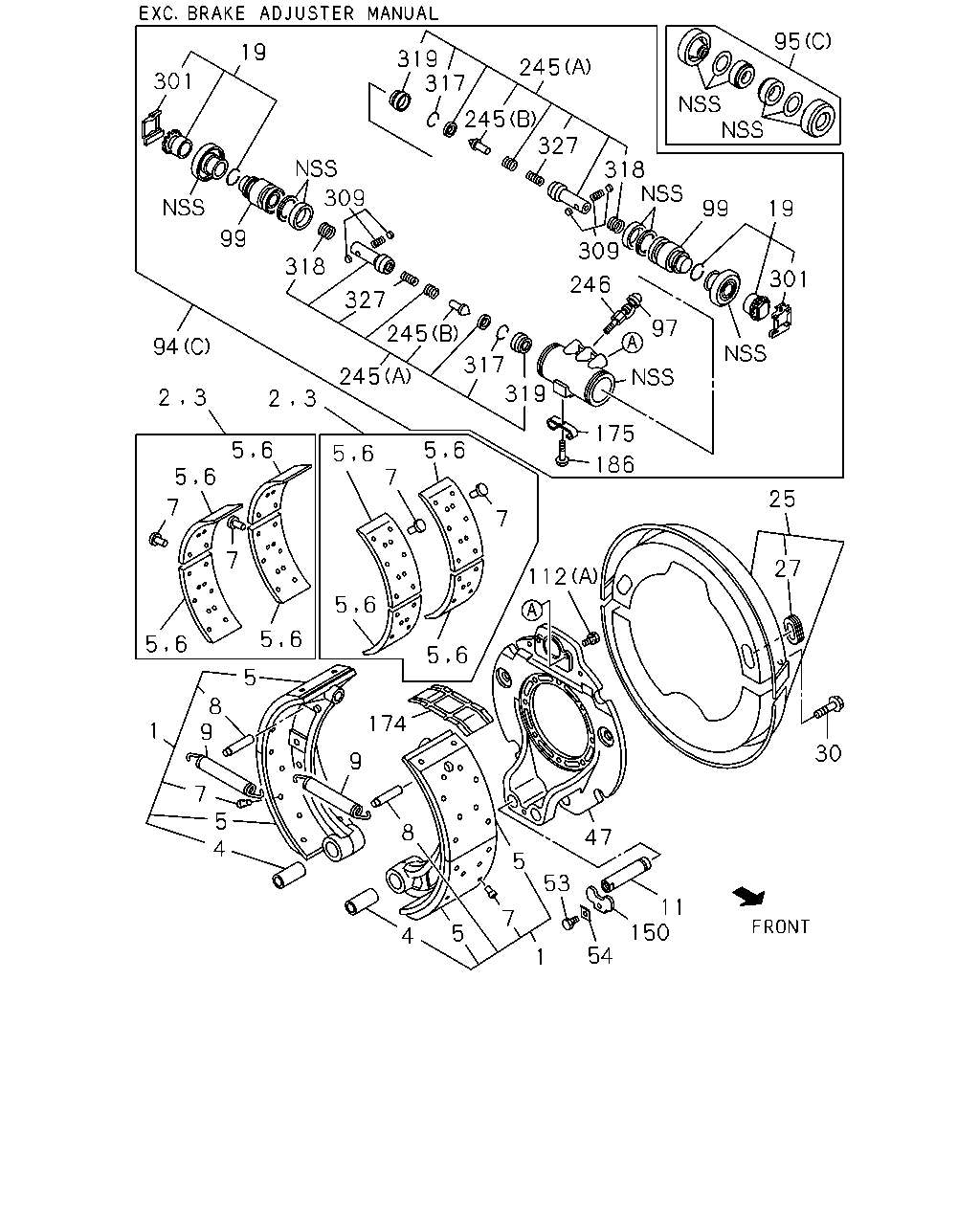

95 19 301 25 27 30 112 186 175 97 319 317 246 309 99 318 327 245 245 317 319 19 301 309 318 99 94 327 245 3 2 3 2 5 6 5 7 6 5 6 5 6 7 7 245 6 5 6 5 6 5 5 8 9 1 7 5 4 9 6 5 174 47 5 4 8 7 5 53 11 150 54 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-629-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-498-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-499-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-47170-496-0	01	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-47170-497-0	01	1	1302-
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47170-003-0	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-525-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-390-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-394-0	01	1	1302-
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-839-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS	1-87610-130-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-526-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING	1-88311-391-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING	1-88311-395-0	01	1	1302-
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-88310-840-1	02	1	1302-
4	BUSHING; BRK SHOE,RR WHEEL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47112-011-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-807-0	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-812-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-161-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-808-0	04	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-813-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47126-162-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	80	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TRAILING L=18.5	1-09732-034-0	40	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LEADING L=15.5	1-09732-053-0	40	1	1302-
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09732-029-0	96	1	1302-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47119-134-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-167-0	08	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-359-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09583-346-0	04	1	1302-
11	PIN; ANCHOR,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=106.5	1-47131-038-0	04	1	1302-
19	ADJUSTER; RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47621-015-0	04	1	1302-
25	COVER SET; RR BRK DRUM EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47151-458-1	02	1	1302-
27	COVER; CHECK HOLE,DRUM COVER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-151-0	04	1	1302-
30	BOLT; DRUM COVER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12	1-47159-187-0	12	1	1302-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47137-577-0	02	1	1302-
53	BOLT; LOCK PLATE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X16	0-20851-016-0	02	1	1302-
53	BOLT; LOCK PLATE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47162-050-0	02	1	1302-
54	WASHER; LK,ANCHOR PIN,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47133-011-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-487-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-489-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-486-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	8-98188-488-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98166-405-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-011-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-011-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-010-1	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-010-1	01	1	1411-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-199-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-198-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-187-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-185-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	1-47601-186-0	01	1	1302-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) FORWARD	1-47601-184-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) BACKWARD	8-98289-367-0	01	1	1411-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87831-414-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-87830-922-0	02	1	1302-
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-87830-933-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-87831-246-1	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> OD=9.5	9-47619-005-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=12	1-47619-011-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98050-479-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-748-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-747-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47624-357-0	04	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-350-0	02	1	1302-
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-349-0	02	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-349-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-351-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> FORWARD	1-47624-350-0	01	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BACKWARD	1-47624-352-0	01	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> (E)	0-23951-435-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12X32 W/LK WASHER	0-50551-232-0	04	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14	1-47159-183-0	08	1	1302-1410
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-47159-231-0	08	1	1411-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M6X10 FLANGE	8-94134-103-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	1-47159-184-0	08	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	1-47159-184-0	06	1	1302-1410
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47159-232-0	06	1	1411-
150	PLATE; LK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47133-005-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-016-0	04	1	1302-
174	COVER; CYL,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47159-197-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47154-008-0	02	1	1302-
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47154-008-0	04	1	1302-
175	HANGER; RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47118-084-0	08	1	1302-
175	HANGER; RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47619-145-0	02	1	1302-
186	BOLT; HANGER BRAKE ADJUSTER MANUAL<BJR>	8-98188-787-0	08	1	1302-
186	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 W/LK WASHER	0-50540-816-0	02	1	1302-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47623-027-1	04	1	1302-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-47629-121-0	04	1	1302-
246	BLEEDER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47615-002-0	02	1	1302-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47621-016-0	04	1	1302-
309	SPRING; ADJUSTER SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09580-544-0	04	1	1302-
317	RING; RETAINER EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-119-0	04	1	1302-
318	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09580-542-0	04	1	1302-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47629-120-0	04	1	1302-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09580-543-0	04	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
