◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#113691) — 57 parça

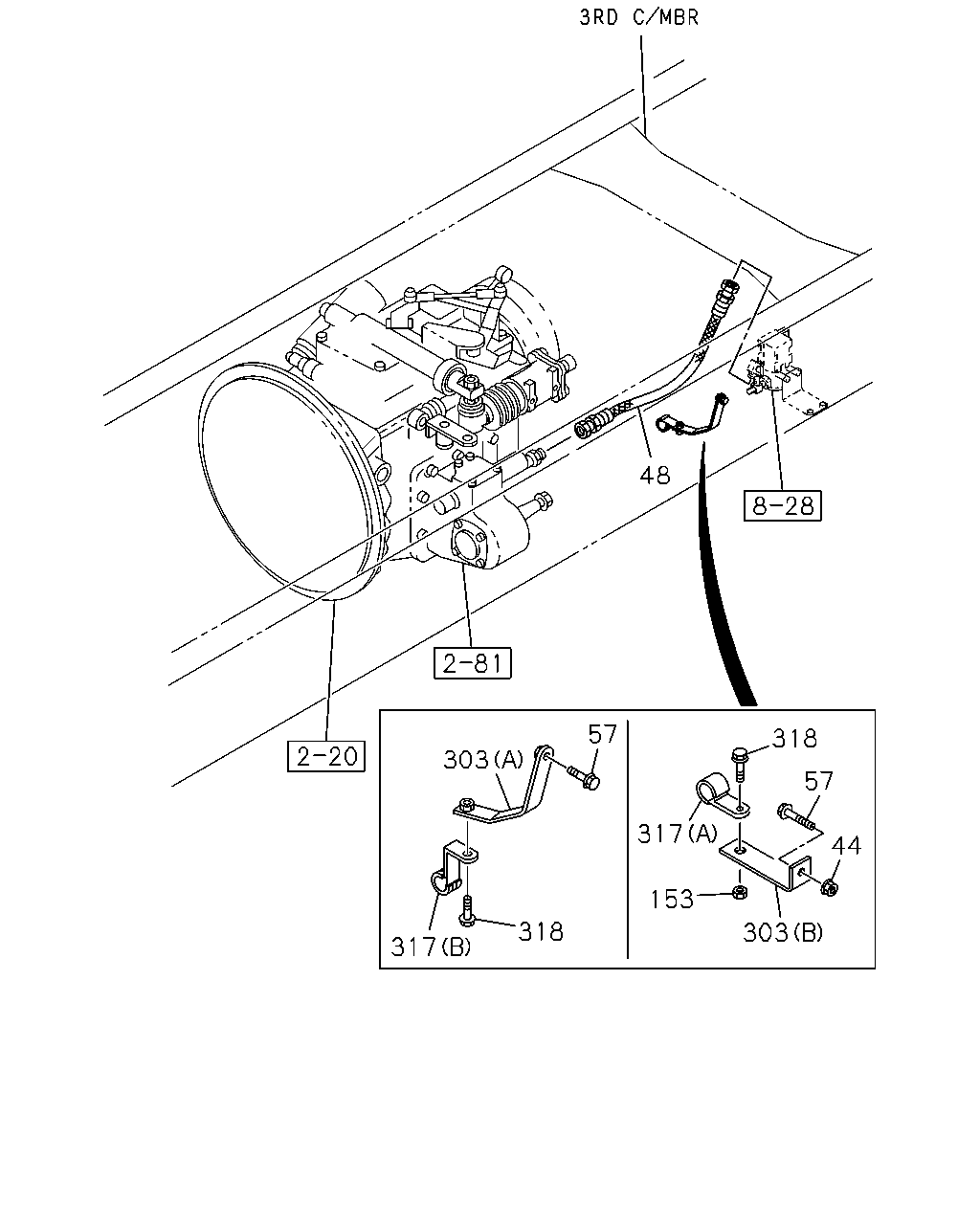

çizim 327698
48 303 57 317 318 153 303 317 318 57 44
BalonParca AdiParca NoAdetTipApplied Date A B
44 NUT; BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 01 1 1305- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) (B) L=230 		1-09363-666-0 01 1 1512- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=470 		1-09363-714-0 01 1 1302- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) L=320 		1-09363-625-0 01 1 1302-1511 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) (A) L=320 		1-09363-625-0 01 1 1512- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) (A) L=320 		1-09363-625-0 01 1 1512- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) L=720 		1-09363-970-0 01 1 1305- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 01 1 1305- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 1305- ●
57 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
57 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
153 NUT; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 01 1 1305- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) L=145 		1-47475-655-0 01 1 1305- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) 		8-98136-973-0 01 1 1305- ●
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) ID=13 L=32 		0-95235-265-0 01 1 1305- ●
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 1305- ●
318 BOLT; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●

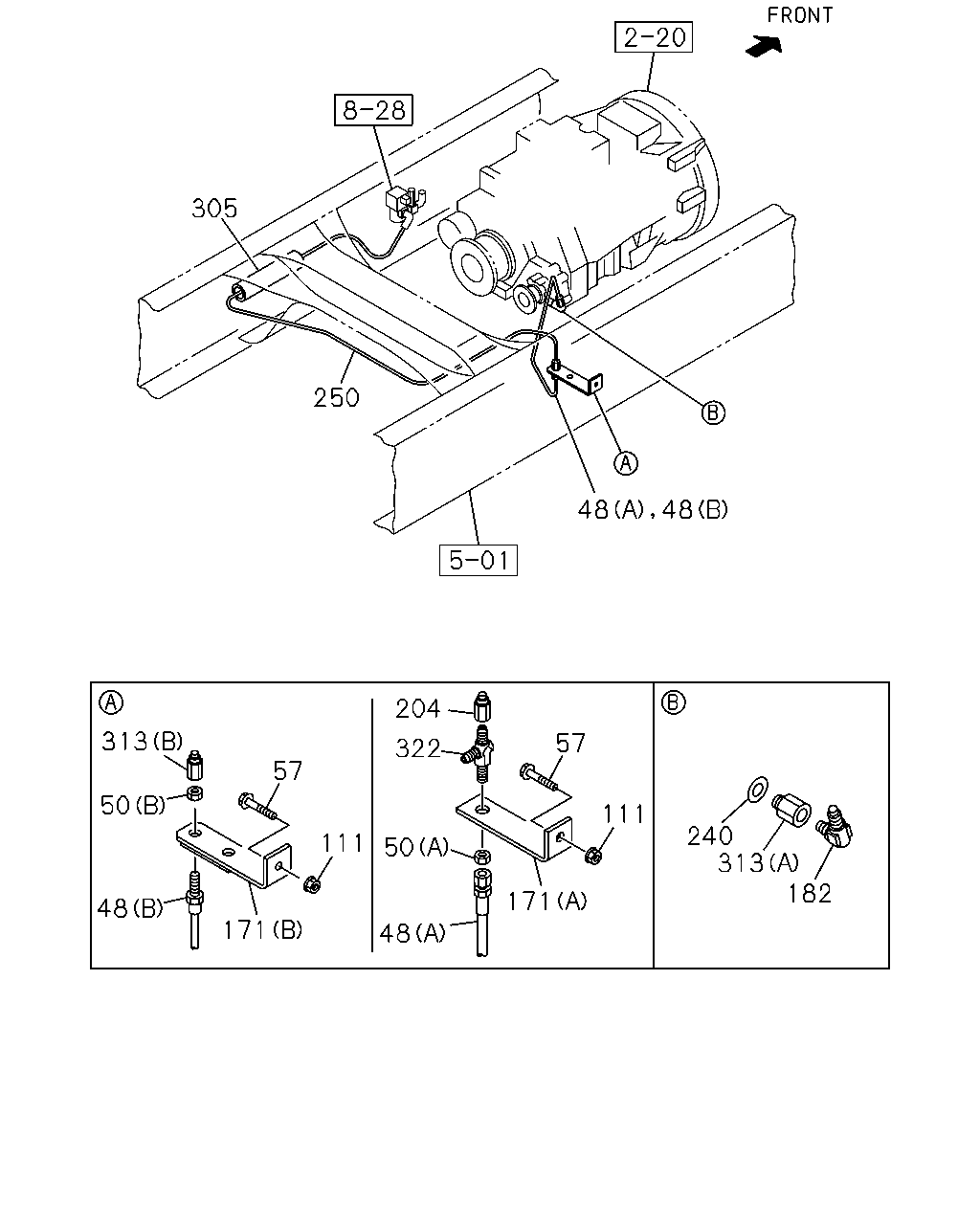

çizim 327746
305 250 48 48 313 50 48 57 111 171 204 322 50 48 57 111 171 240 13 182
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) (B) L=230 		1-09363-666-0 01 1 1512- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=470 		1-09363-714-0 01 1 1302- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) L=320 		1-09363-625-0 01 1 1302-1511 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) (A) L=320 		1-09363-625-0 01 1 1512- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) (A) L=320 		1-09363-625-0 01 1 1512- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) L=720 		1-09363-970-0 01 1 1305- ●
50 NUT; FLEX HOSE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) (B) M12 		9-09840-280-0 01 1 1512- ●
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 		0-91111-512-0 01 1 1302-1511 ●
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) (A) M12 		0-91111-512-0 01 1 1512- ●
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) (A) M12 		0-91111-512-0 01 1 1512- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 01 1 1305- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 1305- ●
57 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
57 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
111 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
111 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) (B) 		8-98100-228-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) 		8-98225-544-0 01 1 1302-1511 ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) (A) 		8-98225-544-0 01 1 1512- ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) (A) 		8-98225-544-0 01 1 1512- ●
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302- ●
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-1511 ●
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1302-1312 ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ●
250 TUBE; NYLON
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1302-1505 ●
250 TUBE; NYLON
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1506- ●
305 TUBE; CORRUGATE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1512- ●
305 TUBE; CORRUGATE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1512- ●
305 TUBE; CORRUGATE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1302-1505 ●
305 TUBE; CORRUGATE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1506-1511 ●
305 TUBE; CORRUGATE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1512- ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 1302- ●
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 2WAY 		1-09654-059-2 01 1 1302-1511 ●
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. IRAN EQUIPMENT(D8T) M12 2WAY 		1-09654-059-2 01 1 1512- ●
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV) M12 2WAY 		1-09654-059-2 01 1 1512- ●

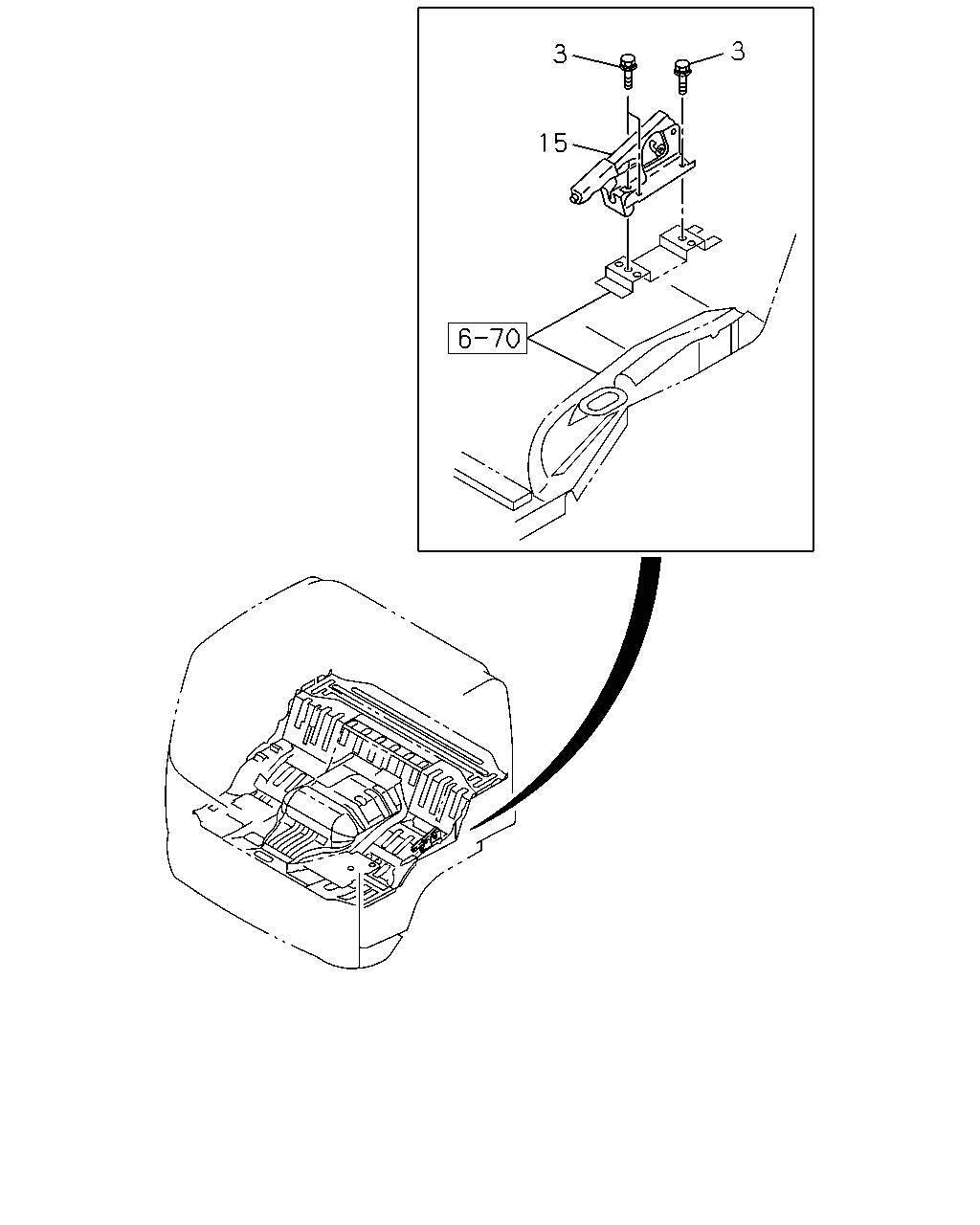

çizim 327980
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1302- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
