0-50 — OIL COOLER AND OIL FILTER (#11369) — 199 parça

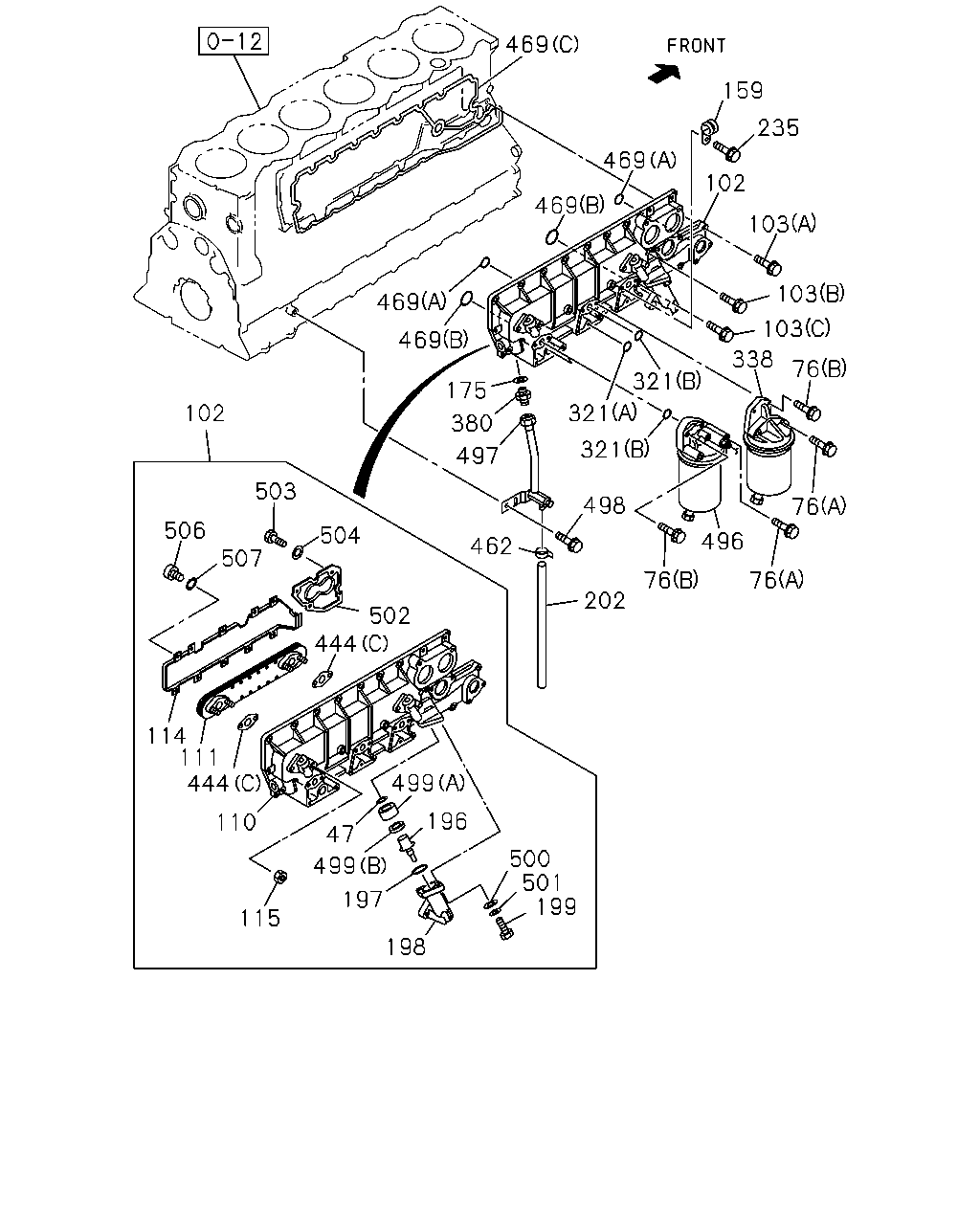

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 102 321 380 321 497 503 498 76 506 496 462 507 76 76 202 502 444 114 111 444 499 196 110 47 500 501 199 499 197 115 198 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0106-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0106-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	0106-0303
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-337-2	01	1	0106-0106
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0501
102	COOLER ASM; OIL	8-97604-716-0	01	1	0502-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0106-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	0106-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	0106-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0106-0106
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0107-
111	CORE; OIL COOLER	1-21723-053-1	01	1	0106-0501
111	CORE; OIL COOLER	8-97606-643-0	01	1	0502-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0106-
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0106-0501
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0502-
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0106-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0106-
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	0106-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0106-
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0106-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0106-0501
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0502-
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0206
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0401
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0106-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0106-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0106-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0106-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
380	CONNECTOR; WATER	1-09660-011-1	01	1	0106-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0502-
444	GASKET; ELEMENT TO BODY (C)	1-21729-093-1	02	1	0106-0501
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0502-
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	0106-0401
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0106-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0106-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0106-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0106-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0106-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0106-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0106-
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0106-
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	0106-0501
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	0106-0501
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0106-0106
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-
503	BOLT; COVER	1-21729-089-0	04	1	0106-0501
503	BOLT; COVER	8-98014-763-0	04	1	0502-
504	WASHER; PL,COVER	1-21729-090-0	04	1	0106-0501
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0106-0501
506	SCREW; BAFFLE	1-09030-036-0	10	1	0502-
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	0106-0501

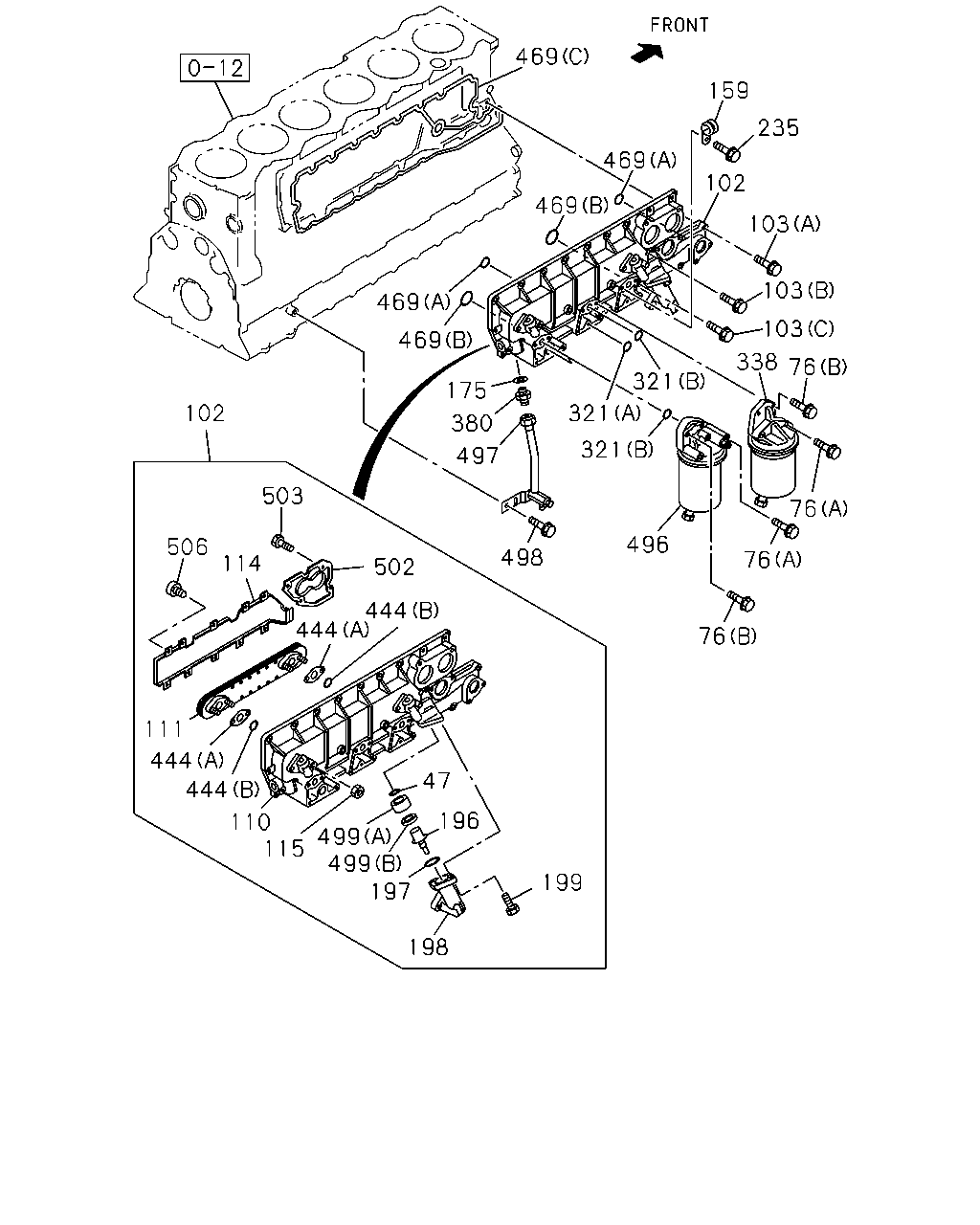

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 102 321 380 321 497 503 76 496 506 498 76 114 502 444 444 76 111 444 444 47 196 110 115 499 499 197 199 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0106-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0106-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	0106-0303
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-337-2	01	1	0106-0106
102	COOLER ASM; OIL	1-21700-320-2	01	1	0107-0501
102	COOLER ASM; OIL	8-97604-716-0	01	1	0502-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0106-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	0106-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	0106-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0106-0106
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0107-
111	CORE; OIL COOLER	1-21723-053-1	01	1	0106-0501
111	CORE; OIL COOLER	8-97606-643-0	01	1	0502-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0106-
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0106-0501
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0502-
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0106-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0106-
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	0106-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0106-
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0106-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0106-0501
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0502-
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0106-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0106-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0106-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0106-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
380	CONNECTOR; WATER	1-09660-011-1	01	1	0106-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0502-
444	GASKET; ELEMENT TO BODY (C)	1-21729-093-1	02	1	0106-0501
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0502-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0106-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0106-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0106-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0106-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0106-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0106-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0106-
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0106-
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0106-0106
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0107-
503	BOLT; COVER	1-21729-089-0	04	1	0106-0501
503	BOLT; COVER	8-98014-763-0	04	1	0502-
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0106-0501
506	SCREW; BAFFLE	1-09030-036-0	10	1	0502-

496 2 71 292 282 509 508 282 292 281 280 290 290 287 288 287 290 290 284 265 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0106-0303
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0304-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0106-0303
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0304-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	0106-0303
265	BODY; OIL FILTER	1-13211-216-1	01	1	0106-0303
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0304-
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0106-0303
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0304-
281	COVER; OIL FILTER	1-13211-206-1	01	1	0106-0303
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0106-0303
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0304-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0106-0303
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0106-0303
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0106-0303
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0304-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0106-0303
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0304-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0106-0303
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0304-
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	0106-0303
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-550-0	02	1	0106-0303
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0304-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0106-0303
292	SPRING; ELEMENT (A)	1-09580-563-0	01	1	0304-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0106-0303
292	SPRING; ELEMENT (B)	1-09580-562-0	01	1	0304-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0106-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0106-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-2	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0106-0303
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-285-0	01	1	0304-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0106-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	0106-0303
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0304-0410
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-
509	GASKET; SW	8-98013-480-0	01	1	0304-
509	GASKET; SW	1-09630-114-0	01	1	0106-0303

2 338 390 282 282 269 292 280 390 290 290 287 290 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0106-0303
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0304-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0106-0303
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0304-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	0106-0303
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0304-
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	0106-0303
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0304-
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0304-
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0106-0303
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0304-
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0106-0303
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0304-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0106-0303
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0106-0303
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0106-0303
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0304-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0106-0303
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0304-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0106-0303
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (C)	1-09623-550-0	02	1	0106-0303
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0304-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0106-0303
292	SPRING; ELEMENT (A)	1-09580-563-0	01	1	0304-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0106-0303
292	SPRING; ELEMENT (B)	1-09580-562-0	01	1	0304-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0106-0303
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0106-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0106-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-2	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0106-0303
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-285-0	01	1	0304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
