Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#113687) — 216 parça

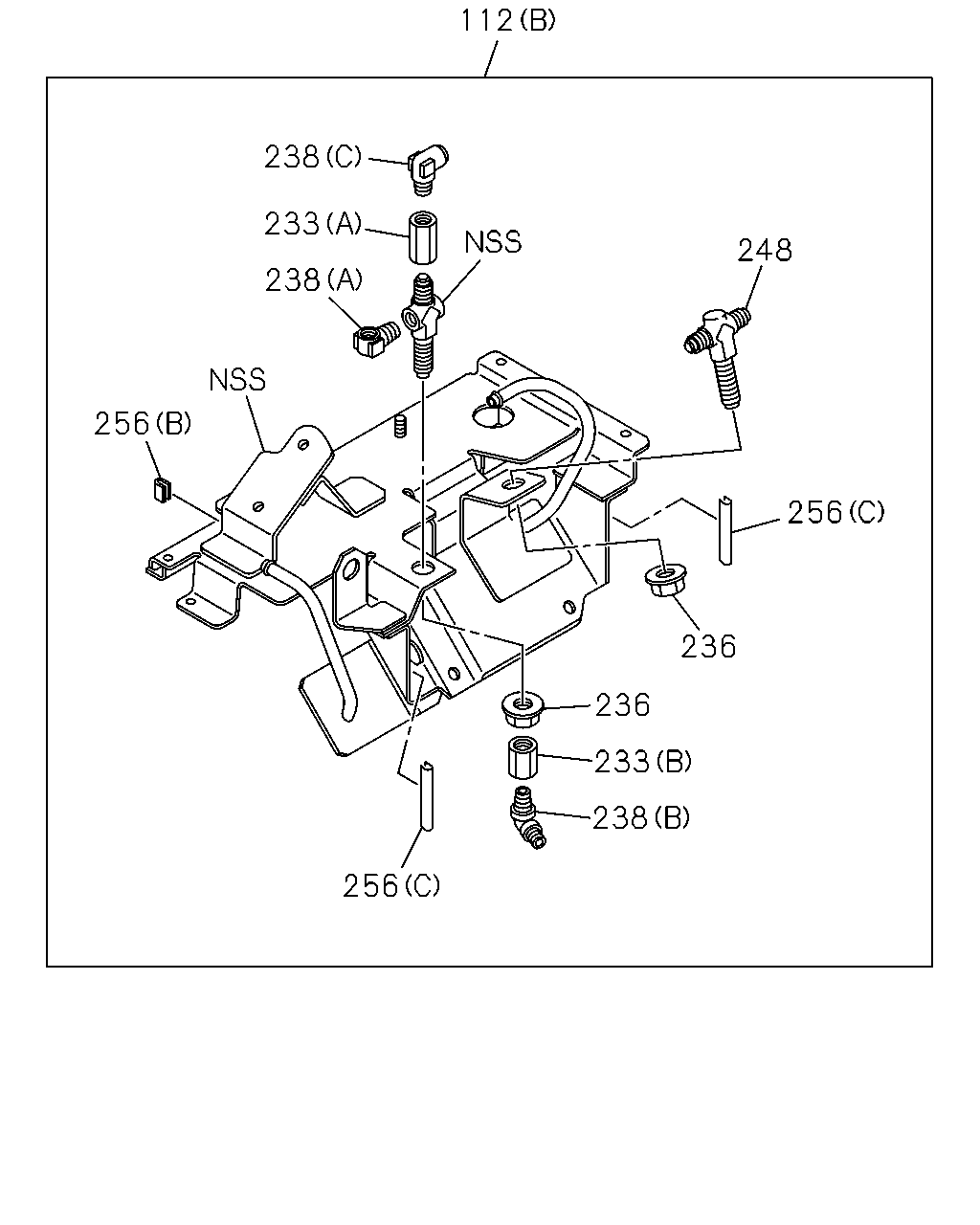

112 238 233 238 248 256 236 236 233 238 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	1302-1510	●
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97616-923-1	01	1	1511-	●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	1302-		●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	1302-		●
233	ADAPTER; VLV (A) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	1302-		●
233	ADAPTER; VLV (B)	8-97633-768-0	01	1	1302-		●
236	NUT M16 FLANGE	0-91180-216-0	02	1	1302-		●
238	CONNECTOR (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-		●
238	CONNECTOR (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-		●
238	CONNECTOR (B)	8-97633-756-0	01	1	1302-		●
248	UNION M16 3WAY	0-92148-610-0	01	1	1302-		●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	1302-1510	●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OD=25 BLACK	1-76798-019-0	09	1	1511-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	1302-		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	1302-		●
256	SEAL (D)	1-79996-382-0	01	1	1302-		●
256	SEAL (C) L=50	8-94270-377-1	02	1	1302-		●
256	SEAL (E)	8-98049-765-0	01	1	1302-		●

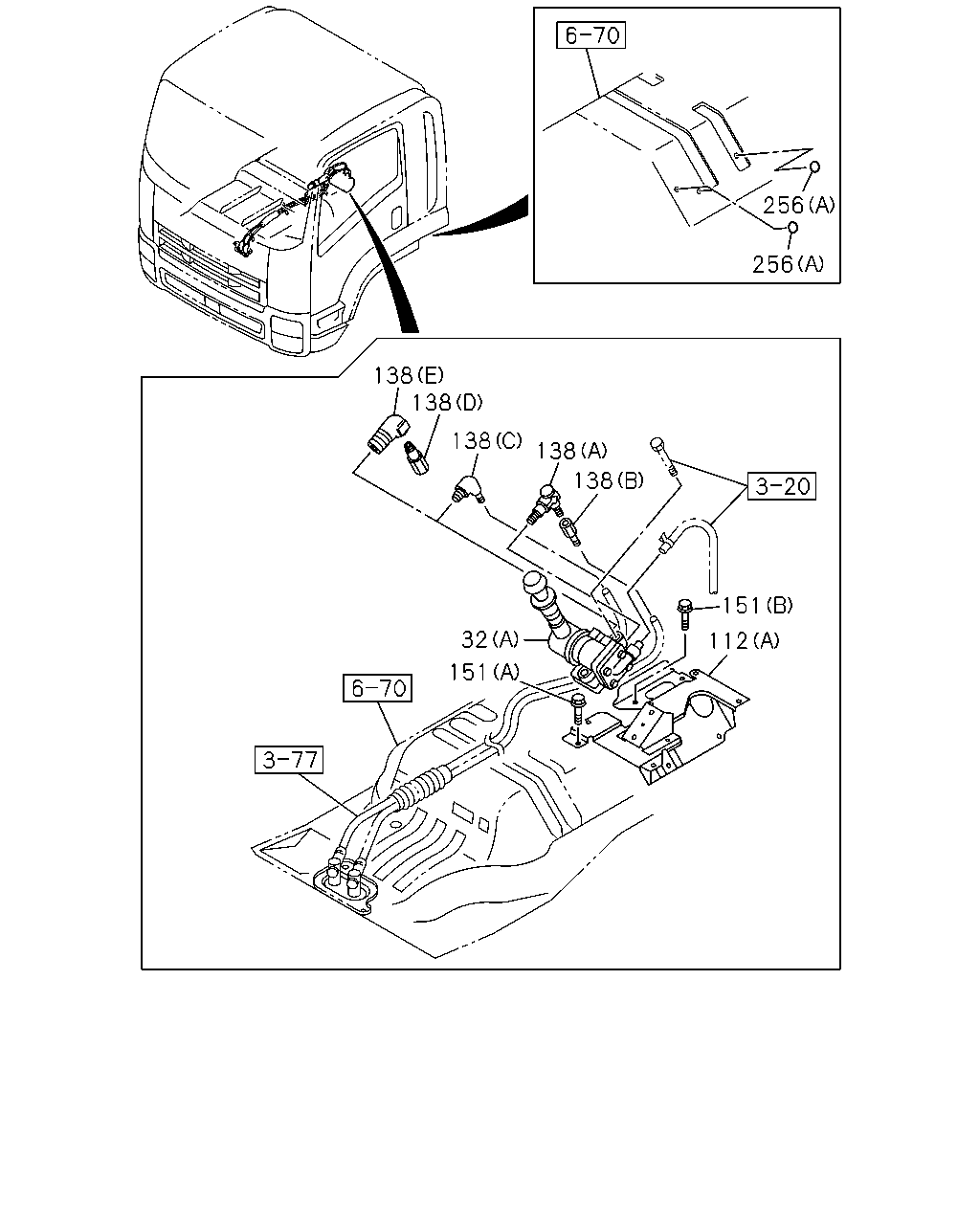

138 138 138 138 138 32 151 151 112 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	1302-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1302-		●
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	1302-1510	●
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97616-923-1	01	1	1511-	●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	1302-		●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	1302-		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4X3 3WAY	1-09660-335-1	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1302-		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-		●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1302-		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	1302-1305	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1302-1305		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1302-1305		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	1306-	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1306-		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1302-	●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1302-		●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	1302-1510	●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OD=25 BLACK	1-76798-019-0	09	1	1511-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	1302-		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	1302-		●
256	SEAL (D)	1-79996-382-0	01	1	1302-		●
256	SEAL (C) L=50	8-94270-377-1	02	1	1302-		●
256	SEAL (E)	8-98049-765-0	01	1	1302-		●

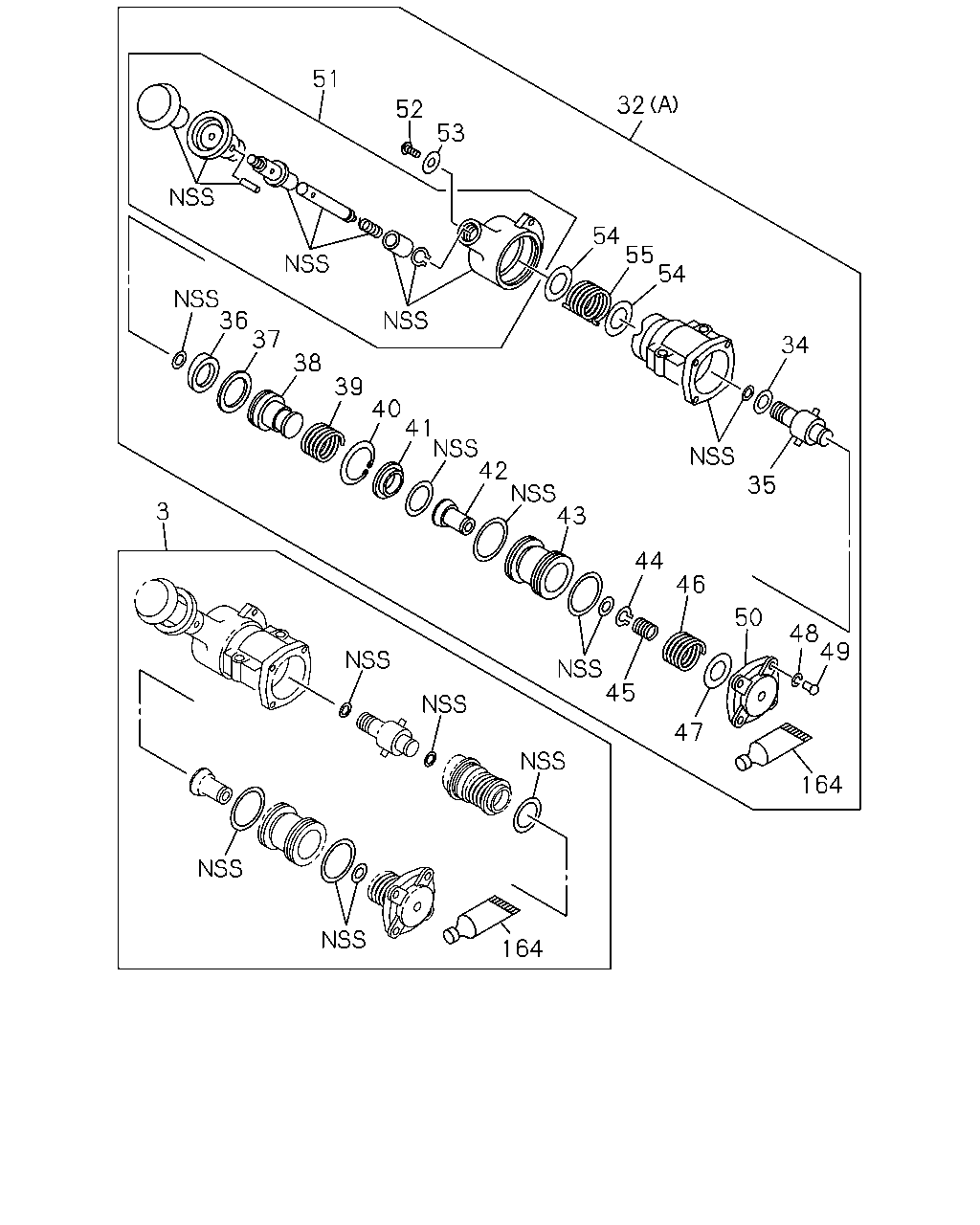

32 52 51 53 54 55 54 34 35 49 48 50 46 44 43 42 41 40 39 38 37 36 164 47 45 3 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	1302-	●
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	1302-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1302-		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	1302-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1302-		●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	1302-	●
35	HOLDER; CAM	1-48469-054-0	01	1	1302-		●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	1302-	●
36	RING; CAM	1-48469-056-0	01	1	1302-		●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	1302-	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1302-		●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	1302-	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1302-		●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	1302-	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1302-		●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	1302-	●
40	RING; SNAP	1-48469-067-0	01	1	1302-		●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	1302-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1302-		●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	1302-	●
42	VALVE; FEED	1-48469-065-0	01	1	1302-		●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	1302-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1302-		●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	1302-	●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	1302-		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	1302-	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1302-		●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	1302-	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1302-		●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	1302-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1302-		●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	1302-	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	1302-	●
49	SCREW; COVER	1-48469-118-0	04	1	1302-		●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	1302-	●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	1302-		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	1302-	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1302-		●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	1302-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1302-		●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	1302-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1302-		●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	1302-	●
54	SEAT; SPRING	1-48469-082-0	02	1	1302-		●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	1302-	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1302-		●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	1302-	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1302-		●

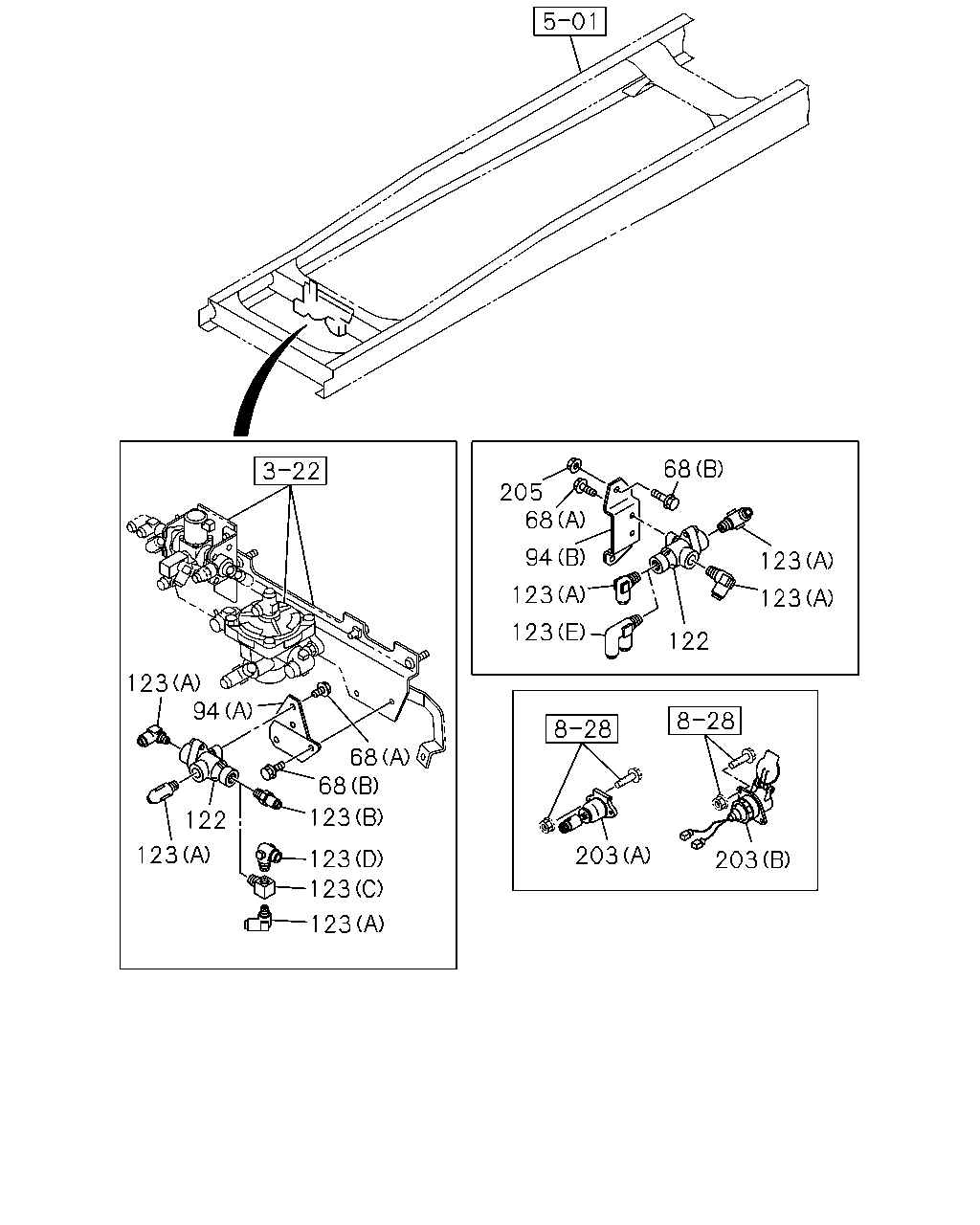

68 123 123 122 205 68 94 123 123 203 203 123 123 123 123 68 68 94 123 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
68	BOLT; DOUBLE CHECK VLV 6HK1-TCS ENG(80L) (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-	●
68	BOLT; DOUBLE CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
68	BOLT; DOUBLE CHECK VLV 6HK1-TCS ENG(80L) EXC. ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
94	BRACKET; CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-521-1	01	1	1302-	●
94	BRACKET; CHECK VLV 6HK1-TCS ENG(80L) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98145-152-0	01	1	1302-	●
122	VALVE ASM; DOUBLE CHECK 6HK1-TCS ENG(80L)	1-48410-531-1	01	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-	●
123	CONNECTOR; DBL CHECK VLV 6HK1-TCS ENG(80L) H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-	●
203	CABLE; JUMPER 6HK1-TCS ENG(80L) (A) 7P	1-82523-014-0	01	1	1302-	●
203	CABLE; JUMPER 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98105-162-1	01	1	1302-	●
205	NUT; DOUBLE CHECK VLV 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1302-	●

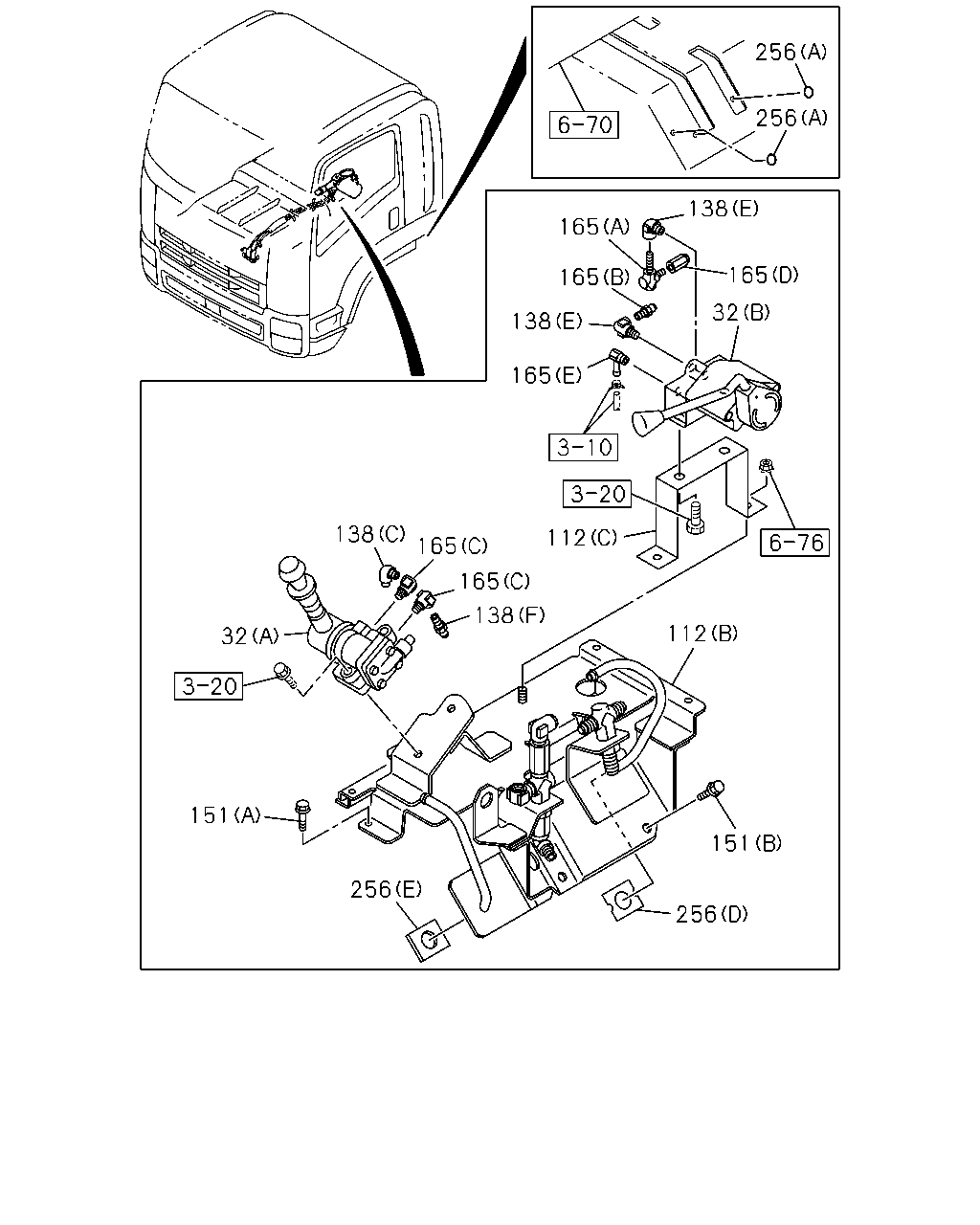

256 256 138 165 165 138 165 165 32 112 165 165 138 138 32 151 256 256 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	1302-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1302-		●
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	1302-1510	●
112	BRACKET; CONT VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97616-923-1	01	1	1511-	●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	1302-		●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	1302-		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4X3 3WAY	1-09660-335-1	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1302-		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-		●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1302-		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	1302-1305	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1302-1305		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1302-1305		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	1306-	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1306-		●
151	BOLT; VLV BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1302-	●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1302-		●
165	CONNECTOR; HAND BRK VLV (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1302-		●
165	CONNECTOR; HAND BRK VLV (B) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1302-		●
165	CONNECTOR; HAND BRK VLV (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1302-		●
165	CONNECTOR; HAND BRK VLV (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1302-		●
165	CONNECTOR; HAND BRK VLV (E)	8-97062-077-1	01	1	1302-		●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	1302-1510	●
256	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OD=25 BLACK	1-76798-019-0	09	1	1511-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	1302-		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	1302-		●
256	SEAL (D)	1-79996-382-0	01	1	1302-		●
256	SEAL (C) L=50	8-94270-377-1	02	1	1302-		●
256	SEAL (E)	8-98049-765-0	01	1	1302-		●

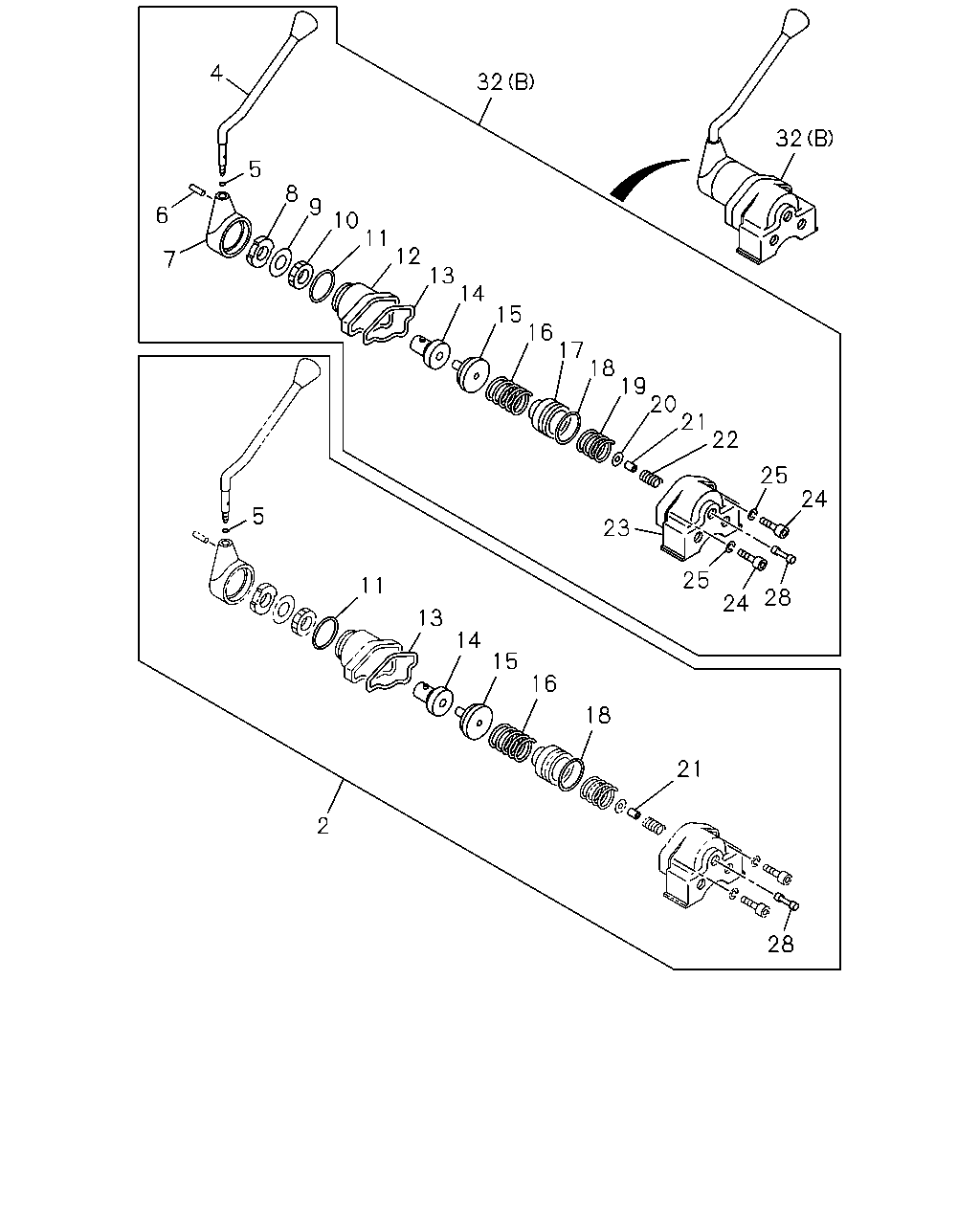

32 32 4 6 7 5 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 24 23 25 24 28 5 11 13 14 15 16 18 21 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	1302-		●
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	1302-		●
5	GASKET; HANDLE	1-48119-128-0	01	1	1302-		●
6	PIN; SPR	1-48119-143-0	01	1	1302-		●
7	HEAD; BRK VLV	1-48119-131-1	01	1	1302-		●
8	STOPPER; BRK VLV	1-48119-136-0	01	1	1302-		●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1302-		●
10	RING; ADJ	1-48119-122-0	01	1	1302-		●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	1302-		●
12	COVER; BRK VLV	1-48129-097-1	01	1	1302-		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1302-		●
14	FOLLOWER; CAM	1-48129-109-0	01	1	1302-		●
15	CAM; FOLLOWER	1-48129-110-0	01	1	1302-		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1302-		●
17	PISTON; SPR	1-48129-095-0	01	1	1302-		●
18	GASKET; BODY	1-48129-096-0	01	1	1302-		●
19	SPRING; PISTON	1-48129-094-0	01	1	1302-		●
20	GUIDE; VLV	1-48129-090-0	01	1	1302-		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	1302-		●
22	SPRING; VLV	1-48123-024-0	01	1	1302-		●
23	BODY; BRK VLV	1-48111-060-1	01	1	1302-		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	1302-		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1302-		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	1302-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	1302-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	1302-		●

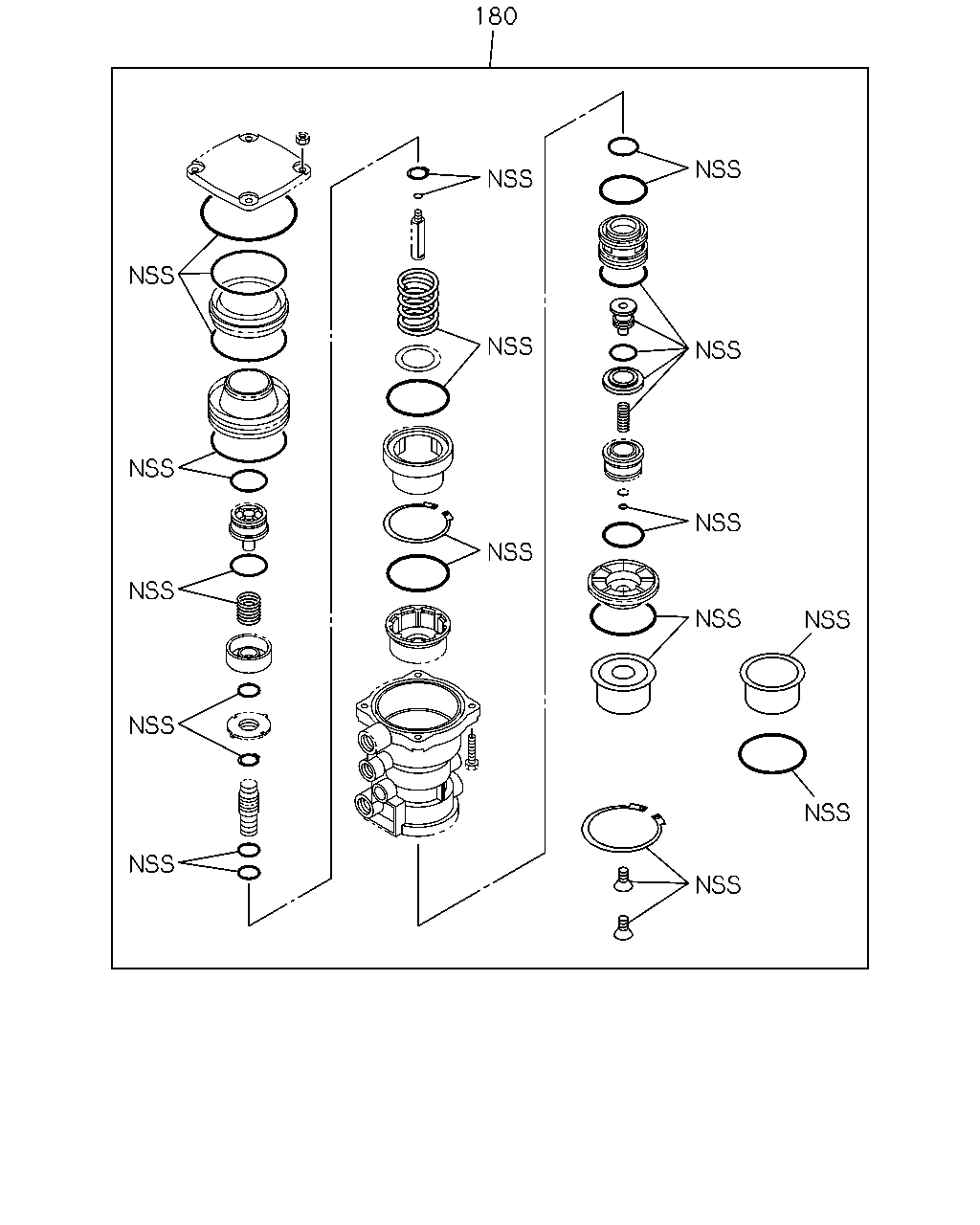

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	1302-		●

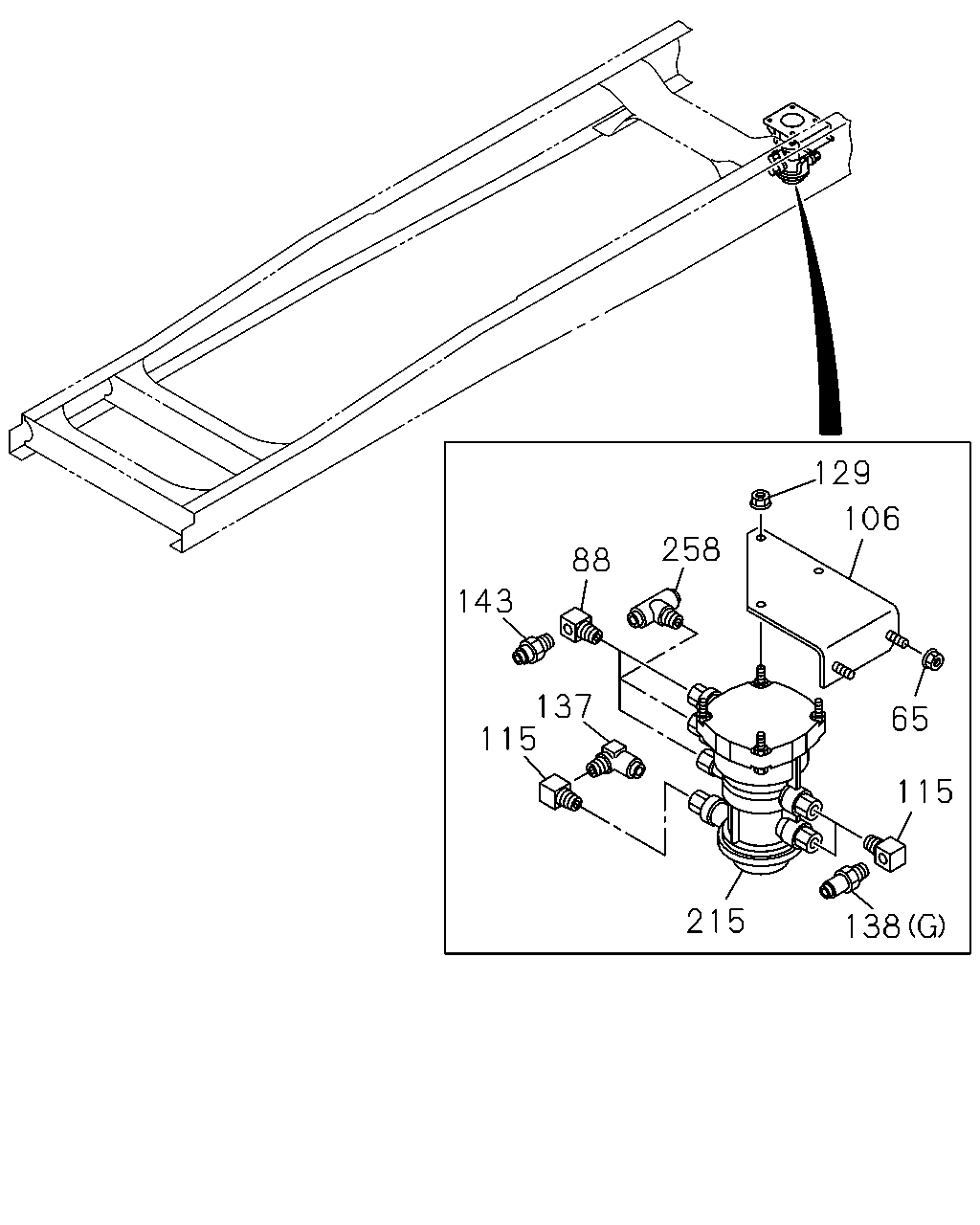

143 88 258 129 106 65 115 138 215 137 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	1302-		●
88	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> PT3/8 ELBOW	1-09660-696-0	03	1	1302-		●
88	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP> PT3/8 ELBOW	1-09660-696-0	02	1	1302-		●
106	BRACKET; VLV	8-98110-679-1	01	1	1302-		●
115	CONNECTOR; DUAL RELAY VLV PT3/8 ELBOW	1-09660-696-0	03	1	1302-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1302-		●
137	CONNECTOR; SUPPLY DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4X3 3WAY	1-09660-335-1	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-1305	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1511-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1510		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1302-		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-1305		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-		●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1302-		●
143	CONNECTOR; CONT H.S.A SYSTEM<6EP> DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1302-		●
143	CONNECTOR; CONT EXC. H.S.A SYSTEM<6EP> DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1302-		●
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	1302-		●
258	CONNECTOR; 3 WAY EXC. H.S.A SYSTEM<6EP> DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
