Isuzu WW
▶
TRUCKS
▶
FSR
▶
11508 - FSR(LHD)
▶
3 - Brakes, Brake System
▶

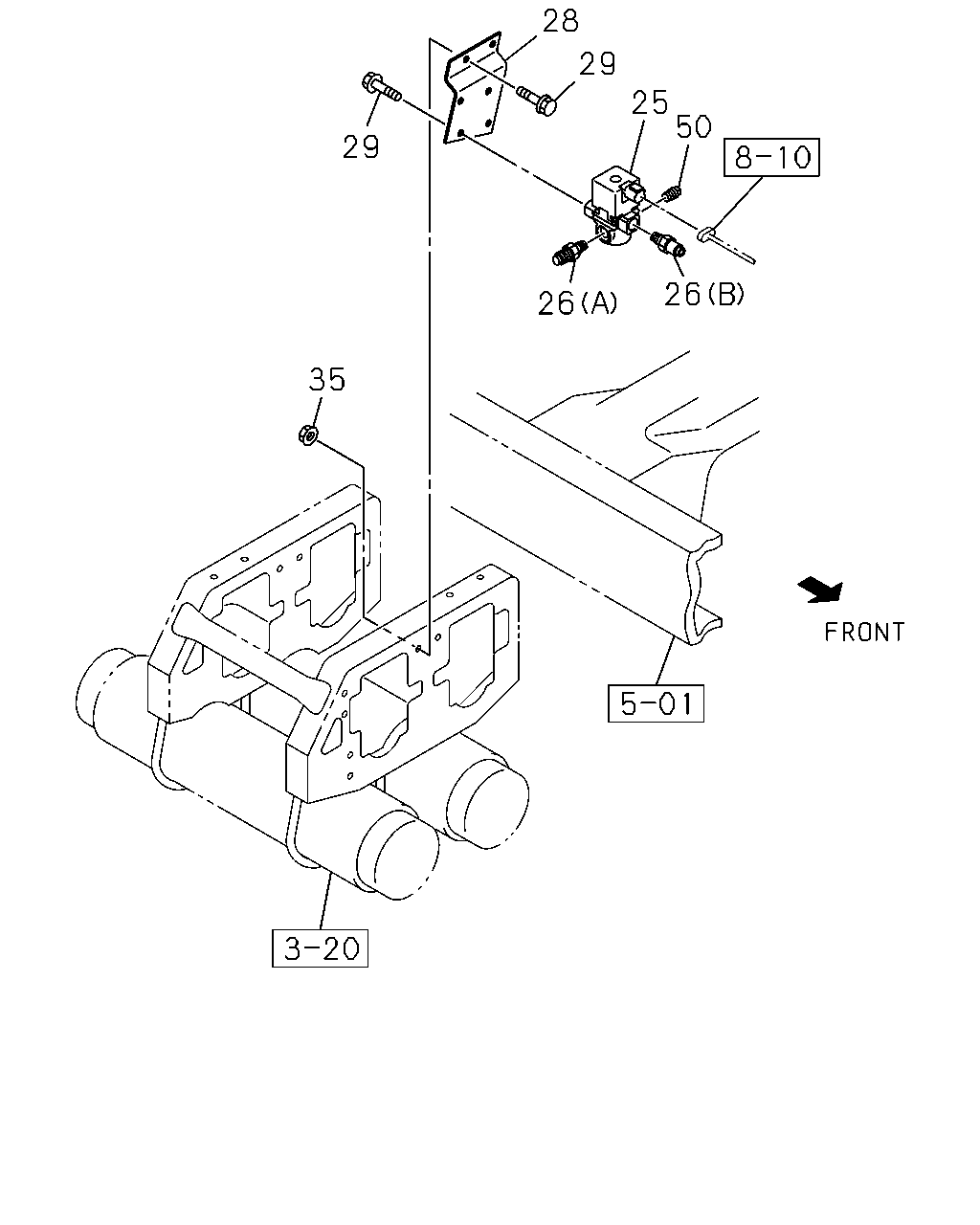

3-25 - BRAKE LOCK CONTROL
▶
3-25 — BRAKE LOCK CONTROL
(#113676) — 7 parça
28
29
50
26
25
29
35
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
VALVE; CONT,BRK LOCK
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-82563-871-2
01
1
1302-
26
UNION; CONT VLV
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1302-
26
UNION; CONT VLV
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1302-
28
BRACKET; CONT VLV
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98120-228-1
01
1
1302-
29
BOLT; BRKT,CONT VLV
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE
0-28650-820-0
04
1
1302-
35
NUT; BRKT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE
0-91180-108-0
02
1
1302-
50
PLUG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4
9-99204-513-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
