Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#113671) — 292 parça

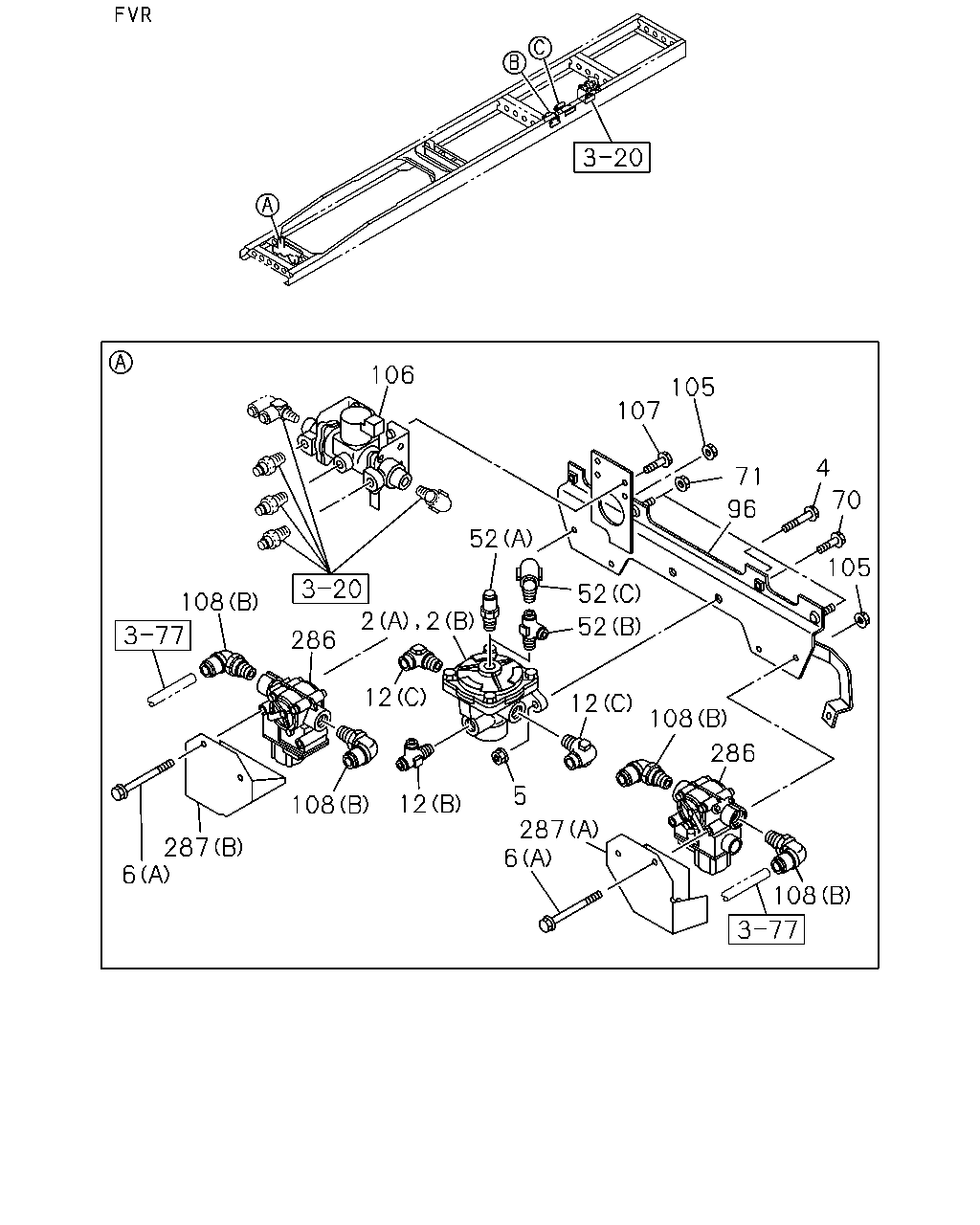

108 106 107 105 4 71 96 70 105 108 286 108 287 6 5 12 52 52 52 12 12 2 2 287 6 108 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	01	1	1406-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
6	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
6	BOLT; VLV 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X80 FLANGE	0-28050-880-0	04	1	1302-1410
6	BOLT; VLV 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X85	1-09044-074-0	04	1	1411-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1302-
70	BOLT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-
71	NUT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
96	BRACKET 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98273-968-0	01	1	1411-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98094-851-2	01	1	1302-1410
96	BRACKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98094-851-2	01	1	1411-
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-

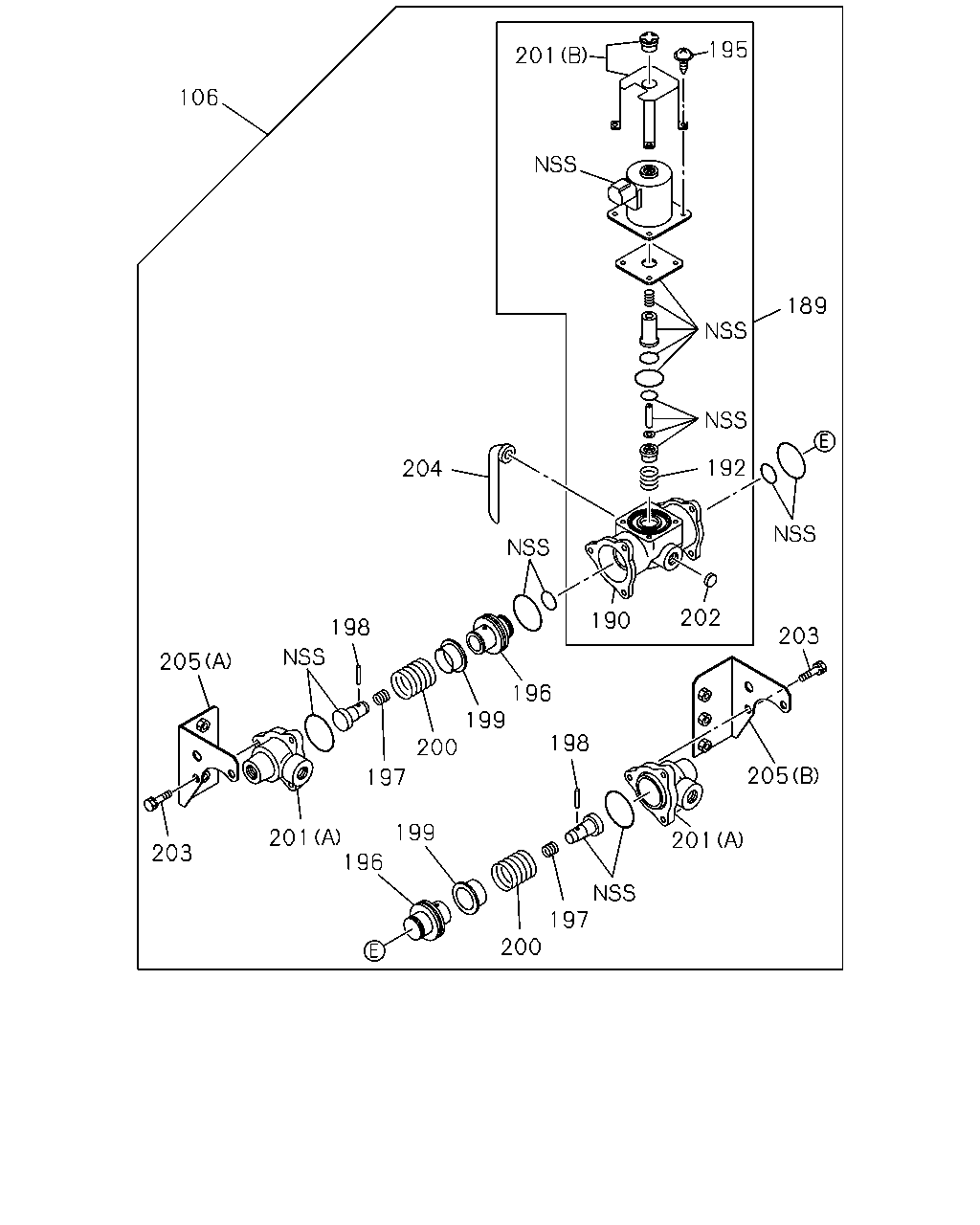

106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
107	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
286	MODULATOR; FRT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-115-0	02	1	1302-1410
286	MODULATOR; FRT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47479-611-1	01	1	1302-1410
287	COVER; MODULATOR 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98073-401-0	01	1	1302-1410
287	COVER; MODULATOR 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98273-494-0	01	1	1411-

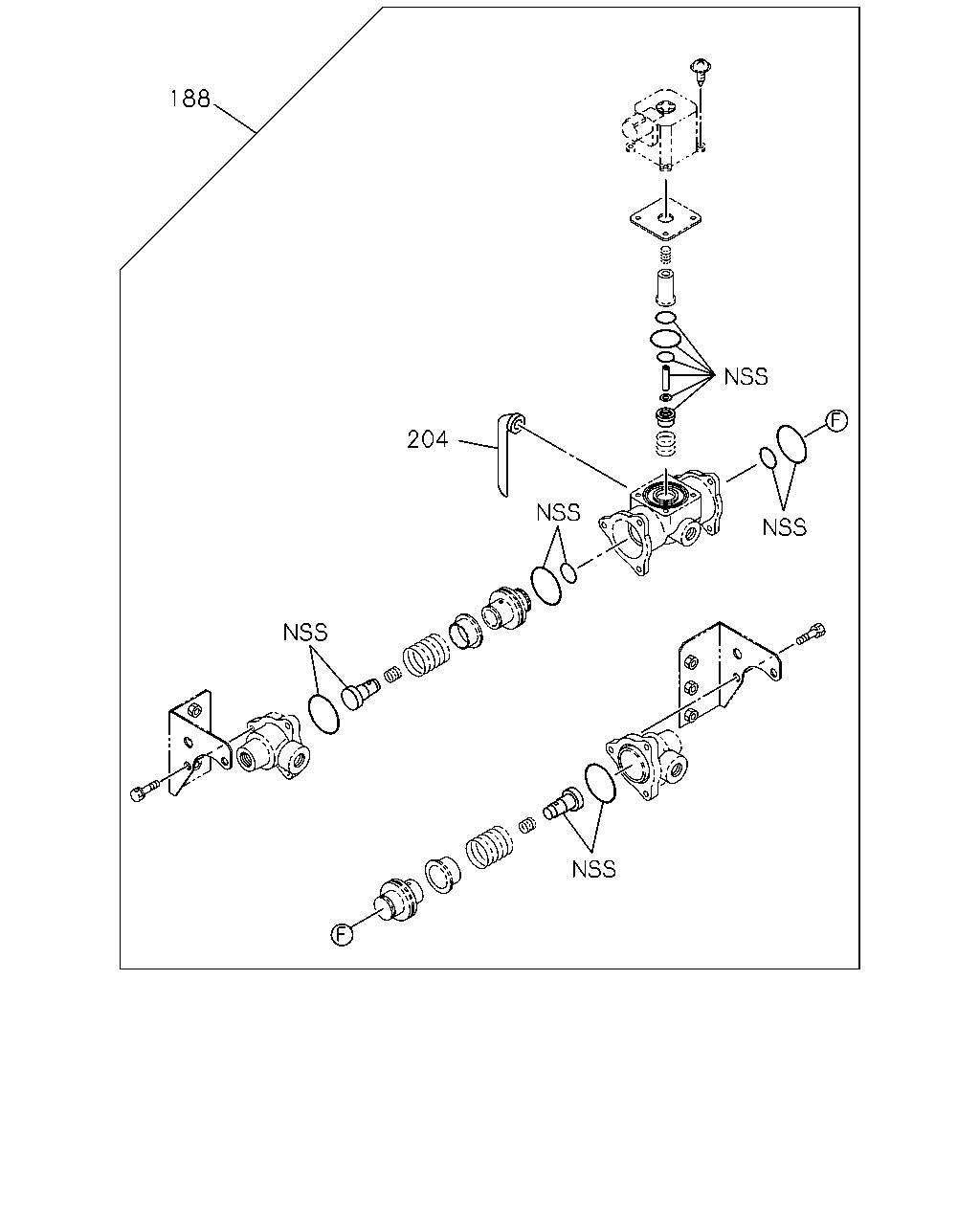

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1302-
	204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-

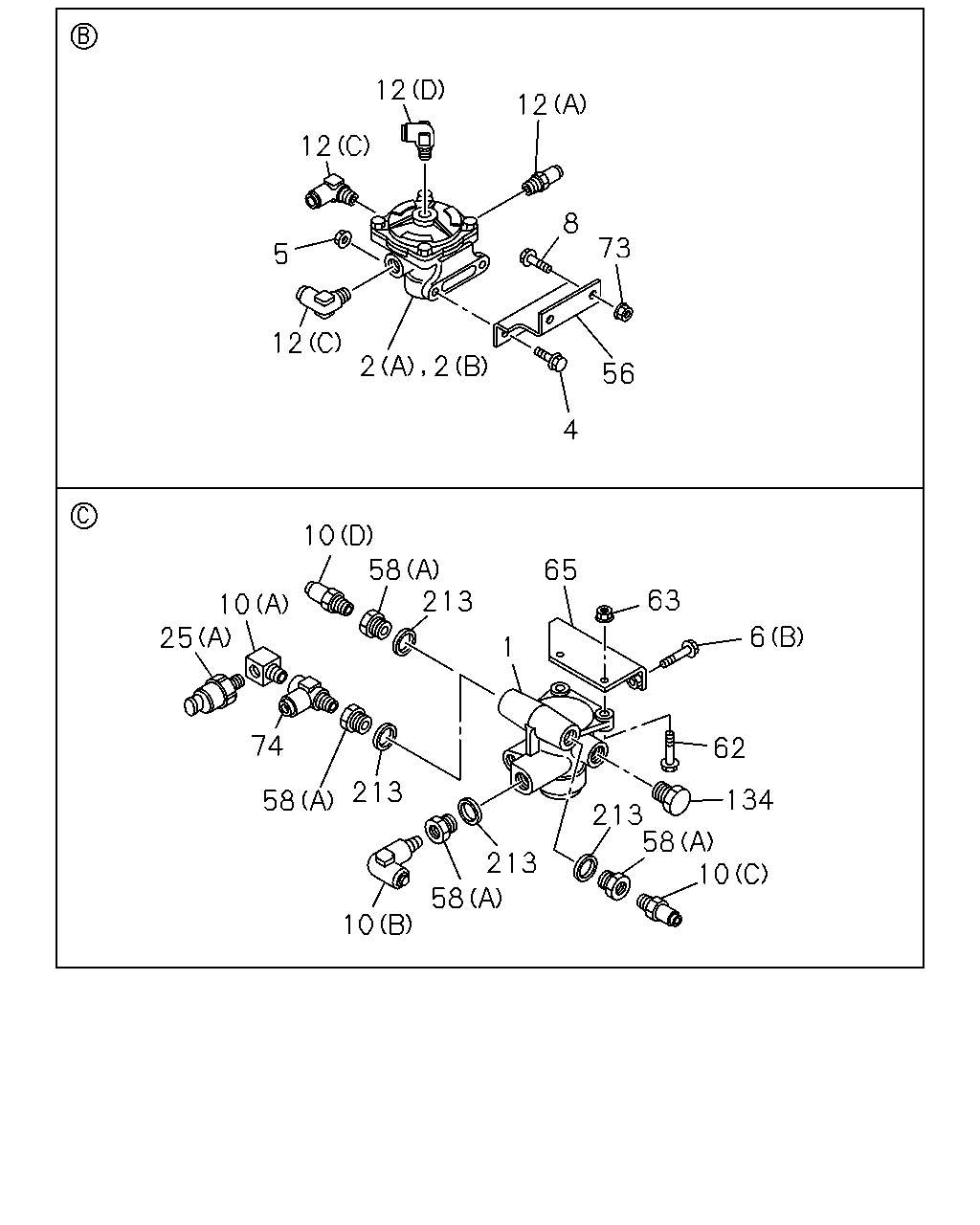

12 12 12 5 12 2 2 8 73 56 4 10 10 25 74 58 213 58 213 65 1 63 6 62 134 58 213 213 58 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1302-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	01	1	1406-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
6	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
6	BOLT; VLV 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X80 FLANGE	0-28050-880-0	04	1	1302-1410
6	BOLT; VLV 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X85	1-09044-074-0	04	1	1411-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) STAMP 5.5	8-97609-249-0	01	1	1302-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E)	8-98148-475-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98148-475-0	01	1	1302-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1302-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1302-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
74	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1302-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1302-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1302-

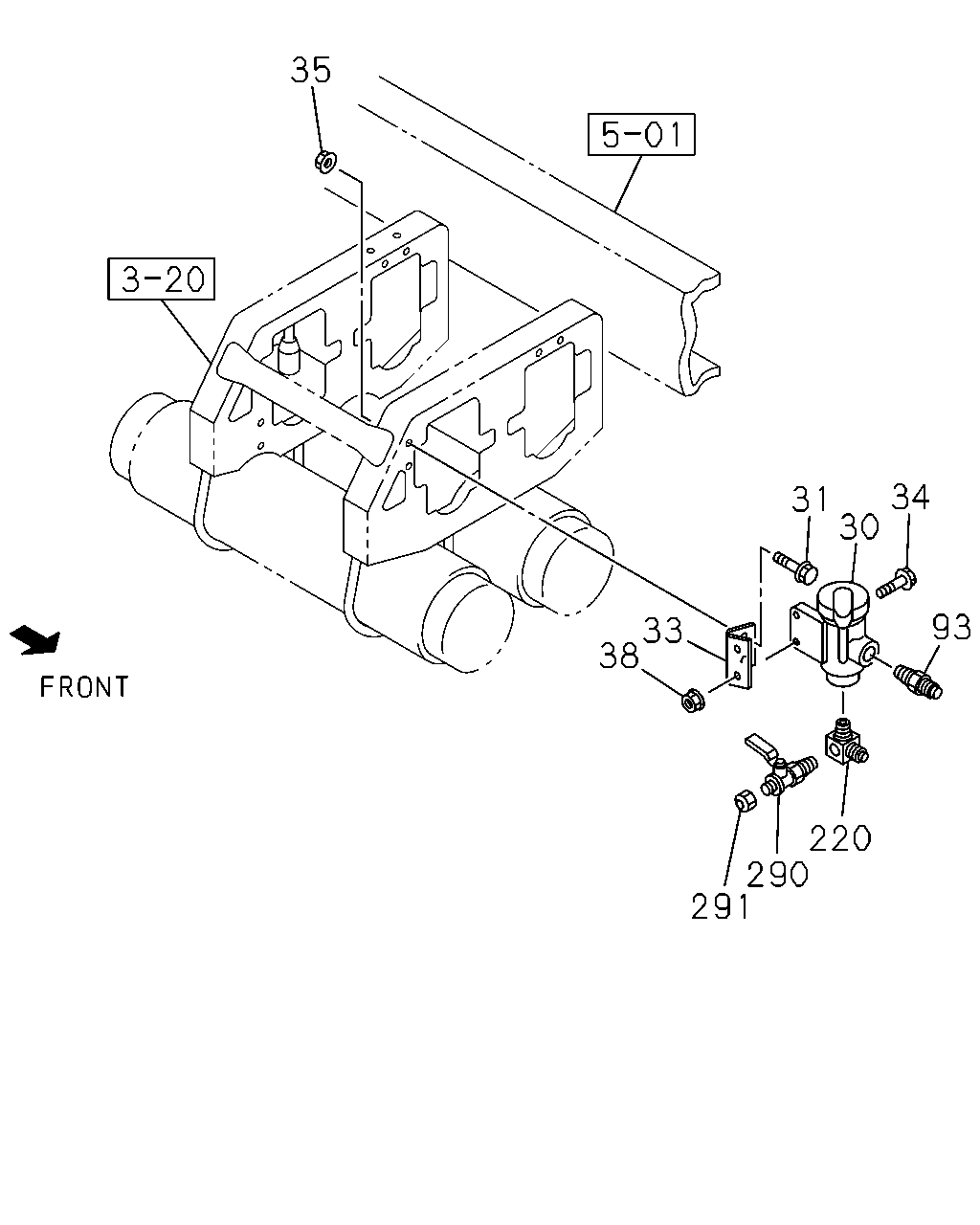

35 31 34 30 93 33 38 291 220 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
290	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
291	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-

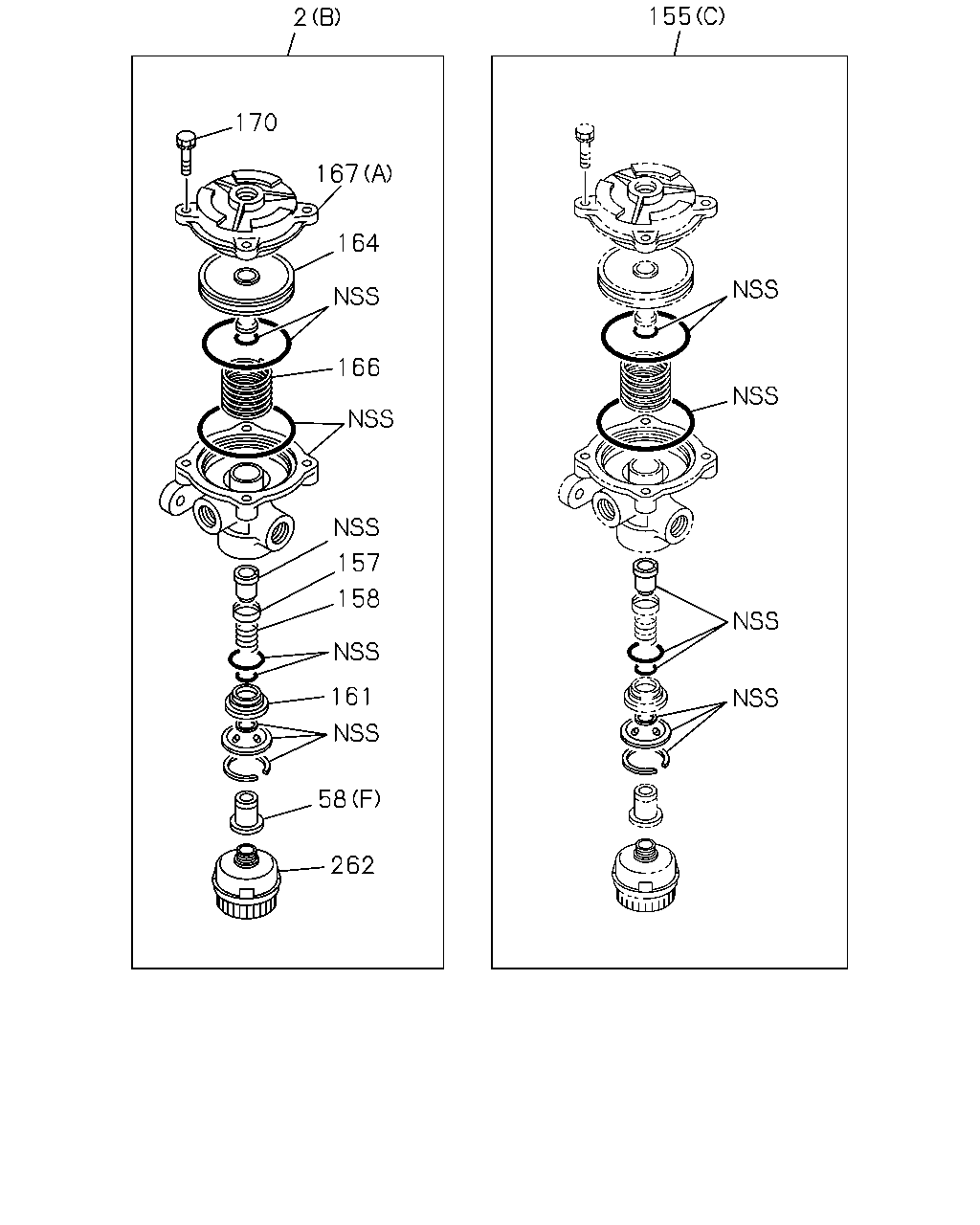

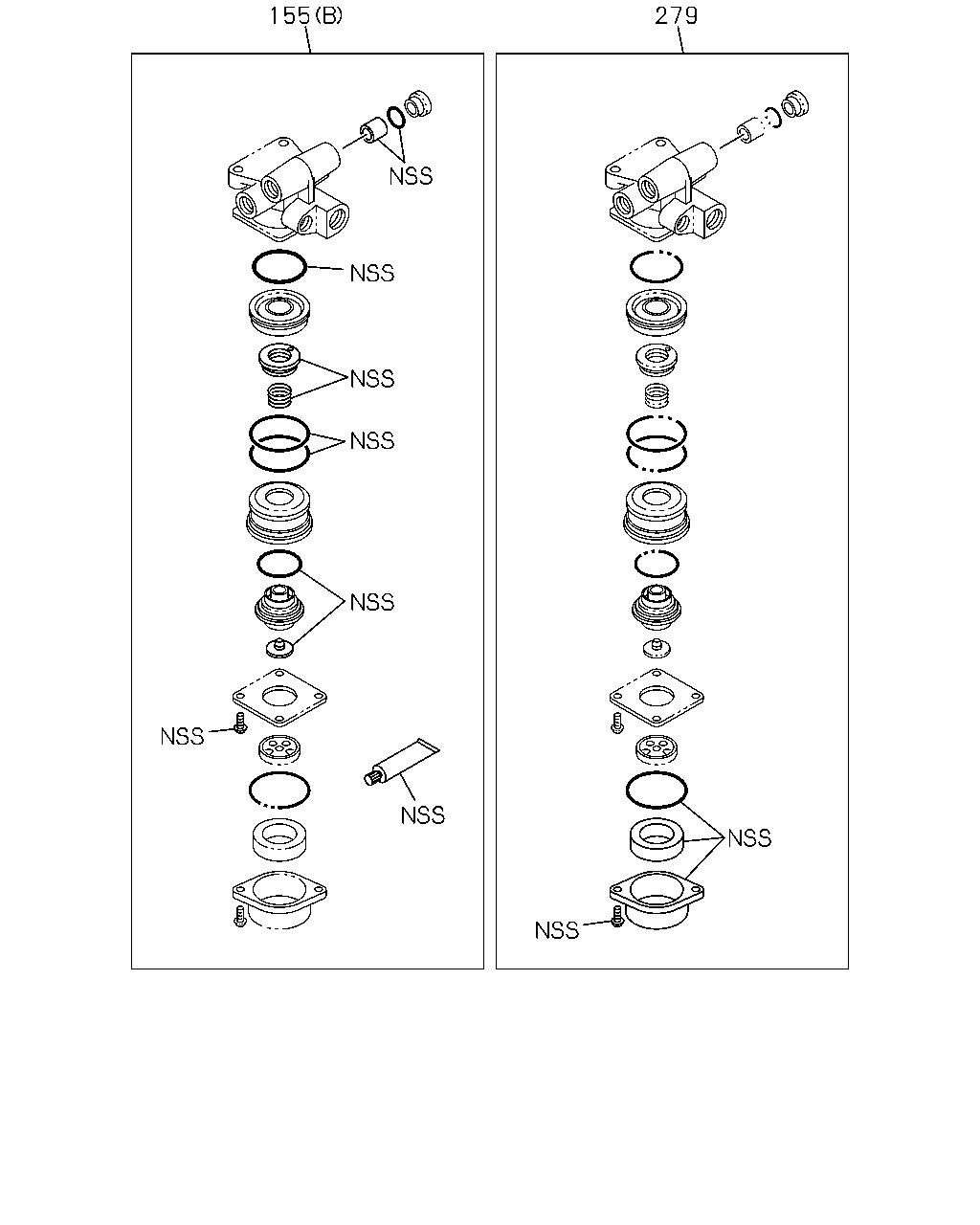

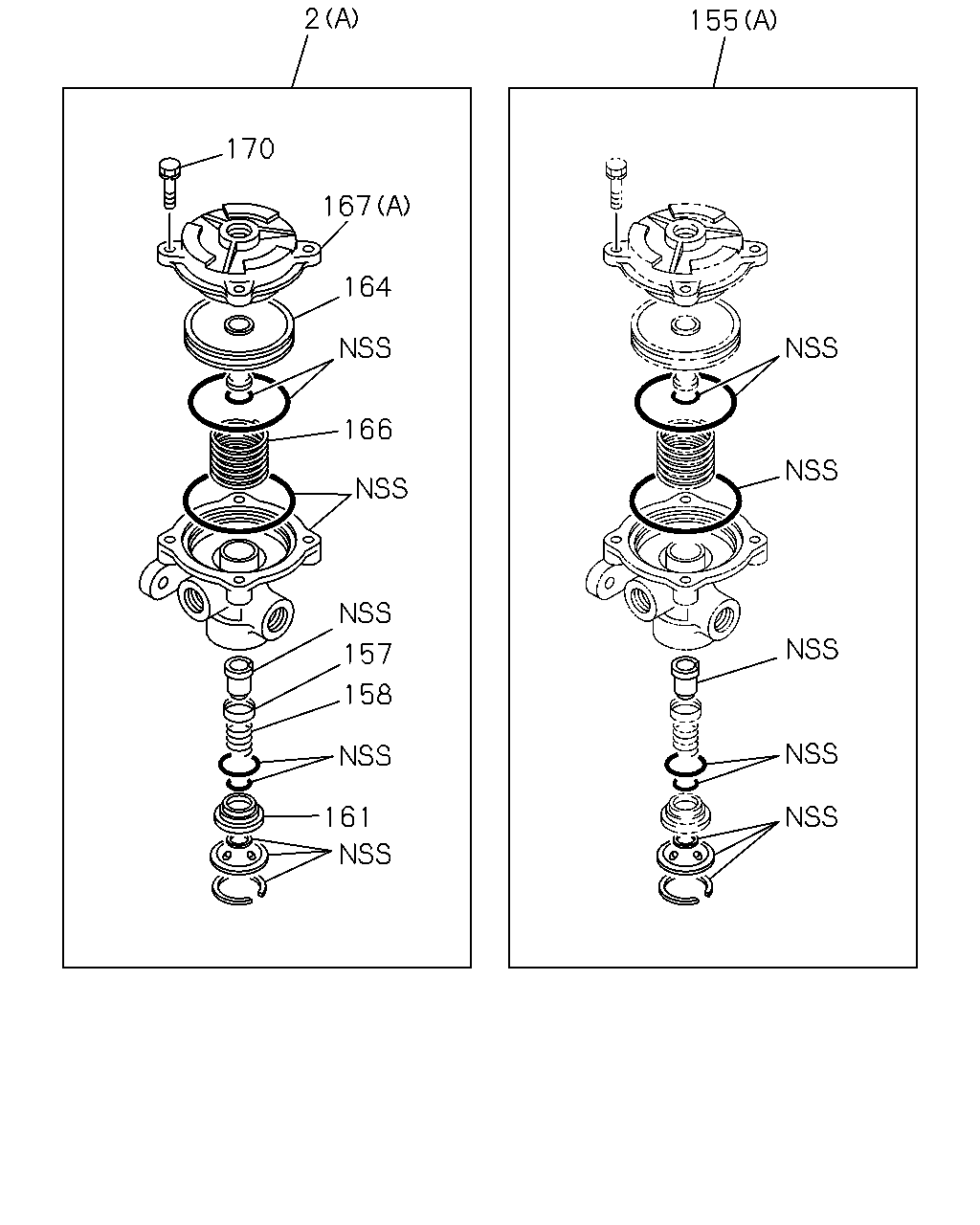

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	01	1	1406-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-

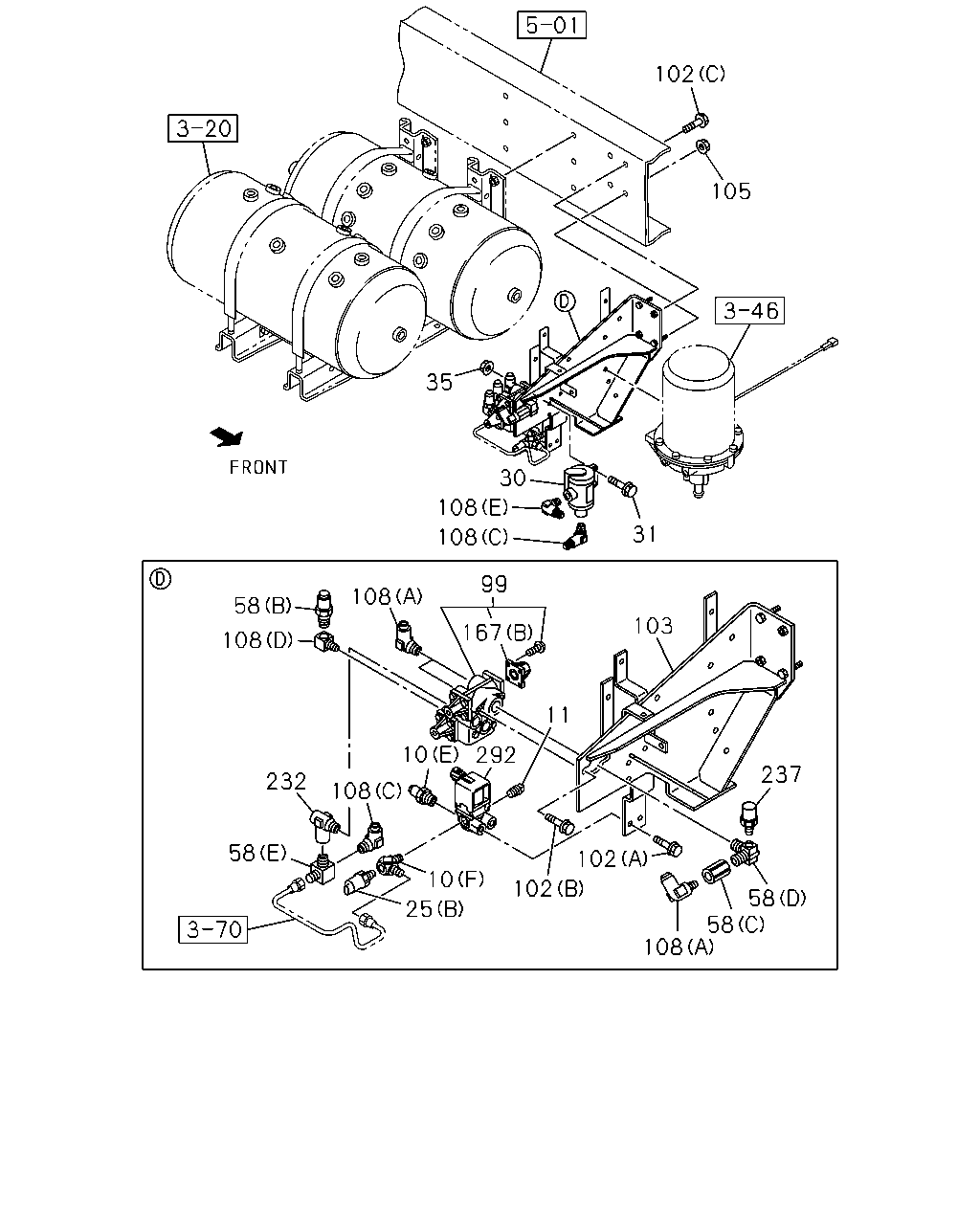

105 102 31 35 30 108 108 99 167 11 103 237 58 58 108 102 102 10 25 292 10 108 232 58 108 108 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
11	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) PT1/4	9-99204-513-0	01	1	1302-
11	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> PT1/4	9-99204-513-0	01	1	1302-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) STAMP 5.5	8-97609-249-0	01	1	1302-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1302-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1302-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E)	8-98148-475-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98148-475-0	01	1	1302-
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE(TDV)	1-48110-290-3	01	1	1402-
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>	1-48110-294-3	01	1	1302-
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-2	01	1	1302-1401
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV)	1-48110-288-3	01	1	1402-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	8-98173-454-0	01	1	1302-
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T>	8-98226-215-0	01	1	1302-
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
232	VALVE; CHECK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
232	VALVE; CHECK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
292	VALVE ASM; MAGNETIC 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1302-
292	VALVE ASM; MAGNETIC 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T>	1-82563-871-2	01	1	1302-

106 201 195 189 192 190 202 203 205 201 204 198 205 203 201 197 199 200 196 198 200 197 196 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1302-
197	SPRING; INNER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1302-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	01	1	1406-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1302-

2 170 167 164 166 157 158 161 58 262 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (B)	1-48210-997-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1302-1405
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-48210-875-0	01	1	1406-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	01	1	1406-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (F) M22 ADAPTER	1-48219-154-0	01	1	1406-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E)	8-98148-475-0	01	1	1302-
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98148-475-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP> (C)	1-85576-294-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1302-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1302-1405
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA) (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MOROCCO EQUIPMENT(CGA),H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>,H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1406-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	01	1	1406-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48119-625-0	04	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1302-
262	SILENCER; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	1-48219-149-0	01	1	1406-
262	SILENCER; RELAY VALVE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. H.S.A SYSTEM<6EP>	1-48219-149-0	01	1	1406-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1302-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU)	1-85576-451-2	01	1	1302-
	241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T>	1-85576-451-2	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
