3-22 — AIR CONTROL PARTS (#113670) — 91 parça

106 201 195 189 192 202 203 205 201 197 200 196 198 199 201 203 197 199 200 198 205 196 204 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46362-123-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-247-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-234-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-232-0	02	1	1302-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-46366-150-0	01	1	1302-

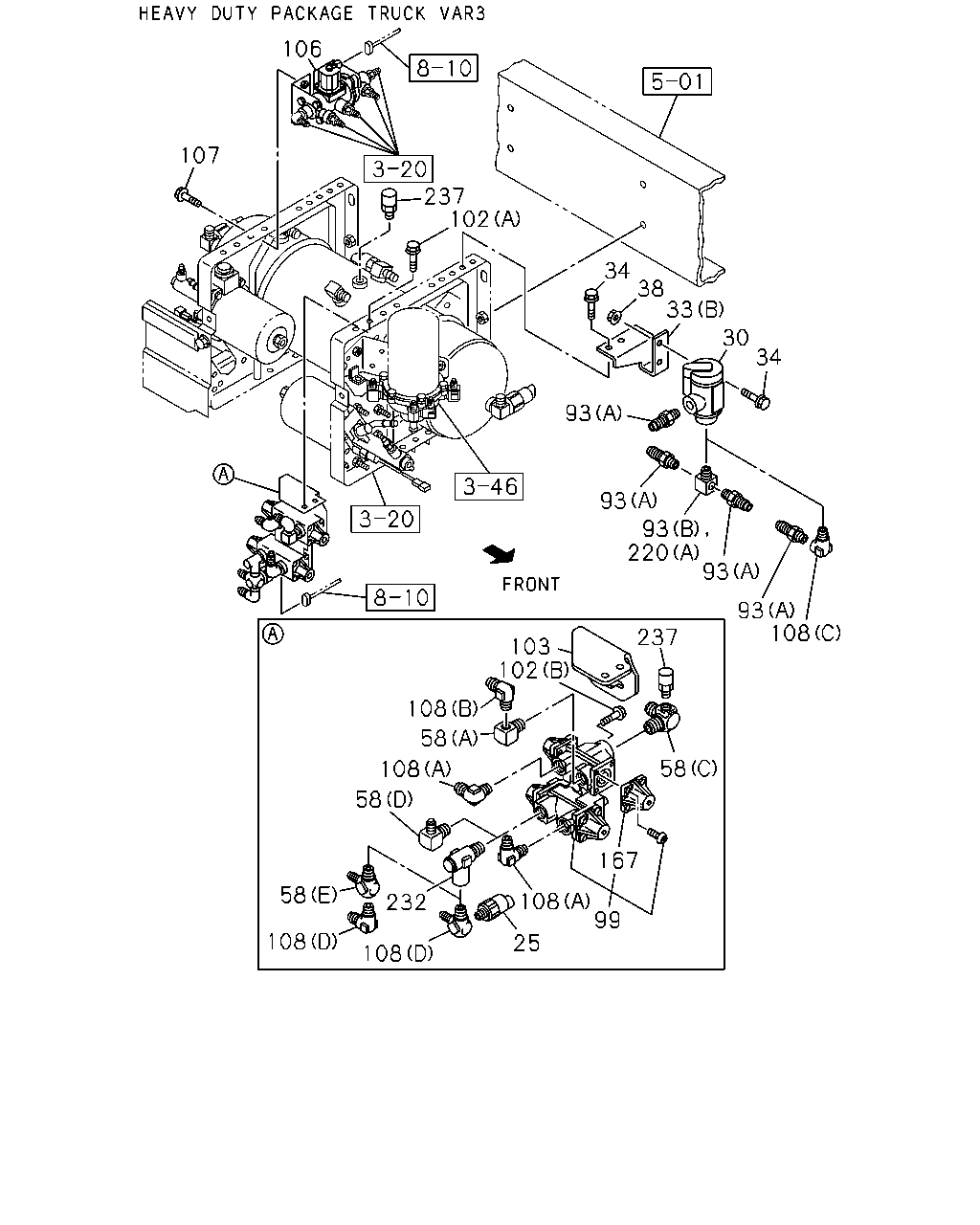

34 93 93 93 34 30 33 38 93 93 108 220 237 103 102 108 108 58 58 58 232 108 108 25 167 58 99 108 107 106 237 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1302-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09661-815-0	02	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98031-239-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> (D)	1-09656-698-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-288-3	01	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98221-293-0	01	1	1312-
106	VALVE; HSA H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46362-123-1	01	1	1302-
107	BOLT; VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY	1-09660-693-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1302-1506
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-

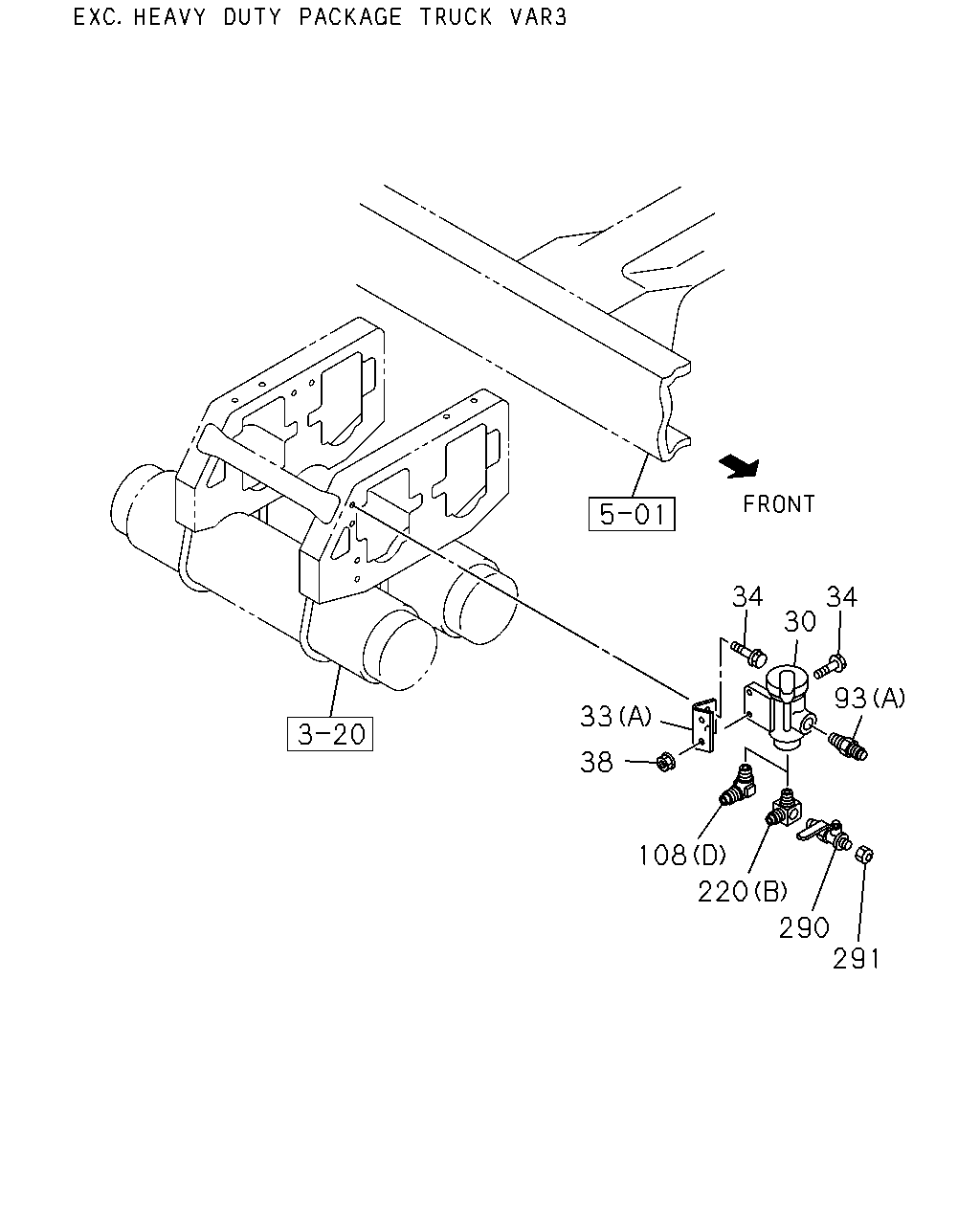

34 33 38 108 220 290 291 93 30 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1302-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY	1-09660-693-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1302-
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1302-
290	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1302-
291	CAP; AIR COCK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1302-

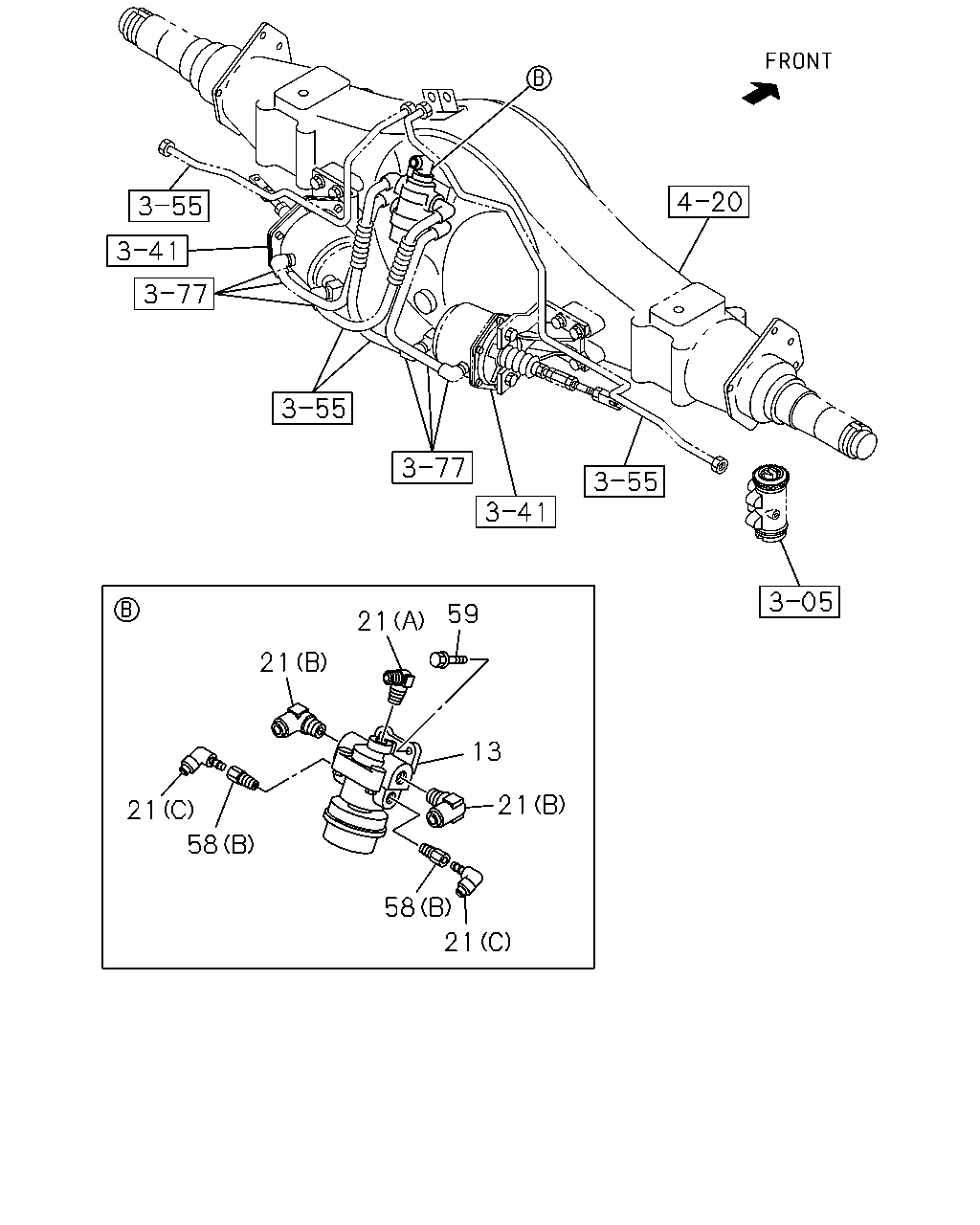

59 13 21 58 21 21 21 21 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-783-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09661-816-0	02	1	1302-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09661-815-0	02	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98031-239-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> (D)	1-09656-698-0	01	1	1302-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	1302-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-304-1	01	1	1302-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-46366-194-0	01	1	1302-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1302-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-1	01	1	1302-1506
