Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

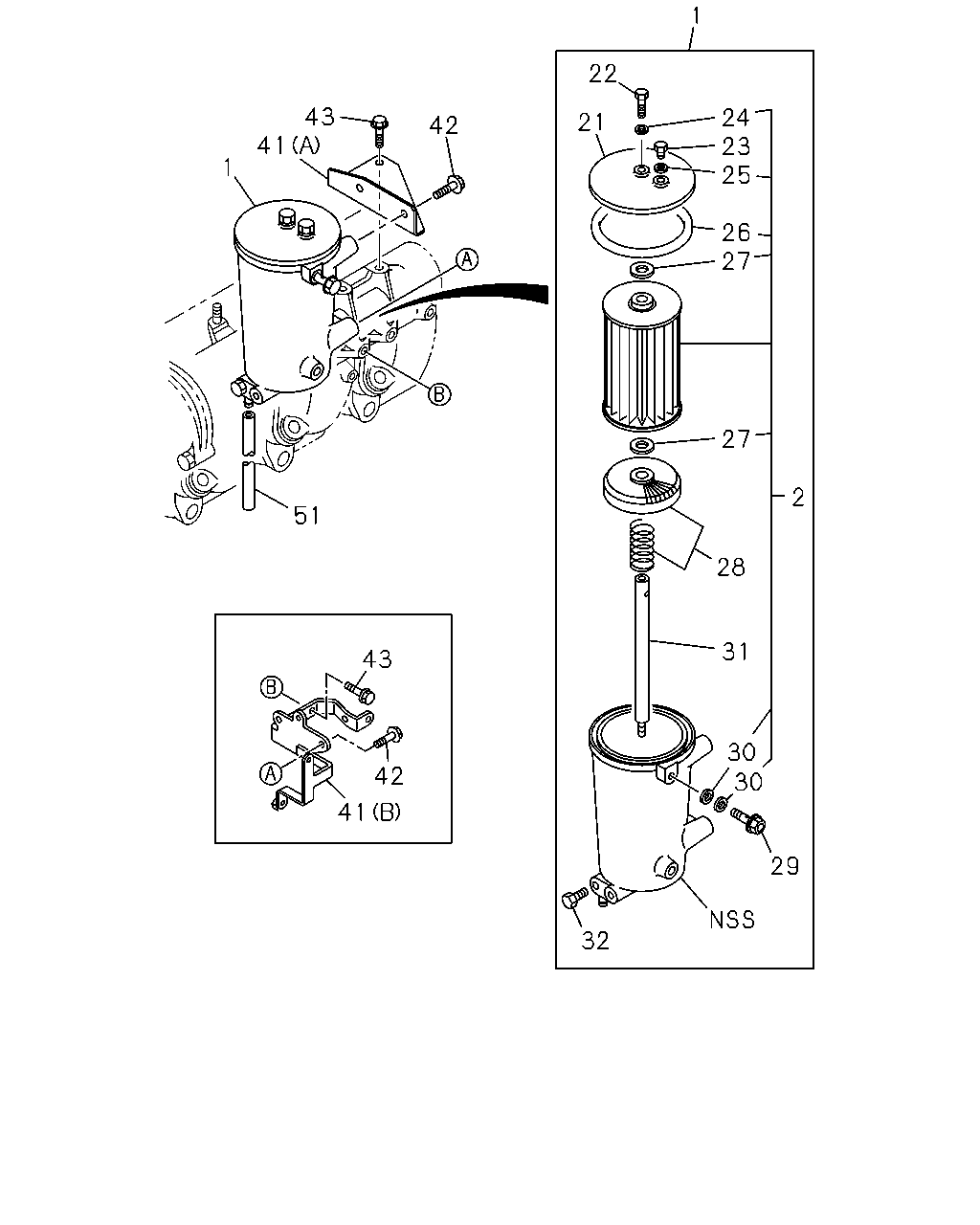

0-41 — FUEL FILTER AND BRACKET
(#11367) — 21 parça
1
22
43
41
24
23
25
21
42
1
26
27
27
2
51
28
31
43
30
30
42
41
29
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-871-3
01
1
0106-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0106-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0106-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0106-
23
PLUG; COVER
1-13219-074-0
01
1
0106-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0106-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0106-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0106-
27
GASKET; ELEMENT
1-09630-007-0
02
1
0106-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0106-
29
VALVE; OVERFLOW
1-13260-074-0
01
1
0106-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0106-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0106-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0106-
41
BRACKET; FUEL FILTER
(A)
1-13219-282-0
01
1
0106-
41
BRACKET; FUEL FILTER
(B)
1-13219-354-0
01
1
0106-
42
BOLT; FUEL FILTER
M10X20 FLANGE
0-28081-020-0
04
1
0106-0512
42
BOLT; FUEL FILTER
M10X20 FLANGE
0-28051-020-0
04
1
0601-
43
BOLT; BRKT
M10X20 FLANGE
0-28181-020-0
04
1
0106-0512
43
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
04
1
0601-
51
PIPE; VINYL
L=750 SERVICED BY L=10000
9-09914-909-0
01
1
0106-
