◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#113668) — 62 parça

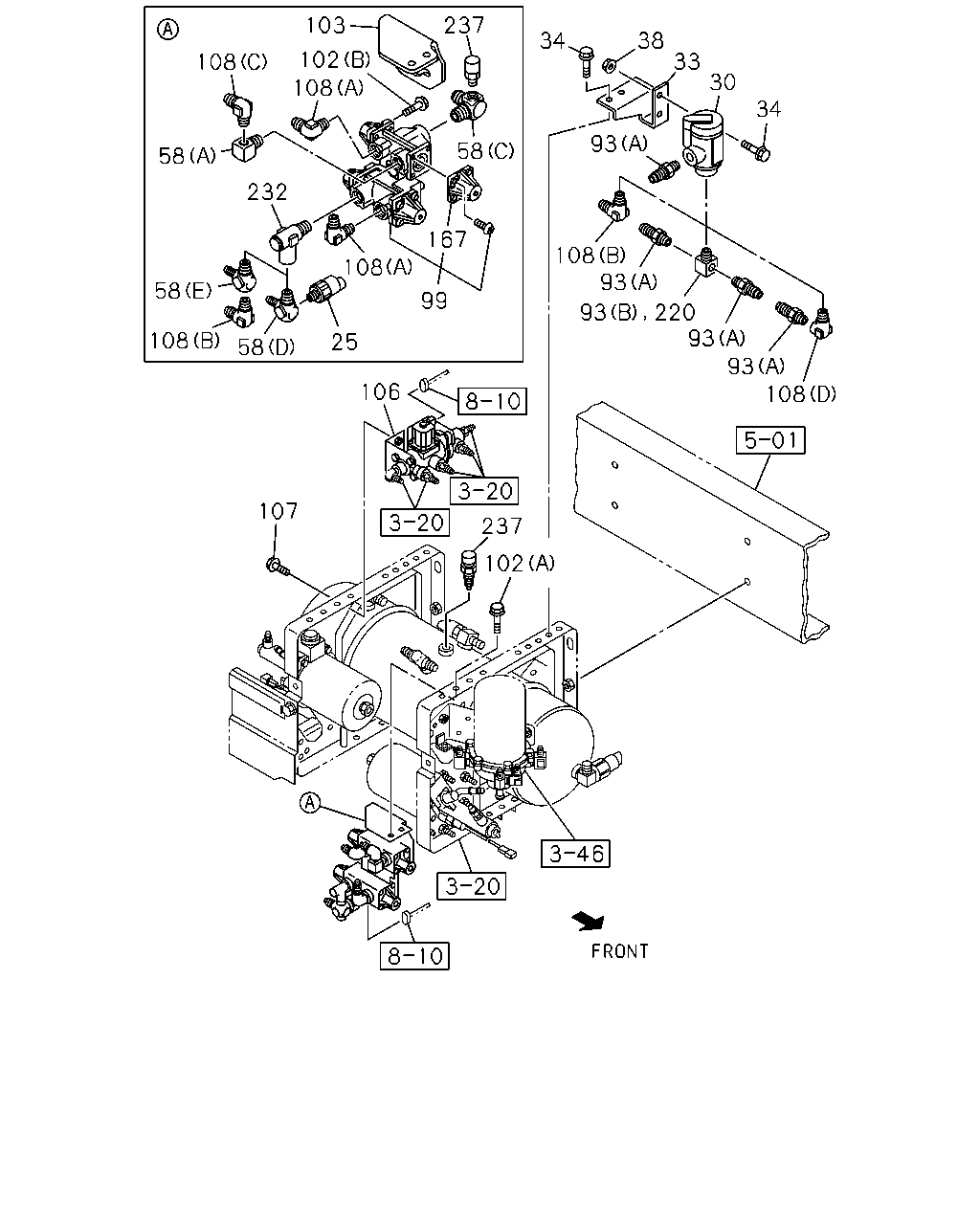

çizim 327821
108 103 102 108 237 58 167 108 99 232 58 58 108 58 25 34 38 33 30 34 93 108 93 93 220 93 93 108 106 237 102 107
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1302-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1302-
33 BRACKET; GOV,AIR CONT 8-98133-401-0 01 1 1302-
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 1302-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98035-011-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1302-
93 CONNECTOR; GOV
AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1302-
93 CONNECTOR; GOV
AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1302-
93 CONNECTOR; GOV
AIR DRYER<PS7> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1302-
93 CONNECTOR; GOV
TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1302-
93 CONNECTOR; GOV
EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48110-288-3 01 1 1302-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1302-
102 BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
103 BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98162-113-1 01 1 1302-1311
103 BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98221-293-0 01 1 1312-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1302-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 1302-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
108 CONNECTOR; ELBOW
EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1302-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1302-
108 CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 04 1 1302-
220 CONNECTOR; 3WAY
TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1302-
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1302-
237 VALVE; SAFETY 1-48320-012-2 01 1 1302-
çizim 327929
106 201 195 192 189 190 202 203 205 201 198 197 200 196 199 196 199 200 197 201 203 205 198 204
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1302-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1302-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1302-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1302-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1302-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1302-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1302-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1302-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1302-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1302-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1302-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1302-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1302-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1302-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1302-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1302-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1302-

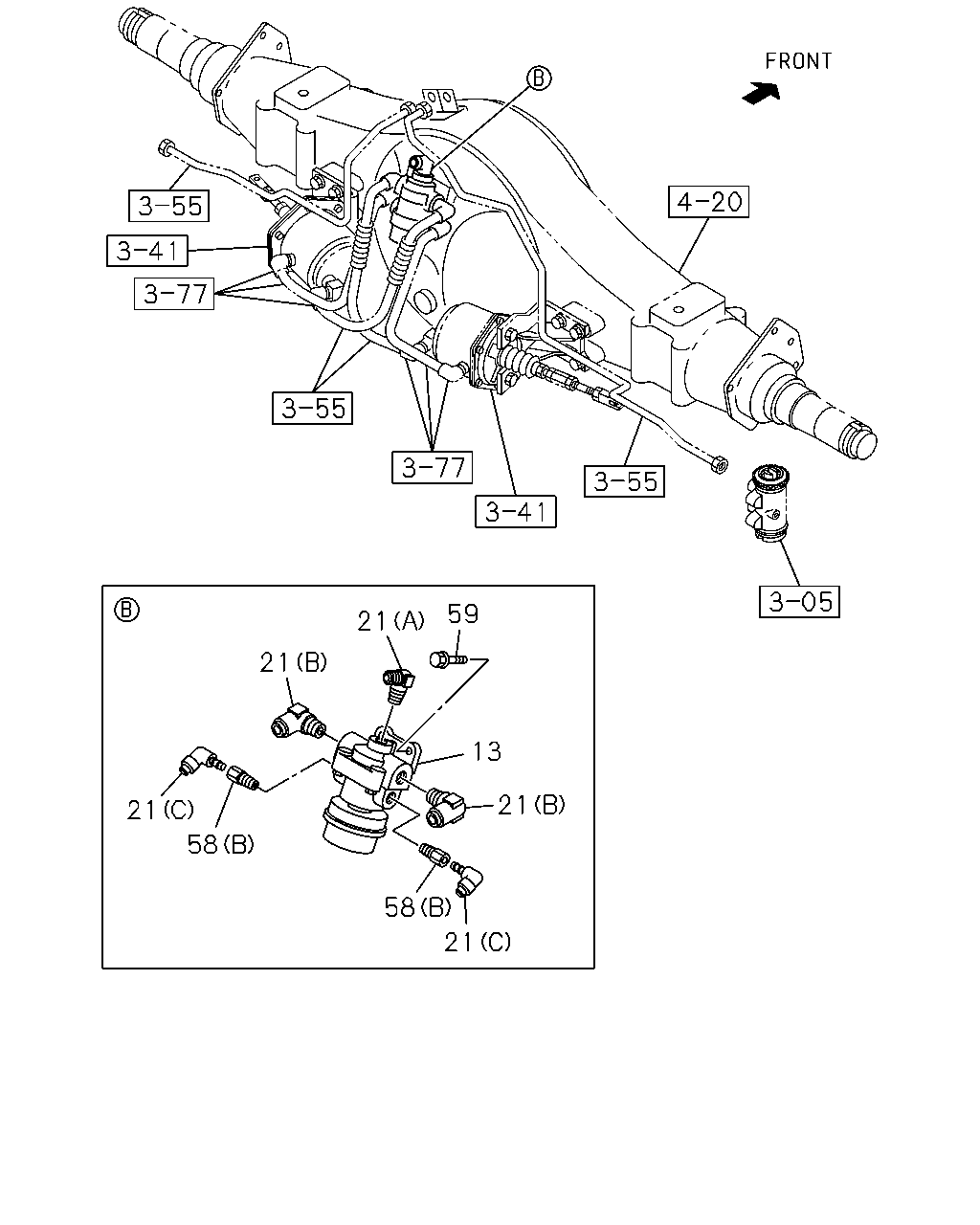

çizim 328016
21 21 59 13 21 21 58 58 21
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-783-0 01 1 1302-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1302-
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 1302-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98035-011-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1302-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> (D) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1302-
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 1302-
çizim 328043
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1302-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1302-
çizim 331621
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1302-
çizim 431810
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-451-2 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
