Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#113666) — 128 parça

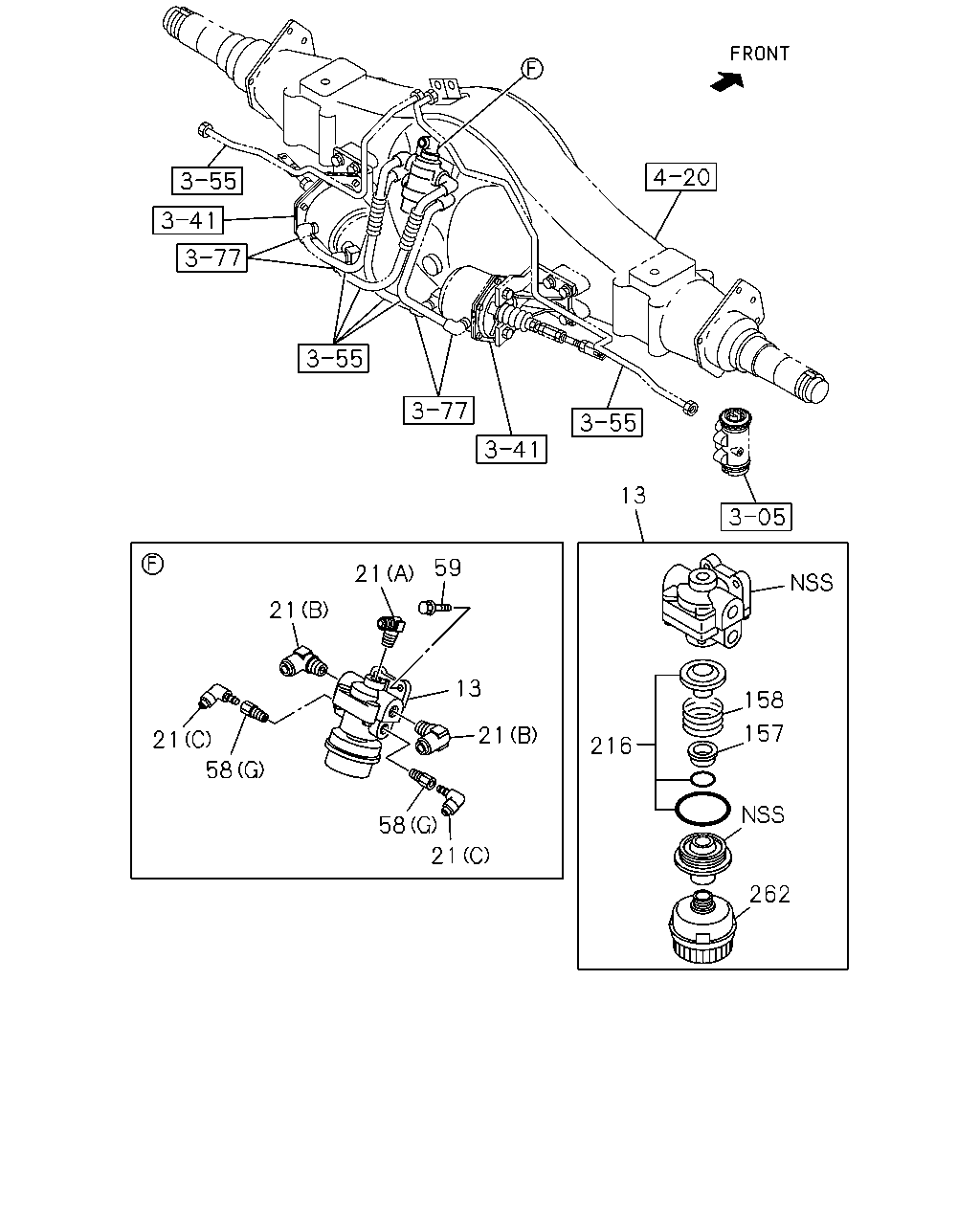

21 21 21 58 13 21 58 21 216 158 157 262 13 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48410-781-2	01	1	1302-
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48410-783-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A)	1-09656-704-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	8-98050-414-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1302-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	1302-
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48419-036-0	01	1	1302-
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	9-48419-003-0	01	1	1302-
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-85579-062-0	01	1	1302-
262	SILENCER; RELAY VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48219-149-0	01	1	1302-

106 204 205 203 201 196 199 197 200 199 196 198 200 197 201 205 203 198 190 202 192 189 201 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1302-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1302-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1302-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1302-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1302-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1302-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1302-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1302-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1302-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1302-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1302-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1302-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1302-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1302-

220 108 58 237 103 102 108 25 58 58 25 275 58 108 220 232 108 58 108 10 10 58 108 108 25 120 232 10 6 120 63 242 108 62 220 99 167 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
25	SWITCH; PRESSURE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1302-
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A)	1-09656-704-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	8-98050-414-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1302-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1302-
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	1302-
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1302-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48110-287-3	01	1	1302-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48110-287-3	01	1	1302-
99	VALVE; PROTECTION BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48110-293-3	01	1	1302-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	1-48110-288-3	01	1	1302-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98162-113-1	01	1	1302-1311
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1312-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
108	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
108	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1302-1311
108	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1302-1311
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1302-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1302-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	04	1	1302-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	03	1	1302-
167	COVER; VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	03	1	1302-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48119-625-0	03	1	1302-
220	CONNECTOR; 3WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
220	CONNECTOR; 3WAY BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-
220	CONNECTOR; 3WAY BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1302-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1302-
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1302-
237	VALVE; SAFETY	1-48320-012-2	01	1	1302-
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1302-
275	CONNECTOR; 4WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	8-98050-414-0	01	1	1312-

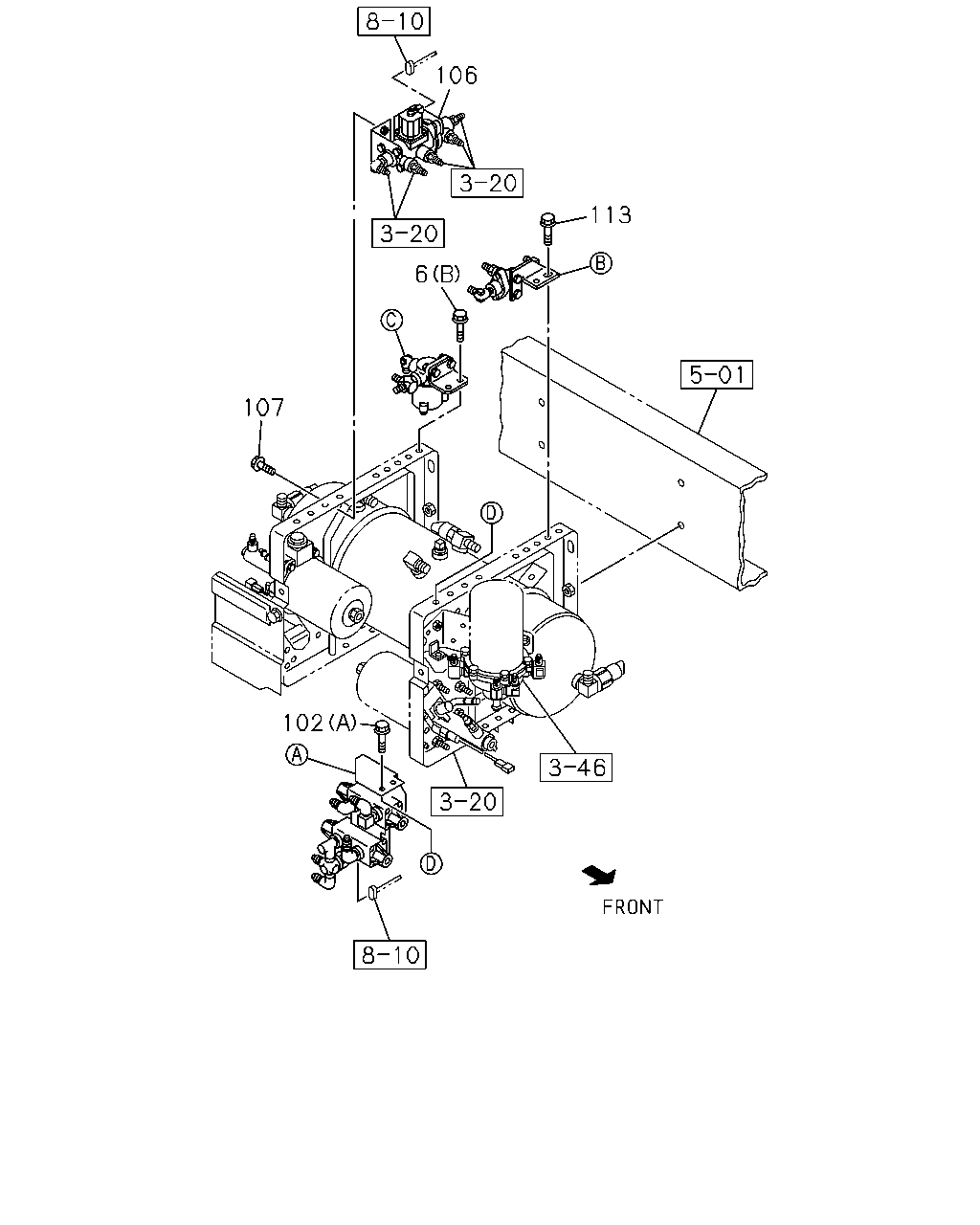

113 106 107 102 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1302-
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	1302-
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	1302-

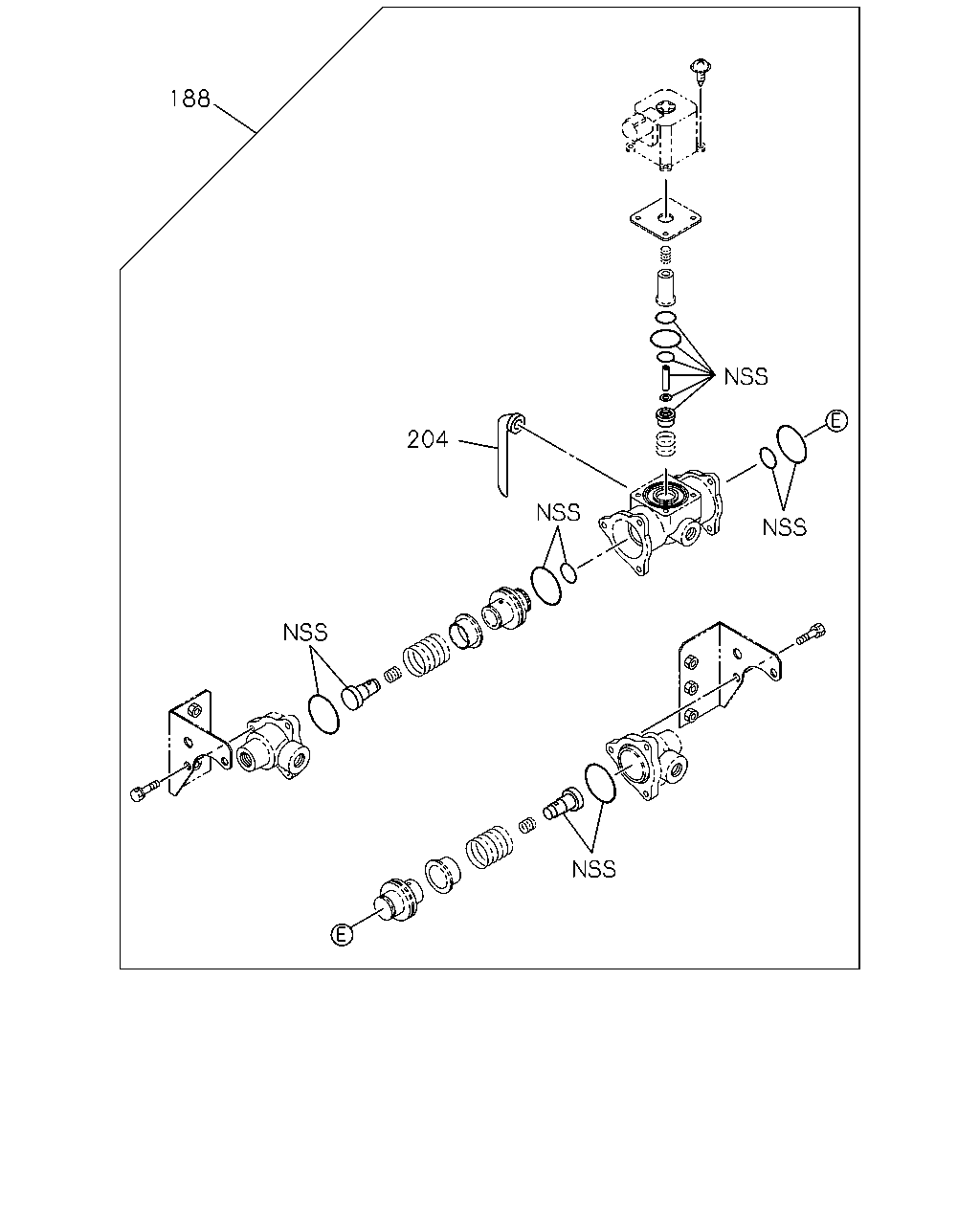

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1302-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1302-

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH) W/GREASE	1-85576-381-0	01	1	1302-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	1-85576-451-2	01	1	1302-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-452-2	01	1	1302-
241	REPAIR KIT; PROTECTION VALVE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-452-2	01	1	1302-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-85576-452-2	01	1	1302-
