Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#113663) — 195 parça

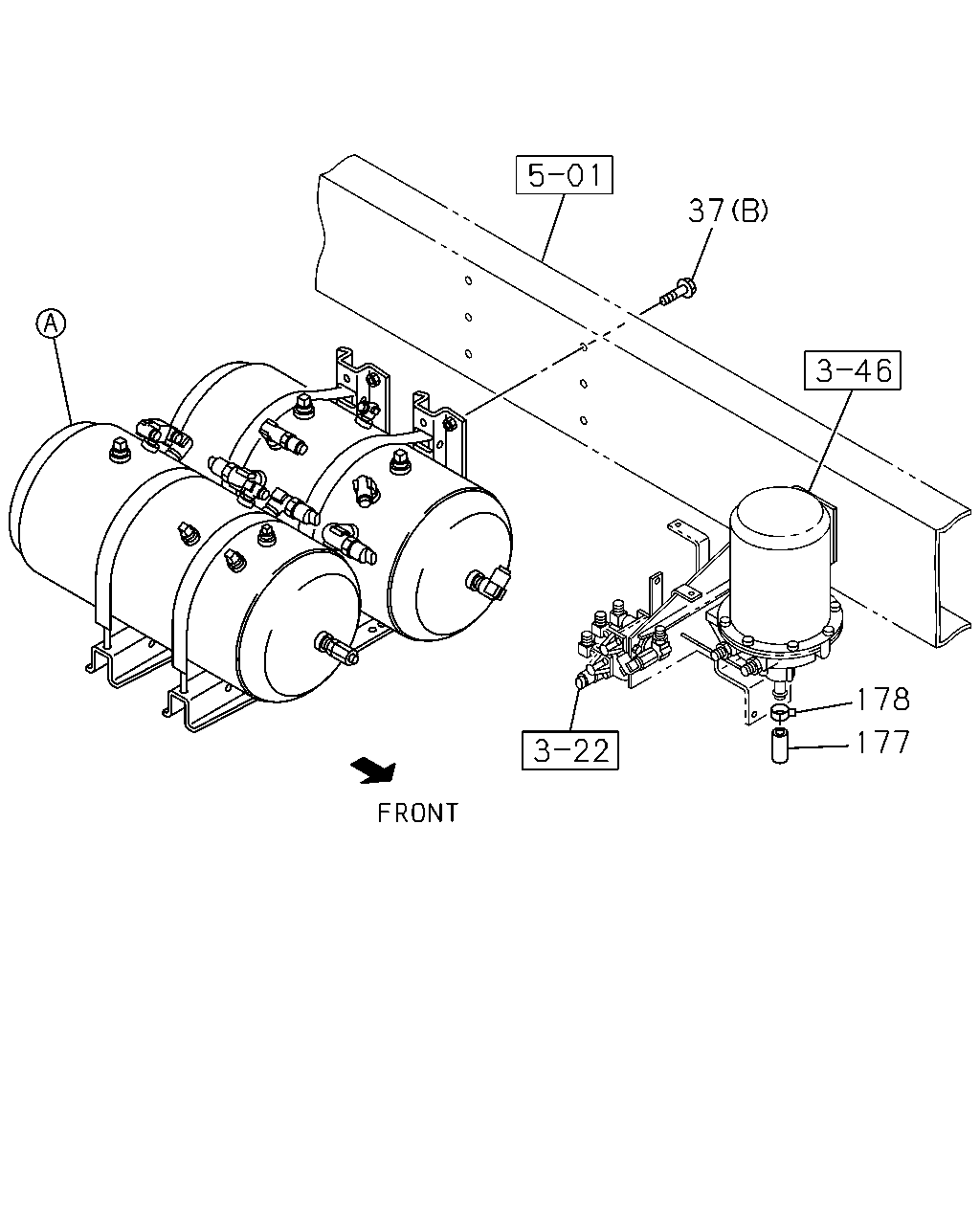

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	1302-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1302-
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	1302-

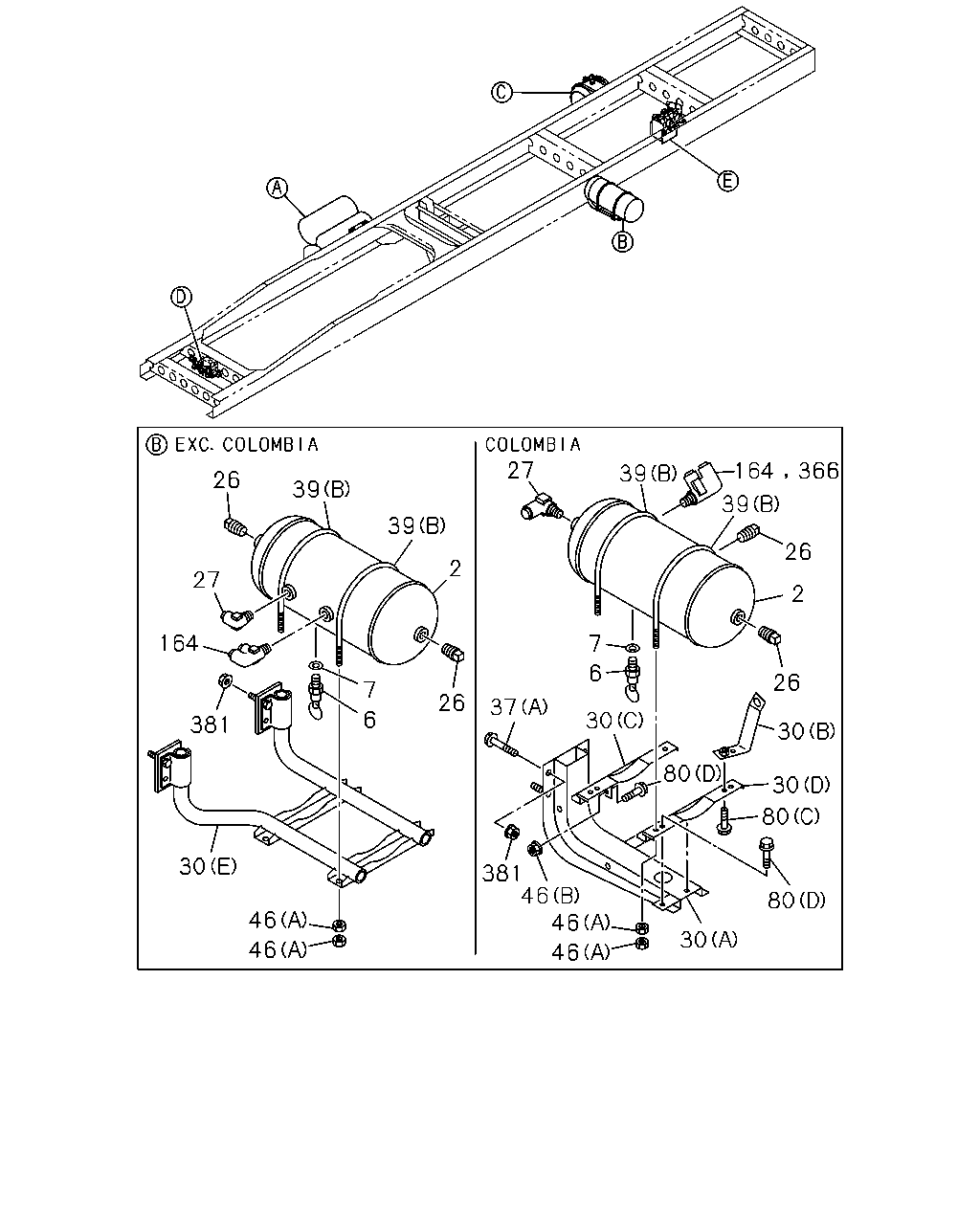

26 39 39 27 164 381 7 2 26 6 30 46 46 27 39 164 366 39 26 2 26 30 30 80 80 80 30 7 6 37 30 381 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7)	8-98179-213-0	01	1	1302-
2	TANK; AIR WHEEL BASE 6300MM(63W)	8-98179-213-0	01	1	1302-
2	TANK; AIR WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7)	8-98112-216-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1302-
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (D)	1-48317-994-2	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (D)	1-48317-994-2	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (C)	8-98182-085-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (C)	8-98182-085-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B)	8-98182-821-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (B)	8-98182-821-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (A)	8-98205-770-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (A)	8-98205-770-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-98212-754-0	01	1	1302-1302
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (E)	8-98163-993-0	01	1	1303-1311
30	BRACKET; AIR TANK,SUB WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (E)	8-98261-272-1	01	1	1312-
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	1302-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1302-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A) L=210	1-48317-458-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=253	1-48317-248-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 6300MM(63W) (B) L=253	1-48317-248-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (B)	1-48317-289-0	02	1	1302-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) (A) M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M12 FLANGE	0-91180-212-0	01	1	1302-
46	NUT; U-BOLT WHEEL BASE 6300MM(63W) (B) M12 FLANGE	0-91180-212-0	01	1	1302-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (A) M10X25 FLANGE	0-28651-025-0	04	1	1302-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (B) M10X35 FLANGE	0-28651-035-0	04	1	1302-
80	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
80	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (D) M12X30 FLANGE	0-28651-230-0	04	1	1302-
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (D) M12X30 FLANGE	0-28651-230-0	04	1	1302-
164	CONNECTOR; SUB AIR TANK WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
366	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-
366	CONNECTOR; NYLON TUBE WHEEL BASE 6300MM(63W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-
381	NUT; SUB TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) M14	0-91110-514-0	02	1	1302-1311
381	NUT; SUB TANK WHEEL BASE 6300MM(63W) M14	0-91110-514-0	02	1	1302-1311
381	NUT; SUB TANK M14	0-91110-514-0	02	1	1312-
381	NUT; SUB TANK WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) M14	0-91110-514-0	04	1	1302-1311

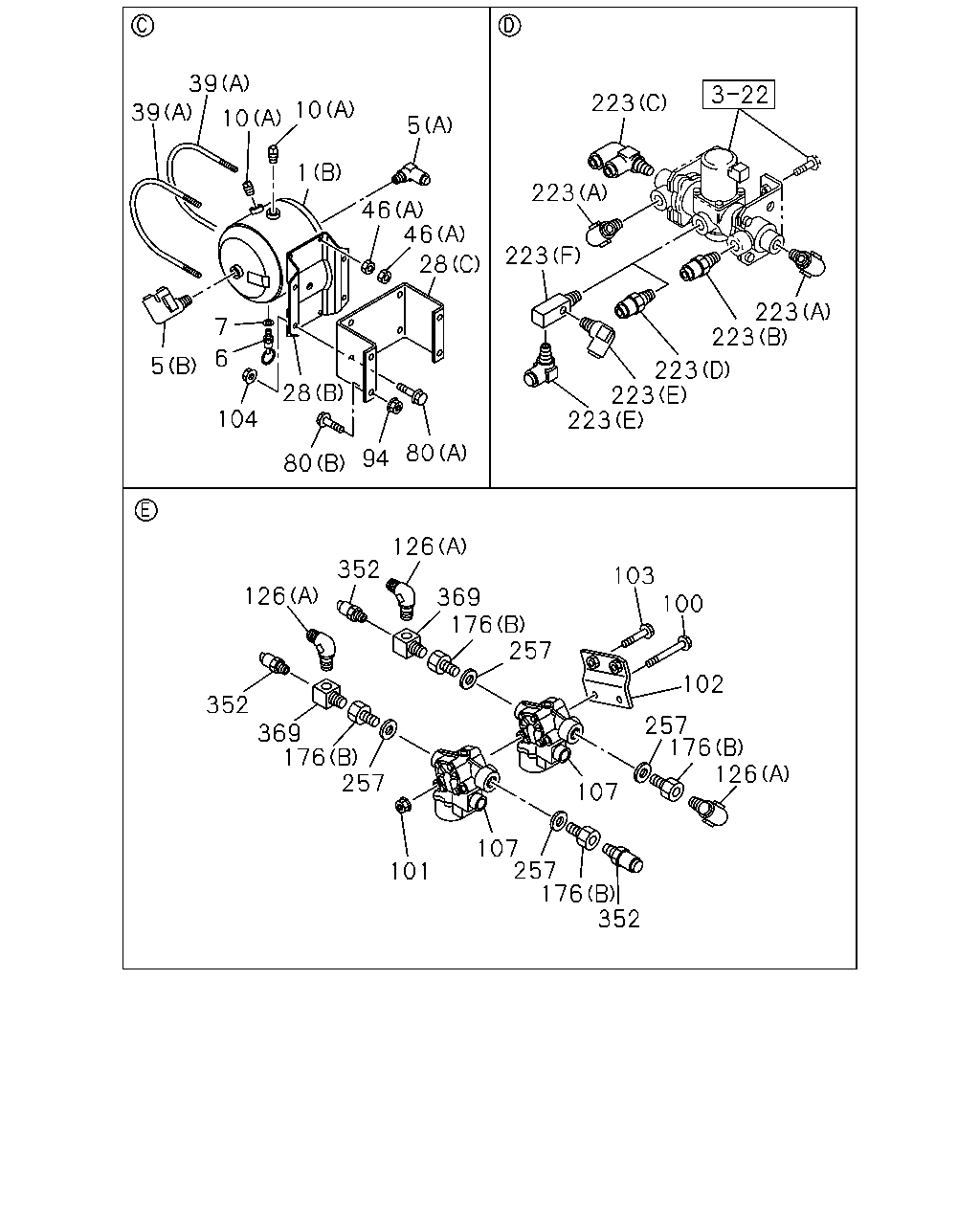

39 39 10 10 5 1 46 46 28 80 94 80 28 104 6 7 5 223 223 223 223 223 223 223 223 126 126 176 369 103 100 102 257 176 126 352 176 257 107 101 107 257 257 176 369 352 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (B)	8-98081-870-1	01	1	1302-
5	UNION; AIR TANK BRAKE REGULATION ADR(TDU) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
5	UNION; AIR TANK BRAKE REGULATION ADR(TDU) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1302-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	01	1	1302-
28	BRACKET; AIR TANK (A)	1-48317-601-5	02	1	1302-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (B)	8-98092-756-1	01	1	1302-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98092-757-0	01	1	1302-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A) L=210	1-48317-458-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) L=253	1-48317-248-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 6300MM(63W) (B) L=253	1-48317-248-1	02	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) EXC. COLOMBIA EQUIPMENT(CB7) (B)	1-48317-289-0	02	1	1302-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) (A) M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (B) M12 FLANGE	0-91180-212-0	01	1	1302-
46	NUT; U-BOLT WHEEL BASE 6300MM(63W) (B) M12 FLANGE	0-91180-212-0	01	1	1302-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (A) M10X25 FLANGE	0-28651-025-0	04	1	1302-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (B) M10X35 FLANGE	0-28651-035-0	04	1	1302-
80	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
80	BOLT; BRKT WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) (D) M12X30 FLANGE	0-28651-230-0	04	1	1302-
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (D) M12X30 FLANGE	0-28651-230-0	04	1	1302-
94	NUT; BRKT FIX BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	04	1	1302-
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> M8X140 FLANGE	0-28055-814-0	02	1	1302-
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5>	8-98034-539-2	01	1	1302-1410
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5>	8-98273-170-0	01	1	1411-
103	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X30 FLANGE	0-28650-830-0	02	1	1302-
104	NUT; BRKT BRAKE REGULATION ADR(TDU) M10	0-91110-510-0	04	1	1302-
107	MODULATOR; RR ANTI LOCK BRAKE<JE5>	1-48240-115-0	02	1	1302-1410
107	MODULATOR; RR ANTI LOCK BRAKE<JE5>	8-98215-454-0	02	1	1411-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (C)	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C)	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (H)	8-98166-127-0	04	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (H)	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (H)	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
176	ADAPTER AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
176	ADAPTER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
176	ADAPTER ANTI LOCK BRAKE<JE5> (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1302-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (F)	1-09661-729-0	01	1	1302-
257	GASKET; PLUG ANTI LOCK BRAKE<JE5> ID=22.5	9-09571-422-0	04	1	1302-
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1302-
369	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> PT3/8 3WAY	1-09661-300-0	02	1	1302-

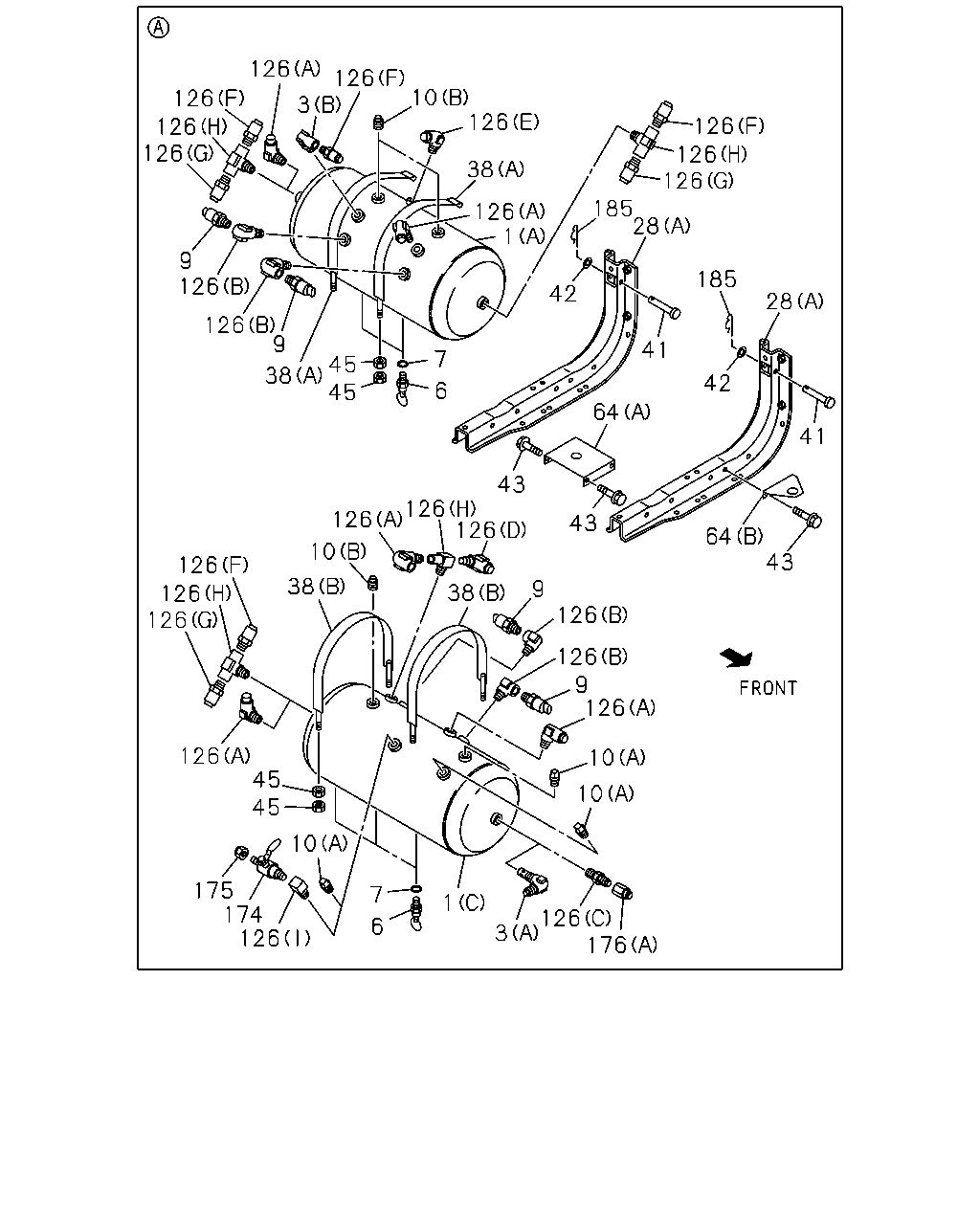

126 10 126 126 3 126 38 126 126 126 1 126 126 126 185 185 9 42 126 28 42 41 41 126 7 9 6 38 45 28 64 64 43 43 43 45 126 126 126 126 9 10 38 38 126 126 26 126 9 126 10 10 126 45 45 176 126 3 1 7 6 10 75 174 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (B)	8-98081-870-1	01	1	1302-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (B)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,BRAKE REGULATION ADR(TDU) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4>	8-97615-622-0	04	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	04	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1302-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	01	1	1302-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1302-
28	BRACKET; AIR TANK (A)	1-48317-601-5	02	1	1302-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (B)	8-98092-756-1	01	1	1302-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98092-757-0	01	1	1302-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	1302-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	1302-
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1302-
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	1302-
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	1302-
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1302-
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (C)	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (C)	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (H)	8-98166-127-0	04	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (H)	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (H)	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
174	COCK; AIR,INFLATOR AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	1302-
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
176	ADAPTER AIR DRYER<PS7> BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
176	ADAPTER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
176	ADAPTER ANTI LOCK BRAKE<JE5> (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1302-
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1302-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-

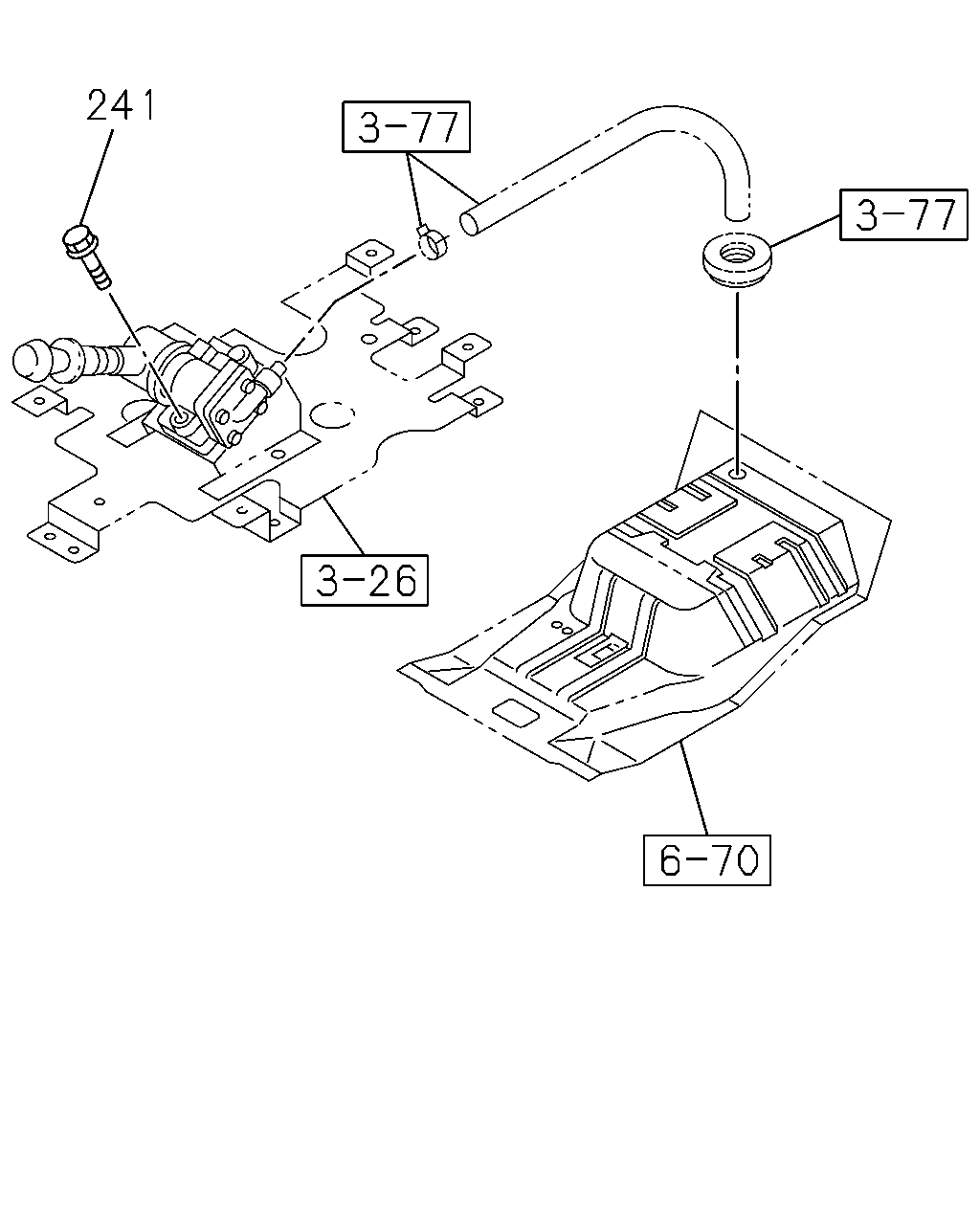

241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
