Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#113662) — 67 parça
◀
[320A] FIXING (31 parça)
[320A] DOUBLE CHECK VALVE (6 parça)
[320A] COMPONENT (30 parça)
▶

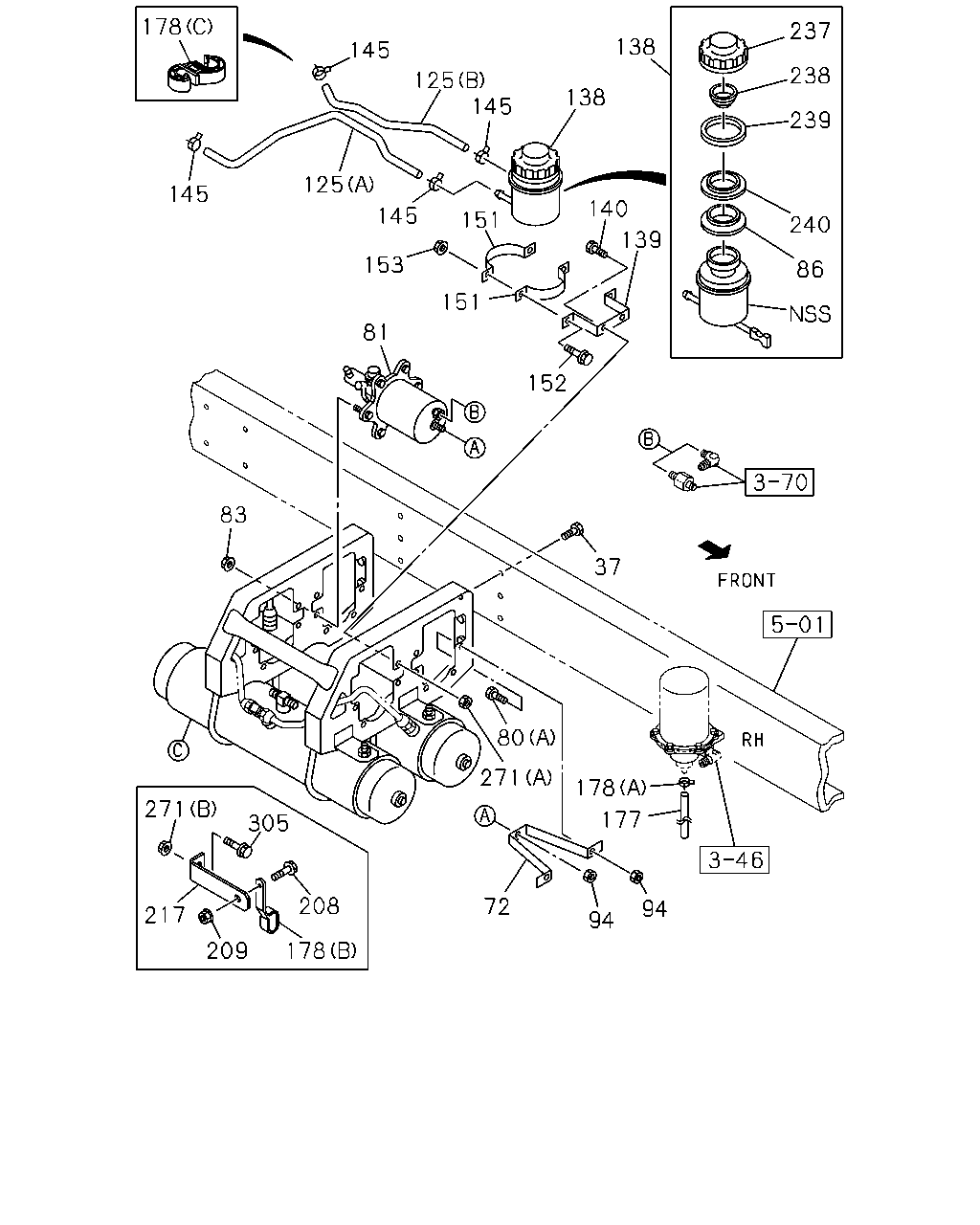

178
145
125
145
138
138
237
238
239
240
86
140
151
139
125
145
145
153
81
151
152
83
80
271
178
177
72
94
94
305
271
217
208
178
209
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
06
1
1302-
72
BRACKET; AIR MASTER
8-98120-254-0
02
1
1302-
80
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
04
1
1302-
80
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE
0-28050-816-0
02
1
1302-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-663-1
02
1
1302-
83
NUT; AIR MASTER
M10 FLANGE
0-91180-210-0
08
1
1302-
86
SEAL; DUST
1-47529-019-0
01
1
1302-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
06
1
1302-
125
HOSE; OIL TANK TO AIR MASTER
(B) L=270 SERVICED BY L=1800
1-09360-320-0
01
1
1302-
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98197-596-0
01
1
1302-
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
1302-
139
BRACKET; OIL TANK
1-47537-081-2
01
1
1302-
140
BOLT; OIL TANK TO BRKT
M10X20 FLANGE
0-28651-020-0
02
1
1302-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
1302-
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
1302-
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
1302-
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
1302-
177
HOSE; RUBBER,DRAIN
AIR DRYER<PS7> L=55 SERVICED BY L=3000
0-03566-300-0
01
1
1302-
178
CLIP; HOSE
(C) ID=12 & 12
1-09709-280-1
01
1
1302-
178
CLIP; HOSE
(B) DIN15X2
9-09917-171-0
01
1
1302-
178
CLIP; HOSE
AIR DRYER<PS7> (A) ID=21
8-94242-034-0
01
1
1302-
208
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1302-
209
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1302-
217
BRACKET; RUBBER HOSE
L=112
1-47475-694-1
01
1
1302-
237
CAP; OIL TANK
1-47525-030-0
01
1
1302-
238
PLATE; BAFFLE
1-47529-022-0
01
1
1302-
239
FILTER; DUST
1-47529-017-0
01
1
1302-
240
HOLDER; FILTER
1-47529-018-0
01
1
1302-
271
NUT; BRKT,HOSE
(B) M8 FLANGE
0-91180-108-0
01
1
1302-
271
NUT; BRKT,HOSE
(A) M10 FLANGE
0-91180-210-0
02
1
1302-
305
BOLT; BRKT,HOSE
M8X20 FLANGE
0-28650-820-0
01
1
1302-

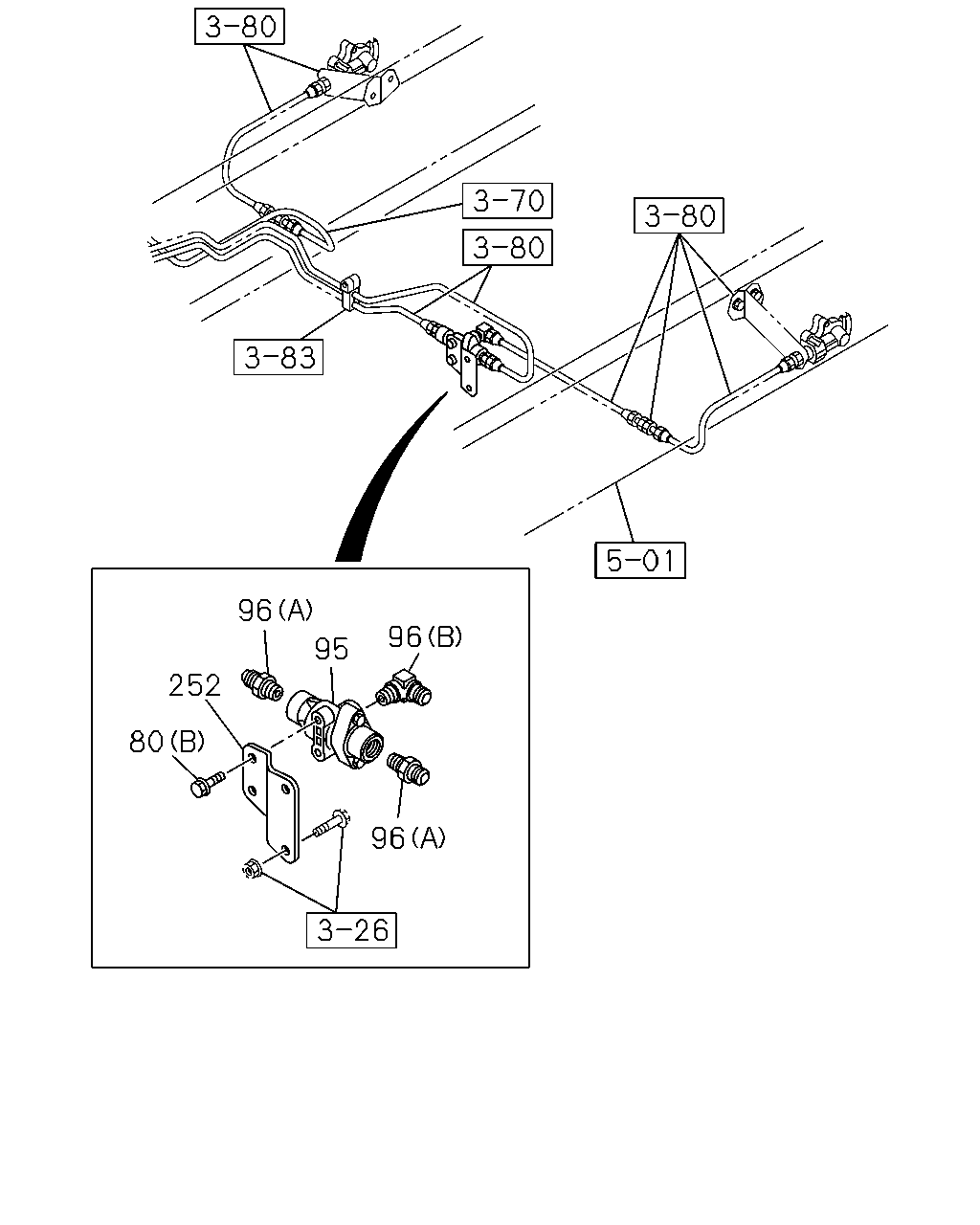

96
95
96
252
80
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
04
1
1302-
80
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> (B) M8X16 FLANGE
0-28050-816-0
02
1
1302-
95
VALVE; DOUBLE CHECK
TRAILER BRAKE CONTROL<J91>
1-48410-531-1
01
1
1302-
96
CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1302-
96
CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1302-
252
BRACKET; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91>
8-98141-870-0
01
1
1302-

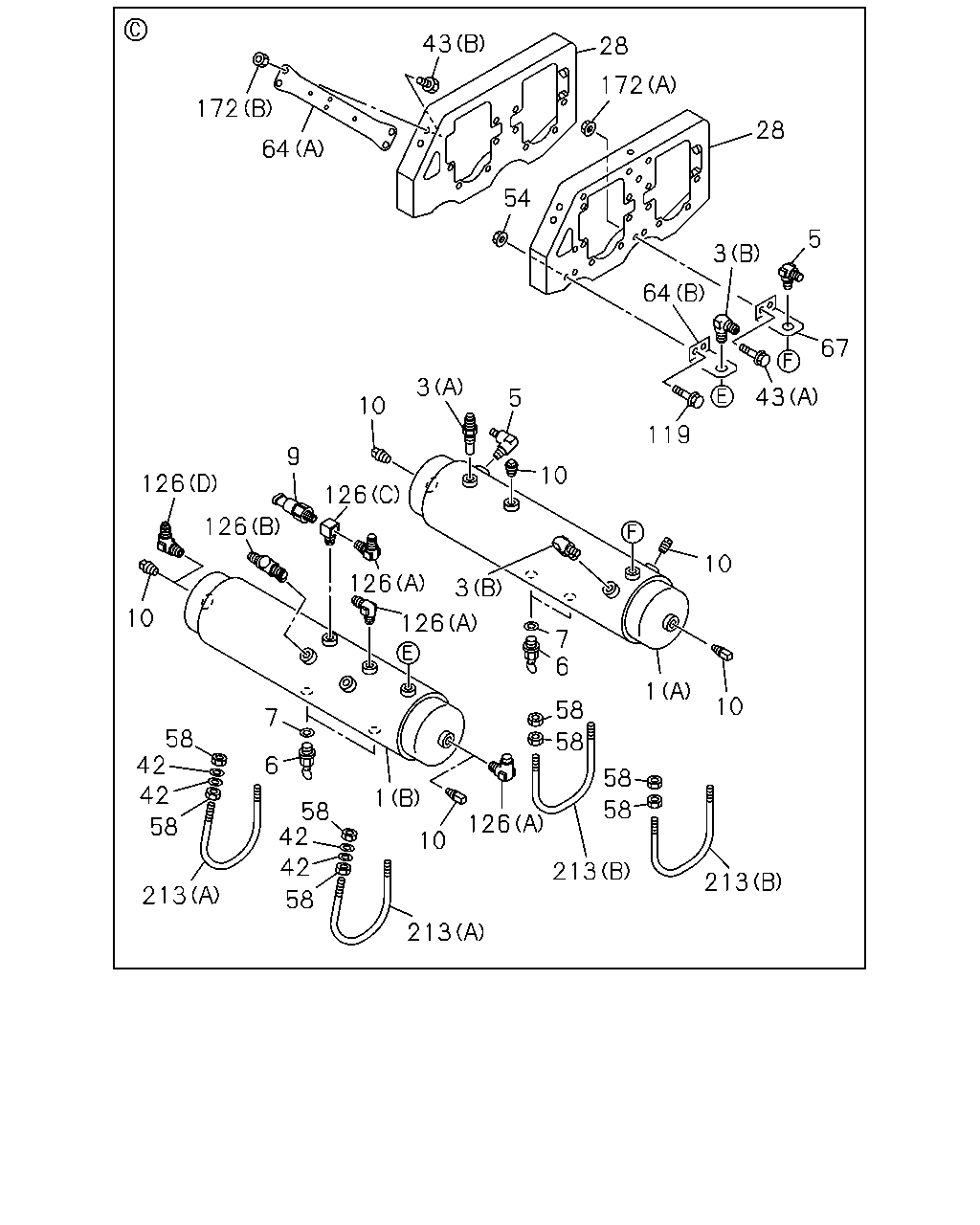

43
28
172
64
54
172
28
3
5
64
67
43
119
3
10
9
126
126
126
10
126
126
3
7
6
58
58
1
10
10
7
6
58
42
42
58
213
42
58
42
58
1
10
213
213
213
58
58
126
5
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(B)
1-48330-598-0
01
1
1302-
1
TANK ASM; AIR
(A)
1-48370-541-0
01
1
1302-
3
VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 STRAIGHT
1-48410-182-3
01
1
1302-
3
VALVE; CHECK,AIR TANK
AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW
1-48410-412-0
02
1
1302-
3
VALVE; CHECK,AIR TANK
EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW
1-48410-134-3
01
1
1302-
3
VALVE; CHECK,AIR TANK
EXC. AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
1302-
5
UNION; AIR TANK
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1302-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1302-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1302-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
01
1
1302-
10
PLUG; AIR TANK
TRAILER BRAKE CONTROL<J91> PT1/4
9-99204-513-0
04
1
1302-
10
PLUG; AIR TANK
EXC. TRAILER BRAKE CONTROL<J91> PT1/4
9-99204-513-0
05
1
1302-
28
BRACKET; AIR TANK
1-53318-338-6
02
1
1302-
42
WASHER; PL
ID=8.4 OD=18
0-91610-608-0
04
1
1302-
43
BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE
0-28650-820-0
02
1
1302-
43
BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE
0-28651-025-0
04
1
1302-
54
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
1302-
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
16
1
1302-
64
STAY; AIR TANK,MAIN
(A)
1-53318-293-1
01
1
1302-
64
STAY; AIR TANK,MAIN
(B)
8-94301-490-0
01
1
1302-
67
STAY; SUB TANK
8-97614-753-0
01
1
1302-
119
BOLT; STAY
M8X20 FLANGE
0-28650-820-0
02
1
1302-
126
CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW
1-09650-430-0
03
1
1302-
126
CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY
1-09656-340-1
01
1
1302-
126
CONNECTOR; ELBOW
(C) R1/4 & RC1/4X2 3WAY
8-98166-517-0
01
1
1302-
126
CONNECTOR; ELBOW
TRAILER BRAKE CONTROL<J91> (D) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1302-
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91180-108-0
02
1
1302-
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91180-210-0
04
1
1302-
213
BOLT; U AIR TANK
(A) L=97.5
1-48317-323-1
02
1
1302-
213
BOLT; U AIR TANK
(B) L=195
1-48317-367-2
02
1
1302-
