Sayfa 3-20 - Isuzu EPC

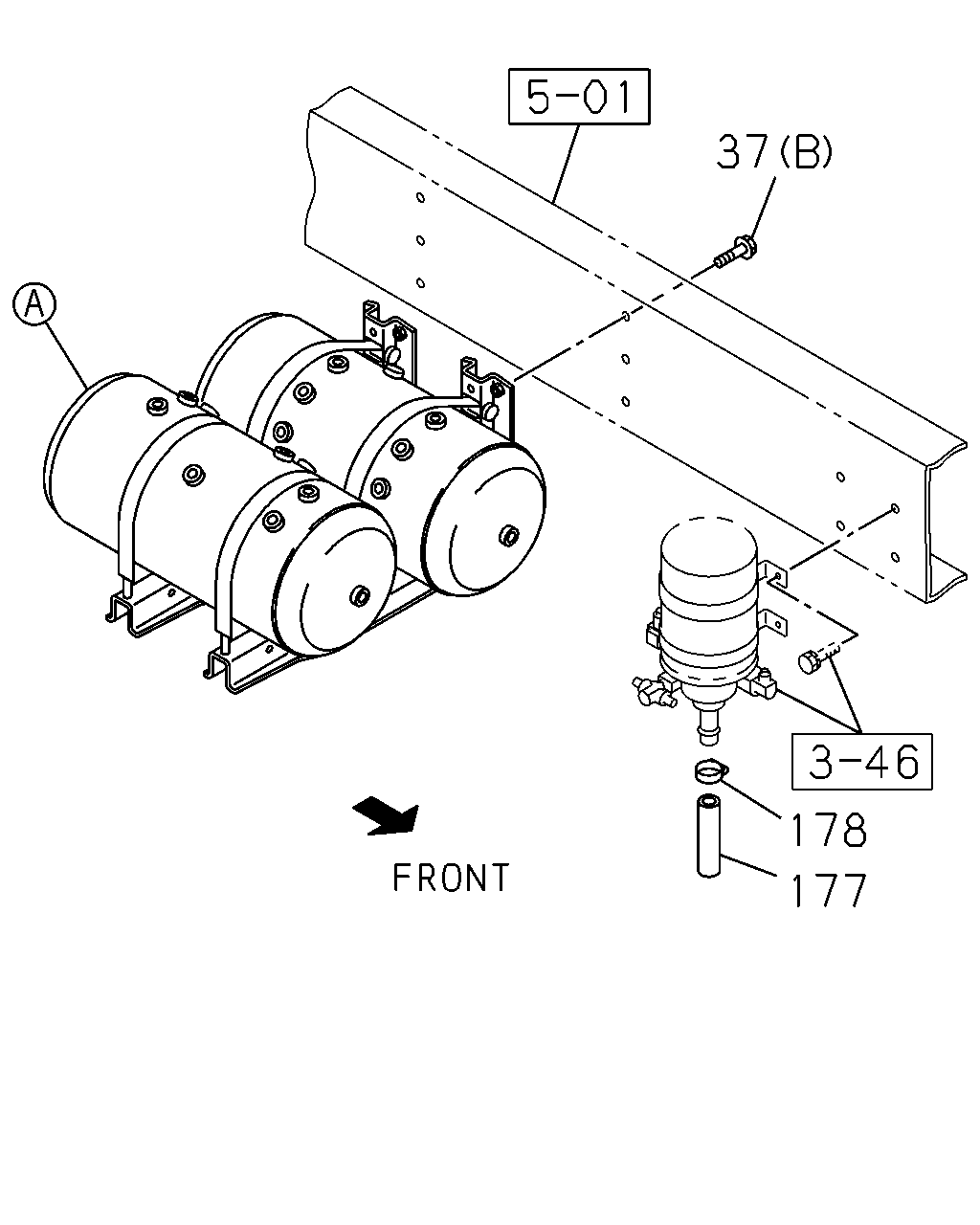

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	1302-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1302-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	1302-

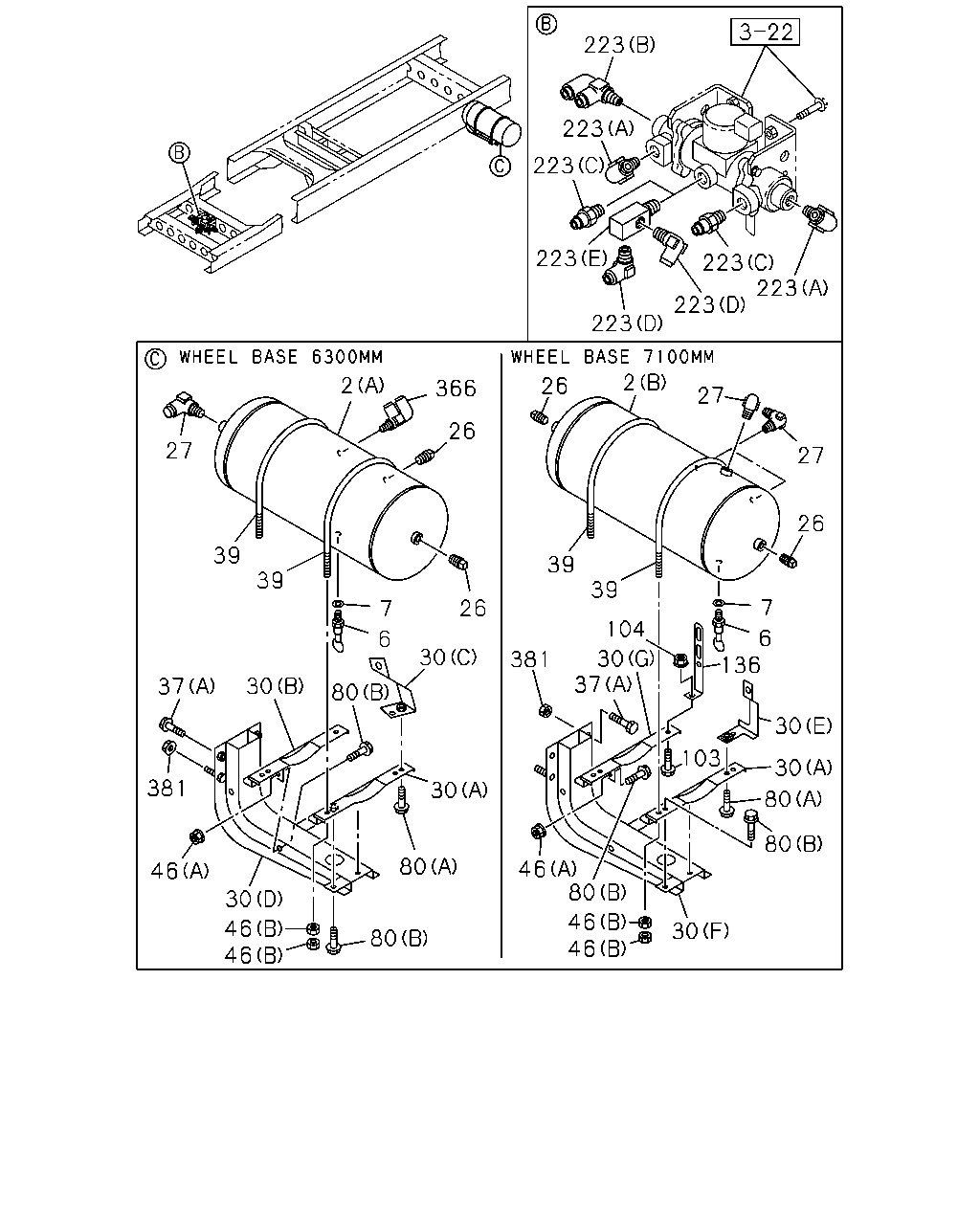

27 39 39 366 26 2 26 7 6 30 80 30 37 381 30 80 80 30 46 46 46 223 223 223 223 223 223 223 223 26 39 27 27 2 39 104 7 26 30 30 80 80 30 46 46 80 46 381 30 37 6 136 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR WHEEL BASE 6300MM(63W) (A)	8-98179-213-0	01	1	1302-1311
2	TANK; AIR EXC. VIETNAM EQUIPMENT(SGX) (A)	8-98179-213-0	01	1	1312-
2	TANK; AIR WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (B)	8-98160-210-0	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1302-1311
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W)	1-48312-015-0	01	1	1302-1311
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1312-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1302-1311
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	01	1	1302-1311
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1312-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1312-
26	PLUG; SUB AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) PT3/8	9-09204-517-0	02	1	1302-1311
26	PLUG; SUB AIR TANK WHEEL BASE 6300MM(63W) PT3/8	9-09204-517-0	02	1	1302-1311
26	PLUG; SUB AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) PT3/8	9-09204-517-0	02	1	1312-
26	PLUG; SUB AIR TANK EXC. VIETNAM EQUIPMENT(SGX) PT3/8	9-09204-517-0	02	1	1312-
27	UNION; ELBOW,AIR TANK WHEEL BASE 6300MM(63W) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-1311
27	UNION; ELBOW,AIR TANK EXC. VIETNAM EQUIPMENT(SGX) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1312-
27	UNION; ELBOW,AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (B)	8-98182-085-0	01	1	1302-1311
30	BRACKET; AIR TANK,SUB EXC. VIETNAM EQUIPMENT(SGX) (B)	8-98182-085-0	01	1	1312-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (C)	8-98182-821-0	01	1	1302-1311
30	BRACKET; AIR TANK,SUB EXC. VIETNAM EQUIPMENT(SGX) (C)	8-98182-821-0	01	1	1312-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (D)	8-98205-770-0	01	1	1302-1311
30	BRACKET; AIR TANK,SUB EXC. VIETNAM EQUIPMENT(SGX) (D)	8-98205-770-0	01	1	1312-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (G)	1-48316-026-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A)	1-48317-994-2	01	1	1302-1311
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W) (A)	1-48317-994-2	01	1	1302-1311
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A)	1-48317-994-2	01	1	1312-
30	BRACKET; AIR TANK,SUB EXC. VIETNAM EQUIPMENT(SGX) (A)	1-48317-994-2	01	1	1312-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (E)	8-98136-697-0	01	1	1302-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (F)	8-98157-749-0	01	1	1302-
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	1302-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	1302-
39	U-BOLT; AIR TANK WHEEL BASE 6300MM(63W) L=253	1-48317-248-1	02	1	1302-1311
39	U-BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(SGX) L=253	1-48317-248-1	02	1	1312-
39	U-BOLT; AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=303	1-48317-087-2	02	1	1302-
46	NUT; U-BOLT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (B) M8	0-91110-508-0	08	1	1302-1311
46	NUT; U-BOLT WHEEL BASE 6300MM(63W) (B) M8	0-91110-508-0	08	1	1302-1311
46	NUT; U-BOLT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (B) M8	0-91110-508-0	08	1	1312-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(SGX) (B) M8	0-91110-508-0	08	1	1312-
46	NUT; U-BOLT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) M12 FLANGE	0-91180-212-0	01	1	1302-1311
46	NUT; U-BOLT WHEEL BASE 6300MM(63W) (A) M12 FLANGE	0-91180-212-0	01	1	1302-1311
46	NUT; U-BOLT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) M12 FLANGE	0-91180-212-0	01	1	1312-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(SGX) (A) M12 FLANGE	0-91180-212-0	01	1	1312-
80	BOLT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1311
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1311
80	BOLT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) M8X25 FLANGE	0-28650-825-0	01	1	1312-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(SGX) (A) M8X25 FLANGE	0-28650-825-0	01	1	1312-
80	BOLT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (B) M12X30 FLANGE	0-28651-230-0	04	1	1302-1311
80	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M12X30 FLANGE	0-28651-230-0	04	1	1302-1311
80	BOLT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (B) M12X30 FLANGE	0-28651-230-0	04	1	1312-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(SGX) (B) M12X30 FLANGE	0-28651-230-0	04	1	1312-
103	BOLT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) M8X20 FLANGE	0-28650-820-0	01	1	1302-
104	NUT; BRKT WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) M8 FLANGE	0-91180-108-0	01	1	1302-
136	BRACKET; CLIP WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=225	1-47477-646-3	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
223	UNION H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1302-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (E) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1302-
366	CONNECTOR; NYLON TUBE WHEEL BASE 6300MM(63W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1302-1311
366	CONNECTOR; NYLON TUBE EXC. VIETNAM EQUIPMENT(SGX) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1312-
381	NUT; SUB TANK WHEEL BASE 6300MM(63W) M14	0-91110-514-0	02	1	1302-1311
381	NUT; SUB TANK EXC. VIETNAM EQUIPMENT(SGX) M14	0-91110-514-0	02	1	1312-
381	NUT; SUB TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) M14	0-91110-514-0	04	1	1302-

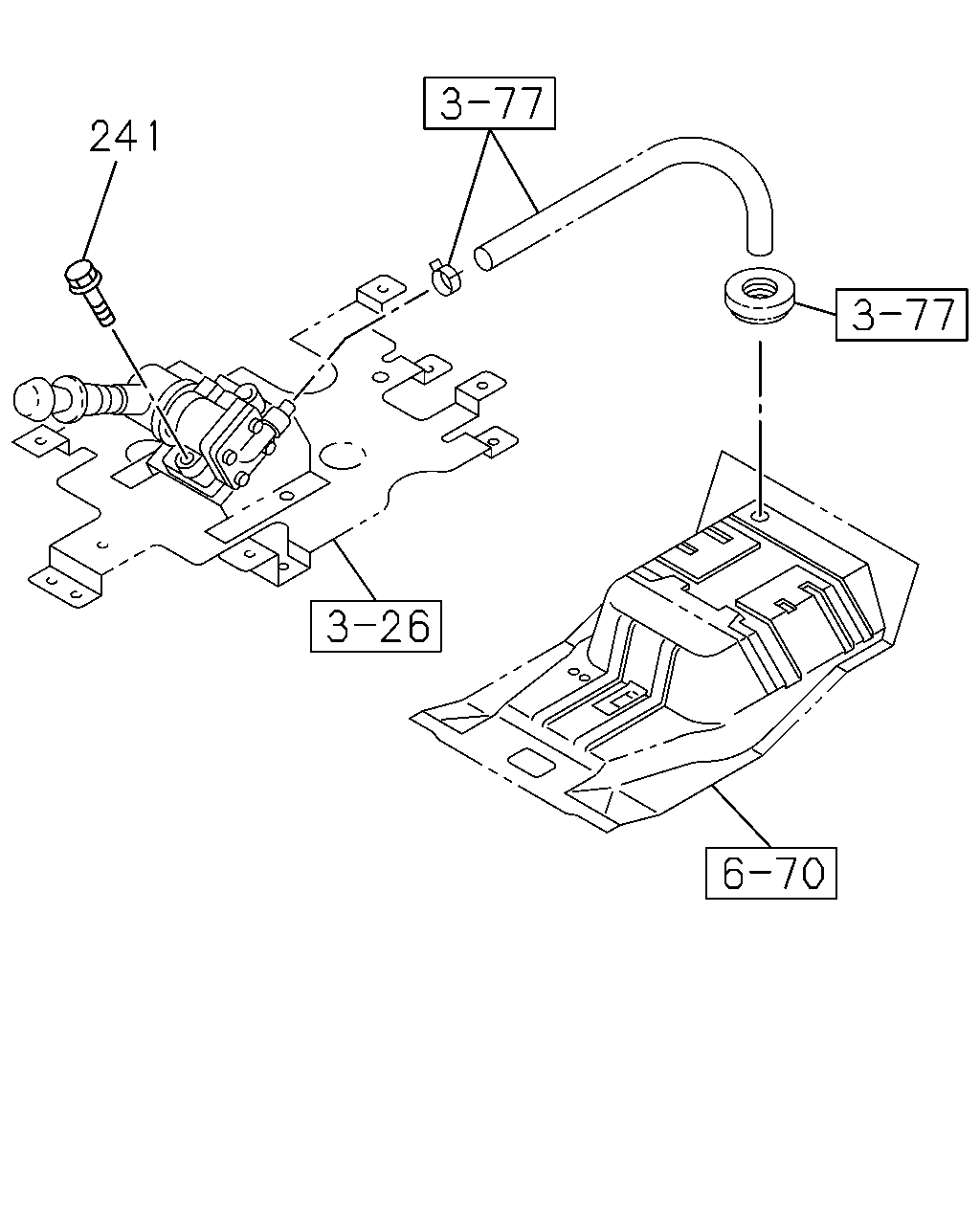

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1302-

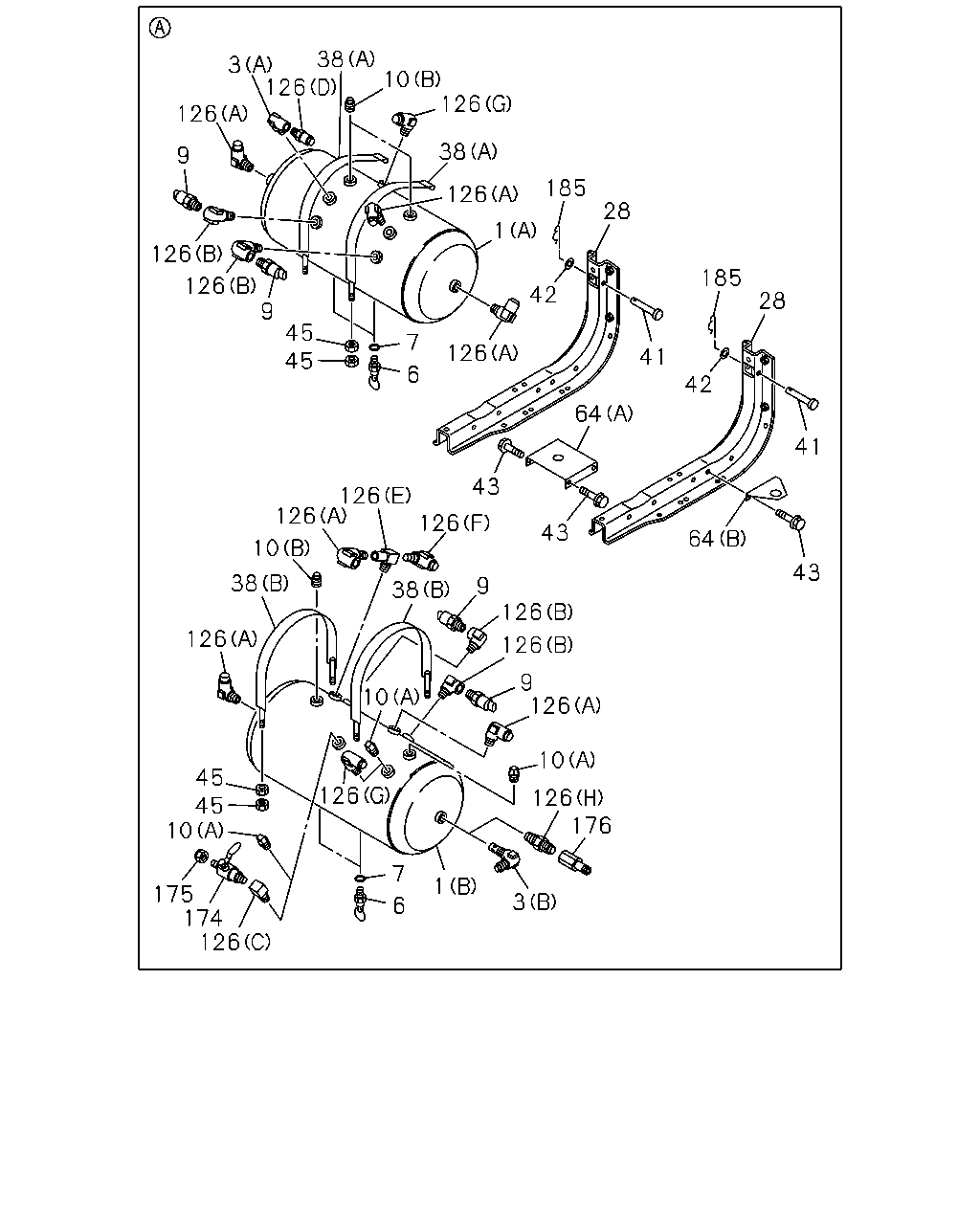

3 126 9 126 126 9 45 45 7 6 126 38 10 126 38 126 1 126 42 185 28 41 64 43 43 42 185 28 41 64 43 126 126 10 38 126 45 45 10 175 174 126 126 38 9 126 126 9 126 10 126 176 1 3 126 7 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR (B)	8-98184-783-0	01	1	1302-
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-1601
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1602-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-1601
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1602-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1302-1311
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W)	1-48312-015-0	01	1	1302-1311
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1312-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(SGX)	1-48312-015-0	01	1	1312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1302-1311
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	01	1	1302-1311
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1312-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(SGX) ID=14	1-09630-145-0	01	1	1312-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	1602-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	01	1	1302-1601
10	PLUG; AIR TANK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	02	1	1602-
10	PLUG; AIR TANK TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1602-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	02	1	1302-1601
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1602-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	1302-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	1302-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	1302-
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1302-
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	1302-
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	1302-
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1302-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW (G) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-1601
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1602-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1602-
126	CONNECTOR; ELBOW AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (H) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1602-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW (E) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-1601
126	CONNECTOR; ELBOW AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1602-
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1602-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-1601
174	COCK; AIR,INFLATOR AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1602-
174	COCK; AIR,INFLATOR TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1602-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-1601
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1602-
175	CAP; AIR COCK TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1602-
176	ADAPTER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1602-
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1302-
