1 |
TANK ASM; AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98018-785-3 |
01 |
1 |
1302-1405 |
| |
1 |
TANK ASM; AIR
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
8-98018-785-3 |
01 |
1 |
1406- |
| |
1 |
TANK ASM; AIR
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98018-785-3 |
01 |
1 |
1406- |
| |
1 |
TANK ASM; AIR
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98018-785-3 |
01 |
1 |
1406- |
| |
1 |
TANK ASM; AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
|
8-98018-785-3 |
01 |
1 |
1406- |
| |
1 |

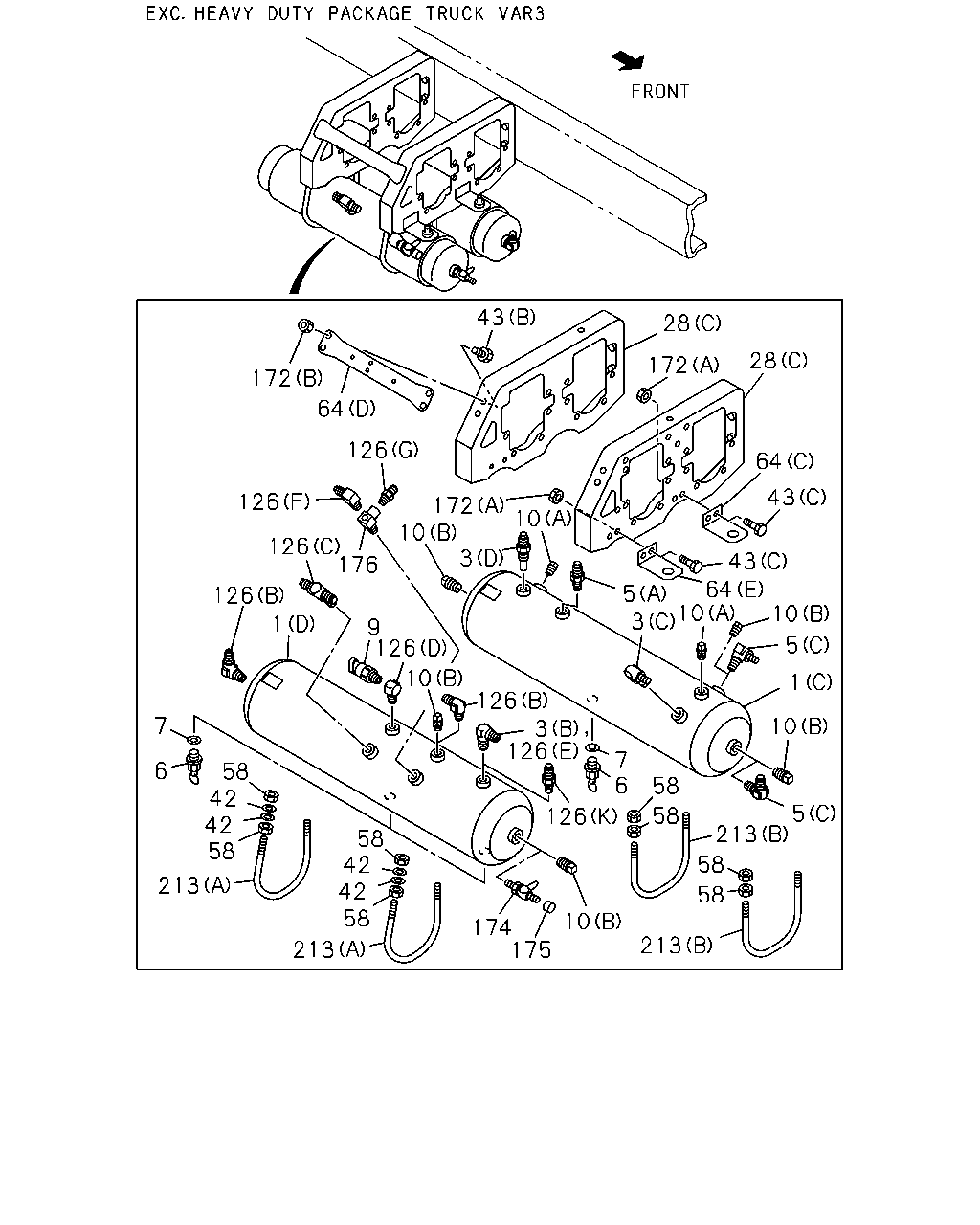

TANK ASM; AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(D)
|
1-48330-598-0 |
01 |
1 |
1302- |
| |
1 |
TANK ASM; AIR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
|
1-48370-541-0 |
01 |
1 |
1302- |
| |
1 |

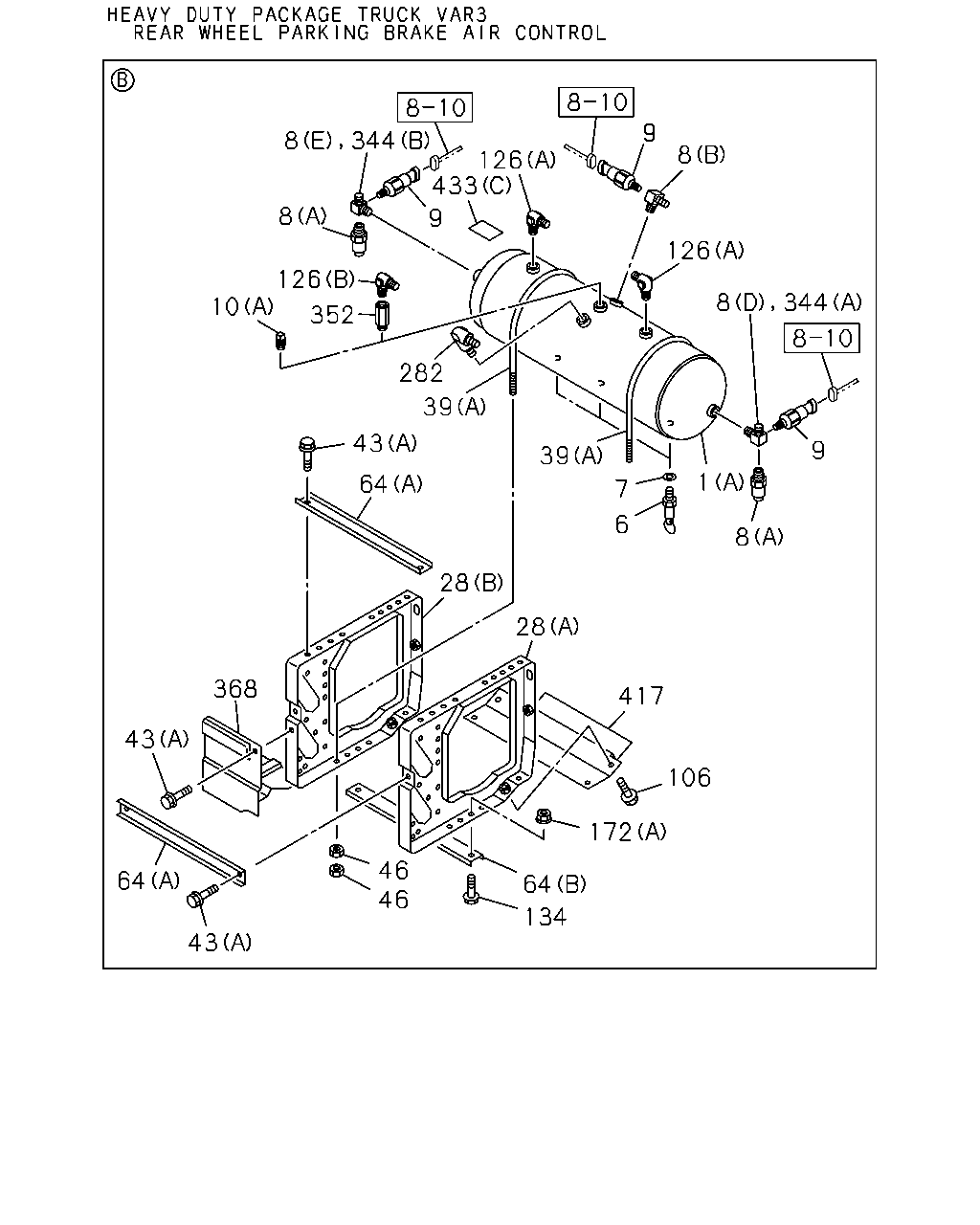

TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
8-98166-972-0 |
01 |
1 |
1302- |
| |
1 |
TANK ASM; AIR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(E)
|
8-98081-870-1 |
01 |
1 |
1302-1405 |
| |
1 |
TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
(E)
|
8-98081-870-1 |
01 |
1 |
1302-1405 |
| |
1 |
TANK ASM; AIR
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(E)
|
8-98081-870-1 |
01 |
1 |
1406- |
| |
1 |
TANK ASM; AIR
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
(E)
|
8-98081-870-1 |
01 |
1 |
1406- |
| |
1 |
TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(E)
|
8-98081-870-1 |
01 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-48312-015-0 |
03 |
1 |
1302-1405 |
| |
6 |
COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
|
1-48312-015-0 |
03 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
|
1-48312-015-0 |
03 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-48312-015-0 |
03 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
|
1-48312-015-0 |
03 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-48312-015-0 |
04 |
1 |
1302- |
| |
6 |
COCK; DRAIN,AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
|
1-48312-015-0 |
01 |
1 |
1302-1405 |
| |
6 |
COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
|
1-48312-015-0 |
01 |
1 |
1302-1405 |
| |
6 |
COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48312-015-0 |
01 |
1 |
1302-1405 |
| |
6 |
COCK; DRAIN,AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
|
1-48312-015-0 |
01 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
|
1-48312-015-0 |
01 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
|
1-48312-015-0 |
01 |
1 |
1406- |
| |
6 |
COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48312-015-0 |
01 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=14
|
1-09630-145-0 |
03 |
1 |
1302-1405 |
| |
7 |
GASKET; DRAIN COCK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
ID=14
|
1-09630-145-0 |
03 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
ID=14
|
1-09630-145-0 |
03 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=14
|
1-09630-145-0 |
03 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
ID=14
|
1-09630-145-0 |
03 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=14
|
1-09630-145-0 |
04 |
1 |
1302- |
| |
7 |
GASKET; DRAIN COCK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
ID=14
|
1-09630-145-0 |
01 |
1 |
1302-1405 |
| |
7 |
GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
ID=14
|
1-09630-145-0 |
01 |
1 |
1302-1405 |
| |
7 |
GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14
|
1-09630-145-0 |
01 |
1 |
1302-1405 |
| |
7 |
GASKET; DRAIN COCK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
ID=14
|
1-09630-145-0 |
01 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
ID=14
|
1-09630-145-0 |
01 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
ID=14
|
1-09630-145-0 |
01 |
1 |
1406- |
| |
7 |
GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14
|
1-09630-145-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(D)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-671-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(D)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-671-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(E)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(E)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(G)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(H)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(C)
DIN1/8 & M16X2 3WAY
|
1-09656-462-1 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ECE(TDV)
(F)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
1302- |
| |
8 |
CONNECTOR; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(B)
DIN8X2 & PT1/4 3WAY
|
1-09656-759-0 |
01 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
1302-1405 |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
1406- |
| |
8 |
CONNECTOR; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
1406- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1302- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1302- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1302-1405 |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1302-1405 |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1302-1405 |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1302-1405 |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1406- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1406- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1406- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1406- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
STAMP 5.5
|
8-97609-249-0 |
03 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
TIRE INFLATOR DEVICE<SG4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
PT1/4
|
9-99204-513-0 |
03 |
1 |
1302- |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE
TRUCK VAR3<Y48>
(B)
PT1/4
|
9-99204-513-0 |
04 |
1 |
1302- |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),TURBO -
CONVENTIONAL<Q5T>
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION
ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>
,BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1302-1405 |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION
ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>
,BRAKE REGULATION ECE(TDV)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1406- |
| |
10 |
PLUG; AIR TANK
6HK1-TCN ENG(82L)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
PT1/4
|
9-99204-513-0 |
02 |
1 |
1302- |
| |
28 |
BRACKET; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98021-918-5 |
01 |
1 |
1302-1405 |
| |
28 |
BRACKET; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
8-98021-918-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98021-918-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98021-918-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
|
8-98021-918-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
8-98044-509-5 |
01 |
1 |
1302-1405 |
| |
28 |
BRACKET; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
|
8-98044-509-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98044-509-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
8-98044-509-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(B)
|
8-98044-509-5 |
01 |
1 |
1406- |
| |
28 |
BRACKET; AIR TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
|
1-53318-338-6 |
02 |
1 |
1302- |
| |
28 |
BRACKET; AIR TANK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
(D)
|
8-98092-756-1 |
01 |
1 |
1302- |
| |
28 |
BRACKET; AIR TANK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
(E)
|
8-98137-035-0 |
01 |
1 |
1302- |
| |
28 |
BRACKET; AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(D)
|
8-98100-165-3 |
01 |
1 |
1302- |
| |
39 |
U-BOLT; AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(B)
L=210
|
1-48317-458-1 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
(B)
L=210
|
1-48317-458-1 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(B)
L=210
|
1-48317-458-1 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
(B)
L=210
|
1-48317-458-1 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
(B)
L=210
|
1-48317-458-1 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98022-041-0 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
8-98022-041-0 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
|
8-98022-041-0 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
|
8-98022-041-0 |
02 |
1 |
1302-1405 |
| |
39 |
U-BOLT; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
8-98022-041-0 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98022-041-0 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98022-041-0 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
|
8-98022-041-0 |
02 |
1 |
1406- |
| |
39 |
U-BOLT; AIR TANK

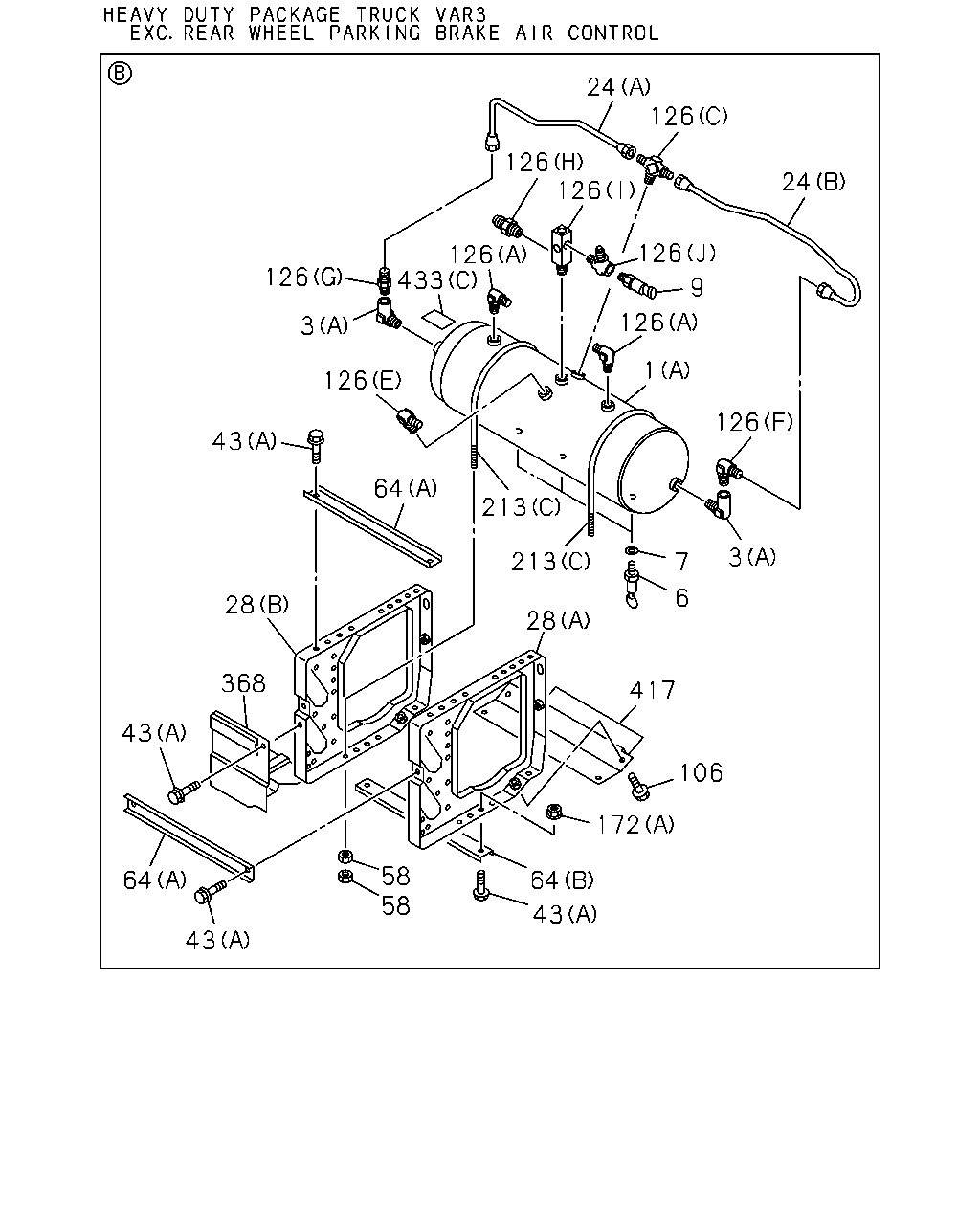

REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
|
8-98022-041-0 |
02 |
1 |
1406- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
10 |
1 |
1302- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1302- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
1302- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1302-1405 |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1302-1405 |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1302-1405 |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1302-1405 |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1406- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1406- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1406- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1406- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12)
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1302-1405 |
| |
46 |
NUT; U-BOLT
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
46 |
NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M8
|
0-91110-508-0 |
08 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98044-510-3 |
02 |
1 |
1302-1405 |
| |
64 |
STAY; AIR TANK,MAIN
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
8-98044-510-3 |
02 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98044-510-3 |
02 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
8-98044-510-3 |
02 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
|
8-98044-510-3 |
02 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
8-98044-511-2 |
01 |
1 |
1302-1405 |
| |
64 |
STAY; AIR TANK,MAIN
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
|
8-98044-511-2 |
01 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98044-511-2 |
01 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
8-98044-511-2 |
01 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(B)
|
8-98044-511-2 |
01 |
1 |
1406- |
| |
64 |
STAY; AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
|
1-48317-349-0 |
01 |
1 |
1302- |
| |
64 |
STAY; AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(D)
|
1-53318-293-1 |
01 |
1 |
1302- |
| |
64 |
STAY; AIR TANK,MAIN
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(E)
|
8-98213-729-0 |
01 |
1 |
1302- |
| |
64 |
STAY; AIR TANK,MAIN
6HK1-TCN ENG(82L)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(E)
|
8-94301-490-0 |
01 |
1 |
1302- |
| |
106 |
BOLT; COVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1302-1405 |
| |
106 |
BOLT; COVER
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
106 |
BOLT; COVER
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
106 |
BOLT; COVER
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
106 |
BOLT; COVER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(K)
|
1-09650-536-0 |
01 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1302-1405 |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(H)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(I)
|
8-98190-623-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(D)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(G)
M20
|
0-92121-812-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(G)
M20
|
0-92121-812-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(F)
M20 & PT3/8 ELBOW
|
0-92134-312-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(F)
M20 & PT3/8 ELBOW
|
0-92134-312-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(E)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(E)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE
REGULATION ECE(TDV)
(E)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(E)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE
REGULATION ECE(TDV)
(E)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
03 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
M20X2 & PT3/8 3WAY
|
1-09656-340-1 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(C)
M20X2 & PT3/8 3WAY
|
1-09656-340-1 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
TURBO - CONVENTIONAL<Q5T>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TURBO - CONVENTIONAL<Q5T>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(J)
M12 & PT1/4 3WAY
|
1-09656-586-1 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
4HK1-TCS ENG(RJS)
H.S.A SYSTEM<6EP>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
(J)
M12 & PT1/4 3WAY
|
1-09656-586-1 |
01 |
1 |
1302- |
| |
126 |
CONNECTOR; ELBOW
6HK1-TCN ENG(82L)
H.S.A SYSTEM<6EP>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE
REGULATION ECE(TDV)
(J)
M12 & PT1/4 3WAY
|
1-09656-586-1 |
01 |
1 |
1302- |
| |
134 |
BOLT; COVER FIX
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1302-1405 |
| |
134 |
BOLT; COVER FIX
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1302-1405 |
| |
134 |
BOLT; COVER FIX
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1302-1405 |
| |
134 |
BOLT; COVER FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1302-1405 |
| |
134 |
BOLT; COVER FIX
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
134 |
BOLT; COVER FIX
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
134 |
BOLT; COVER FIX
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
134 |
BOLT; COVER FIX
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
134 |
BOLT; COVER FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1406- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302-1405 |
| |
172 |
NUT; STAY,AIR TANK,MAIN
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1406- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1406- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1406- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1406- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1302- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302- |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),TURBO -
CONVENTIONAL<Q5T>
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION
ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>
,BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1302-1405 |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION
ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>
,BRAKE REGULATION ECE(TDV)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
282 |
UNION; 2 WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
282 |
UNION; 2 WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
1-09656-726-0 |
01 |
1 |
1302-1405 |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
1-09656-726-0 |
01 |
1 |
1302-1405 |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(A)
|
1-09656-726-0 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(A)
|
1-09656-726-0 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(A)
|
1-09656-726-0 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
1-09656-767-0 |
01 |
1 |
1302-1405 |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
|
1-09656-767-0 |
01 |
1 |
1302-1405 |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
(B)
|
1-09656-767-0 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-09656-767-0 |
01 |
1 |
1406- |
| |
344 |
CONNECTOR; 4WAY
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(B)
|
1-09656-767-0 |
01 |
1 |
1406- |
| |
352 |
CONNECTOR; STRAIGHT
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98133-234-0 |
01 |
1 |
1302- |
| |
352 |
CONNECTOR; STRAIGHT
6HK1-TCN ENG(82L)
ANTI LOCK BRAKE(JE5)
TURBO - CONVENTIONAL<Q5T>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
|
8-98133-234-0 |
01 |
1 |
1302- |
| |
352 |
CONNECTOR; STRAIGHT
6HK1-TCN ENG(82L)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TURBO - CONVENTIONAL<Q5T>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV)
|
8-98133-234-0 |
01 |
1 |
1302- |
| |
368 |
COVER; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98061-625-3 |
01 |
1 |
1302-1405 |
| |
368 |
COVER; AIR TANK
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98061-625-3 |
01 |
1 |
1406- |
| |
368 |
COVER; AIR TANK
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
|
8-98061-625-3 |
01 |
1 |
1406- |
| |
368 |
COVER; AIR TANK
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98061-625-3 |
01 |
1 |
1406- |
| |
368 |
COVER; AIR TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
|
8-98061-625-3 |
01 |
1 |
1406- |
| |
417 |
COVER; HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98111-401-0 |
01 |
1 |
1302-1405 |
| |
417 |
COVER; HARNESS
6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98111-401-0 |
01 |
1 |
1406- |
| |
417 |
COVER; HARNESS
6HK1-TCN ENG(82L)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
|
8-98111-401-0 |
01 |
1 |
1406- |
| |
417 |
COVER; HARNESS
4HK1-TCS ENG(RJS)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98111-401-0 |
01 |
1 |
1406- |
| |
417 |
COVER; HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
EXC. BRAKE REGULATION ECE(TDV)
|
8-98111-401-0 |
01 |
1 |
1406- |
| |
433 |
PLATE; NAME
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(B)
WHEEL PARK
|
8-98121-997-0 |
01 |
1 |
1302-1405 |
| |
433 |
PLATE; NAME
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(B)
WHEEL PARK
|
8-98121-997-0 |
01 |
1 |
1406- |
| |
433 |
PLATE; NAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(A)
ACCESSORY
|
8-98121-998-0 |
01 |
1 |
1302-1405 |
| |
433 |
PLATE; NAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5100MM(51W)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ECE(TDV)
(A)
ACCESSORY
|
8-98121-998-0 |
01 |
1 |
1406- |
| |
433 |
PLATE; NAME
WHEEL BASE 3700MM(37W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
(A)
ACCESSORY
|
8-98121-998-0 |
01 |
1 |
1406- |
| |
433 |
PLATE; NAME
4HK1-TCS ENG(RJS)
RUSSIA EQUIPMENT(B12)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
|
8-98121-999-0 |
01 |
1 |
1302-1405 |
| |
433 |
PLATE; NAME
4HK1-TCS ENG(RJS)
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)
BRAKE REGULATION ECE(TDV)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
(C)
|
8-98121-999-0 |
01 |
1 |
1406- |
