Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#11366) — 64 parça
◀

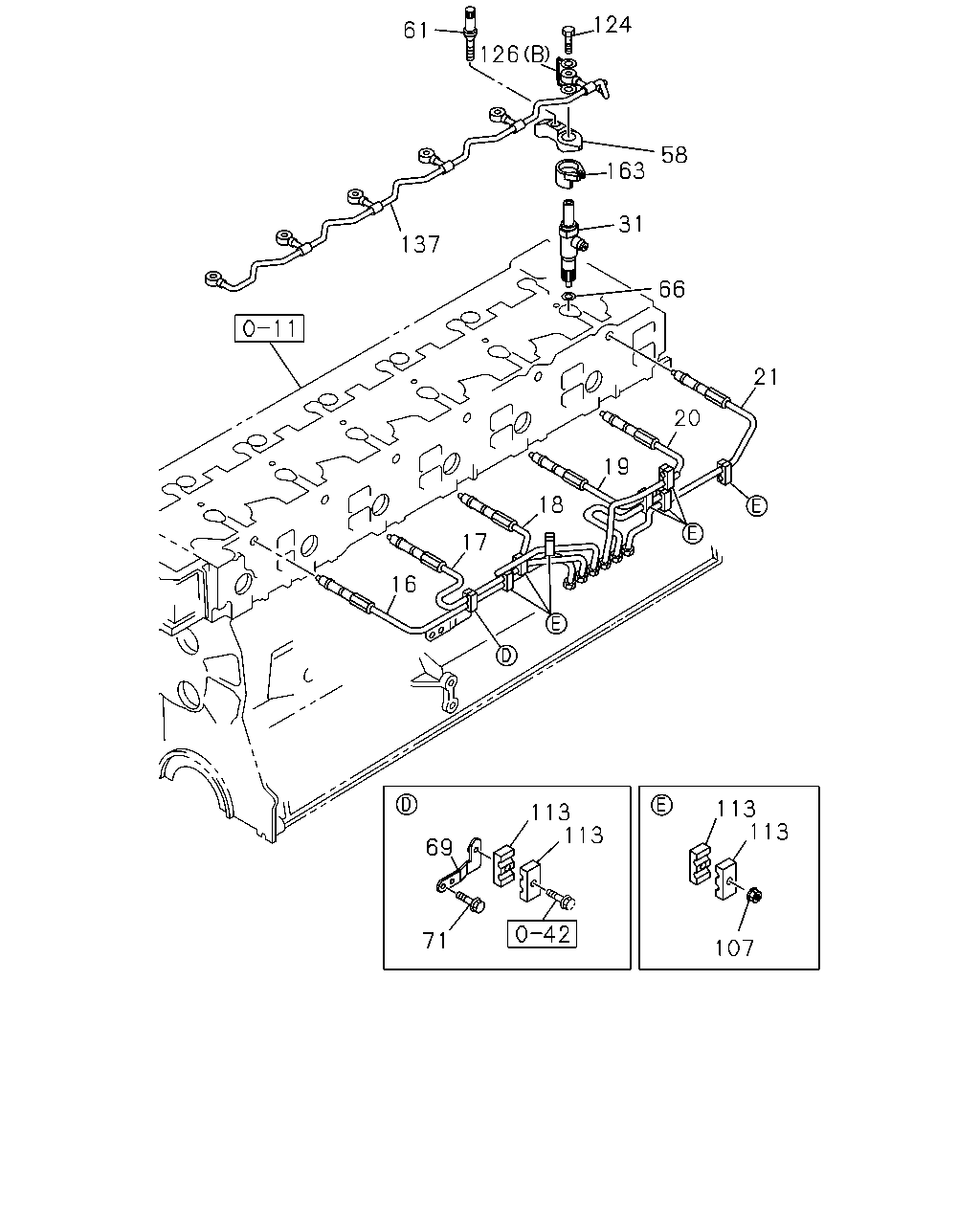

[040A] NOZZLE ASM INJ PIPE AND CLIP (22 parça)
[040A] COMPONENT;NOZZLE (19 parça)

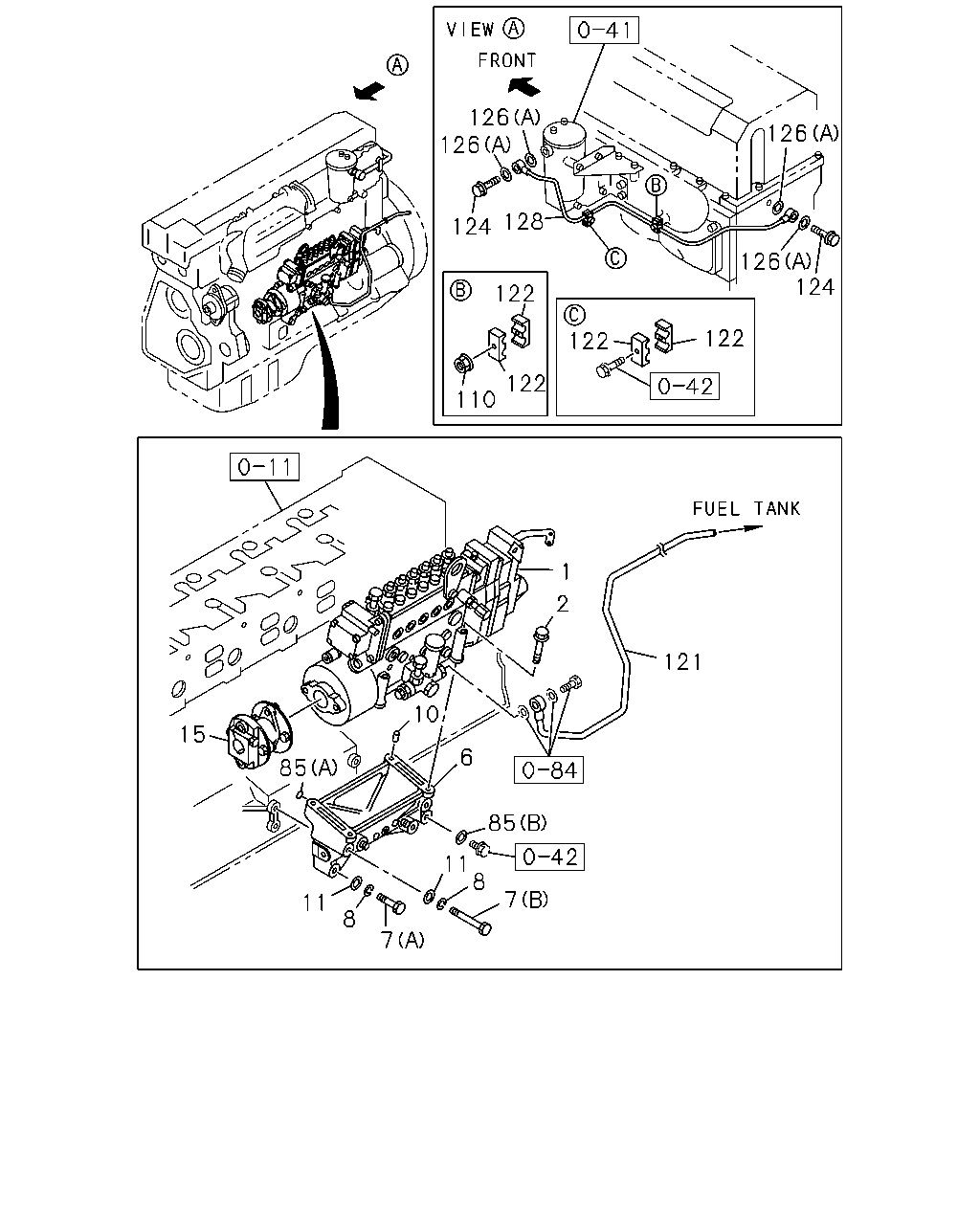

[040A] INJ PUMP ASM AND FUEL PIPE (23 parça)
▶
124
61
126
58
163
31
137
66
21
20
19
18
17
16
113
113
113
113
69
71
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
1-15415-072-7
01
1
0106-
17
PIPE; INJ NO.2
1-15415-073-6
01
1
0106-
18
PIPE; INJ NO.3
1-15415-074-6
01
1
0106-
19
PIPE; INJ NO.4
1-15415-525-1
01
1
0106-
20
PIPE; INJ NO.5
1-15415-076-6
01
1
0106-
21
PIPE; INJ NO.6
1-15415-077-6
01
1
0106-
31
NOZZLE ASM; INJ
1-15300-358-1
06
1
0106-
58
FLANGE; INJ,NOZZLE HOLDER
1-15337-022-0
06
1
0106-0304
58
FLANGE; INJ,NOZZLE HOLDER
1-15337-029-0
06
1
0305-
61
BOLT; CLAMP NOZZLE HOLDER
1-09070-121-0
06
1
0106-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15
1-15315-011-0
06
1
0106-
69
BRACKET; INJ PIPE CLIP
1-15419-334-0
01
1
0106-
71
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
02
1
0106-0512
71
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91150-106-0
06
1
0106-0602
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91180-106-0
06
1
0603-
113
CLIP; INJ PIPE
ID=15 L=30
1-09701-132-1
14
1
0106-
124
BOLT; EYE LEAK OFF PIPE
M8X18 EYE BOLT
1-09675-037-1
09
1
0106-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
04
1
0106-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6
8-94395-214-0
07
1
0106-
137
PIPE ASM; LEAK OFF
1-15416-139-0
01
1
0106-
163
CAP; INJ NOZZLE
1-15319-002-0
06
1
0106-
31
32
42
140
44
45
46
47
46
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
NOZZLE ASM; INJ
1-15300-358-1
06
1
0106-
32
HOLDER ASM; NOZZLE
1-15330-114-0
06
1
0106-
33
NOZZLE; INJ
1-15311-278-0
06
1
0106-
35
NUT; NOZZLE RET,NOZZLE HOLDER
1-15332-016-1
06
1
0106-
42
GASKET; INL CONNECTOR,NOZZLE HOLDER
1-15349-050-0
06
1
0106-
44
SPRING; NOZZLE,NOZZLE HOLDER
5-15345-003-0
06
1
0106-
45
ROD; PUSH,NOZZLE HOLDER
1-15341-093-0
06
1
0106-
46
PIN; NOZZLE SET,NOZZLE HOLDER
9-15347-003-0
12
1
0106-
47
SPACER; NOZZLE SPRING,NOZZLE HOLDER
1-15339-098-0
06
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.500
1-15349-051-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.550
1-15349-053-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.600
1-15349-055-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.650
1-15349-057-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.700
1-15349-059-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.750
1-15349-061-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.800
1-15349-063-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.850
1-15349-065-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.900
1-15349-067-0
AR
1
0106-
140
SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.950
1-15349-069-0
AR
1
0106-
126
126
126
128
124
126
124
122
122
122
122
110
1
2
121
10
15
6
85
85
11
8
7
11
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
1-15603-290-6
01
1
0106-
2
BOLT; INJ PUMP
M10X85 FLANGE
8-94397-359-1
04
1
0106-
6
BRACKET; INJ PUMP TO C/BL
1-19751-155-0
01
1
0106-0408
6
BRACKET; INJ PUMP TO C/BL
1-19751-156-0
01
1
0409-
7
BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE
0-28981-490-0
02
1
0106-0512
7
BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE
0-28951-490-0
02
1
0601-
7
BOLT; INJ PUMP BRKT
(B) M14X117
9-09804-193-1
02
1
0106-
8
WASHER; LK,INJ PUMP BRKT
ID=14.2
9-09150-514-0
04
1
0106-0603
8
WASHER; LK,INJ PUMP BRKT
ID=14.2
0-91510-514-0
04
1
0604-
10
DOWEL; INJ PUMP
OD=14 L=9
9-19759-019-1
02
1
0106-
11
WASHER; INJ PUMP BRKT
ID=15
9-09160-514-0
04
1
0106-0605
11
WASHER; INJ PUMP BRKT
ID=15
0-91610-514-0
04
1
0606-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-143-1
01
1
0106-
85
GASKET; BRKT,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
03
1
0106-
85
GASKET; BRKT,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
1-09630-085-0
01
1
0106-
110
NUT; CLIP
M6 FLANGE
0-91150-106-0
01
1
0106-0602
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
0603-
121
PIPE; FUEL,FEED PUMP,SUCTION
1-15415-595-1
01
1
0106-
122
CLIP; LEAK OFF PIPE
ID=15 L=30
1-09701-132-1
04
1
0106-
124
BOLT; EYE LEAK OFF PIPE
M8X18 EYE BOLT
1-09675-037-1
09
1
0106-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
04
1
0106-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6
8-94395-214-0
07
1
0106-
128
PIPE ASM; INJ
1-15415-543-1
01
1
0106-
