3-20 — AIR TANK (#113659) — 96 parça

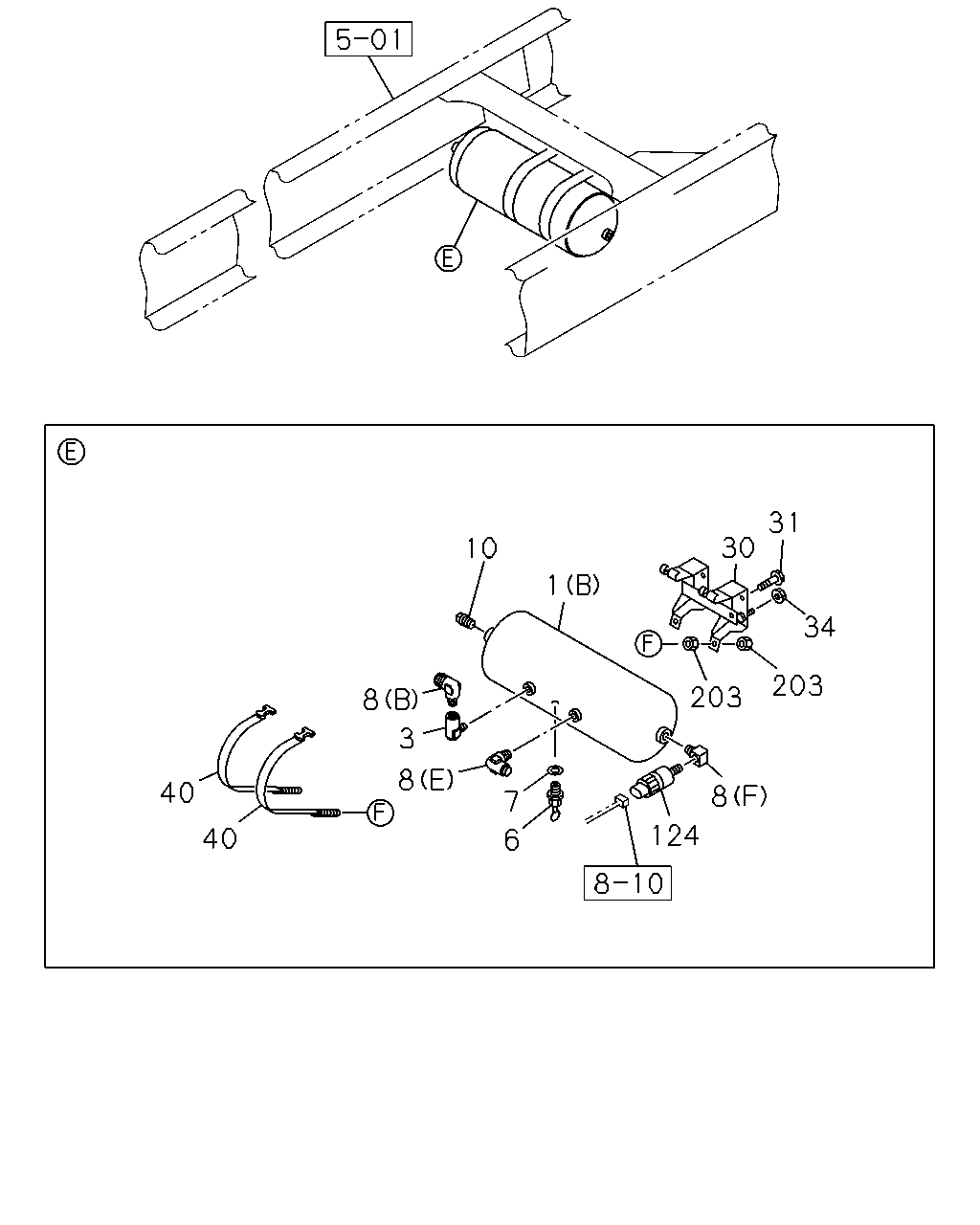

çizim 327923
10 1 30 31 34 203 203 8 124 6 7 8 8 40 40 3
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1302-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-031-1 01 1 1302-
3 VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-031-1 02 1 1302-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1302-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1302-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1302-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1302-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1302-
30 BRACKET; AIR TANK,SUB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-894-1 01 1 1302-
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1302-
40 BAND ASM; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-893-1 02 1 1302-
124 SWITCH; AIR PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1302-
203 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 04 1 1302-

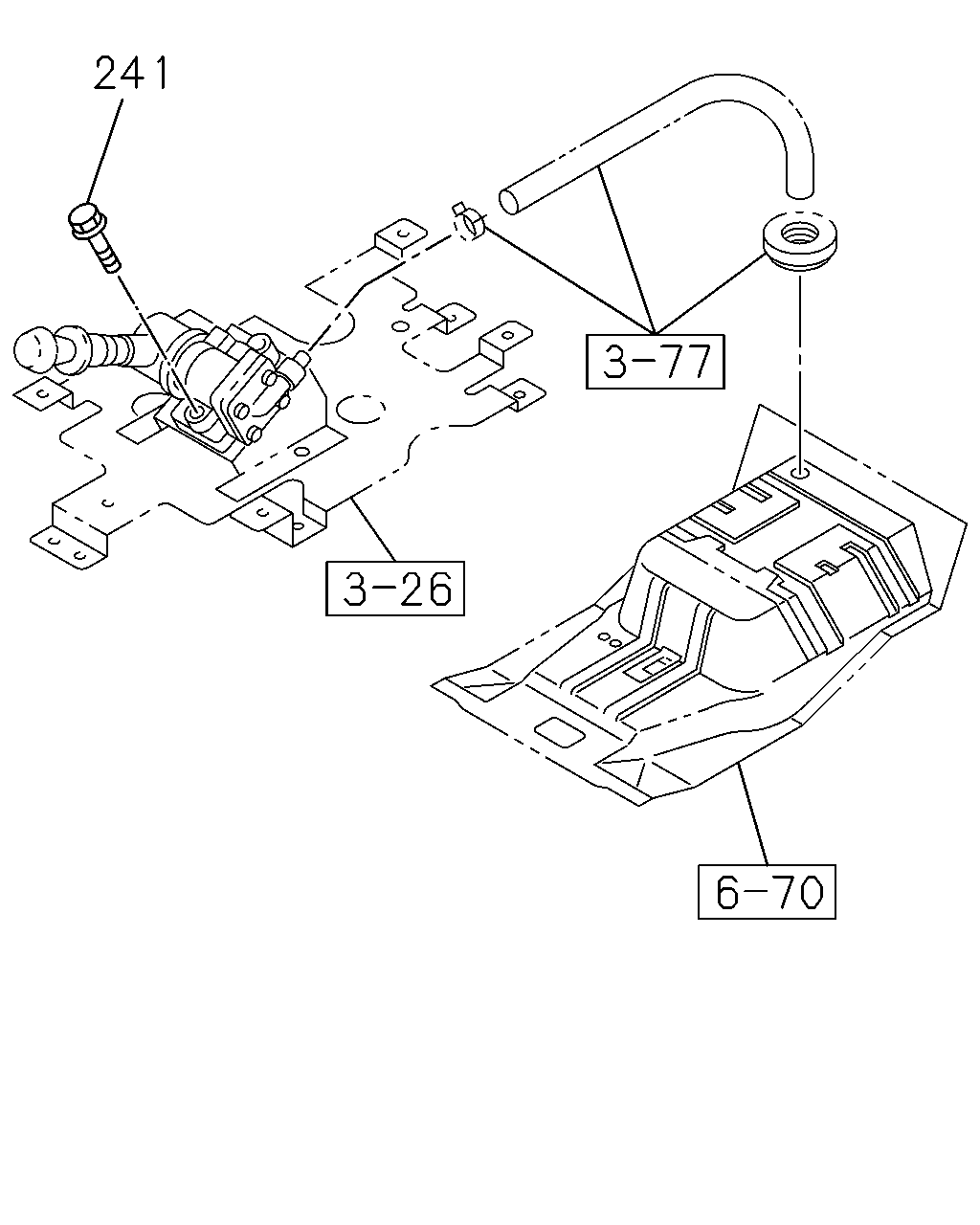

çizim 328012
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28050-870-0 02 1 1302-

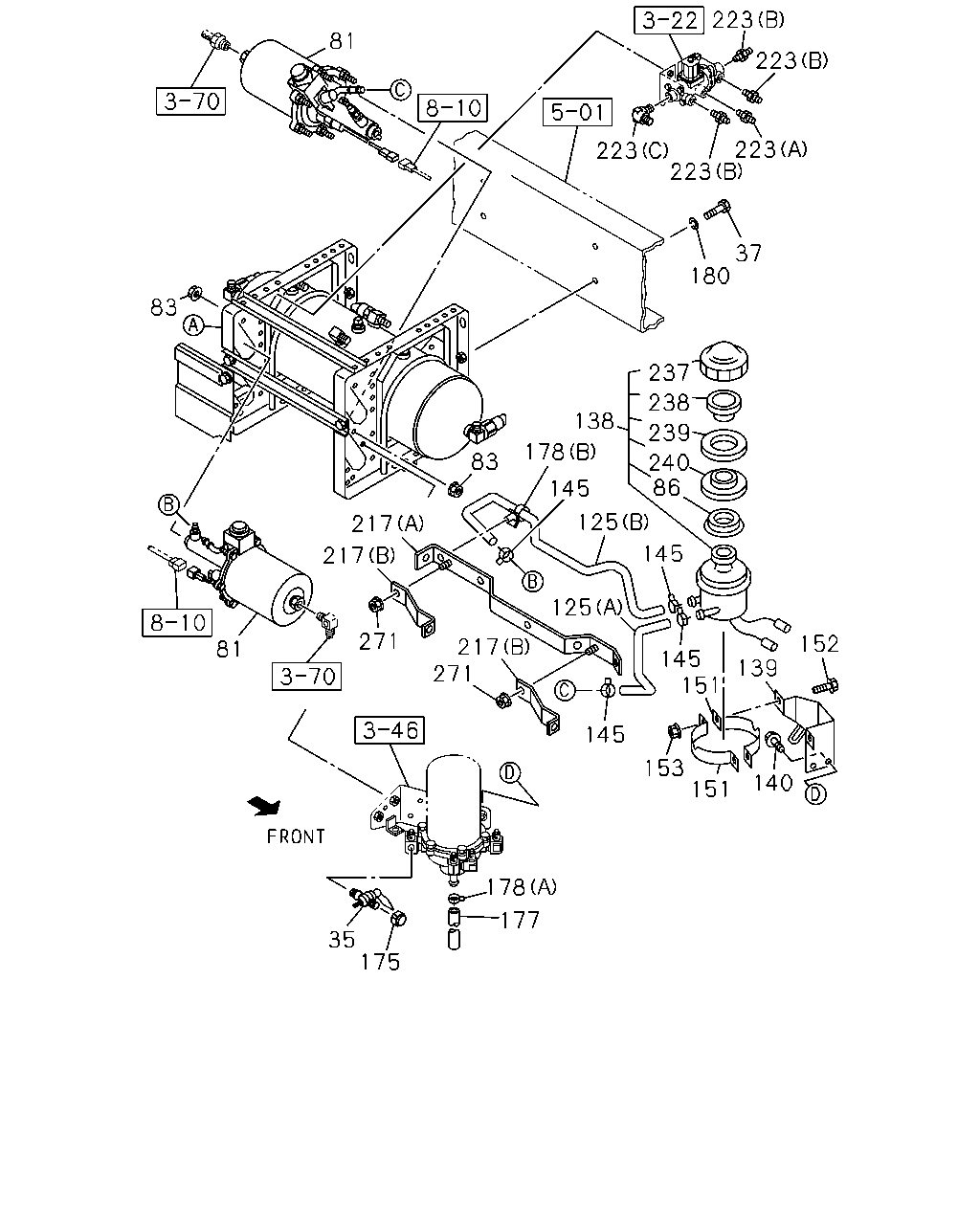

çizim 331563
81 223 223 223 223 223 37 180 81 35 175 177 178 145 153 151 140 151 139 152 145 271 217 125 271 217 217 83 178 145 125 145 86 240 239 238 237 83 138
BalonParca AdiParca NoAdetTipApplied Date
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1302-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1302-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1302-
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1302-
86 SEAL; DUST 1-47529-019-0 01 1 1302-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1302-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1302-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1302-
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1302-
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1302-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1302-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1302-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1302-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1302-
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1302-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1302-
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1302-
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1302-
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
237 CAP; OIL TANK 1-47525-030-0 01 1 1302-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1302-
239 FILTER; DUST 1-47529-017-0 01 1 1302-
240 HOLDER; FILTER 1-47529-018-0 01 1 1302-
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1302-

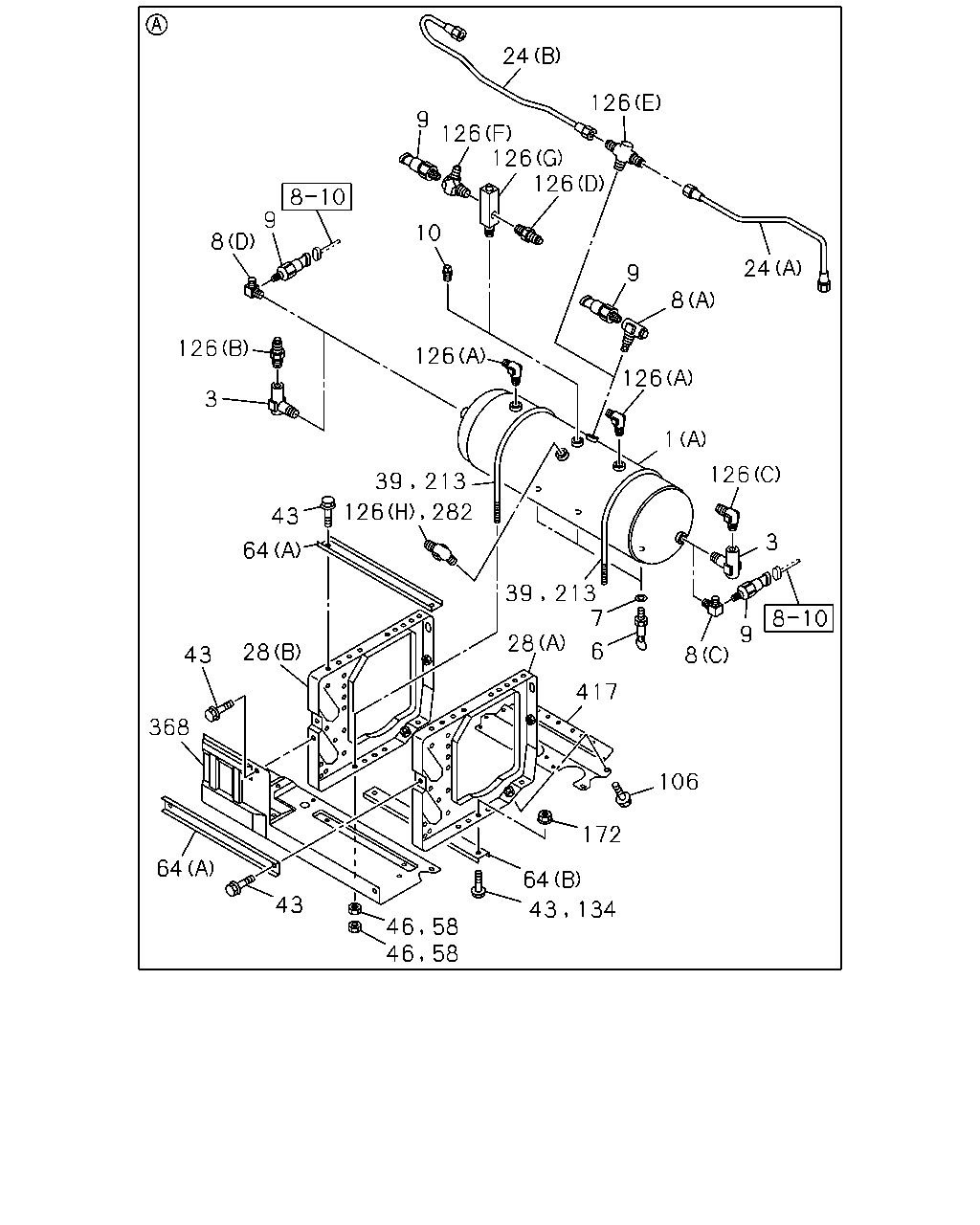

çizim 331596
46 58 58 46 43 134 64 172 106 417 8 9 3 126 1 126 8 9 24 126 24 126 126 126 9 10 9 8 126 3 126 213 39 43 126 282 64 39 213 7 6 28 43 64 368 43 28
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1302-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-031-1 01 1 1302-
3 VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48320-031-1 02 1 1302-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1302-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1302-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1302-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 03 1 1302-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1302-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1302-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1302-
24 PIPE ASM; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98178-465-0 01 1 1302-
24 PIPE ASM; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98178-466-0 01 1 1302-
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1302-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1302-
39 U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98022-041-0 02 1 1302-
43 BOLT; STAY,AIR TANK,MAIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 06 1 1302-
43 BOLT; STAY,AIR TANK,MAIN
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 10 1 1302-
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 08 1 1302-
58 NUT; BAND,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 08 1 1302-
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1302-
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1302-
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1302-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1302-
126 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		0-92121-812-0 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98190-623-0 01 1 1302-
134 BOLT; COVER FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1302-
213 BOLT; U AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98022-041-0 02 1 1302-
282 UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1302-
368 COVER; AIR TANK 8-98061-625-3 01 1 1302-
417 COVER; HARNESS 8-98111-401-0 01 1 1302-
