Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#113657) — 217 parça

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

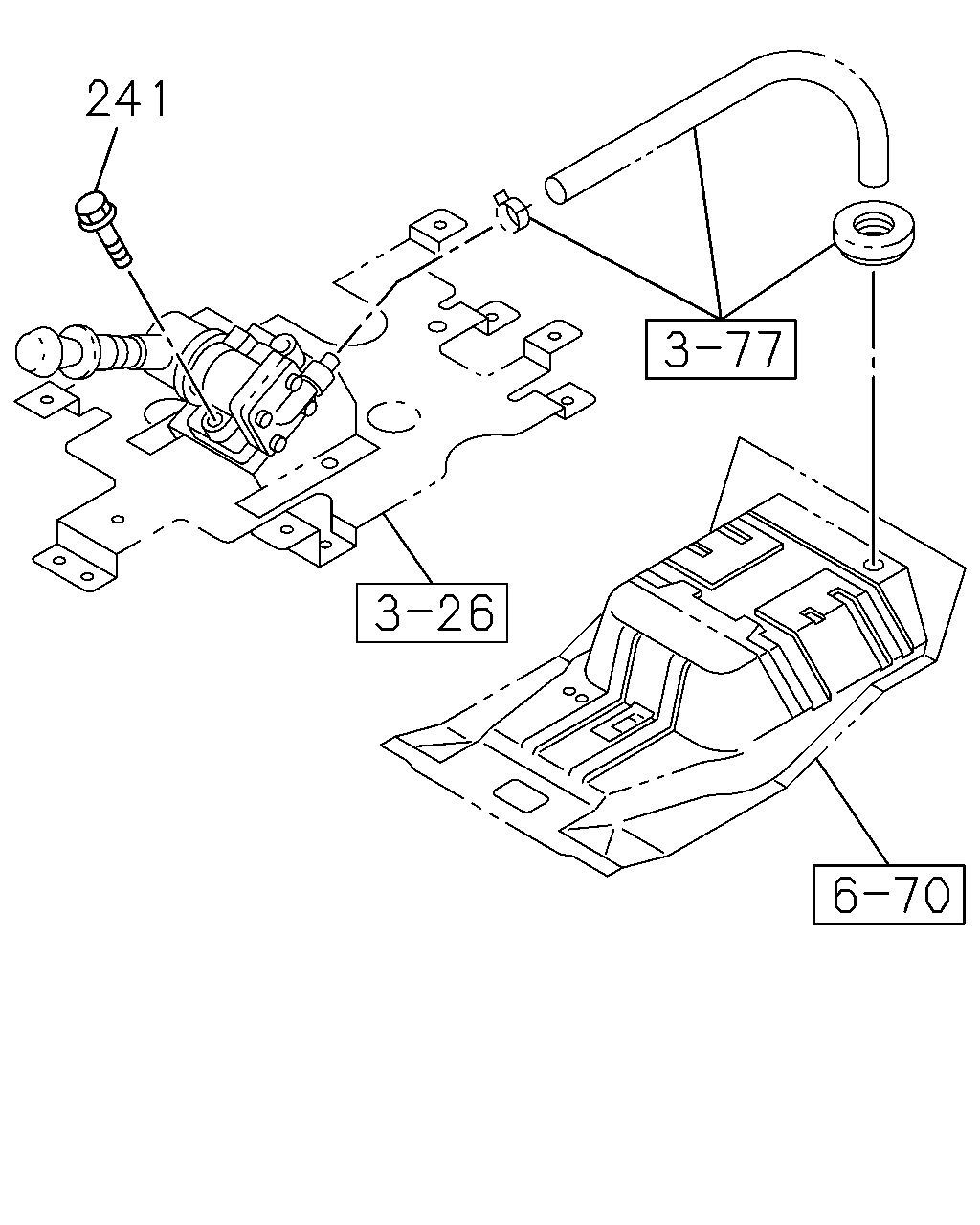

	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1302-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

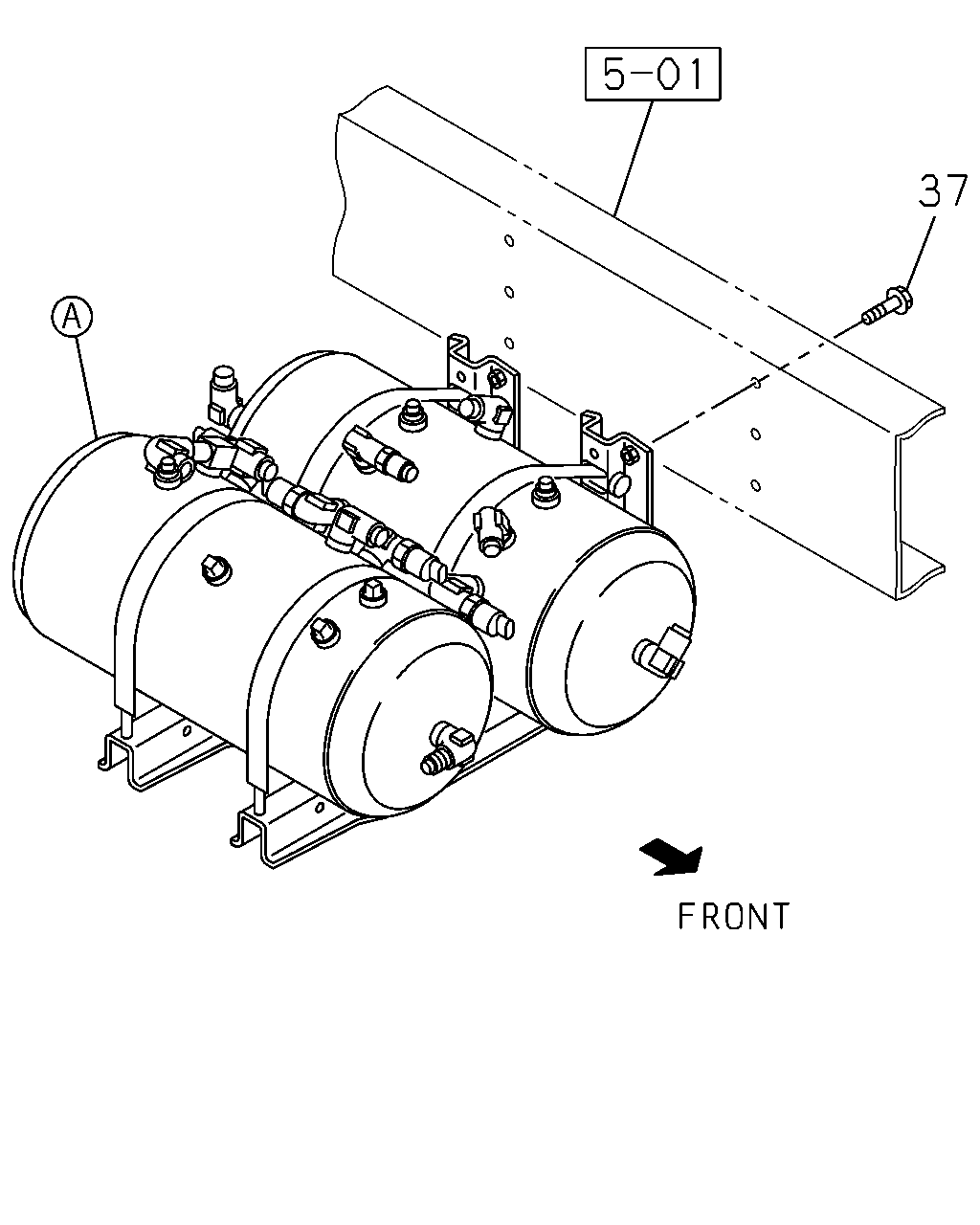

	37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
	37	BOLT; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-

178 177 223 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

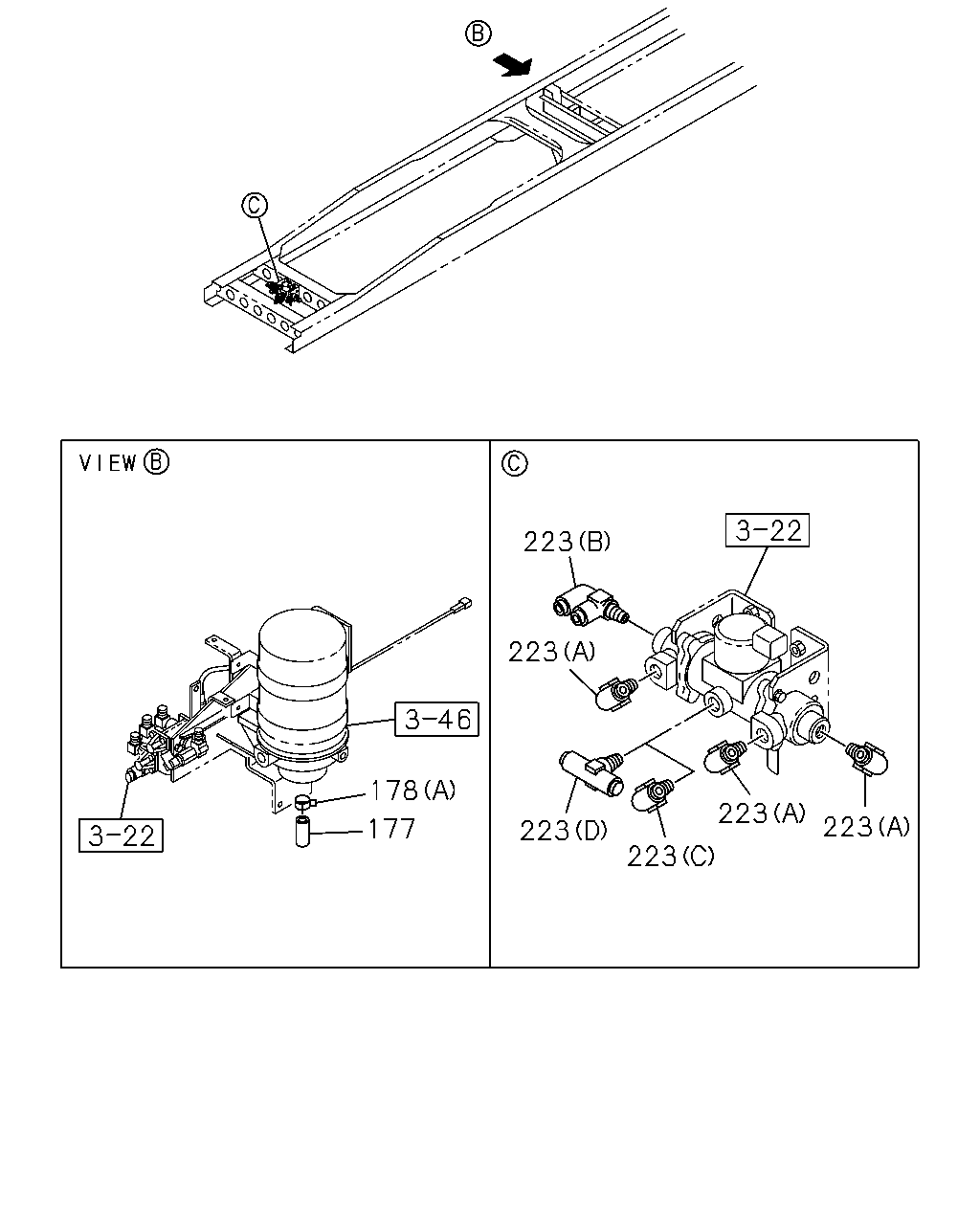

177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-1304
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1305-1505
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1305-1505
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1506-
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1506-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-1304
178	CLIP; HOSE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
223	UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1302-
223	UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-
223	UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
223	UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (D)	1-09661-073-0	01	1	1302-

145 145 125 125 145 138 138 237 238 239 240 86 148 126 37 178 177 79 83 82 271 80 83 81 151 153 145 140 151 139 152 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

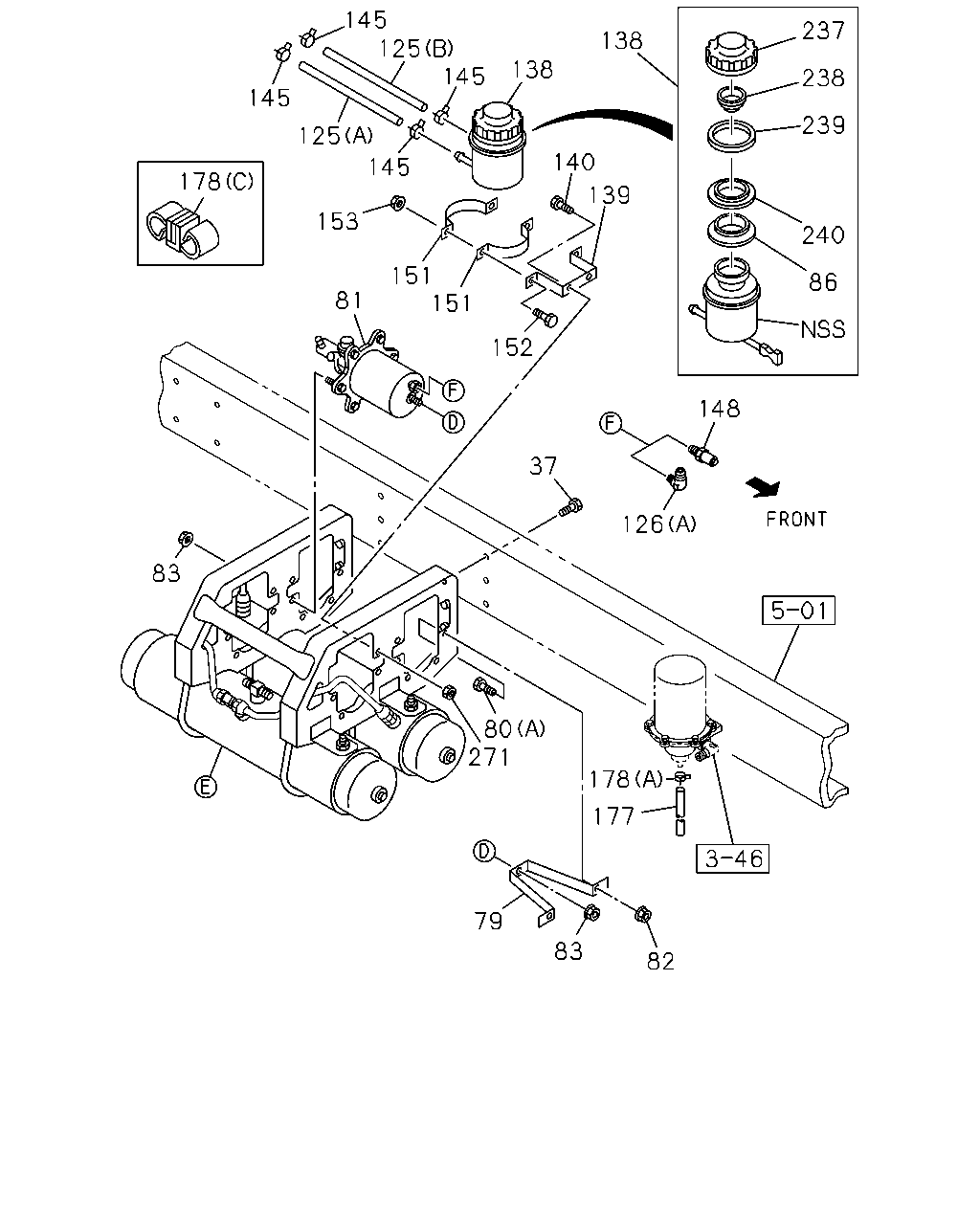

37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
37	BOLT; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1302-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X30 FLANGE	0-28651-030-0	04	1	1302-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	04	1	1305-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	05	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1302-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1302-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1302-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98197-596-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (K) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1304
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1302-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1302-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1302-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1302-
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1302-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-1304
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1305-1505
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1305-1505
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1506-
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1506-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-1304
178	CLIP; HOSE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1302-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1302-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1302-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1302-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1302-

3 38 126 126 10 38 185 1 126 126 42 126 41 185 42 28 37 41 43 64 3 126 10 126 9 126 126 9 43 126 43 126 38 1 6 7 126 10 38 64 6 7 45 45 9 126 126 9 28 126 45 45 10 175 174 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

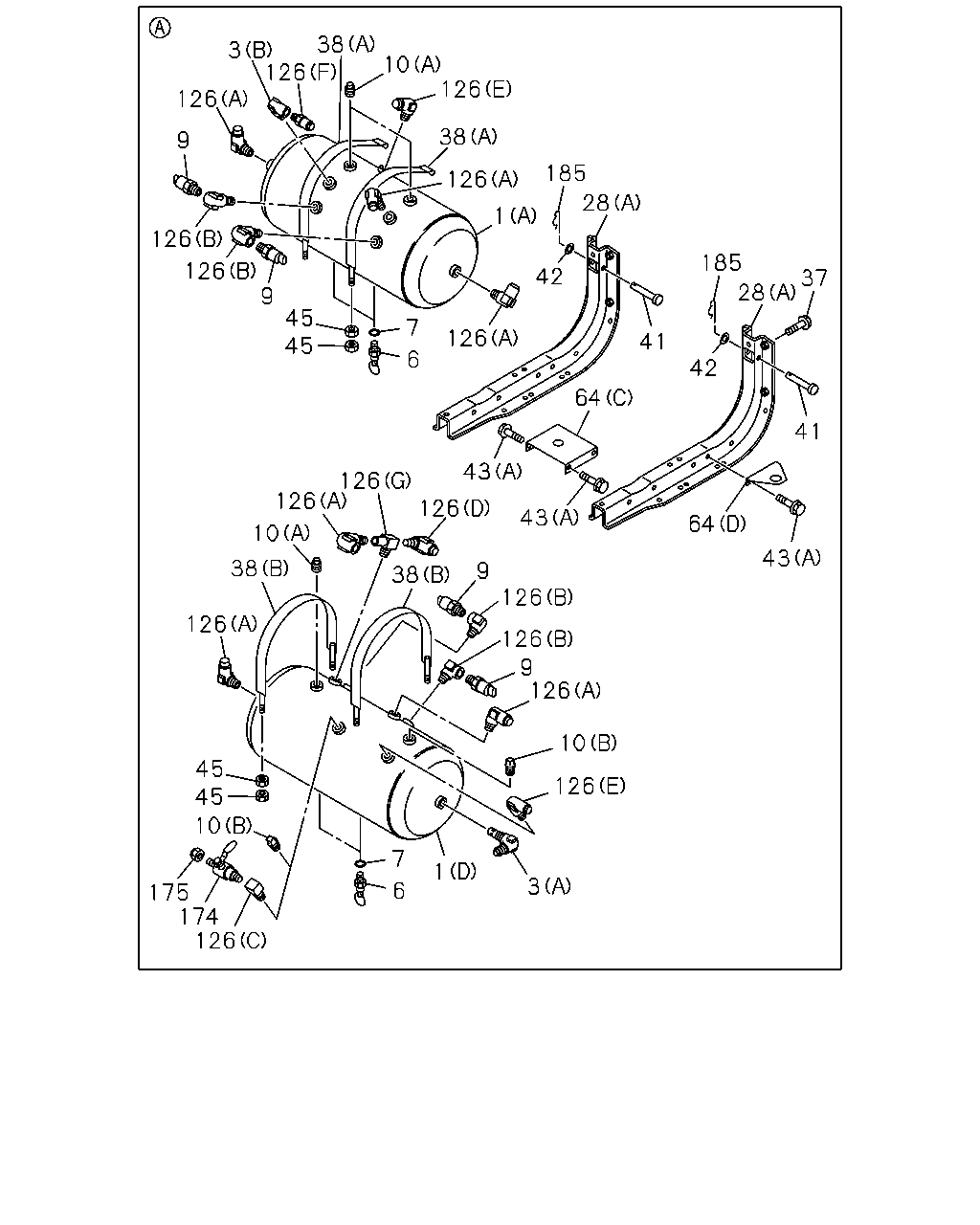

1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98184-783-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48410-182-3	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1302-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	1305-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1305-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1302-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-338-6	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-601-5	02	1	1302-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
37	BOLT; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-
38	BAND; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	1302-
38	BAND; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	1302-
41	PIN; BAND FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	1302-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1302-
42	WASHER; PL 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	06	1	1302-
45	NUT; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	1302-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-94301-490-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-691-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (K) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1304
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-1304
174	COCK; AIR,INFLATOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1305-
174	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1305-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-1304
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1305-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1305-
185	PIN; SNAP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	8-98062-280-0	02	1	1302-

104 104 54 209 387 119 67 175 174 58 58 58 58 42 42 58 58 58 42 42 58 6 7 9 7 6 58 58 58 58 104 104 208 213 213 213 213 126 126 10 10 1 10 5 3 126 3 126 10 126 126 126 10 3 43 64 136 5 10 80 80 172 80 136 136 136 80 28 178 136 80 28 172 43 64 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

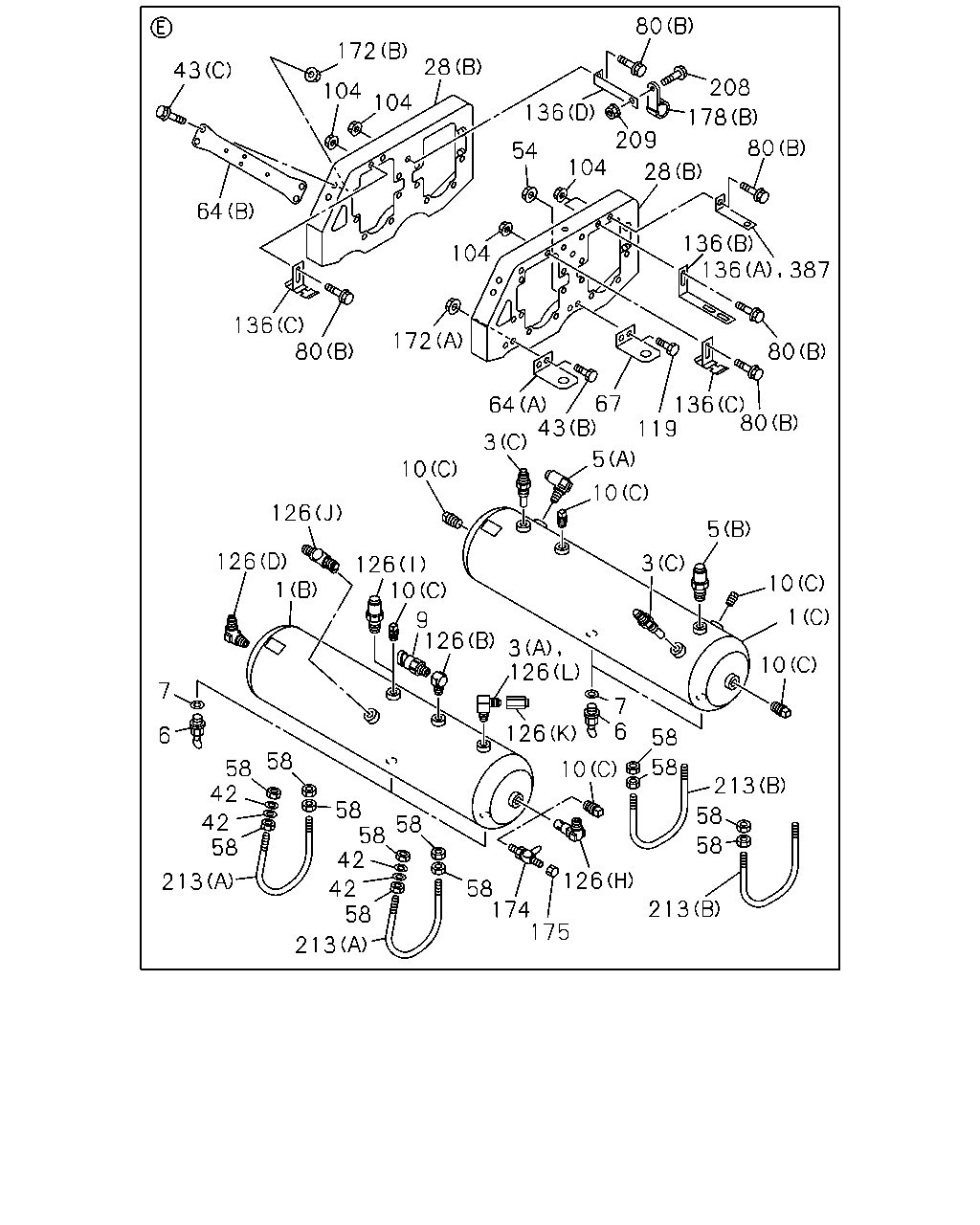

1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98184-783-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48410-182-3	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1302-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	1305-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1305-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1302-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-338-6	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-601-5	02	1	1302-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1302-
42	WASHER; PL 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	06	1	1302-
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1302-
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1302-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-94301-490-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-691-0	01	1	1302-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1302-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X30 FLANGE	0-28651-030-0	04	1	1302-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	04	1	1305-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	05	1	1302-
104	NUT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	1305-
104	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	1302-
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (K) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-1304
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1305-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) L=90 B=25	1-47475-530-0	01	1	1302-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=112	1-47475-694-1	01	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1302-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	1302-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-1304
174	COCK; AIR,INFLATOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1305-
174	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1305-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-1304
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1305-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1305-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-1304
178	CLIP; HOSE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1305-1505
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1506-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1302-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1302-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1302-
387	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
