Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#113656) — 76 parça
Tümü
A - FCS5MS
B - FGS5MS
◀

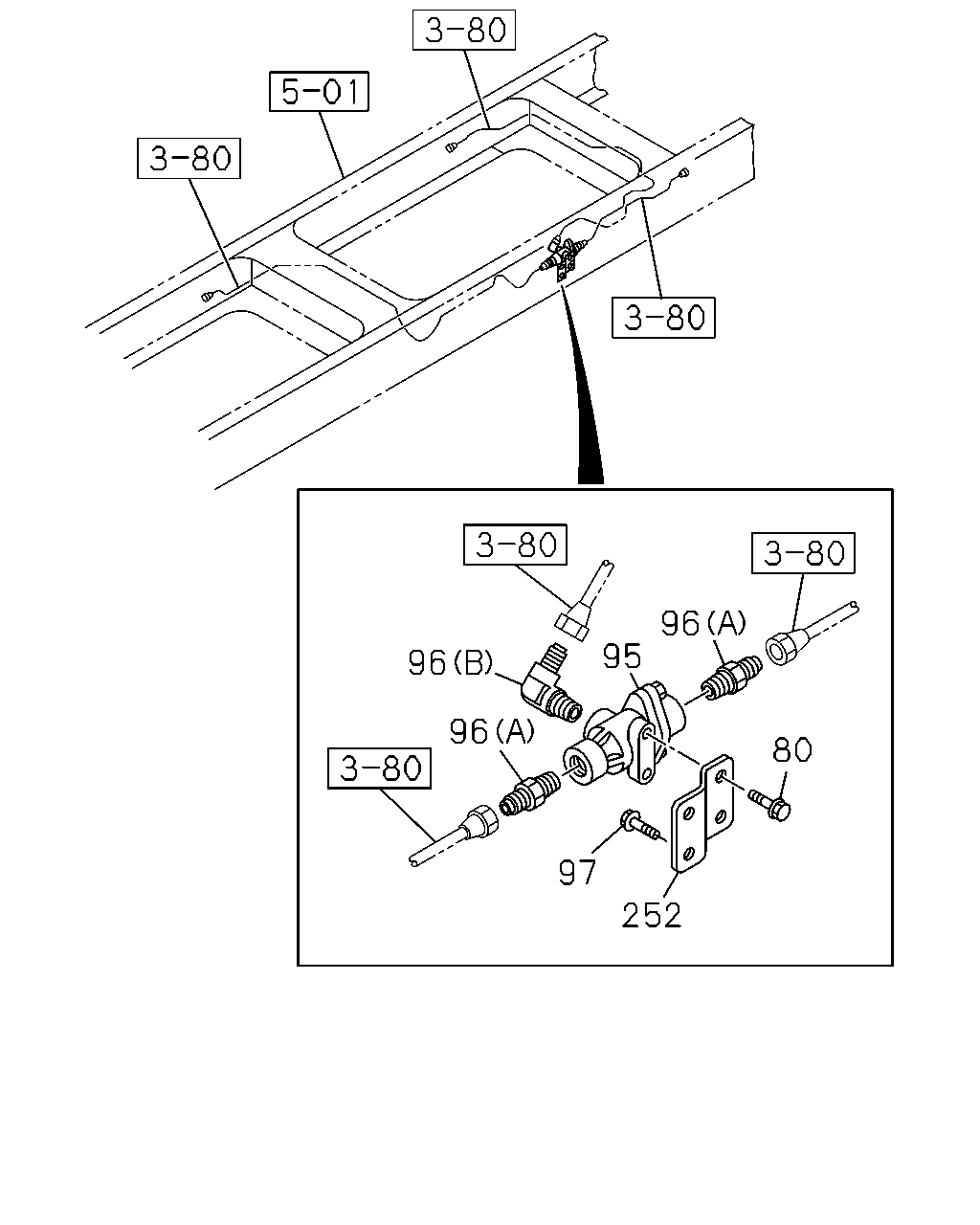

[320A] DOUBLE CHECK VALVE (7 parça)
[320A] FIXING (31 parça)
[320A] COMPONENT (38 parça)
▶
96
96
96
95
97
252
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
1302-
●
●
80
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M8X16 FLANGE
0-28050-816-0
02
1
1302-
●
95
VALVE; DOUBLE CHECK
TRAILER BRAKE CONTROL<J91>
1-48410-531-1
01
1
1302-
●
96
CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1302-
●
96
CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1302-
●
97
BOLT; BRKT,DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE
0-28650-825-0
02
1
1302-
●
252
BRACKET; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91>
8-98156-187-0
01
1
1302-
●

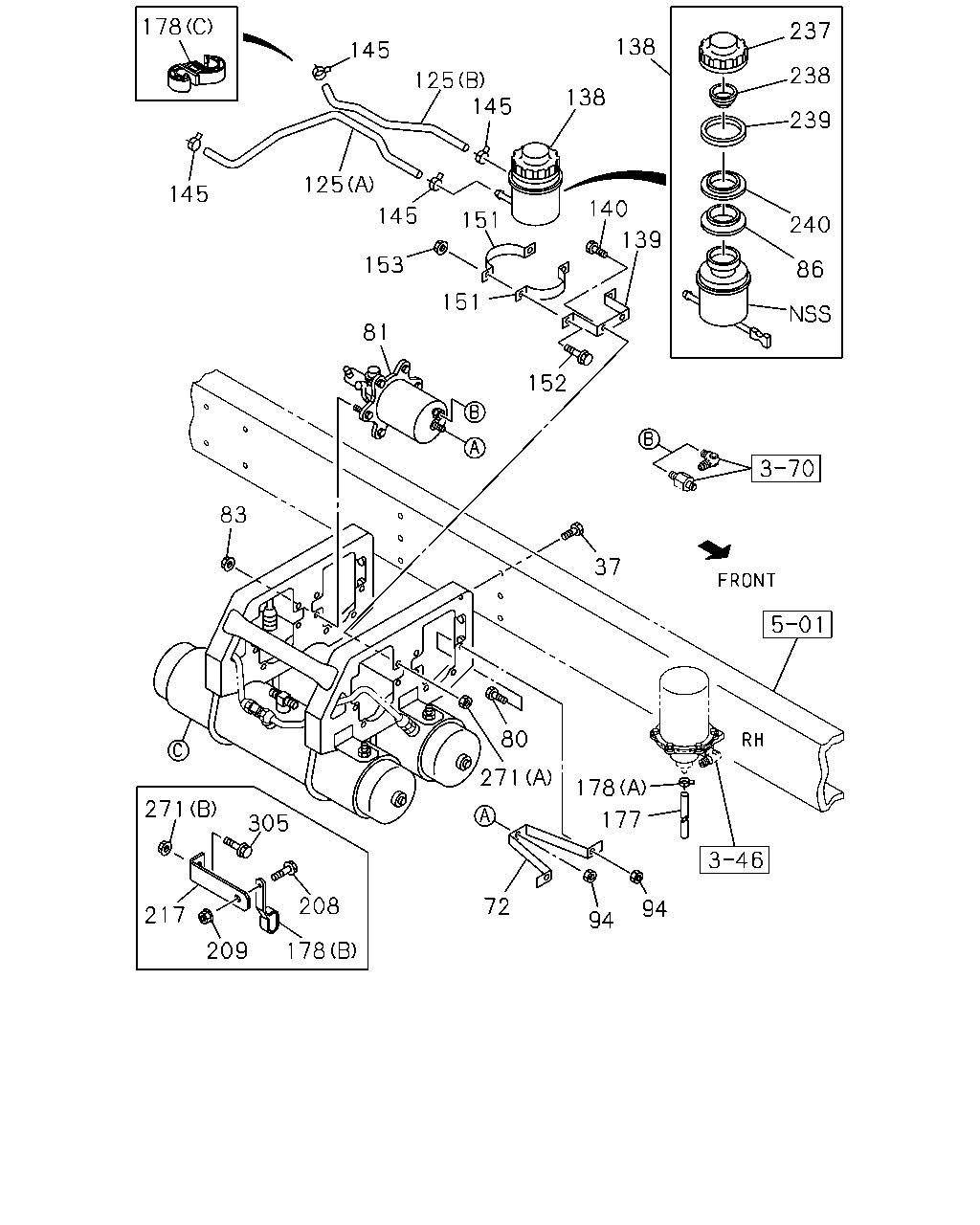

178
145
125
138
237
238
239
240
86
138
145
125
145
145
151
153
81
151
140
139
152
83
271
305
217
209
208
178
271
80
178
177
72
94
94
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
06
1
1302-
●
●
72
BRACKET; AIR MASTER
8-98120-254-0
02
1
1302-
●
●
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
1302-
●
●
80
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M8X16 FLANGE
0-28050-816-0
02
1
1302-
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-663-1
02
1
1302-
●
●
83
NUT; AIR MASTER
M10 FLANGE
0-91180-210-0
08
1
1302-
●
●
86
SEAL; DUST
1-47529-019-0
01
1
1302-
●
●
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
06
1
1302-
●
●
125
HOSE; OIL TANK TO AIR MASTER
(B) L=270 SERVICED BY L=1800
1-09360-320-0
01
1
1302-
●
●
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98197-596-0
01
1
1302-
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
1302-
●
●
139
BRACKET; OIL TANK
1-47537-081-2
01
1
1302-
●
●
140
BOLT; OIL TANK TO BRKT
M10X20 FLANGE
0-28651-020-0
02
1
1302-
●
●
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
1302-
●
●
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
1302-
●
●
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
1302-
●
●
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
1302-
●
●
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1302-
●
●
178
CLIP; HOSE
(C) ID=12 & 12
1-09709-280-1
01
1
1302-
●
●
178
CLIP; HOSE
(A) ID=21
8-94242-034-0
01
1
1302-
●
●
178
CLIP; HOSE
(B) DIN15X2
9-09917-171-0
01
1
1302-
●
●
208
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1302-
●
●
209
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
217
BRACKET; RUBBER HOSE
L=112
1-47475-694-1
01
1
1302-
●
●
237
CAP; OIL TANK
1-47525-030-0
01
1
1302-
●
●
238
PLATE; BAFFLE
1-47529-022-0
01
1
1302-
●
●
239
FILTER; DUST
1-47529-017-0
01
1
1302-
●
●
240
HOLDER; FILTER
1-47529-018-0
01
1
1302-
●
●
271
NUT; BRKT,HOSE
(B) M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
271
NUT; BRKT,HOSE
(A) M10 FLANGE
0-91180-210-0
02
1
1302-
●
●
305
BOLT; BRKT,HOSE
M8X20 FLANGE
0-28650-820-0
01
1
1302-
●
●

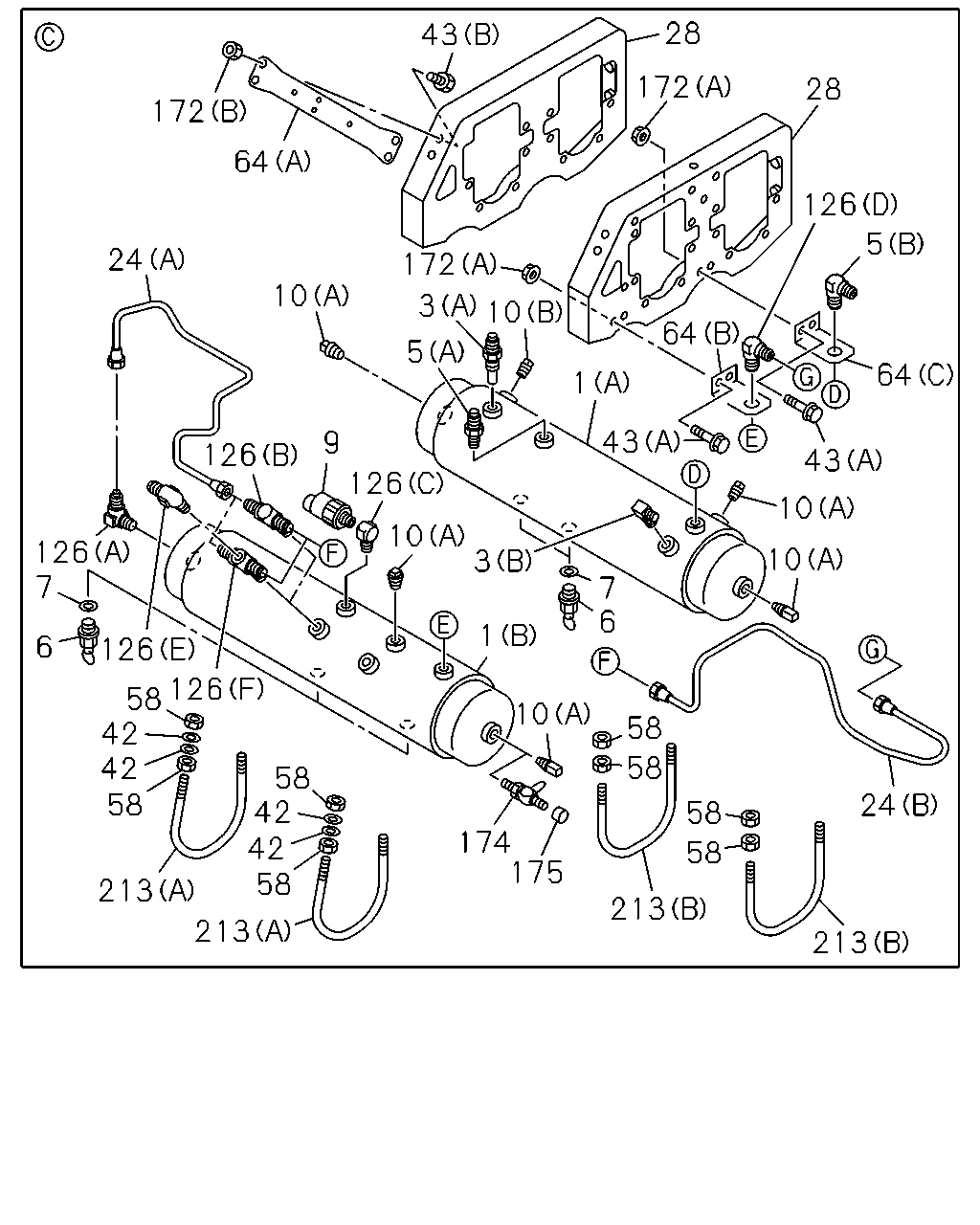

43
28
172
28
126
5
64
64
172
10
64
172
24
126
7
6
126
58
126
42
42
58
213
213
58
42
42
58
126
9
126
10
3
1
10
174
175
213
213
58
58
24
10
10
43
43
1
5
3
10
58
58
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(B)
1-48330-598-0
01
1
1302-
●
●
1
TANK ASM; AIR
(A)
1-48370-541-0
01
1
1302-
●
●
3
VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 STRAIGHT
1-48410-182-3
01
1
1302-
●
●
3
VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
1302-
●
●
5
UNION; AIR TANK
(A) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1302-
●
●
5
UNION; AIR TANK
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1302-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1302-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1302-
●
●
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
01
1
1302-
●
●
10
PLUG; AIR TANK
TIRE INFLATOR DEVICE(SG4) (A) PT1/4
9-99204-513-0
04
1
1302-
●
10
PLUG; AIR TANK
(A) PT1/4
9-99204-513-0
04
1
1302-
●
10
PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE(SG4) (A) PT1/4
9-99204-513-0
05
1
1302-
●
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
1302-
●
●
24
PIPE ASM; AIR TANK
(A)
8-98216-744-0
01
1
1302-
●
●
24
PIPE ASM; AIR TANK
(B)
8-98216-745-0
01
1
1302-
●
●
28
BRACKET; AIR TANK
1-53318-338-6
02
1
1302-
●
●
42
WASHER; PL
ID=8.4 OD=18
0-91610-608-0
04
1
1302-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE
0-28650-820-0
04
1
1302-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE
0-28651-025-0
04
1
1302-
●
●
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
16
1
1302-
●
●
64
STAY; AIR TANK,MAIN
(A)
1-53318-293-1
01
1
1302-
●
●
64
STAY; AIR TANK,MAIN
(B)
8-94301-490-0
01
1
1302-
●
●
64
STAY; AIR TANK,MAIN
(C)
8-97614-753-0
01
1
1302-
●
●
126
CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY
1-09656-340-1
01
1
1302-
●
126
CONNECTOR; ELBOW
EXC. TRAILER BRAKE CONTROL<J91> (B) M20X2 & PT3/8 3WAY
1-09656-340-1
01
1
1302-
●
126
CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1302-
●
●
126
CONNECTOR; ELBOW
(C) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1302-
●
●
126
CONNECTOR; ELBOW
(D) M20 & PT3/4 ELBOW
8-98067-083-1
01
1
1302-
●
●
126
CONNECTOR; ELBOW
TRAILER BRAKE CONTROL<J91> (E) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1302-
●
126
CONNECTOR; ELBOW
TRAILER BRAKE CONTROL<J91> (F)
1-09656-699-0
01
1
1302-
●
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91180-108-0
04
1
1302-
●
●
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91180-210-0
04
1
1302-
●
●
174
COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE(SG4)
1-09680-099-0
01
1
1302-
●
174
COCK; AIR,INFLATOR
1-09680-099-0
01
1
1302-
●
175
CAP; AIR COCK
TIRE INFLATOR DEVICE(SG4)
9-48319-102-0
01
1
1302-
●
175
CAP; AIR COCK
9-48319-102-0
01
1
1302-
●
213
BOLT; U AIR TANK
(A) L=97.5
1-48317-323-1
02
1
1302-
●
●
213
BOLT; U AIR TANK
(B) L=195
1-48317-367-2
02
1
1302-
●
●
