Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#113655) — 340 parça

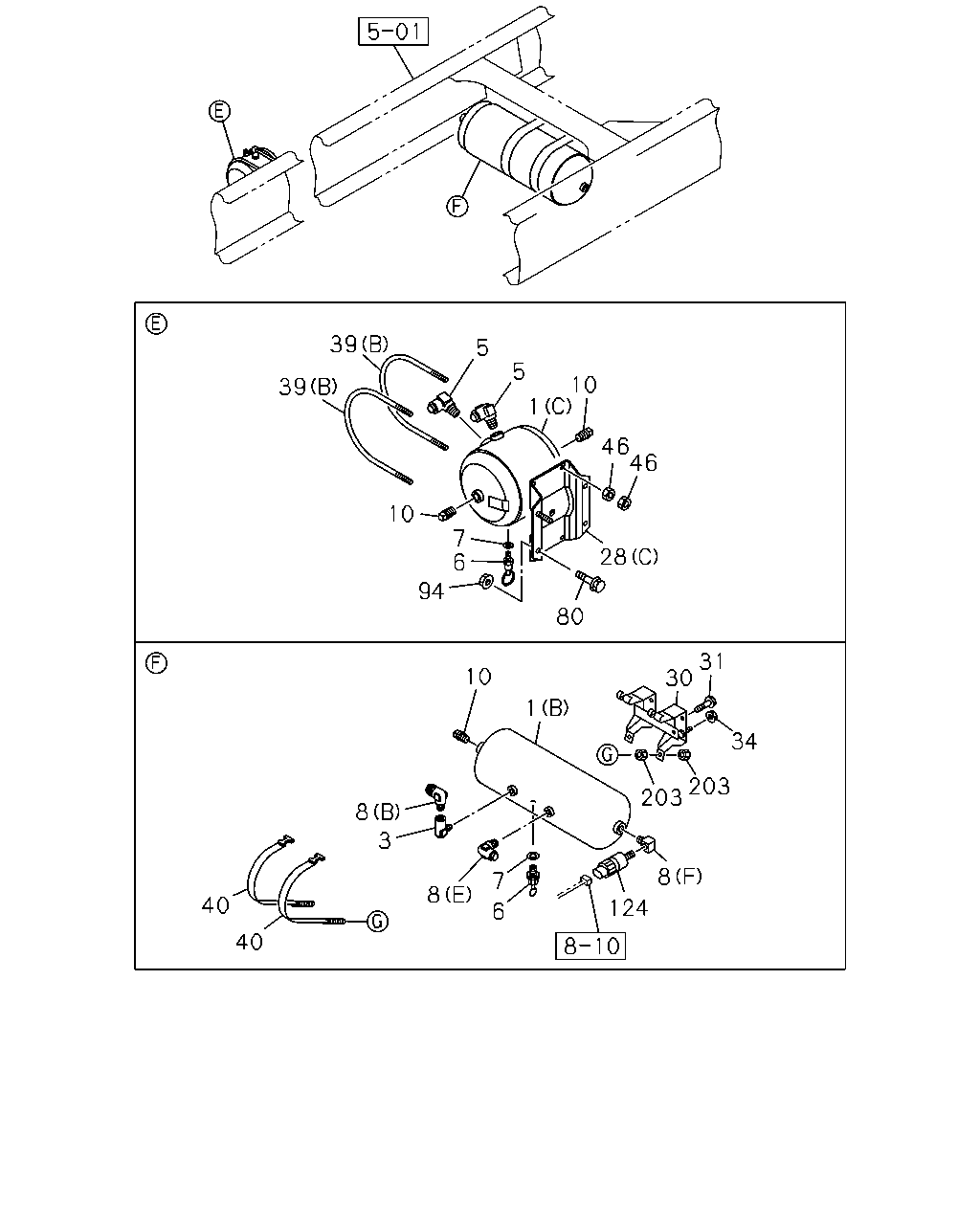

39 5 5 10 1 39 10 46 46 28 80 94 6 7 31 30 34 203 203 8 124 6 7 8 3 8 40 40 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1302-1308
1	TANK ASM; AIR ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	8-98166-972-0	01	1	1302-1308
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B)	8-98166-972-0	01	1	1309-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	1302-1308
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	1309-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48320-031-1	01	1	1309-
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU)	1-48320-031-1	02	1	1302-1308
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU)	1-48320-031-1	02	1	1309-
5	UNION; AIR TANK BRAKE REGULATION ADR(TDU) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1302-1308
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-1308
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-1308
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1309-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48312-015-0	01	1	1309-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1309-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1302-1308
7	GASKET; DRAIN COCK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-1308
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-1308
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) ID=14	1-09630-145-0	01	1	1309-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	02	1	1302-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	1302-1308
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	1302-1308
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	1302-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48317-894-1	01	1	1302-1308
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48317-894-1	01	1	1309-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48317-894-1	01	1	1309-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1302-
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	1302-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48317-893-1	02	1	1302-1308
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48317-893-1	02	1	1309-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48317-893-1	02	1	1309-
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) M10X30 FLANGE	0-28651-030-0	03	1	1302-
94	NUT; BRKT FIX BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	04	1	1302-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) STAMP 6.5	8-97609-252-0	01	1	1309-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1302-1308
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1309-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	04	1	1302-1308
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	04	1	1309-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8	0-91110-508-0	04	1	1309-

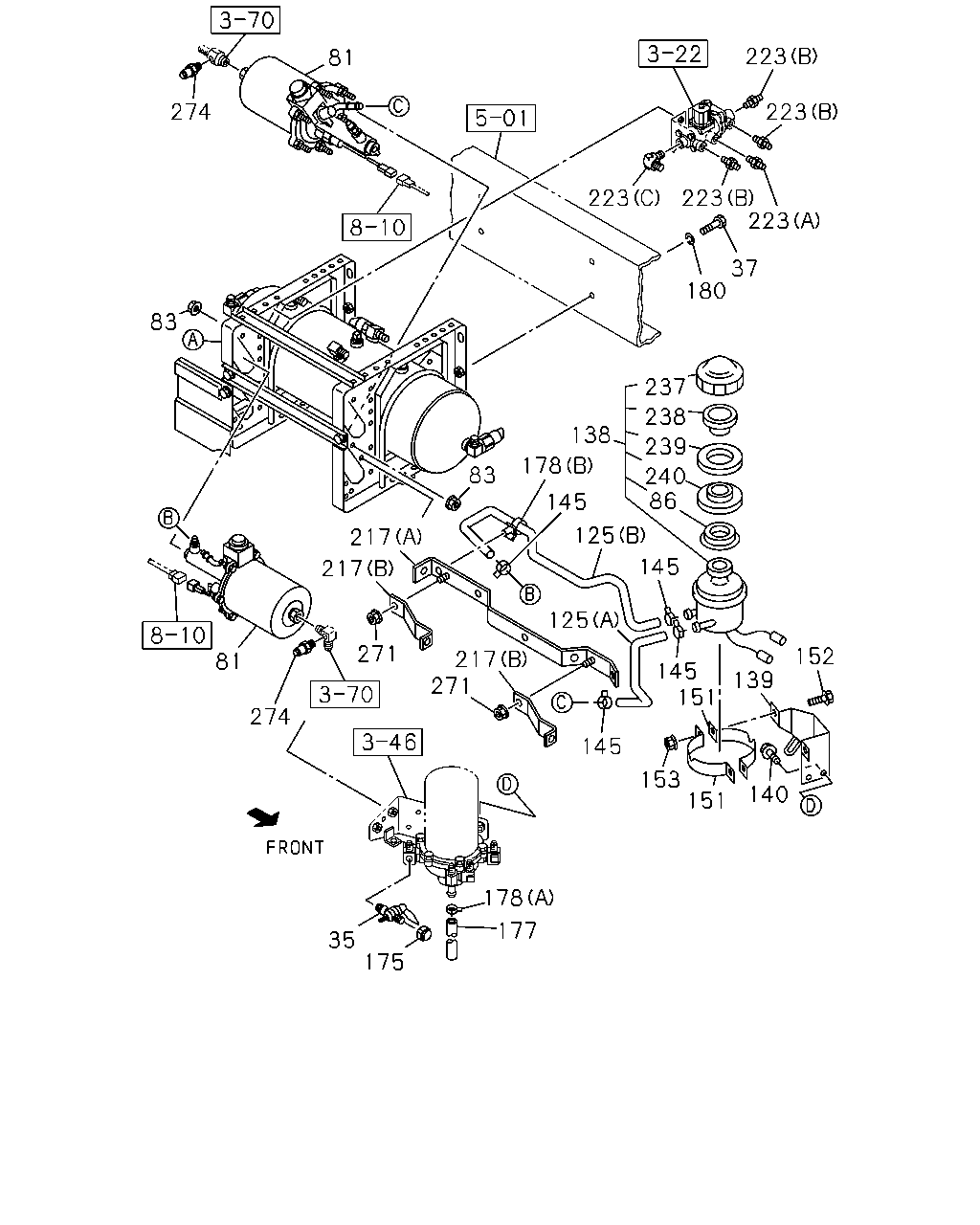

81 274 223 223 223 223 223 180 37 237 238 239 240 86 138 83 217 217 271 217 145 153 151 140 151 139 152 145 145 125 125 145 178 274 81 175 177 178 35 83 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	1302-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	1302-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	1302-
86	SEAL; DUST	1-47529-019-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	1302-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1302-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	1302-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1302-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1302-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1302-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1302-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1302-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	1302-
177	HOSE; RUBBER,DRAIN TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1302-
178	CLIP; HOSE TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	1302-
180	WASHER; LK ID=12.5 OD=32	0-91614-712-0	04	1	1302-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	1302-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	1302-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1302-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
237	CAP; OIL TANK	1-47525-030-0	01	1	1302-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1302-
239	FILTER; DUST	1-47529-017-0	01	1	1302-
240	HOLDER; FILTER	1-47529-018-0	01	1	1302-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	1302-
274	CONNECTOR; VLV BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1302-

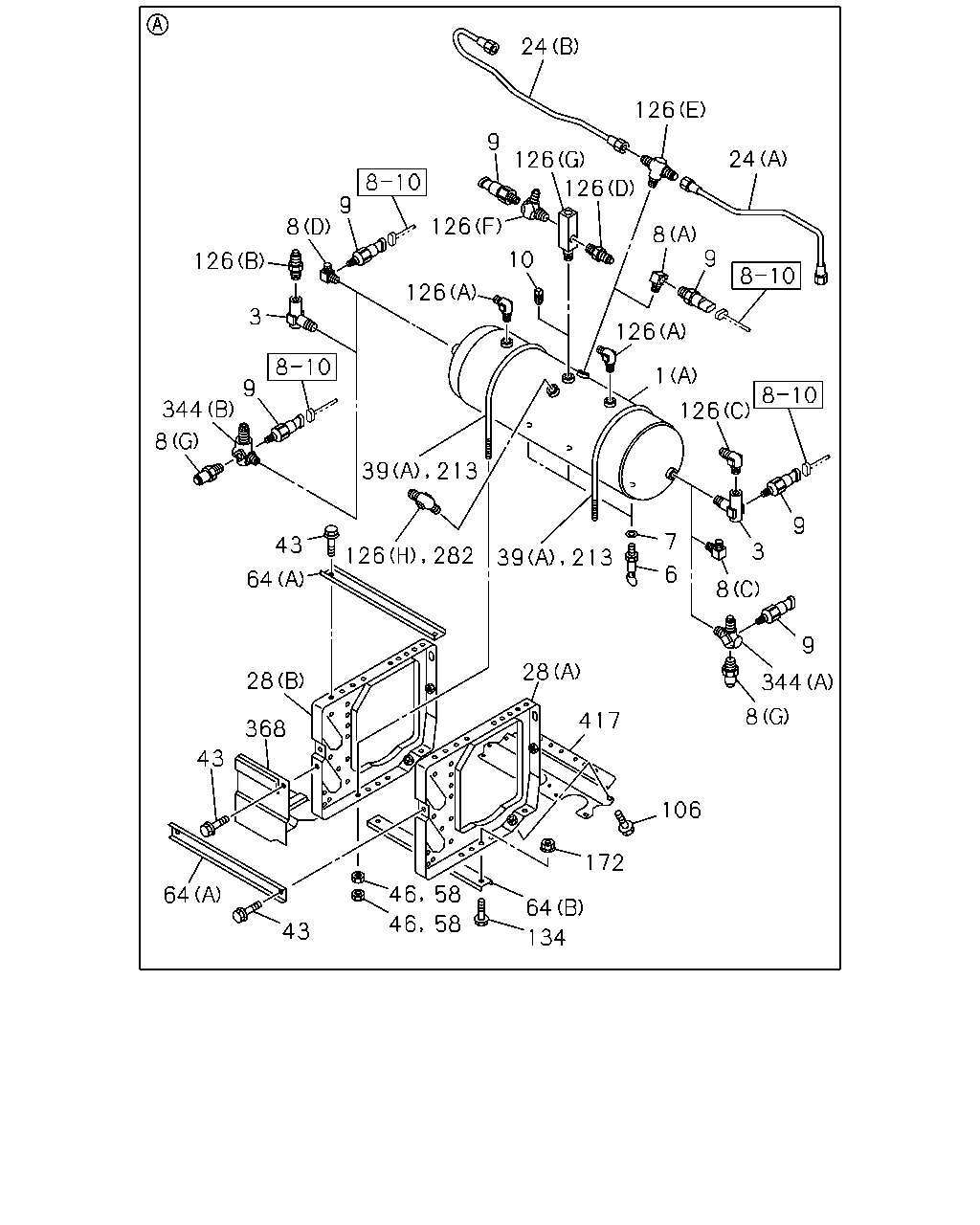

24 126 24 126 9 126 8 9 126 9 8 126 3 126 10 126 1 126 9 344 8 39 213 126 282 39 213 7 6 8 3 9 9 344 8 28 417 106 172 64 134 46 58 58 46 43 64 43 368 28 64 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1302-1308
1	TANK ASM; AIR ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B)	8-98166-972-0	01	1	1302-1308
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B)	8-98166-972-0	01	1	1309-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	1302-1308
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	1309-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48320-031-1	01	1	1309-
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU)	1-48320-031-1	02	1	1302-1308
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU)	1-48320-031-1	02	1	1309-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1302-1308
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-1308
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1302-1308
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1309-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	1-48312-015-0	01	1	1309-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1309-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1302-1308
7	GASKET; DRAIN COCK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-1308
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1302-1308
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) ID=14	1-09630-145-0	01	1	1309-
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1302-1308
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (G) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) STAMP 6.5	8-97609-252-0	03	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	1302-1308
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	1302-1308
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR(TDU) STAMP 6.0	8-97615-622-0	03	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1302-1308
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1309-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1302-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK BRAKE REGULATION ADR(TDU) PT3/8	9-09204-517-0	02	1	1302-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A)	8-98178-465-0	01	1	1302-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (B)	8-98178-466-0	01	1	1302-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	1302-1308
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	1302-1308
28	BRACKET; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	1302-
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1302-1308
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1302-1308
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1302-1308
43	BOLT; STAY,AIR TANK,MAIN BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1302-1308
43	BOLT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1309-
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1309-
43	BOLT; STAY,AIR TANK,MAIN ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8X16 FLANGE	0-28050-816-0	06	1	1309-
43	BOLT; STAY,AIR TANK,MAIN BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	06	1	1309-
43	BOLT; STAY,AIR TANK,MAIN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	10	1	1302-1308
43	BOLT; STAY,AIR TANK,MAIN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	10	1	1309-
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
58	NUT; BAND,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1302-1308
58	NUT; BAND,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) M8	0-91110-508-0	08	1	1309-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	1302-1308
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN BRAKE REGULATION ADR(TDU) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	1302-1308
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B)	8-98044-511-2	01	1	1309-
64	STAY; AIR TANK,MAIN ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (B)	8-98044-511-2	01	1	1309-
64	STAY; AIR TANK,MAIN BRAKE REGULATION ADR(TDU) (B)	8-98044-511-2	01	1	1309-
64	STAY; AIR TANK,MAIN EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (B)	8-98044-511-2	01	1	1309-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1302-1308
106	BOLT; COVER ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
106	BOLT; COVER ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
106	BOLT; COVER BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
106	BOLT; COVER EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-1308
126	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1308
126	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (B) M20	0-92121-812-0	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (B) M20	0-92121-812-0	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (H) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (H) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (G)	8-98190-623-0	01	1	1302-1308
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU) (G)	8-98190-623-0	01	1	1309-
134	BOLT; COVER FIX ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1302-1308
134	BOLT; COVER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1302-1308
134	BOLT; COVER FIX BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1302-1308
134	BOLT; COVER FIX ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
134	BOLT; COVER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
134	BOLT; COVER FIX ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
134	BOLT; COVER FIX BRAKE REGULATION ADR(TDU) M8X16 FLANGE	0-28050-816-0	04	1	1309-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	1302-1308
172	NUT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M8 FLANGE	0-91180-108-0	02	1	1309-
172	NUT; STAY,AIR TANK,MAIN ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M8 FLANGE	0-91180-108-0	02	1	1309-
172	NUT; STAY,AIR TANK,MAIN BRAKE REGULATION ADR(TDU) M8 FLANGE	0-91180-108-0	02	1	1309-
172	NUT; STAY,AIR TANK,MAIN EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M8 FLANGE	0-91180-108-0	02	1	1309-
213	BOLT; U AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU)	8-98022-041-0	02	1	1302-1308
213	BOLT; U AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE),BRAKE RE GULATION ADR(TDU)	8-98022-041-0	02	1	1309-
282	UNION; 2 WAY ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1308
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1308
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1308
282	UNION; 2 WAY ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
282	UNION; 2 WAY ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (A)	1-09656-726-0	01	1	1302-
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (B)	1-09656-767-0	01	1	1302-
368	COVER; AIR TANK	8-98061-625-3	01	1	1302-1308
368	COVER; AIR TANK ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	8-98061-625-3	01	1	1309-
368	COVER; AIR TANK ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	8-98061-625-3	01	1	1309-
368	COVER; AIR TANK BRAKE REGULATION ADR(TDU)	8-98061-625-3	01	1	1309-
368	COVER; AIR TANK EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU)	8-98061-625-3	01	1	1309-
417	COVER; HARNESS	8-98111-401-0	01	1	1302-1308
417	COVER; HARNESS ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	8-98111-401-0	01	1	1309-
417	COVER; HARNESS ECUADOR EQUIPMENT(CX3) BRAKE REGULATION ECE(NBE)	8-98111-401-0	01	1	1309-
417	COVER; HARNESS BRAKE REGULATION ADR(TDU)	8-98111-401-0	01	1	1309-
417	COVER; HARNESS EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(NBE) ,BRAKE REGULATION ADR(TDU)	8-98111-401-0	01	1	1309-

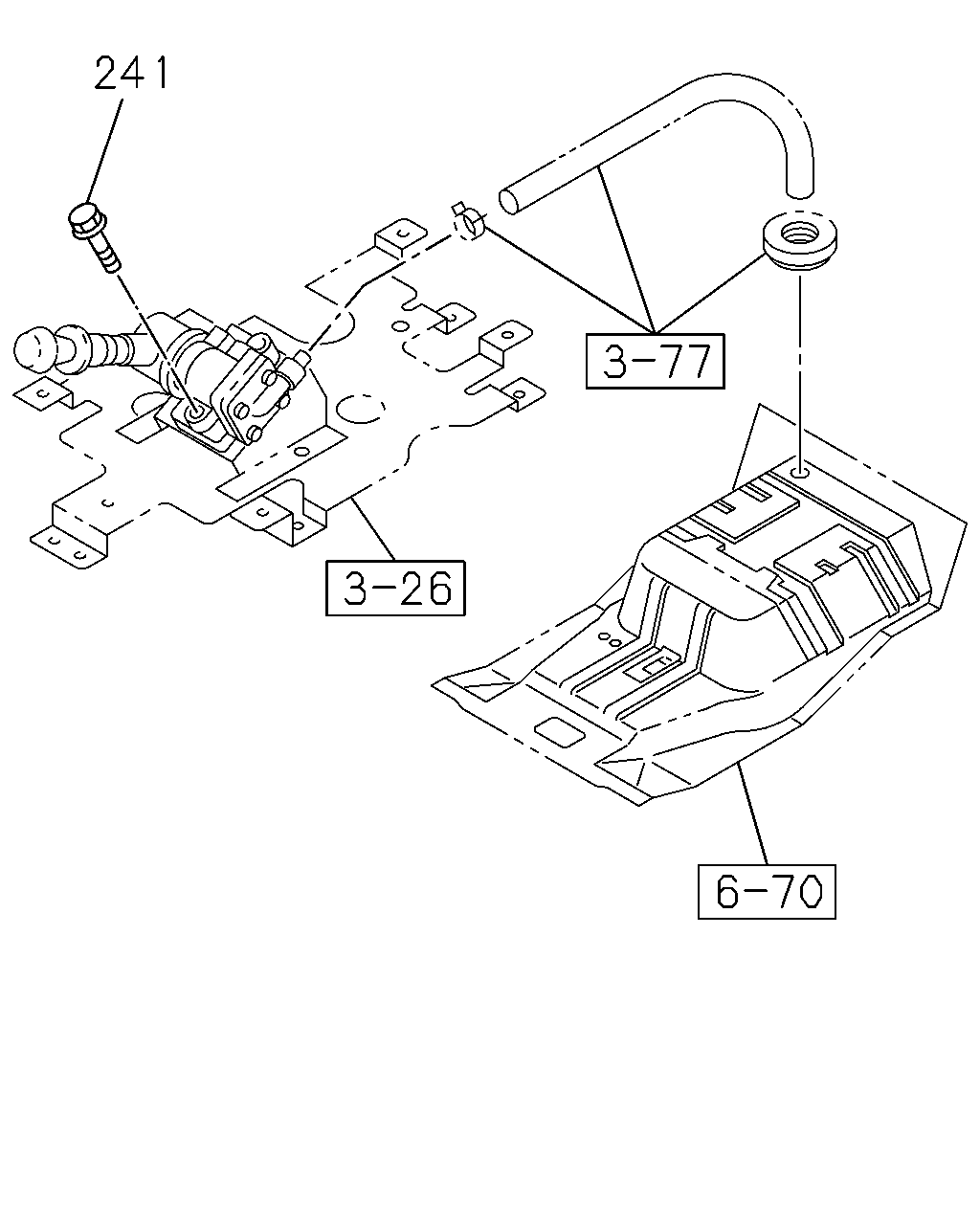

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
