3-20 — AIR TANK (#113653) — 93 parça

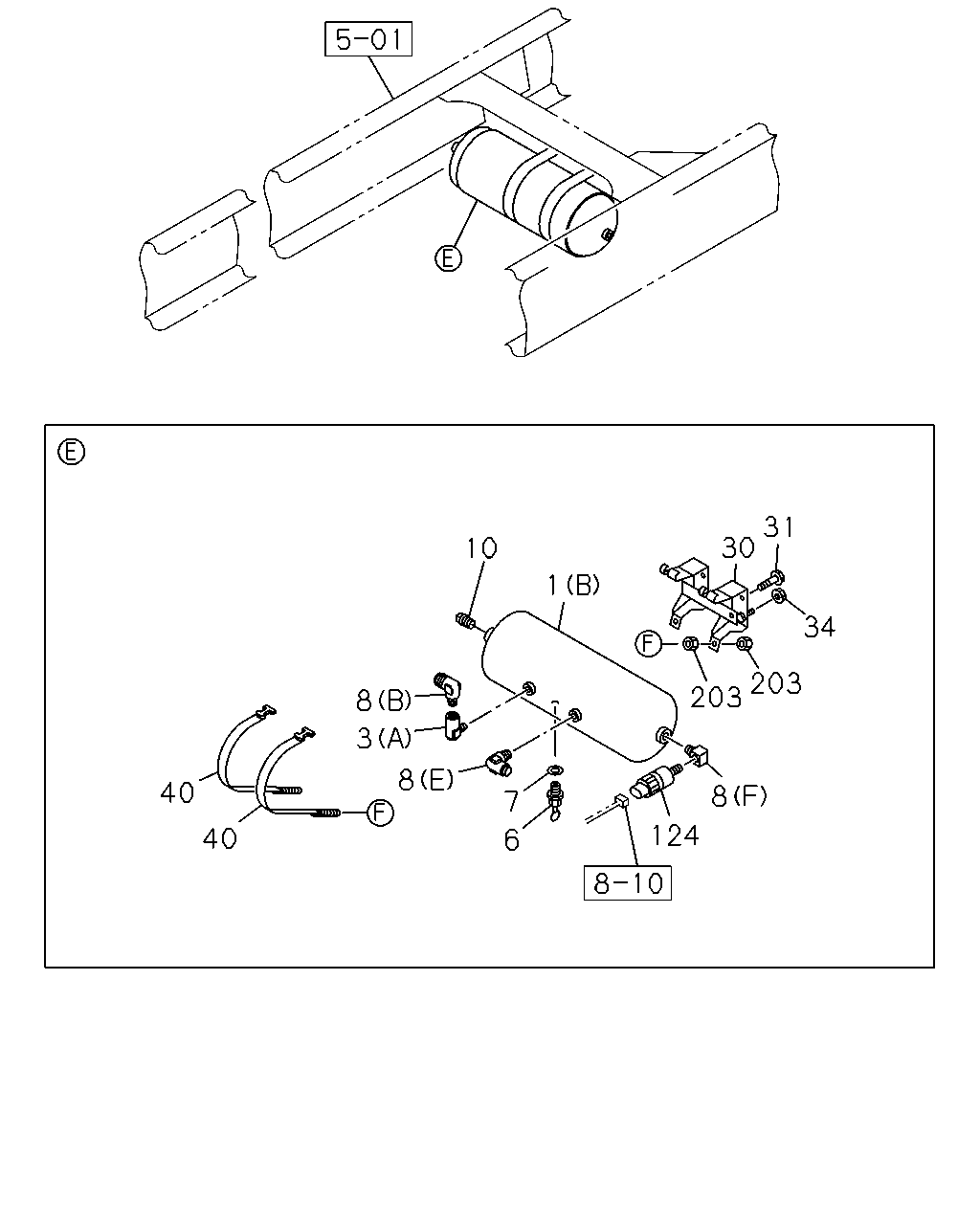

çizim 327841
10 31 30 34 203 203 1 8 3 8 40 40 7 6 124 8
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1302-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48320-031-1 01 1 1302-
3 VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48320-031-1 02 1 1302-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1302-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1302-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1302-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1302-
30 BRACKET; AIR TANK,SUB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-894-1 01 1 1302-
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1302-
40 BAND ASM; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-893-1 02 1 1302-
124 SWITCH; AIR PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1302-
203 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 04 1 1302-

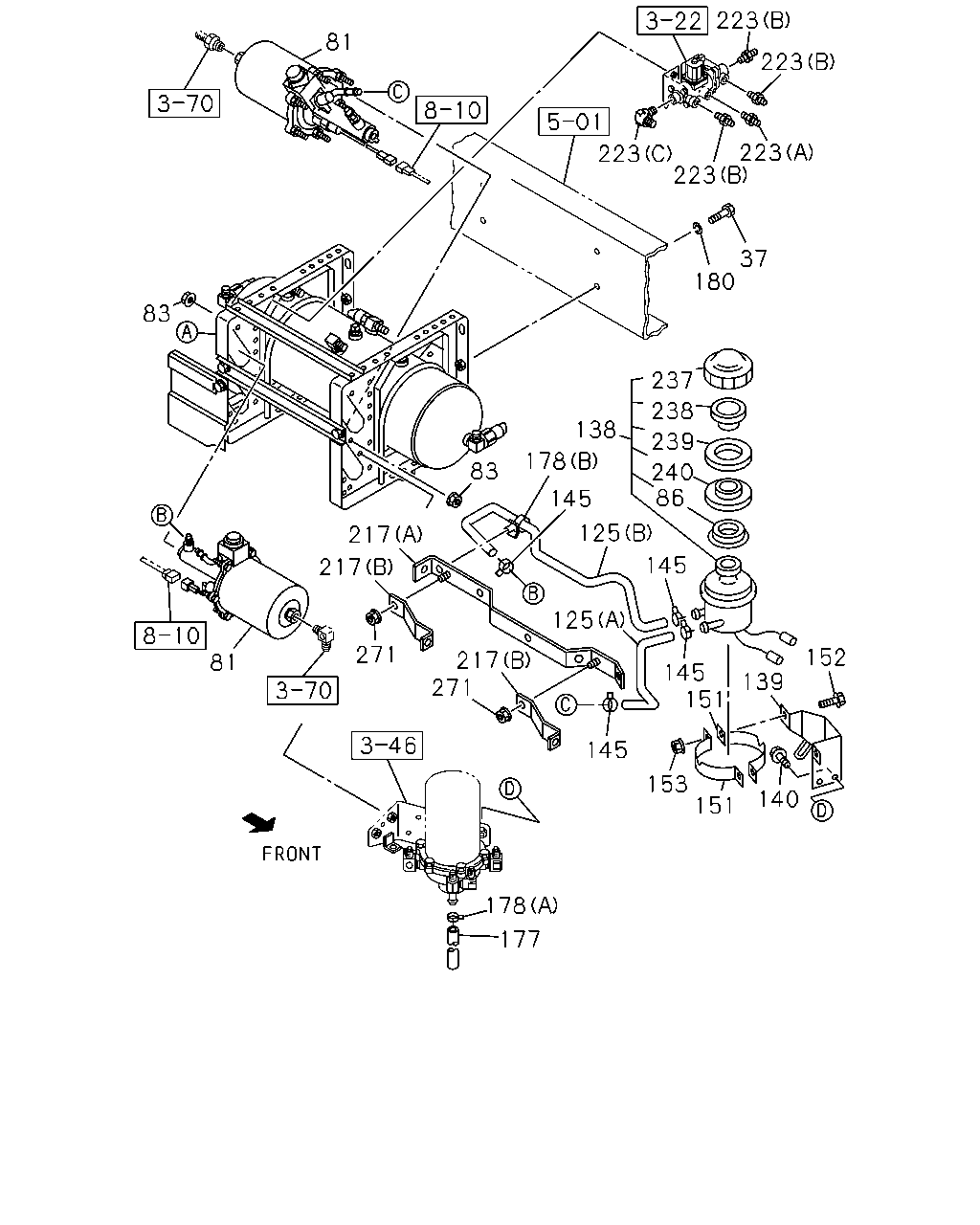

çizim 331532
81 223 223 223 223 223 37 180 138 237 238 239 240 86 125 145 152 139 140 151 153 145 125 145 151 217 271 177 178 81 217 217 271 83 178 145 83
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1302-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1302-
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1302-
86 SEAL; DUST 1-47529-019-0 01 1 1302-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1302-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1302-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1302-
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1302-
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1302-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1302-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1302-
177 HOSE; RUBBER,DRAIN
AIR DRYER<PS7> L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1302-
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1302-
178 CLIP; HOSE
AIR DRYER<PS7> (A) ID=21 		8-94242-034-0 01 1 1302-
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1302-
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1302-
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1302-
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
237 CAP; OIL TANK 1-47525-030-0 01 1 1302-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1302-
239 FILTER; DUST 1-47529-017-0 01 1 1302-
240 HOLDER; FILTER 1-47529-018-0 01 1 1302-
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1302-

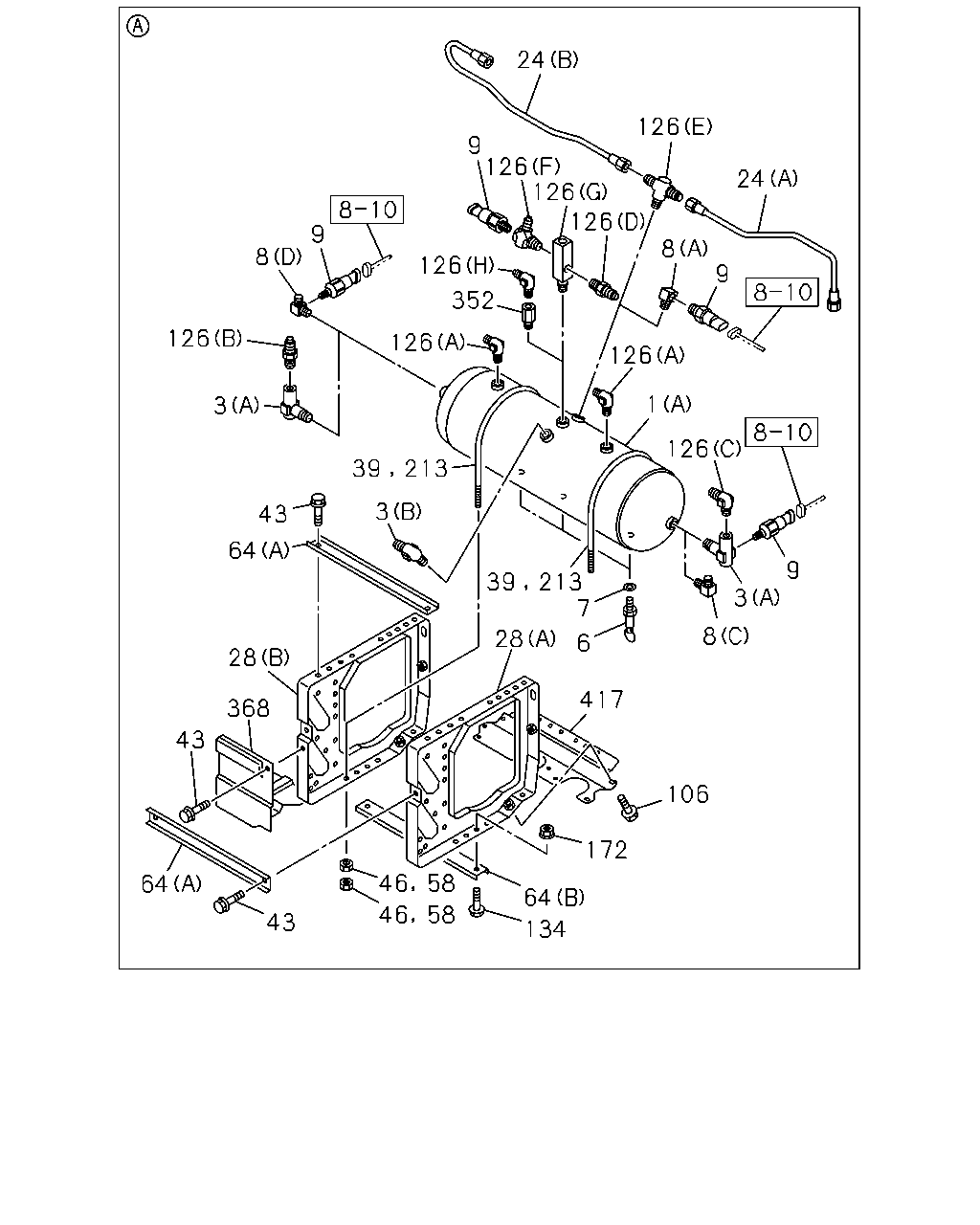

çizim 331553
24 126 24 9 126 126 126 8 9 126 126 9 8 126 3 126 39 213 1 126 3 9 8 213 39 28 6 7 417 106 172 64 134 46 46 58 58 43 64 43 28 368 3 43 64 352
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1302-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1302-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48320-031-1 01 1 1302-
3 VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48320-031-1 02 1 1302-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1302-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1302-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1302-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1302-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 03 1 1302-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 1302-
24 PIPE ASM; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98178-465-0 01 1 1302-
24 PIPE ASM; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98178-466-0 01 1 1302-
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1302-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1302-
39 U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98022-041-0 02 1 1302-
43 BOLT; STAY,AIR TANK,MAIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 06 1 1302-
43 BOLT; STAY,AIR TANK,MAIN
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 10 1 1302-
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 08 1 1302-
58 NUT; BAND,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 08 1 1302-
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1302-
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1302-
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1302-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1302-
126 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 		0-92121-812-0 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
126 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98190-623-0 01 1 1302-
134 BOLT; COVER FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1302-
213 BOLT; U AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98022-041-0 02 1 1302-
352 CONNECTOR; STRAIGHT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98133-234-0 01 1 1302-
368 COVER; AIR TANK 8-98061-625-3 01 1 1302-
417 COVER; HARNESS 8-98111-401-0 01 1 1302-

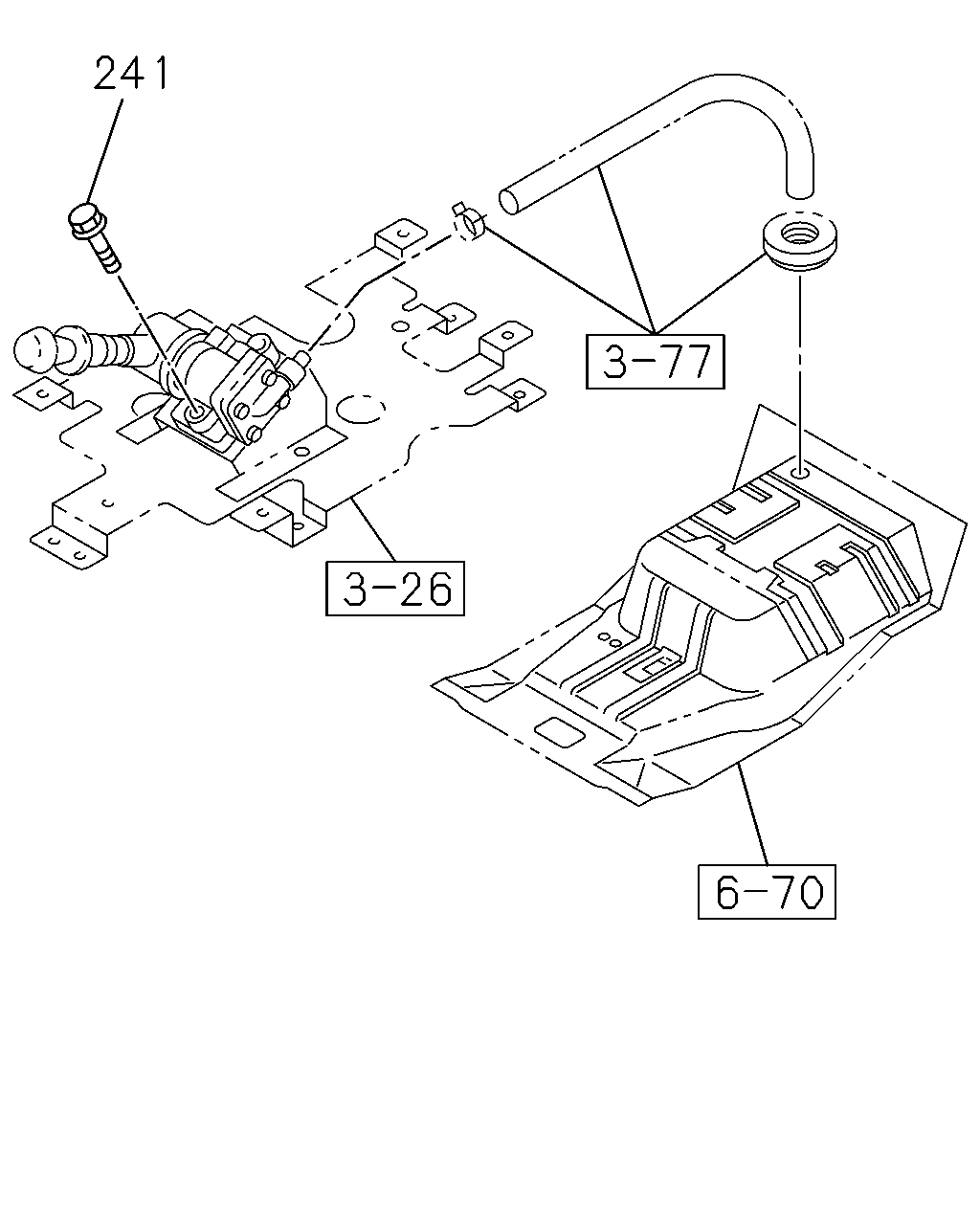

çizim 331582
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28050-870-0 02 1 1302-
