Isuzu WW
▶
TRUCKS
▶
FRR
▶
11504 - FRR-L EURO2 EXC.SPAC
▶
3 - Brakes, Brake System
▶

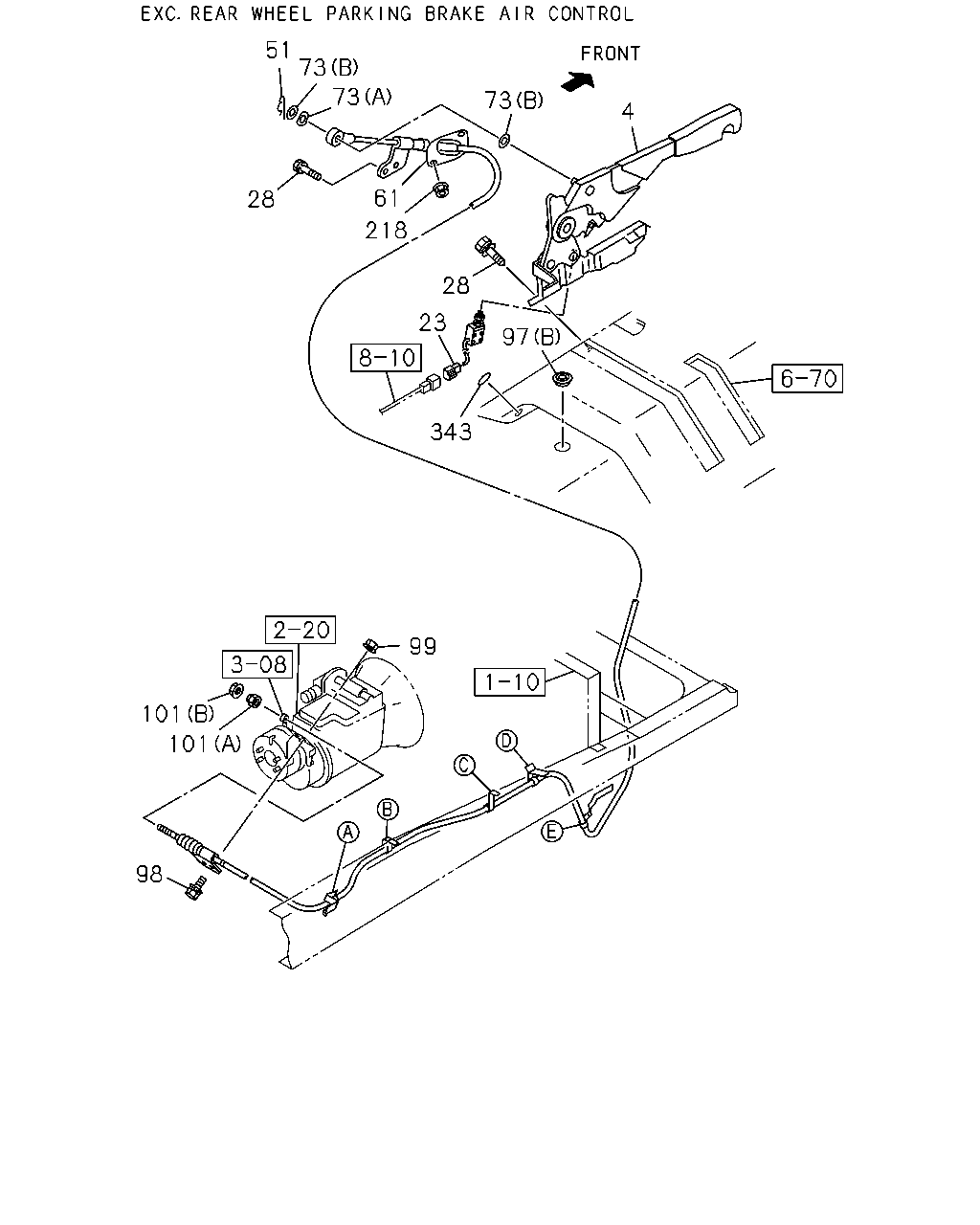

3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#113651) — 35 parça
◀
[311A] NO.2 (15 parça)
[311A] NO.3 (18 parça)
[311A] NO.1 (2 parça)
▶
51
73
73
73
28
61
218
4
28
23
97
343
101
101
99
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-79996-565-0
01
1
1302-
23
SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82440-100-0
01
1
1302-
28
BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1302-
51
PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-09987-243-1
01
1
1302-
61
CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4744
8-98135-021-1
01
1
1302-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30
0-91610-516-0
01
1
1302-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19
8-94206-429-1
02
1
1302-
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1302-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1302-
98
BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28651-030-0
02
1
1302-
99
NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
02
1
1302-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE
0-91180-108-0
01
1
1302-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-46259-007-0
01
1
1302-
218
NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1302-
343
SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
08
1
1302-
46
87
236
235
235
236
227
87
227
237
236
235
228
227
228
336
227
228
351
227
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20
0-95235-535-0
01
1
1302-
87
NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1302-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20
0-95235-235-0
02
1
1302-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32
0-95235-265-0
01
1
1302-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30
1-09701-080-0
01
1
1302-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=9.5
5-09709-020-0
01
1
1302-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE
0-28050-816-0
01
1
1302-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
1302-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1302-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)
1-82699-199-0
01
1
1302-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98077-903-2
01
1
1302-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-98100-151-0
01
1
1302-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
01
1
1302-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28651-030-0
02
1
1302-1504
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28051-030-0
02
1
1505-
237
NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
1302-
336
BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98044-680-0
01
1
1302-
351
BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER
0-51640-825-0
03
1
1302-
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1302-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1302-
