◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#113649) — 153 parça

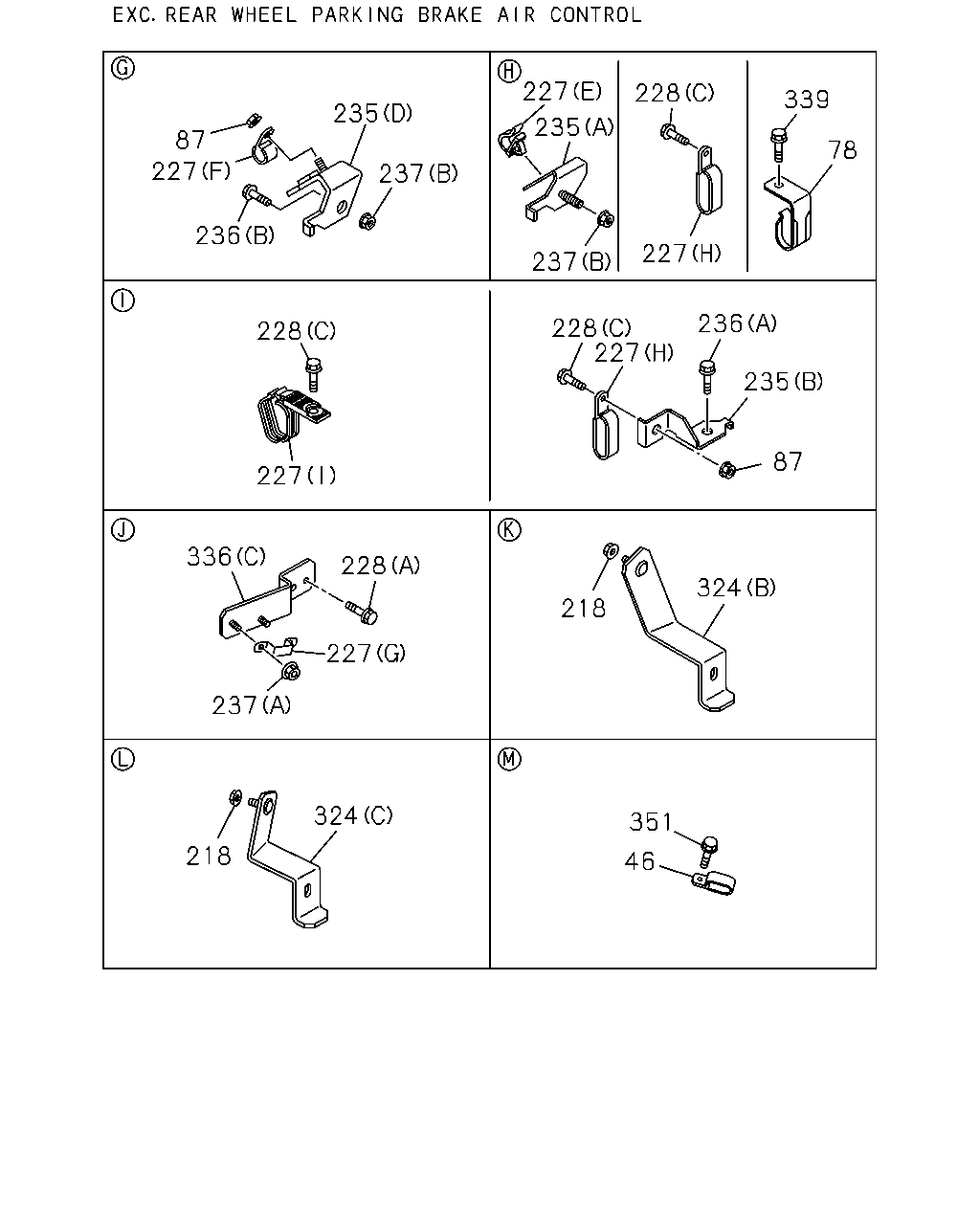

çizim 327730
87 227 236 235 237 227 235 237 228 227 339 78 236 235 87 227 228 228 227 336 228 227 237 218 324 218 324 351 46
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1302-
78 PIN; SPLIT,PARK BRK CABLE JOINT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98299-530-0 02 1 1503-
87 NUT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1503-
87 NUT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 06 1 1302-1305
87 NUT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1306-1502
87 NUT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 03 1 1503-
87 NUT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 02 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20 		0-95235-535-0 01 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 01 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 01 1 1302-1305
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 02 1 1306-1502
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 01 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1502
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98080-966-0 02 1 1302-1305
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98080-966-0 01 1 1306-
227 CLIP; RAD
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40 		1-09701-014-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 02 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40 		8-98119-885-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20 		0-95235-235-0 01 1 1302-
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1305
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1302-1502
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1503-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1503-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98250-897-0 01 1 1307-1502
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98126-426-0 01 1 1302-1306
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98126-426-0 01 1 1307-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98126-934-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98100-152-0 01 1 1302-
236 BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1410
236 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1411-1502
236 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1503-
236 BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1503-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 02 1 1302-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 1302-
324 BRACKET
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98227-661-1 01 1 1302-
324 BRACKET
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98227-663-1 01 1 1302-
324 BRACKET
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98067-482-1 01 1 1302-
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98208-200-4 01 1 1302-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98105-405-0 01 1 1302-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) 		8-98044-680-0 01 1 1302-
339 BOLT; GUIDE
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1503-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1302-

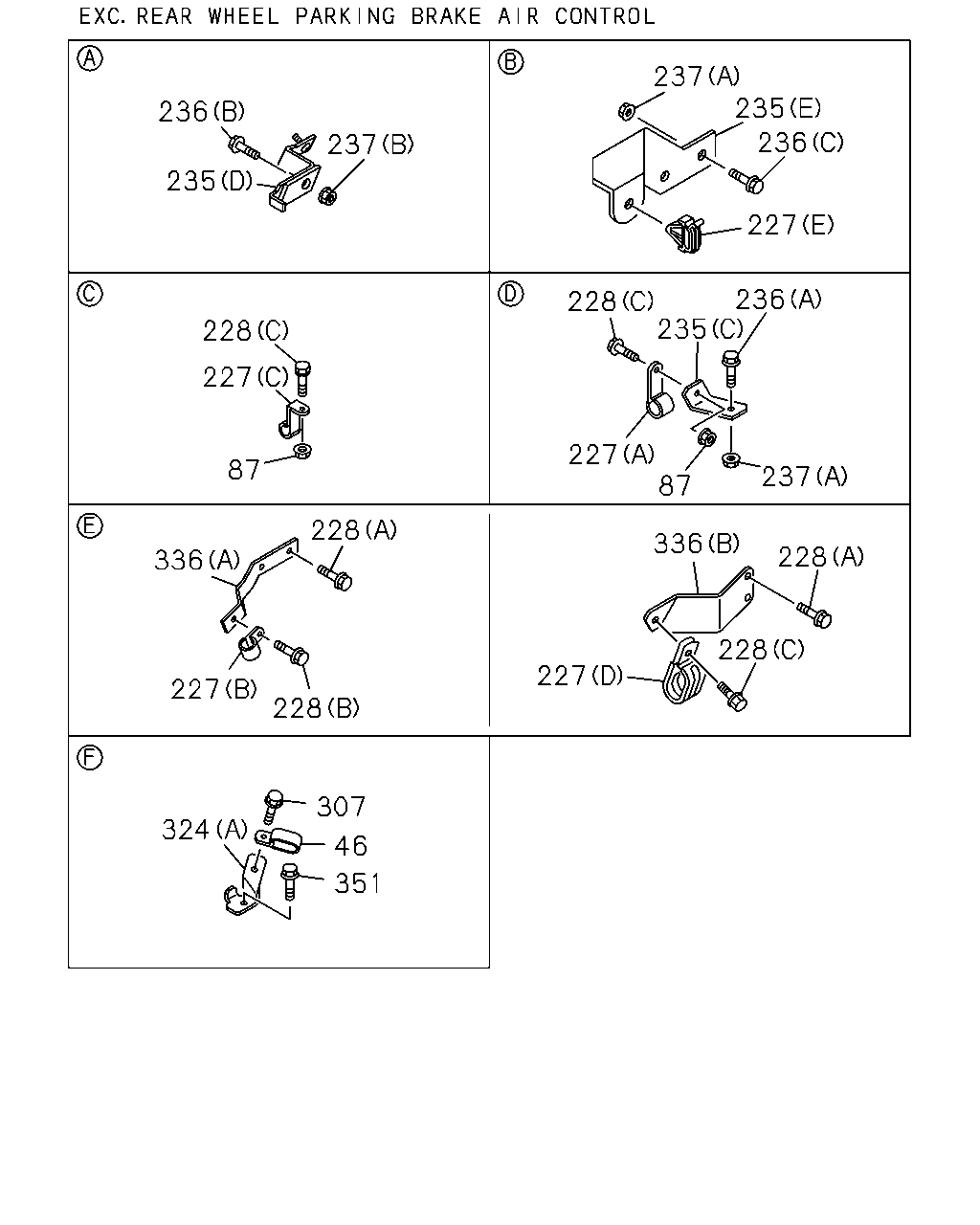

çizim 327866
227 228 228 336 87 227 237 235 228 236 227 236 235 237 237 236 235 228 227 87 228 336 227 228 307 46 351 324
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1302-
87 NUT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1503-
87 NUT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 06 1 1302-1305
87 NUT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1306-1502
87 NUT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 03 1 1503-
87 NUT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 02 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20 		0-95235-535-0 01 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 01 1 1302-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 01 1 1302-1305
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 02 1 1306-1502
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=13 & 13 L=32 		8-97389-264-0 01 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1502
227 CLIP; RAD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1503-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98080-966-0 02 1 1302-1305
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98080-966-0 01 1 1306-
227 CLIP; RAD
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40 		1-09701-014-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 02 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40 		8-98119-885-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 1302-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20 		0-95235-235-0 01 1 1302-
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1305
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1302-1502
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1503-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1503-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98250-897-0 01 1 1307-1502
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98126-426-0 01 1 1302-1306
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98126-426-0 01 1 1307-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98126-934-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98100-152-0 01 1 1302-
236 BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1410
236 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1411-1502
236 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1503-
236 BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1503-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 02 1 1302-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 1302-
307 BOLT; BRKT,PARKING BRK CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 1302-
324 BRACKET
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98227-661-1 01 1 1302-
324 BRACKET
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98227-663-1 01 1 1302-
324 BRACKET
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98067-482-1 01 1 1302-
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98208-200-4 01 1 1302-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98105-405-0 01 1 1302-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) 		8-98044-680-0 01 1 1302-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1302-

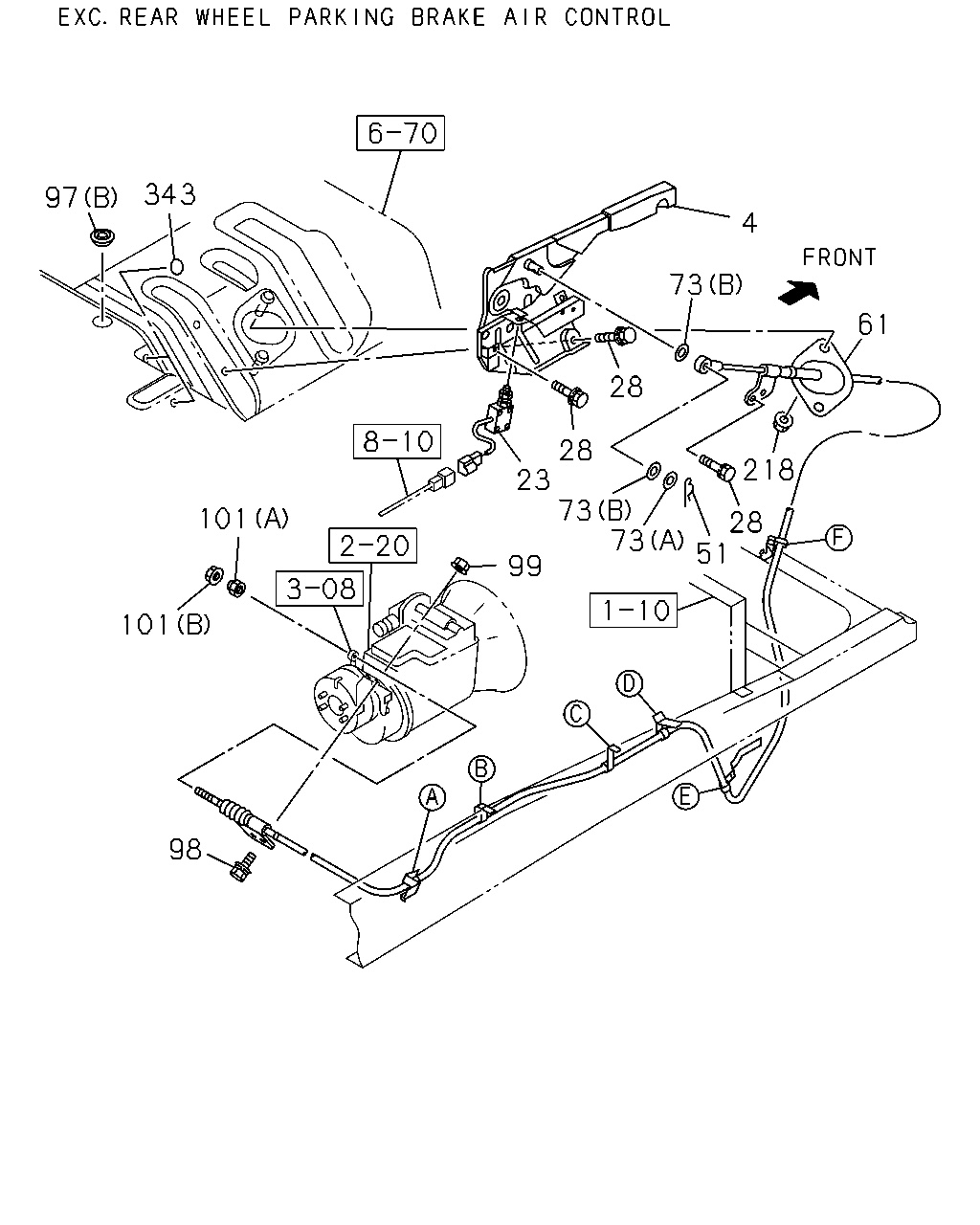

çizim 328007
4 61 218 28 51 73 73 23 28 28 73 99 101 101 98 343 97
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-549-0 01 1 1302-
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1302-
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1302-
61 CABLE; PARKING BRK
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4329 		8-98217-387-2 01 1 1302-
61 CABLE; PARKING BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4695 		8-98106-063-5 01 1 1302-
61 CABLE; PARKING BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> L=4615 		8-98106-061-5 01 1 1302-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1302-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1302-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1302-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1302-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1302-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1302-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46259-007-0 01 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1302-
343 SEAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 1302-

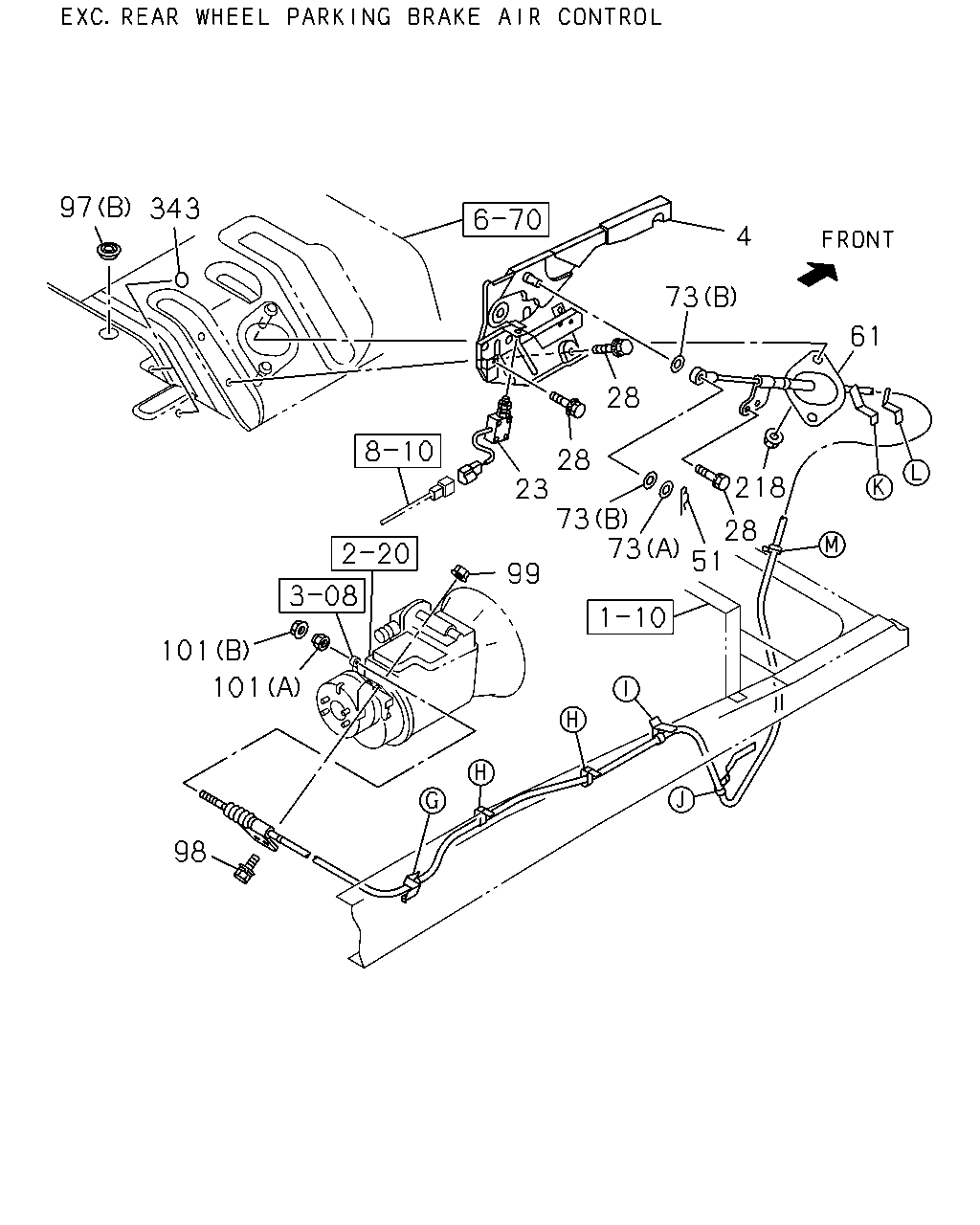

çizim 328037
343 97 101 98 101 99 23 28 28 73 28 218 51 73 73 4 61
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-549-0 01 1 1302-
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1302-
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1302-
61 CABLE; PARKING BRK
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4329 		8-98217-387-2 01 1 1302-
61 CABLE; PARKING BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4695 		8-98106-063-5 01 1 1302-
61 CABLE; PARKING BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> L=4615 		8-98106-061-5 01 1 1302-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1302-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1302-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1302-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1302-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1302-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1302-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46259-007-0 01 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1302-
343 SEAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 1302-
çizim 331564
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1302-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
