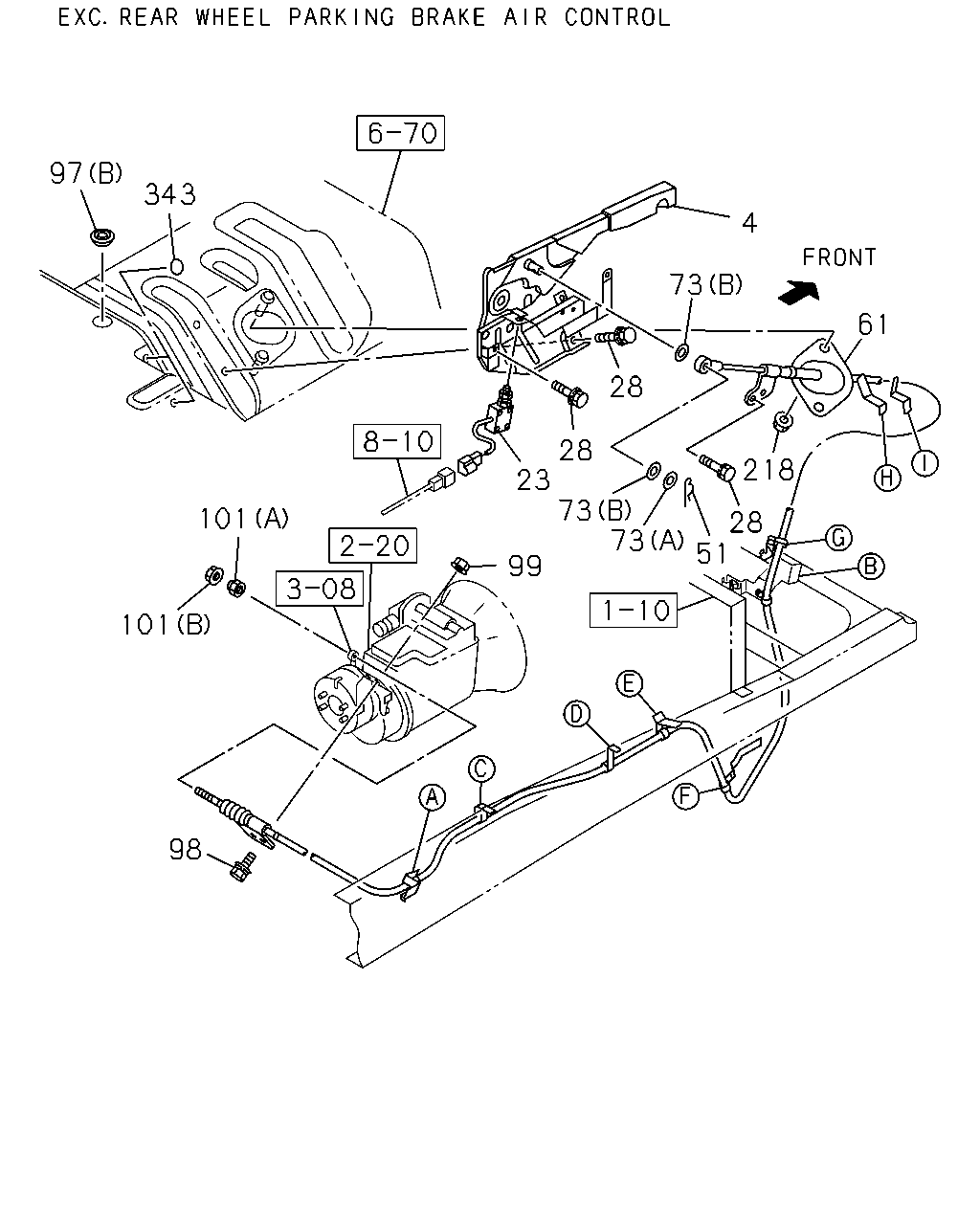

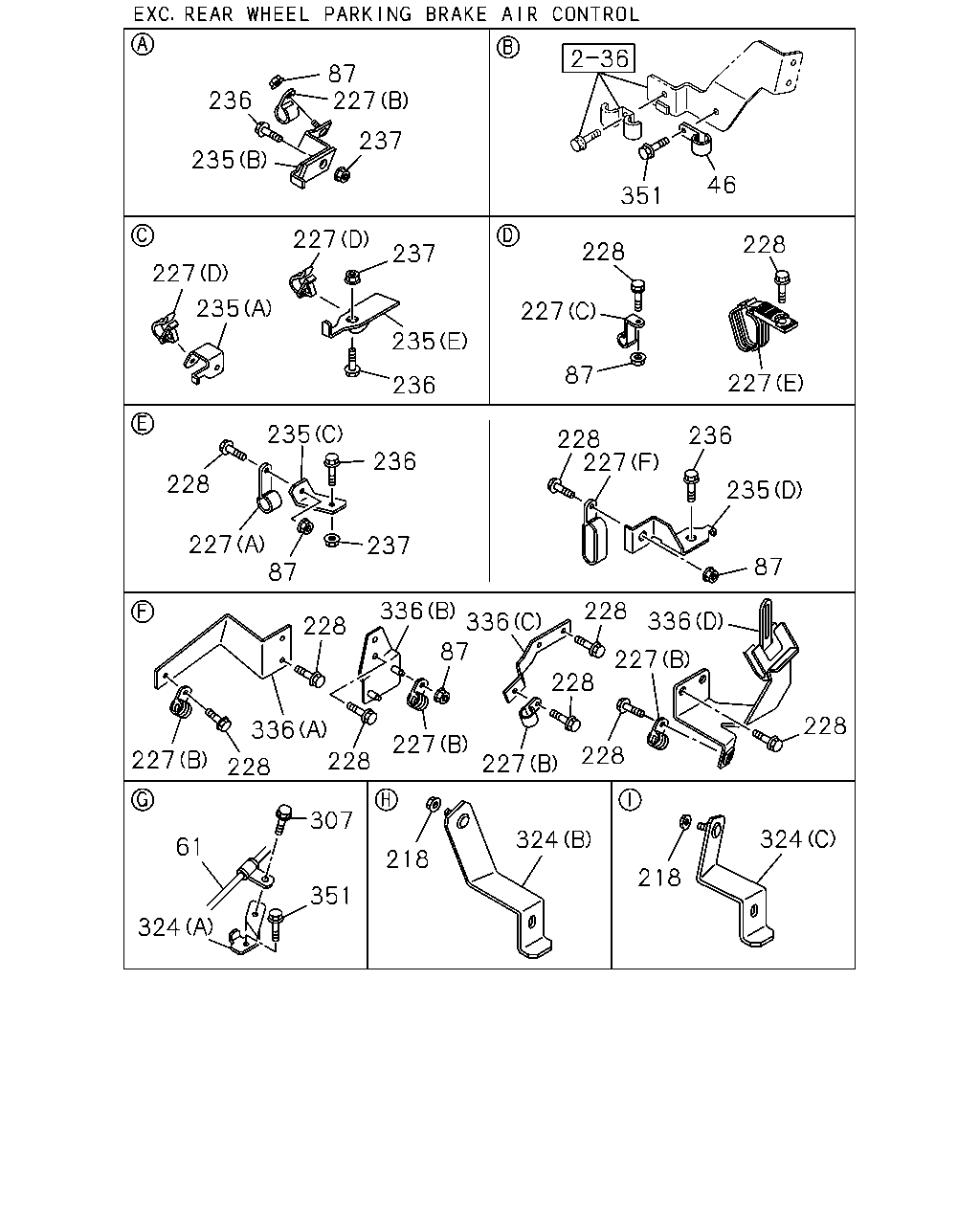

3-11 — PARKING BRAKE CONTROL (#113646) — 84 parça

236 235 227 237 87 351 46 227 227 227 227 227 227 227 227 227 227 228 228 228 228 228 228 228 228 228 235 237 235 236 87 235 236 237 87 236 235 87 336 336 336 228 336 228 87 324 218 61 307 324 351 324 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1302-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4263	8-98102-305-4	01	1	1302-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=4284	8-98209-675-1	01	1	1302-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4736	8-98102-331-3	01	1	1302-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1302-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5	5-09709-020-0	01	1	1302-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=16 L=20	0-95235-535-0	01	1	1302-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 13 L=32	8-97389-264-0	01	1	1302-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1302-1504
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) ID=26 L=26	1-09701-236-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	02	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32	0-95235-265-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98077-903-2	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (D)	8-98126-426-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-151-0	01	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1302-1504
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28051-030-0	01	1	1505-
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-1504
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28051-030-0	02	1	1505-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1302-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1302-
307	BOLT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	1302-
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	1302-
324	BRACKET 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98067-482-1	01	1	1302-
324	BRACKET 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98067-482-1	01	1	1302-
324	BRACKET 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98227-661-1	01	1	1302-
324	BRACKET 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98227-663-1	01	1	1302-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	8-98080-965-0	01	1	1302-1309
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98139-517-0	01	1	1302-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1302-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98044-680-0	01	1	1302-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1302-

97 343 4 73 61 28 28 23 218 28 51 73 73 101 101 98 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	1302-
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1302-
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1302-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1302-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4263	8-98102-305-4	01	1	1302-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=4284	8-98209-675-1	01	1	1302-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4736	8-98102-331-3	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1302-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1302-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	1302-

97 336 336 228 228 235 336 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98077-903-2	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (D)	8-98126-426-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-151-0	01	1	1302-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	8-98080-965-0	01	1	1302-1309
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98139-517-0	01	1	1302-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1302-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98044-680-0	01	1	1302-
