3-11 — PARKING BRAKE CONTROL (#113642) — 63 parça

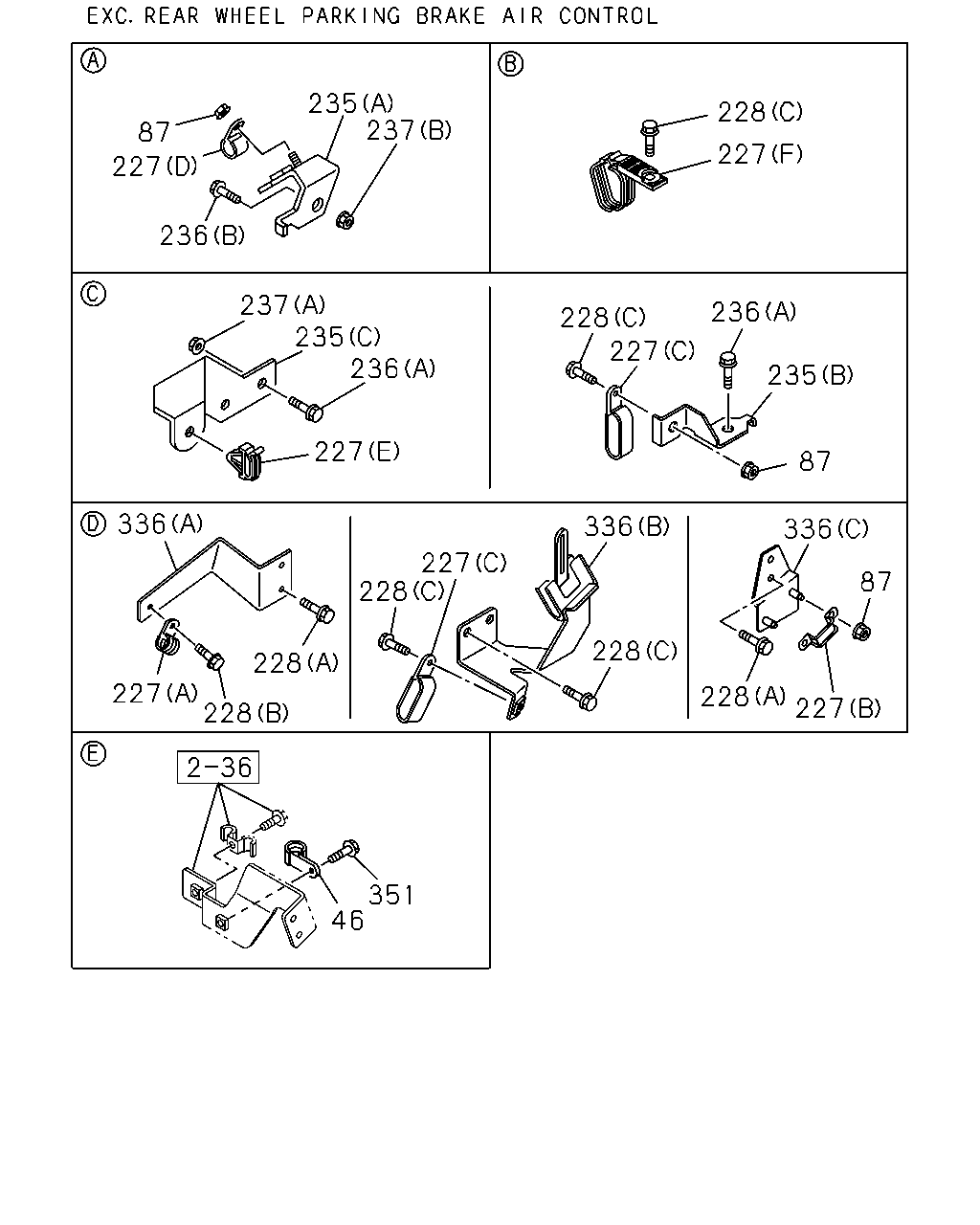

87 227 236 235 237 228 227 237 235 236 227 228 227 236 235 87 336 227 228 228 351 46 228 227 336 228 336 87 228 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1302-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
87	NUT GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1302-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1302-
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98080-966-0	01	1	1302-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 L=20	0-95235-535-0	01	1	1302-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	1302-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1302-1504
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26	1-09701-236-0	01	1	1302-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-152-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-2	01	1	1302-
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1504
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98080-965-0	01	1	1302-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98139-517-0	01	1	1302-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1302-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1302-

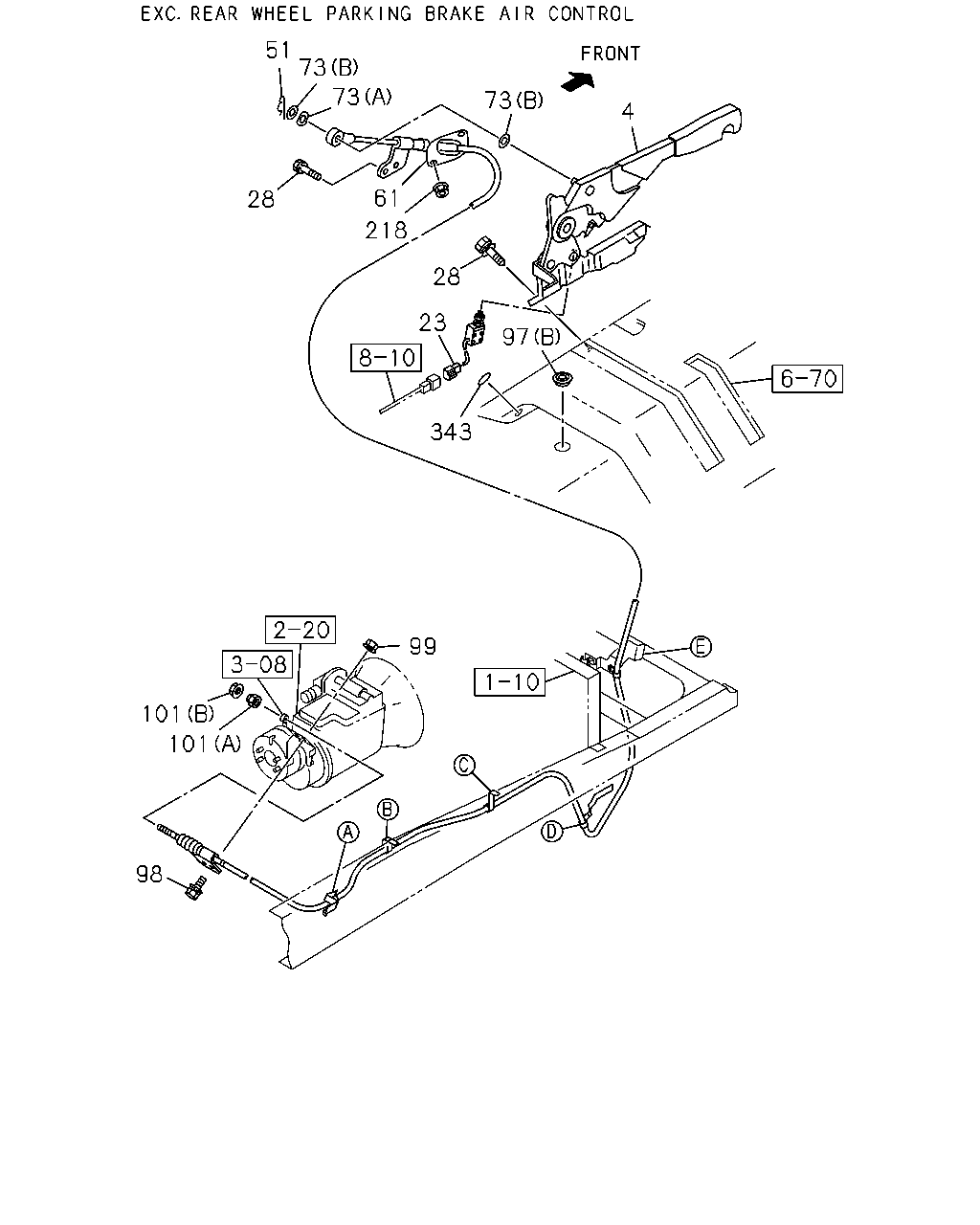

51 28 61 218 73 73 73 4 97 23 28 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	1302-
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1302-
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1302-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1302-
61	CABLE; PARKING BRK MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4316	8-98064-659-7	01	1	1302-
61	CABLE; PARKING BRK MZZ6W M/T(RSA) GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4420	8-98171-945-2	01	1	1302-
61	CABLE; PARKING BRK MZZ6W M/T(RSA) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) L=4300	8-98167-241-2	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1302-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
98	BOLT; RR COVER 4HK1-TCC ENG(RDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
98	BOLT; RR COVER 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	1-46259-007-0	01	1	1302-
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	1302-

97 336 228 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1504
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98080-965-0	01	1	1302-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98139-517-0	01	1	1302-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1302-
