Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#113635) — 416 parça

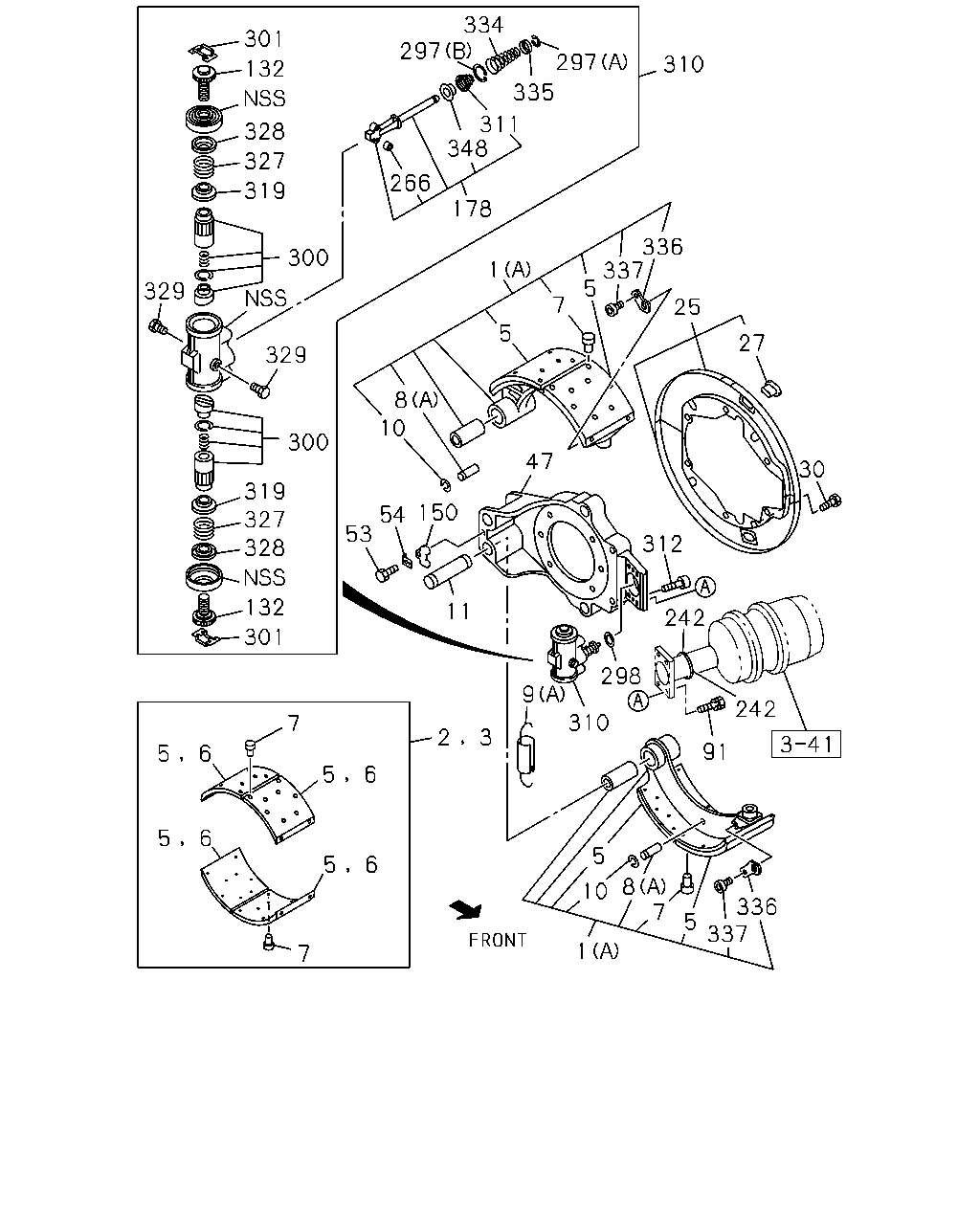

346 301 328 319 327 334 297 297 335 311 348 329 329 319 327 328 301 301 347 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	1302-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	1302-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	1302-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1302-		●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	1302-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1302-		●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	1302-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1302-		●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1302-	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	1302-	●
319	RING; DRIVE	1-47629-200-0	04	1	1302-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1302-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	1302-	●
327	SPRING; ADJ	1-47629-196-0	04	1	1302-		●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	1302-	●
328	CAGE; SPRING	1-47629-192-0	04	1	1302-		●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	1302-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1302-		●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	1302-	●
334	SPRING; ROD	1-47649-041-0	02	1	1302-		●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	1302-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1302-		●
346	REPAIR KIT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-403-0	02	1	1302-	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	1302-		●
347	REPAIR KIT; BOOT,EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-404-0	02	1	1302-	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	1302-		●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	1302-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1302-		●

19 301 99 318 327 245 245 317 319 175 186 243 301 19 99 95 245 319 317 245 327 318 309 97 246 2 3 2 3 94 25 27 30 11 150 54 1 53 47 156 112 5 5 7 7 5 5 7 5 7 5 5 5 5 174 9 8 10 4 5 7 5 4 5 7 9 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	1302-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	1302-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	1302-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-0	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	1302-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	1302-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-0	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	1302-		●
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	1302-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	1302-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	1302-		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1302-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	1302-		●
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	1302-		●
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1302-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	1302-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	1302-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	1302-1309		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1302-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1302-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1302-1405	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1302-1405		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> M10X16	1-47139-173-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1406-1409		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	1-47139-173-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1410-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1302-	●	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1302-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1302-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1302-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1302-	●
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	1302-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1302-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1302-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	1302-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1302-	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1302-	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	1302-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	1302-		●
156	WASHER; LK,WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1302-	●
174	COVER; CYL,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1302-	●
175	HANGER; RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	1302-	●
186	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1302-	●
243	BOLT; WHEEL CYL COVER SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	1302-	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1302-	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1302-	●
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1302-	●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	1302-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1302-		●
309	SPRING; ADJUSTER SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1302-	●
317	RING; RETAINER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1302-	●
318	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1302-	●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1302-	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	1302-	●
319	RING; DRIVE	1-47629-200-0	04	1	1302-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1302-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	1302-	●
327	SPRING; ADJ	1-47629-196-0	04	1	1302-		●

301 328 319 327 300 329 329 300 319 327 328 132 301 5 5 6 6 7 5 6 5 6 7 132 334 297 297 335 311 348 266 310 178 1 10 8 5 7 5 337 336 53 47 54 150 25 312 242 9 310 2 3 1 27 30 298 242 91 5 10 8 7 5 337 11 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	1302-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	1302-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	1302-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-0	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	1302-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	1302-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-0	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	1302-		●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	1302-		●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	1302-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	1302-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	1302-		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1302-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	1302-		●
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	1302-		●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	1302-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	1302-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	1302-1309		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1302-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1302-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1302-1405	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1302-1405		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> M10X16	1-47139-173-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1406-1409		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	1-47139-173-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1410-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1302-	●	●
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	1302-1306	●
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45	1-47139-174-0	08	1	1307-	●
91	BOLT; CHAMBER M10X53	1-47139-148-0	08	1	1302-		●
132	SCREW; ADJ,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47623-035-2	04	1	1302-	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	1302-		●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1302-	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	1302-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	1302-		●
178	WEDGE; RR WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47640-012-0	02	1	1302-	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	1302-		●
242	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47159-186-0	04	1	1302-	●
242	SEAL	1-47159-186-0	04	1	1302-		●
266	ROLLER; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47643-007-0	04	1	1302-	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	1302-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	1302-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	1302-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	1302-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1302-		●
298	GASKET BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48259-231-0	02	1	1302-	●
298	GASKET	1-48259-231-0	02	1	1302-		●
300	SLEEVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-247-1	04	1	1302-	●
300	SLEEVE	1-47629-247-1	04	1	1302-		●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1302-	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	1302-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1302-		●
310	EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47601-087-0	02	1	1302-	●
310	EXPANDER	1-47601-087-0	02	1	1302-		●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	1302-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1302-		●
312	BOLT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1302-	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1302-		●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1302-	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	1302-	●
319	RING; DRIVE	1-47629-200-0	04	1	1302-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1302-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	1302-	●
327	SPRING; ADJ	1-47629-196-0	04	1	1302-		●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	1302-	●
328	CAGE; SPRING	1-47629-192-0	04	1	1302-		●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	1302-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1302-		●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	1302-	●
334	SPRING; ROD	1-47649-041-0	02	1	1302-		●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	1302-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1302-		●
336	PLATE; PIVOT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-152-0	04	1	1302-	●
336	PLATE; PIVOT	1-47119-152-0	04	1	1302-		●
337	BOLT; PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-153-0	04	1	1302-	●
337	BOLT; PLATE	1-47119-153-0	04	1	1302-		●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	1302-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1302-		●

25 59 112 112 111 100 99 98 96 97 94 99 100 30 27 62 61 60 58 57 56 51 11 54 52 47 94 51 9 55 15 7 5 7 5 4 11 9 149 8 8 5 7 7 5 2 3 6 6 5 7 7 6 5 6 1 53 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	1302-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	1302-	●
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	1302-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	1302-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	1302-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1302-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-0	02	1	1302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	1302-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	1302-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-0	02	1	1302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	1302-		●
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	1302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	1302-		●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	1302-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	1302-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1302-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	1302-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	1302-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	1302-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	1302-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1302-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	1302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	1302-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	1302-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	1302-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1302-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	1302-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1302-1512	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	1601-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	1302-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	1302-1309		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1302-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1302-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-1512		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1601-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1302-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1302-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1302-	●
52	BOLT; ANCHOR BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	1302-	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1302-1405	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE> M10X16	0-20851-016-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	0-20851-016-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1302-1405		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE> M10X16	1-47139-173-0	02	1	1406-1409	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1406-1409		●
53	BOLT; LOCK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M10X16	1-47139-173-0	02	1	1410-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1410-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1302-	●	●
55	PLATE; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1302-	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1302-	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1302-	●
58	BOOT; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1302-	●
59	WASHER; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1302-	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1302-	●
61	INDICATOR; WEAR,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1302-	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1302-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1302-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1302-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1302-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1302-	●
96	SCREW; BLEEDER,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1302-	●
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	1302-	●
98	SPRING; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1302-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1302-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1302-	●
100	ROD; PUSH,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1302-	●
111	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1302-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	1302-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1302-	●
149	PIN; GUIDE RETURN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
