◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#113633) — 112 parça

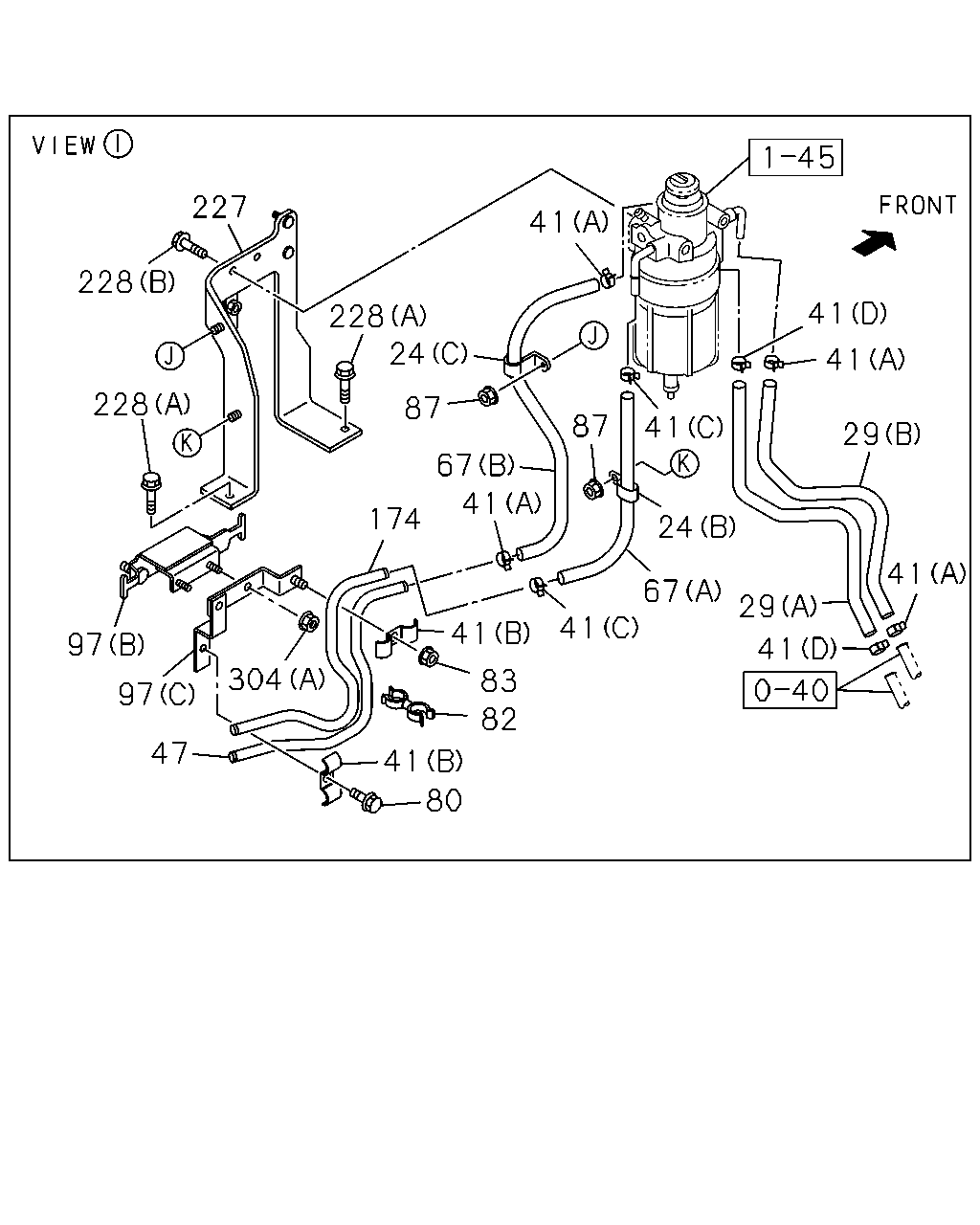

çizim 327083
227 228 228 97 97 304 47 41 80 82 83 41 41 41 174 67 87 24 228 41 87 41 24 67 41 41 29 29 41 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1405-
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1302-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1302-1404
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1302-1404
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1405-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 1302-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 1302-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1302-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W) (C) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1302-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1302-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1302-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1302-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1302-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1302-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1302-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 1302-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1302-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1302-
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E) 		8-98100-216-1 01 1 1302-1404
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 1302-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1302-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1302-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1302-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1302-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1405-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1302-

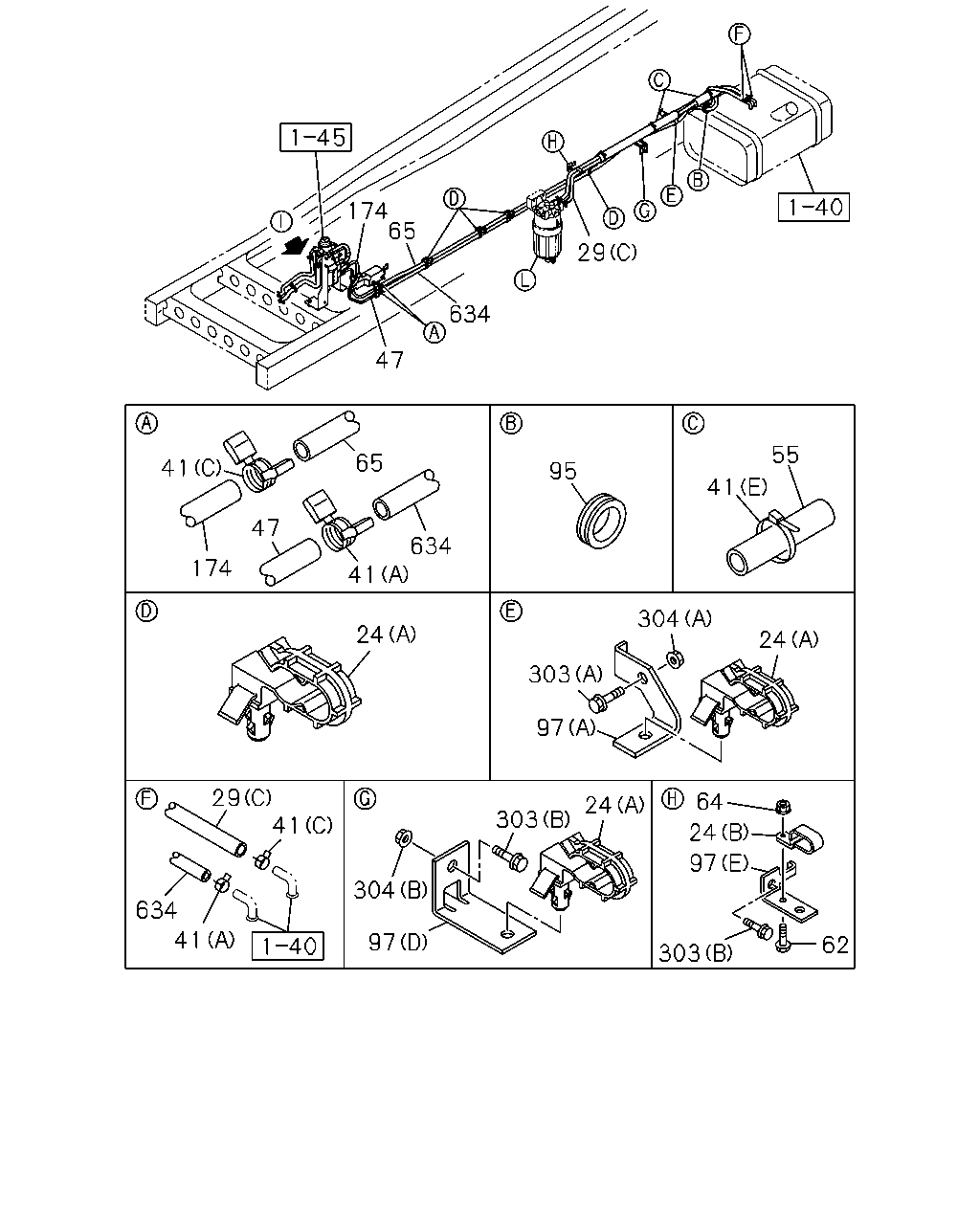

çizim 327199
29 634 47 174 41 47 174 65 41 634 95 41 55 24 304 303 97 24 29 41 634 41 304 97 303 64 24 97 303 62 24 65
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1405-
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1302-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1302-1404
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1302-1404
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1405-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 1302-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 1302-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1302-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W) (C) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1302-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1302-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1302-
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1302-
62 BOLT; CLIP FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1404
62 BOLT; CLIP FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8X30 FLANGE 		0-28650-830-0 01 1 1405-
64 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 01 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3300 SERVICED BY L=8000 		0-01260-800-0 01 1 1302-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 1302-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1302-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1302-
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E) 		8-98100-216-1 01 1 1302-1404
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 1302-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1302-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-1404
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1302-1404
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1405-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1405-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 1302-
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 1302-
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 1302-
çizim 327201
304 345 345 279 228 39 41 29 65 41 39
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W) (C) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1302-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1302-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1302-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 1302-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3300 SERVICED BY L=8000 		0-01260-800-0 01 1 1302-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1302-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1302-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1302-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91180-210-0 01 1 1302-1404
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1405-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1302-
