Sayfa 1-41 - Isuzu EPC

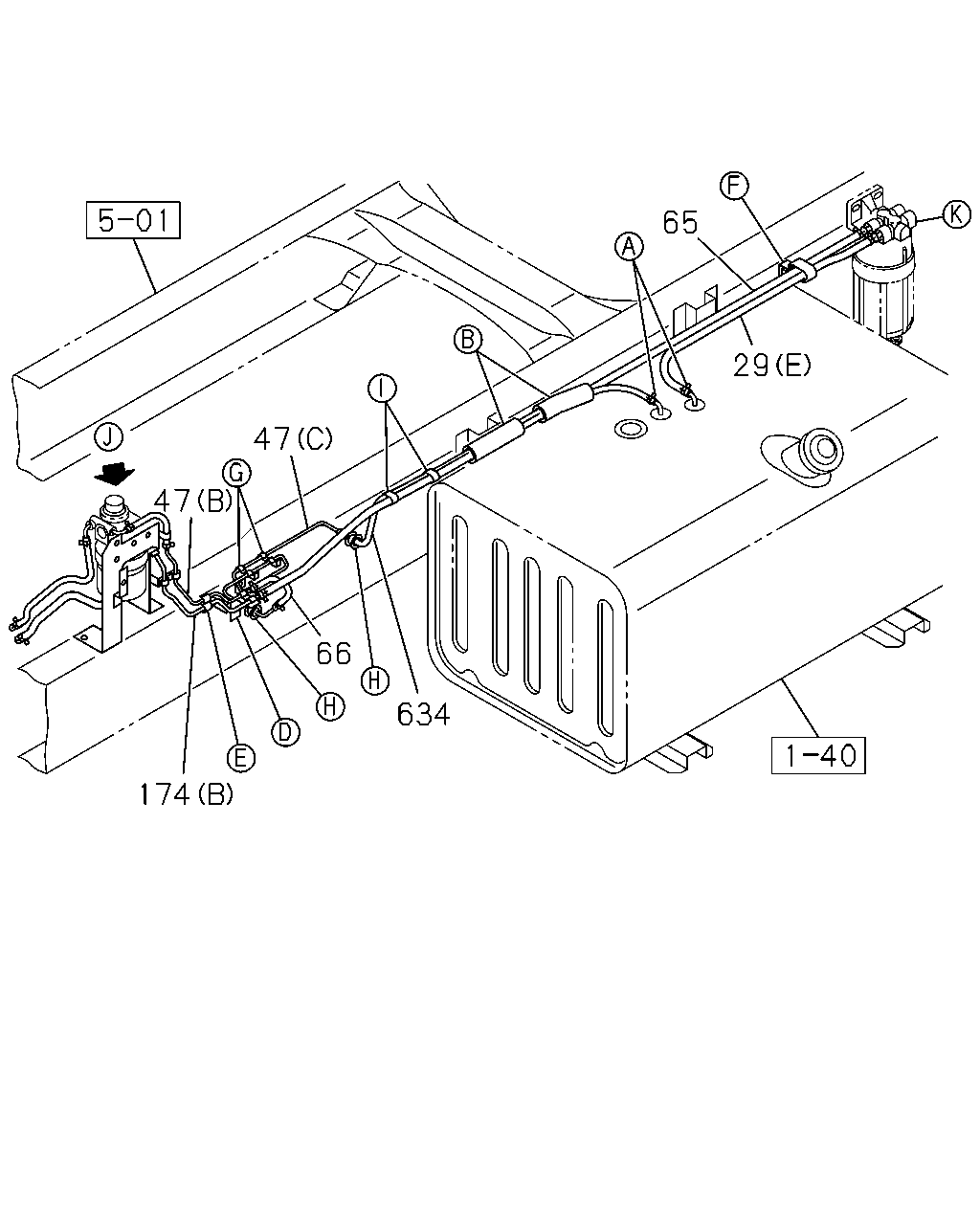

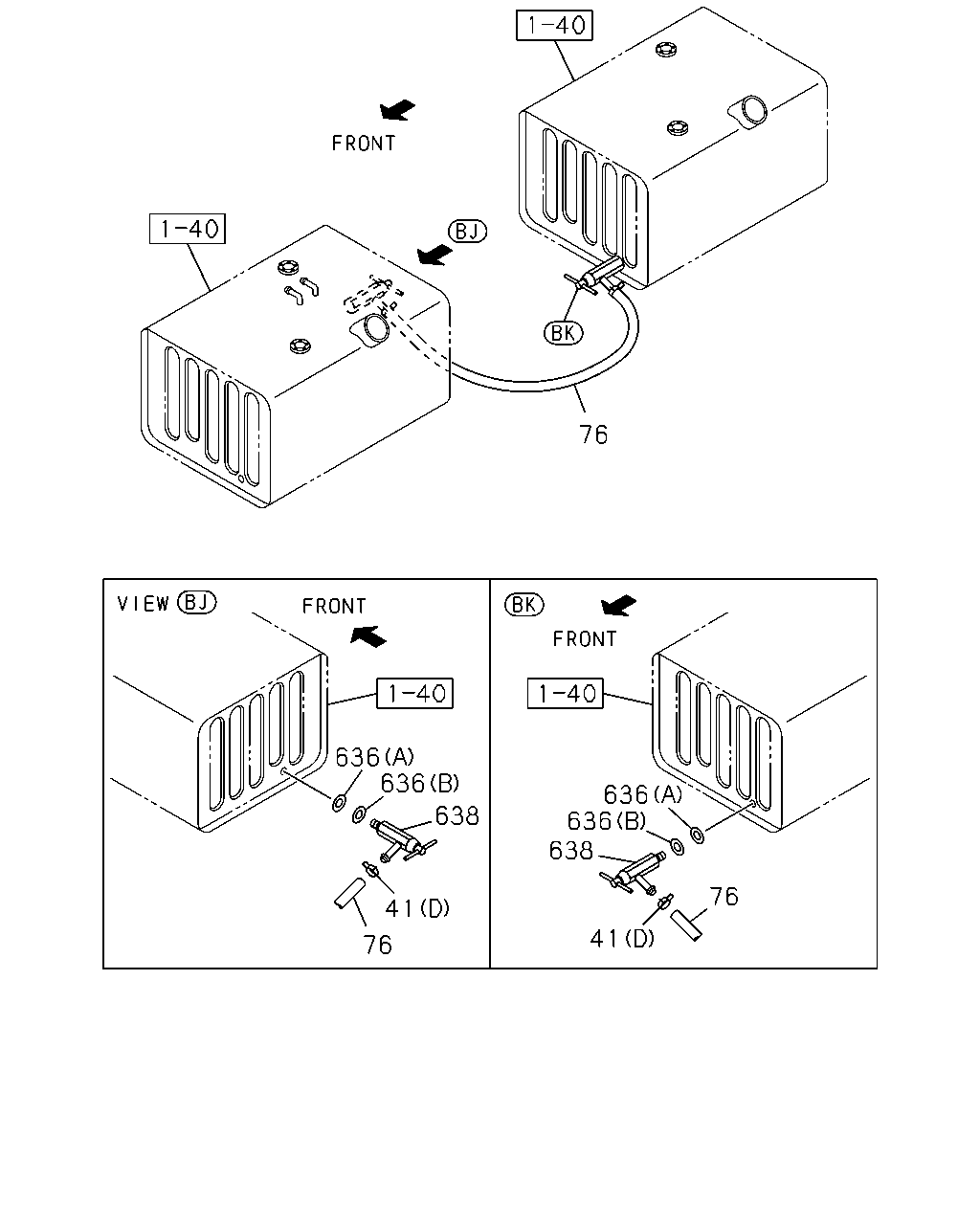

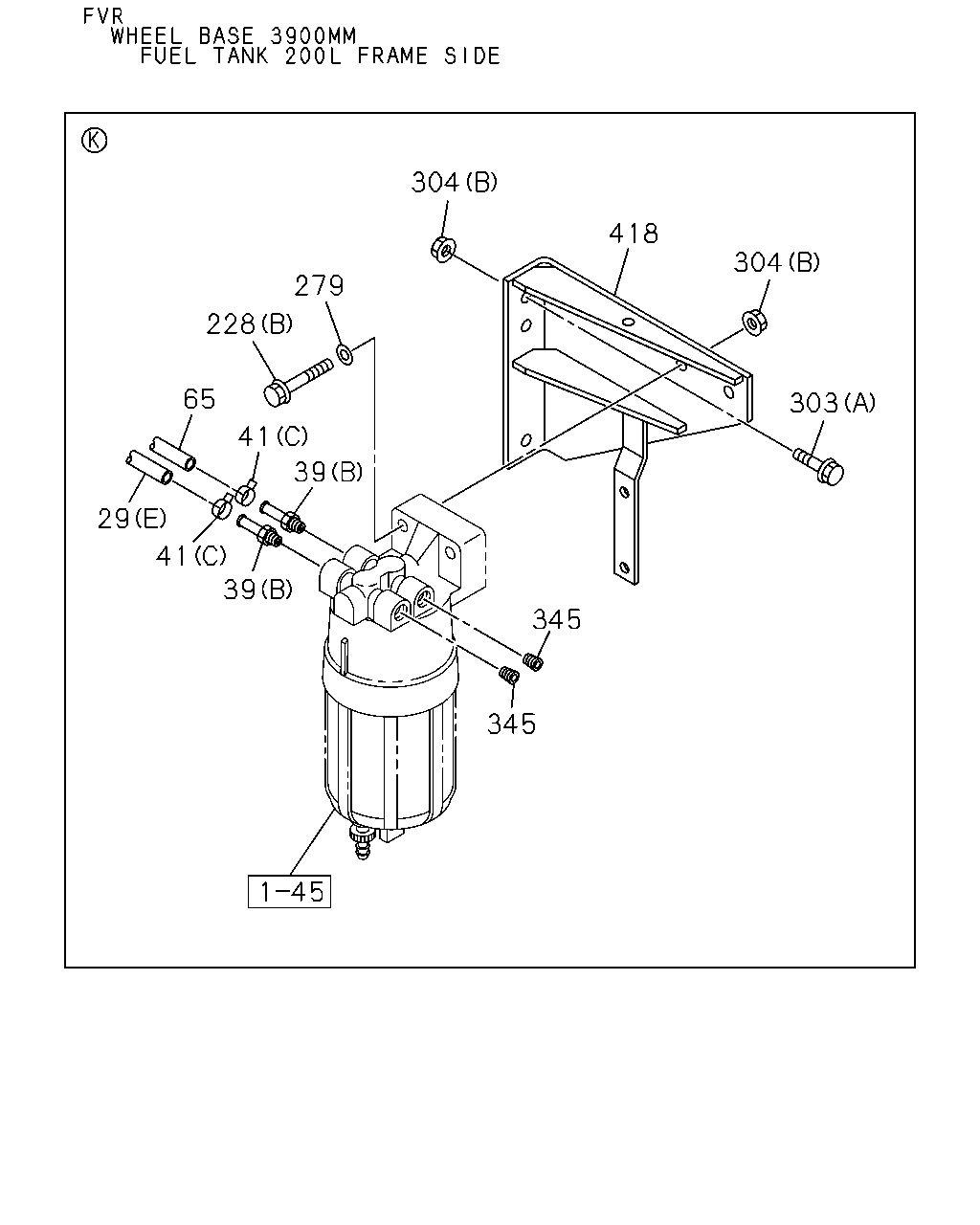

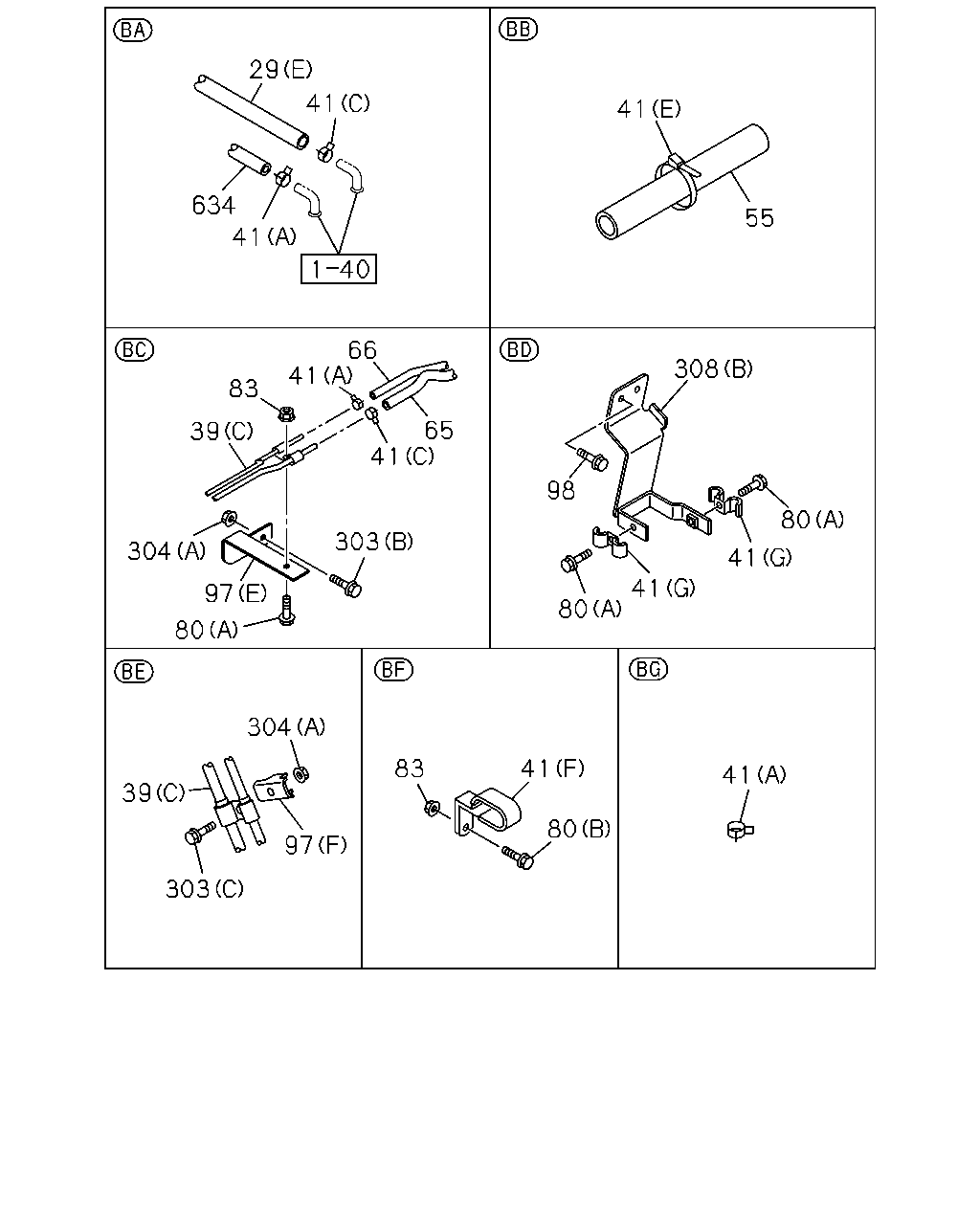

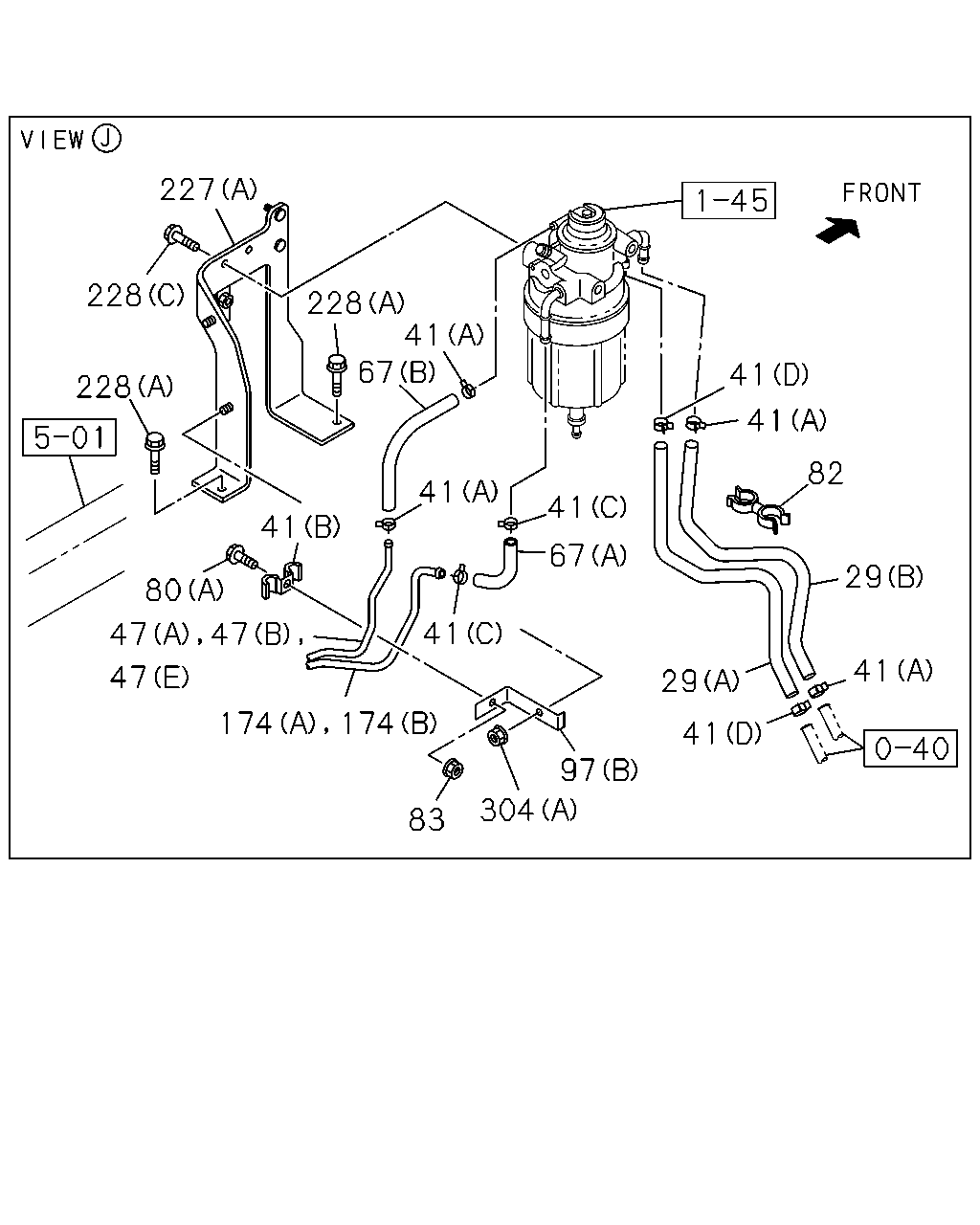

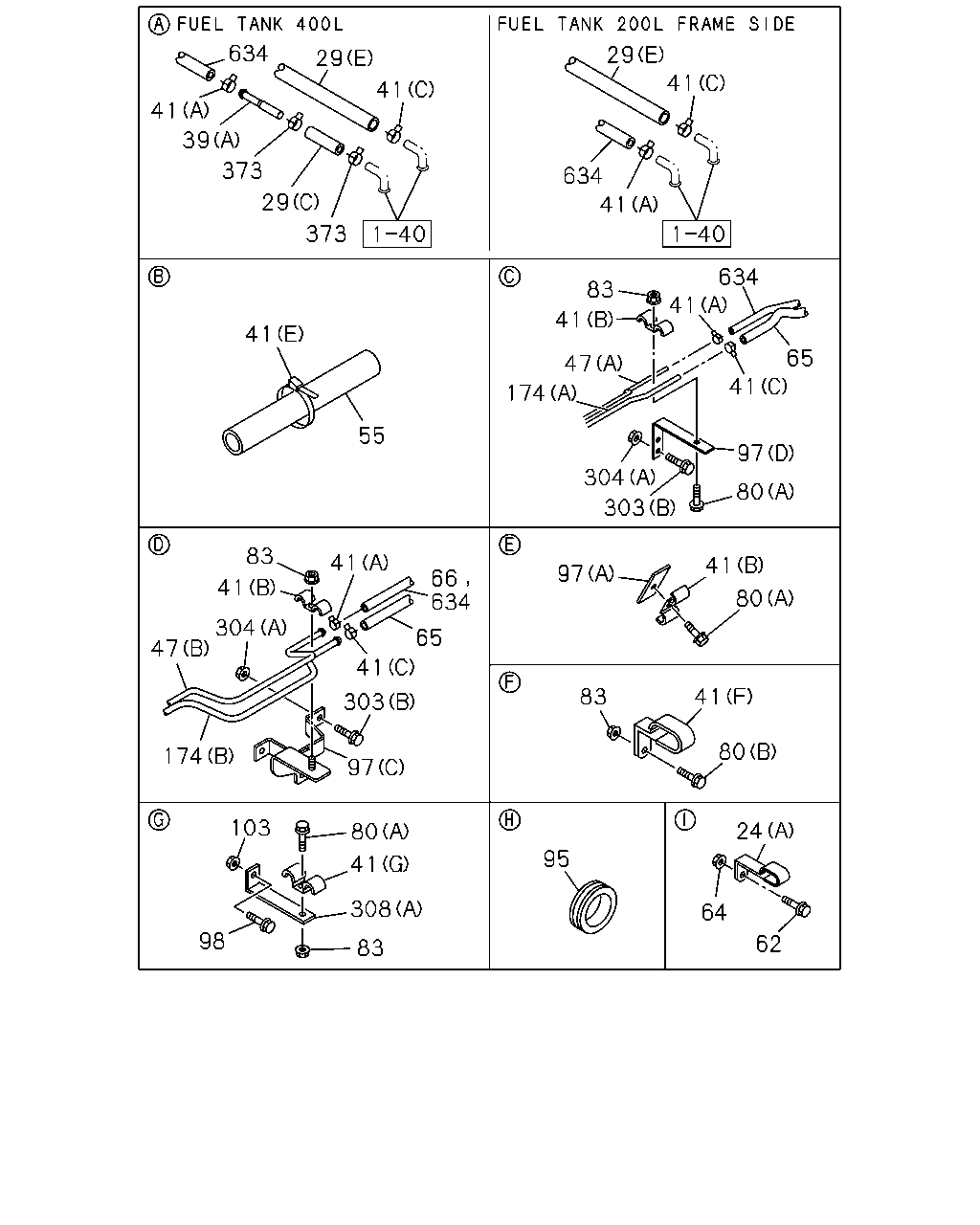

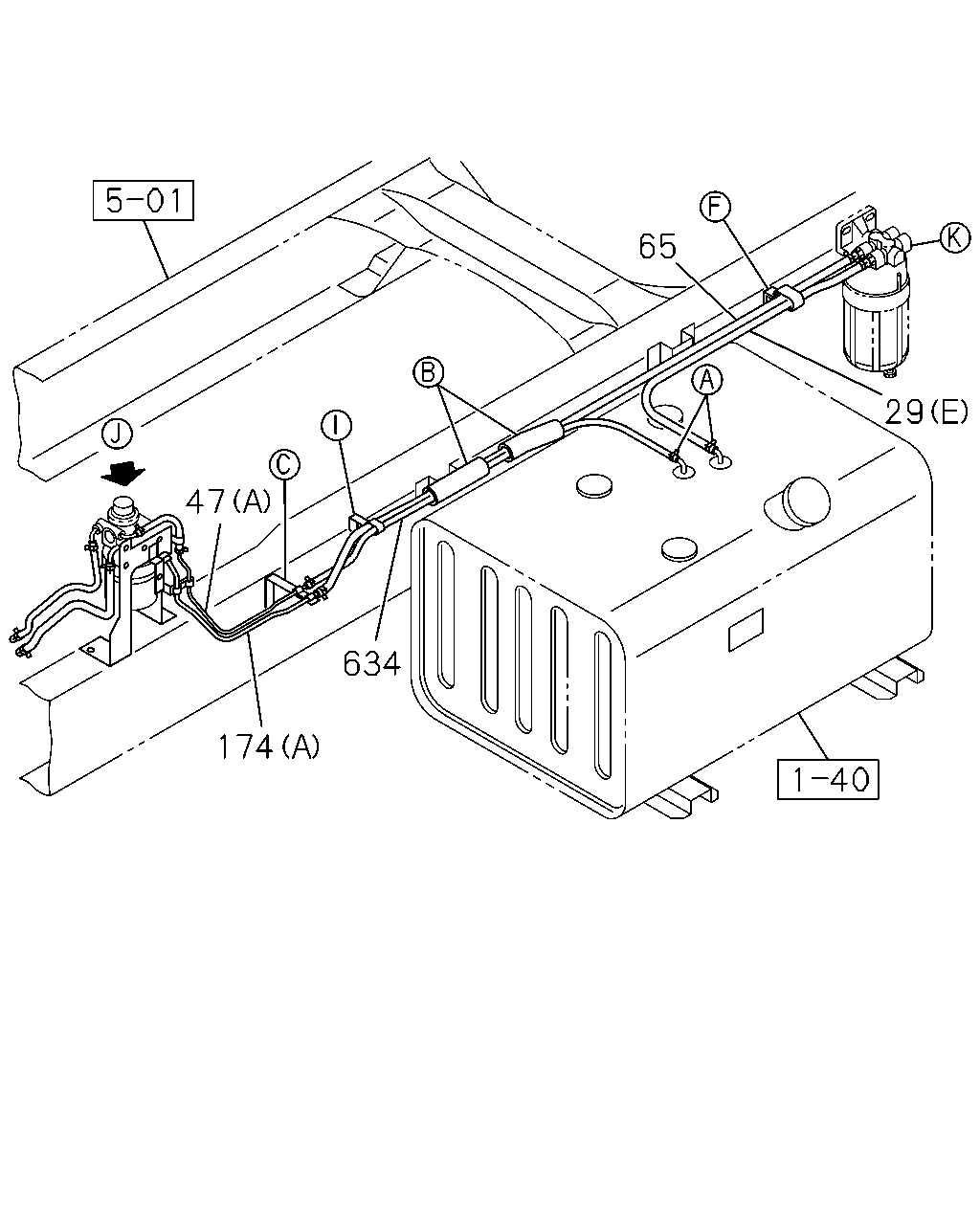

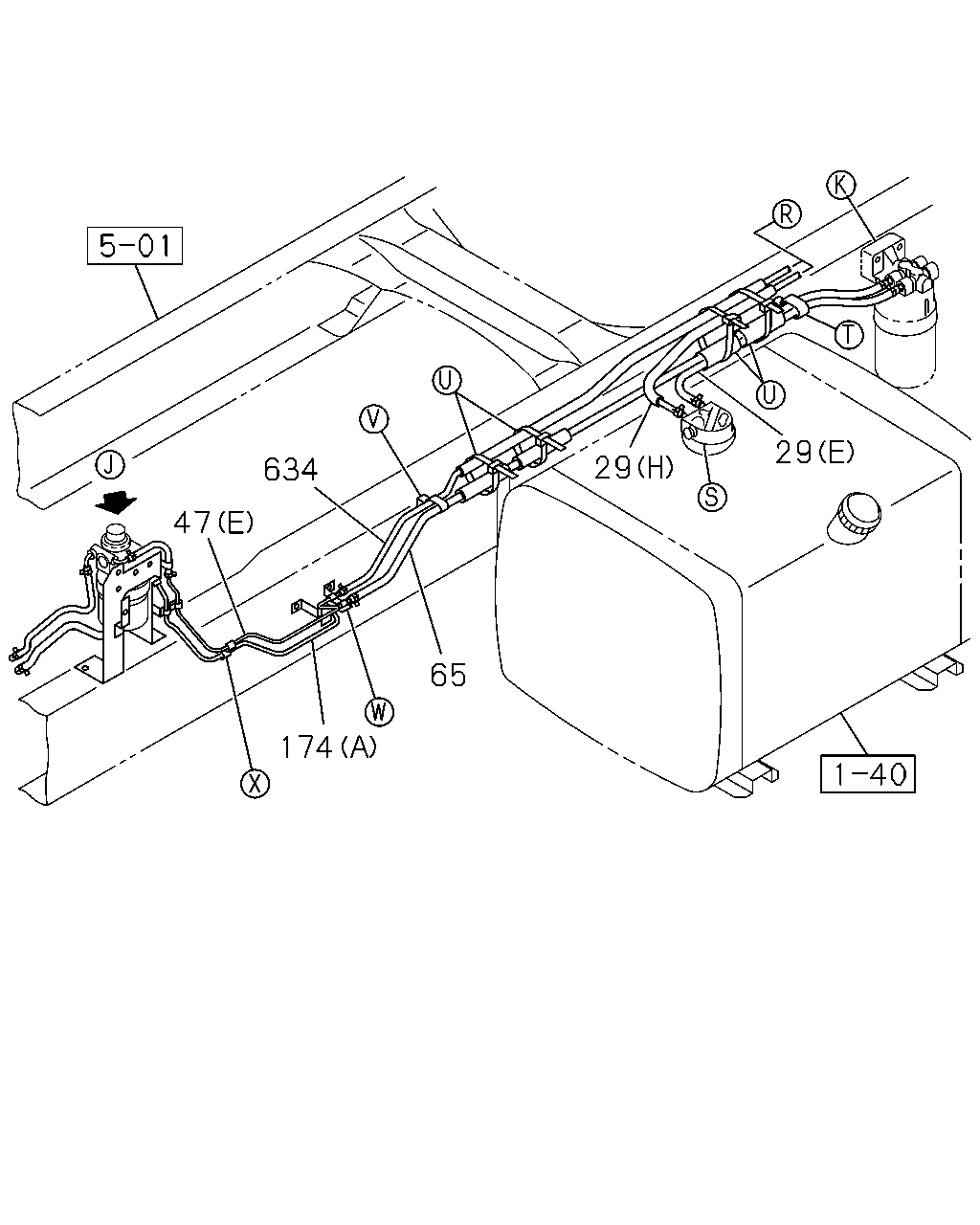

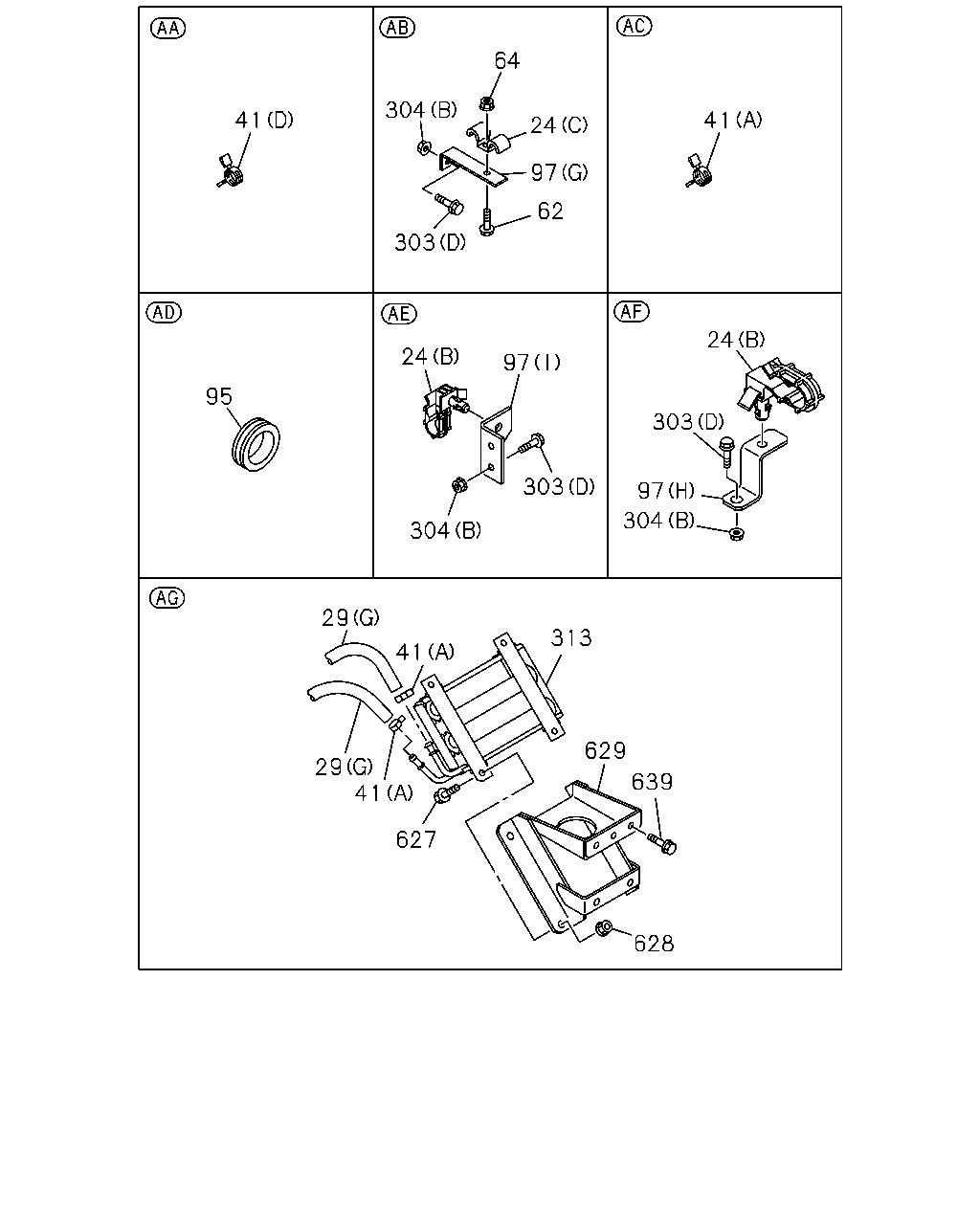

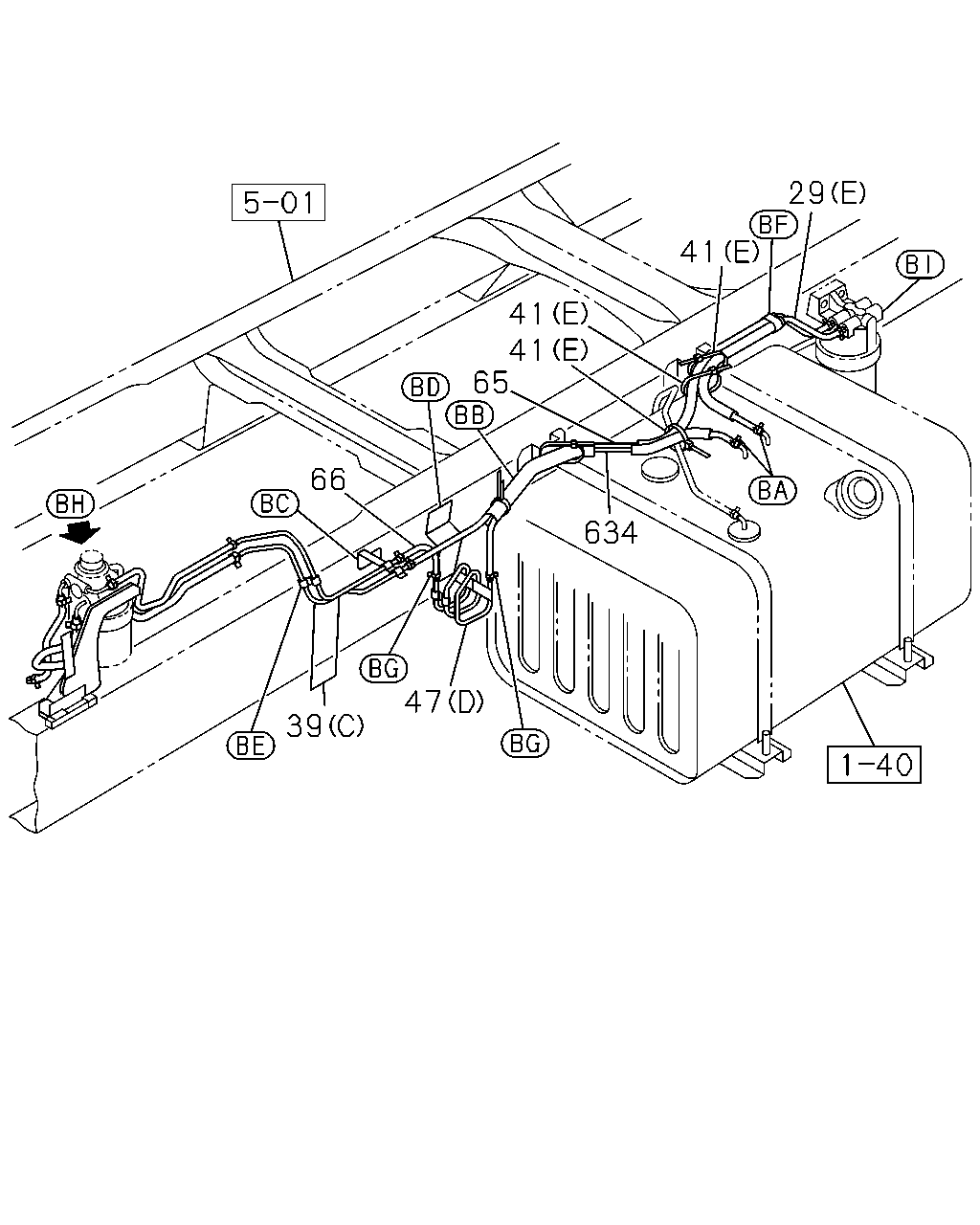

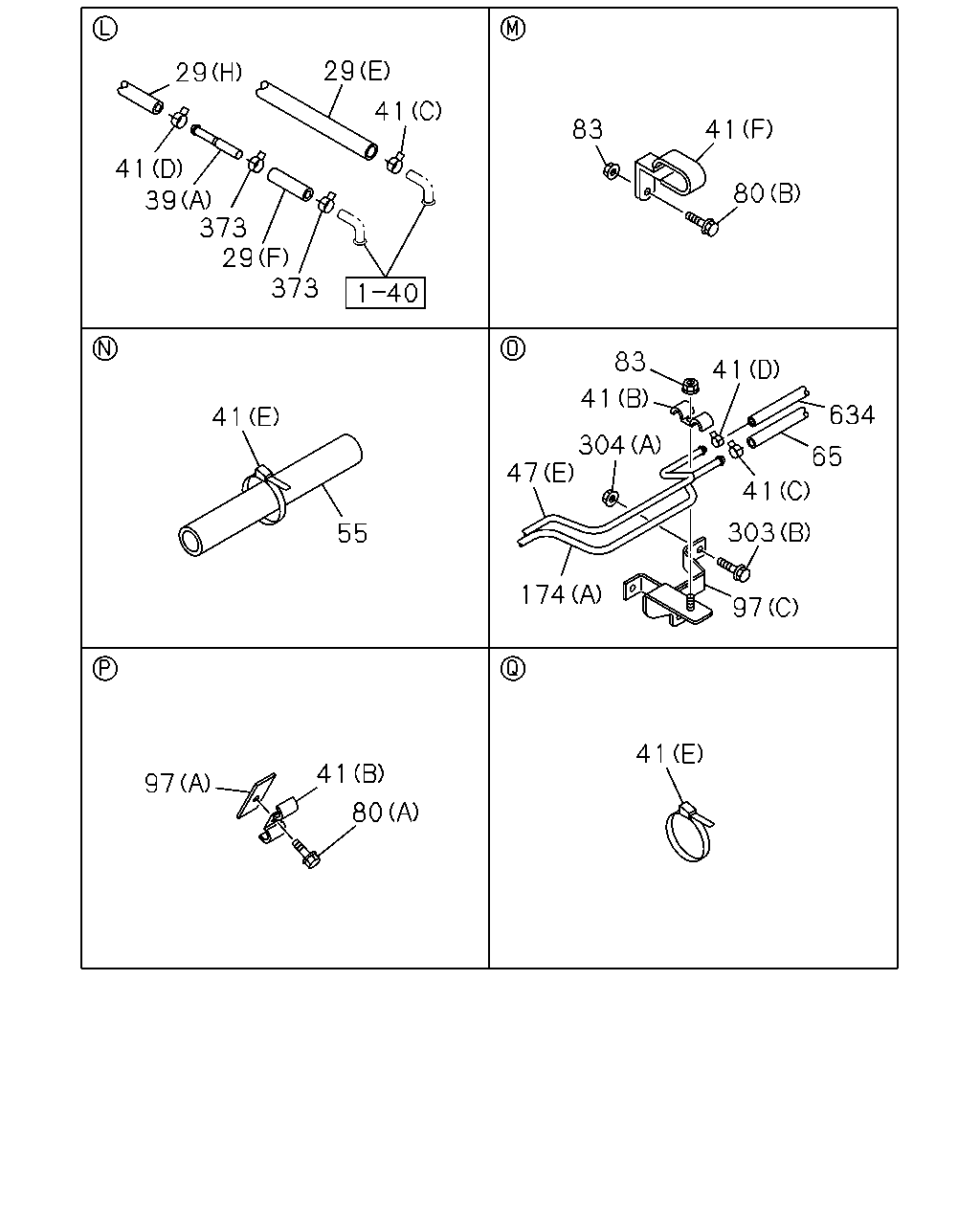

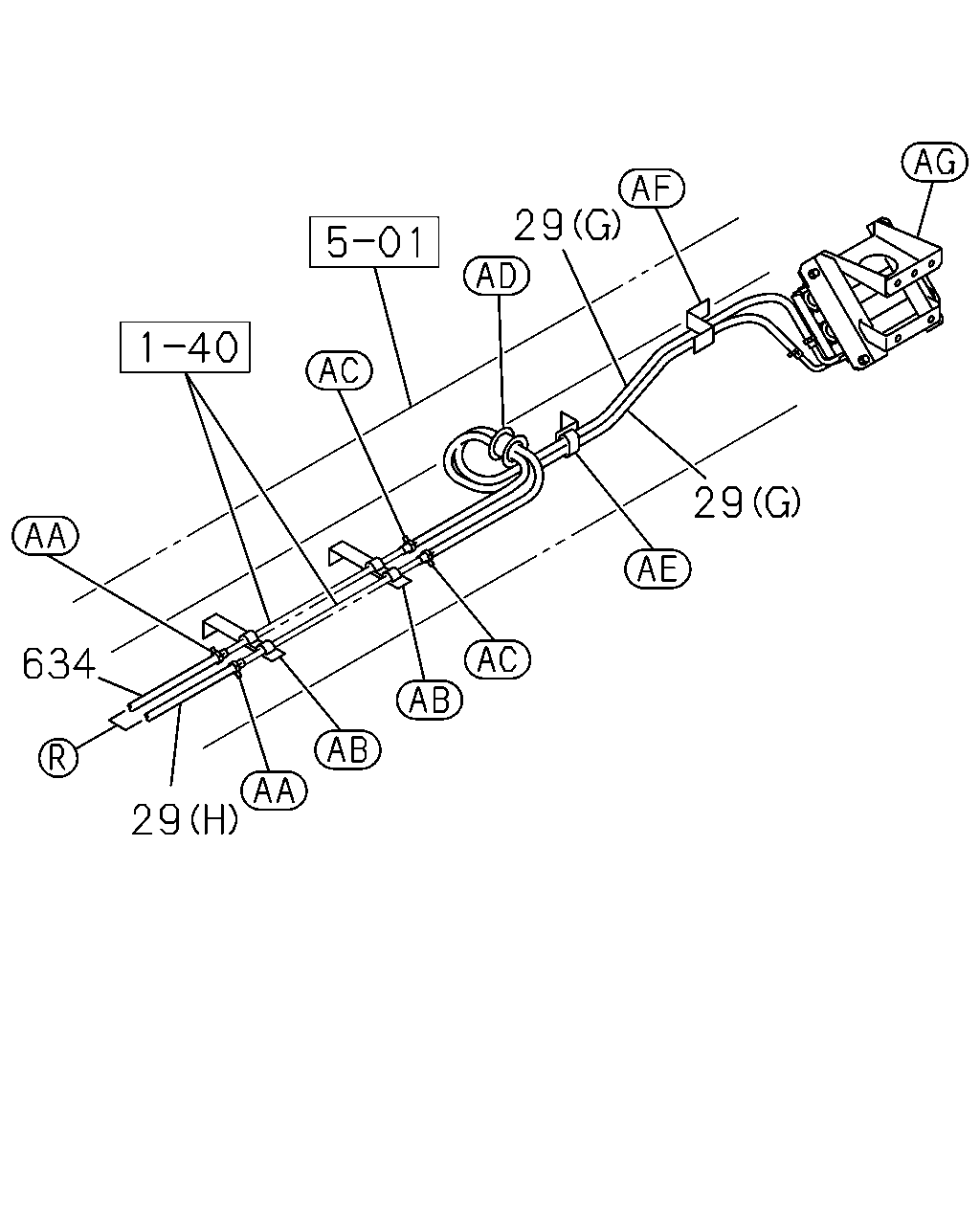

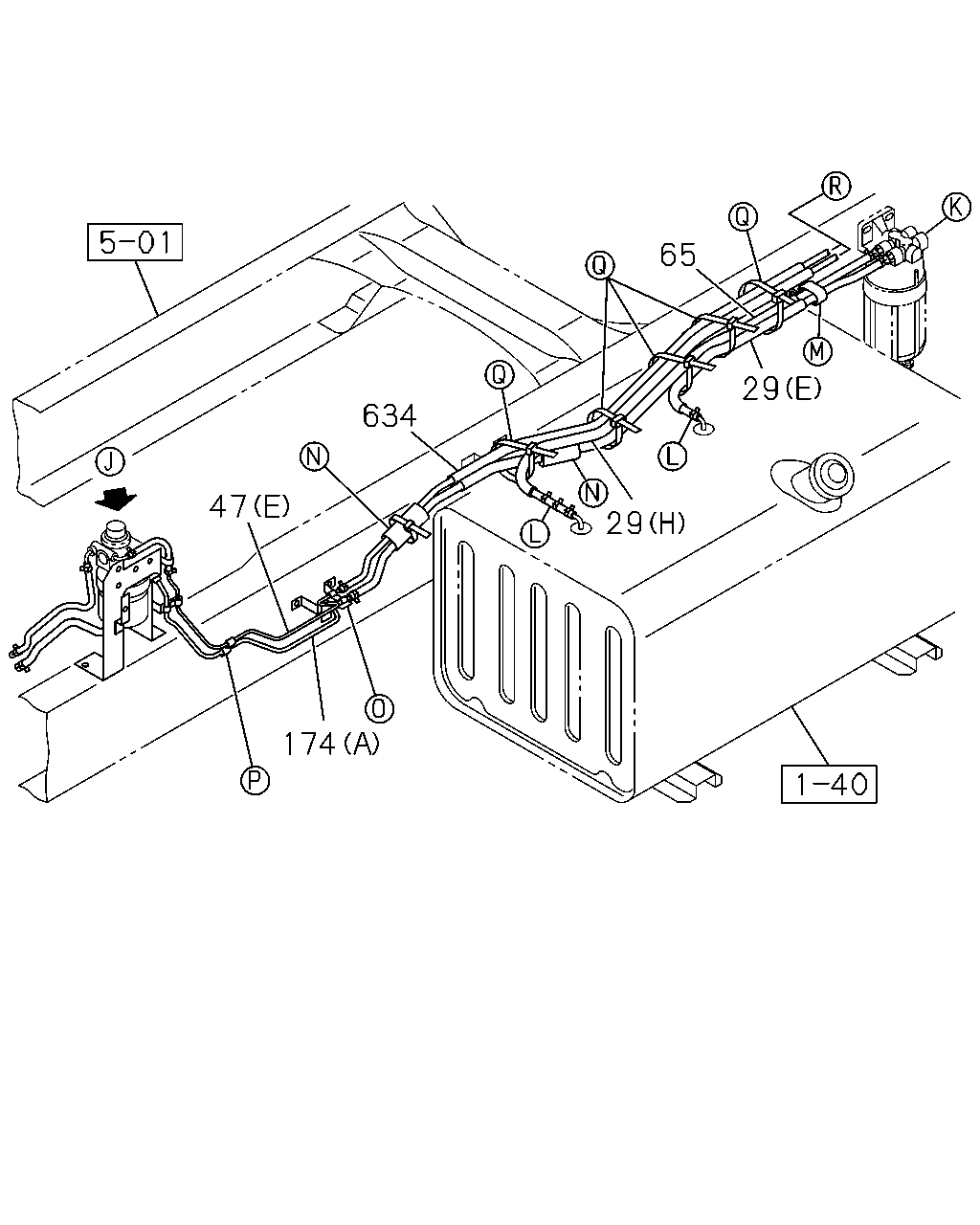

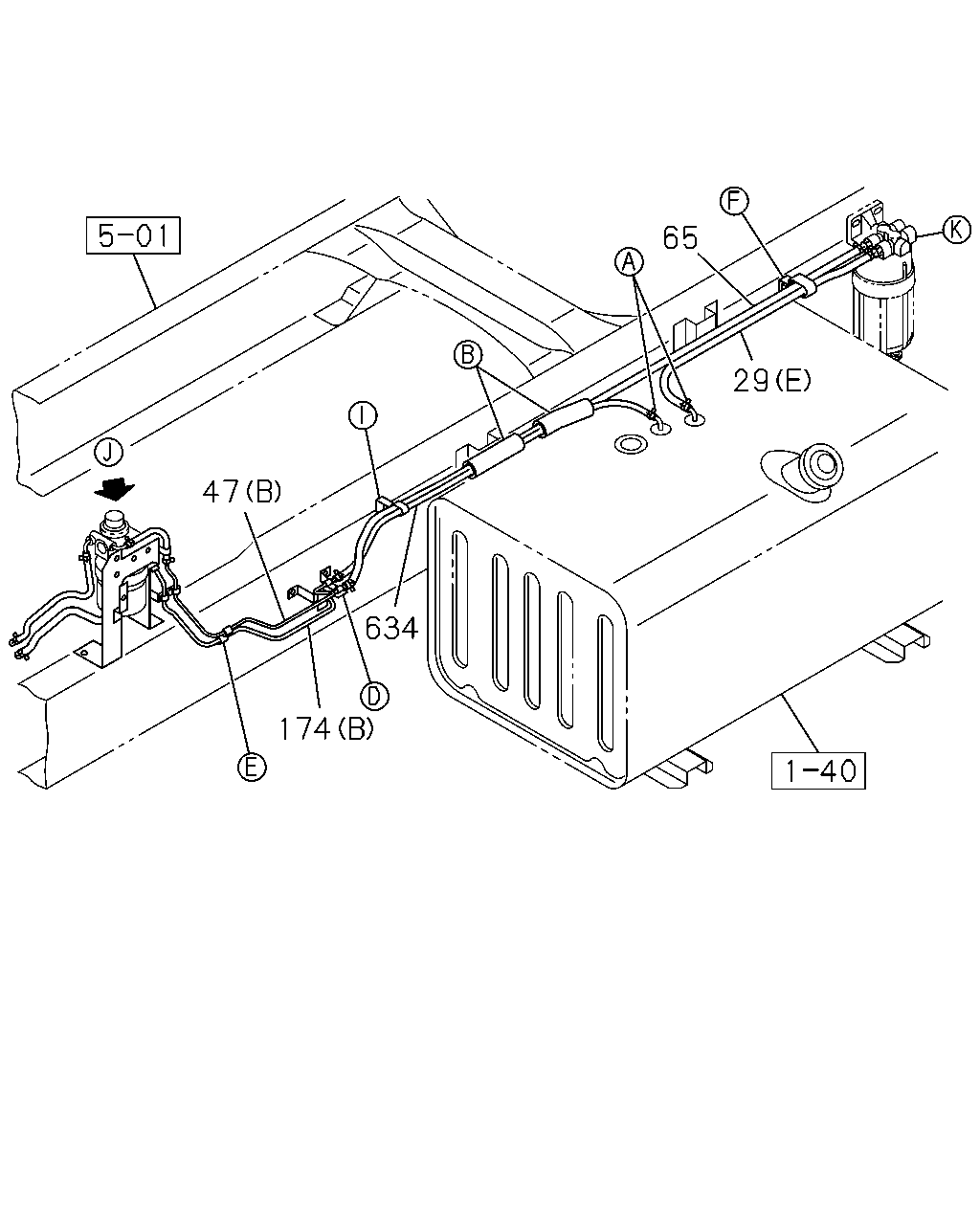

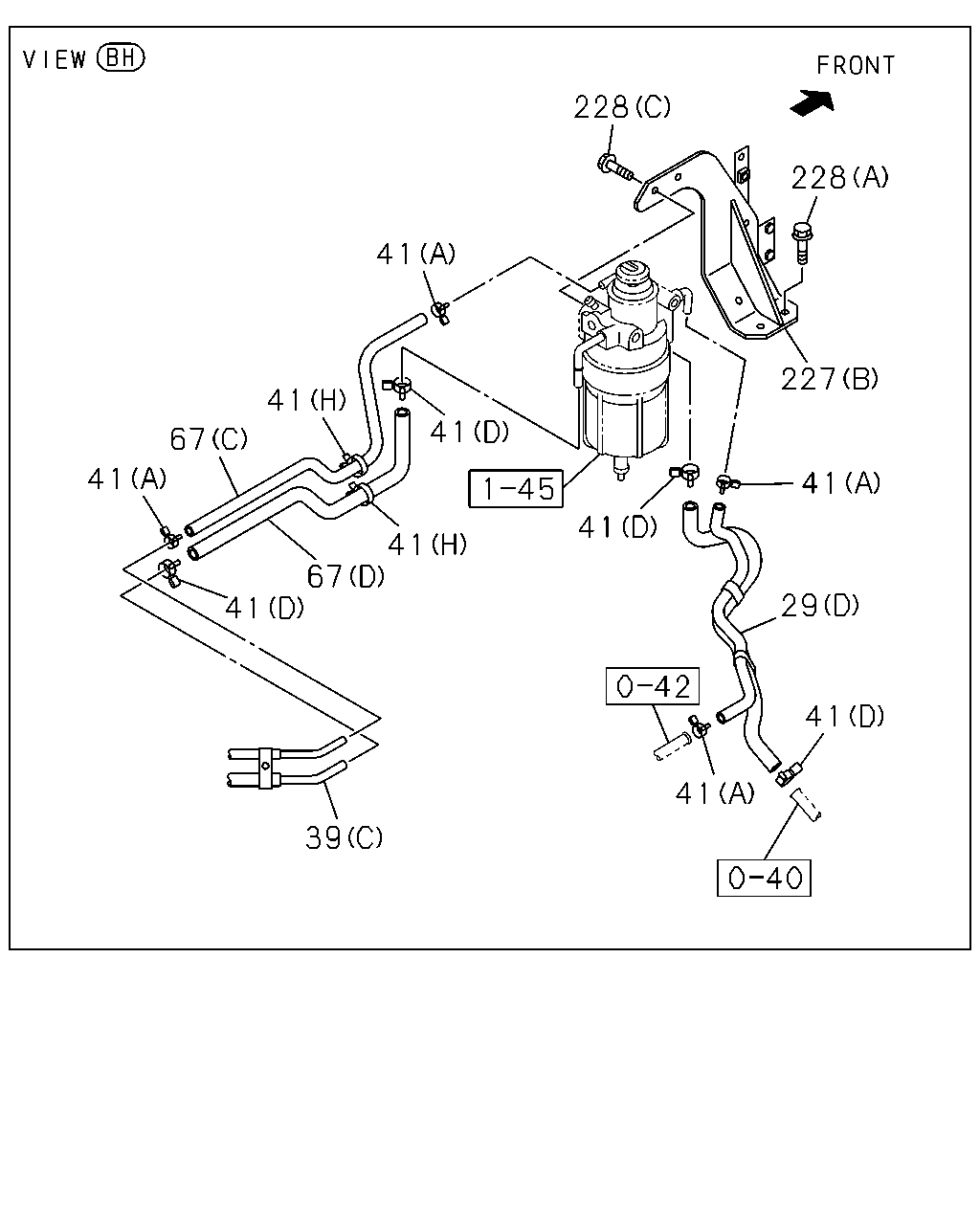

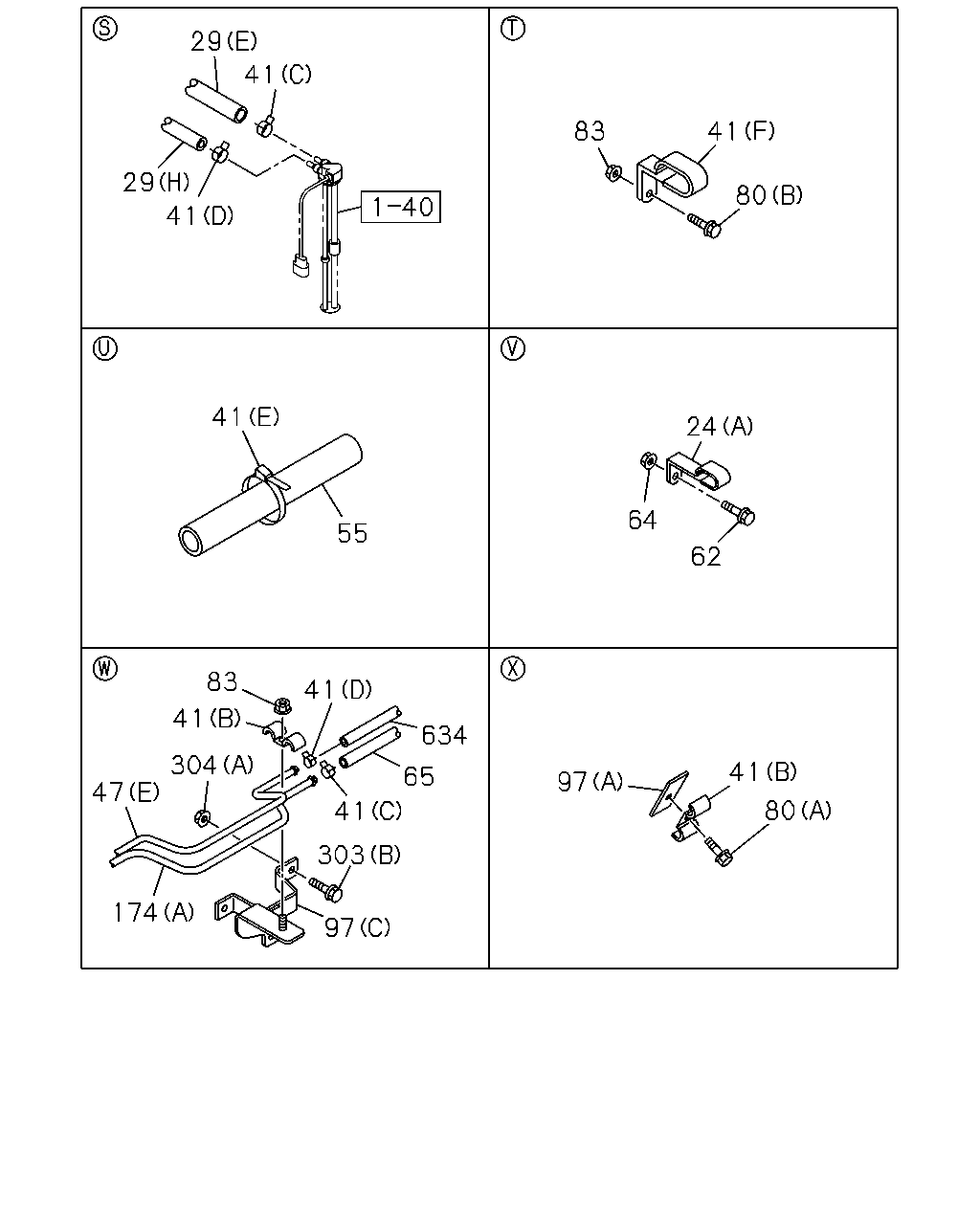

1-41 — FUEL PIPING; CHASSIS (#113628) — 2518 parça

47 174 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

29 29 41 373 39 29 41 373 41 55 41 97 80 83 41 80 83 41 41 47 74 304 634 65 41 303 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-1505	●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1302-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1401		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-		●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-1505	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-1401	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1302-1401		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1402-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1402-		●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
373	CLAMP; HOSE,FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> ID=13	8-94238-571-0	02	1	1506-	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1302-1505	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	1302-1505		●
373	CLAMP; HOSE,FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1506-	●
373	CLAMP; HOSE,FUEL 6HK1-TCS ENG(80L) ID=16	8-94238-568-0	02	1	1506-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

174 66 47 47 65 29 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

634 47 174 65 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

634 47 174 65 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

634 29 41 39 373 29 373 41 55 83 41 41 304 47 66 634 41 65 303 97 174 103 80 41 98 308 83 29 41 634 41 634 41 83 41 174 47 304 41 65 97 303 80 41 80 41 83 80 24 64 62 95 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (B) ID=14.5 & 14.5	1-09701-246-1	03	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1512-		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1302-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-1505	●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1302-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1302-	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1506-1511		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8X30 FLANGE	0-28650-830-0	02	1	1302-	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-1505		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1506-1511		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1512-		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1506-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1401		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-		●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-1505	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-1401	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1302-1401		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1402-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1402-		●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCC ENG(81L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1506-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1302-1304	●
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	02	1	1305-	●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1305-	●
103	NUT; BRKT 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS) (B)	8-98213-361-0	01	1	1305-	●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) L=75	1-47478-323-0	02	1	1302-	●
373	CLAMP; HOSE,FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> ID=13	8-94238-571-0	02	1	1506-	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1302-1505	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	1302-1505		●
373	CLAMP; HOSE,FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1506-	●
373	CLAMP; HOSE,FUEL 6HK1-TCS ENG(80L) ID=16	8-94238-568-0	02	1	1506-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

65 47 634 174 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

29 634 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

29 29 41 41 41 55 83 41 47 174 304 41 41 634 65 303 97 83 41 80 24 64 62 97 41 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (B) ID=14.5 & 14.5	1-09701-246-1	03	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1512-		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1302-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-1505	●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1302-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1302-	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1506-1511		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8X30 FLANGE	0-28650-830-0	02	1	1302-	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-1505		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1506-1511		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1512-		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1506-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1401		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-		●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-1505	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-1401	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1302-1401		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1402-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1402-		●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

41 95 628 639 629 313 41 627 41 29 29 304 97 303 24 303 304 97 24 62 303 97 41 304 24 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (B) ID=14.5 & 14.5	1-09701-246-1	03	1	1506-	●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1302-1505		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1506-1511		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (A) ID=20 L=70	1-09701-033-0	01	1	1512-	●
24	CLIP; FUEL HOSE (A) ID=20 L=70	1-09701-033-0	01	1	1512-		●
24	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1302-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-1511	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1506-1511		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
62	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8X30 FLANGE	0-28650-830-0	02	1	1302-	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-1505		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-1511	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1506-1511		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1512-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1512-		●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
64	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	02	1	1506-	●
64	NUT; CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCC ENG(81L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1506-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
313	COOLER ASM; FUEL 6HK1-TCC ENG(81L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ>	8-98227-679-1	01	1	1506-	●
627	BOLT; FUEL CLR 6HK1-TCC ENG(81L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> M6X25 FLANGE	0-28650-625-0	04	1	1506-	●
628	NUT; FUEL CLR 6HK1-TCC ENG(81L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> M6 FLANGE	0-91180-106-0	04	1	1506-	●
629	BRACKET; FUEL CLR 6HK1-TCC ENG(81L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ>	8-98224-320-1	01	1	1506-	●
639	BOLT; BRKT,FUEL CLR 6HK1-TCC ENG(81L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> M10X30 FLANGE	0-28651-030-0	04	1	1506-	●

227 304 83 174 174 97 41 29 41 29 82 41 41 41 41 41 67 67 228 41 41 47 80 47 228 47 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY 6HK1-TCC ENG(81L) (B) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505		●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1506-		●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-98206-489-0	01	1	1305-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D)	8-98208-821-0	01	1	1305-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1401		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-		●
82	CLIP; FUEL HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1302-	●
82	CLIP; FUEL HOSE 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1302-		●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-1505	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-1401	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1302-1401		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1402-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1402-		●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1302-1505	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) L=685	8-98129-920-0	01	1	1506-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98141-585-0	01	1	1302-		●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1305-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-1507	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L) (A)	8-98044-366-3	01	1	1302-1507		●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1508-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L) (A)	8-98044-366-3	01	1	1508-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●

345 345 39 41 29 65 39 228 279 304 418 304 303 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20>	8-98136-381-0	01	1	1302-	●

29 279 345 345 228 304 39 41 39 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●

29 41 41 65 41 634 47 39 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (E) L=699	8-98286-297-0	01	1	1506-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (D)	8-98213-750-0	01	1	1305-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) L=787	8-98127-647-0	01	1	1302-	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=688	8-98129-921-0	01	1	1302-	●
47	PIPE; FUEL,RETURN (A) L=657 SERVICED BY L=660	1-47428-842-0	01	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

279 345 345 304 39 41 65 39 41 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●

76 636 636 638 41 76 636 636 76 41 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
76	HOSE; FUEL,TANK FUEL TANK 200L+200L<NF7> L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1402-	●
636	GASKET; FUEL FUEL TANK 200L+200L<NF7> (A)	8-98132-632-0	02	1	1402-	●
636	GASKET; FUEL FUEL TANK 200L+200L<NF7> (B)	8-98132-633-0	02	1	1402-	●
638	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	8-98132-631-0	02	1	1402-	●

41 41 80 83 97 303 304 39 308 80 41 41 80 98 55 41 65 41 303 97 80 304 39 83 66 41 41 634 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-1505	●
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1506-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-1401		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-1505		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1506-1506		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCC ENG(81L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1507-		●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1302-	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-1505	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1401		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	02	1	1402-		●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-1505	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-1505	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	1506-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1302-1401	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1302-1401		●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	04	1	1402-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	1402-		●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (G)	8-98153-352-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (H)	8-98185-861-0	02	1	1506-	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (I)	8-98284-977-0	01	1	1506-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47475-427-1	01	1	1305-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-1505	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1302-1505		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1506-	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L) (B)	8-98053-654-0	01	1	1506-		●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-1505	●
97	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1506-	●
97	BRACKET; CLIP (D)	8-98117-696-0	01	1	1302-		●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1302-1304	●
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	02	1	1305-	●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	1305-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS) (B)	8-98213-361-0	01	1	1305-	●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) L=75	1-47478-323-0	02	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1450	8-98284-974-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1480	8-98284-982-0	01	1	1506-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-948-0	01	1	1506-1506	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12)	8-98186-971-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-1511		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1302-1401	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1402-1506	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1507-1511	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. RUSSIA EQUIPMENT(B12) L=810	8-98186-973-0	01	1	1512-	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-454-0	01	1	1302-	●

304 418 304 303 279 228 65 39 345 345 39 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5>	8-98317-947-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7>	8-98212-453-0	01	1	1402-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20>	8-98212-452-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1370	8-98212-451-0	01	1	1302-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1302-1505	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12),EURO5 SPECIFICATION<NT5> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1506-1506	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98186-528-0	01	1	1507-	●
65	HOSE; FUEL,DELIVERY PIPE L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	04	1	1506-	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-1505	●
303	BOLT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) (A) M10X35 FLANGE	0-28651-035-0	02	1	1506-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-1505	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1506-	●
304	NUT; BRKT 6HK1-TCS ENG(80L) (A) M8 FLANGE	0-91180-108-0	03	1	1506-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●	●
304	NUT; BRKT WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (B) M10 FLANGE	0-91180-210-0	02	1	1506-	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20>	8-98136-381-0	01	1	1302-	●

228 228 227 41 29 41 41 41 41 41 67 41 39 41 67 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCC ENG(81L) (G) L=1500 SERVICED BY L=3000	0-01558-300-0	02	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (H)	8-98284-975-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (H)	8-98284-983-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=920 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
29	HOSE; FUEL (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=710	8-98186-527-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1302-1304	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1305-1505	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (E) L=730	8-98205-834-0	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=1830	8-98212-455-0	01	1	1402-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-98220-011-0	01	1	1305-1511	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D)	8-98220-011-0	01	1	1512-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D)	8-98214-027-0	01	1	1305-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-1505	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (A)	8-98078-196-2	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-1505	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-1505		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1506-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (B)	8-98078-197-1	01	1	1506-		●
29	HOSE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1302-		●
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98229-613-0	01	1	1305-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1302-1505	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1302-1505		●
39	PIPE; FUEL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-98009-438-1	01	1	1506-	●
39	PIPE; FUEL 6HK1-TCS ENG(80L) (A)	8-98009-438-1	01	1	1506-		●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (F) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> (E) L=250	5-09707-030-1	08	1	1402-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-1511	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1302-1511		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (G) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS),6HK1-TCC ENG(81L) (A) ID=13	8-94238-571-0	08	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (C) ID=14	1-09704-102-0	06	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-1401	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-1401		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1402-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1402-1505		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L<NF7> (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (D) ID=16	8-94238-568-0	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (E) L=250	5-09707-030-1	05	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	03	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1302-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (E) L=250	5-09707-030-1	04	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-1505	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> EXC. RUSSIA EQUIPMENT(B12) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1302-1505		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1506-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1506-		●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=20 L=70	1-09701-033-0	02	1	1302-		●
67	HOSE; FUEL,DELIVERY 6HK1-TCC ENG(81L) (B) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1506-	●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-1505		●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1506-	●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1506-		●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-98206-489-0	01	1	1305-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D)	8-98208-821-0	01	1	1305-	●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1305-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-1507	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L) (A)	8-98044-366-3	01	1	1302-1507		●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1508-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCS ENG(80L) (A)	8-98044-366-3	01	1	1508-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-1401		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1402-		●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
