Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#113624) — 232 parça

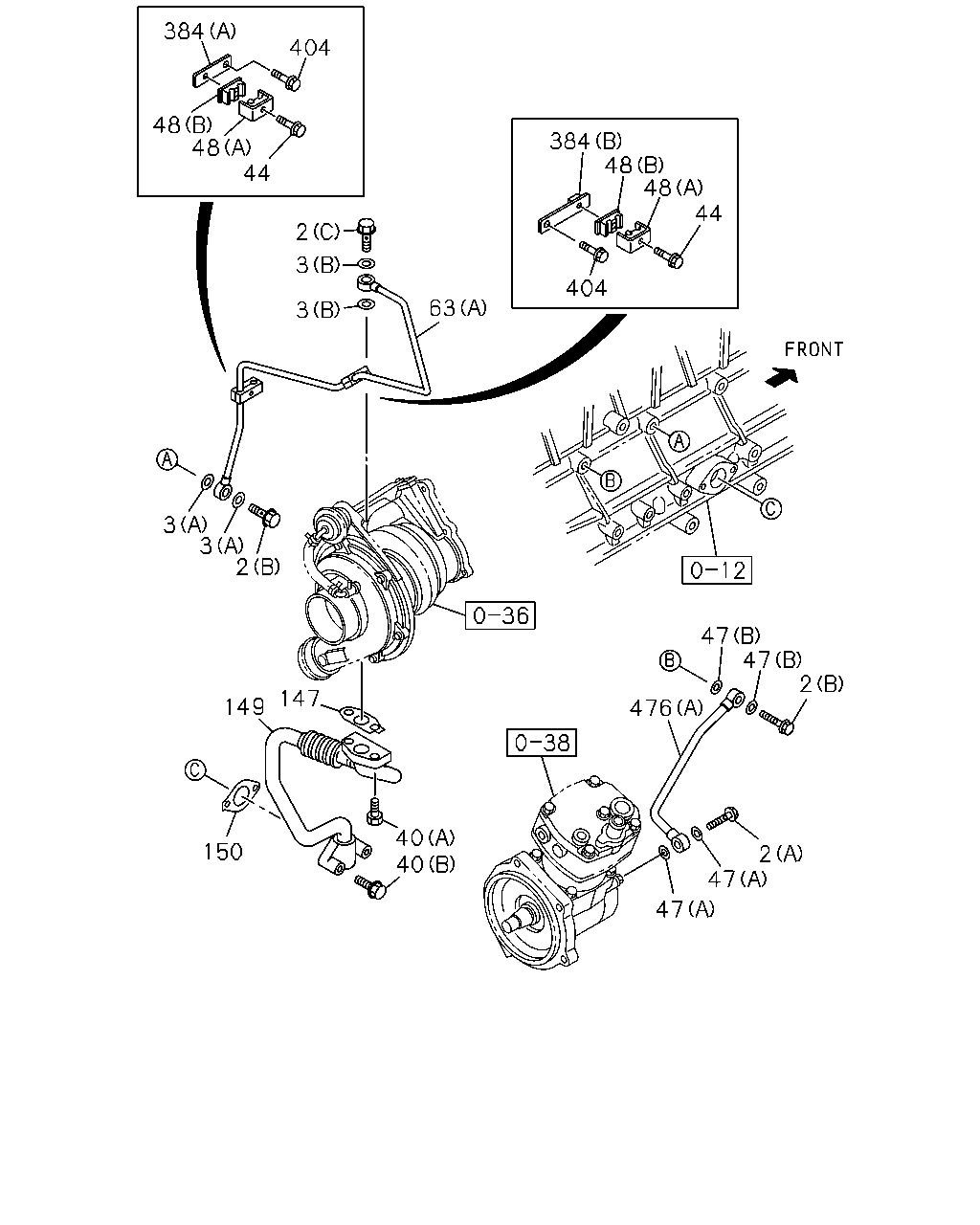

384 48 404 48 44 2 3 3 63 404 44 48 48 384 3 3 2 149 147 150 40 40 47 2 47 476 47 47 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M12X25	5-09675-006-1	01	1	1302-1511	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1512-	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-		●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-	●
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	8-98251-344-0	02	1	1401-1511	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1512-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1302-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1506-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-				●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-1511	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1512-	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-	●
40	BOLT; OIL PIPE EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-			●
40	BOLT; OIL PIPE (D) M8X12 FLANGE	0-28050-812-0	01	1	1305-				●
40	BOLT; OIL PIPE (E) M8X20 FLANGE	0-28050-820-0	03	1	1305-				●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X30 FLANGE	0-28050-630-0	02	1	1302-1511	●	●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	1512-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1302-1511	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1512-	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1302-1511	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1512-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-254-0	01	1	1302-1511	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1512-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1302-1505	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1506-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98069-427-0	01	1	1305-1511				●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (C)	8-98069-427-0	01	1	1512-				●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (C)	8-98204-176-1	01	1	1305-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	1-09637-058-2	01	1	1302-1511	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1512-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1302-1505	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1506-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98147-092-0	01	1	1302-1511	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1512-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1302-1505	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-		●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1506-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-1505	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1506-	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	1-13319-020-0	01	1	1302-1511	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	1512-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	1-13319-041-0	01	1	1302-1511	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	1512-	●	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X15	1-09000-114-0	02	1	1302-1511	●	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	1512-	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97608-935-0	01	1	1302-		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1302-1505	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1506-	●	●	●

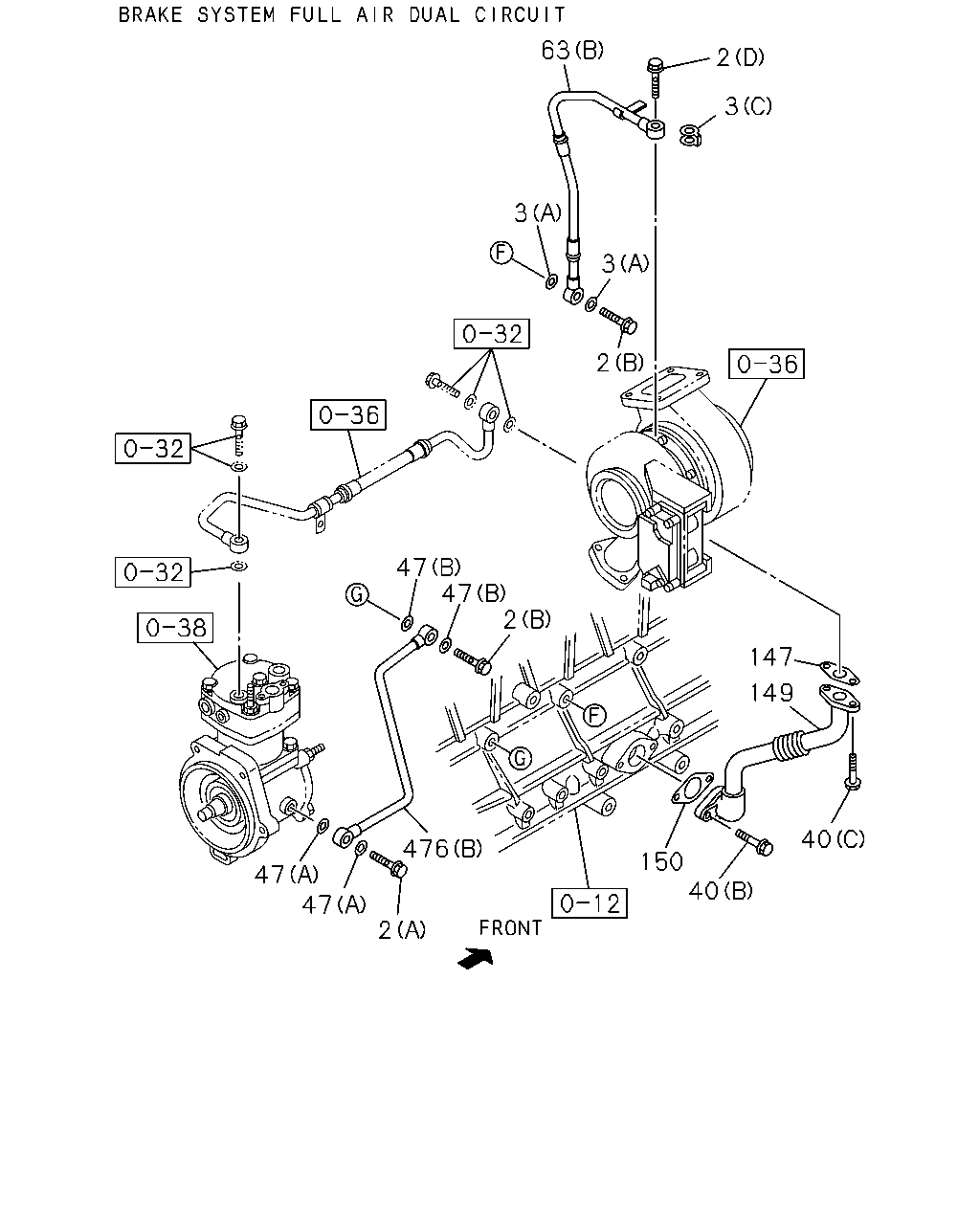

2 63 3 3 3 2 47 476 2 47 47 2 47 150 40 40 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M12X25	5-09675-006-1	01	1	1302-1511	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1512-	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-		●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-	●
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	8-98251-344-0	02	1	1401-1511	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1512-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1302-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1506-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-				●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-1511	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1512-	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-	●
40	BOLT; OIL PIPE EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-			●
40	BOLT; OIL PIPE (D) M8X12 FLANGE	0-28050-812-0	01	1	1305-				●
40	BOLT; OIL PIPE (E) M8X20 FLANGE	0-28050-820-0	03	1	1305-				●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-254-0	01	1	1302-1511	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1512-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1302-1505	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1506-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98069-427-0	01	1	1305-1511				●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (C)	8-98069-427-0	01	1	1512-				●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (C)	8-98204-176-1	01	1	1305-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	1-09637-058-2	01	1	1302-1511	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1512-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1302-1505	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1506-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98147-092-0	01	1	1302-1511	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1512-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1302-1505	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-		●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1506-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-1505	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1506-	●	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97608-935-0	01	1	1302-		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1302-1505	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1506-	●	●	●

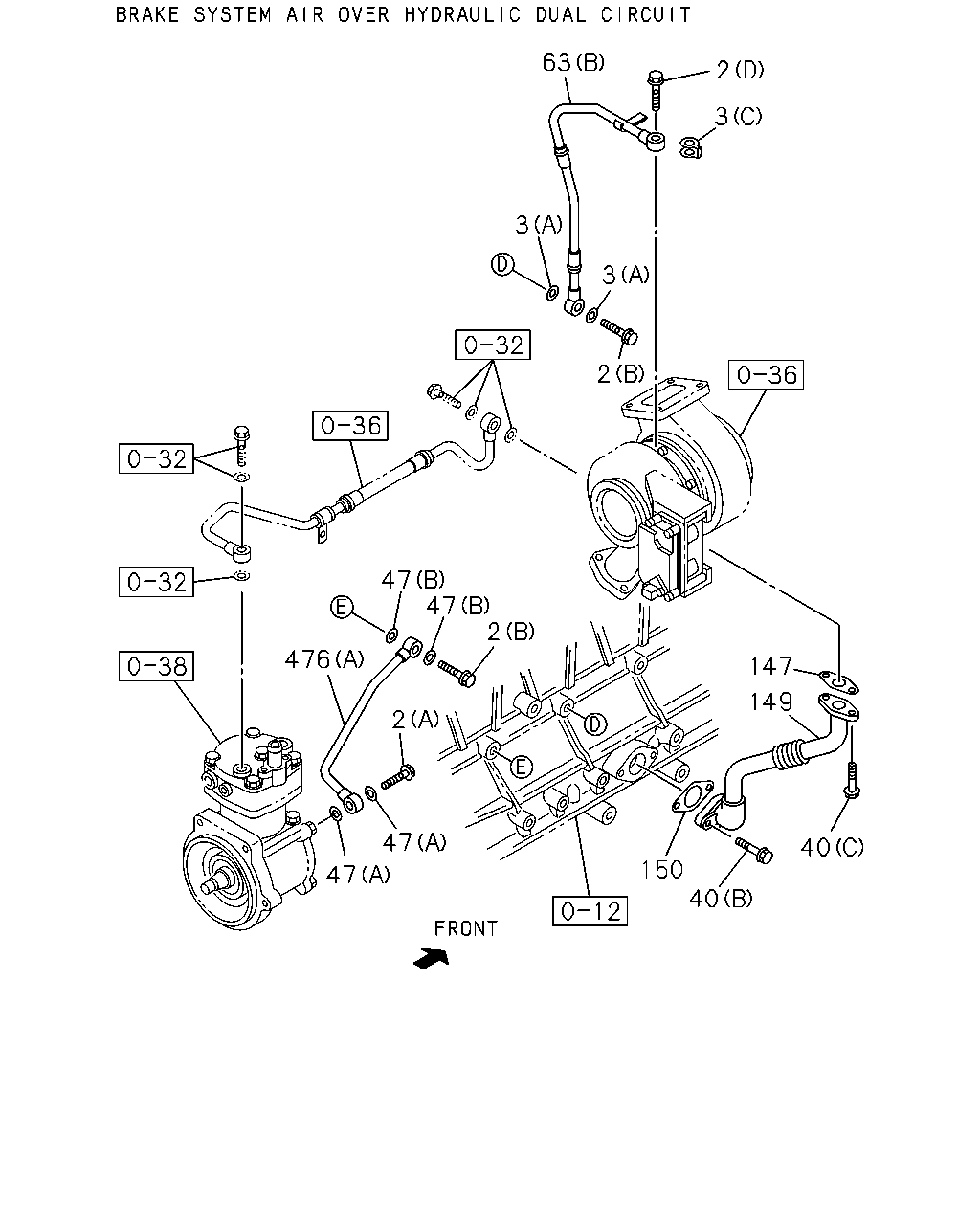

63 2 3 3 3 2 47 47 2 147 149 40 150 40 47 47 476 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1506-	●	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M12X25	5-09675-006-1	01	1	1302-1511	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1512-	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1302-1505	●	●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-		●
2	BOLT; EYE,OIL PIPE EURO4 SPECIFICATION<NT4> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-	●
2	BOLT; EYE,OIL PIPE EURO5 SPECIFICATION<NT5> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	8-98251-344-0	02	1	1401-1511	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1512-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1302-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1506-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-				●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-1511	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1512-	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-	●
40	BOLT; OIL PIPE EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-			●
40	BOLT; OIL PIPE (D) M8X12 FLANGE	0-28050-812-0	01	1	1305-				●
40	BOLT; OIL PIPE (E) M8X20 FLANGE	0-28050-820-0	03	1	1305-				●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1302-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-254-0	01	1	1302-1511	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1512-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1302-1505	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1506-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98069-427-0	01	1	1305-1511				●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (C)	8-98069-427-0	01	1	1512-				●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (C)	8-98204-176-1	01	1	1305-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	1-09637-058-2	01	1	1302-1511	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1512-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1302-1505	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-94390-641-1	01	1	1506-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-94390-641-1	01	1	1506-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98147-092-0	01	1	1302-1511	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1512-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1302-1505	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-		●
149	PIPE; OIL RETURN,TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-97606-205-3	01	1	1506-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO5 SPECIFICATION<NT5>	8-97606-205-3	01	1	1506-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1302-1505	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1506-	●	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97608-935-0	01	1	1302-		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1302-1505	●	●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97610-075-0	01	1	1506-	●	●	●

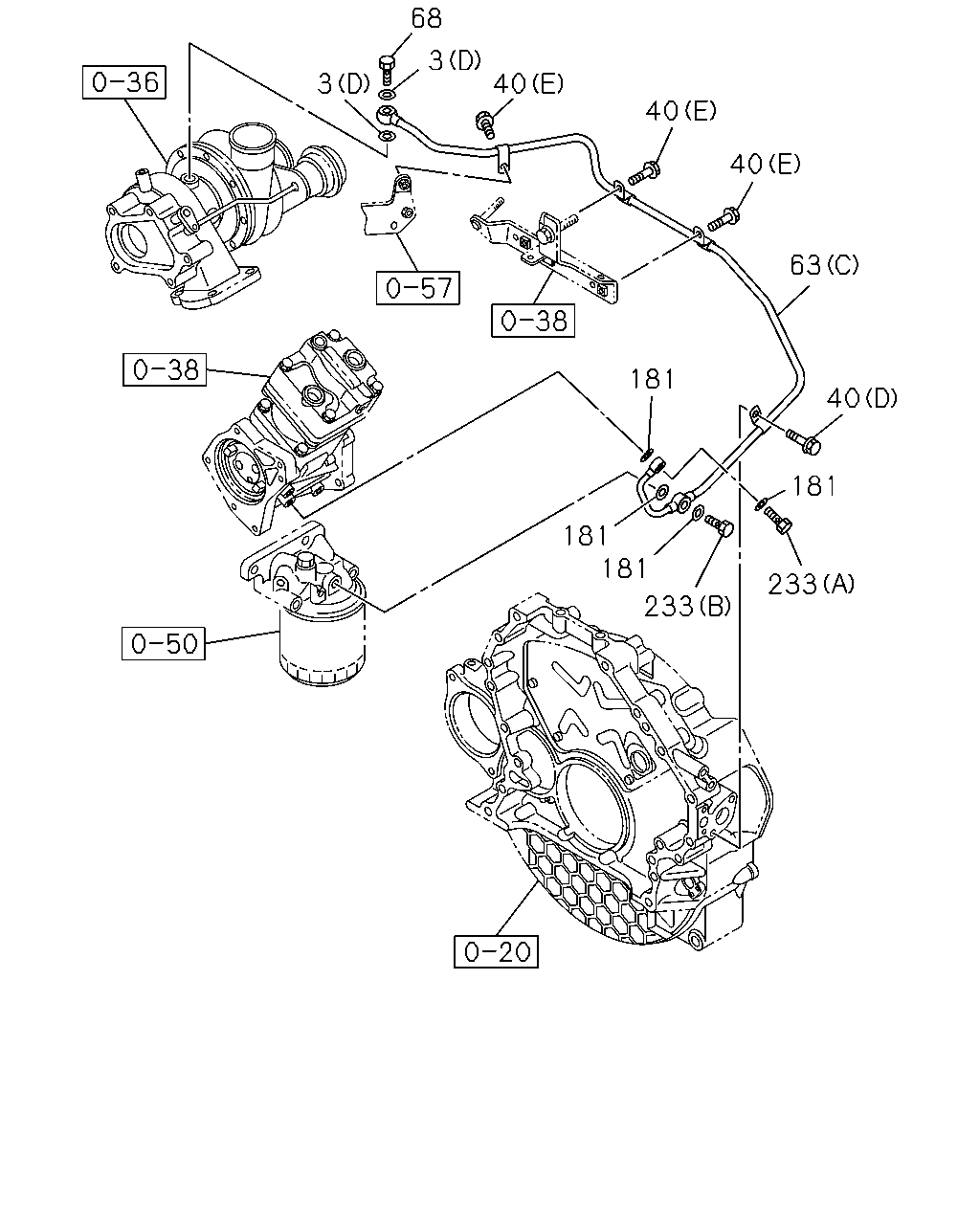

3 68 40 40 40 63 40 181 233 233 181 181 181 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	1-09630-084-0	02	1	1302-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=12.2	8-98251-344-0	02	1	1401-1511	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1512-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1302-1505	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C) ID=12.6	8-97331-137-1	01	1	1506-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (C) ID=12.6	8-97331-137-1	01	1	1506-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	1305-				●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-1511	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1512-	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1302-1505	●	●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-		●
40	BOLT; OIL PIPE EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-	●
40	BOLT; OIL PIPE EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	02	1	1506-			●
40	BOLT; OIL PIPE (D) M8X12 FLANGE	0-28050-812-0	01	1	1305-				●
40	BOLT; OIL PIPE (E) M8X20 FLANGE	0-28050-820-0	03	1	1305-				●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98074-254-0	01	1	1302-1511	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1512-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1302-1505	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-		●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (B)	8-97606-204-0	01	1	1506-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO5 SPECIFICATION<NT5> (B)	8-97606-204-0	01	1	1506-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C)	8-98069-427-0	01	1	1305-1511				●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (C)	8-98069-427-0	01	1	1512-				●
63	PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION<NT4> (C)	8-98204-176-1	01	1	1305-				●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	1305-				●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	1305-				●
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	1305-				●
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
