2-20 — MANUAL TRANSMISSION ASM AND CASE (#113623) — 168 parça

343 37 36 36 561 561 412 2 27 413 28 315 113 435 33 314 29 330 24 561 561 245 478 477 86 82 329 468 463

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1302-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1302-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1302-1305
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1302-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1302-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1302-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1302-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1302-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1302-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1302-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	1302-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	1302-1305
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	1302-1305
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1302-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) M10X70	1-33119-518-0	12	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B) M12X28	1-33139-051-0	04	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (D) M10X110	1-33139-210-0	05	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (E) M10X50	1-33139-211-0	01	1	1302-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	1302-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	1302-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	1302-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	1302-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (B) M12X25	1-33119-400-0	04	1	1302-1305
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1306-
113	GASKET; FRT COVER TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305
113	GASKET; FRT COVER TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-
245	PIPE; OIL	1-33119-517-0	01	1	1302-
314	GASKET; CASE	1-33112-052-0	01	1	1302-
315	BOLT; CASE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> M10X70	1-33119-518-0	17	1	1302-1305
315	BOLT; CASE EXC. ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	17	1	1302-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
329	PUMP ASM; OIL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-34150-120-0	01	1	1302-1305
329	PUMP ASM; OIL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34150-121-0	01	1	1302-1305
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-
330	RING; RET	1-33129-005-0	01	1	1302-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1302-
412	CAP; CLU HSG	1-31119-026-0	01	1	1302-
413	BALL; CLU HSG	1-31119-014-0	04	1	1302-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1302-1305
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1302-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	1302-1305
468	GASKET; OIL PUMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	1302-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1302-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1302-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
561	PLUG (A)	1-31119-044-0	02	1	1302-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31119-044-0	02	1	1306-
561	PLUG (B)	1-31119-045-0	03	1	1302-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31119-045-0	03	1	1306-
561	PLUG (C)	1-31119-046-0	02	1	1302-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-31119-046-0	02	1	1306-
561	PLUG (D)	1-31119-047-0	01	1	1302-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-31119-047-0	01	1	1306-

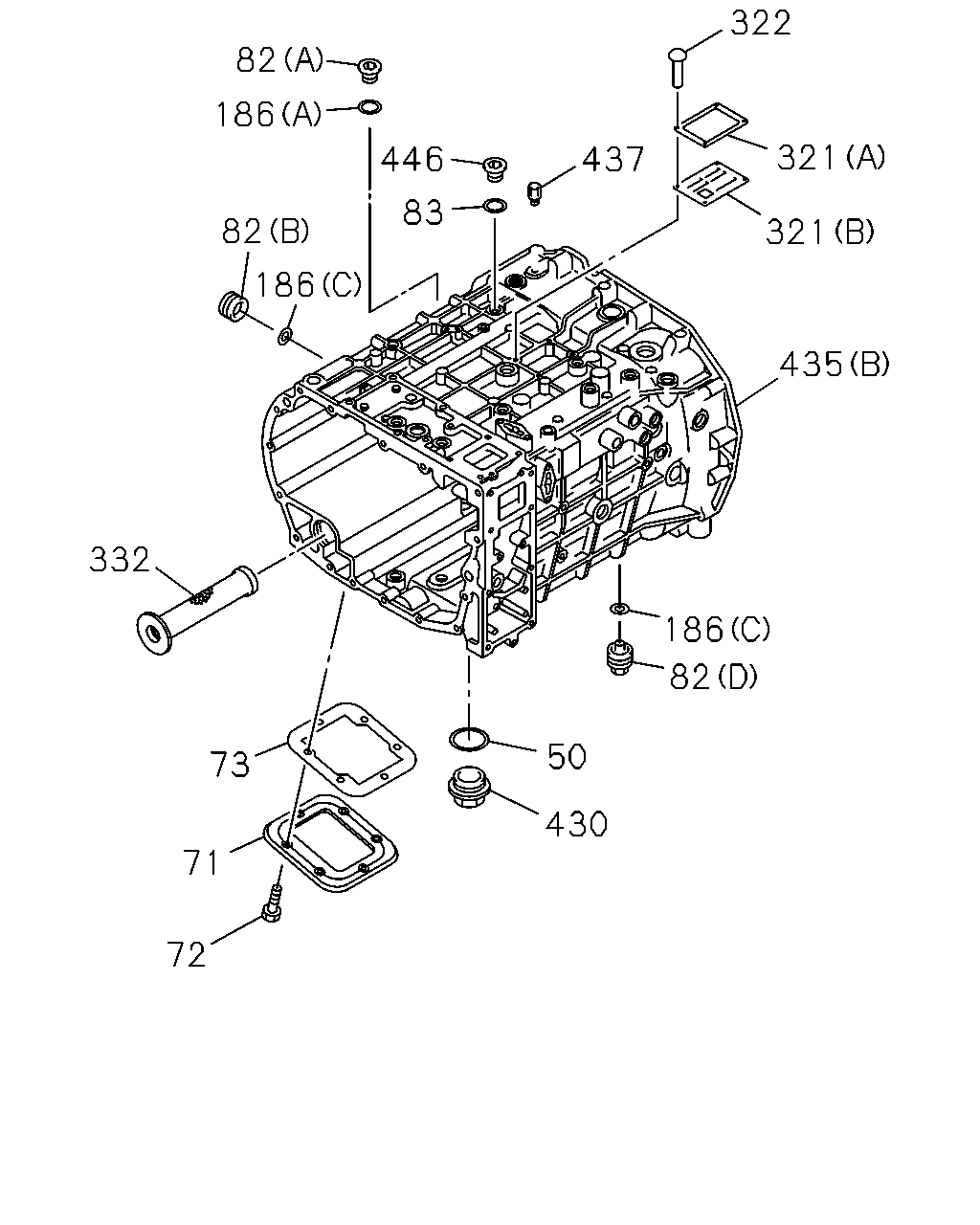

332 73 71 72 430 50 82 186 435 321 321 322 437 83 446 82 186 82 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1302-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1302-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1302-1305
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1302-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1302-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1302-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	1302-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	1302-1305
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	1302-1305
83	GASKET; PLUG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33119-249-0	01	1	1302-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	1302-
186	RING; SEAL (B)	1-33119-286-0	02	1	1302-
186	RING; SEAL (C)	1-33119-435-0	02	1	1302-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1302-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1302-
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	1302-1305
322	RIVET; NAME PLATE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	1302-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
332	FILTER; OIL	1-33119-437-0	01	1	1302-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1302-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1302-1305
437	BREATHER; TRANS	1-36122-004-0	01	1	1302-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
446	PLUG; CASE,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33119-171-0	01	1	1302-1305

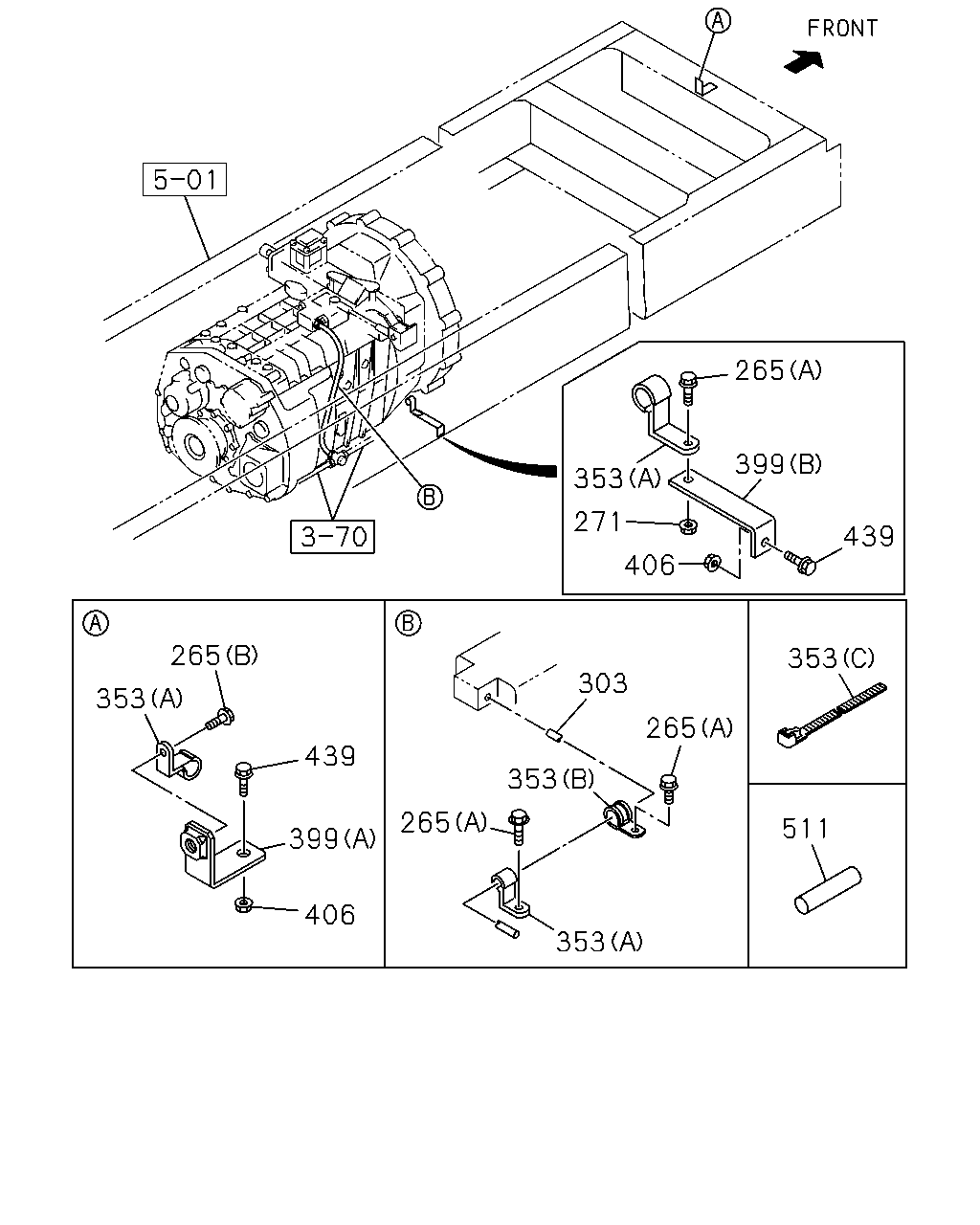

265 399 353 271 439 406 353 511 265 303 353 265 353 399 439 406 265 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
303	TUBE; NYLON ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1302-
303	TUBE; NYLON EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1302-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	01	1	1302-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	1302-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1302-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (C) L=350	1-09707-183-0	01	1	1302-
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	02	1	1302-
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	1302-
399	BRACKET; CLIP EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	1302-
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1302-
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1302-
406	NUT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1302-
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	1302-
439	BOLT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	1302-
511	TUBE; CORRUGATE ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1302-
511	TUBE; CORRUGATE EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1302-

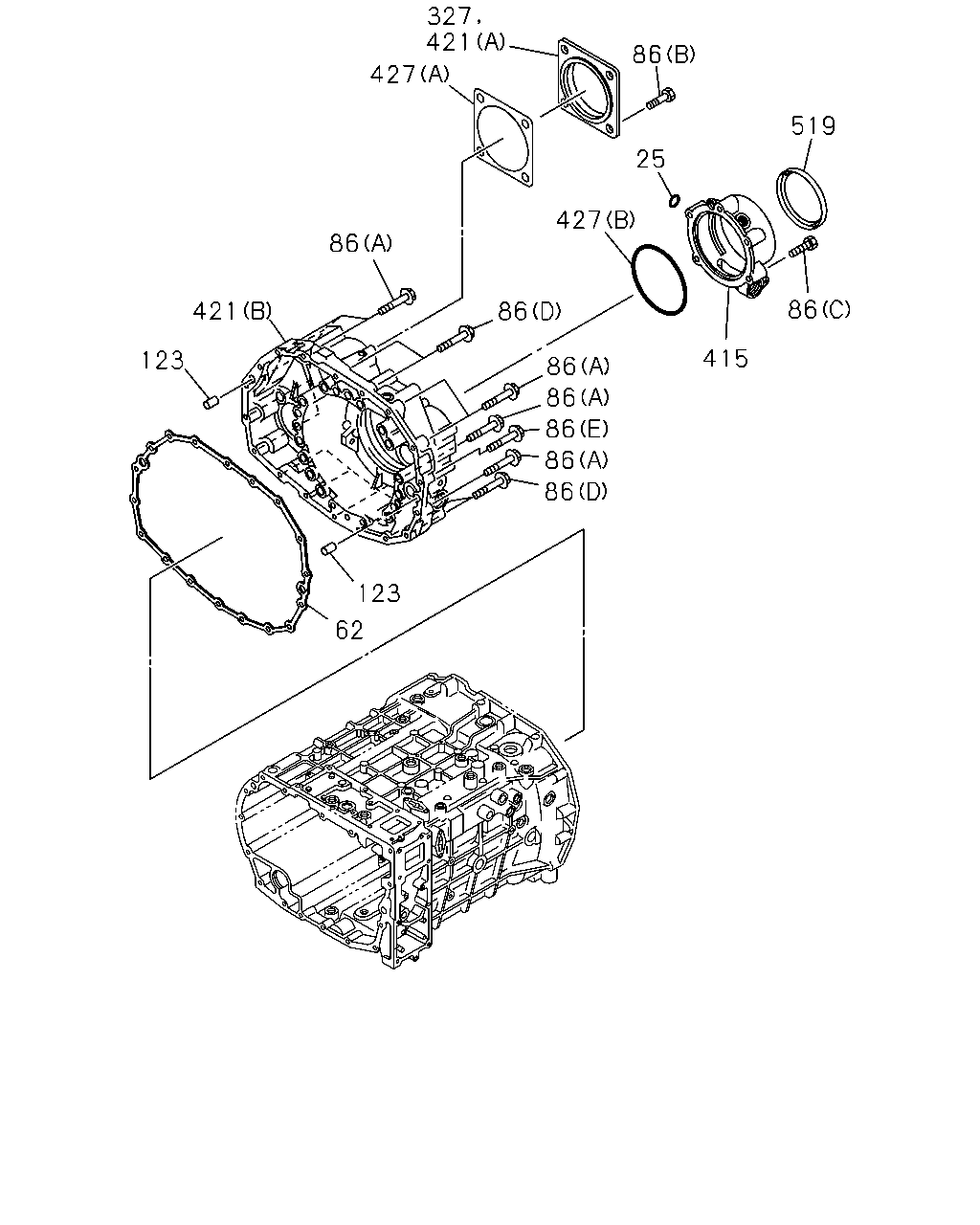

327 86 25 519 86 415 427 427 421 86 86 86 86 86 86 86 421 123 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1302-
62	GASKET; RR COVER	1-33132-087-0	01	1	1302-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1302-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) M10X70	1-33119-518-0	12	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B) M12X28	1-33139-051-0	04	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (D) M10X110	1-33139-210-0	05	1	1302-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (E) M10X50	1-33139-211-0	01	1	1302-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	1302-1305
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	1302-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	1302-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	1302-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (B) M12X25	1-33119-400-0	04	1	1302-1305
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1306-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1302-
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	1-33131-165-0	01	1	1302-1305
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1306-
415	COVER; BRG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33131-260-0	01	1	1302-1305
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	1302-1305
415	COVER; BRG	1-33131-269-0	01	1	1306-
415	COVER; BRG PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	1302-1305
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A)	1-33131-165-0	01	1	1302-1305
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33131-214-0	01	1	1302-1305
421	COVER; RR,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33131-261-0	01	1	1302-1305
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1302-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1302-
519	GASKET; SHAFT	1-33139-059-0	01	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33043-933-1	01	1	1302-
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33044-084-1	01	1	1302-
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-2	01	1	1302-
1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-2	01	1	1302-
