5-01 — FRAME AND OTHER PARTS
(#113617) — 42 parça
◀

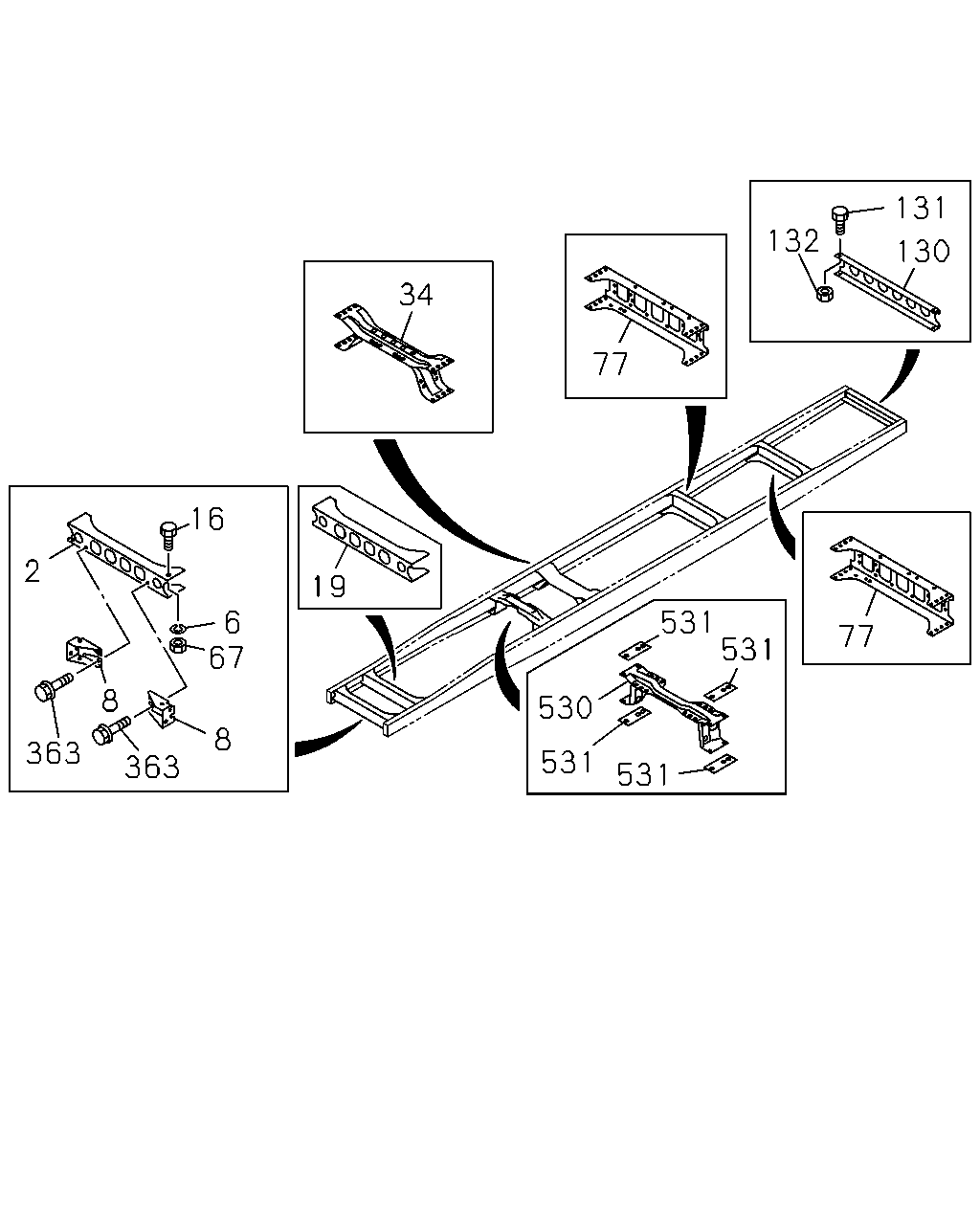

[501A] CROSS MEMBER (16 parça)

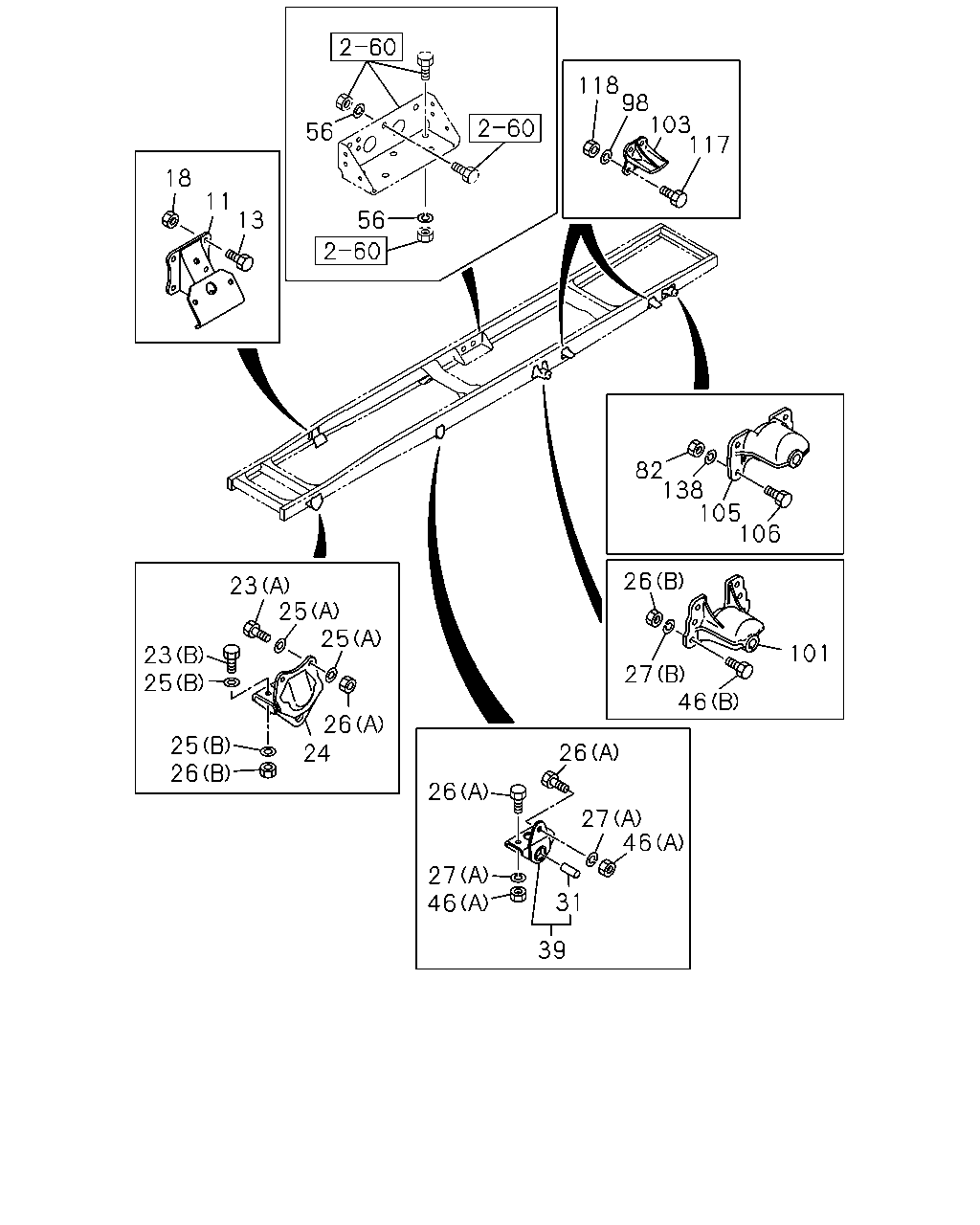

[501A] BRACKET AND OTHER PARTS (26 parça)
▶
34
77
132
131
130
77
531
531
531
531
530
19
16
6
67
8
8
2
363
363
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98063-015-4
01
1
1302-
6
WASHER; LK,1ST C/MBR
ID=12.2
0-91510-512-0
02
1
1302-
8
GUSSET; 1ST C/MBR
8-97631-563-1
01
1
1302-
8
GUSSET; 1ST C/MBR
8-97631-564-1
01
1
1302-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1302-
16
BOLT; 1ST C/MBR TO S/MBR
M12X30
0-20851-230-0
02
1
1302-
19
MEMBER; CROSS,2ND
8-98063-018-7
01
1
1302-
34
MEMBER; CROSS,3RD
8-97609-500-2
01
1
1302-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
1302-
77
MEMBER; CROSS,TRUNNION RR
8-97610-935-1
02
1
1302-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
1302-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
1302-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
1302-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
1302-
530
MEMBER; CROSS,T/M
8-97609-809-3
01
1
1302-
531
SPACER; C/MBR,T/M
8-97609-819-2
04
1
1302-
18
11
3
56
56
118
98
103
117
82
138
106
105
101
26
27
46
26
27
46
26
27
46
31
39
23
25
25
26
24
25
26
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97616-720-0
02
1
1302-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1302-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1302-
23
BOLT; BRKT,SPR
(A) M12X35
0-20951-235-0
04
1
1302-
23
BOLT; BRKT,SPR
(B) M14X40
0-20951-440-0
04
1
1302-
24
BRACKET; FRT SPR,FRT
1-53351-258-0
02
1
1302-
25
WASHER; PL,BRKT
(A) ID=12.2
8-98010-397-0
08
1
1302-
25
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1302-
26
NUT; BRKT,SPR
(A) M12
0-91110-512-0
10
1
1302-
26
NUT; BRKT,SPR
(B) M14
0-91110-514-0
16
1
1302-
27
WASHER; LK,BRKT,FRT SPR
(B) ID=14.2
0-91510-814-0
12
1
1302-
27
WASHER; LK,BRKT,FRT SPR
(A) ID=12.2
8-98010-397-0
12
1
1302-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
1302-
39
BRACKET; FRT SPR,RR
1-53352-185-1
02
1
1302-
46
BOLT; BRKT FIX
(B) M14X50
0-20851-450-0
12
1
1302-
46
BOLT; BRKT FIX
(A) M12X35
0-20951-235-0
06
1
1302-
56
WASHER; LK
ID=14.2
0-91510-814-0
11
1
1302-
82
NUT; BRKT
M14
0-91110-514-0
10
1
1302-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1302-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
1302-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
1302-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
1302-
106
BOLT; BRKT
M14X50
0-20851-450-0
10
1
1302-
117
BOLT; STOPPER
M14X50
0-20851-450-0
16
1
1302-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1302-
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
10
1
1302-
