Sayfa 1-31 - Isuzu EPC

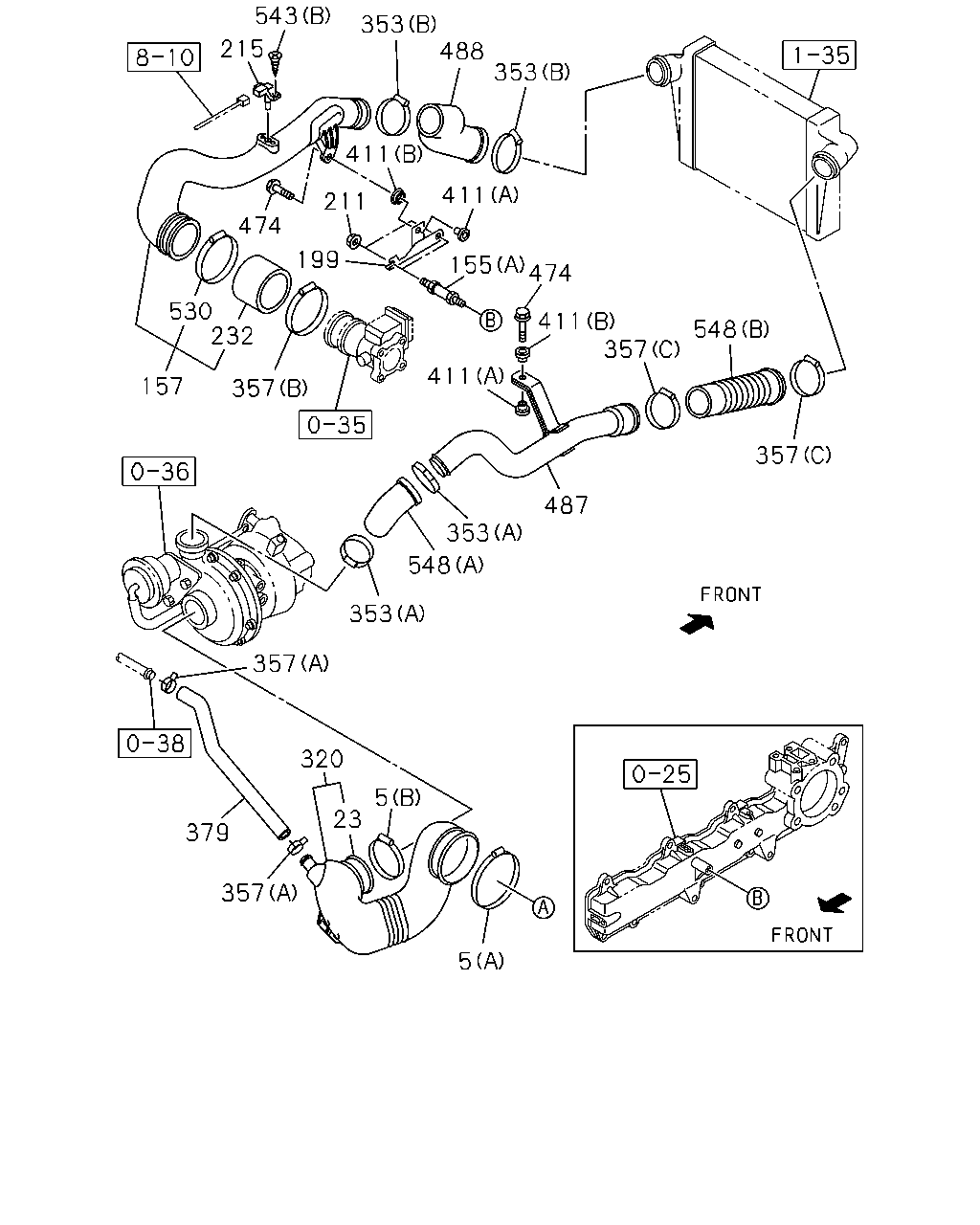

1-31 — AIR DUCT (#113616) — 457 parça

353 543 215 353 488 411 474 530 157 232 199 211 411 155 411 357 548 411 474 357 487 353 548 353 357 320 379 357 23 5 5 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1302-1511	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1302-1511		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1512-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1512-		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1302-1511	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1302-1511		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1512-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1512-		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1505	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1505	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1506-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1302-	●	●
23	CLIP; HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=87-116	1-09707-144-0	01	1	1302-1511	●
23	CLIP; HOSE ID=87-116	1-09707-144-0	01	1	1302-1511		●
23	CLIP; HOSE EURO2 SPECIFICATION<NT2> ID=87-116	1-09707-144-0	01	1	1512-	●
23	CLIP; HOSE ID=87-116	1-09707-144-0	01	1	1512-		●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-1511	●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-1511		●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-	●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-		●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1302-1505	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X110 FLANGE	0-28156-011-0	01	1	1506-	●	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1302-1505	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1506-	●	●
157	PIPE; AIR EURO5 SPECIFICATION<NT5>	8-98166-967-0	01	1	1506-	●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98010-719-3	01	1	1302-1511	●
157	PIPE; AIR	8-98010-719-3	01	1	1302-1511		●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>	8-98010-719-3	01	1	1512-	●
157	PIPE; AIR	8-98010-719-3	01	1	1512-		●
157	PIPE; AIR EURO4 SPECIFICATION<NT4>	8-98096-274-1	01	1	1302-	●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97385-293-1	01	1	1302-1511	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1302-1511		●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>	8-97385-293-1	01	1	1512-	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1512-		●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>	8-98109-137-1	01	1	1302-1403	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>	8-98252-223-0	01	1	1404-1505	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98252-223-0	01	1	1506-	●	●
211	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1302-1511	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1511		●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1512-	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-		●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1302-1505	●
211	NUT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10 FLANGE	0-91180-210-0	01	1	1506-	●	●
215	SENSOR; MAP	8-98009-418-0	01	1	1302-	●	●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98067-929-0	01	1	1302-1511	●
232	HOSE; CONN	8-98067-929-0	01	1	1302-1511		●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>	8-98067-929-0	01	1	1512-	●
232	HOSE; CONN	8-98067-929-0	01	1	1512-		●
232	HOSE; CONN EURO4 SPECIFICATION<NT4>	8-98128-293-0	01	1	1302-1505	●
232	HOSE; CONN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98128-293-0	01	1	1506-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98073-539-3	01	1	1302-1511	●
320	HOSE; CONN,ACL	8-98073-539-3	01	1	1302-1511		●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	1512-	●
320	HOSE; CONN,ACL	8-98073-539-3	01	1	1512-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>	8-98010-643-3	01	1	1302-1505	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98010-643-3	01	1	1506-	●	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (A) ID=45-65	8-98133-348-0	02	1	1506-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	02	1	1506-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	02	1	1506-	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=60-65	8-98096-418-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65	8-98096-418-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=60-65	8-98096-418-0	02	1	1512-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65	8-98096-418-0	02	1	1512-	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1512-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1512-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1512-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1512-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1512-		●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1506-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1506-	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1302-	●	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-		●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98075-713-1	01	1	1302-1511	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1302-1511		●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98075-713-1	01	1	1512-	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1512-		●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98062-621-1	01	1	1302-1505	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98062-621-1	01	1	1506-	●	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1302-	●	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1302-	●	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1302-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO5 SPECIFICATION<NT5>	8-98204-042-0	01	1	1506-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98073-592-0	01	1	1302-1511	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1302-1511		●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	1512-	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1512-		●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4>	8-98038-759-3	01	1	1302-	●
488	HOSE; RUBBER,PIPE EURO5 SPECIFICATION<NT5>	8-98204-041-0	01	1	1506-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1302-1505	●	●
488	HOSE; RUBBER,PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98010-723-0	01	1	1506-1511	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1506-1511		●
488	HOSE; RUBBER,PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98010-723-0	01	1	1512-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1512-		●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=75-95	8-98133-357-0	01	1	1302-1511	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1302-1511		●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> ID=75-95	8-98133-357-0	01	1	1512-	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1512-		●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=65-85	8-98133-350-0	01	1	1302-1505	●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=65-85	8-98133-350-0	01	1	1506-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-		●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (C)	8-98204-039-0	01	1	1506-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (D)	8-98204-040-0	01	1	1506-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-971-1	01	1	1302-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-971-1	01	1	1302-1511		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-971-1	01	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98181-972-1	01	1	1302-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1302-1511		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98061-809-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98061-810-0	01	1	1302-	●

543 215 353 488 353 411 474 155 411 211 155 199 530 232 474 411 157 357 411 357 548 353 357 487 353 548 5 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1302-1511	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1302-1511		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1512-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1512-		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1302-1511	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1302-1511		●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1512-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1512-		●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1505	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1506-	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1505	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1506-	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1302-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1302-	●	●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-1511	●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1302-1511		●
155	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-	●
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	1512-		●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE	0-28156-011-0	01	1	1302-1505	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M10X110 FLANGE	0-28156-011-0	01	1	1506-	●	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1302-1505	●
155	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1506-	●	●
157	PIPE; AIR EURO5 SPECIFICATION<NT5>	8-98166-967-0	01	1	1506-	●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98010-719-3	01	1	1302-1511	●
157	PIPE; AIR	8-98010-719-3	01	1	1302-1511		●
157	PIPE; AIR EURO2 SPECIFICATION<NT2>	8-98010-719-3	01	1	1512-	●
157	PIPE; AIR	8-98010-719-3	01	1	1512-		●
157	PIPE; AIR EURO4 SPECIFICATION<NT4>	8-98096-274-1	01	1	1302-	●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97385-293-1	01	1	1302-1511	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1302-1511		●
199	BRACKET; PIPE EURO2 SPECIFICATION<NT2>	8-97385-293-1	01	1	1512-	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1512-		●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>	8-98109-137-1	01	1	1302-1403	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>	8-98252-223-0	01	1	1404-1505	●
199	BRACKET; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98252-223-0	01	1	1506-	●	●
211	NUT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1302-1511	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1511		●
211	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1512-	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-		●
211	NUT; BRKT EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-210-0	01	1	1302-1505	●
211	NUT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10 FLANGE	0-91180-210-0	01	1	1506-	●	●
215	SENSOR; MAP	8-98009-418-0	01	1	1302-	●	●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98067-929-0	01	1	1302-1511	●
232	HOSE; CONN	8-98067-929-0	01	1	1302-1511		●
232	HOSE; CONN EURO2 SPECIFICATION<NT2>	8-98067-929-0	01	1	1512-	●
232	HOSE; CONN	8-98067-929-0	01	1	1512-		●
232	HOSE; CONN EURO4 SPECIFICATION<NT4>	8-98128-293-0	01	1	1302-1505	●
232	HOSE; CONN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98128-293-0	01	1	1506-	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98073-539-3	01	1	1302-1511	●
320	HOSE; CONN,ACL	8-98073-539-3	01	1	1302-1511		●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	1512-	●
320	HOSE; CONN,ACL	8-98073-539-3	01	1	1512-		●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>	8-98010-643-3	01	1	1302-1505	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98010-643-3	01	1	1506-	●	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (A) ID=45-65	8-98133-348-0	02	1	1506-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	02	1	1506-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	02	1	1506-	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=60-65	8-98096-418-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65	8-98096-418-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=60-65	8-98096-418-0	02	1	1512-	●
353	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65	8-98096-418-0	02	1	1512-	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1512-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1512-	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1512-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1302-1505	●	●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1506-1511	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1506-1511		●
353	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1512-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1512-		●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1506-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1506-	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1302-	●	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-		●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1302-	●	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1302-	●	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1302-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO5 SPECIFICATION<NT5>	8-98204-042-0	01	1	1506-	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98073-592-0	01	1	1302-1511	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1302-1511		●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	1512-	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1512-		●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4>	8-98038-759-3	01	1	1302-	●
488	HOSE; RUBBER,PIPE EURO5 SPECIFICATION<NT5>	8-98204-041-0	01	1	1506-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1302-1505	●	●
488	HOSE; RUBBER,PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98010-723-0	01	1	1506-1511	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1506-1511		●
488	HOSE; RUBBER,PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98010-723-0	01	1	1512-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1512-		●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=75-95	8-98133-357-0	01	1	1302-1511	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1302-1511		●
530	CLAMP; AIR DUCT EURO2 SPECIFICATION<NT2> ID=75-95	8-98133-357-0	01	1	1512-	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1512-		●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4> ID=65-85	8-98133-350-0	01	1	1302-1505	●
530	CLAMP; AIR DUCT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=65-85	8-98133-350-0	01	1	1506-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-		●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (C)	8-98204-039-0	01	1	1506-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (C)	8-98317-803-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (D)	8-98204-040-0	01	1	1506-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO5 SPECIFICATION<NT5> (D)	8-98317-804-0	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98181-971-1	01	1	1302-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-971-1	01	1	1302-1511		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-971-1	01	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98181-972-1	01	1	1302-1511	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1302-1511		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1512-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1512-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (C)	8-98061-809-1	01	1	1302-	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO4 SPECIFICATION<NT4> (D)	8-98061-810-0	01	1	1302-	●

49 58 242 49 242 56 56 58 56 56 49 245 58 48 560 58 61 26 49 242 252 113 71 252 71 480 564 368 450 543 543 225 210 296 209 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1302-	●	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6X16 W/PL WASHER	8-98094-071-0	03	1	1302-1505	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER	8-98094-071-0	03	1	1302-1505		●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M6X16 W/PL WASHER	8-98094-071-0	03	1	1506-1511	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER	8-98094-071-0	03	1	1506-1511		●
113	BOLT; RESONATOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X16 W/PL WASHER	8-98094-071-0	03	1	1512-	●
209	BRACKET; ACL	8-98010-343-4	01	1	1302-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-1511	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1302-1511	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1512-	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1512-	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1512-		●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1302-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98095-778-0	01	1	1302-1505	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3> (B)	8-98095-778-0	01	1	1302-1505		●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B)	8-98095-778-0	01	1	1506-1511	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3> (B)	8-98095-778-0	01	1	1506-1511		●

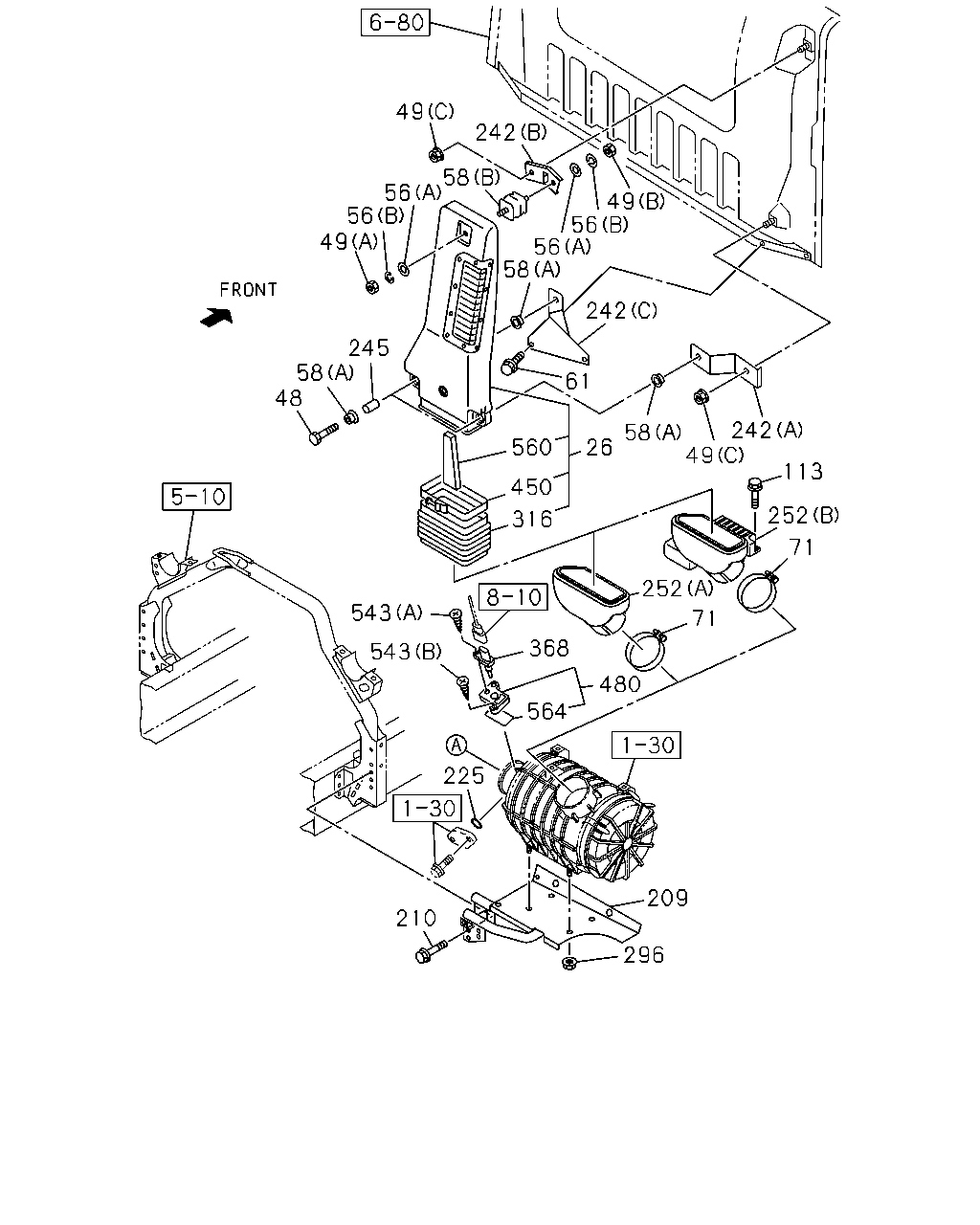

252	DUCT; AIR INT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98095-778-0	01	1	1512-	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> (A)	8-98010-639-1	01	1	1302-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98065-377-0	01	1	1302-1511	●
368	SENSOR; TEMP	8-98065-377-0	01	1	1302-1511		●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1512-	●
368	SENSOR; TEMP	8-98065-377-0	01	1	1512-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98086-417-0	01	1	1302-1511	●
480	ADAPTER	8-98086-417-0	01	1	1302-1511		●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1512-	●
480	ADAPTER	8-98086-417-0	01	1	1512-		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-		●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98071-416-0	01	1	1302-1511	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	1302-1511		●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1512-	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	1512-		●

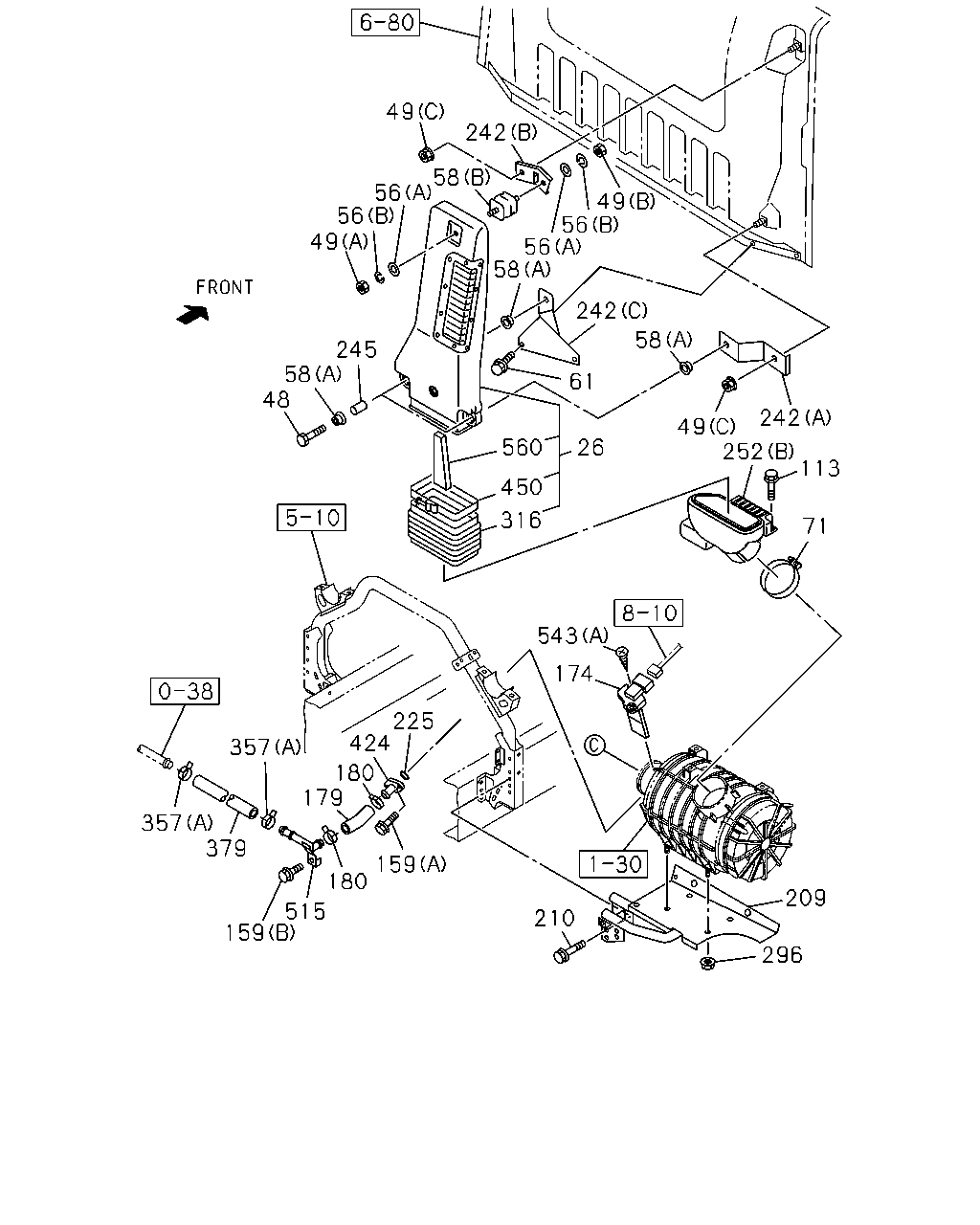

49 58 242 56 56 49 245 58 48 49 56 56 58 242 61 26 560 450 58 242 49 113 71 252 316 543 174 225 424 357 180 179 379 357 180 515 159 159 210 209 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	1302-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1302-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1302-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1302-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1302-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1302-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1302-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1302-	●	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1302-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1302-	●	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1302-	●	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M6X16 W/PL WASHER	8-98094-071-0	03	1	1302-1505	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER	8-98094-071-0	03	1	1302-1505		●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> M6X16 W/PL WASHER	8-98094-071-0	03	1	1506-1511	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER	8-98094-071-0	03	1	1506-1511		●
113	BOLT; RESONATOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X16 W/PL WASHER	8-98094-071-0	03	1	1512-	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4> (A) M6X16 FLANGE	0-28050-616-0	02	1	1302-1505	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	1302-1505	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97601-967-0	01	1	1506-	●	●
179	HOSE; AIR INT EURO4 SPECIFICATION<NT4>	8-98063-233-0	01	1	1302-1505	●
179	HOSE; AIR INT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98063-233-0	01	1	1506-	●	●
180	CLIP; AIR INT HOSE EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	1302-1505	●
180	CLIP; AIR INT HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24	8-98025-921-0	02	1	1506-	●	●
209	BRACKET; ACL	8-98010-343-4	01	1	1302-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1302-1511	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1302-1511	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1512-	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1512-	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1512-		●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1302-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1302-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1302-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1302-	●	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98095-778-0	01	1	1302-1505	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3> (B)	8-98095-778-0	01	1	1302-1505		●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B)	8-98095-778-0	01	1	1506-1511	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3> (B)	8-98095-778-0	01	1	1506-1511		●
252	DUCT; AIR INT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98095-778-0	01	1	1512-	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> (A)	8-98010-639-1	01	1	1302-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1302-	●	●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	02	1	1506-	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1302-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1512-		●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1506-	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1302-1505	●
357	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1506-	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1302-	●	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1512-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1302-1505	●	●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1506-1511		●
357	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1512-		●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98075-713-1	01	1	1302-1511	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1302-1511		●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98075-713-1	01	1	1512-	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1512-		●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98062-621-1	01	1	1302-1505	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98062-621-1	01	1	1506-	●	●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4>	8-98081-835-0	01	1	1302-1505	●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98081-835-0	01	1	1506-	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1302-	●	●
515	PIPE; AIR,SUCTION EURO4 SPECIFICATION<NT4>	8-98061-569-1	01	1	1302-1505	●
515	PIPE; AIR,SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98061-569-1	01	1	1506-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1302-1511		●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1512-		●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1302-1505	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1506-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1302-1511		●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1512-		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
