◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#113613) — 162 parça

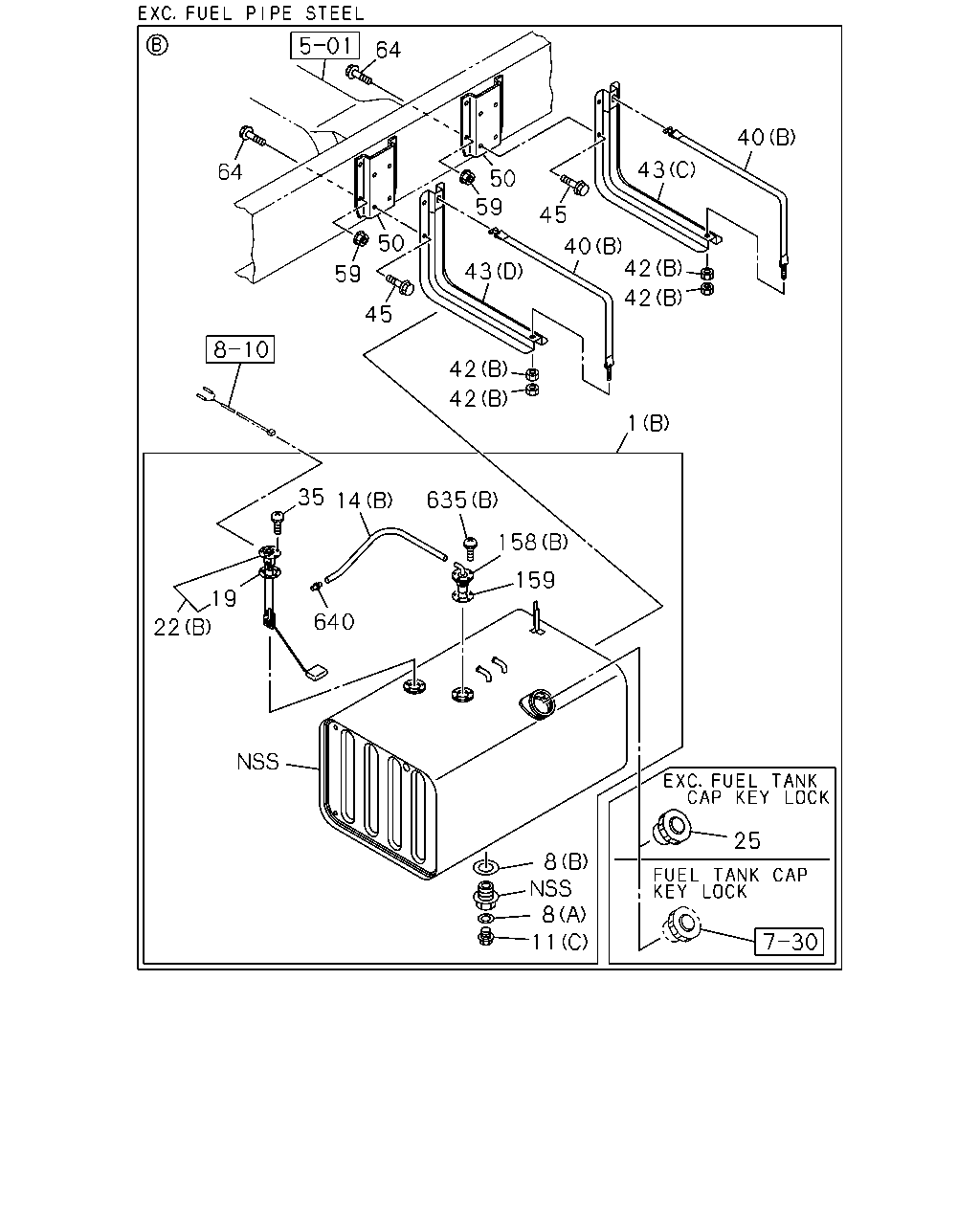

çizim 327099
64 64 59 50 45 43 42 42 40 45 43 42 42 40 1 158 159 635 14 35 640 19 22 8 8 11 25 59 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
(A) 1345X532X322 200L 		8-98122-992-3 01 1 1302- ●
1 TANK; FUEL
FUEL PIPE STEEL<E2N> (C) 820X500X400 140L 		8-98067-087-3 01 1 1302- ●
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (B) 820X500X400 140L 		8-98099-831-2 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1302- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
(A) L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=430 		8-98131-037-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=460 		8-98304-414-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=90 		8-98304-415-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(B) L=460 		8-98082-184-1 01 1 1302- ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1302- ● ●
22 UNIT; FUEL TANK
(A) 		8-98099-320-0 01 1 1302- ●
22 UNIT; FUEL TANK
(B) 		8-98099-319-0 01 1 1302- ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 1302- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1302- ● ●
40 BELT; SUPPORT,FUEL TANK
(A) L=880 		8-98042-715-1 02 1 1302- ●
40 BELT; SUPPORT,FUEL TANK
(B) L=925 		8-98049-769-1 02 1 1302- ●
42 NUT; SUPPORT BELT
(A) M12 		0-91110-512-0 04 1 1302- ●
42 NUT; SUPPORT BELT
(B) M10 		0-91110-510-0 04 1 1302- ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(C) 		8-98049-768-1 01 1 1302- ●
43 BRACKET; FUEL TANK
(D) 		8-98083-790-0 01 1 1302-1312 ●
43 BRACKET; FUEL TANK
(D) 		8-98127-229-0 01 1 1401- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1302- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1302- ●
50 BRACKET; SUPPORT,FUEL BRKT 8-98097-206-0 02 1 1302- ●
59 NUT; FUEL TANK
M10 FLANGE 		0-91180-210-0 08 1 1302- ●
64 BOLT; FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(A) 		8-98067-039-0 02 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(B) 		8-98095-223-0 01 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(A) M5X12 W/LK WASHER 		0-36220-512-0 10 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(B) M5X10 W/LK WASHER 		0-36220-510-0 05 1 1302- ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1302- ● ●

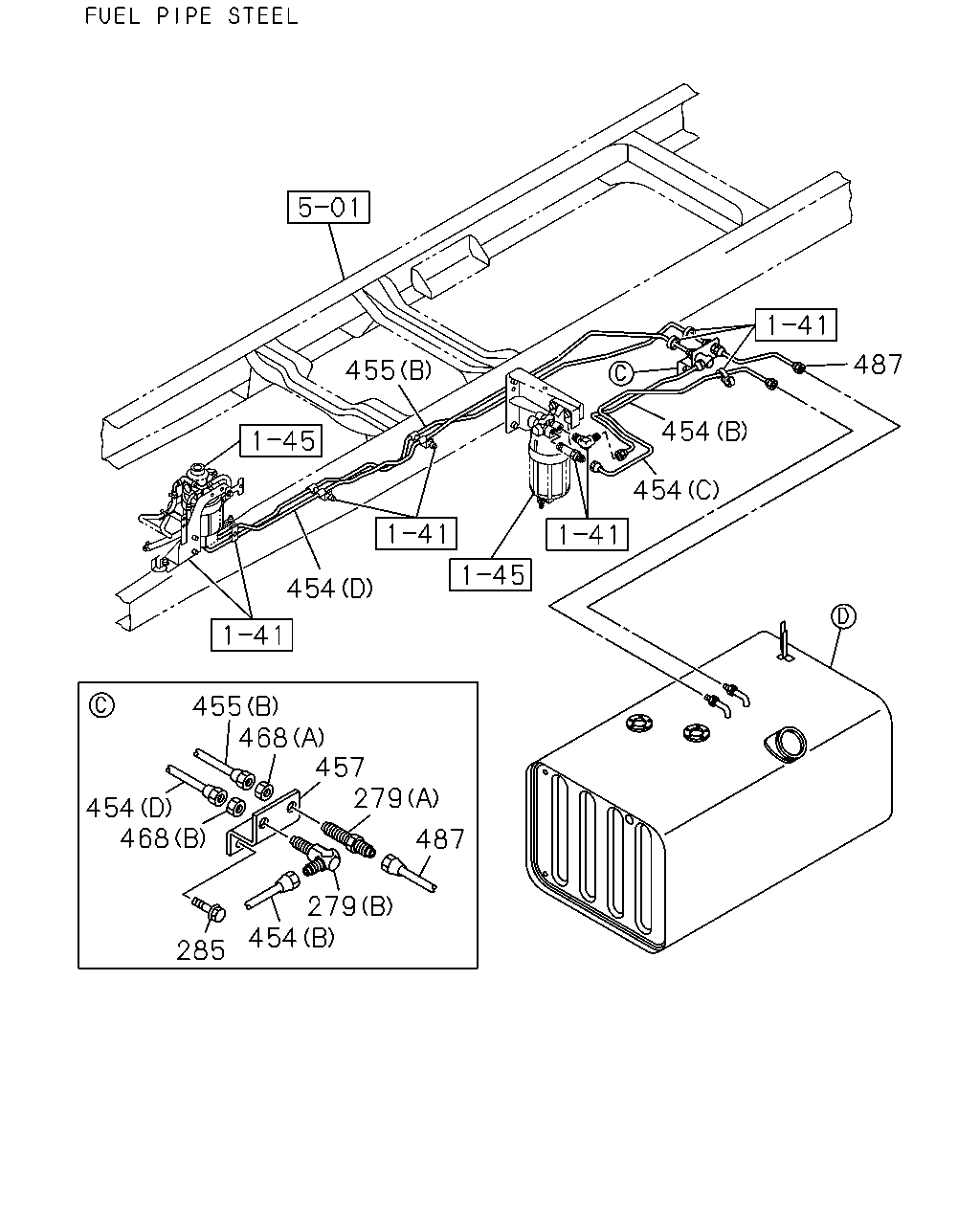

çizim 327138
487 454 454 454 455 468 457 279 487 279 454 285 468 454 455
BalonParca AdiParca NoAdetTipApplied Date A B
279 UNION; FUEL PIPE
FUEL PIPE STEEL<E2N> (A) M14 		0-92113-308-0 01 1 1302- ●
279 UNION; FUEL PIPE
FUEL PIPE STEEL<E2N> (B) M16 ELBOW 		0-92135-010-0 01 1 1302- ●
285 BOLT; BRKT
FUEL PIPE STEEL<E2N> M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
454 PIPE; FUEL,DELIVERY
(A) L=1377 		8-98131-424-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (B) L=621 SERVICED BY L=660 		1-47428-869-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (C) L=1073 SERVICED BY L=1100 		1-47428-875-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (D) L=1413 		8-98140-402-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (E) L=1348 		8-98204-240-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
(A) L=1553 		8-98131-425-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
FUEL PIPE STEEL<E2N> (B) L=1641 		8-98165-428-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
EXC. FUEL PIPE STEEL<E2N> (C) L=1535 		8-98204-241-0 01 1 1302- ●
457 BRACKET; UNION,FUEL PIPE
FUEL PIPE STEEL<E2N> 		8-98091-974-0 01 1 1302- ●
468 NUT
FUEL PIPE STEEL<E2N> (A) M14 		0-91111-514-0 01 1 1302- ●
468 NUT
FUEL PIPE STEEL<E2N> (B) M16 		0-91111-516-0 01 1 1302- ●
487 PIPE; FUEL HOSE
FUEL PIPE STEEL<E2N> L=308 		8-98147-038-0 01 1 1302- ●

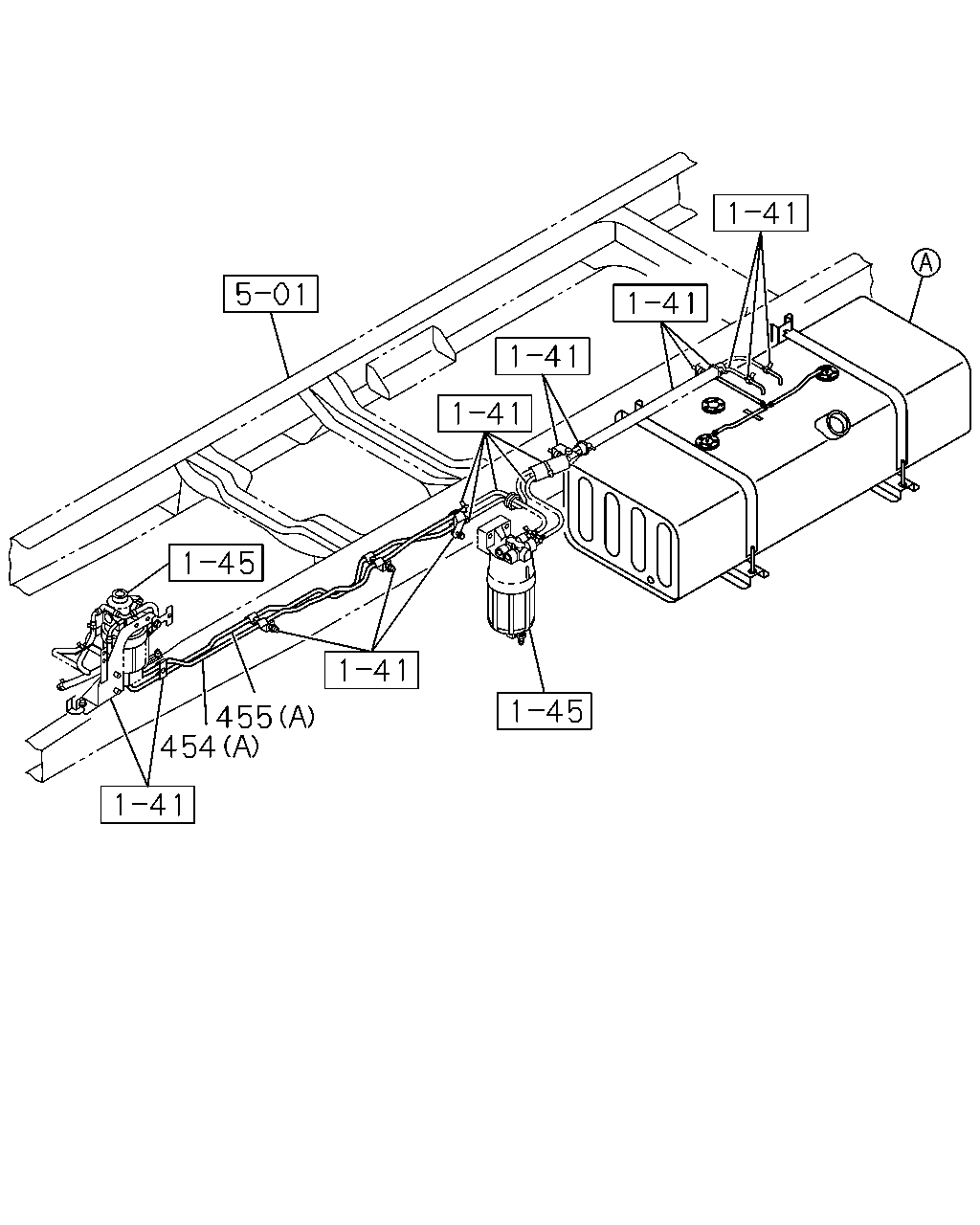

çizim 327150
455 454
BalonParca AdiParca NoAdetTipApplied Date A B
454 PIPE; FUEL,DELIVERY
(A) L=1377 		8-98131-424-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (B) L=621 SERVICED BY L=660 		1-47428-869-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (C) L=1073 SERVICED BY L=1100 		1-47428-875-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (D) L=1413 		8-98140-402-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (E) L=1348 		8-98204-240-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
(A) L=1553 		8-98131-425-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
FUEL PIPE STEEL<E2N> (B) L=1641 		8-98165-428-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
EXC. FUEL PIPE STEEL<E2N> (C) L=1535 		8-98204-241-0 01 1 1302- ●

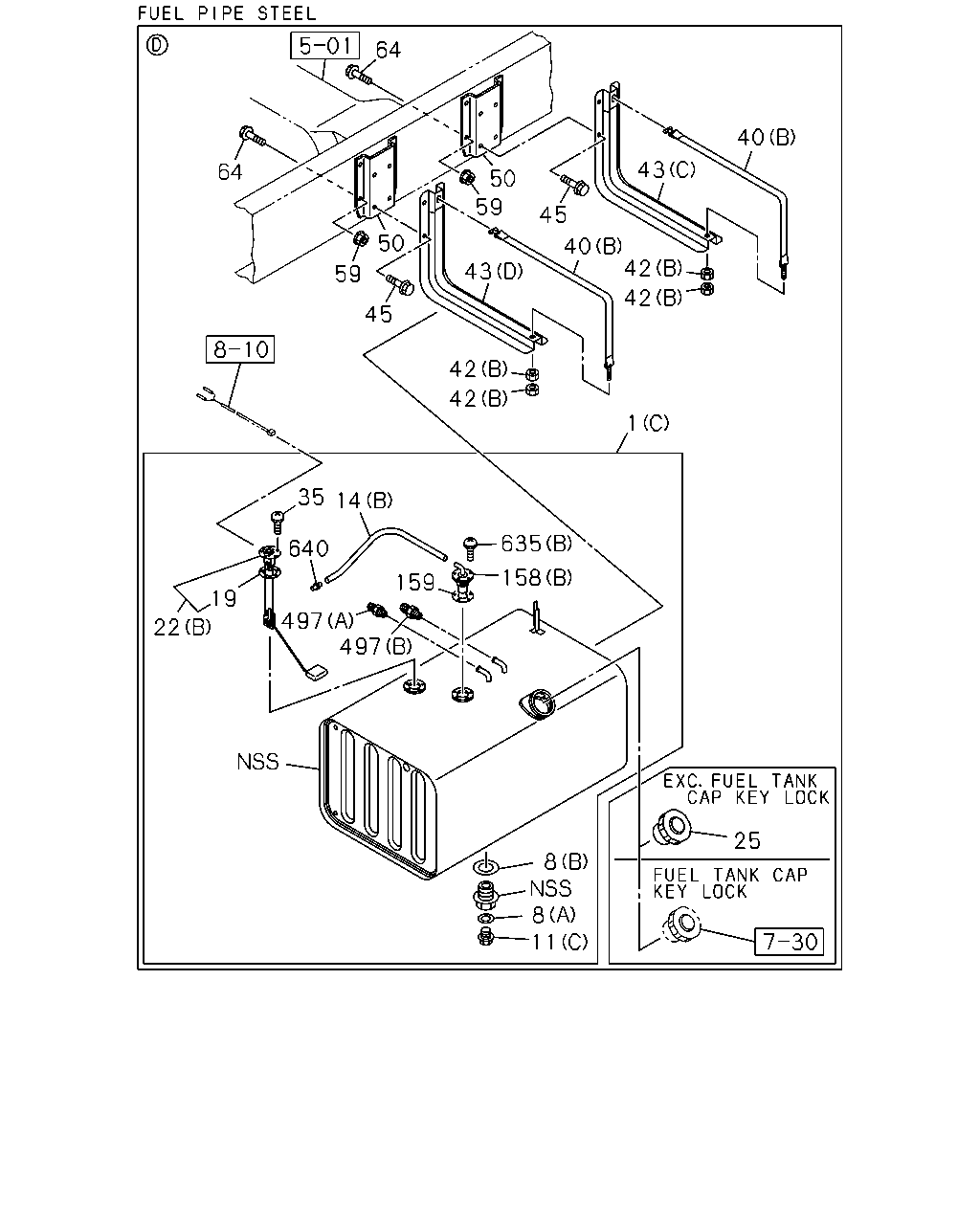

çizim 327151
64 50 59 45 43 40 42 42 40 43 50 45 59 42 42 635 158 1 159 14 497 497 640 35 19 22 8 8 11 25 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
(A) 1345X532X322 200L 		8-98122-992-3 01 1 1302- ●
1 TANK; FUEL
FUEL PIPE STEEL<E2N> (C) 820X500X400 140L 		8-98067-087-3 01 1 1302- ●
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (B) 820X500X400 140L 		8-98099-831-2 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1302- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
(A) L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=430 		8-98131-037-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=460 		8-98304-414-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=90 		8-98304-415-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(B) L=460 		8-98082-184-1 01 1 1302- ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1302- ● ●
22 UNIT; FUEL TANK
(A) 		8-98099-320-0 01 1 1302- ●
22 UNIT; FUEL TANK
(B) 		8-98099-319-0 01 1 1302- ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 1302- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1302- ● ●
40 BELT; SUPPORT,FUEL TANK
(A) L=880 		8-98042-715-1 02 1 1302- ●
40 BELT; SUPPORT,FUEL TANK
(B) L=925 		8-98049-769-1 02 1 1302- ●
42 NUT; SUPPORT BELT
(A) M12 		0-91110-512-0 04 1 1302- ●
42 NUT; SUPPORT BELT
(B) M10 		0-91110-510-0 04 1 1302- ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(C) 		8-98049-768-1 01 1 1302- ●
43 BRACKET; FUEL TANK
(D) 		8-98083-790-0 01 1 1302-1312 ●
43 BRACKET; FUEL TANK
(D) 		8-98127-229-0 01 1 1401- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1302- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1302- ●
50 BRACKET; SUPPORT,FUEL BRKT 8-98097-206-0 02 1 1302- ●
59 NUT; FUEL TANK
M10 FLANGE 		0-91180-210-0 08 1 1302- ●
64 BOLT; FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(A) 		8-98067-039-0 02 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(B) 		8-98095-223-0 01 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 1302- ●
497 NIPPLE; FUEL PIPE
FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 1302- ●
497 NIPPLE; FUEL PIPE
FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT 		1-09650-405-1 01 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(A) M5X12 W/LK WASHER 		0-36220-512-0 10 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(B) M5X10 W/LK WASHER 		0-36220-510-0 05 1 1302- ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1302- ● ●

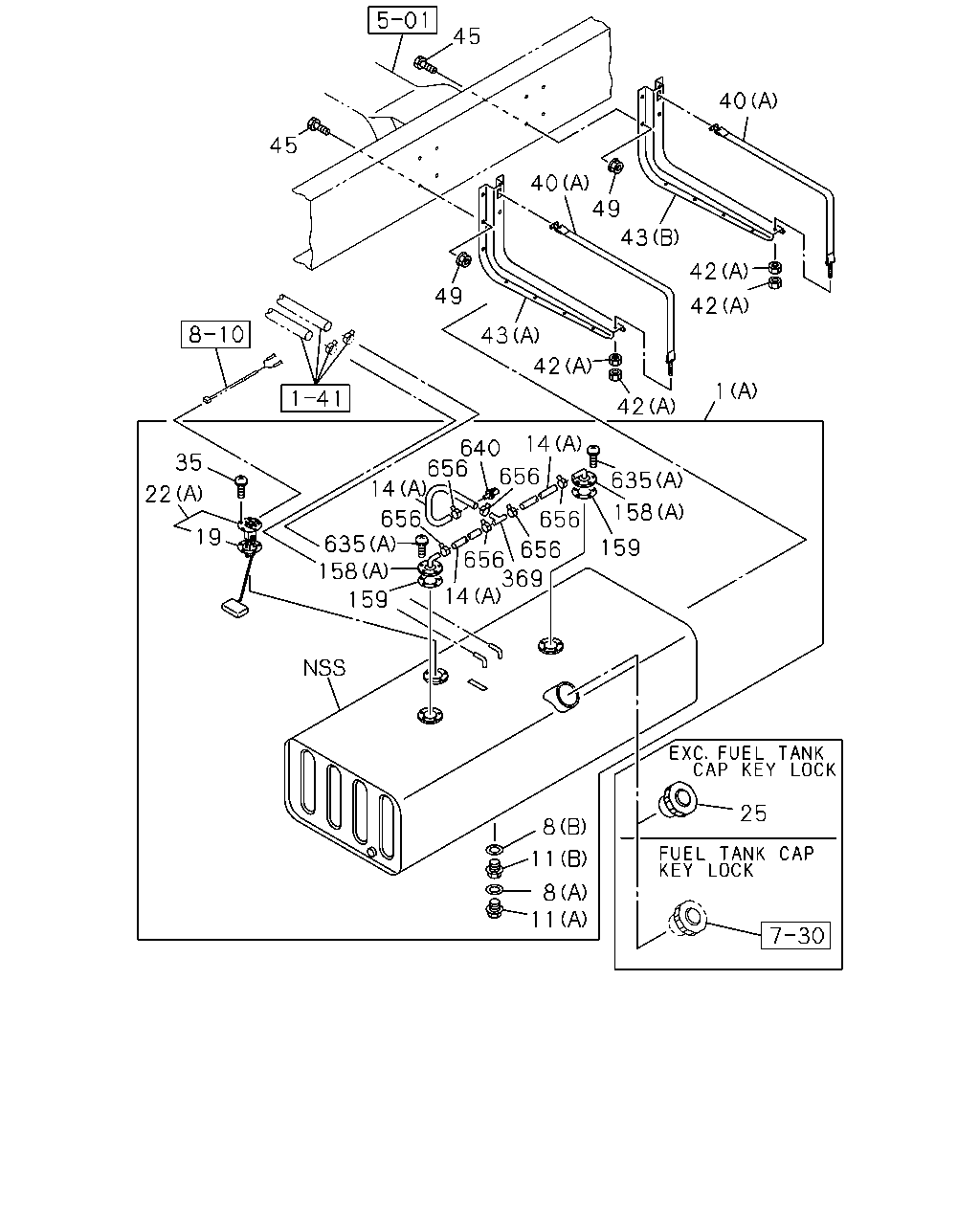

çizim 327258
40 49 43 42 42 1 42 42 43 49 40 45 35 22 19 635 158 159 656 14 656 640 14 656 635 158 159 656 656 656 369 14 8 11 8 11 25 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
(A) 1345X532X322 200L 		8-98122-992-3 01 1 1302- ●
1 TANK; FUEL
FUEL PIPE STEEL<E2N> (C) 820X500X400 140L 		8-98067-087-3 01 1 1302- ●
1 TANK; FUEL
EXC. FUEL PIPE STEEL<E2N> (B) 820X500X400 140L 		8-98099-831-2 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1302- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1302- ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1302-1504 ●
11 PLUG; DRAIN,FUEL TANK
(C) M18 		8-98068-006-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
(A) L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=430 		8-98131-037-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=460 		8-98304-414-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(A) L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1302-1504 ●
14 HOSE; BREATHER,OUTLET
(A) L=90 		8-98304-415-0 01 1 1505- ●
14 HOSE; BREATHER,OUTLET
(B) L=460 		8-98082-184-1 01 1 1302- ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1302- ● ●
22 UNIT; FUEL TANK
(A) 		8-98099-320-0 01 1 1302- ●
22 UNIT; FUEL TANK
(B) 		8-98099-319-0 01 1 1302- ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 1302- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1302- ● ●
40 BELT; SUPPORT,FUEL TANK
(A) L=880 		8-98042-715-1 02 1 1302- ●
40 BELT; SUPPORT,FUEL TANK
(B) L=925 		8-98049-769-1 02 1 1302- ●
42 NUT; SUPPORT BELT
(A) M12 		0-91110-512-0 04 1 1302- ●
42 NUT; SUPPORT BELT
(B) M10 		0-91110-510-0 04 1 1302- ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1302- ●
43 BRACKET; FUEL TANK
(C) 		8-98049-768-1 01 1 1302- ●
43 BRACKET; FUEL TANK
(D) 		8-98083-790-0 01 1 1302-1312 ●
43 BRACKET; FUEL TANK
(D) 		8-98127-229-0 01 1 1401- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1302- ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1302- ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(A) 		8-98067-039-0 02 1 1302- ●
158 VALVE; ROLL OVER & FLOAT
(B) 		8-98095-223-0 01 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1302- ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 1302- ●
369 JOINT; HOSE 8-98067-080-0 01 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(A) M5X12 W/LK WASHER 		0-36220-512-0 10 1 1302- ●
635 SCREW; ROLL OVER & FLOAT VALVE
(B) M5X10 W/LK WASHER 		0-36220-510-0 05 1 1302- ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1302- ● ●
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1505- ●

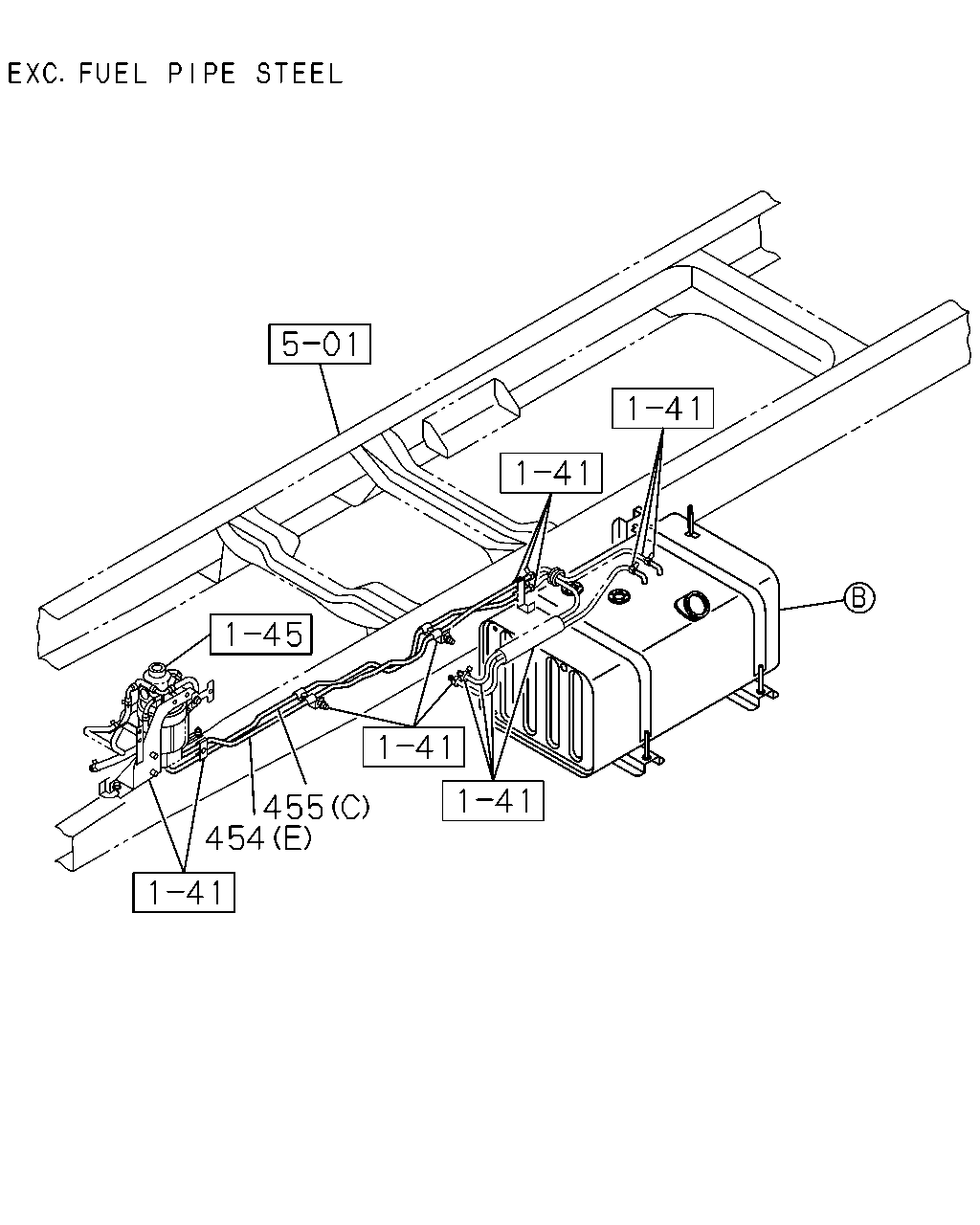

çizim 331388
455 454
BalonParca AdiParca NoAdetTipApplied Date A B
454 PIPE; FUEL,DELIVERY
(A) L=1377 		8-98131-424-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (B) L=621 SERVICED BY L=660 		1-47428-869-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (C) L=1073 SERVICED BY L=1100 		1-47428-875-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
FUEL PIPE STEEL<E2N> (D) L=1413 		8-98140-402-0 01 1 1302- ●
454 PIPE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (E) L=1348 		8-98204-240-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
(A) L=1553 		8-98131-425-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
FUEL PIPE STEEL<E2N> (B) L=1641 		8-98165-428-0 01 1 1302- ●
455 PIPE; FUEL,RETURN
EXC. FUEL PIPE STEEL<E2N> (C) L=1535 		8-98204-241-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
