0-32 — WATER PIPING; ENGINE (#113612) — 118 parça

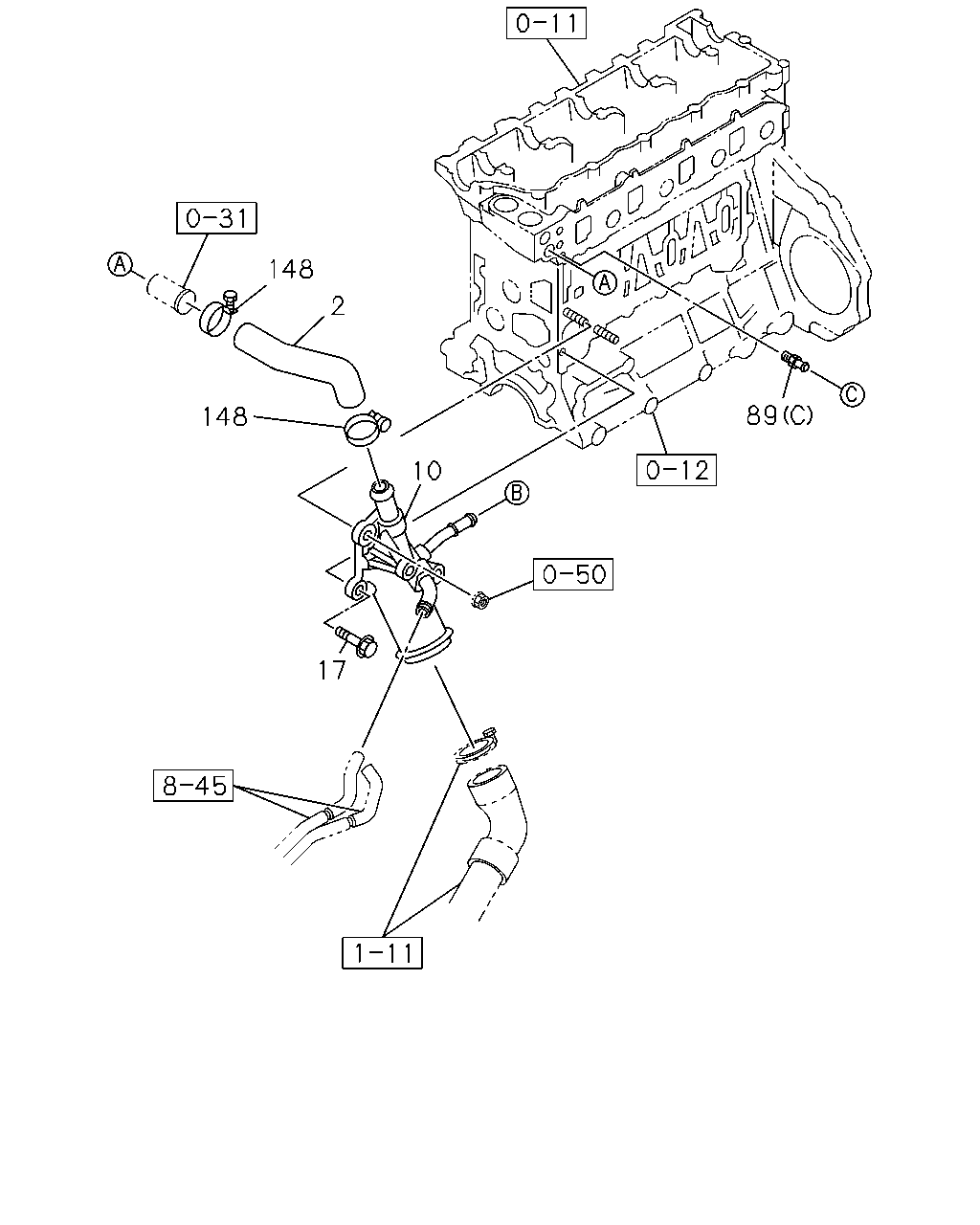

148 148 10 17 89 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1302-	●
10	PIPE; SUCTION	8-98166-995-0	01	1	1302-	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (D)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-		●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1302-	●

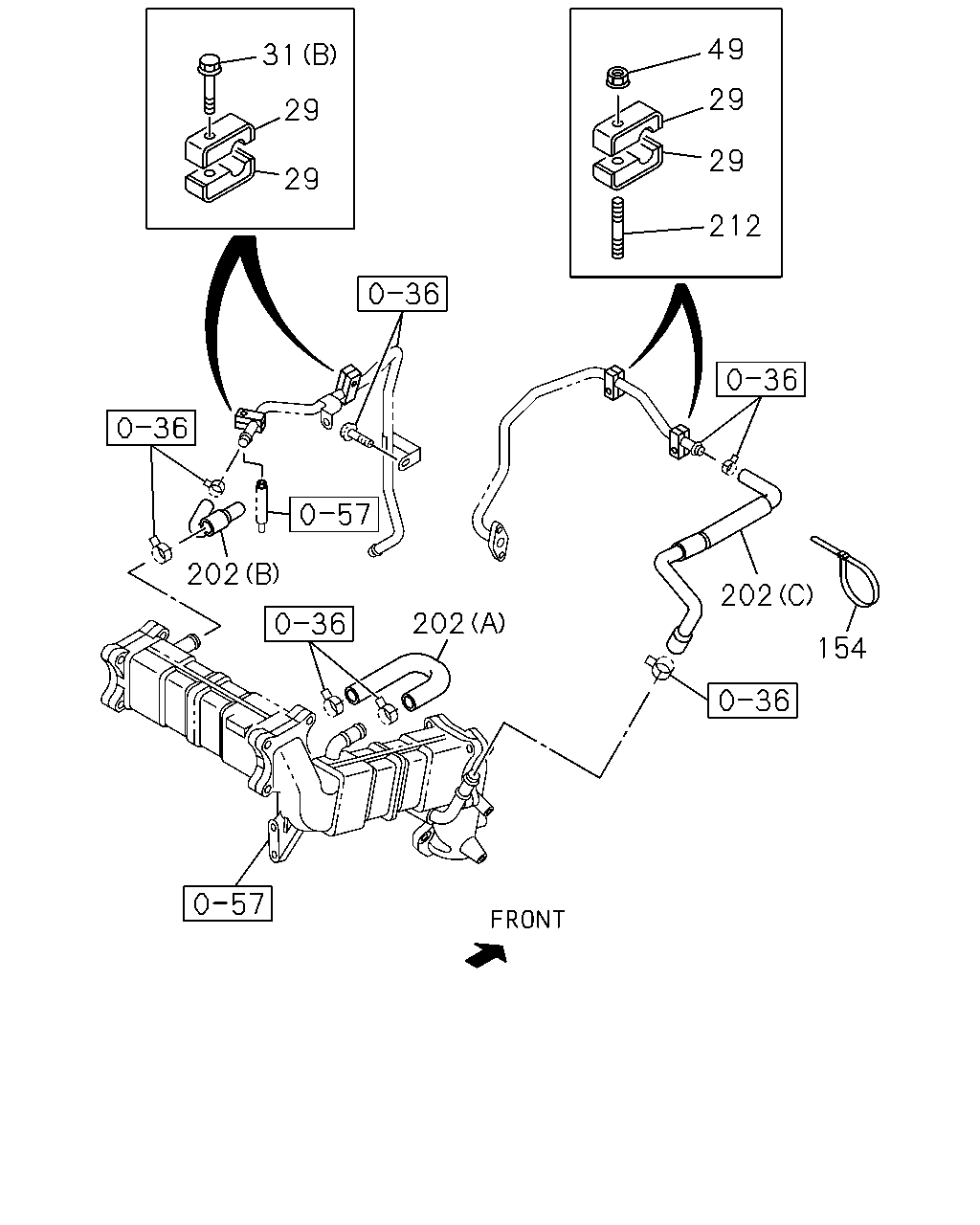

49 29 29 212 202 154 202 202 29 29 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE EURO4 SPECIFICATION<NT4> ID=17 L=17	1-09701-284-0	08	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1302-	●
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=170.3	1-09987-182-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98028-170-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98028-171-0	01	1	1302-	●
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-98097-717-0	01	1	1302-	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1302-	●

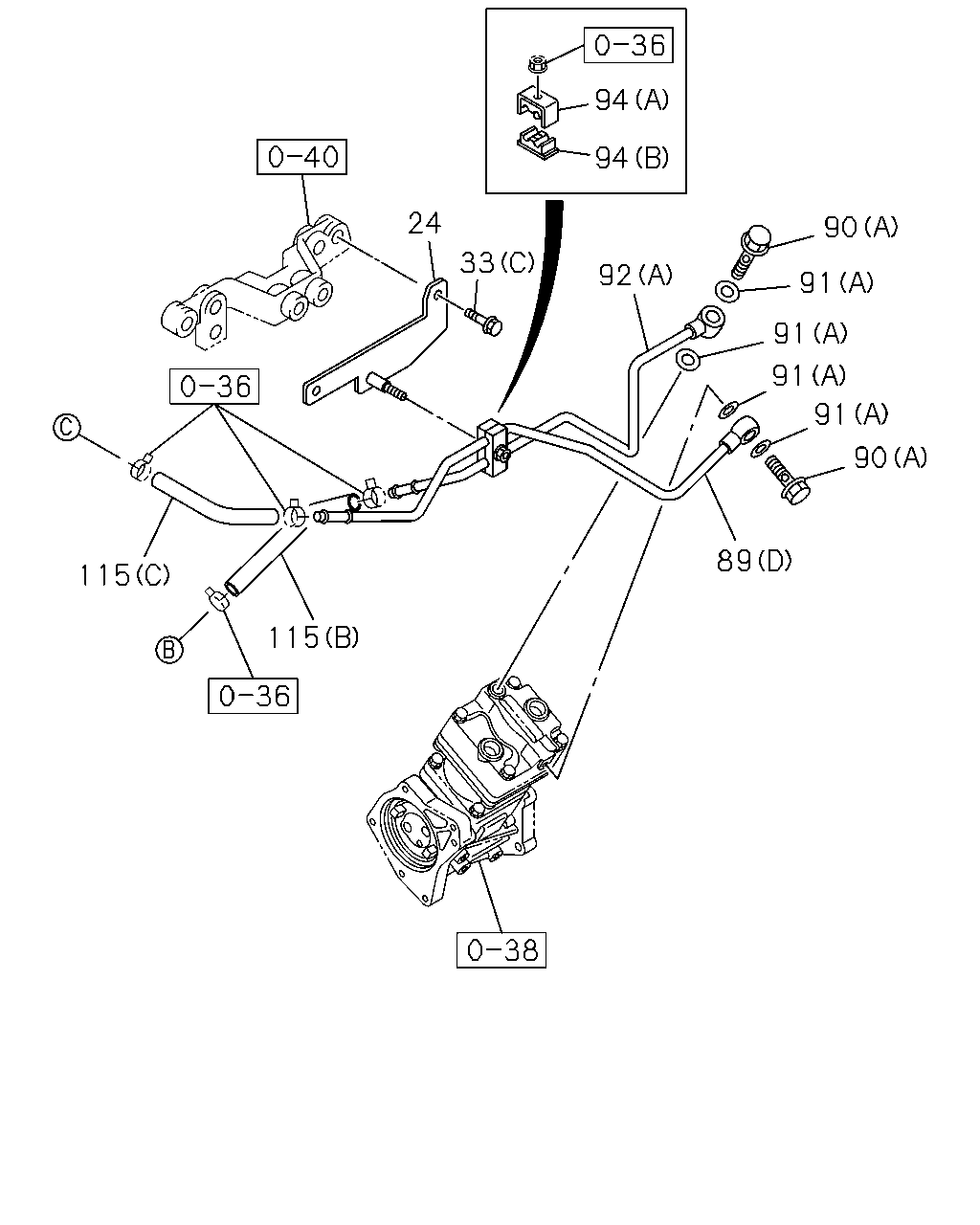

24 94 94 92 33 90 91 91 91 91 90 89 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>	8-97379-140-0	01	1	1302-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (D)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2> (A)	8-97376-784-0	01	1	1302-	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (B)	8-98132-662-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●
94	CLIP; WATER PIPE (C)	8-94396-860-0	01	1	1302-		●
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●

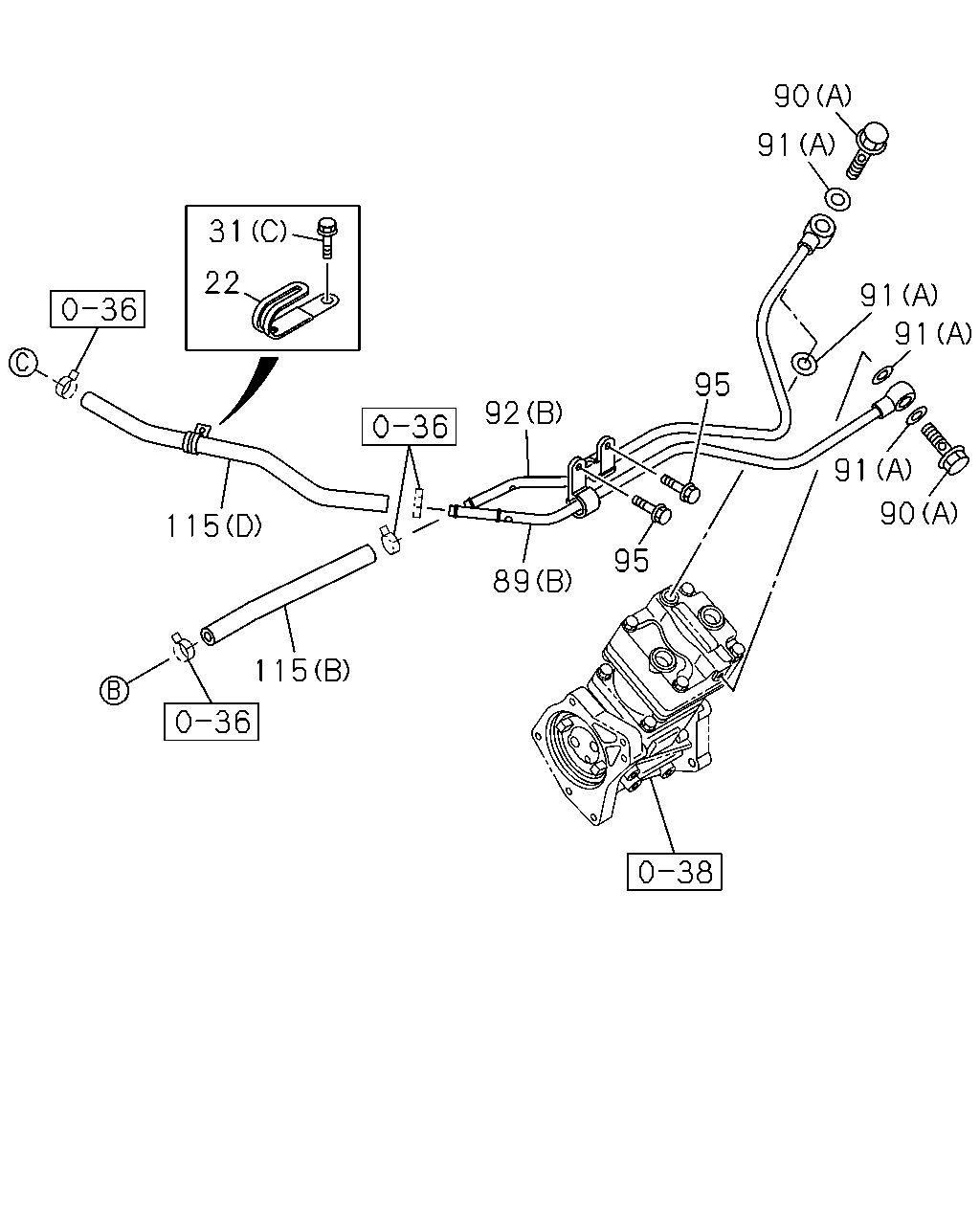

91 90 91 91 91 90 92 95 95 89 115 115 31 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> L=36	8-94224-891-1	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (D)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2> (A)	8-97376-784-0	01	1	1302-	●
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (B)	8-98132-662-0	01	1	1302-	●
95	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●

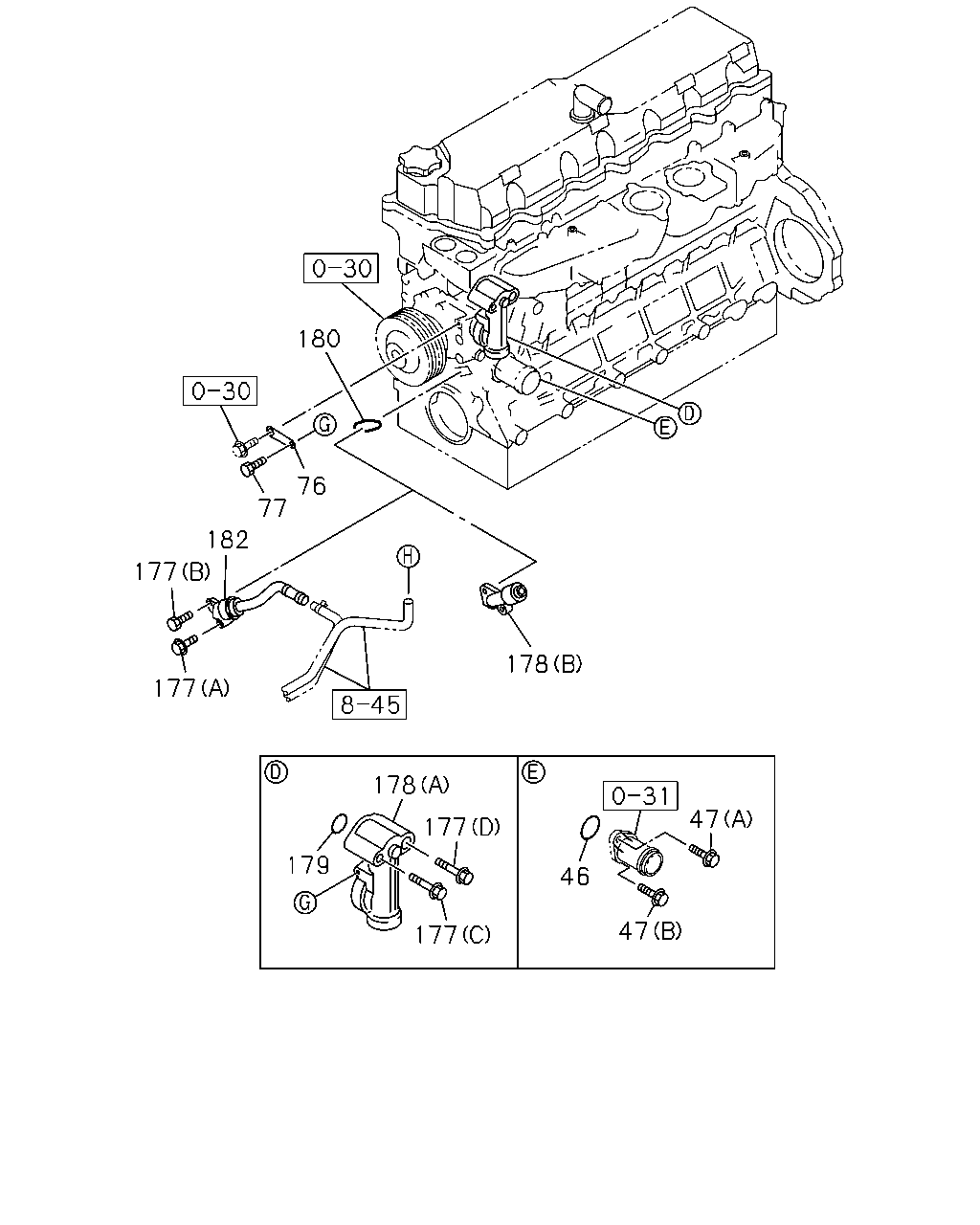

180 76 77 182 177 177 178 178 177 179 177 46 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-	●
178	DUCT; WATER,BYPASS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1302-	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94394-348-5	01	1	1302-	●

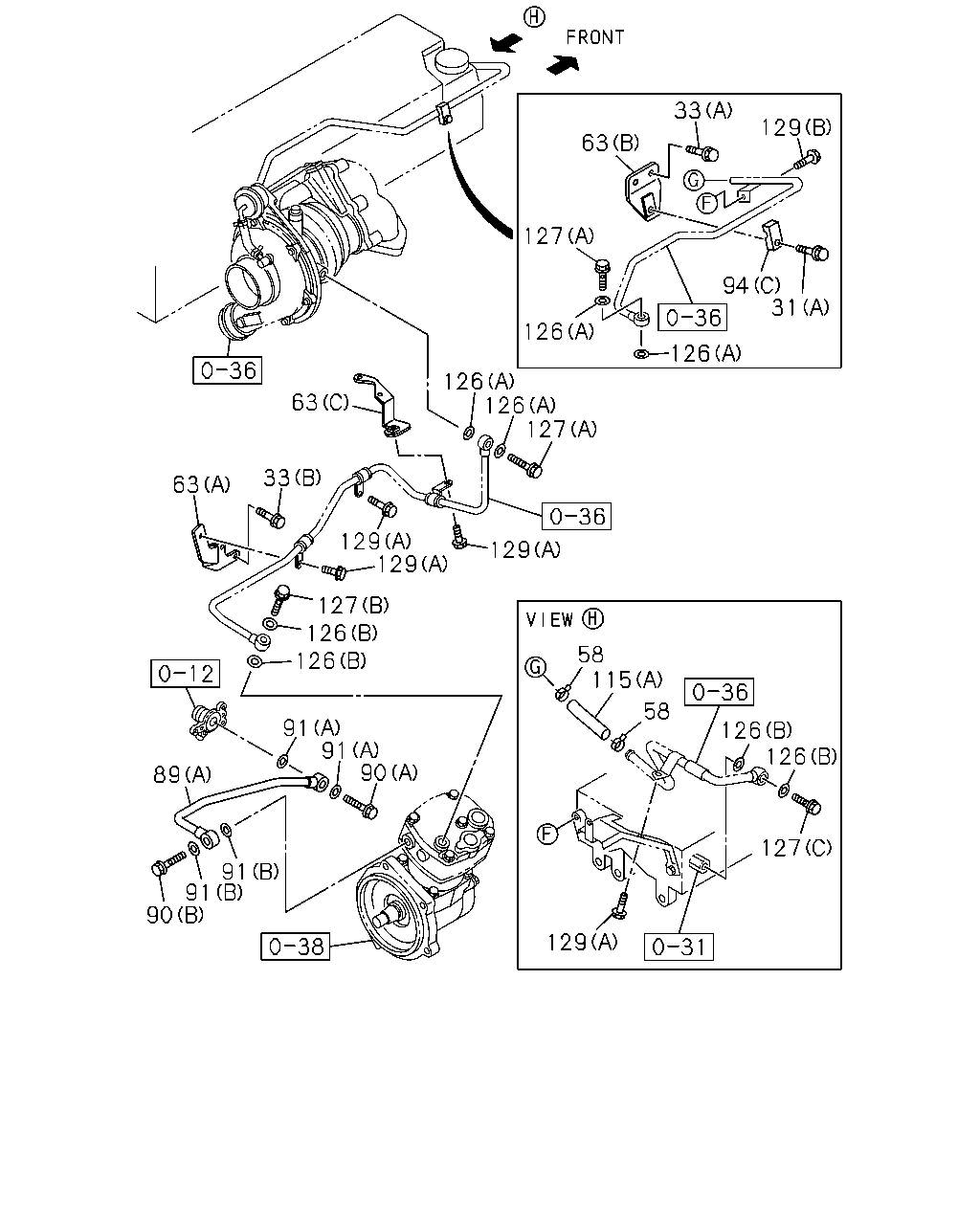

33 63 127 129 94 31 126 126 126 127 63 129 129 129 33 63 127 126 126 91 91 90 58 115 58 126 126 127 89 91 91 90 126 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
31	BOLT; CLIP (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M6X10 FLANGE	0-28050-610-0	02	1	1302-	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	1302-		●
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	1302-		●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1302-		●
63	BRACKET; WATER PIPE (A)	8-98074-253-0	01	1	1302-		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2> (D)	8-97376-783-1	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-98095-668-0	01	1	1302-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-		●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1302-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1302-	●
94	CLIP; WATER PIPE (C)	8-94396-860-0	01	1	1302-		●
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1302-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (C)	8-98009-361-0	01	1	1302-	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (D)	8-98095-678-3	01	1	1302-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1302-		●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-		●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	1302-		●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-		●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-		●
