0-32 — WATER PIPING; ENGINE (#113604) — 136 parça

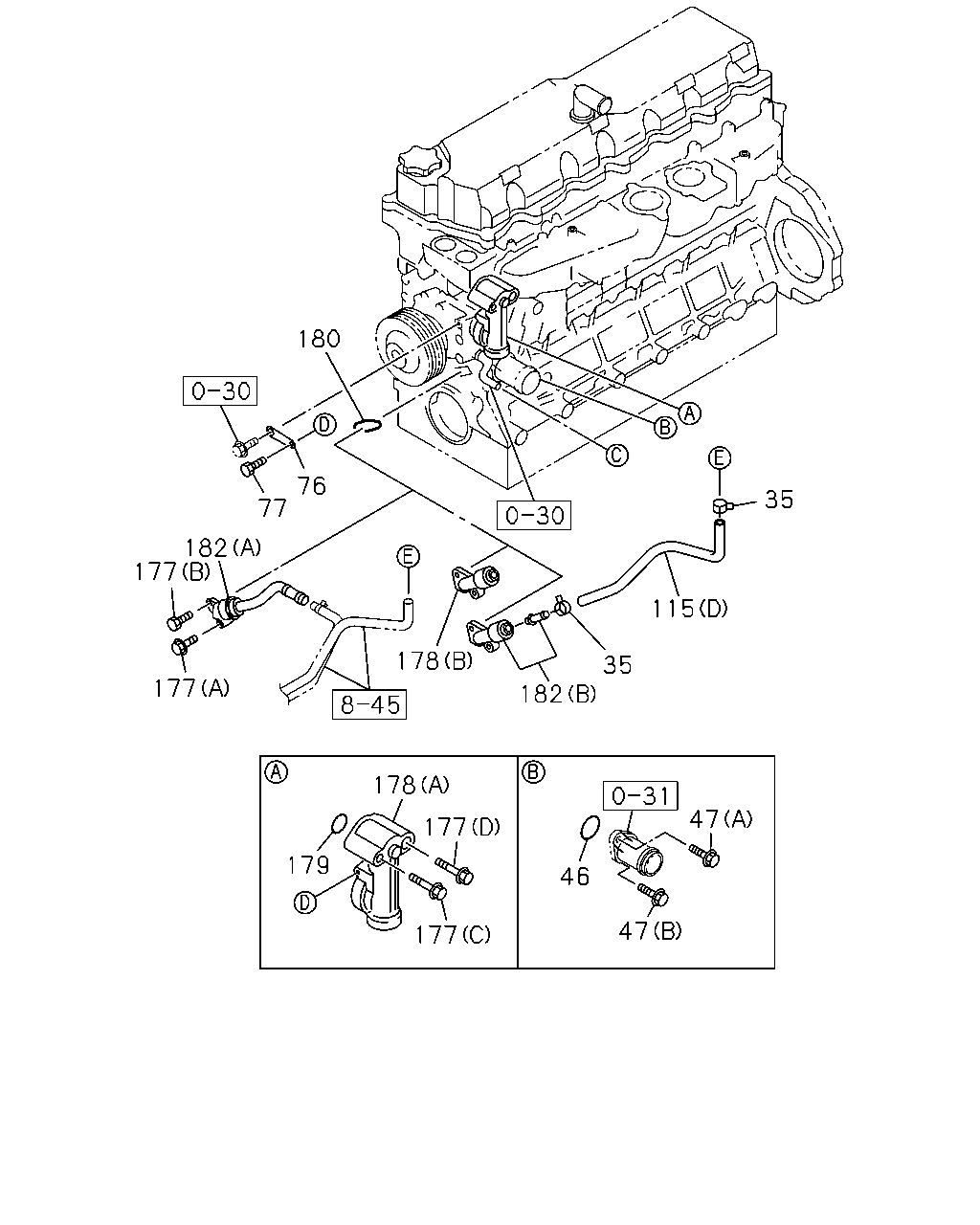

180 76 77 35 179 182 177 177 178 177 177 47 46 47 115 35 182 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1602-	●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1602-	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1302-	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1302-	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1302-	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1302-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (E)	8-97606-749-0	02	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1602-	●	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1601	●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1602-	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1302-	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1302-	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1302-	●	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1302-	●	●
178	DUCT; WATER,BYPASS GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1302-1601	●	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1602-	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1302-1408	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1302-	●	●
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1602-	●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1302-	●	●

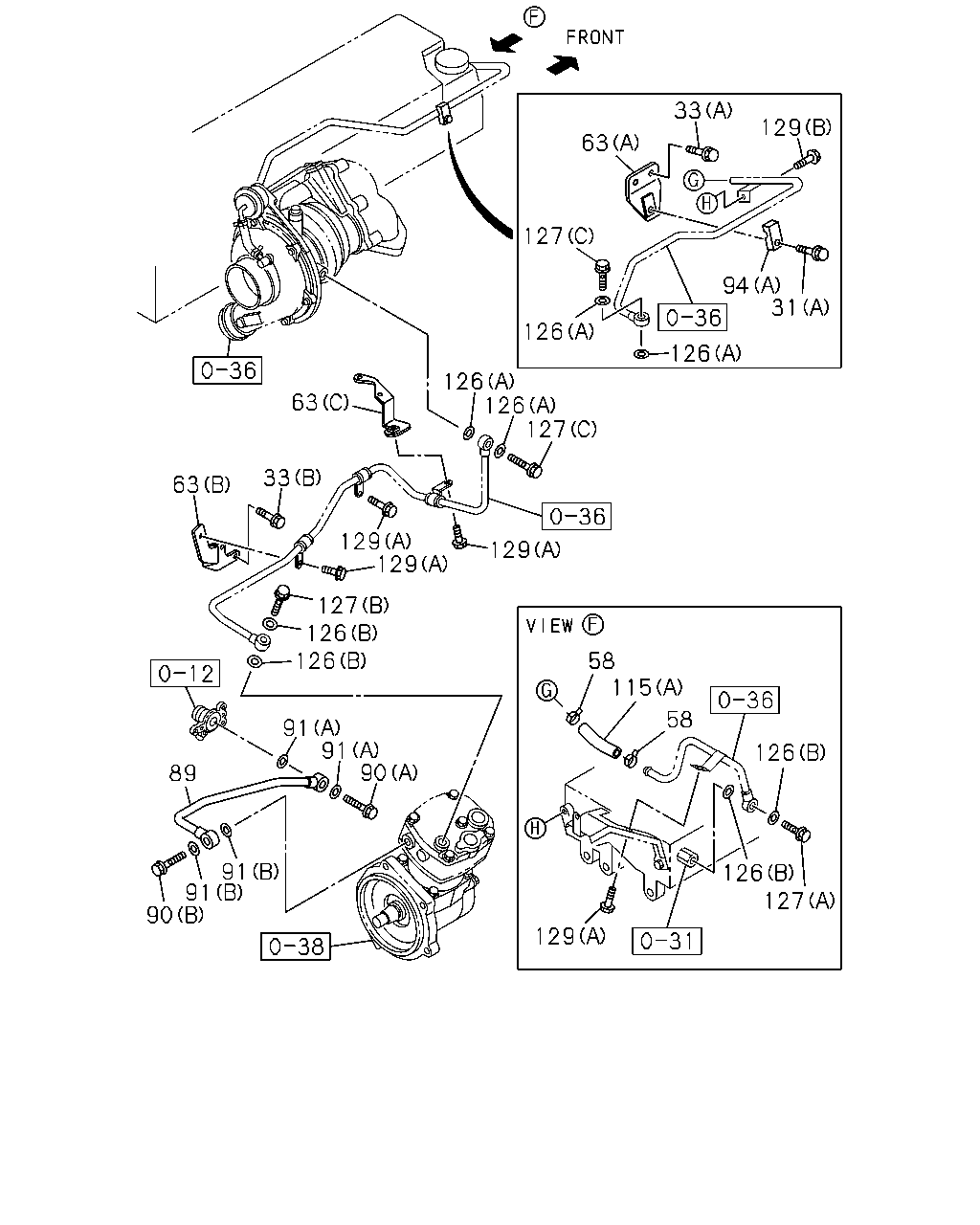

63 127 126 126 31 94 129 33 63 63 33 129 127 126 126 129 129 126 127 126 58 91 89 91 91 90 115 58 126 126 129 127 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	1602-	●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M6X40 FLANGE	0-28650-640-0	03	1	1602-	●	●
31	BOLT; CLIP (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1601	●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1602-	●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1602-	●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1602-	●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1602-	●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1602-	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	1302-1601	●	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1602-	●	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (D)	8-98046-784-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (A)	8-94392-951-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94392-951-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (B)	8-98074-253-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-253-0	01	1	1602-	●	●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1302-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-97605-129-1	08	1	1602-	●	●
94	CLIP; WATER PIPE (A)	8-94396-860-0	01	1	1302-1601	●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (E)	8-97606-749-0	02	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1602-	●	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1601	●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1601	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1302-1601	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>. (B) ID=16.2	1-09630-086-0	02	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	1602-	●	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1602-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-1601	●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1602-	●	●
127	BOLT; EYE (A) M16X25	5-09675-028-2	01	1	1302-1601	●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1602-	●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1302-1601	●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1602-	●	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	1302-1601	●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1602-	●	●

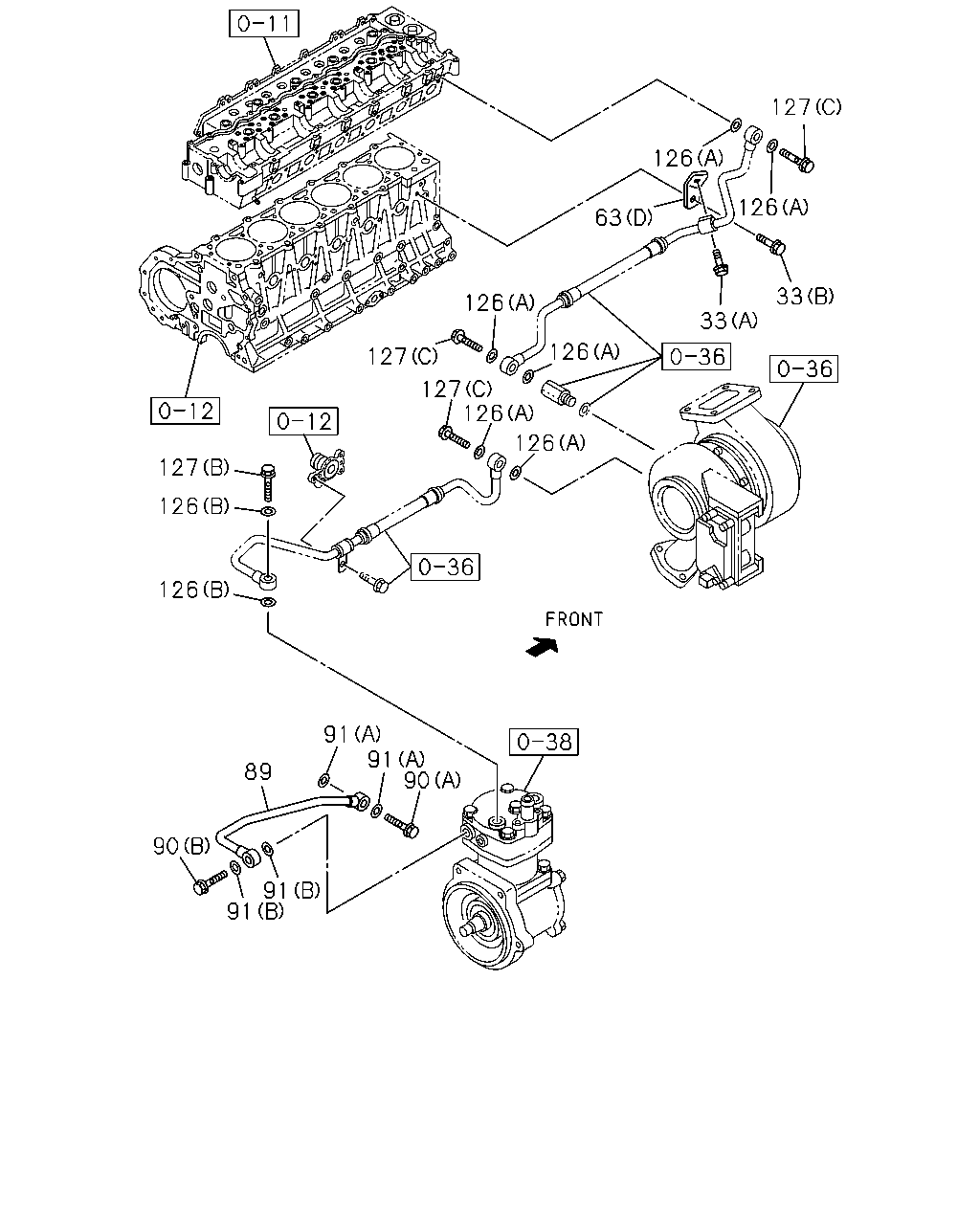

127 126 63 126 126 127 126 127 126 126 33 33 127 126 127 89 90 91 91 91 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1602-	●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1602-	●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1602-	●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1602-	●	●
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (D)	8-98046-784-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (A)	8-94392-951-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94392-951-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1602-	●	●
63	BRACKET; WATER PIPE (B)	8-98074-253-0	01	1	1302-1601	●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-253-0	01	1	1602-	●	●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	1302-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1302-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1302-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1302-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1302-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1601	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1302-1601	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>. (B) ID=16.2	1-09630-086-0	02	1	1602-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	1602-	●	●
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1602-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1302-1601	●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1602-	●	●
127	BOLT; EYE (A) M16X25	5-09675-028-2	01	1	1302-1601	●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1602-	●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1302-	●	●

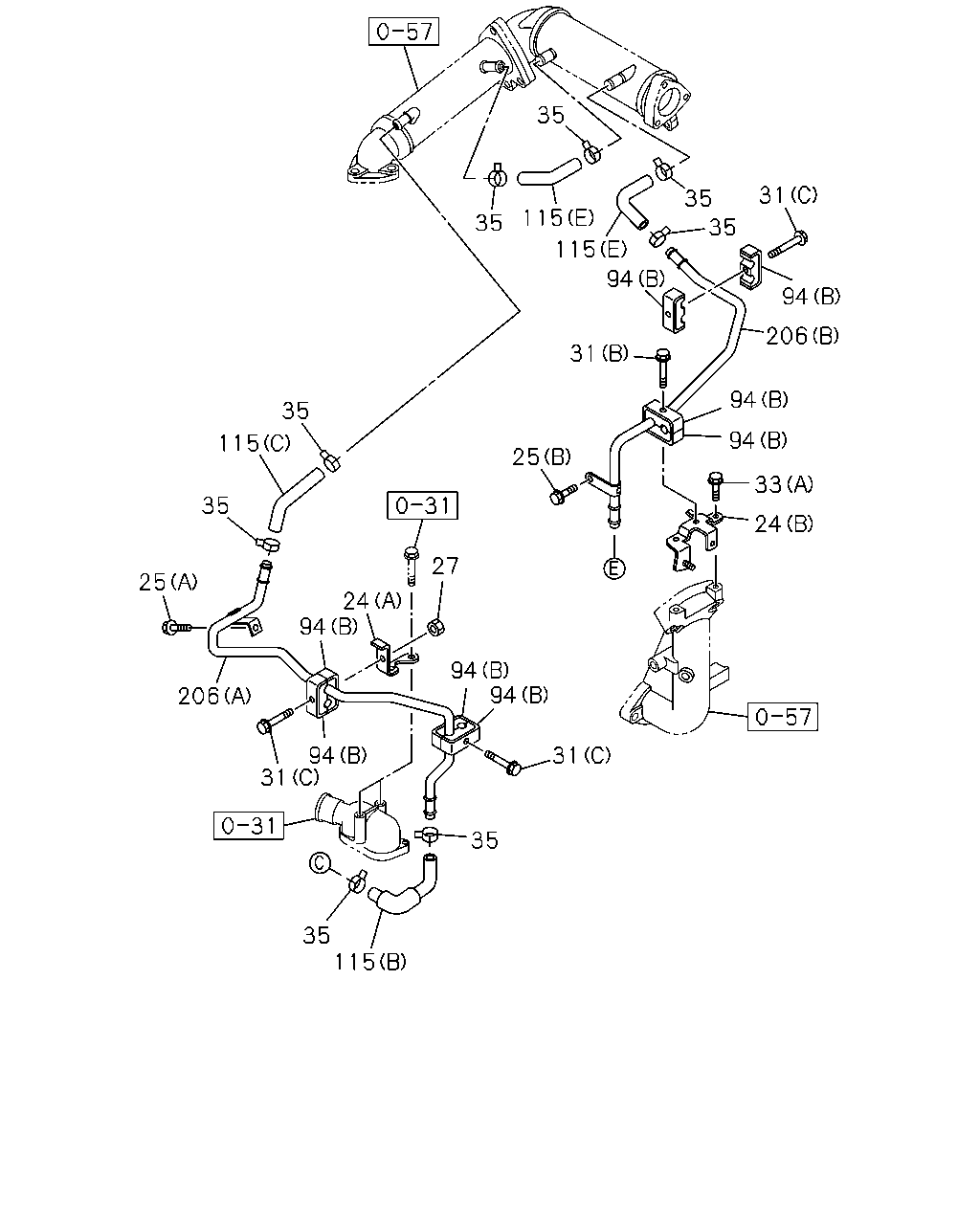

35 35 115 35 31 115 31 94 35 94 206 94 94 33 24 25 35 115 35 25 206 94 27 24 31 94 94 31 35 94 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98000-557-2	01	1	1602-	●	●
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98051-626-1	01	1	1602-	●	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	1602-	●	●
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	1602-	●	●
27	NUT; PIPE FIX EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1602-	●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	1602-	●	●
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (C) M6X40 FLANGE	0-28650-640-0	03	1	1602-	●	●
31	BOLT; CLIP (A) M6X35 FLANGE	0-28650-635-0	01	1	1302-1601	●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M6X35 FLANGE	0-28650-635-0	01	1	1602-	●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	1602-	●	●
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	1602-	●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1602-	●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1302-1601	●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1602-	●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1602-	●	●
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> ID=20	8-98127-648-0	08	1	1602-	●	●
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-97605-129-1	08	1	1602-	●	●
94	CLIP; WATER PIPE (A)	8-94396-860-0	01	1	1302-1601	●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (E)	8-97606-749-0	02	1	1602-	●	●
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	1602-	●	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1302-1601	●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1602-	●	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	1602-	●	●
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	1602-	●	●
