0-14 — CAMSHAFT AND VALVE (#113600) — 75 parça

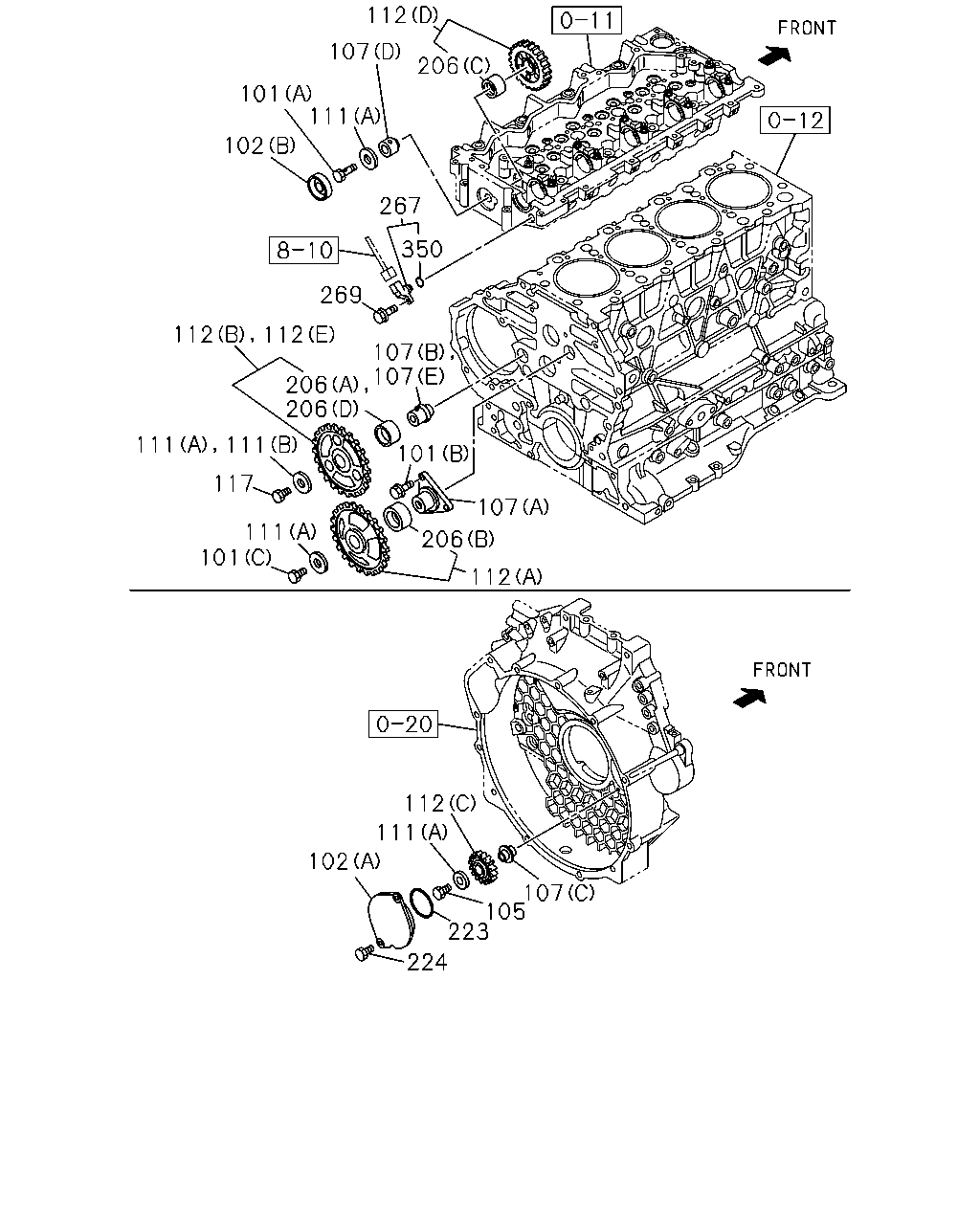

112 107 101 267 111 112 269 350 112 206 107 206 101 206 107 206 111 111 111 117 101 112 107 102 112 111 102 105 223 224 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1302-	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1302-	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1302-1310	●	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1302-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1302-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1302-	●	●
107	SHAFT; IDLE GEAR EURO5 SPECIFICATION<NT5> (E)	8-98163-984-0	01	1	1506-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-97186-398-1	01	1	1302-1511	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1302-1511		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (D)	8-97186-398-1	01	1	1512-	●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1512-		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1302-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1302-	●	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (D)	8-97606-990-1	01	1	1302-1505	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97606-990-1	01	1	1506-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1302-1511	●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B)	8-98060-780-0	01	1	1512-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1512-		●
111	COLLAR; THRUST,IDLE GEAR EURO5 SPECIFICATION<NT5> (B) ID=14.5 OD=59	1-12535-030-1	01	1	1506-	●
111	COLLAR; THRUST,IDLE GEAR EURO5 SPECIFICATION<NT5> (A) ID=14.5 OD=46	8-97209-728-2	03	1	1506-	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	04	1	1302-1511	●	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) ID=14.5 OD=46	8-97209-728-2	04	1	1512-	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	04	1	1512-		●
112	GEAR; IDLE EURO5 SPECIFICATION<NT5> (E) Z=72-60-30	8-98145-647-1	01	1	1506-	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) Z=41	8-97606-929-0	01	1	1302-1511	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1302-1511		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (D) Z=41	8-97606-929-0	01	1	1512-	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1512-		●
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	1302-	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1302-1402	●	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1302-	●	●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (D) Z=41	8-98058-320-1	01	1	1302-1505	●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) Z=41	8-98058-320-1	01	1	1506-	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1302-	●	●
206	BUSHING; IDLE GEAR EURO5 SPECIFICATION<NT5> (D) AFTER PRESS FITTING, MACHINE IT.	8-98021-070-0	01	1	1506-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1302-1402	●	●
206	BUSHING; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1302-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1302-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1302-	●	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-	●	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1302-	●	●
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	1302-	●	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1302-	●	●

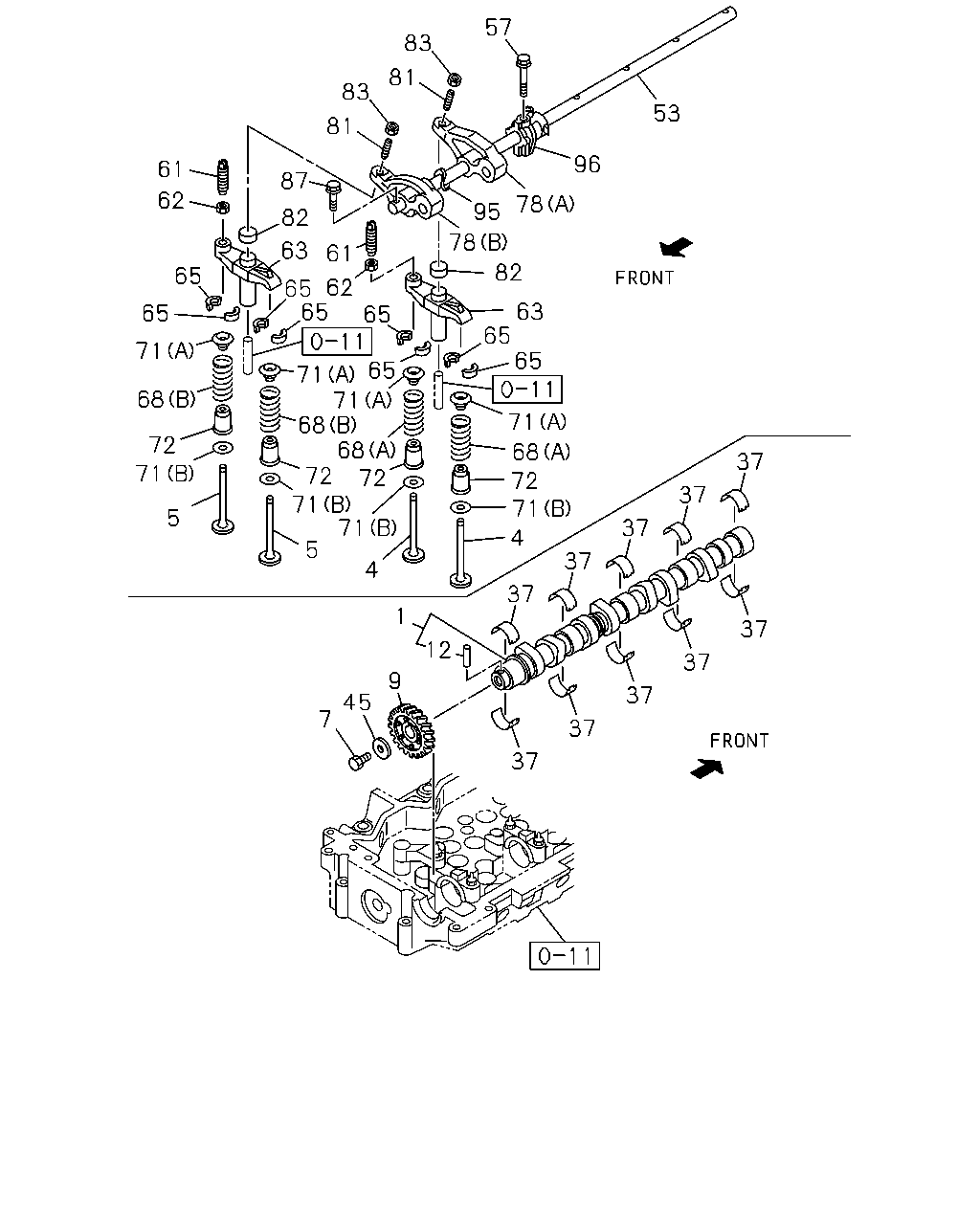

57 83 81 83 81 87 61 82 78 95 78 96 53 82 63 65 65 62 61 63 65 65 71 65 65 62 65 71 71 68 72 72 68 71 71 72 68 71 65 71 4 4 5 5 71 72 68 12 1 37 37 37 37 37 37 37 37 37 37 9 45 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97262-166-0	01	1	1302-	●	●
4	VALVE; INL	8-94395-882-2	08	1	1302-	●	●
5	VALVE; EXH	8-97209-876-4	08	1	1302-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1302-	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1302-	●	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1302-	●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1302-	●	●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1302-	●	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1302-	●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1302-	●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1302-	●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1302-	●	●
63	BRIDGE	8-94392-002-3	08	1	1302-	●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1302-	●	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1302-	●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1302-	●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1302-	●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1302-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1302-	●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1302-	●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1302-	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1302-	●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1302-	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1302-	●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1302-	●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1302-	●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1302-	●	●
