Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#113597) — 457 parça

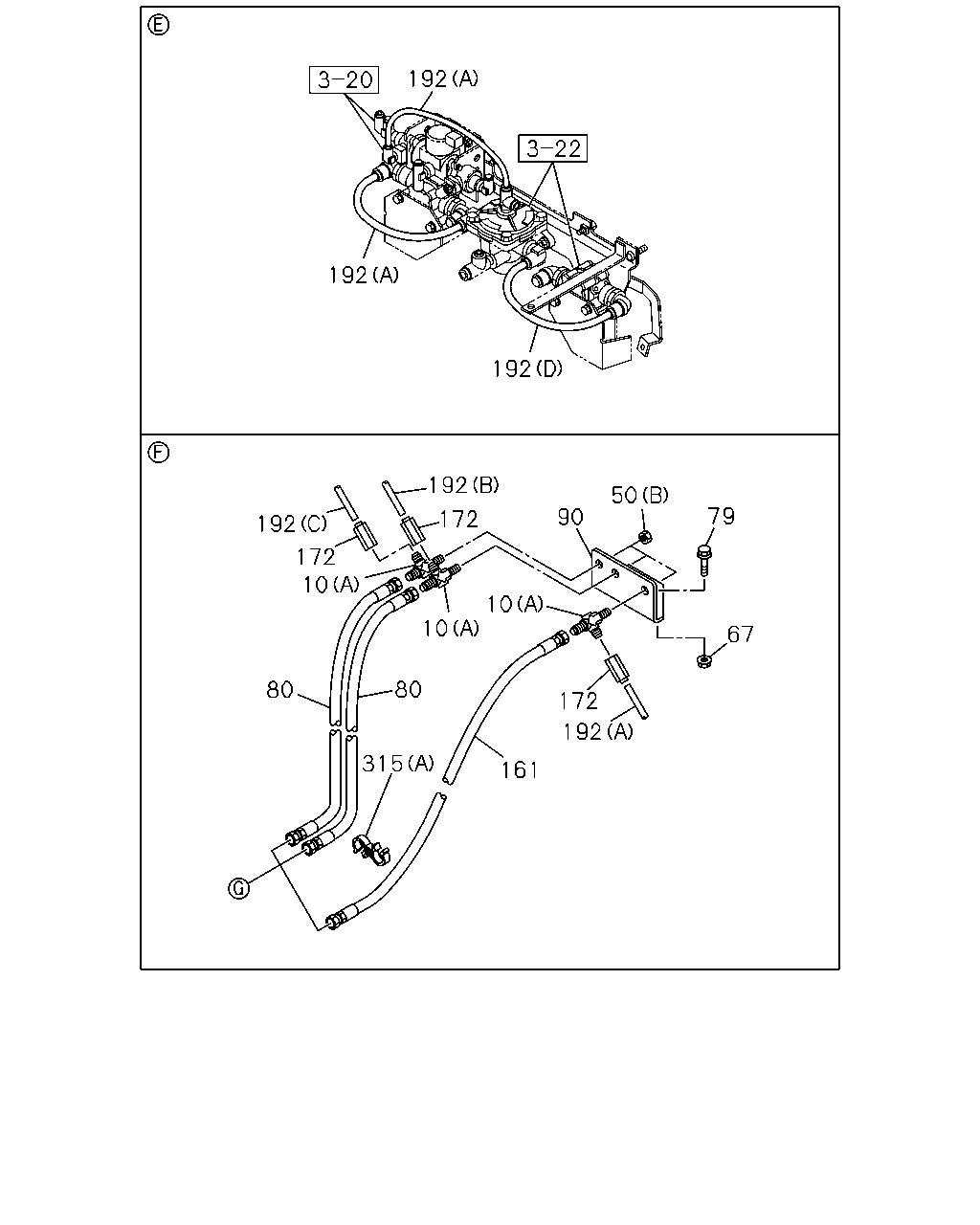

192 192 192 50 79 67 90 172 192 161 315 80 10 10 172 192 192 172 10 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1302-1505	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1506-	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1302-1505	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1506-	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L) (A) M16 2WAY	1-09650-182-1	03	1	1302-		●
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305		●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510		●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L) (B) M12	0-91111-512-0	03	1	1302-		●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	1506-	●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1506-		●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505		●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	1506-		●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	1302-1505	●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	1506-	●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L) L=600	1-09363-746-0	01	1	1302-		●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L) L=580	1-09363-772-0	01	1	1302-		●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	1302-1505	●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	1506-	●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L)	8-98130-763-0	01	1	1302-		●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1302-1505	●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1506-	●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L)	8-98031-452-0	01	1	1302-		●
172	ADAPTER; UNION 6HK1-TCS ENG(80L) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=14	8-94238-572-0	01	1	1511-	●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505		●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1506-	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1506-		●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1302-		●

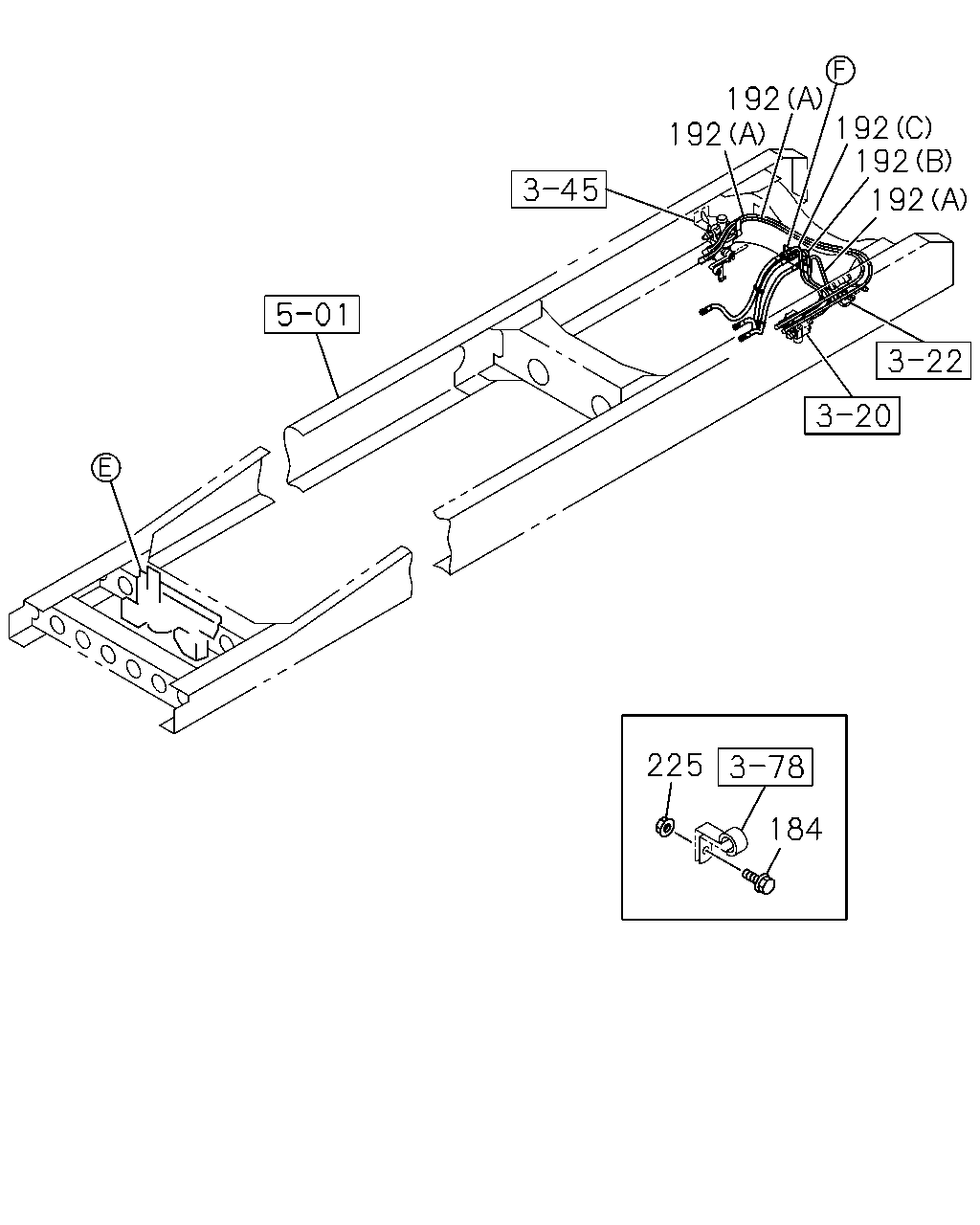

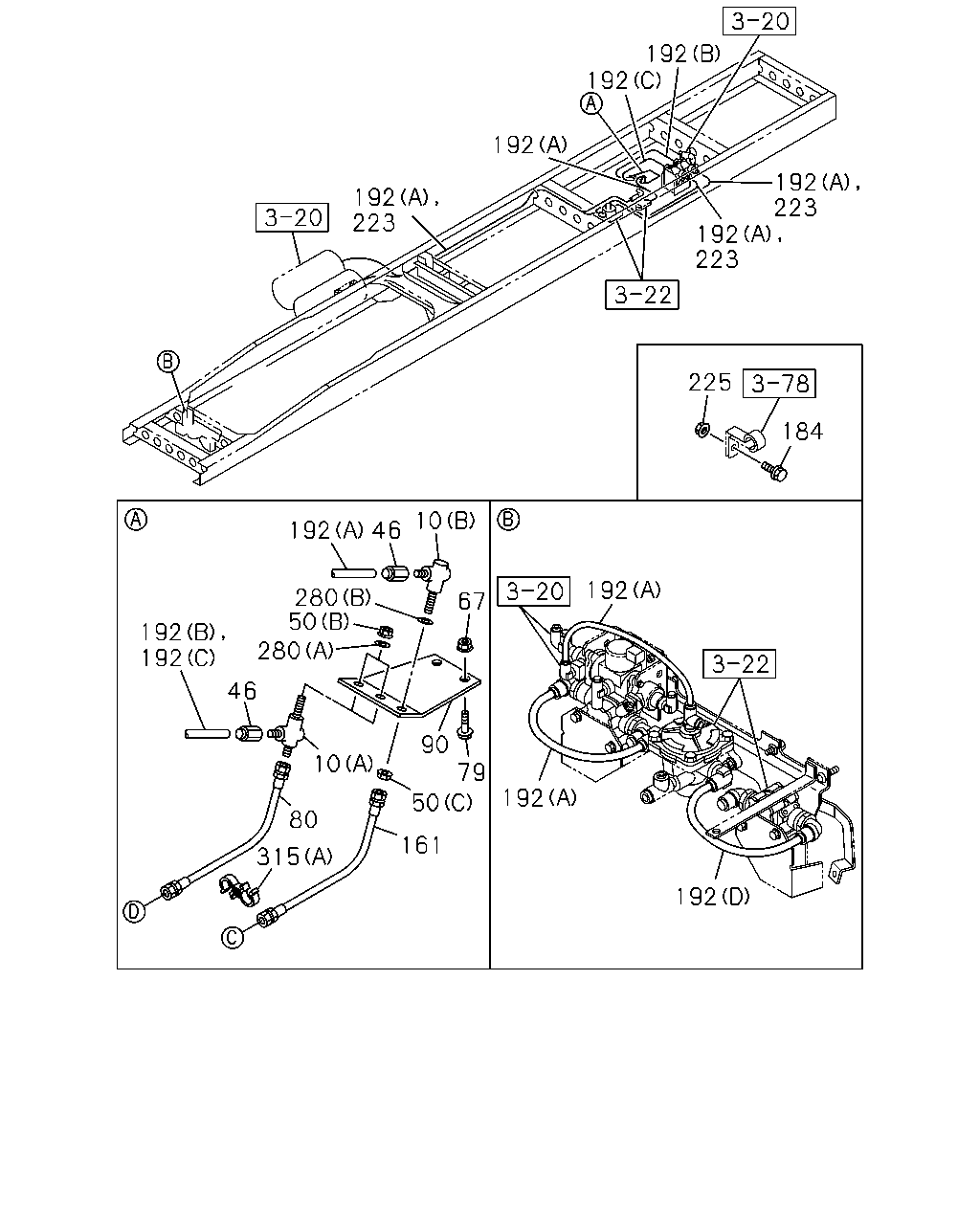

223 192 192 192 192 192 223 192 223 184 225 192 192 192 161 50 79 90 67 10 46 192 280 50 280 46 10 80 315 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1302-1505	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	1506-	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1302-1505	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	1506-	●
10	CONNECTOR; FLEX HOSE 6HK1-TCS ENG(80L) (A) M16 2WAY	1-09650-182-1	03	1	1302-		●
46	NIPPLE; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1302-1505	●
46	NIPPLE; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1506-	●
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305		●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510		●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L) (B) M12	0-91111-512-0	03	1	1302-		●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	1506-	●
67	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1506-		●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505	●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	1302-1505		●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●
79	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	1506-		●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	1302-1505	●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	1506-	●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L) L=600	1-09363-746-0	01	1	1302-		●
80	HOSE; FLEX,POWER CHAMBER 6HK1-TCS ENG(80L) L=580	1-09363-772-0	01	1	1302-		●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	1302-1505	●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	1506-	●
90	BRACKET; PIPE UNION 6HK1-TCS ENG(80L)	8-98130-763-0	01	1	1302-		●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1302-1505	●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1506-	●
161	HOSE; FLEX,QUICK RELEASE VLV 6HK1-TCS ENG(80L)	8-98031-452-0	01	1	1302-		●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505		●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	1506-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	1302-1505		●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	1506-	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	1506-		●
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.2	0-91510-812-0	02	1	1302-1505	●
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.2	0-91510-812-0	02	1	1506-	●
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=16.2	0-91510-816-0	01	1	1302-1505	●
280	WASHER; LK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=16.2	0-91510-816-0	01	1	1506-	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=14	8-94238-572-0	01	1	1511-	●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505		●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1506-	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1506-		●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1302-		●

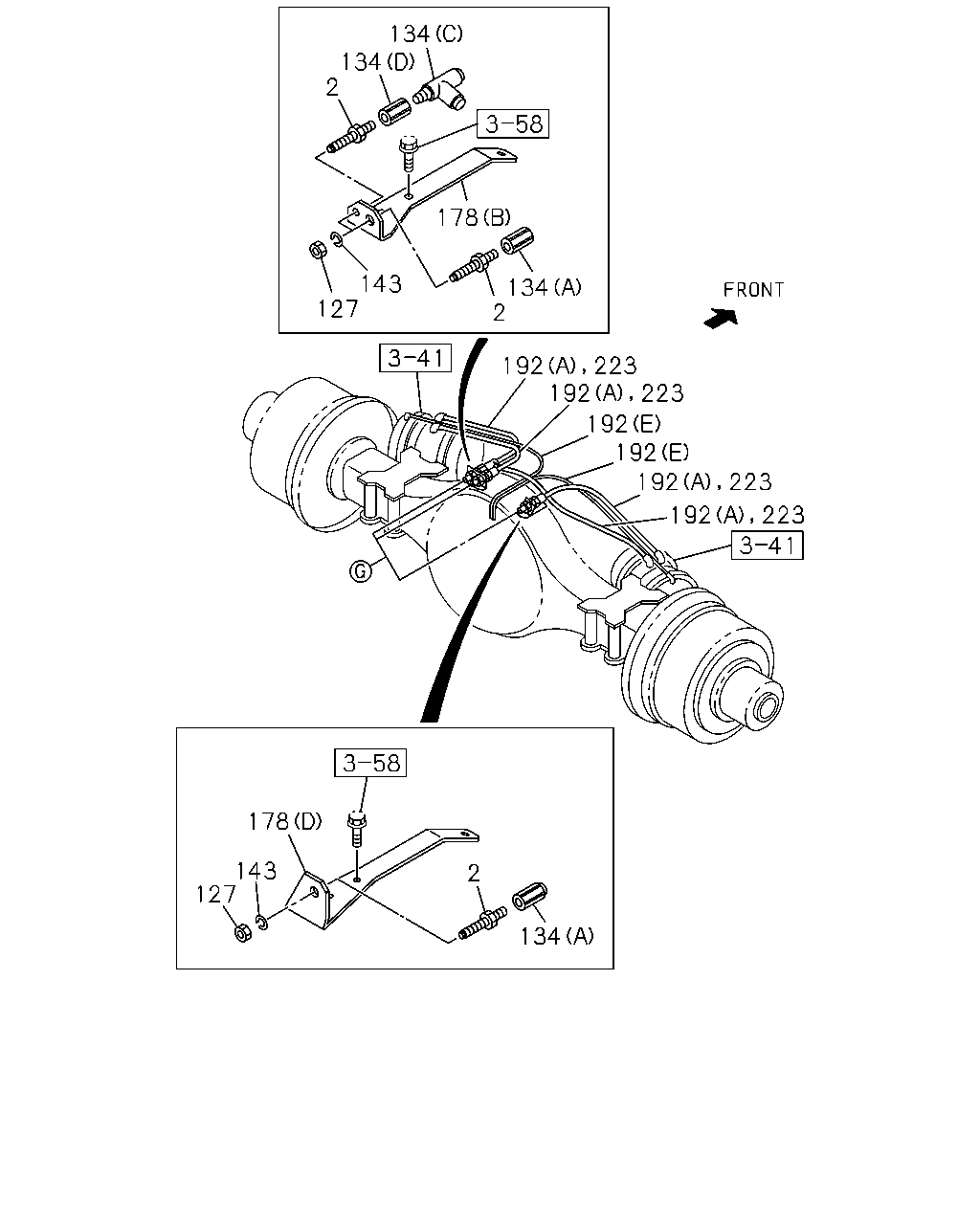

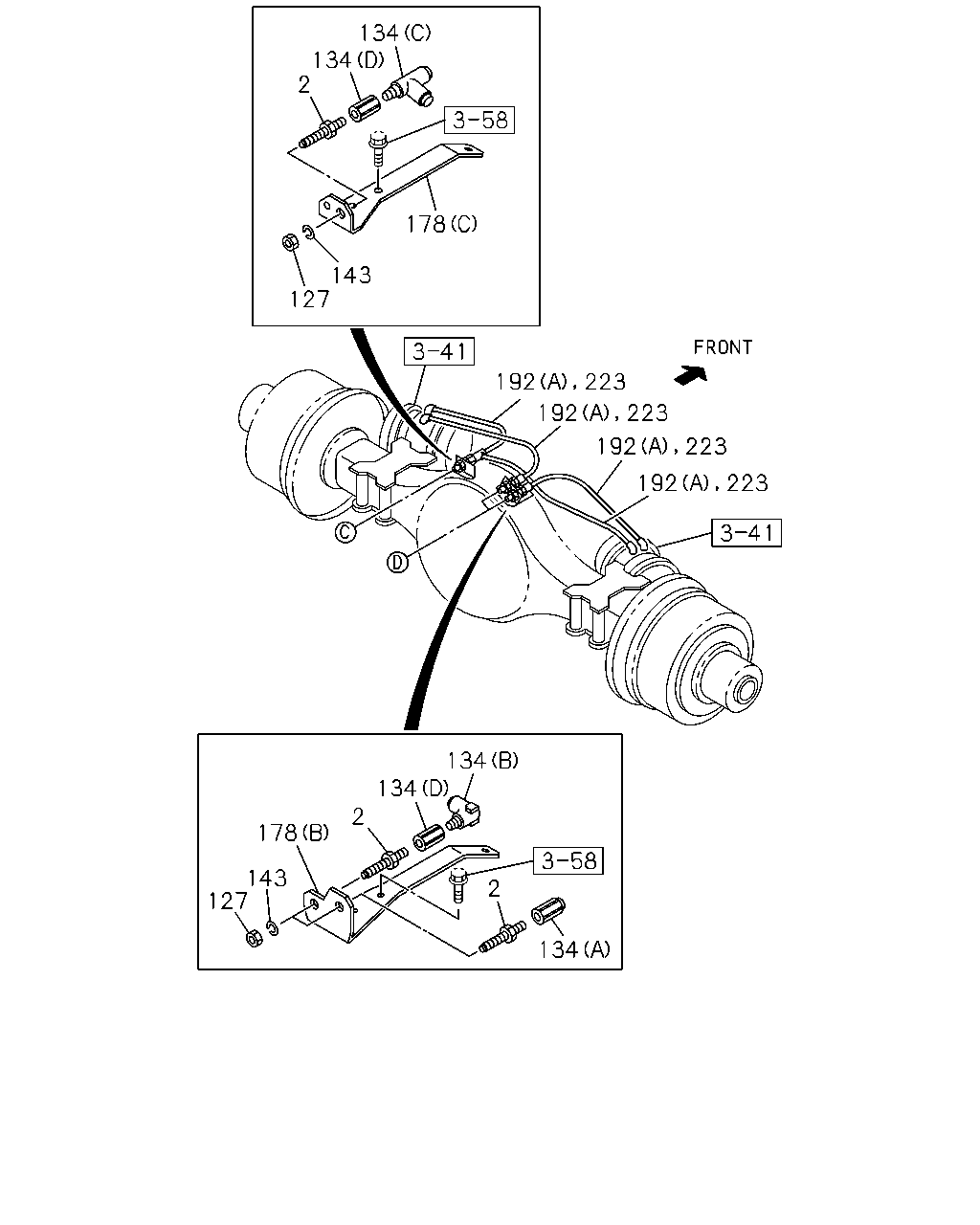

2 134 134 178 134 2 143 127 192 223 192 223 192 192 192 223 192 223 178 134 2 127 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1312-		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	1302-1311	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1302-1311		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	01	1	1312-	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	02	1	1312-	●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1312-	●
127	NUT; UNION M16	0-91111-516-0	03	1	1312-		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	1302-1311	●
127	NUT; UNION M16	0-91111-516-0	03	1	1302-1311		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	01	1	1312-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1302-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1302-1311	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-	●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-		●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-		●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-		●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1302-1311		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1312-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1312-		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	1302-1311	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1302-1311		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	01	1	1312-	●
178	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1302-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1302-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98017-054-1	01	1	1511-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	1302-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●

2 134 134 178 143 127 192 223 192 223 192 223 192 223 127 143 178 2 134 134 134 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1312-		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	1302-1311	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1302-1311		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	01	1	1312-	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	02	1	1312-	●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1312-	●
127	NUT; UNION M16	0-91111-516-0	03	1	1312-		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	1302-1311	●
127	NUT; UNION M16	0-91111-516-0	03	1	1302-1311		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	01	1	1312-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1302-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1302-1311	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-	●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1312-		●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1302-		●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-		●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1302-1311		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1312-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1312-		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	1302-1311	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1302-1311		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	01	1	1312-	●
178	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1302-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1302-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98017-054-1	01	1	1511-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	1302-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●

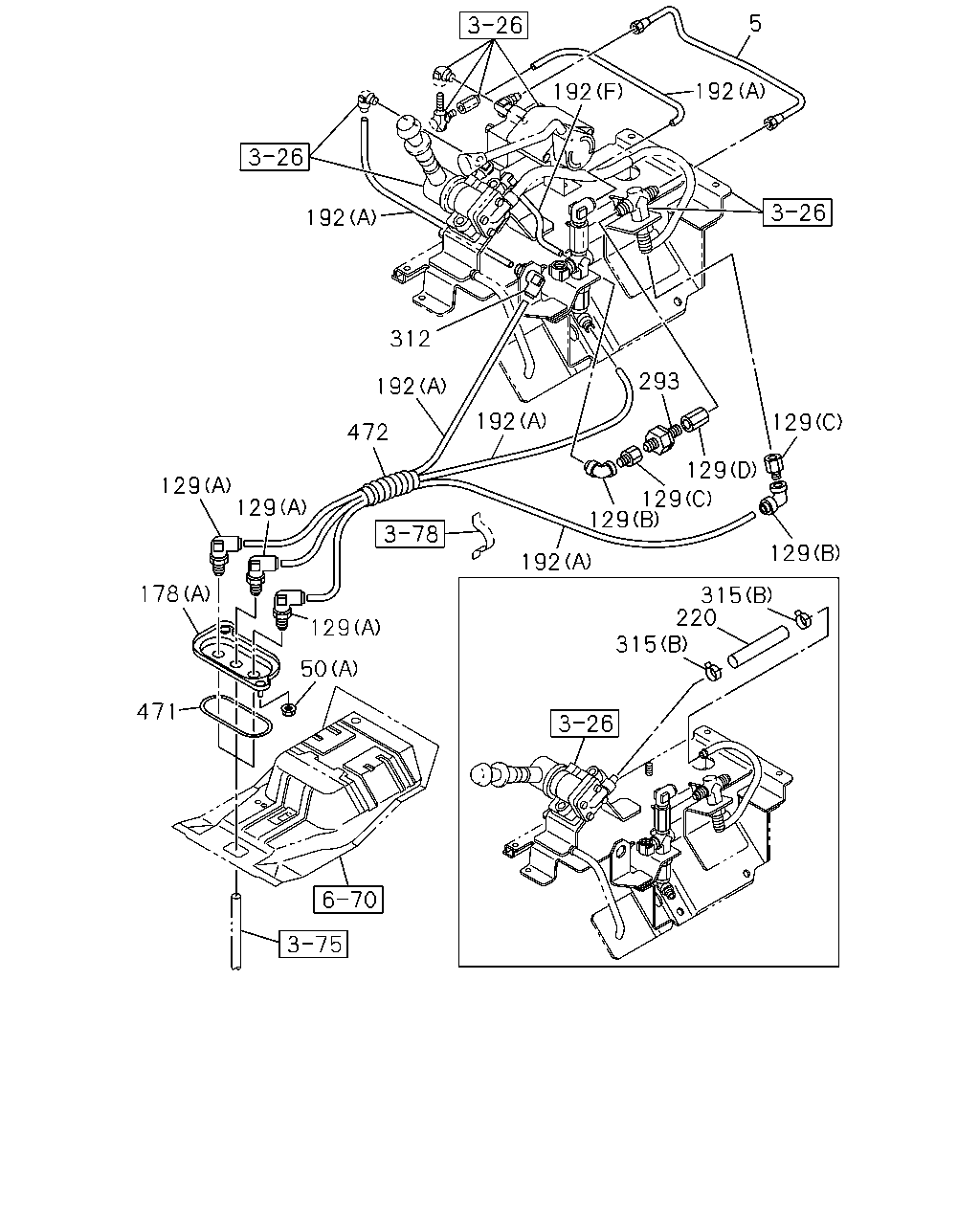

192 312 192 472 192 293 129 129 129 129 129 315 220 315 192 129 50 471 178 129 129 5 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV	8-97610-775-1	01	1	1302-		●
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305		●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510		●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L) (B) M12	0-91111-512-0	03	1	1302-		●
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-	●
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-		●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1302-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1302-		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	02	1	1302-		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	02	1	1302-		●
178	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1302-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1302-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98017-054-1	01	1	1511-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	1302-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1510	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1511-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1305		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1305		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1306-		●
293	VALVE; CHECK	1-48410-479-1	01	1	1302-		●
312	CONNECTOR; SUPPLY DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=14	8-94238-572-0	01	1	1511-	●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505		●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1506-	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1506-		●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1302-		●
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT	1-79738-832-0	01	1	1302-1305		●
471	SEAL; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510	●
471	SEAL; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510	●
471	SEAL; BRKT	1-79738-832-0	01	1	1306-1510		●
471	SEAL; BRKT	1-79738-832-0	01	1	1511-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-1305	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1302-1305		●
472	TUBE; SPUTTER BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1306-1510	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1306-1510		●
472	TUBE; SPUTTER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98067-708-0	01	1	1511-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1511-		●

220 218 315 472 192 192 129 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1302-1305		●
50	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1306-1510		●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1302-1505	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	1506-	●
50	NUT; UNION BRKT 6HK1-TCS ENG(80L) (B) M12	0-91111-512-0	03	1	1302-		●
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-	●
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1302-		●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1302-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1302-		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	02	1	1302-		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	02	1	1302-		●
178	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1302-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1302-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1302-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1302-1510	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98017-054-1	01	1	1511-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	1302-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
218	GROMMET; VINYL HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1302-1510	●
218	GROMMET; VINYL HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) OD=24	9-61166-007-0	01	1	1511-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1510	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1511-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1305		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1302-1305		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1306-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1302-1510	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=14	8-94238-572-0	01	1	1511-	●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1302-1505		●
315	CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	1506-	●
315	CLIP 6HK1-TCS ENG(80L) (A) ID=18 & 18	8-94323-068-0	01	1	1506-		●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1302-		●
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1302-1305	●
471	SEAL; BRKT	1-79738-832-0	01	1	1302-1305		●
471	SEAL; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510	●
471	SEAL; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1306-1510	●
471	SEAL; BRKT	1-79738-832-0	01	1	1306-1510		●
471	SEAL; BRKT	1-79738-832-0	01	1	1511-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1302-1305	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1302-1305		●
472	TUBE; SPUTTER BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1306-1510	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1306-1510		●
472	TUBE; SPUTTER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98067-708-0	01	1	1511-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1511-		●

192 192 192 192 192 225 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505	●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	1302-1505		●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
184	BOLT; TUBE CLIP 6HK1-TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	1506-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RUSSIA EQUIPMENT(B12) (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (D)	8-98308-959-0	01	1	1508-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98308-959-0	01	1	1508-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	1506-	●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1302-1505	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1302-1505		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1506-1507	●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1506-1507		●
192	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RUSSIA EQUIPMENT(B12) (D)	8-98109-842-0	01	1	1508-	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	1302-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1302-		●
192	TUBE; NYLON 6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1302-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1302-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	1302-1505	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	1302-1505		●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	1506-	●
225	NUT; TUBE CLIP 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	1506-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
