8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#113594) — 166 parça

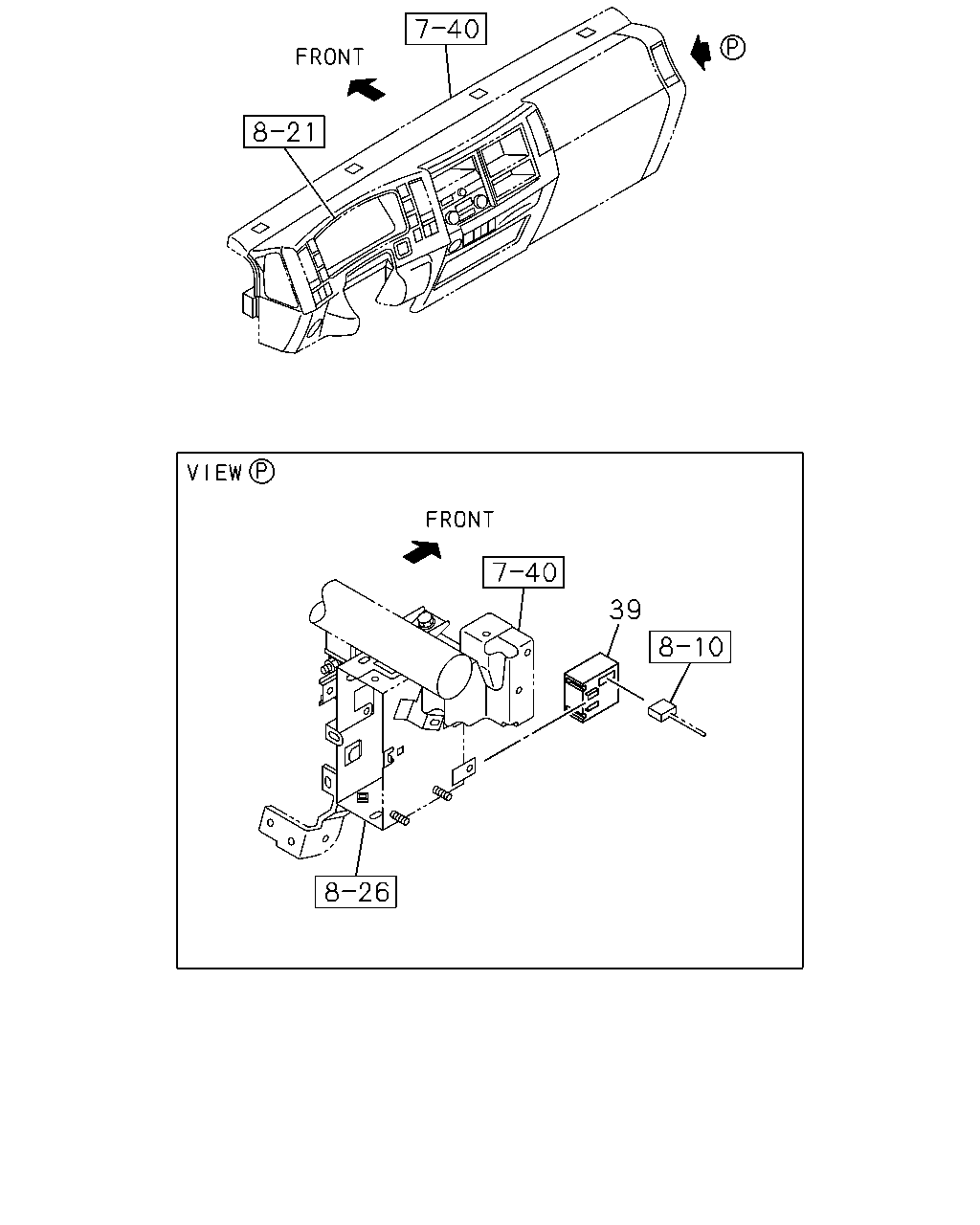

çizim 329986
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1302- ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1302- ●

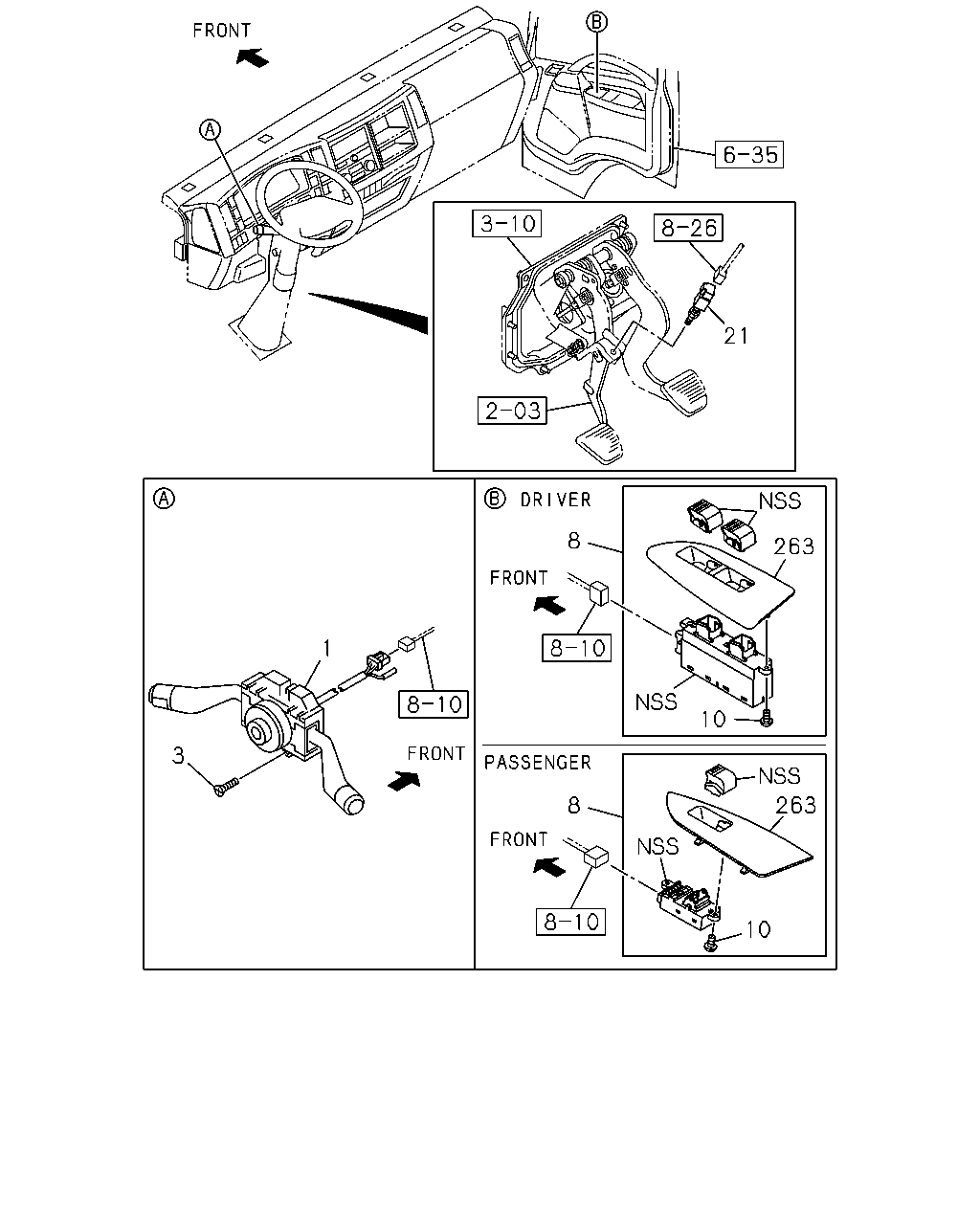

çizim 330057
21 8 1 3 263 10 10 263 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98250-290-0 01 1 1511- ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98330-238-0 01 1 1511- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98243-710-0 01 1 1310-1510 ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AUTO CRUISE<K30> 		8-98243-710-0 01 1 1511- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-717-0 01 1 1310-1510 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98243-717-0 01 1 1511- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98243-718-0 01 1 1310-1510 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-718-0 01 1 1310-1510 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98243-718-0 01 1 1511- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-718-0 01 1 1511- ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-719-0 01 1 1310-1510 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-719-0 01 1 1310-1510 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98243-719-0 01 1 1511- ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-719-0 01 1 1511- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98217-827-0 01 1 1302-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 1302-1310 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98064-898-2 01 1 1302-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98064-897-1 01 1 1302-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98064-897-1 01 1 1302-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98064-766-1 01 1 1302-1310 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1302- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98001-737-2 01 1 1302-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98298-751-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-544-0 01 1 1302-1509 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98316-418-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1302- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1302-1304 ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1305- ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1302-1304 ●
21 SWITCH; CLU 8-97358-248-0 01 1 1302-1304 ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1305- ●
21 SWITCH; CLU 8-97358-248-0 01 1 1305- ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-838-0 01 1 1302- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-843-0 01 1 1302- ● ●

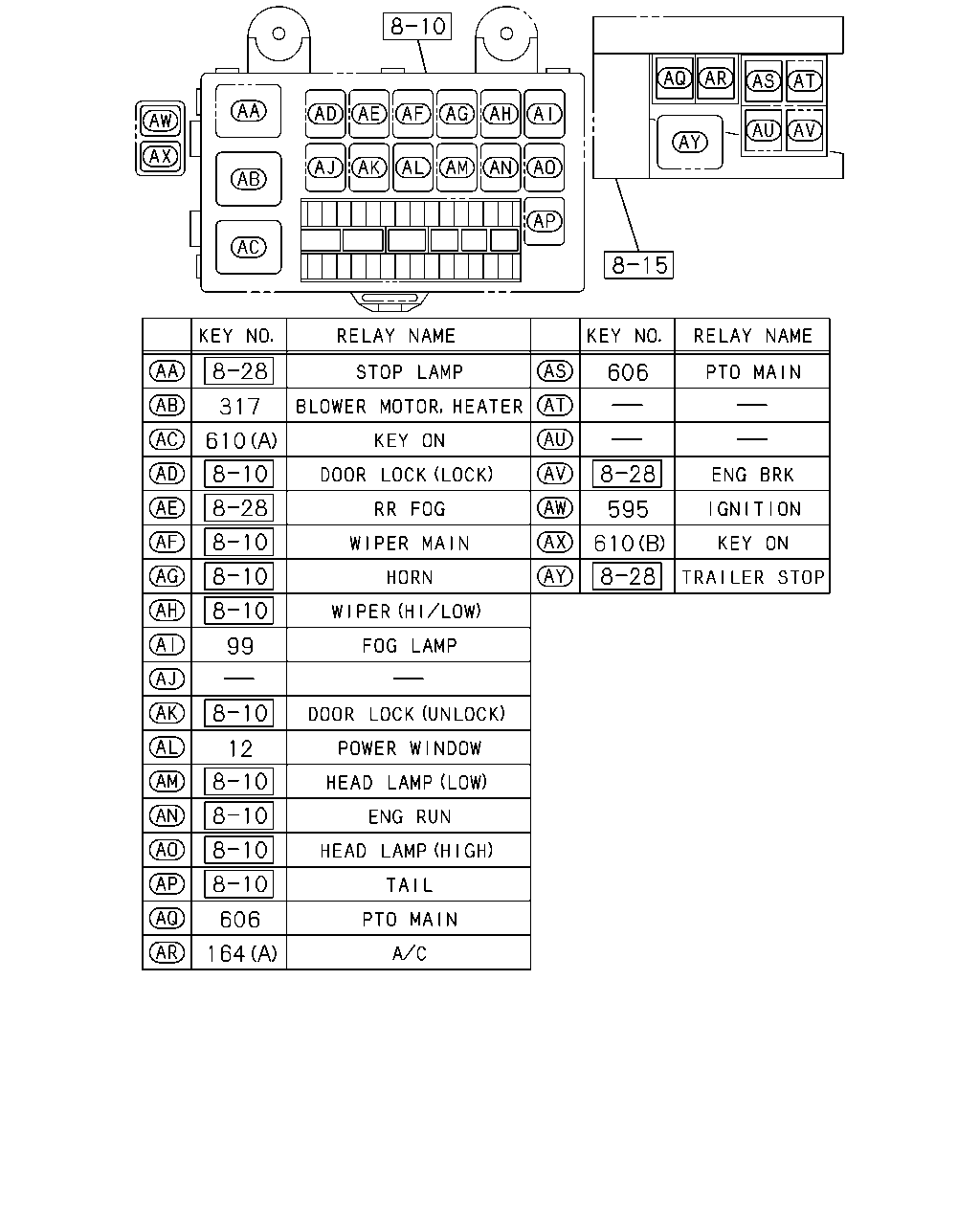

çizim 330162
317 610 99 12 606 164 606 595 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC 		8-97173-035-1 01 1 1302-1304 ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1302-1304 ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC 		8-97173-035-1 01 1 1305- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1305- ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●

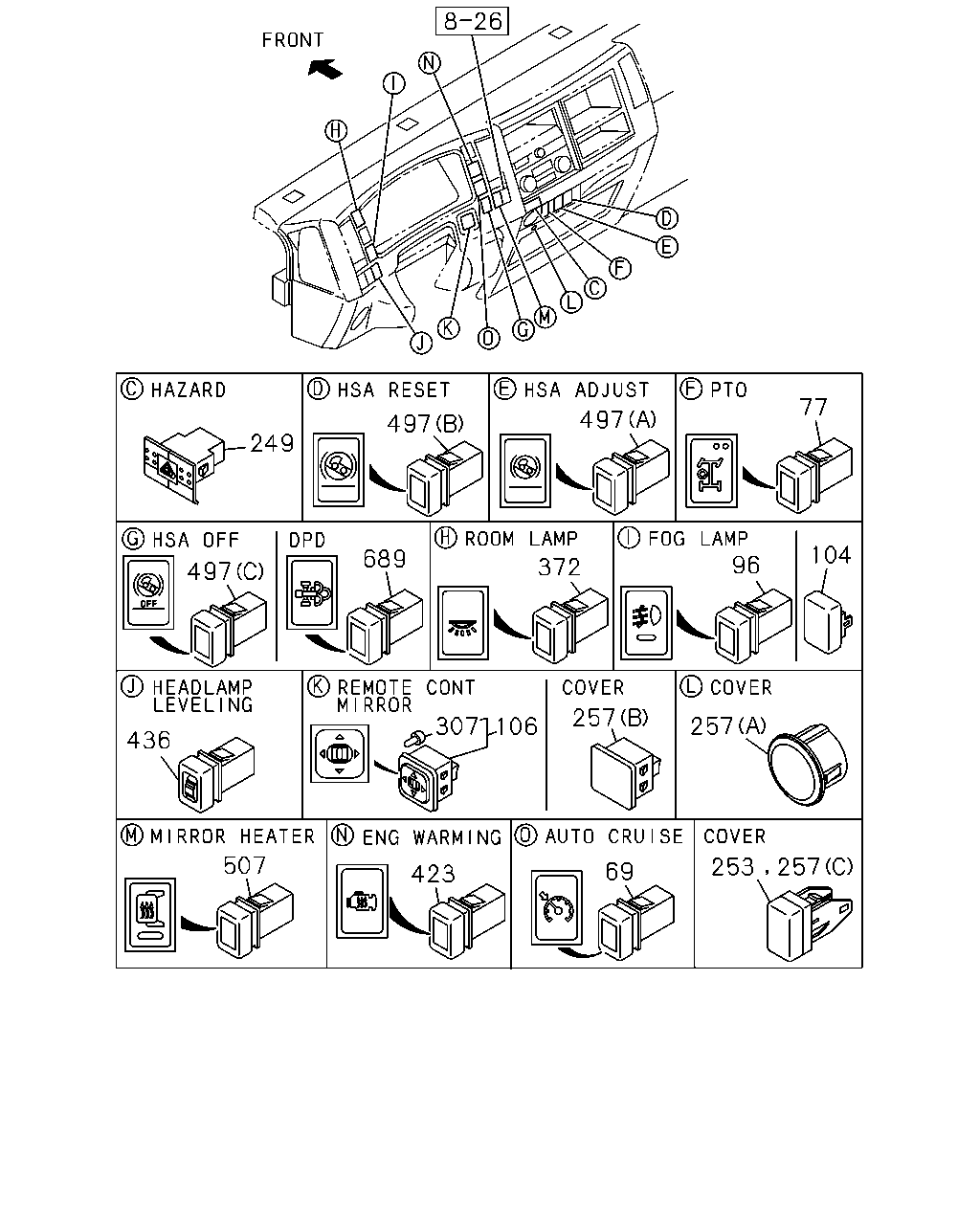

çizim 330246
249 497 497 104 96 372 689 497 436 307 106 257 257 253 257 69 423 507 77
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1511- ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1302-1304 ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1305- ●
96 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1302- ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1302- ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98025-954-1 01 1 1302- ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1302- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1302- ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1302- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1302-1309 ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1310- ● ●
253 COVER; SW HOLE 8-98025-954-1 03 1 1302-1309 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1310-1510 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1310-1510 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1511- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1511- ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 1302- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (D) 		8-98029-917-0 01 1 1302- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1302- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1302- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1302-1511 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 02 1 1302-1511 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1512- ● ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1302- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1302- ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1302- ● ●
423 SWITCH; ENG WARMING
FRIGID ZONE KIT(YL3) 		8-97387-010-2 01 1 1302- ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1302- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF 		8-97386-923-2 01 1 1302-1511 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF 		8-97386-923-2 01 1 1512- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF 		8-97386-923-2 01 1 1512- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 1302- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1302- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1302- ●
689 SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1512- ●

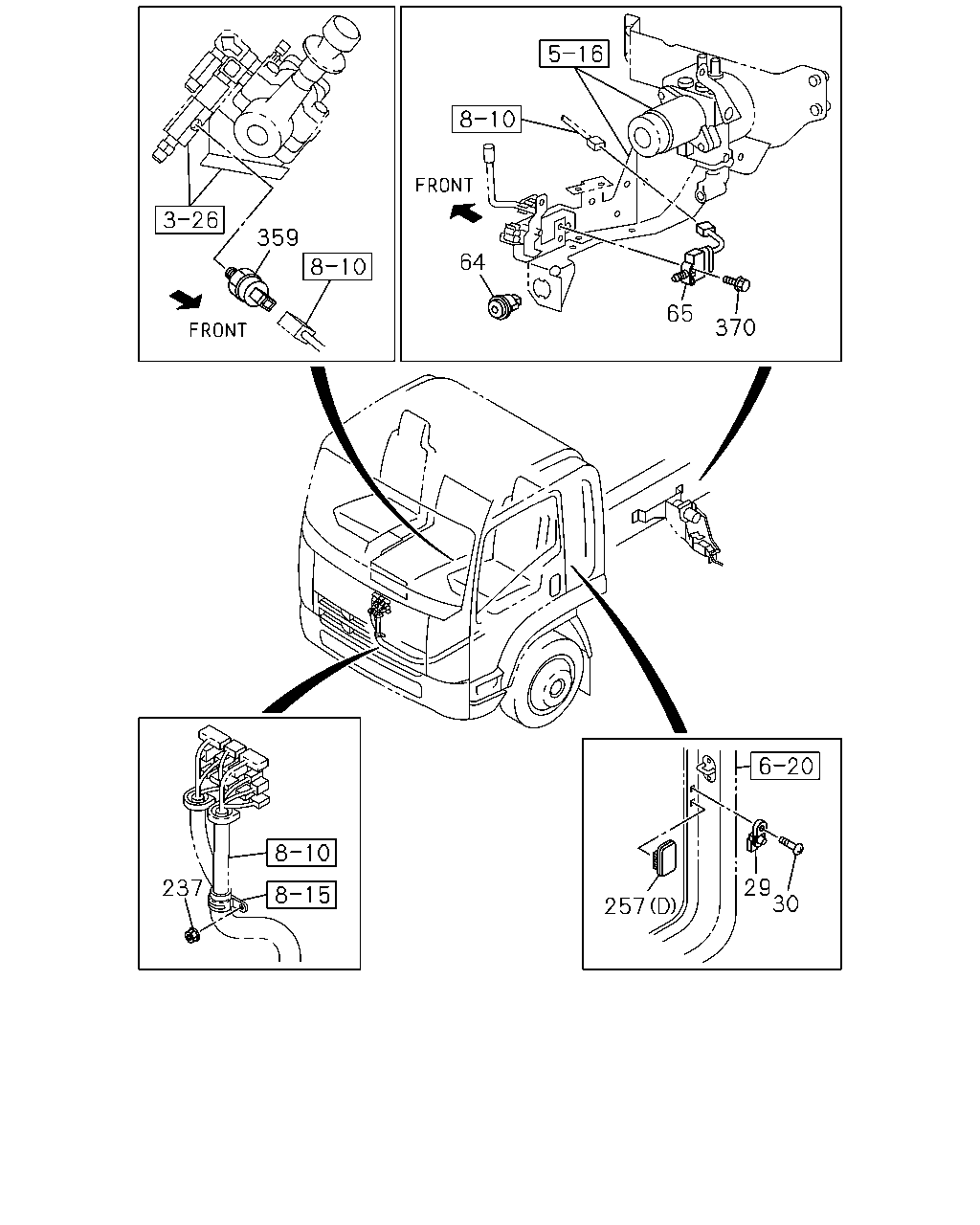

çizim 330386
359 64 65 370 237 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1302- ● ●
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> BLACK 		8-98022-211-0 01 1 1302- ● ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. H.S.A SYSTEM<6EP> BLACK 		8-98022-211-0 01 1 1302- ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1302- ● ●
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> M5X18 		8-98047-201-0 01 1 1302- ● ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. H.S.A SYSTEM<6EP> M5X18 		8-98047-201-0 01 1 1302- ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-173-2 01 1 1302- ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 01 1 1302- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 1302- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (D) 		8-98029-917-0 01 1 1302- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1302- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1302- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1302-1511 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 02 1 1302-1511 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1512- ● ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1302- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1302-1304 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1302-1304 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1305-1511 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1305-1511 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1512- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. FRIGID ZONE KIT(YL3) (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1512- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1512- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1302- ●
370 BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE 		0-28650-630-0 02 1 1302- ●
çizim 332385
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
